15.6 inch Open Frame Touchscreen Monitor

Item No.: DDW-OB15601WTO
Register as member to view prices
MOQ: 10 Sets
Produce Period: around 20 days
Supply Ability: 1000 Sets per Month
Nearest Port: Shenzhen,Guangzhou,Hongkong
Price Terms: EXW,FOB,CIF,DDP,DDU
Payment Terms: Bank T/T transfer,Westernunion
Description

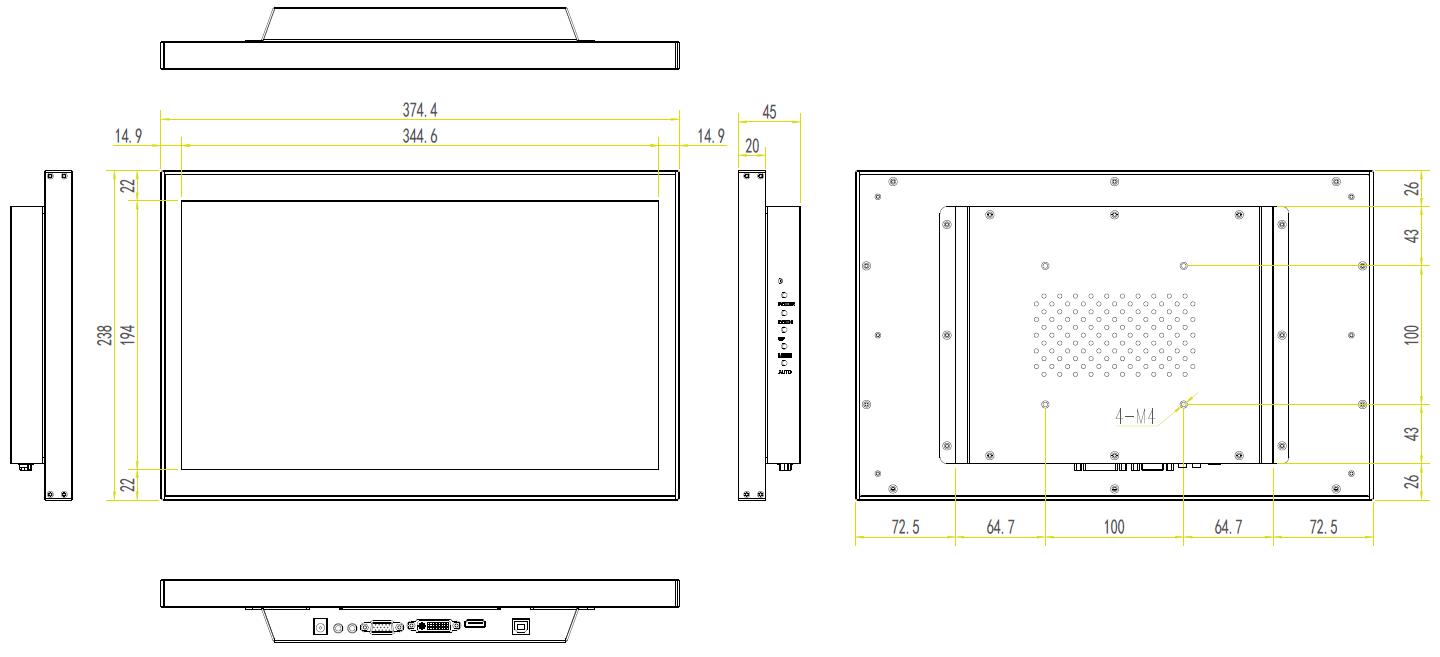

 DDW-OB15601WTO                               DDW-OB15601WTO Sketch


10 Point Touch Screen With AG Touch Display And Bonding


15.6-inch  touch display with AG coating that Can effectively prevent glare. Equipped with dual HDMI interface  DVI interface and VGA interface, it is very convenient for users to choose. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together make the picture more realistic reality。


Optical Bonding

Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent.
Display Characteristics
Diagonal 15.6″, 39.5cm
Panel LCD, Anti-glare coating
Native resolution 1920(H) ×1080(V) (2.1 megapixel Full HD)
Aspect ratio 16:09
Brightness 250 cd/m
LED Life Time 50,000 Hour
Contrast Ratio (Center of screen) 3000:1
Viewable area W x H 334.6(W)x194 (H)
Response Time 18ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color 16.7M colors

Touch
Touch technology projective capacitive
Touch points 10
Touch accuracy ±2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems win7,win10,Linux,android
Through-Glass 3mm
Touch scheme EETI

Interfaces / Connectors / Controls
Analog signal input  VGA x1
Digital signal input HDMI x 1 DVIx1

Features
Extra Anti-glare glass
embeded mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 6H
Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Water tight seal yes(front)

General
OSD languages EN CN
Control buttons Power on startup

Mechanical
Extra Anti-glare glass
embeded mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 6H
Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Water tight seal yes(front)



Power Management
Power supply unit External
Power supply DC 12V
Output power 36W
Rated output current 3A
Installation Method
VESA 100mm*100mm Mounted at side
Dimensions / Weight

Product dimensions W x H x D 374.4 x238 x 45mm
Box dimensions W x H x D 450×360 x 60mm
Weight (without box) 4.6kkg
Weight (with box) 5kg
Product country origin China
