DCOB SERIES
アプリケーション
Ultra-Slim Cabinet
Lightweight Die-Cast Aluminum
Large Module Design
フロントメンテナンス設計
プロフェッショナルな映像表現
広い視野角
High Uniformity Display
Low Power Consumption
7680Hzの超高リフレッシュレート

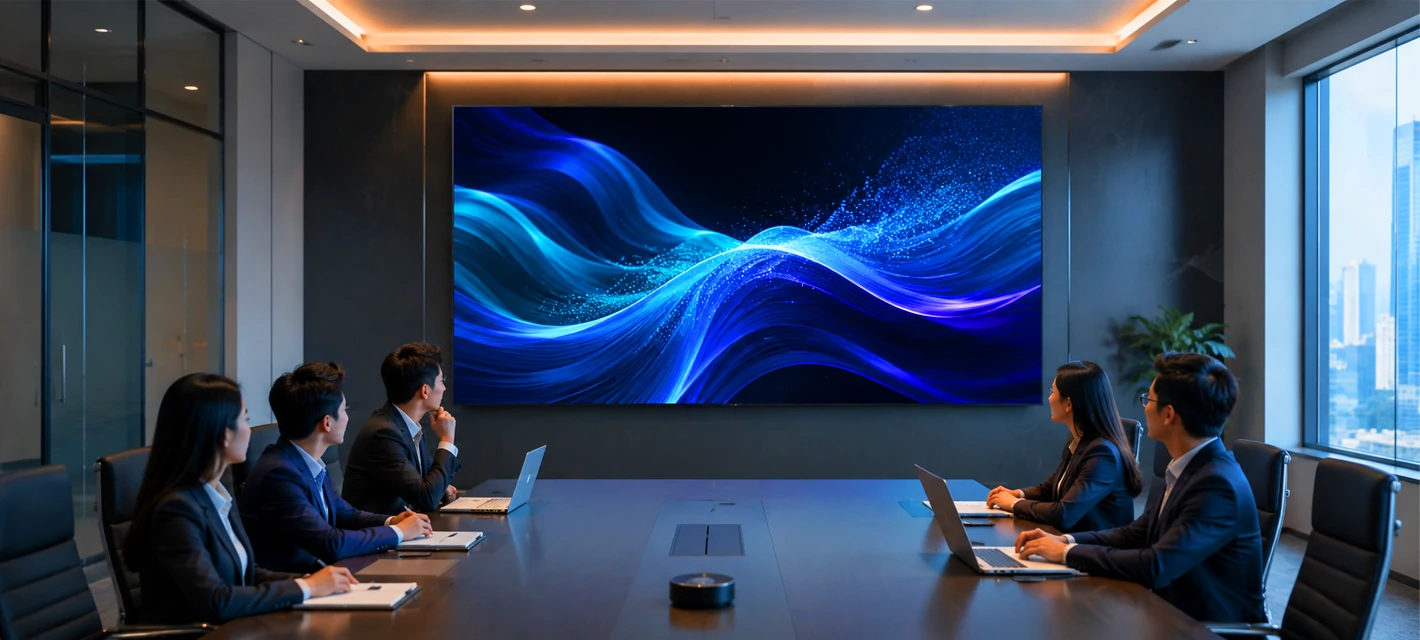

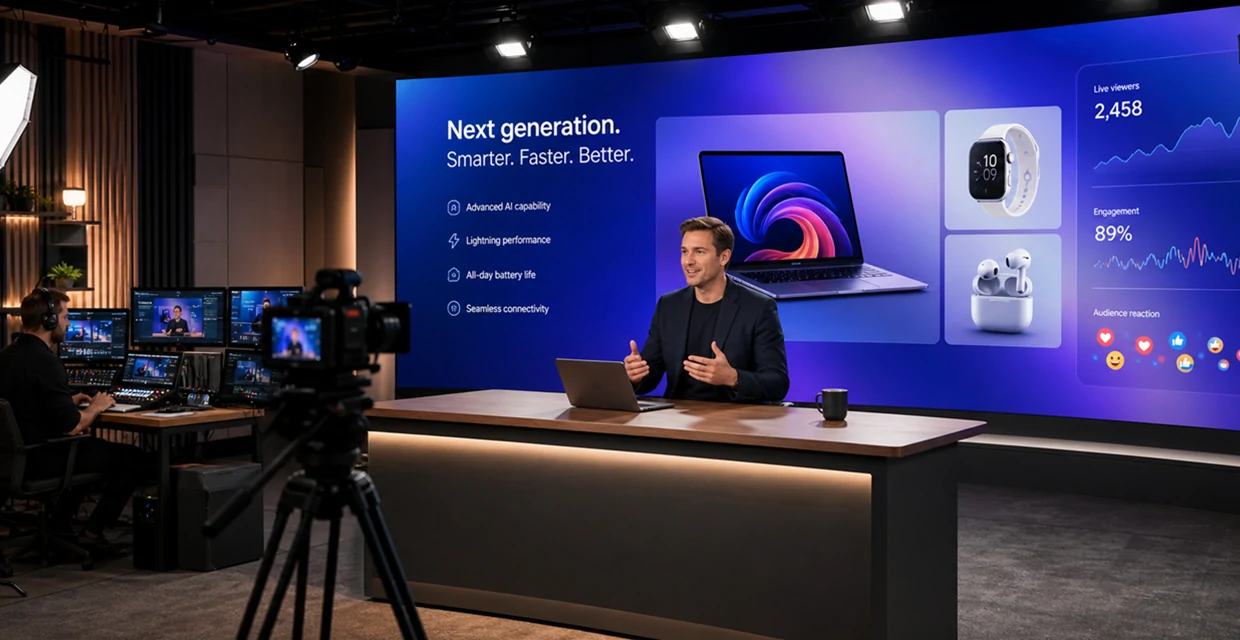

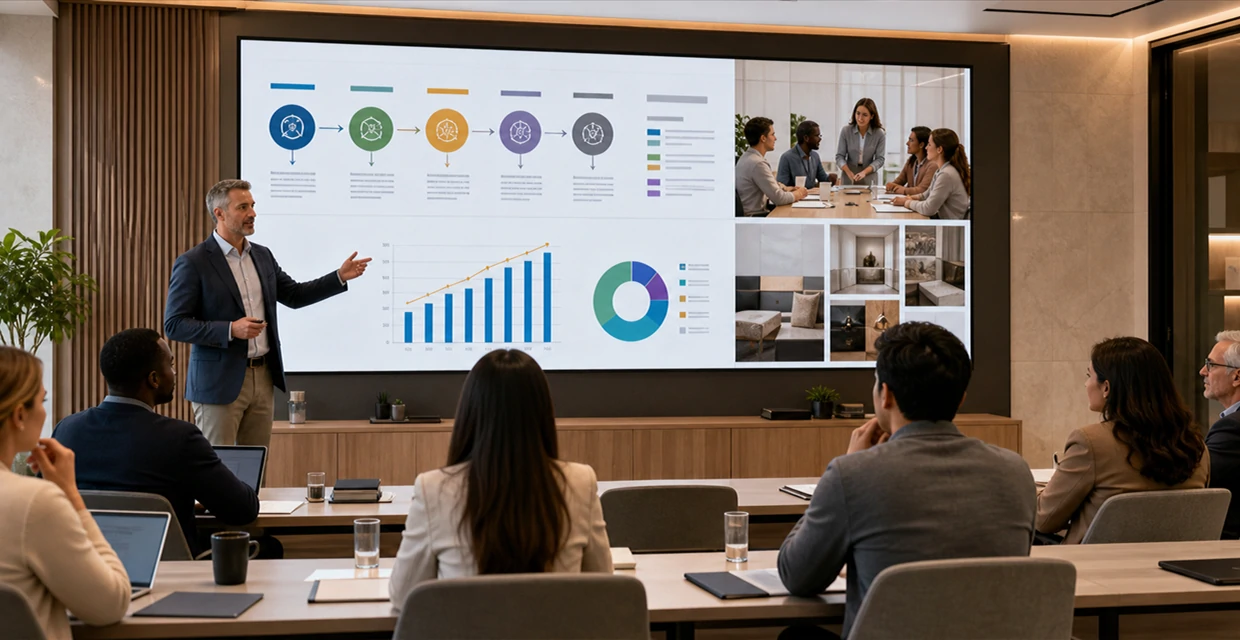

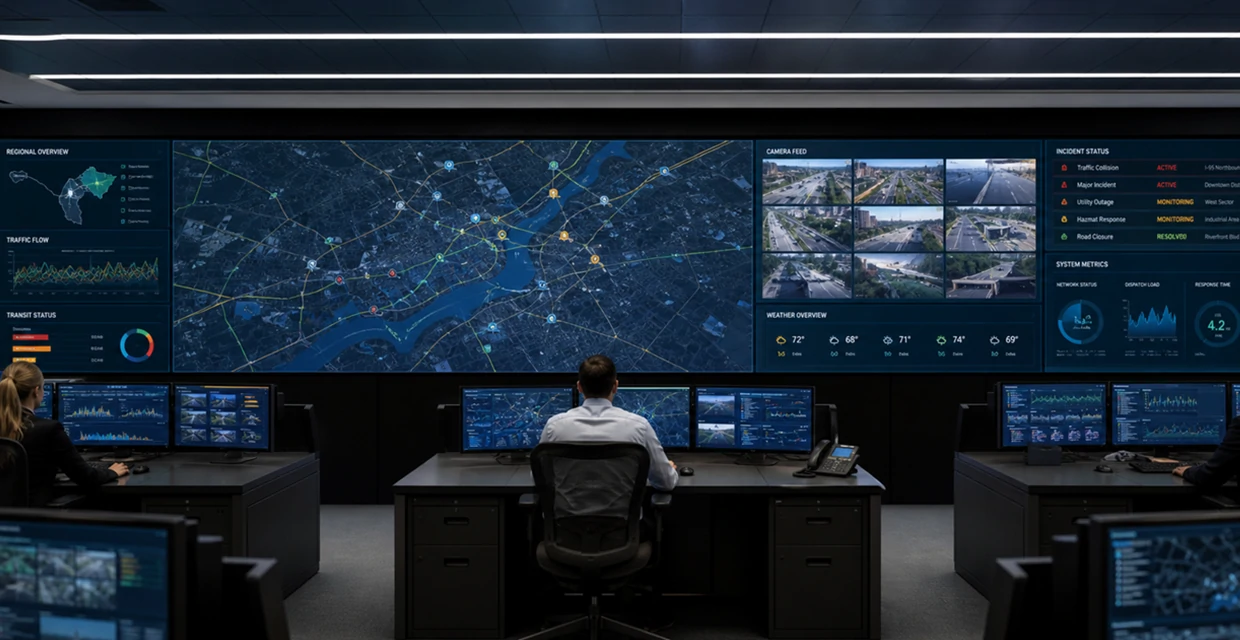

With a 7680Hzのリフレッシュレート, DCOB Series delivers smooth and stable visuals while reducing flicker, scan lines, and moiré during camera shooting. It is ideal for meeting rooms, broadcast spaces, command centers, and premium commercial display environments.
Common Cathode / Common Anode Options
DCOB Series supports both common cathode and common anode energy-saving solutions, allowing flexible configuration based on project brightness, power consumption, heat control, and budget requirements.

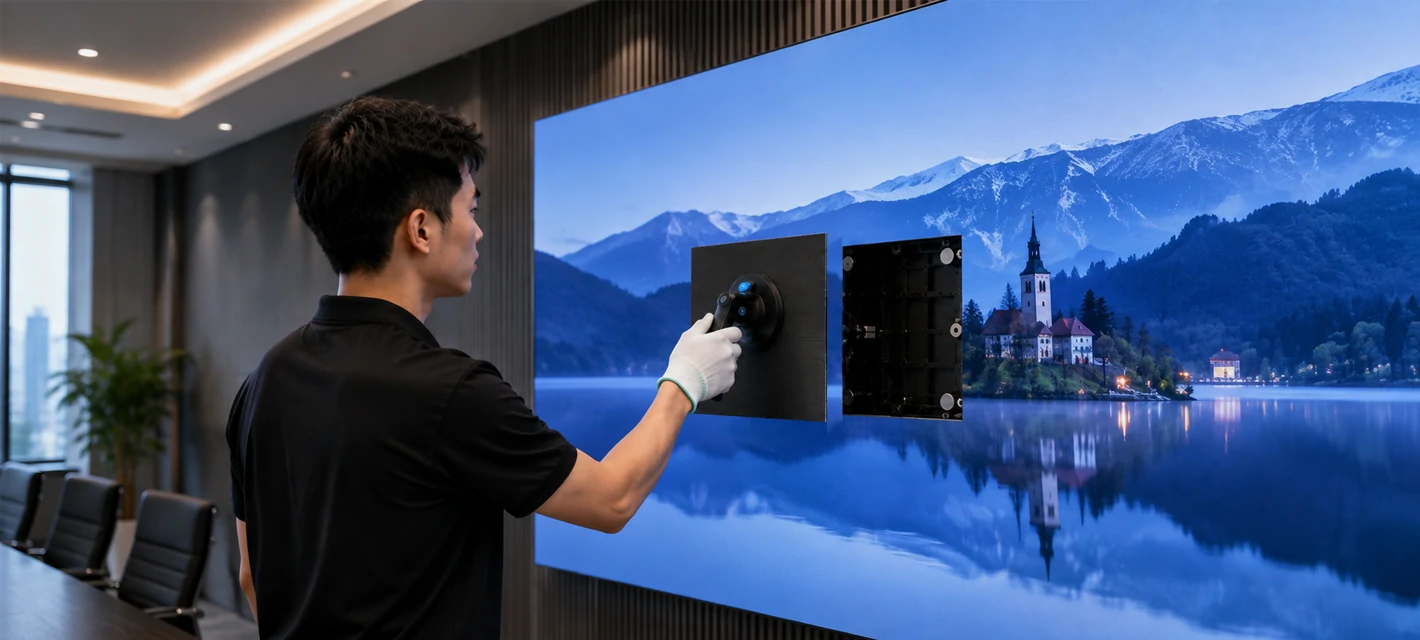

フルフロントメンテナンス
All key components, including modules, power supply, and receiving card, can be maintained from the front, making it ideal for wall-mounted and space-limited indoor installations.

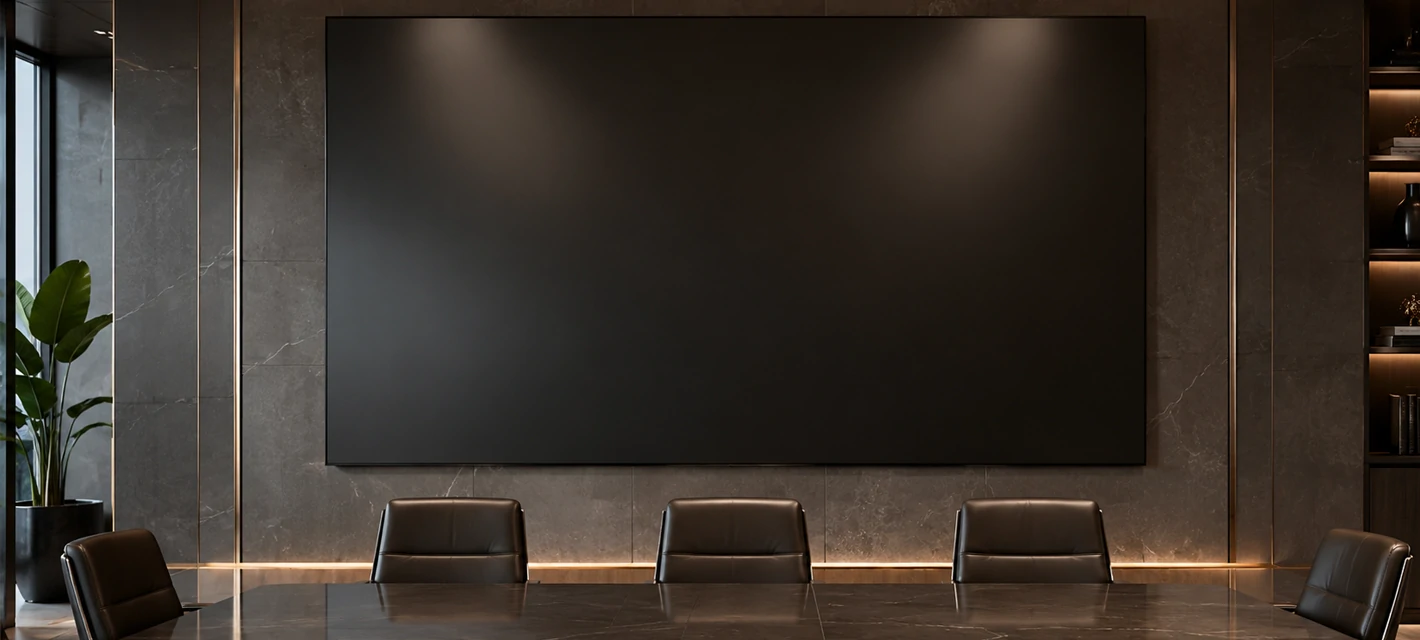

High Display Uniformity
DCOB Series offers excellent black consistency and brightness-color uniformity, reducing color blocks, brightness differences, and splicing inconsistency for a cleaner and more seamless image.

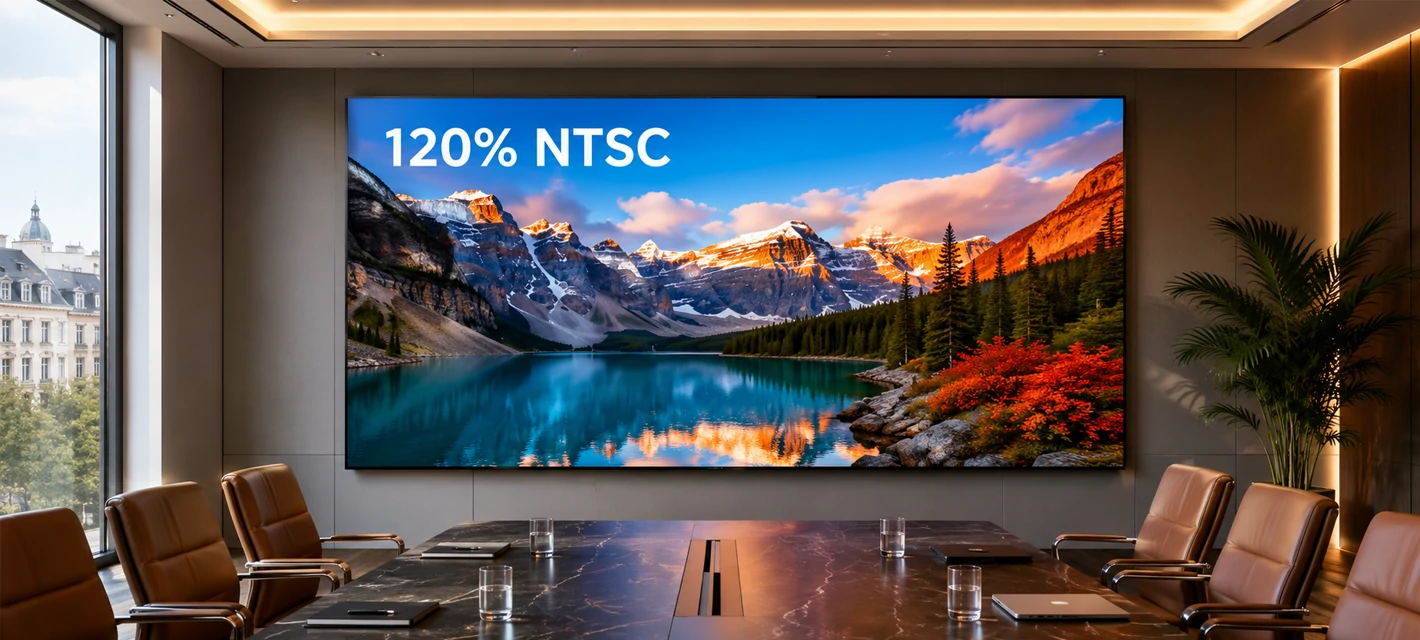

120% NTSC Wide Color Gamut

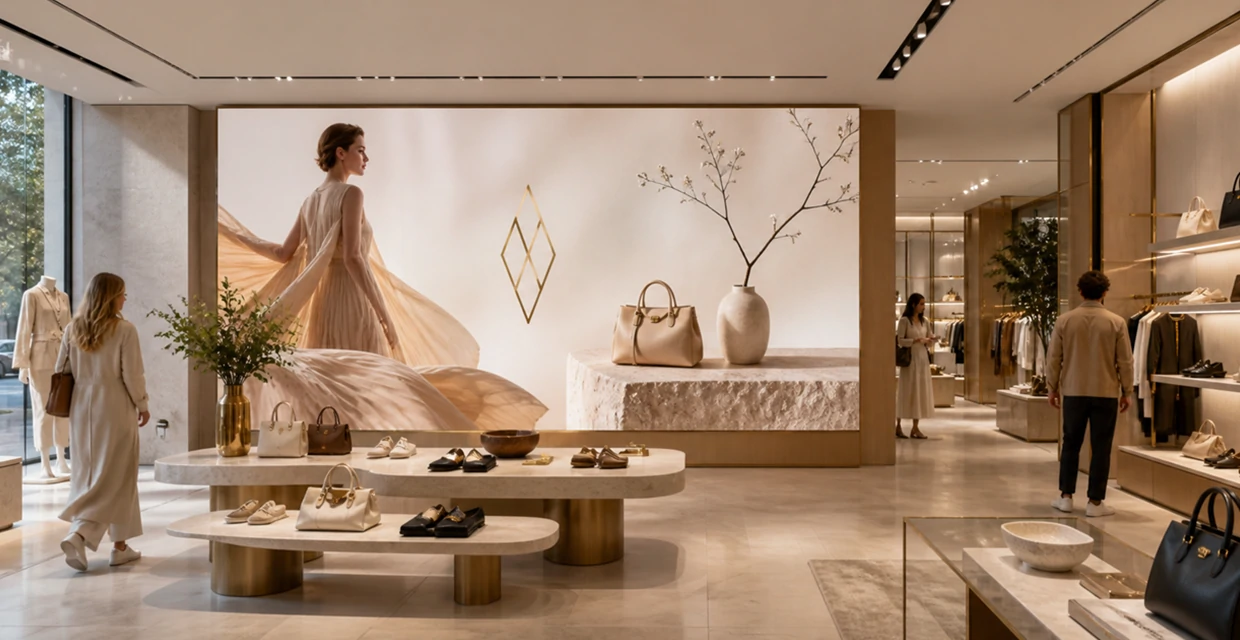

ザ 120% NTSC wide color gamut delivers richer and more vivid color performance, making it suitable for brand presentation, product launches, high-end showrooms, and premium commercial display spaces.
ADVANCED MINI COB. PREMIUM VISUAL PERFORMANCE.
DCOB Series supports common cathode and common anode energy-saving solutions, with power consumption below 300W/㎡ and surface temperature ≤40℃. Combined with IP65 surface protection, it ensures stable, durable, and efficient performance for long-term indoor commercial applications.

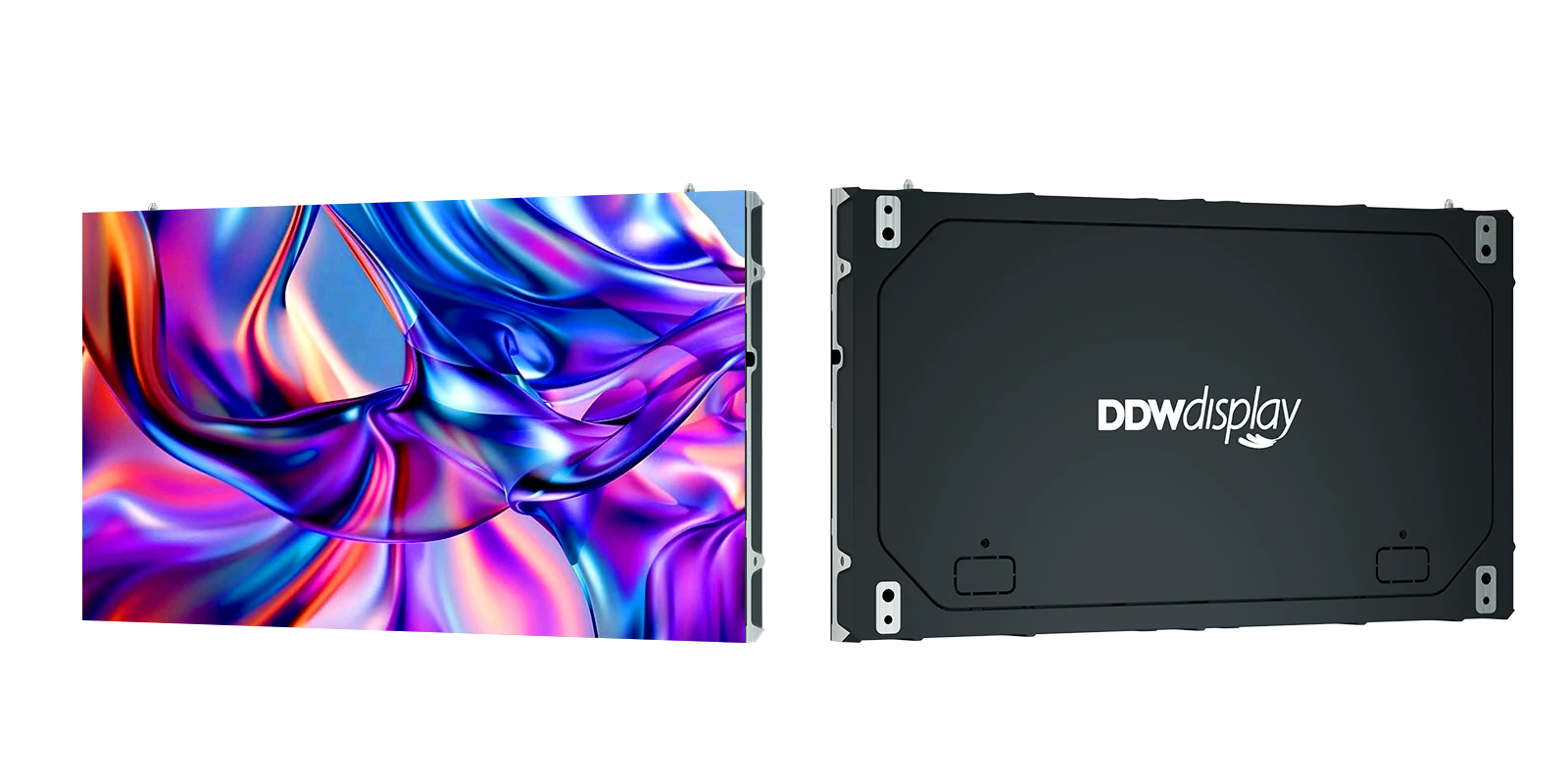

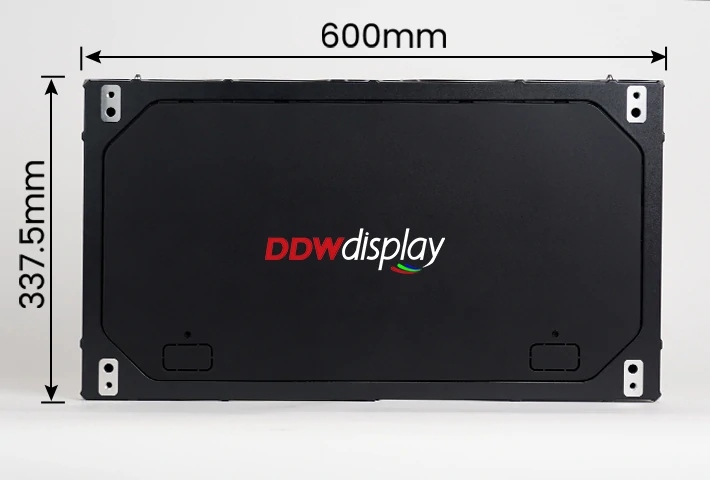

600×337.5mm Standard Cabinet Design
DCOB Series adopts a 600×337.5mm indoor LED cabinet, designed for standard 16:9 display ratios and easy splicing for Full HD, 2K, 4K, and larger display systems.

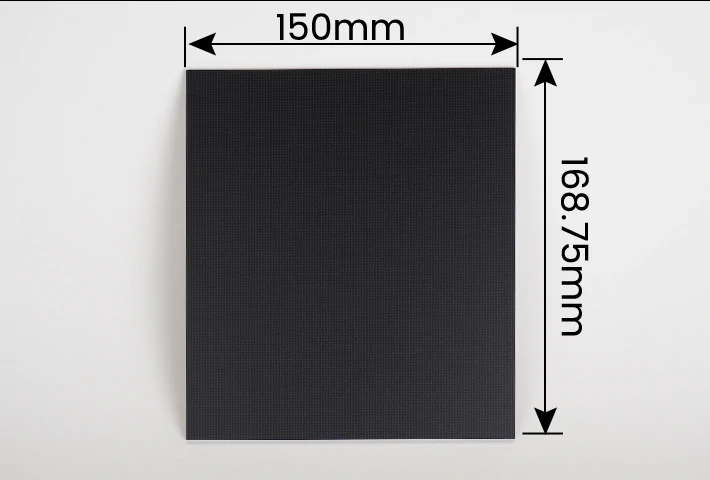

150×168.75mm
Full pixel pitch coverage for different resolution and viewing distance needs.

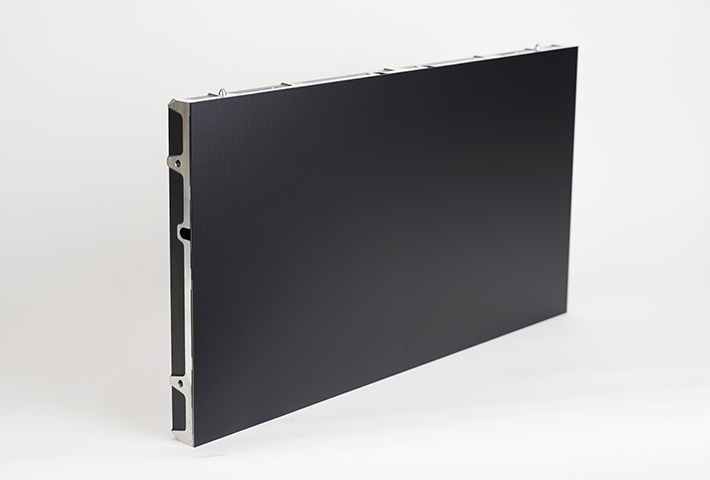

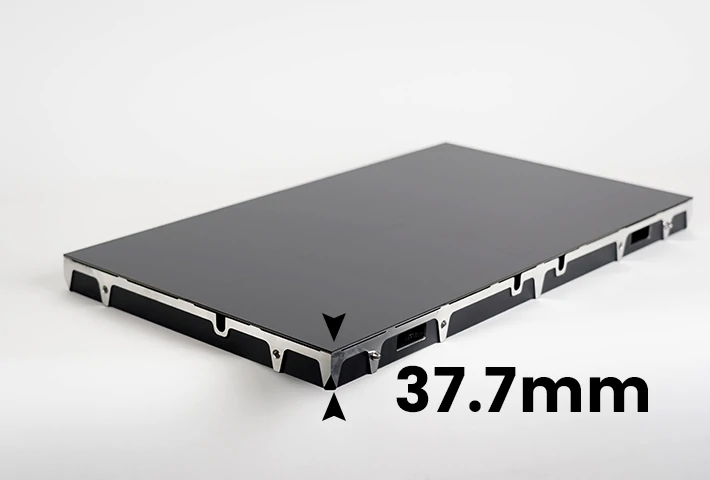

37.7mm Ultra-Slim Cabinet
With only 37.7mm cabinet depth, the screen delivers a slim, clean, and space-saving installation effect for meeting rooms, control rooms, showrooms, and high-end indoor environments.

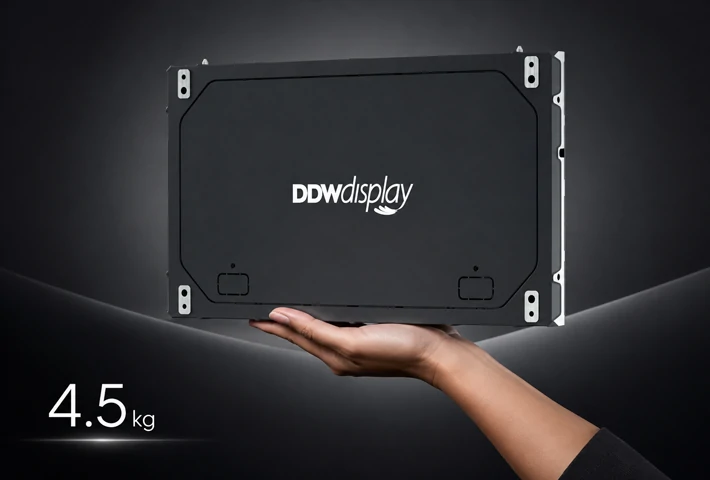

4.5kg Lightweight Die-Cast Aluminum Cabinet
The cabinet weighs only 4.5kg and uses aluminum die-casting material, offering high precision, better flatness, excellent strength, and easier installation.
IP65表面保護
The COB surface provides IP65 protection, improving resistance to dust, moisture, impact, and daily handling. This helps reduce maintenance risks during transportation, installation, and long-term use.
製品パラメータ
フォームをクリックして長押しすると、左または右にスワイプできます。.
| Energy saving mode | 共通陽極 | Common Cathode/Linyang Energy Saving | ||||||
| ピクセルピッチ（mm） | 0. 9375 | 1.25 | 1.56 | 1.857 | 0.78 | 0.93 | 1.25 | 1.56 |
| Resolution (WxH) | 640X360 | 480x270 | 384x216 | 320x180 | 768x432 | 640x360 | 480x270 | 384x216 |
| Dimensions (mm) | 600x337.5x37.7 | |||||||
| 体重（kg） | 4.5 | |||||||
| Flatness (mm) | 0.15 | |||||||
| Brightness (cd/m²) | 600-1000 | |||||||
| Color coordinates (CIE 1931) | Cx=0.285 Cy=0.300 | |||||||
| 色温度（K） | 3000~10000K (adjustable) | |||||||
| NTSC color gamut (CIE 1931) | 105% | |||||||
| Brightness viewing angle (°H/V) | 165/165 | |||||||
| 輝度均一性 | 97% | |||||||
| Maximum power (W/m²) | 415 | 395 | 375 | 280 | 360 | 475 | 370 | 420 |
| Average power (W/m²) | 139 | 132 | 127 | 95 | 210 | 160 | 120 | 140 |
| Input voltage (AC) | 100V-240V | |||||||
| コントラスト比 | 5000:1 | |||||||
| Scans | 54 | 60 | 54 | 45 | 64 | 40 | 60 | 36 |
| フレームレート（Hz） | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Parameter grayscale (Bit) | 13-16 | |||||||
| リフレッシュレート（Hz） | 3840~7680 | |||||||
| IP protection level | Surface module IP65 | |||||||
| Correction technology | support | |||||||
| Flash storage function | support | |||||||
| 認証 | CCC、 Energy saving CE、CB、FCC、ETL | |||||||
