DIP series
DIP Series Outdoor Transparent LED Screen
Key Product Features
High Transparency
8000–10000nits Brightness
IP67 Waterproof
3840Hz Refresh Rate
Lightweight Cabinet
Multiple Pixel Pitches
Front & Rear Maintenance
Low Power Consumption
Application Scenario
DIP series
DIP Outdoor Transparent LED Screen
DIP Outdoor Transparent LED Screen
Brand-new technology
cabinet dimensions
1500x500mm
Easy and fast installation
The quick-lock structure supports tool-free installation, disassembly, and maintenance, improving on-site installation efficiency and reducing service time.
DIP Transparent LED Screen

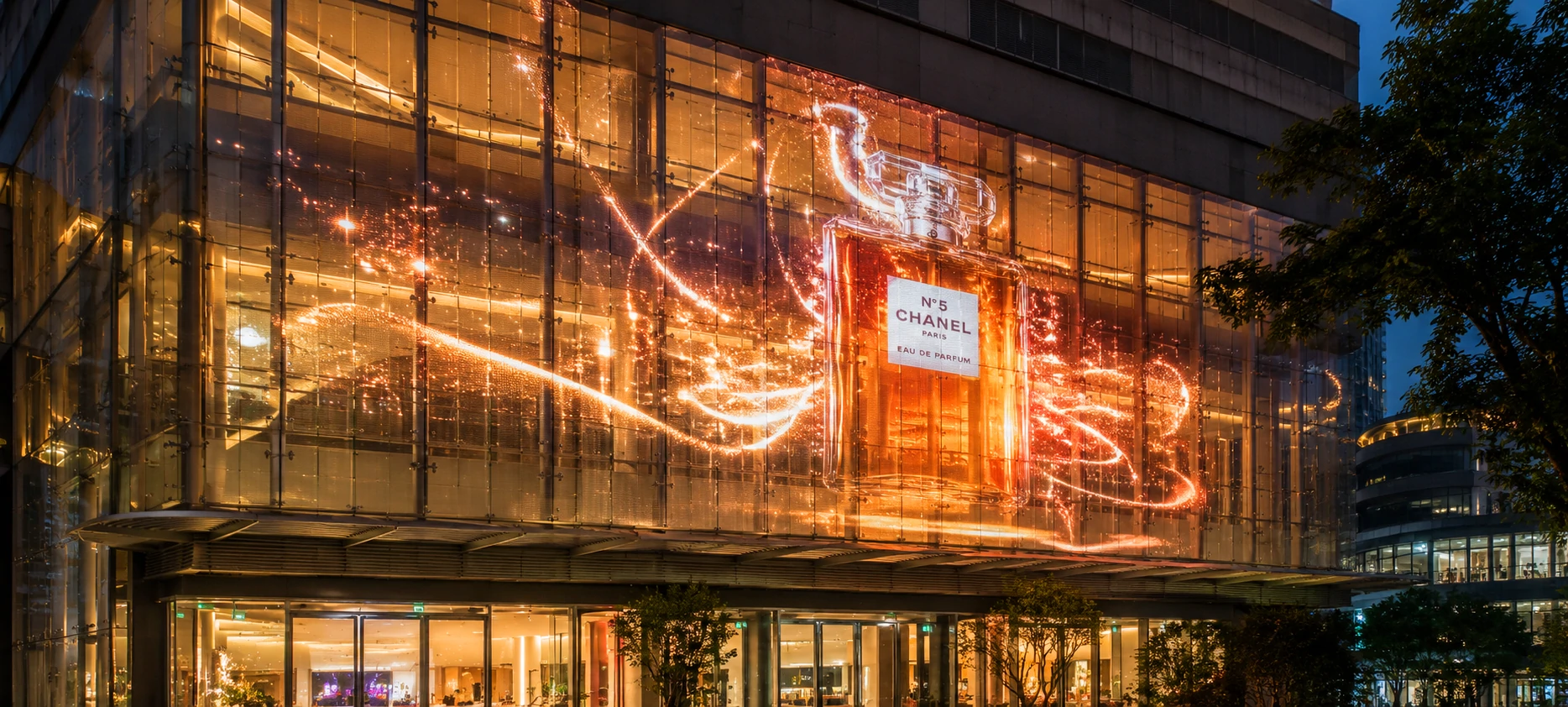

DIP outdoor transparent LED technology delivers high brightness, strong weather resistance, and excellent transparency for glass facades, building media, and large-scale outdoor advertising.
HIGH TRANSPARENCY
Transparent Rate Up to 35-59% or more, do not affect glass lighting
High Brightness
Equipped with high-brightness DIP LEDs, the screen remains clear and visible even in strong outdoor sunlight, making it suitable for plazas, shopping malls, commercial streets, and building advertising.
Lightweight Design
Lightweight Design · Easy Handling · Faster Installation
IP66 Waterproof
With up to IP66 protection, it can withstand rain, dust, humidity, heat, and other complex outdoor environments.
-20℃ ~ +50℃ Outdoor Operation
Reliable performance for harsh outdoor environments.
3840Hz High Refresh Rate
Reduces flicker, scan lines, and moiré for smoother, clearer outdoor advertising visuals.
High-Brightness DIP LED Technology
Stronger Visibility · Better Weather Resistance · Reliable Outdoor Performance
Product Parameter
Click and long-press on the form to swipe left or right.
| Pixel pitch (mm) | P2.5 | P3.91 | P6.25 |
| Pixel density (dot/ m²) | 160000 | 65536 | 25600 |
| sensory transparency | 85% | 92% | 95% |
| Display area ofthe whole machine (mm(w*h) | 125x1000 | 250x1000/250x1175 | 250x1175/250x1475 |
| Overall machine dimensions (mm) (w*h) | 125x1025/125x1200 /125x1500 /250x1025/250x1197/ 250x1200/250x1500/250x2000 | ||
| Overall machine resolution (dot) | 50x400 | 64x256/64x300 | 40x188/40x236 |
| Weight (Kg/SET) | 6.5 | 6 | 5 |
| Brightness (cd/ m²) | 1200 | ≥4500 | ≥5500 |
| scanning method | Single point single control, static drive | ||
| Package form | Lamp driver integrated package | ||
| Lamp bead working life | ≥ 100,000 hours | ||
| Grayscale | 16bit | ||
| Maximum power consumption (W/ m²) | 684 | ||
| Average power consumption (W/ m²) | 244 | 274 | |
| LED control system | synchronous/asynchronous | ||
| Input working voltage | AC100~240V 50/60Hz | ||
| Module working voltage | DC4.2V ±0.2V | ||
| Operating temperature | 0~50℃ | ||
| Working humidity | 20%RH ~ 85%RH, no condensation | ||
| storage temperature | -20℃ ~60℃ | ||
| Storage humidity | 10%RH ~ 85%RH, no condensation | ||
| Cabinet material | / | ||
| Installation and use environment | indoor | ||
| Packing and shipping | Pearl cotton+wooden box/aviation | ||
