FA SERIES

3840-7680 هرتز، معدل تحديث عالٍ

Provides smoother and more stable visuals, helping reduce flicker, scan lines, and moiré during filming or live broadcasting.
جاري تحميل الفيديو...

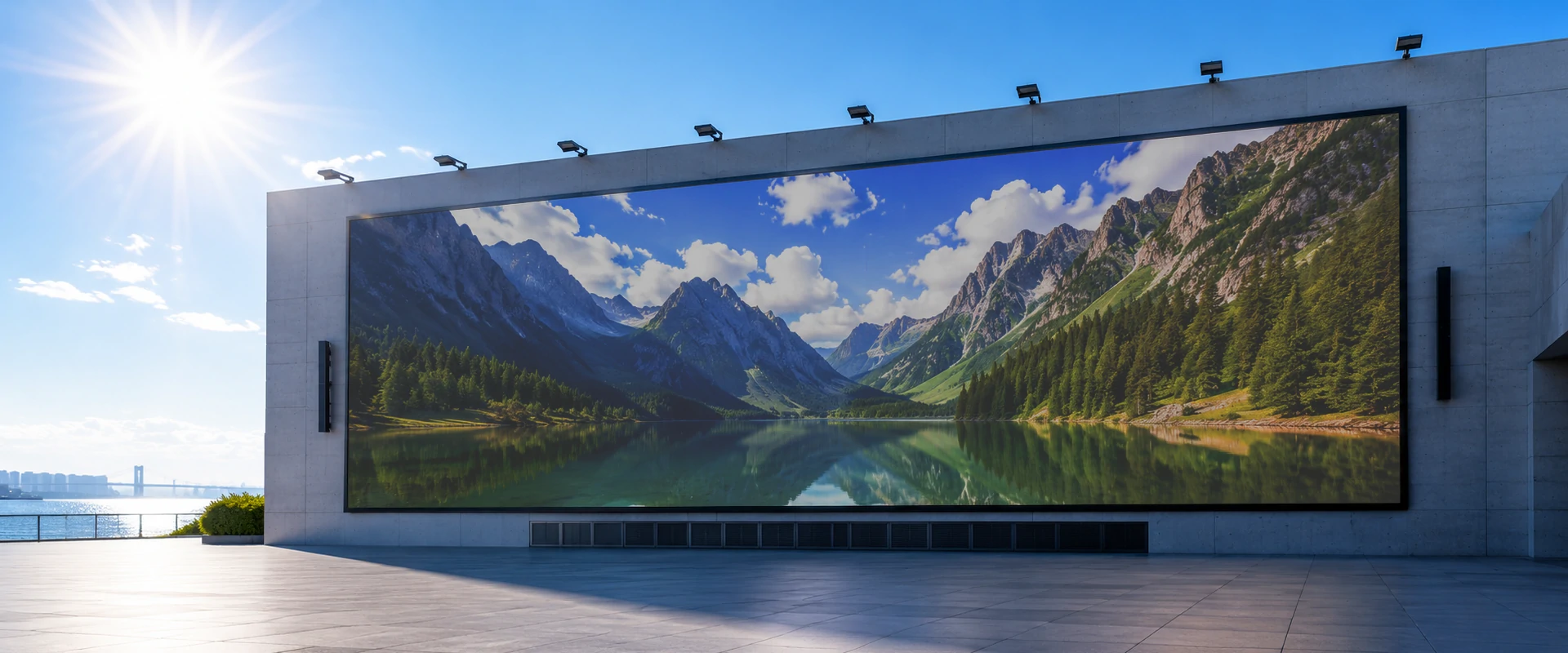

4,500 nits

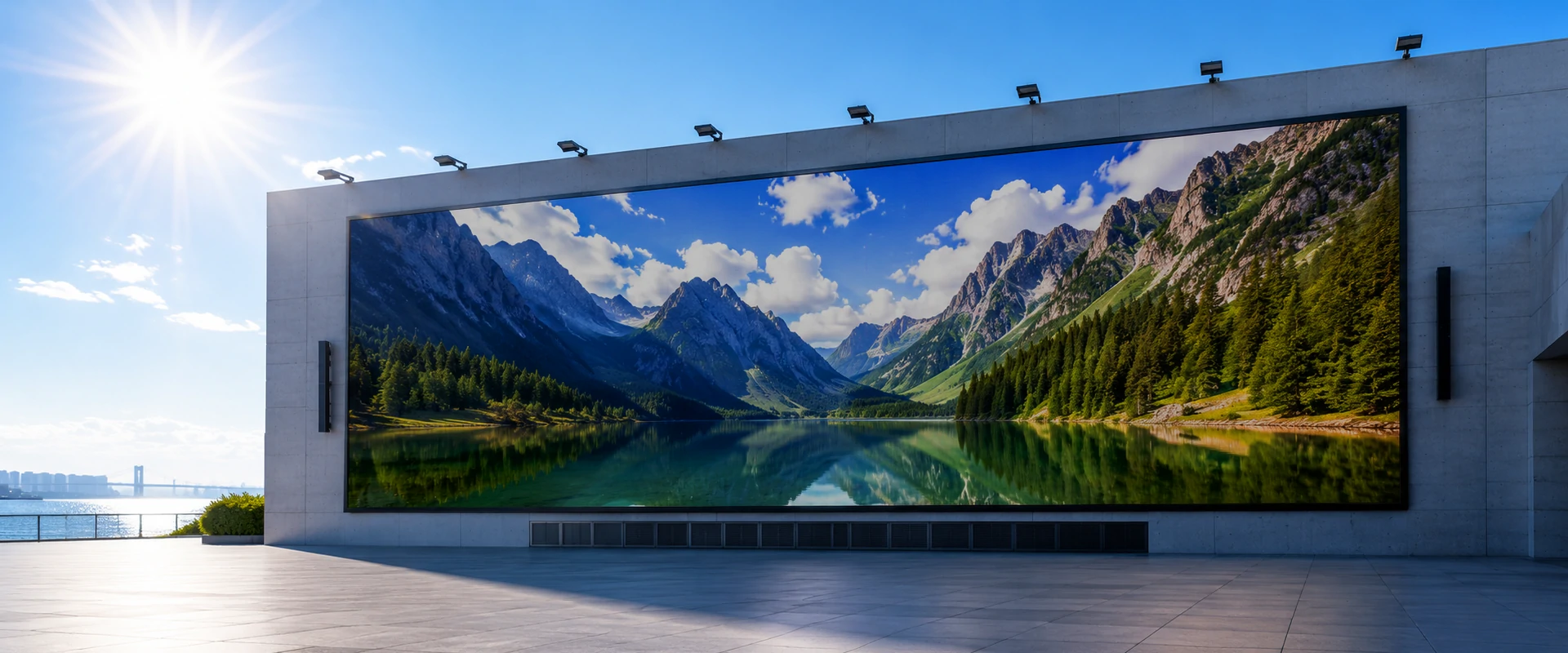

6,000 nits

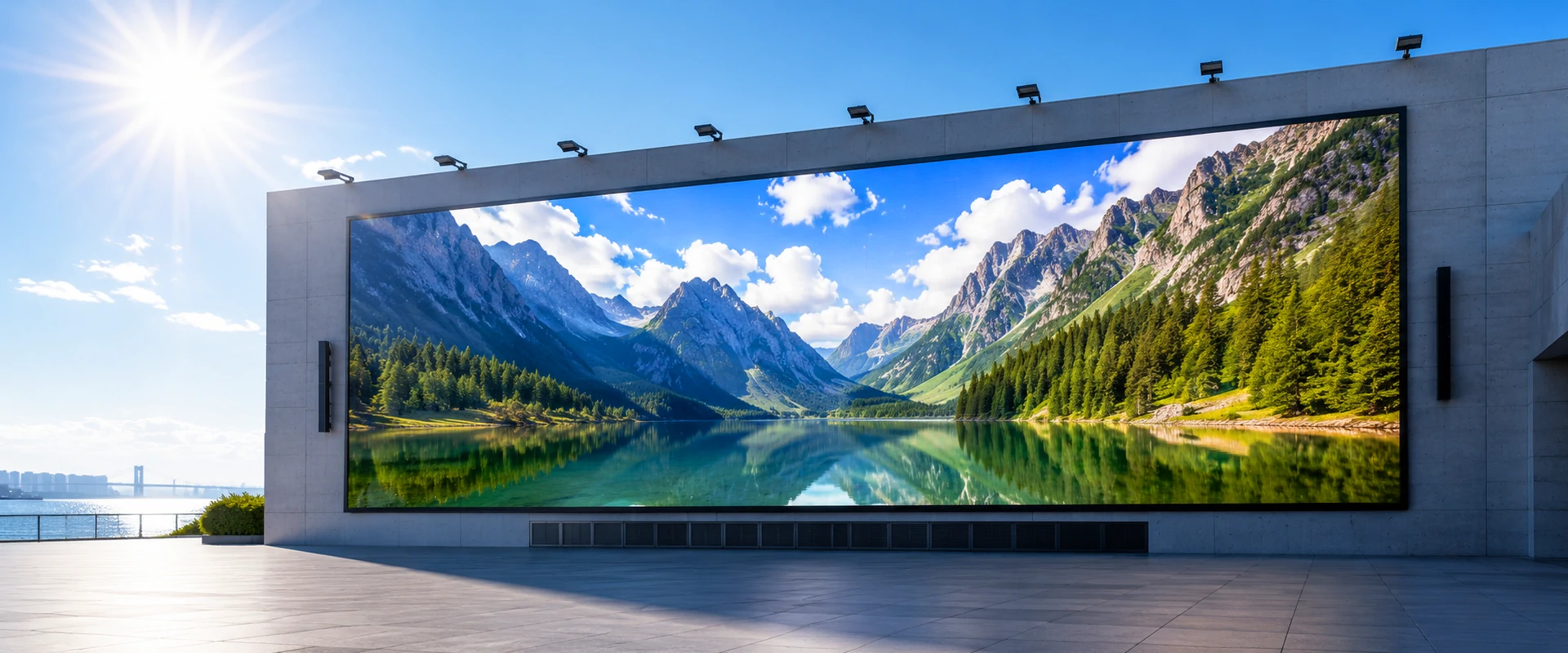

8,000 nits
10,000 nits
4,500 nits
4,500 nits
6,000 nits
6,000 nits
8,000 nits
8,000 nits
10,000 nits
10,000 nits

الميزات الرئيسية للمنتج

الوسم:
شاشة LED ثلاثية الأبعاد Aluminum LED cabinet لوحة إعلانات LED خارجية شاشة LED خارجية

Lightweight Structure

Open-frame cabinet design reduces overall weight while maintaining excellent strength, durability, and reliable structural performance.

صيانة المقدمة والمؤخرة

Modular cabinet structure enables convenient front and rear access, simplifying installation, servicing, and maintenance operations.

High Thermal Conductivity

Full aluminum housing and conductive materials provide efficient heat dissipation, ensuring stable and reliable performance.

Ultra-High Brightness

Up to 10,000 nits brightness ensures clear visibility in sunlight, with excellent contrast and long-term stability.

Smart Module Technology

Integrated monitoring supports voltage, signal, temperature, diagnostics, and calibration data management for efficient operation.

True Color Performance

3840Hz refresh rate and 16-bit grayscale deliver vivid colors, smooth images, and outstanding visual consistency.

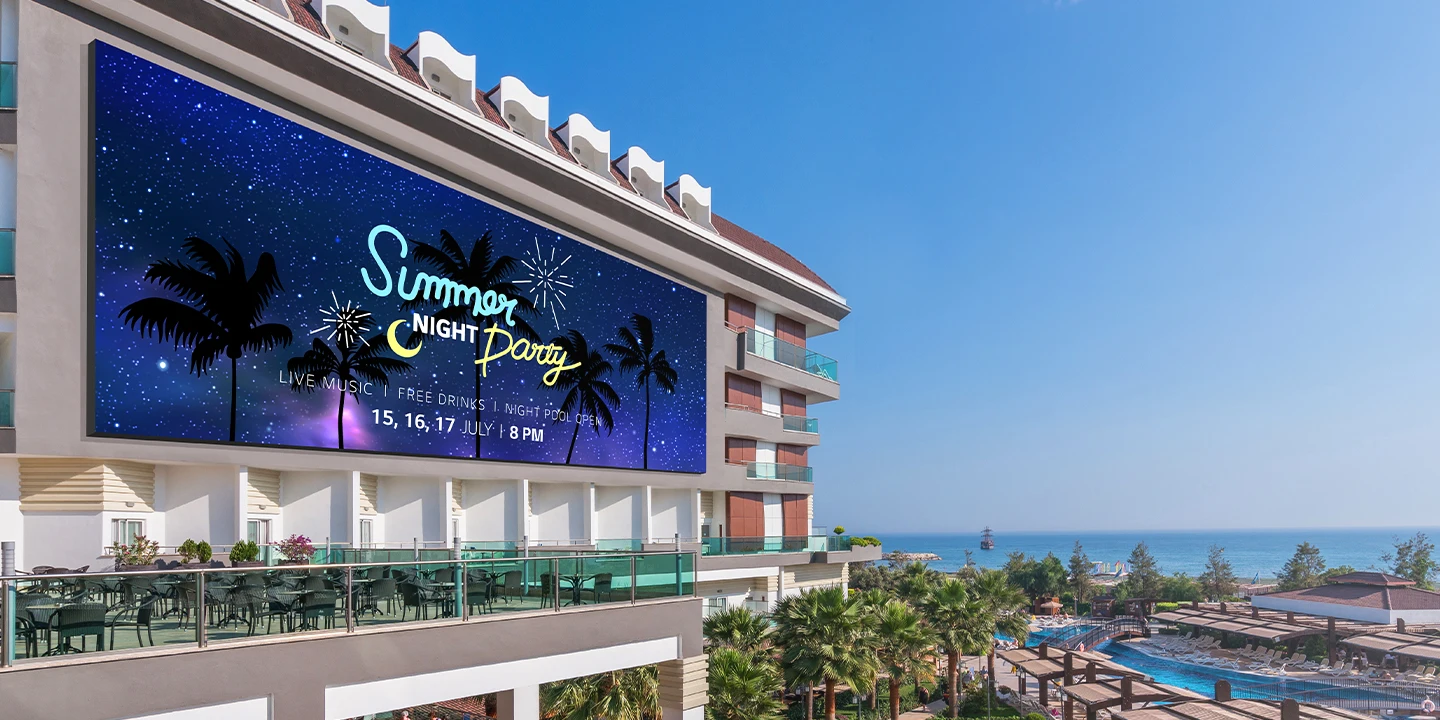

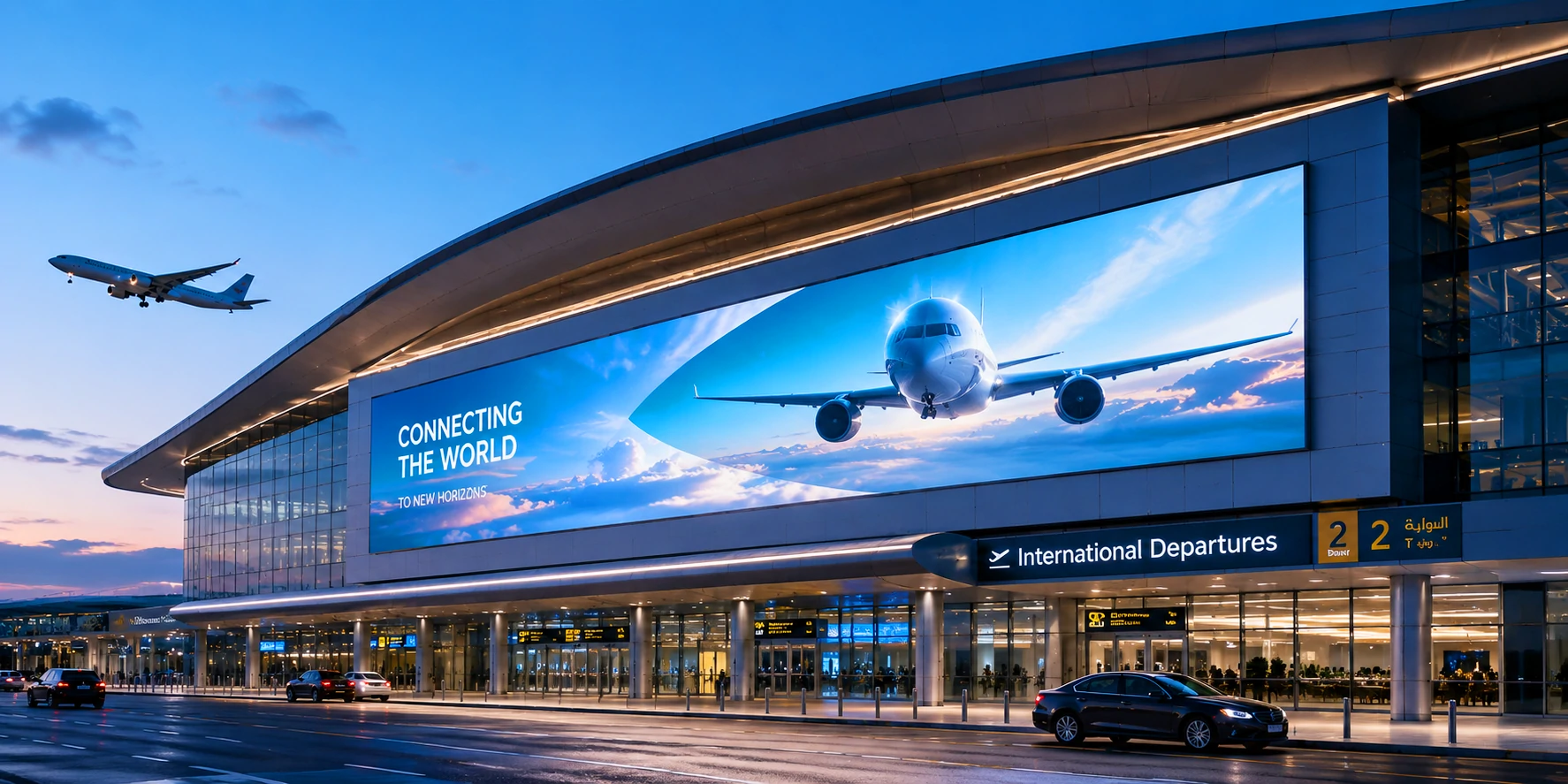

سيناريو التطبيق

Full-Aluminum Cabinet Design

The aluminum LED cabinet adopts a full-aluminum structure for a slim, stable design with excellent fire resistance and compliance with TÜV 5VB fire protection certification requirements.

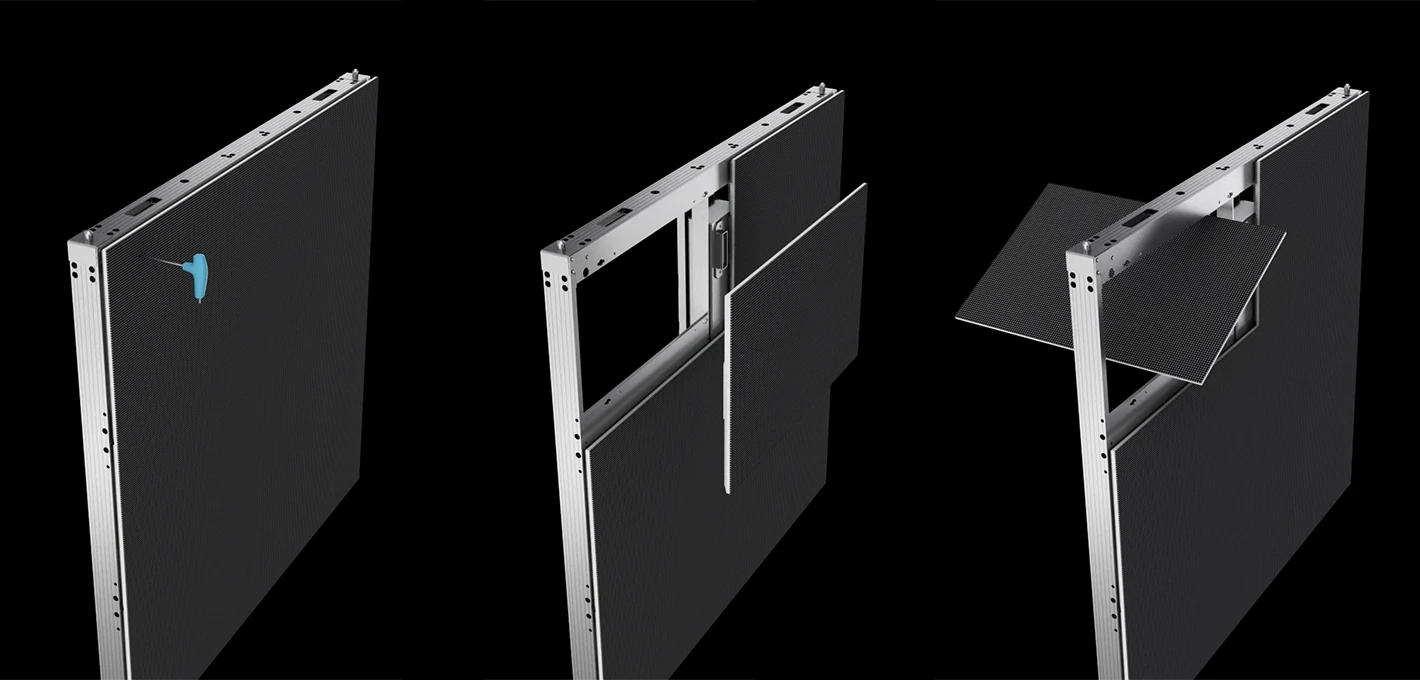

صيانة المقدمة والمؤخرة

Designed as a front and rear maintenance LED display, it supports both front and rear access for easier installation, faster servicing, and better space efficiency.

IP65 Waterproof Protection

Designed as a reliable IP65 LED display, it features a special waterproof structure with up to IP65 protection, ensuring stable performance in outdoor rain, dust, and harsh weather conditions.

العوامل الرئيسية لشاشات الإعلانات الخارجية

آمنة وموثوقة

سطوع عالٍ وتوحيد عالٍ

استقرار عالٍ وعمر تشغيلي طويل

معدل تحديث فائق الارتفاع

نسبة تباين عالية

تصميم موفر للطاقة

صيانة المقدمة والمؤخرة

تم اختبار موثوقيتها

مزايا المنتج

تتميز الوحدات بسهولة صيانتها ويمكن تجميعها بمرونة أكبر.

Aluminum Module

Supports IP68 protection level

Built in cooling fan

Customized cooling fan with good heat dissipation effect

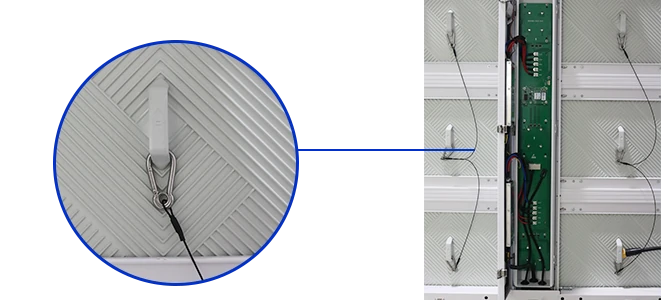

Safety rope

Module safety rope disassembly module is more convenient

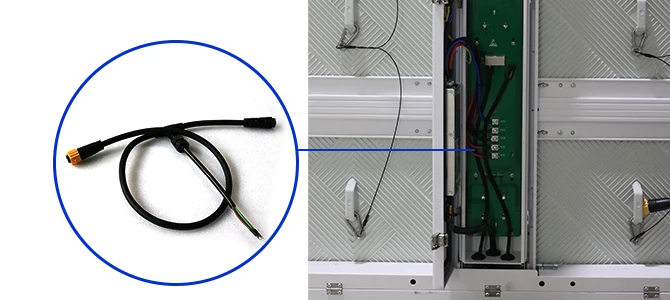

Customized waterproof wire

PG water proof connectors， self-lock waterproof connectors

Creative styling

Designed as a flexible outdoor advertising LED display, it supports multiple splicing and installation methods, including right angles and arcs, and can be used for naked-eye 3D display solutions.

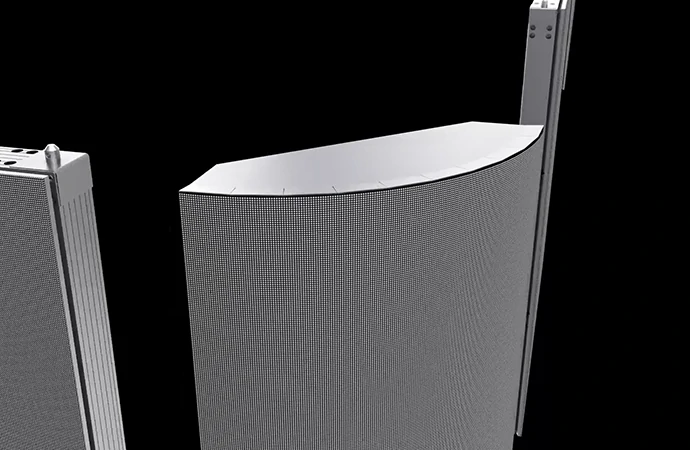

Arc splicing

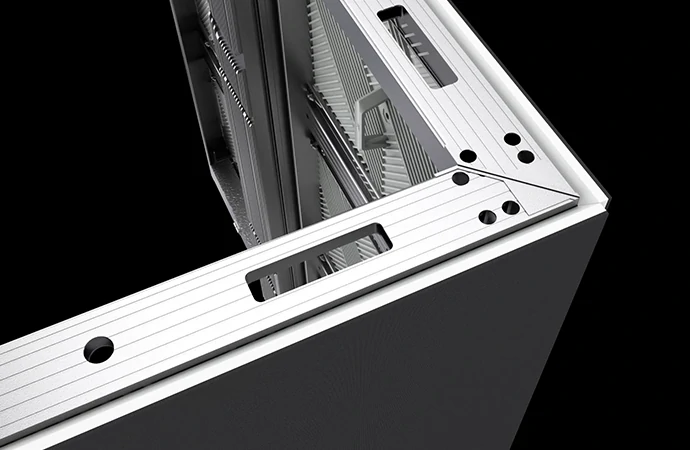

Right angle

ميزات المنتج

الأداء البصري الاحترافي

Excellent display, immersive experience, clear true colors, wide viewing angle.

01

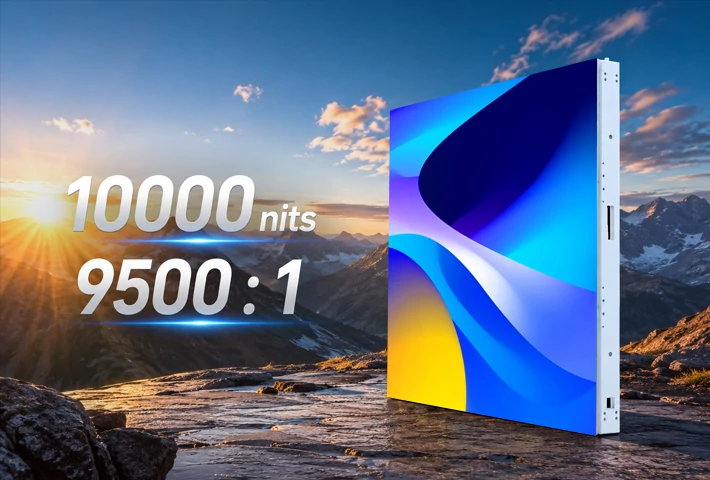

10,000-level Brightness & contrast, details fully revealed

The high brightness outdoor LED screen provides clear, bright, and high-contrast images, ensuring excellent visibility even under direct sunlight.

ddwdisplay-20260618_103353
02

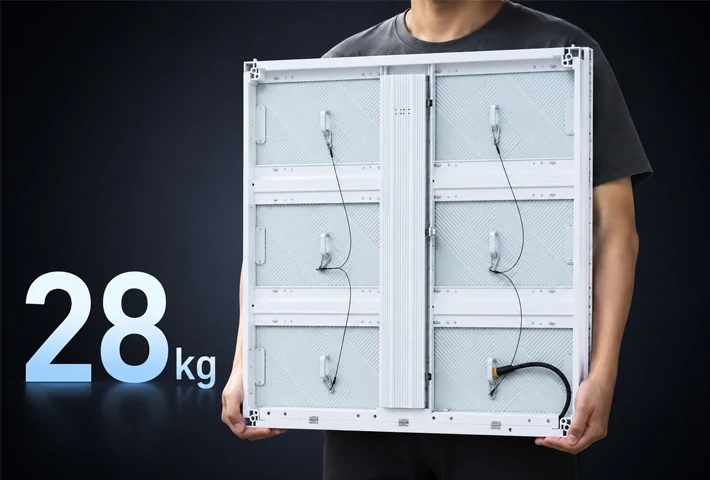

Slim & Lightweight Design

Built with an aluminum LED cabinet, the screen weighs only about 30kg/㎡ and features a slim 77mm thickness, making it ideal for wall-mounted and outdoor fixed installations.

28
03

التخلص الفعال من الحرارة

The full-aluminum cabinet with special grain design improves heat dissipation, reduces operating temperature, and ensures long-term stable performance.

ddwdisplay-20260618_102647
04

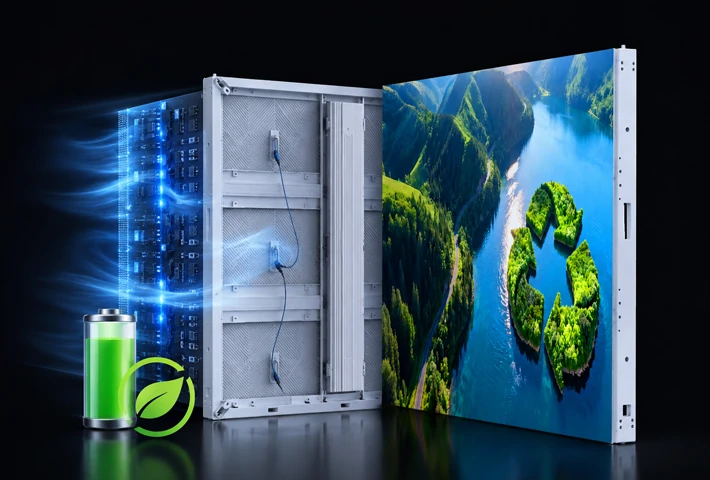

Voltage Division Energy Saving

The partial voltage design helps reduce heat generation and power consumption, extending the service life of the LED display.

ddwdisplay-20260618_102646

معلمات المنتج

انقر واضغط مطولاً على النموذج للتمرير إلى اليسار أو اليمين.

Part Number P5.7P6.66P8P10
Pixel Pitch5.7mm6.66mm8mm10 ملم
LED Configuration SMD2727
Pixel Density 30625dot/m222500dot/m215625dot/m210000dot/m2
Module size480*320mm
Module Resolution84*56 dot72*48 dot60*40 dot48*32dot
Cabinet Size 960*960*77mm
Cabinet Resolution168*168dot144*144dot120*120dot96*96dot
Cabinet Weight 28kg
IP Rating ( front/back)IP65
Brightness Intensity 10000≥6500 CD/m2
Viewing Angle (H/V) 140°/140°
View Distance＞5m
Gray Scale14bit
Display Scale16.7M
Brightness Adjustment0-100 levels adjustable
Max.Power Consumption 650W/㎡
Ave.Power Consumption200W/㎡
 Drive Mode1/7S1/6S1/4S1/2S
Refresh Frequency≥3840HZ
Gamma Correction -5.0~+5.0
Environmental OUTDOOR
Control ModeSynchronous display with control PC by DVI
Support InputComposite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation PowerAC100~240 50/60HZ
Operating Temperature-20℃~+50℃
Operating Humidity10~95% RH
Operating Life100,000hours

يرجى ترك بيانات الاتصال الخاصة بك حتى نتمكن من التواصل معك في أي وقت.

التنزيلات ذات الصلة

Catalog-FA series.pdf

المنتجات ذات الصلة

سلسلة FA

ddwdisplay-20260618_080550

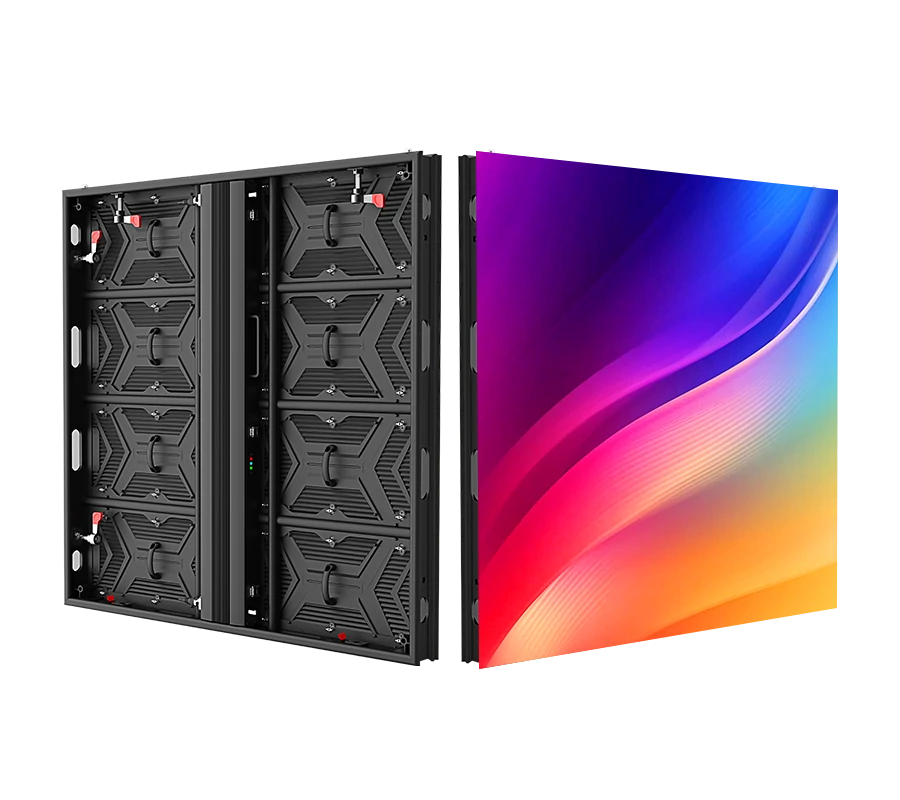

سلسلة FC

ddwdisplay-20260618_023834

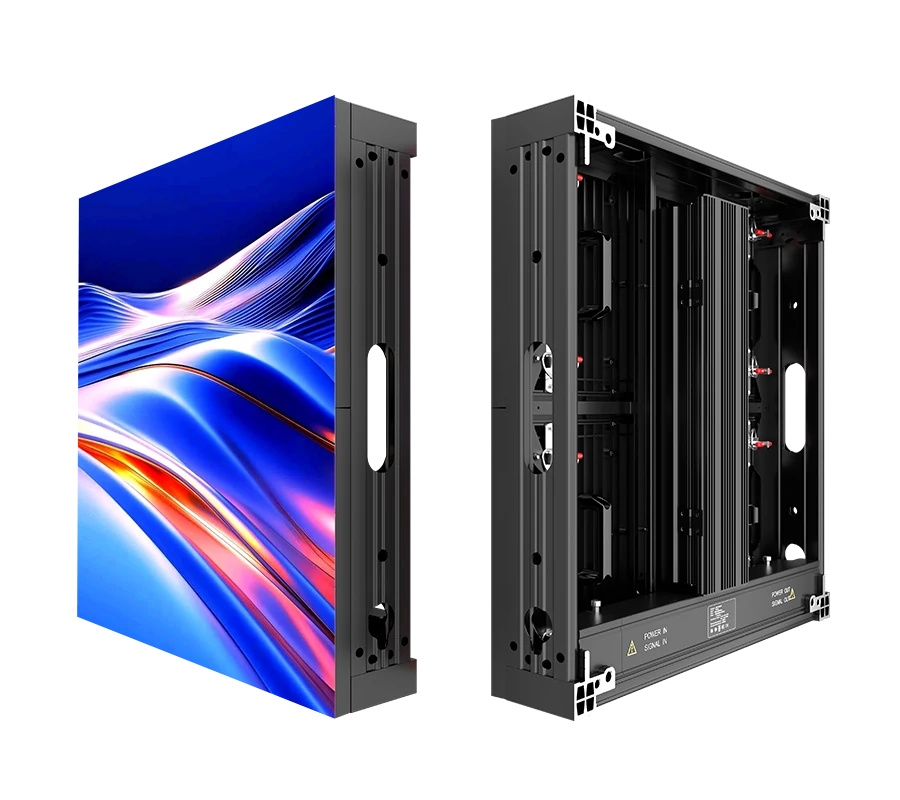

سلسلة LUXIS
