| Specs Applications | داخلي | في الهواء الطلق | ||
| مسافة البكسل (مم) | 1.95 | 2.6 | 2.976 | 3.91 |
| Module Dimensions(mm) | 500x250x11 | 32.73x500 59.52x500 62.49x500 | 31.25x500x12 62.5x500x12 | |
| Module Resolution(pixels) | 256x128 | 192x96 | 11x168/76x168 21x168 | 8x128/16x128 |
| Cabinet Dimensions(mm) | 500x500x81.6 | |||
| Cabinet Resolution(pixels) | 256x256 | 192x192 | 168x168 | 128x128 |
| مادة الهيكل الرئيسي | Die-cast aluminum | |||
| الوزن (كجم) | 8.13 | 8.5 | ||
| Max WB Brightness(nits) | 800 | 4000 | 5000 | |
| مستوى الرمادي (بت) | 14-16 | |||
| التباين | ≥3000:1 | |||
| Refresh rate (Hz) | 7680 | |||
| Viewing angle (H / V) | 140°/120° | |||
| Protection Level (F/ B) | IP30 | IP65/IP54 | ||
| جهد التيار المتردد المدخل | 100-240V 50/60Hz | |||
| Working Temperature(°C) | -10~40 | |||
| Operating Humidity(RH) | 10%~60（no condensation） | |||
| طرق التثبيت | Stacking + Hoisting | |||
| Maintenance Methods | Rear maintenance | |||
| Max Power/Average Power(W/m²) | 510/180 | 600/210 | 630/220 | |
| Control Distance | Cat6e Lan cable: <100m; Single-mode fiber cable: <10km | |||
AXIS FLEX SERIES
AXIS FLEX SERIES
AXIS FLEX SERIES
AXIS FLEX SERIES
AXIS FLEX SERIES
500x500mm, Flat, Curve, P1.95 P2.604 P2.976 P3.91，SMD 2in1 LED
الميزات الرئيسية للمنتج
الوسم:

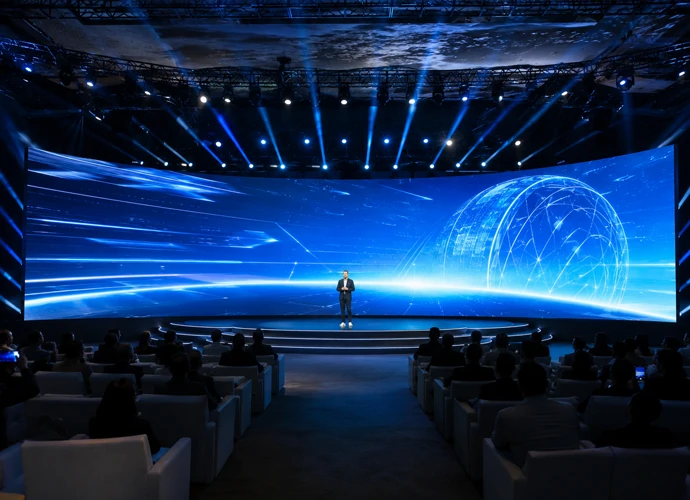

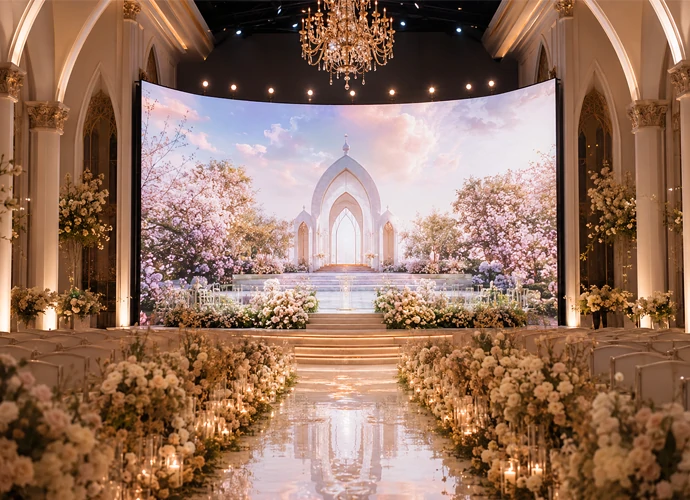

AXISFLEX Series curved rental LED screen is a flexible rental LED display designed for creative splicing applications. It supports stage performances, TV studios, conferences, exhibitions, commercial events, theaters, fashion shows, and other high-end rental scenarios. With ±30° precise angle adjustment, it enables concave, convex, S-shaped, cylindrical, and ring-shaped LED screen structures for creative visual design.
سيناريو التطبيق
مؤتمر صحفي

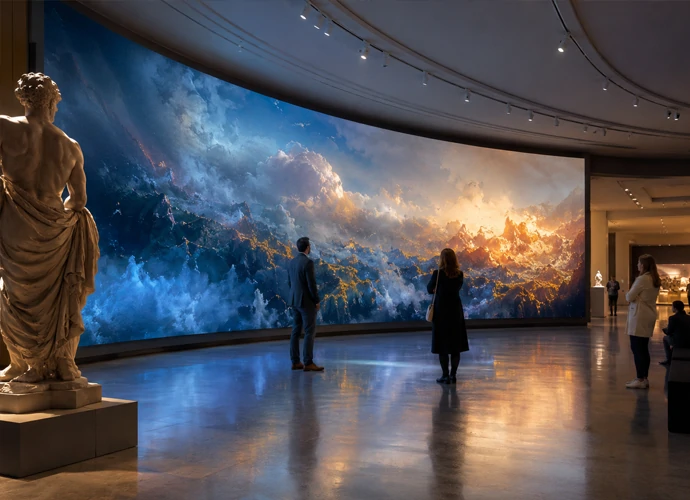

قاعة المعارض
حدث رياضي
Studio

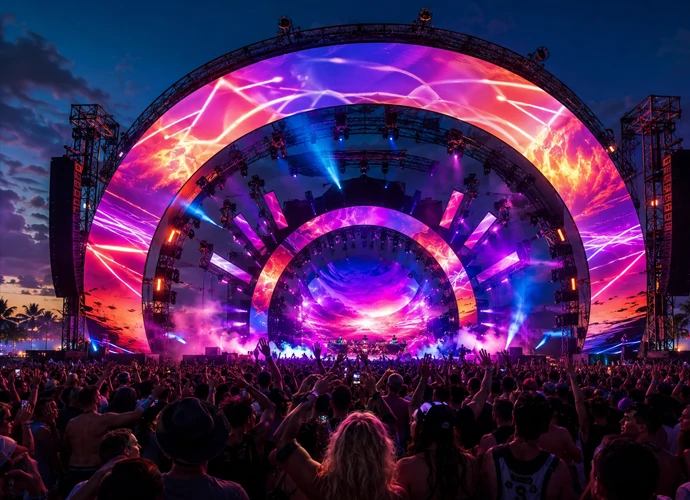

مهرجان الموسيقى
الكنيسة
سلسلة AXIS Flex
مقاوم للماء وفقًا لمعيار IP65
متوفر بتصميم منحني وزاوية قائمة
سطوع عالٍ يبلغ 5000 نيت
Rear maintenance
V0 مقاوم للاشتعال
معدل تحديث عالٍ يبلغ 7680 هرتز
مسافة البكسل
P1.95 P2.604 P2.976 P3.91
حجم الخزانة
500 × 500 مم
حجم الوحدة
500*250mm
الوزن
8.3-8.5kg
السطوع
800-5000cd/m²
معدل التحديث
7680 هرتز
تأجير فاخر
- معدل تحديث عالٍ يبلغ 7680 هرتز
- سطوع عالٍ يبلغ 5000 نيت
- مقاوم للماء وفقًا لمعيار IP65
اتجاهات السوق
تشهد شاشات LED المخصصة للتأجير زخمًا قويًّا في السوق، حيث ارتفعت حصة العلامات التجارية الصينية من 28% في عام 2016 إلى 60% في عام 2023. وبفضل تحسن جودة الصورة، وتقنية المسافة البينية الدقيقة، والمزايا من حيث التكلفة، أصبحت شاشات LED المخصصة للتأجير الخيار الرائد للفعاليات والمعارض وتطبيقات المسرح.

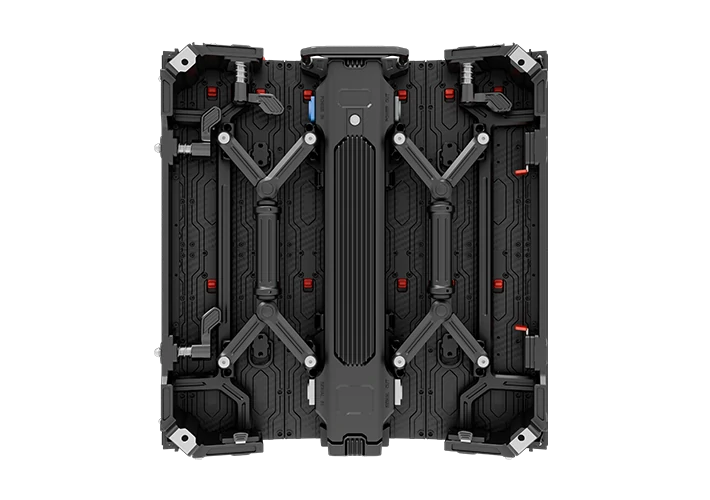

CABINET DIAGRAM
The flexible LED rental cabinet features excellent design details, including cabinet handles, fixed slots, fast-lock magnetic adsorption modules, module installation knobs, and detachable power & signal connectors with an integrated power box, ensuring fast installation and reliable performance.

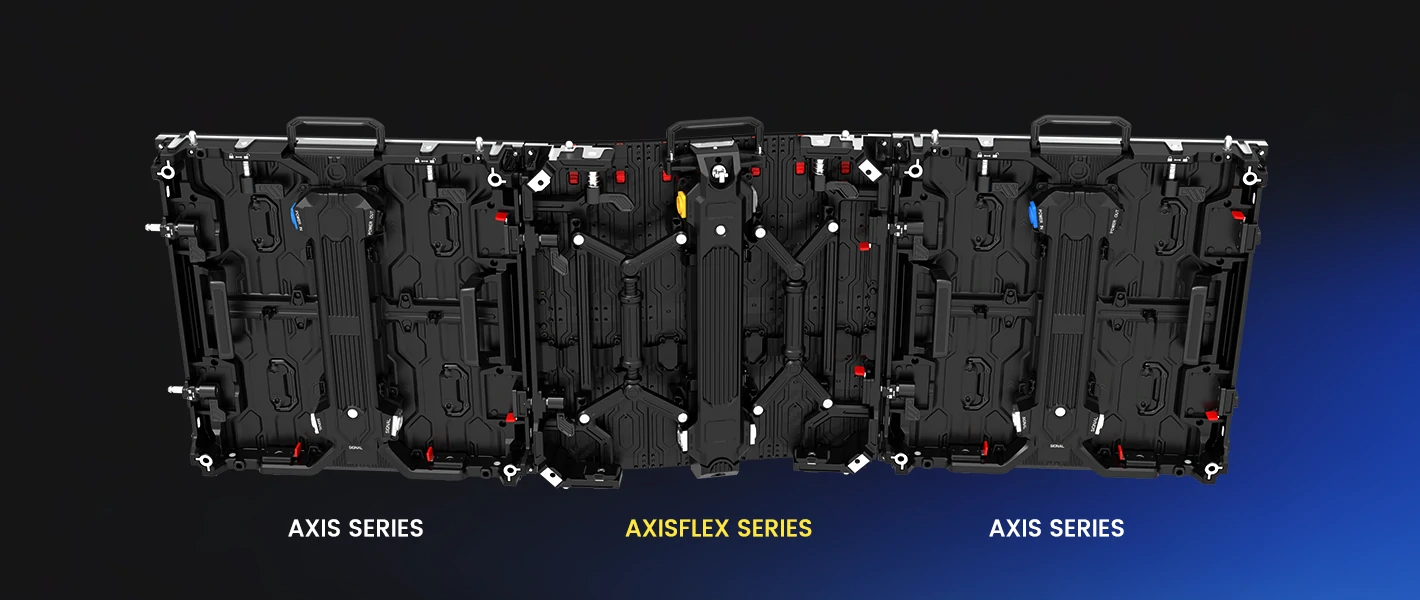

Cross-Series Compatibility
AXISFLEX creative stage LED display can be integrated with the AXIS Series to enable more flexible and complex stage designs for various rental applications.
2-in-1 lamp beads
Industry-leading high-thrust 2-in-1 lamp beads, reliable and durable for indoor P1.95 ,P2.604
AXIS FLEX series
AXIS Series
تكنولوجيا العرض المرئي من الجيل التالي.
الأداء البصري الاحترافي
توفر التكنولوجيا البصرية المتطورة ألوانًا أفضل وصورًا أكثر سلاسة وحماية للعين وأداءً موفرًا للطاقة.
01
81.6mm Ultra-Slim Cabinet
تصميم أكثر نحافة · تركيب أسهل · كفاءة تأجير أعلى
02

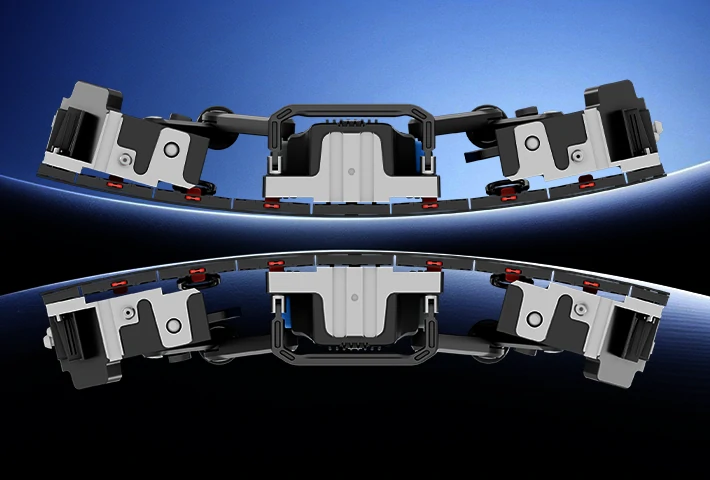

±30° Ultra-Flexible Splicing
The bendable LED display AXISFLEX features a creative flexible lock design, supporting ±30° angle adjustment to enable more versatile and creative stage configurations.
03
تصميم خفيف الوزن يبلغ 7.5 كجم
Built for easier handling, faster setup, and higher rental efficiency.
04
Modular design
Designed as a modular rental LED display, it is easy to maintain and supports quick replacement, ensuring faster installation and improved service efficiency for rental applications.

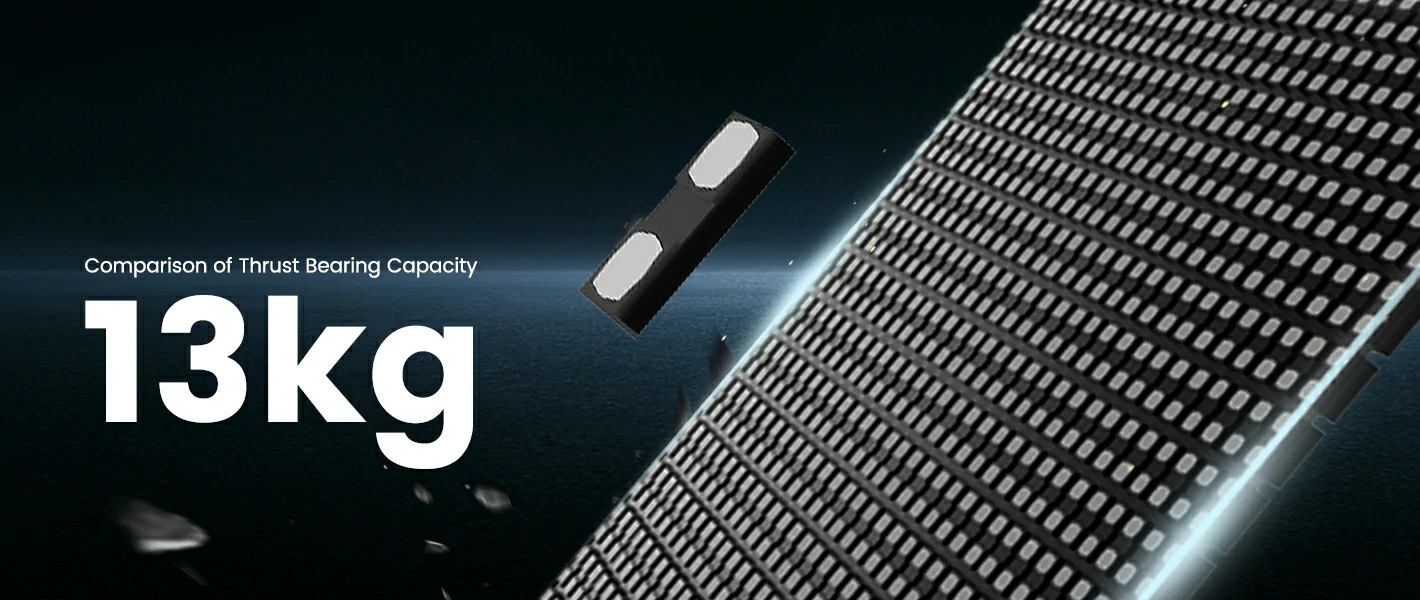

Industry-leading 2-in-1 lamp beads
13kg thrust capacity, over 4× stronger than traditional lamp beads — more durable, reliable, and ideal for indoor P2.604 & P1.95 rental LED displays.
7680Hz Ultra-High Refresh Rate
Engineered for professional live visuals, delivering smoother images, reduced flicker, less moiré, and excellent camera performance for stage, rental, and broadcast applications.
IP65 Outdoor Waterproof Protection
waterproof, corrosion-resistant, dust-proof, high temperature resistant.

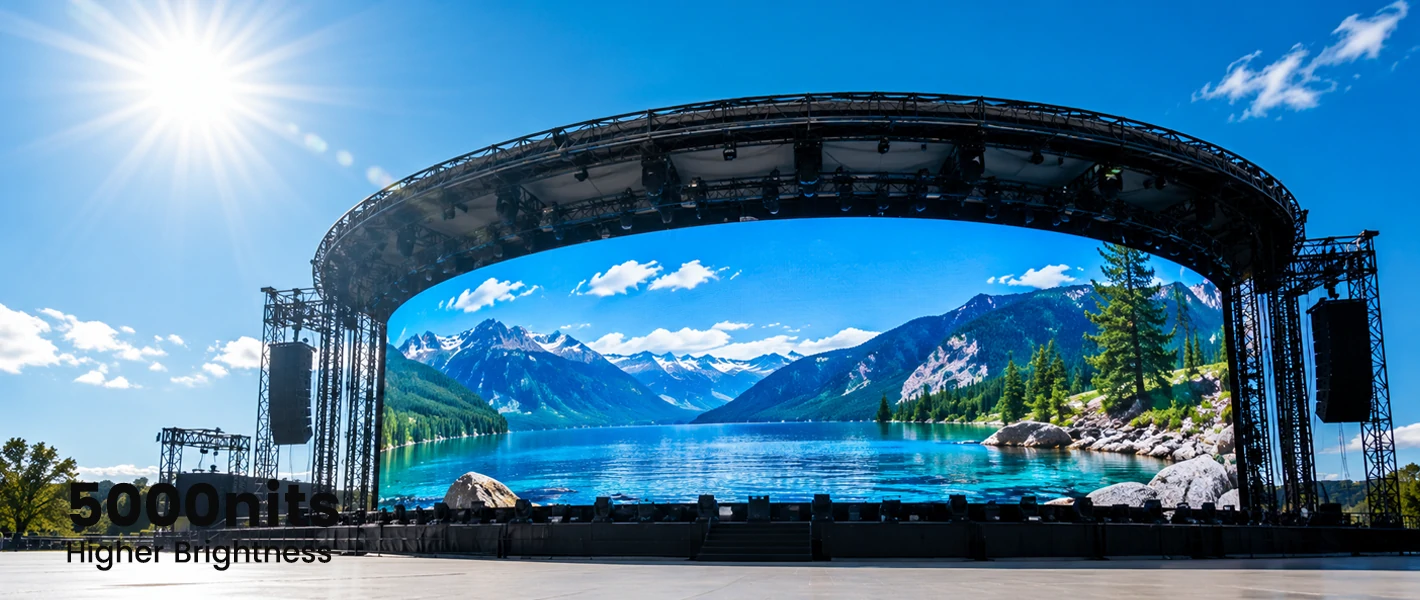

5000nits High Brightness
The indoor outdoor rental LED screen delivers clear visuals even under strong outdoor sunlight.
Triple Protection Design
The micro-brim design, soft rubber corner guards, and PCB copper reinforcement help protect the LED modules and improve overall durability.
Aluminum Alloy Protection Frame
The aluminum alloy protection frame improves impact resistance and drop durability, making the product more reliable during transportation, installation, and repeated rental use.

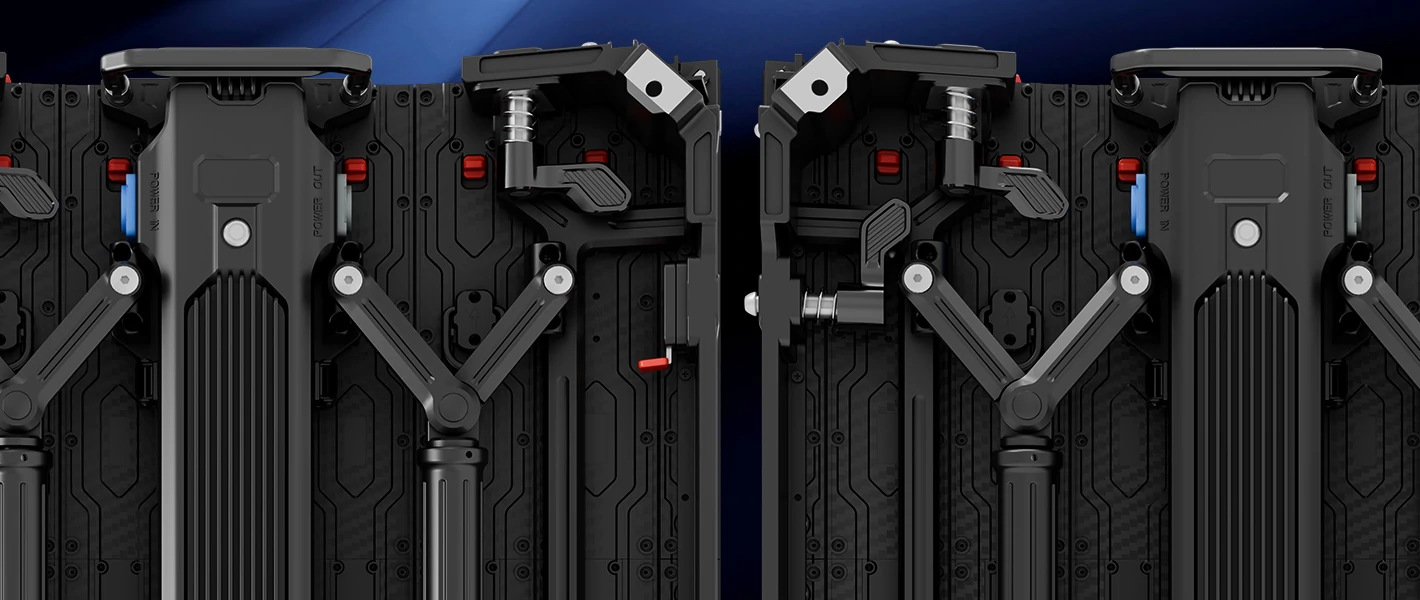

Four-Buckle Quick Installation Structure
The four-buckle quick-install structure with handle design makes transportation and installation faster, helping save labor and setup time.

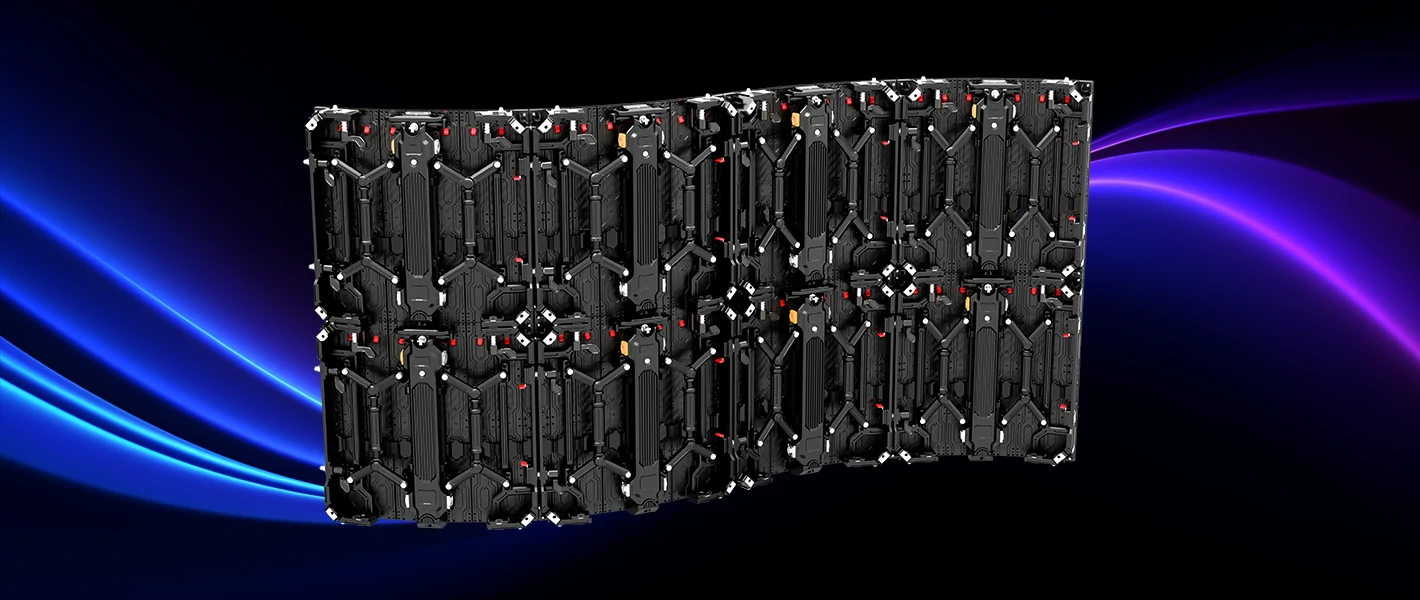

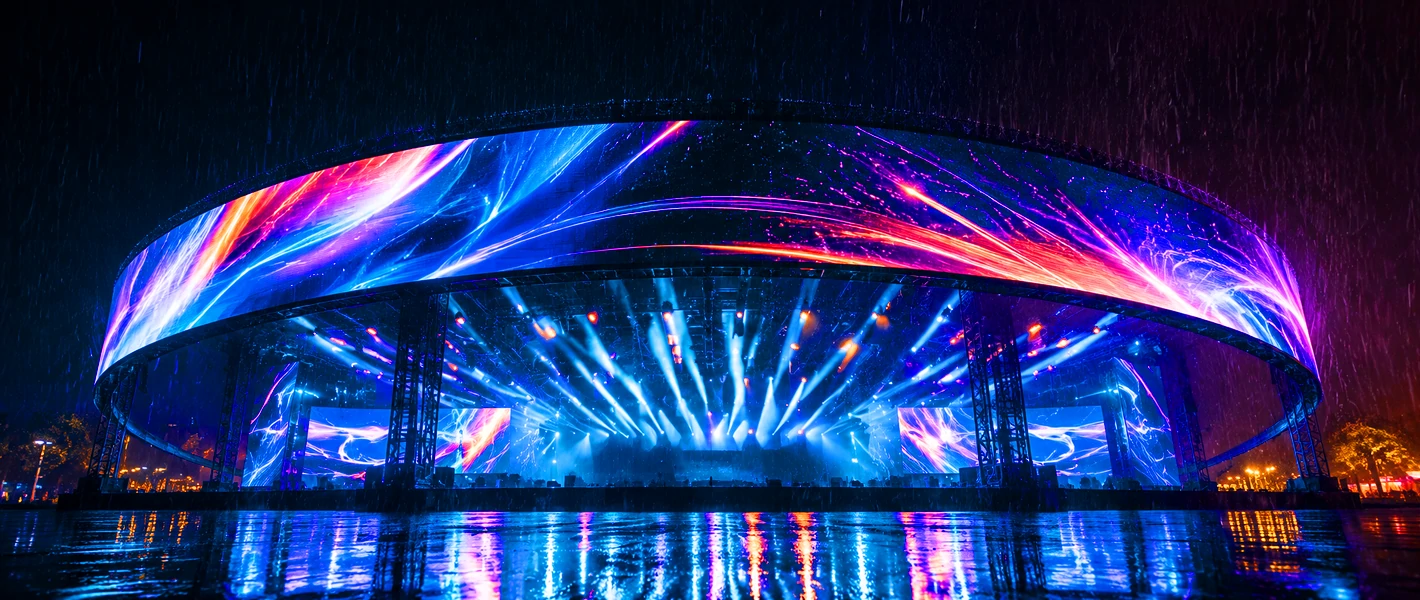

Ultra-Flexible
Equipped with a creative flexible lock design, AXISFLEX supports ±30° angle adjustment, making it easy to build curved screens, S-shaped screens, cylindrical displays, ring screens, and other creative LED structures.
