What is the AXIS Flex Series flexible rental LED display designed for?

The AXIS Flex Series is designed for professional rental and creative staging projects, including concerts, touring events, XR studios, exhibitions, brand launches, corporate shows, immersive spaces, and high-end commercial events that require curved or customized LED display structures.

What makes AXIS Flex different from a standard rental LED display?

Unlike standard flat rental LED cabinets, AXIS Flex uses a 500 × 500mm flexible cabinet that can bend within a controlled arc. This allows rental teams to build curved, wave-shaped, concave, convex, and creative LED display designs while maintaining professional image quality.

Can AXIS Flex be combined with other AXIS Series cabinets?

Yes. AXIS Flex is designed to work with AXIS flat, curved, and right-angle cabinets. This allows project teams to combine flexible and standard cabinets in one LED wall system for more complex stage, exhibition, and architectural display layouts.

What display performance does AXIS Flex provide?

AXIS Flex supports a 7680Hz refresh rate, 16bit grayscale, wide color gamut, smooth image reproduction, and high color consistency. These features are important for camera shooting, live broadcasting, XR production, and premium event environments.

Which LED technologies are available for AXIS Flex?

AXIS Flex can support SMD, GOB, HOB, and 2-in-1 LED options depending on project requirements. GOB and HOB options improve surface protection, while 2-in-1 LED technology enhances durability and visual consistency for demanding rental use.

Is AXIS Flex suitable for both indoor and outdoor rental projects?

Yes. The indoor version can reach 1000–1200 nits brightness for stage and exhibition environments, while the outdoor IP65 version can reach up to 5000 nits brightness for festivals, outdoor events, temporary advertising, and commercial rental projects.

Why is a 6-layer PCB important for AXIS Flex?

A 6-layer PCB improves signal transmission, heat distribution, electrical stability, and long-term reliability. For flexible rental cabinets used in frequent touring, curved installation, dismantling, and live event operation, this structure helps reduce failure risk.

Why choose DDW AXIS Flex Series for creative rental LED projects?

The DDW AXIS Flex Series combines a 500 × 500mm bendable rental cabinet, 6-layer PCB design, 7680Hz refresh rate, 16bit grayscale, SMD/GOB/HOB/2-in-1 LED compatibility, indoor 1000–1200 nits brightness, outdoor IP65 5000 nits performance, and seamless integration with AXIS flat, curved, and right-angle cabinets for professional creative rental applications.

AXIS FLEX SERIES

500x500mm, Flat, Curve, P1.95 P2.604 P2.976 P3.91，SMD 2in1 LED

Key Product Features

Tag:

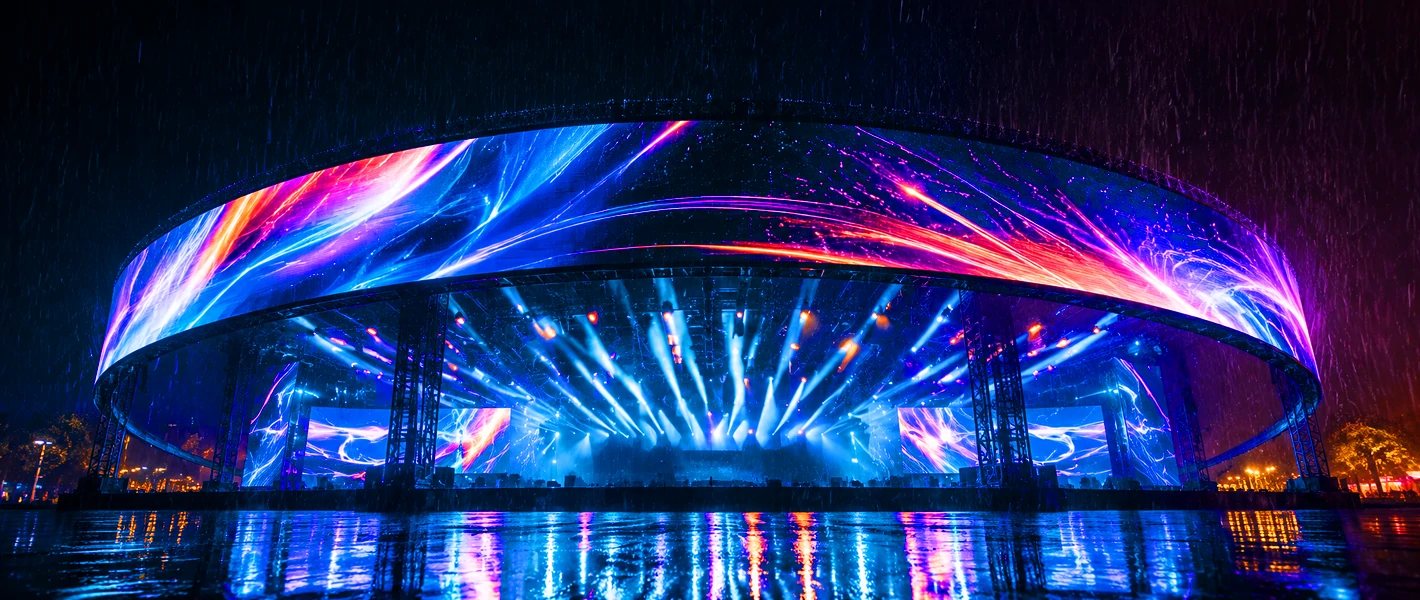

AXISFLEX Series curved rental LED screen is a flexible rental LED display designed for creative splicing applications. It supports stage performances, TV studios, conferences, exhibitions, commercial events, theaters, fashion shows, and other high-end rental scenarios. With ±30° precise angle adjustment, it enables concave, convex, S-shaped, cylindrical, and ring-shaped LED screen structures for creative visual design.

Application Scenario

AXIS Flex curved rental LED screen for stage events - installation view

Press Conference

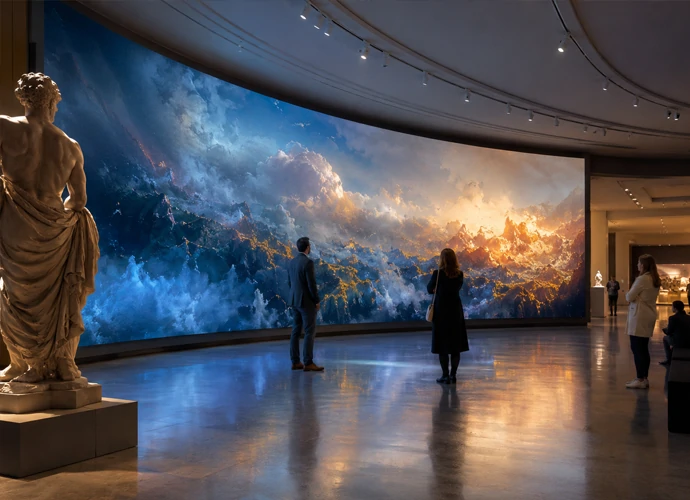

AXIS Flex curved rental LED screen for stage events - close-up detail

Exhibition Hall

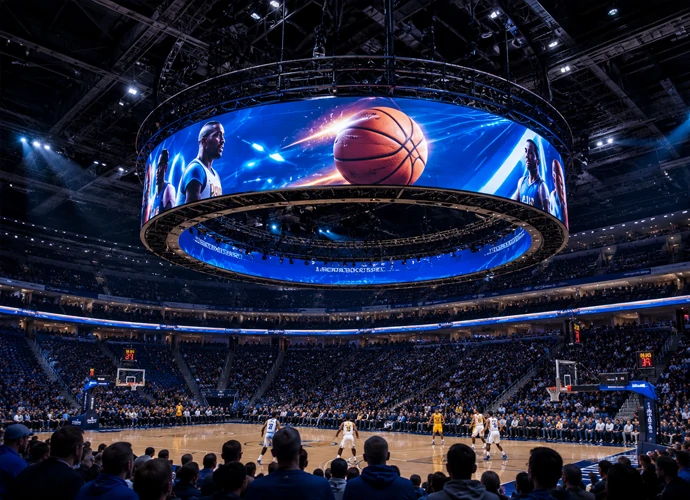

AXIS Flex curved rental LED screen for stage events - touring setup

Sports event

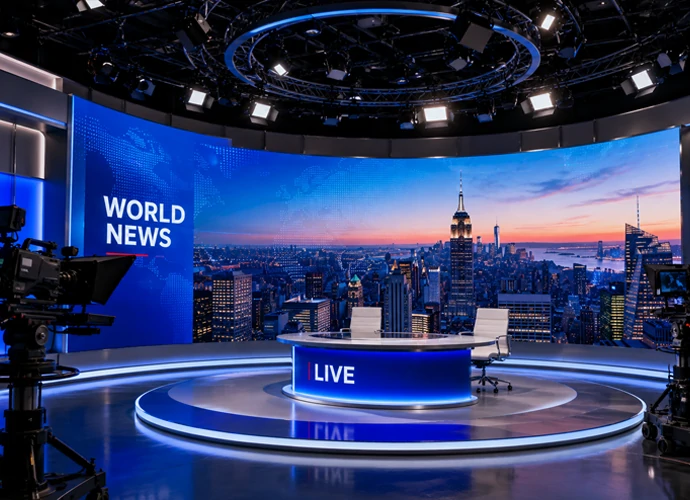

AXIS Flex curved rental LED screen for stage events - product configuration

Studio

AXIS Flex curved rental LED screen for stage events - rental panel detail

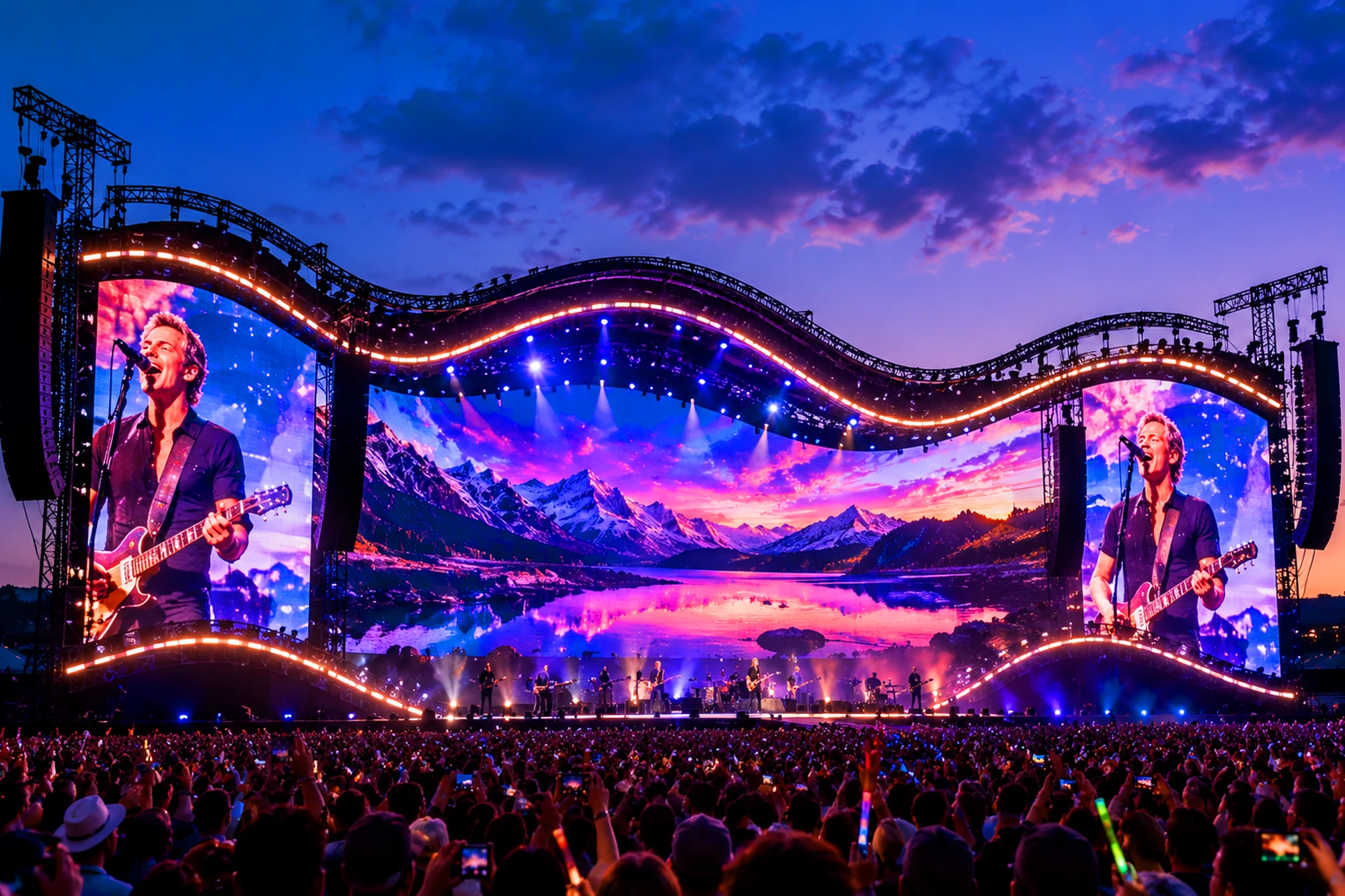

Music Festival

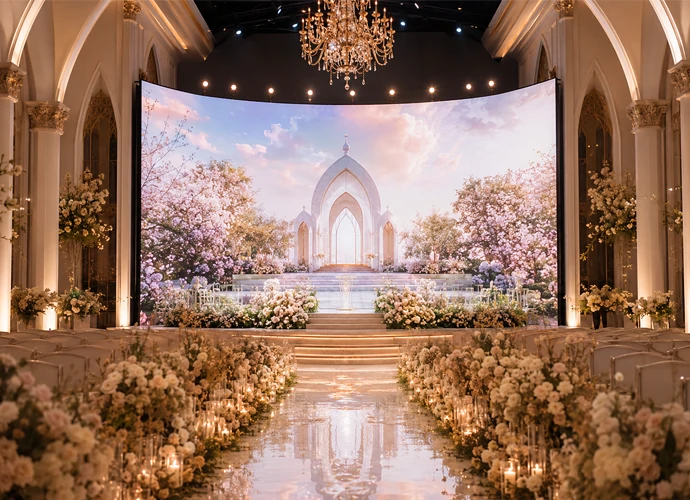

AXIS Flex curved rental LED screen for stage events - display performance

Church

AXIS Flex series

Pixel Pitch

P1.95 P2.604 P2.976 P3.91

Cabinet size

500*500mm

Module size

500*250mm

Weight

8.3-8.5kg

Brightness

800-5000cd/m²

Refresh rate

7680Hz

High end rental

Market Trends

Rental LED displays are gaining strong market momentum, with China-brand share increasing from 28% in 2016 to 60% in 2023. With improved image quality, fine-pitch technology, and cost advantages, rental LED is becoming a leading choice for events, exhibitions, and stage applications.

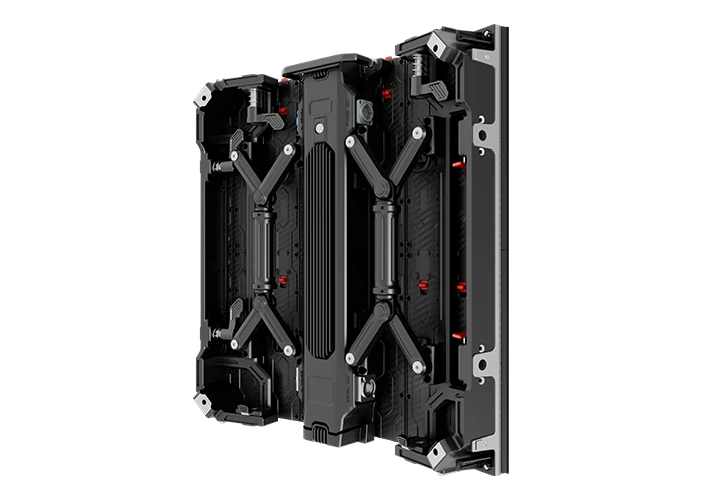

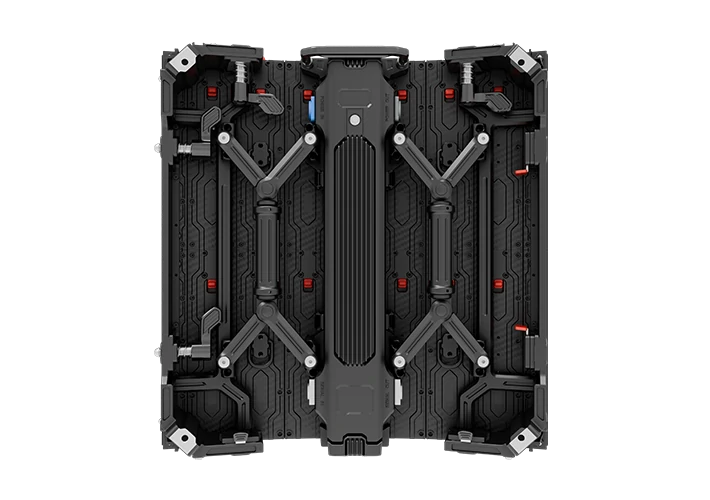

CABINET DIAGRAM

The flexible LED rental cabinet features excellent design details, including cabinet handles, fixed slots, fast-lock magnetic adsorption modules, module installation knobs, and detachable power & signal connectors with an integrated power box, ensuring fast installation and reliable performance.

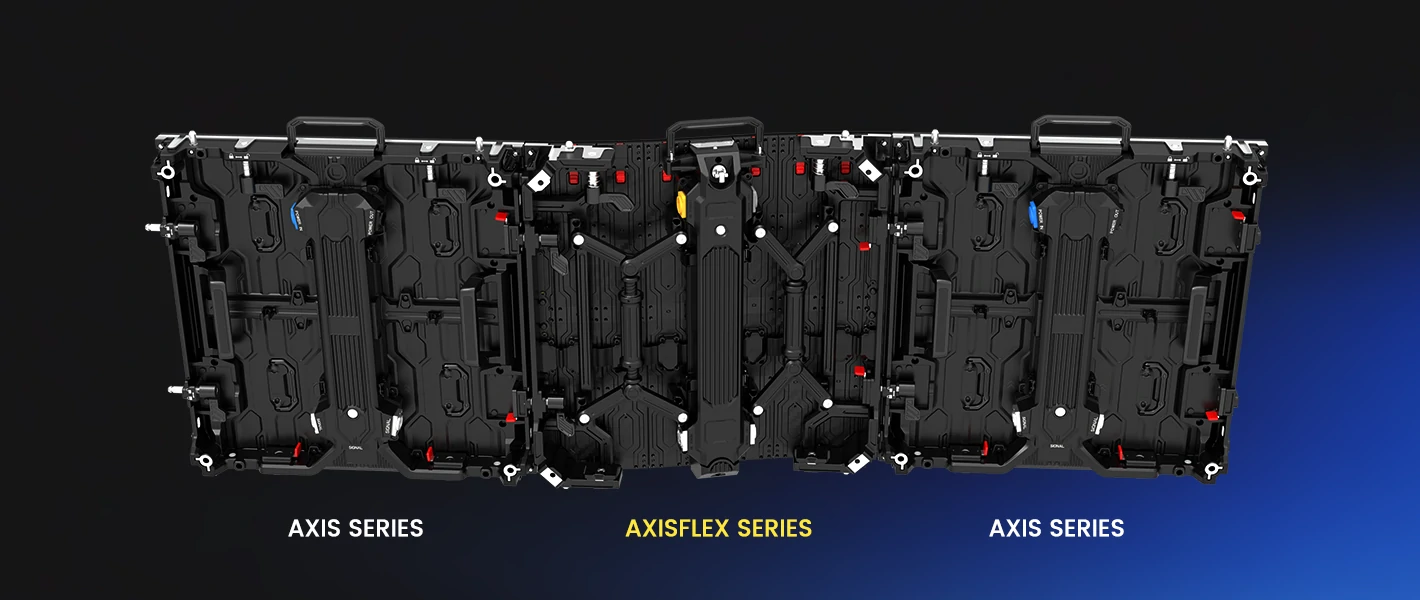

Cross-Series Compatibility

AXISFLEX creative stage LED display can be integrated with the AXIS Series to enable more flexible and complex stage designs for various rental applications.

2-in-1 lamp beads

Industry-leading high-thrust 2-in-1 lamp beads, reliable and durable for indoor P1.95 ,P2.604

AXIS FLEX series

AXIS Series

Next-Generation Visual Technology.

Professional Visual Performance

Advanced visual technology delivers better color, smoother images, eye protection, and energy-efficient performance.

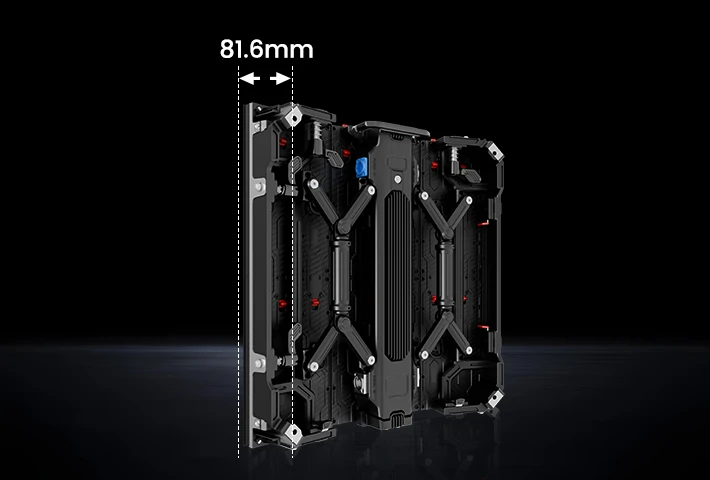

81.6mm Ultra-Slim Cabinet

Thinner Design · Easier Installation · Better Rental Efficiency

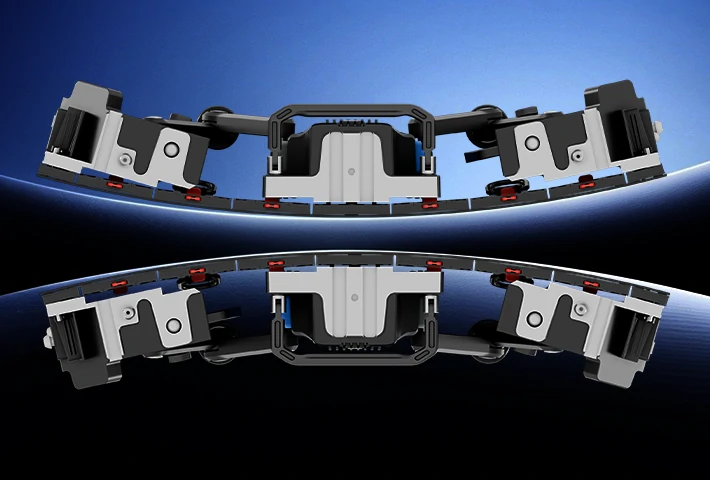

±30° Ultra-Flexible Splicing

The bendable LED display AXISFLEX features a creative flexible lock design, supporting ±30° angle adjustment to enable more versatile and creative stage configurations.

7.5kg Lightweight Design

Built for easier handling, faster setup, and higher rental efficiency.

Modular design

Designed as a modular rental LED display, it is easy to maintain and supports quick replacement, ensuring faster installation and improved service efficiency for rental applications.

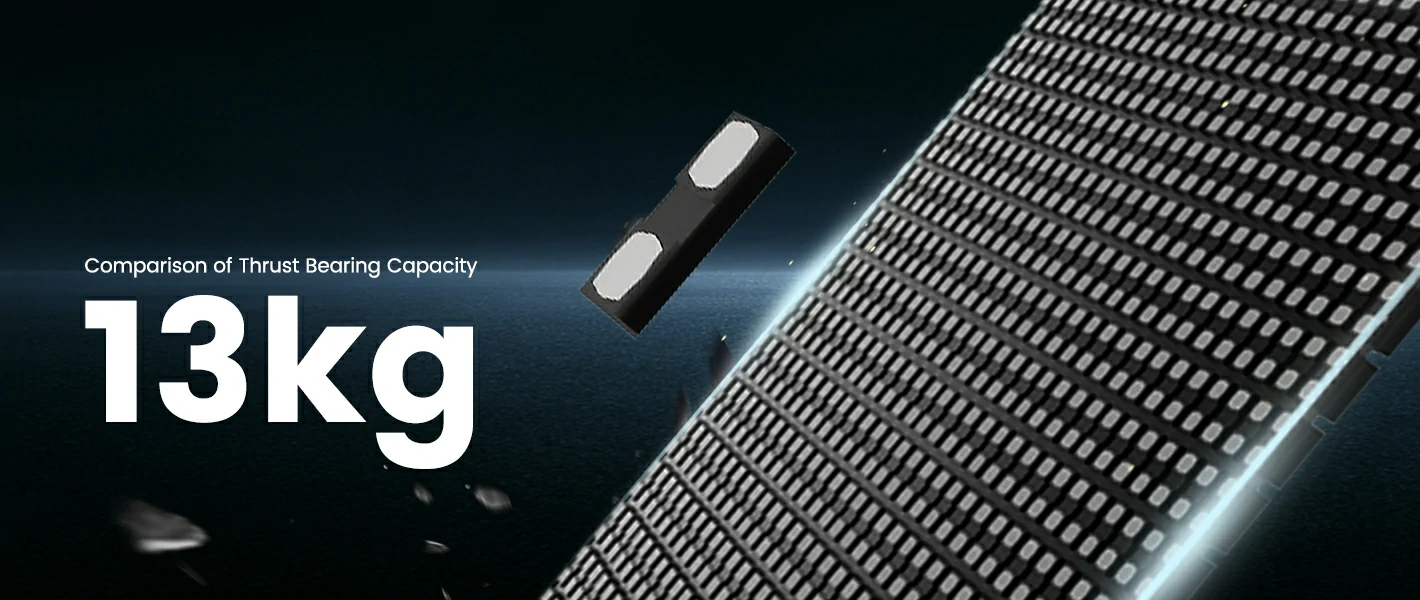

Industry-leading 2-in-1 lamp beads

13kg thrust capacity, over 4× stronger than traditional lamp beads — more durable, reliable, and ideal for indoor P2.604 & P1.95 rental LED displays.

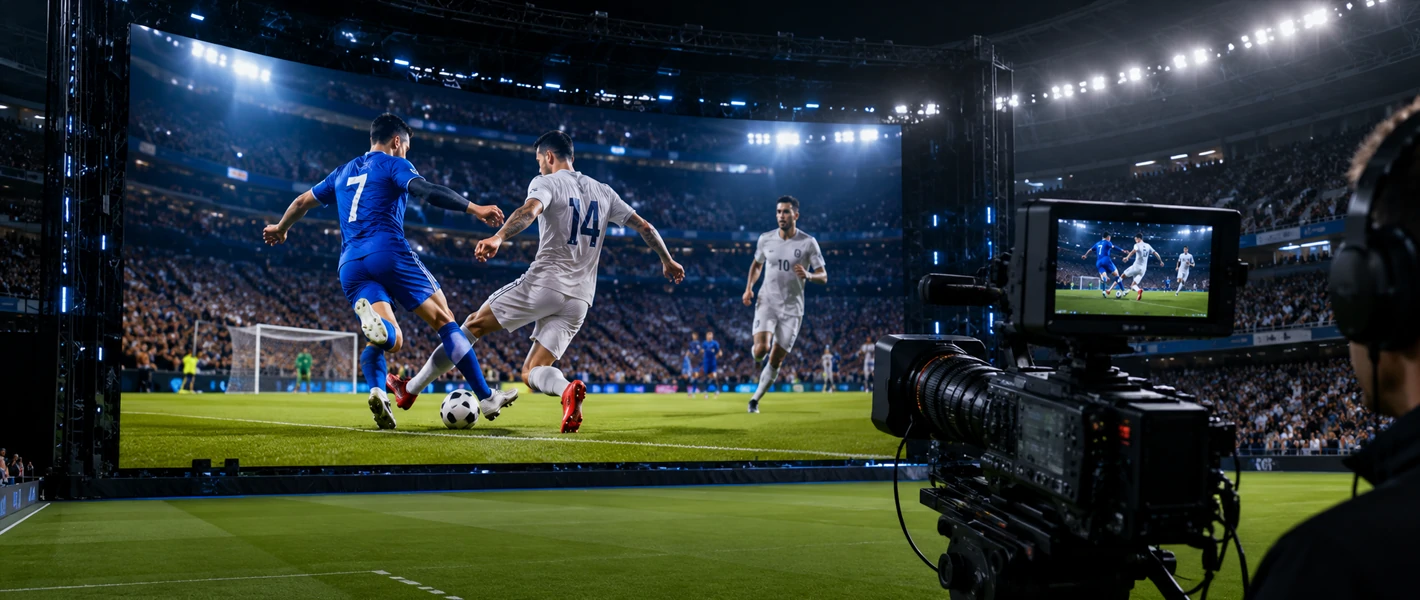

7680Hz Ultra-High Refresh Rate

Engineered for professional live visuals, delivering smoother images, reduced flicker, less moiré, and excellent camera performance for stage, rental, and broadcast applications.

IP65 Outdoor Waterproof Protection

waterproof, corrosion-resistant, dust-proof, high temperature resistant.

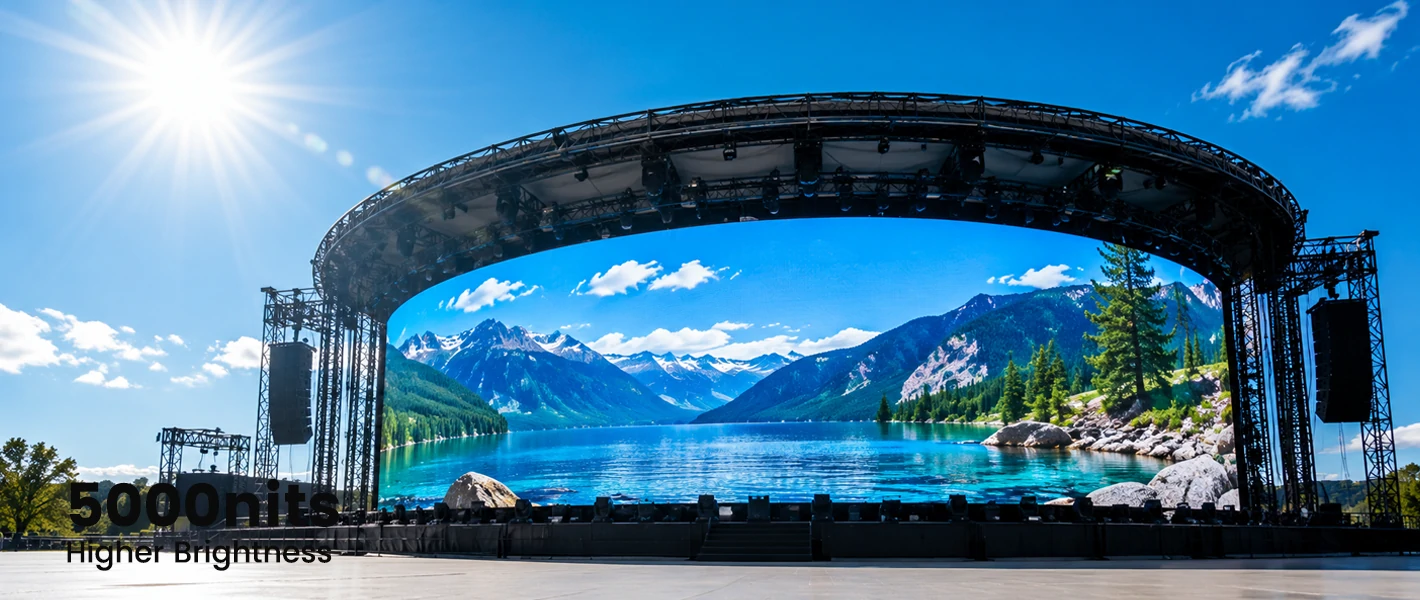

5000nits High Brightness

The indoor outdoor rental LED screen delivers clear visuals even under strong outdoor sunlight.

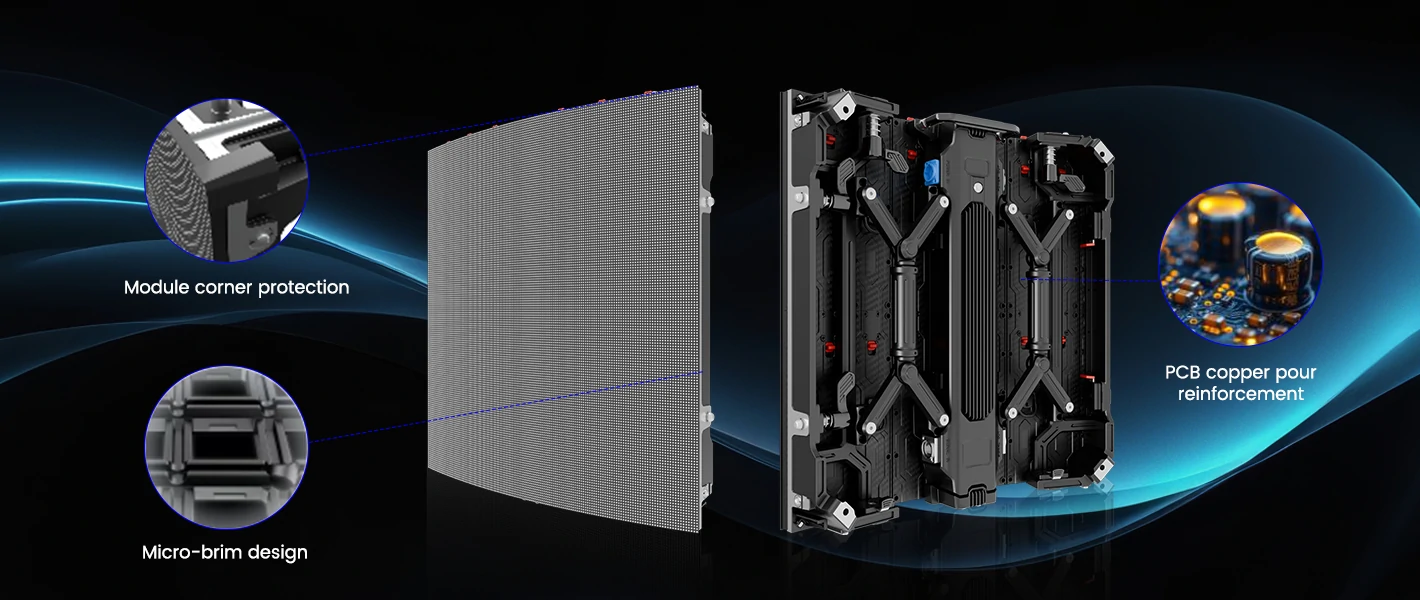

Triple Protection Design

The micro-brim design, soft rubber corner guards, and PCB copper reinforcement help protect the LED modules and improve overall durability.

Aluminum Alloy Protection Frame

The aluminum alloy protection frame improves impact resistance and drop durability, making the product more reliable during transportation, installation, and repeated rental use.

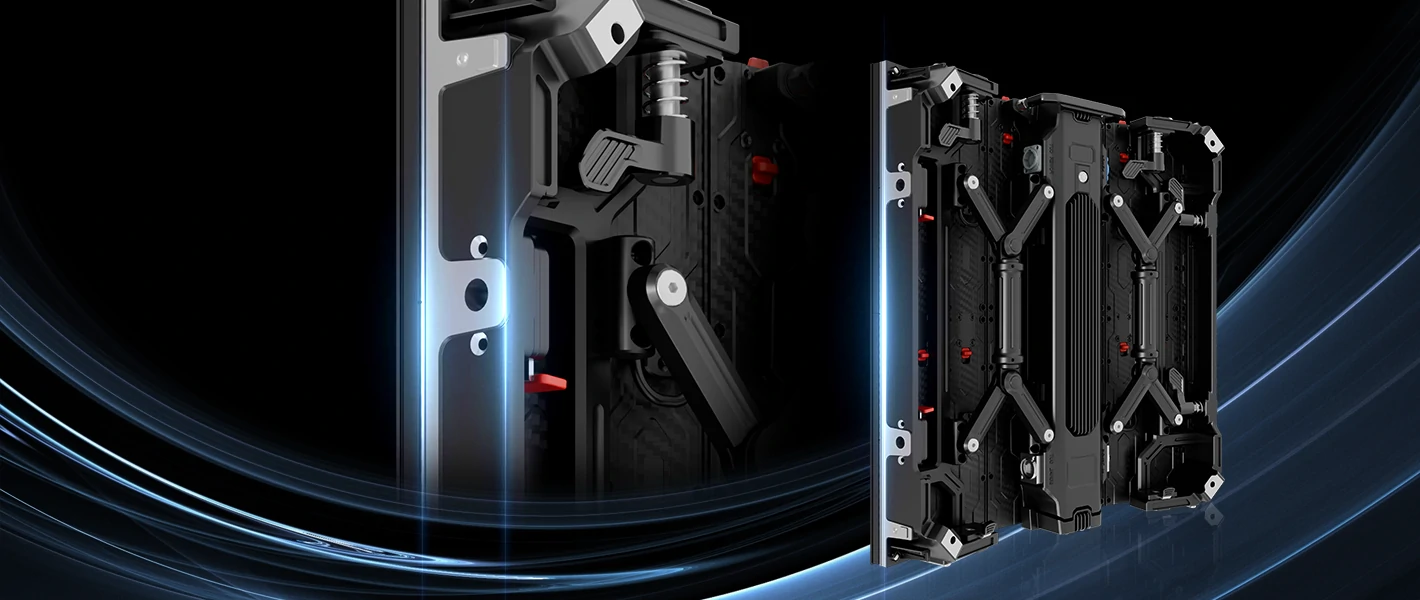

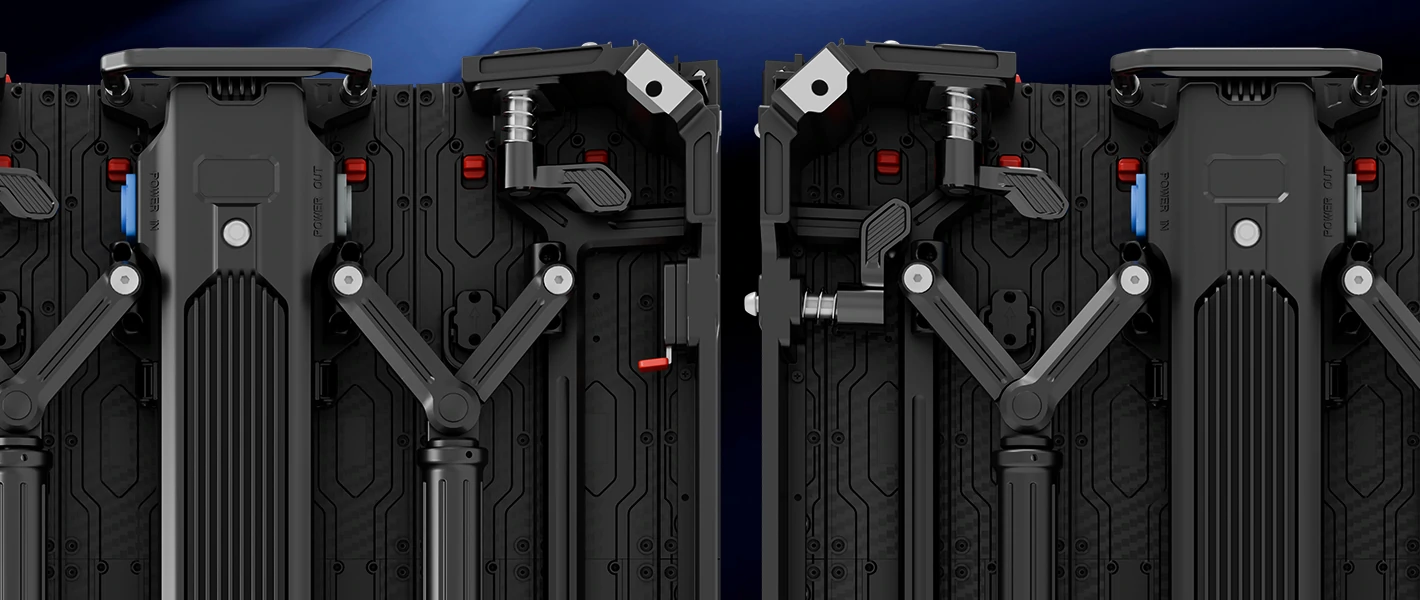

Four-Buckle Quick Installation Structure

The four-buckle quick-install structure with handle design makes transportation and installation faster, helping save labor and setup time.

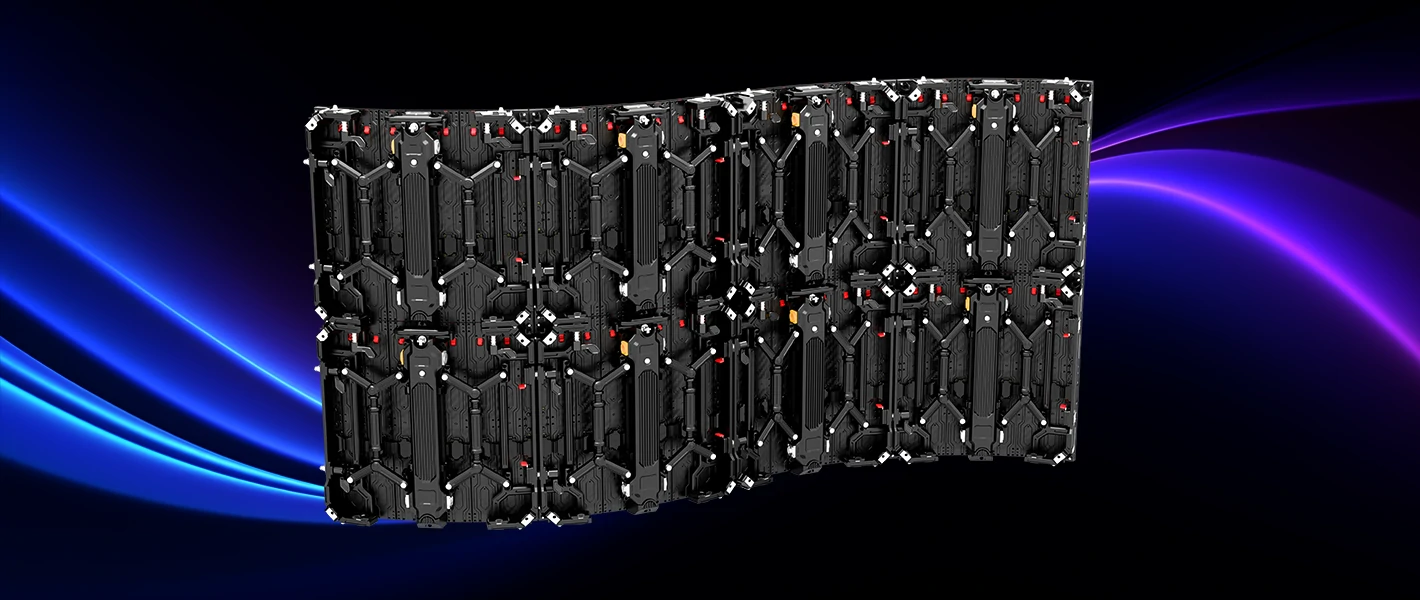

Ultra-Flexible

Equipped with a creative flexible lock design, AXISFLEX supports ±30° angle adjustment, making it easy to build curved screens, S-shaped screens, cylindrical displays, ring screens, and other creative LED structures.

Product Parameter

Specs Applications	Indoor		outdoor
Pixel Pitch (mm)	1.95	2.6	2.976	3.91
Module Dimensions(mm)	500x250x11		32.73x500 59.52x500 62.49x500	31.25x500x12 62.5x500x12
Module Resolution(pixels)	256x128	192x96	11x168/76x168 21x168	8x128/16x128
Cabinet Dimensions(mm)	500x500x81.6
Cabinet Resolution(pixels)	256x256	192x192	168x168	128x128
Main Structure Material	Die-cast aluminum
Weight (kg)	8.13		8.5
Max WB Brightness(nits)	800		4000	5000
Gray Level (bit)	14-16
Contrast	≥3000:1
Refresh rate (Hz)	7680
Viewing angle (H / V)	140°/120°
Protection Level (F/ B)	IP30		IP65/IP54
Input AC Voltage	100-240V 50/60Hz
Working Temperature(°C)	-10~40
Operating Humidity(RH)	10%~60（no condensation）
Installation Methods	Stacking + Hoisting
Maintenance Methods	Rear maintenance
Max Power/Average Power(W/m²)	510/180		600/210	630/220
Control Distance	Cat6e Lan cable: <100m; Single-mode fiber cable: <10km
