What is the D Series premium rental LED display designed for?

The D Series is designed for high-end rental and staging projects, including concerts, touring productions, XR studios, broadcast stages, churches, exhibitions, festivals, corporate events, and professional live event applications that require stable performance and premium image quality.

What makes the D Series different from standard rental LED screens?

The D Series is built with a solid 500 × 500mm rental cabinet, 4-layer PCB, high-precision cabinet structure, front and rear maintenance, corner protection, optional power and signal backup, and premium visual performance. It is designed for rental teams that need repeated installation, safe transport, and reliable live-event operation.

What cabinet size does the D Series use?

The D Series uses a standard 500 × 500mm cabinet with 250 × 250mm modules. The cabinet weighs about 8kg for indoor versions and about 8.8kg for outdoor versions, making it strong enough for professional touring while remaining efficient for handling and setup.

Does the D Series support curved and right-angle installation?

Yes. The D Series supports flat splicing, curved installation, and 90° right-angle splicing. Customized buckle locks and optional beveled cabinets allow rental teams to create curved backdrops, immersive corners, exhibition booths, and creative stage structures.

What display performance does the D Series provide?

The D Series supports a 7680Hz refresh rate, 16bit grayscale, wide color gamut, rich color reproduction, and smooth image performance. These features help reduce flicker, scan lines, and moiré during live broadcast, XR production, camera shooting, and premium stage events.

Which LED technologies are available for the D Series?

The D Series supports SMD, GOB, and HOB module options, and can also be customized with 2-in-1 or MIP LED technology for selected projects. These options help improve durability, surface protection, color consistency, and close-viewing performance.

Is the D Series suitable for both indoor and outdoor rental projects?

Yes. The indoor version can reach up to 1500 nits brightness for stage, exhibition, XR, and broadcast environments, while the outdoor IP65 version can reach up to 6000 nits brightness for festivals, outdoor concerts, sports events, and temporary commercial installations.

Why choose DDW D Series for professional rental LED projects?

The DDW D Series combines a solid 500 × 500mm cabinet, 4-layer PCB, 7680Hz refresh rate, 16bit grayscale, front and rear maintenance, SMD/GOB/HOB options, optional 2-in-1 and MIP technology, curved and 90° splicing, indoor 1500 nits brightness, outdoor IP65 6000 nits brightness, and optional signal and power backup for high-end rental companies and professional live event projects.

ORBIT SERIES

500×500mm/500×1000mm slim cabinets, GOB/SMD options, 3840–7680Hz refresh rate, IP65 outdoor protection

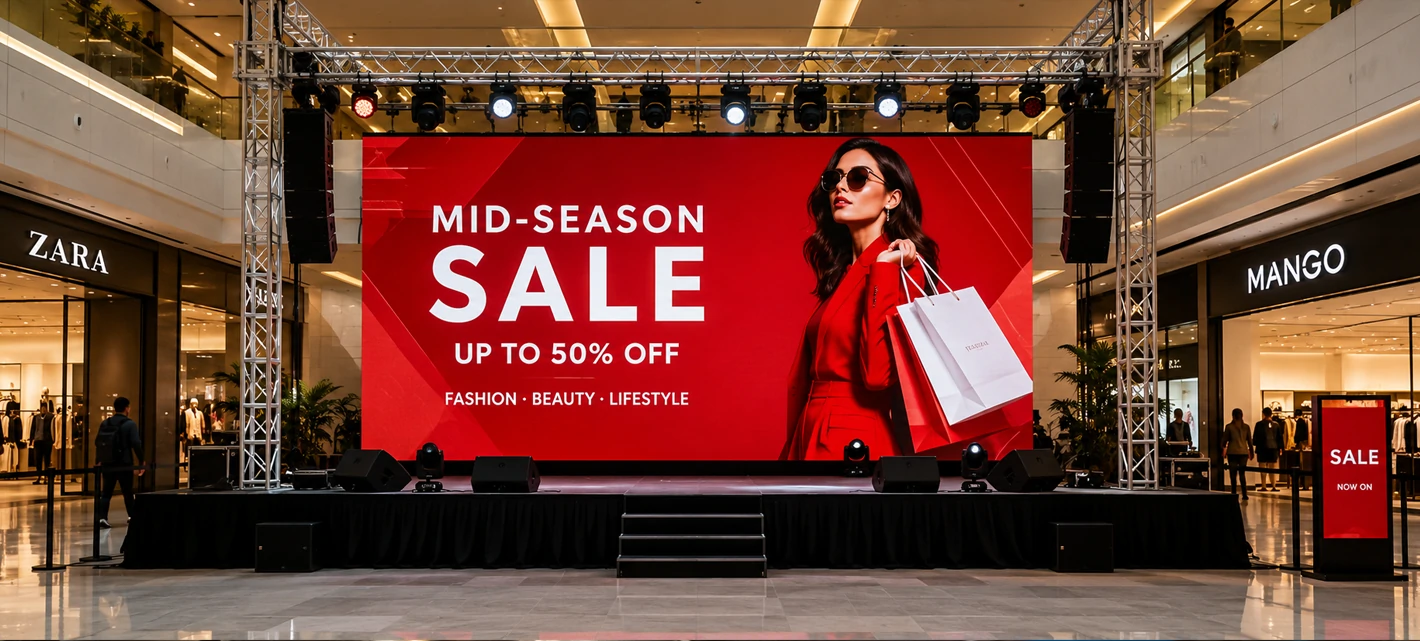

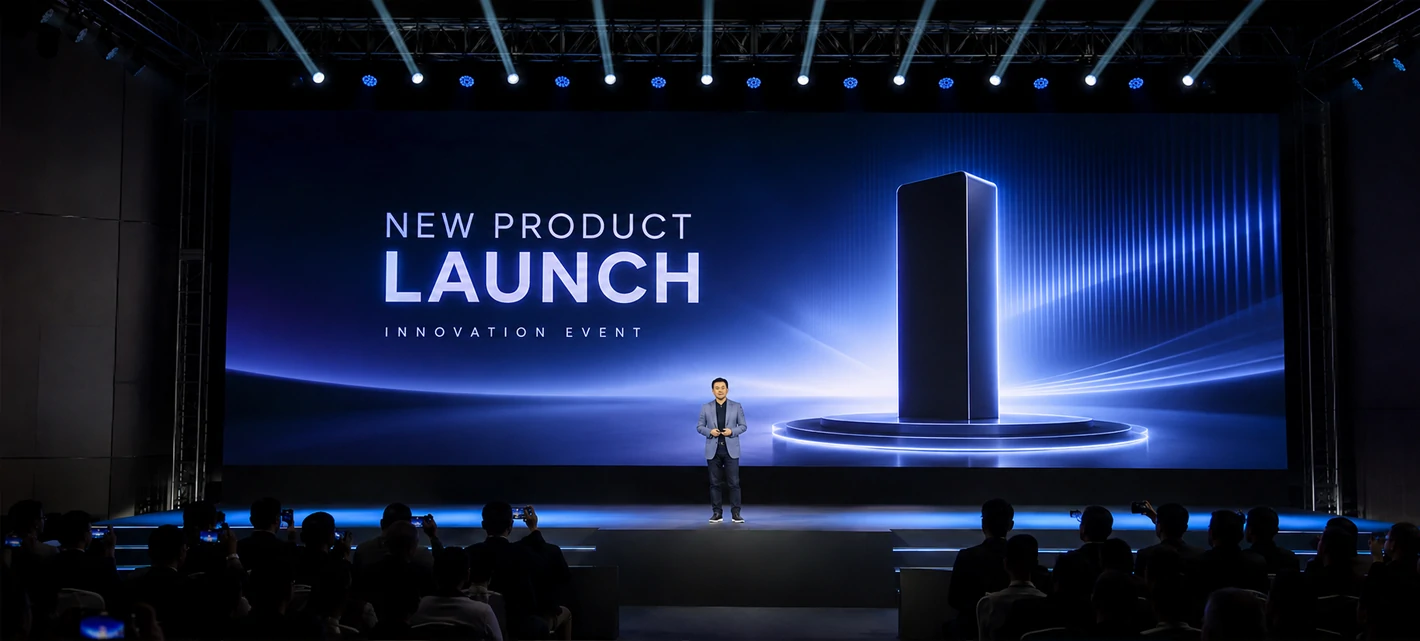

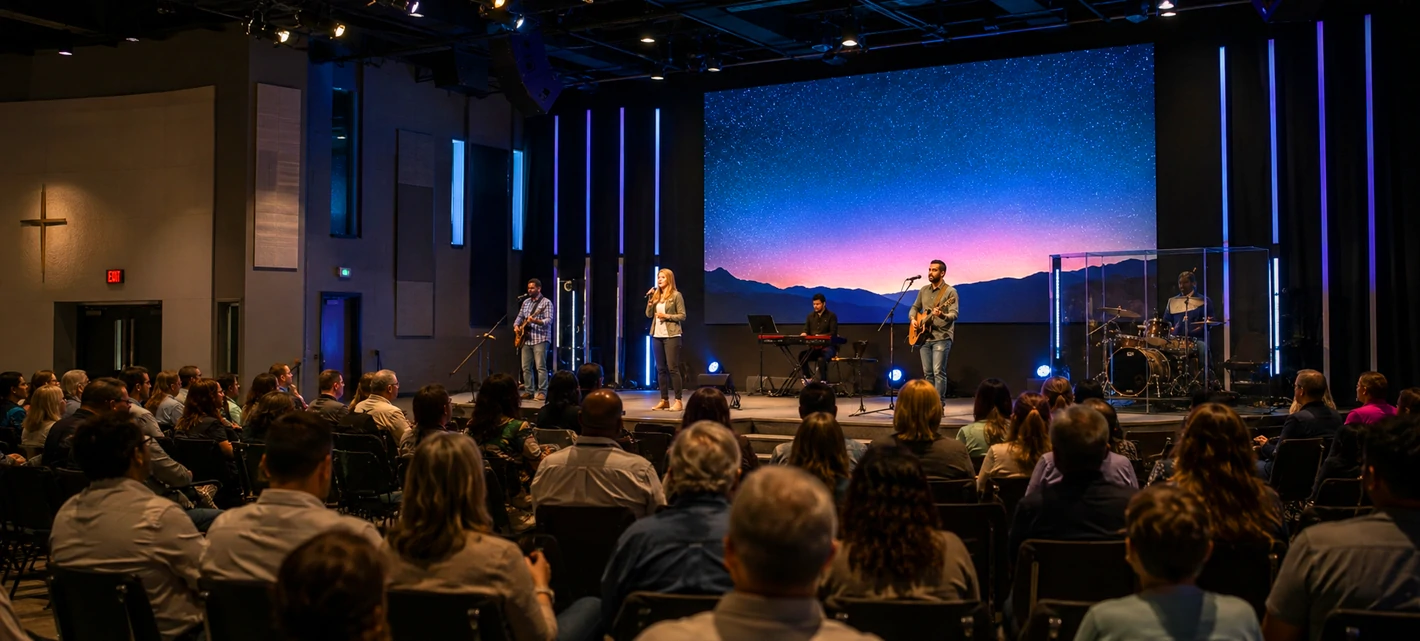

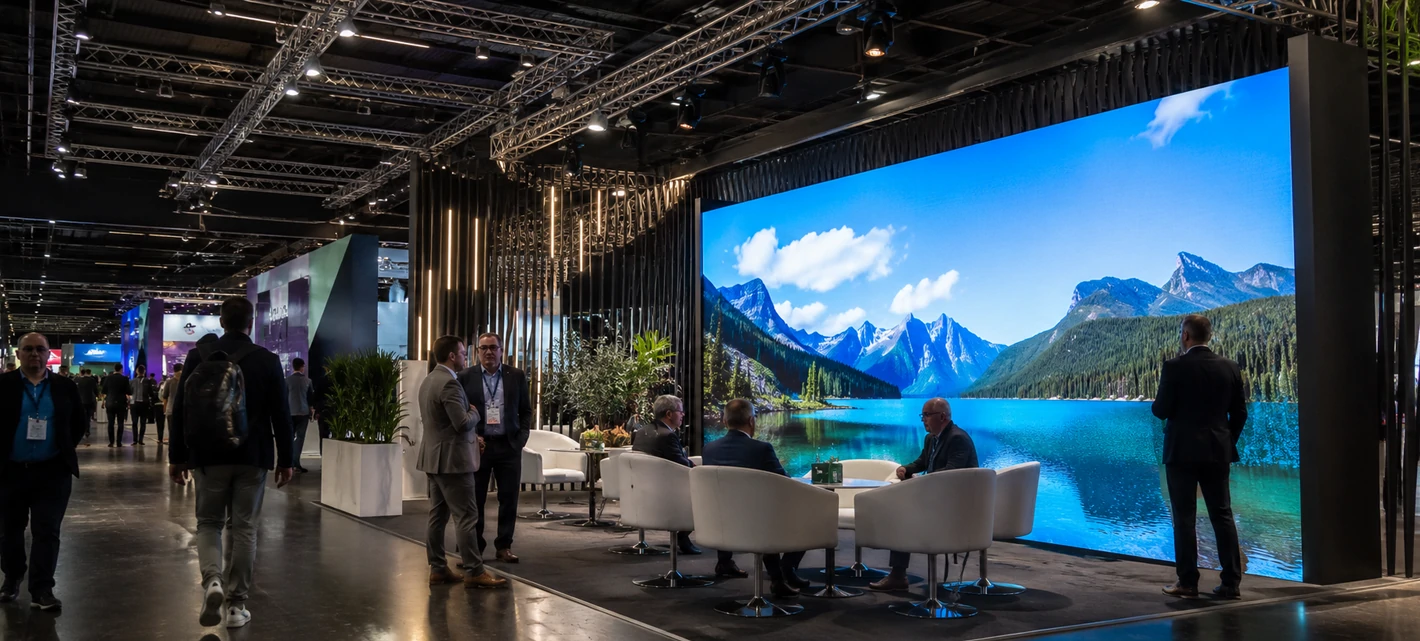

Application Scenario

Tag:

Reliable Rental LED Display for Live Events

ORBIT Series Rental LED Screen

Pixel Pitch

P1.25 P P1.56 P1.95 P2.5 P2.604 P2.976 P3.91 P4.81

Cabinet size

500*500/500x1000mm

Module size

250*250mm

Weight

8/14.5kg

Brightness

800-5000cd/m²

Refresh rate

3840-7680Hz

High-End Rental LED Display for Stage Production

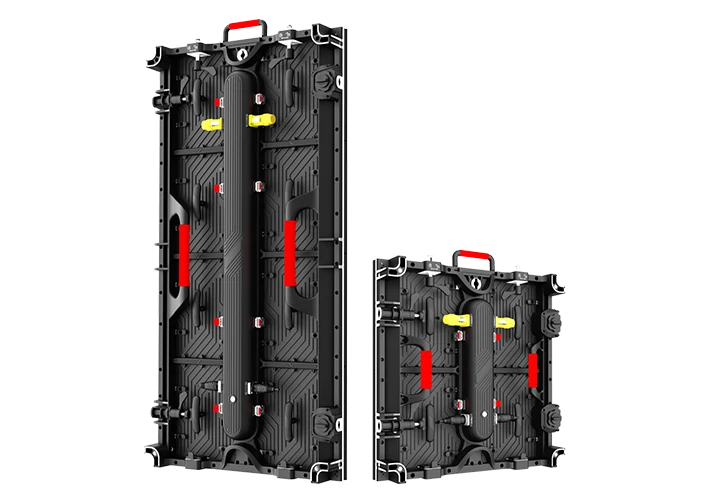

500×500mm / 500×1000mm Cabinets

Flexible cabinet sizes for different screen dimensions and rental project needs.

GOB / SMD Optional

GOB offers better impact and moisture protection, while SMD delivers fine image quality and natural colors.

With improved reliability and energy efficiency, MIP is ideal for premium outdoor advertising, architectural façades, and smart city display applications.

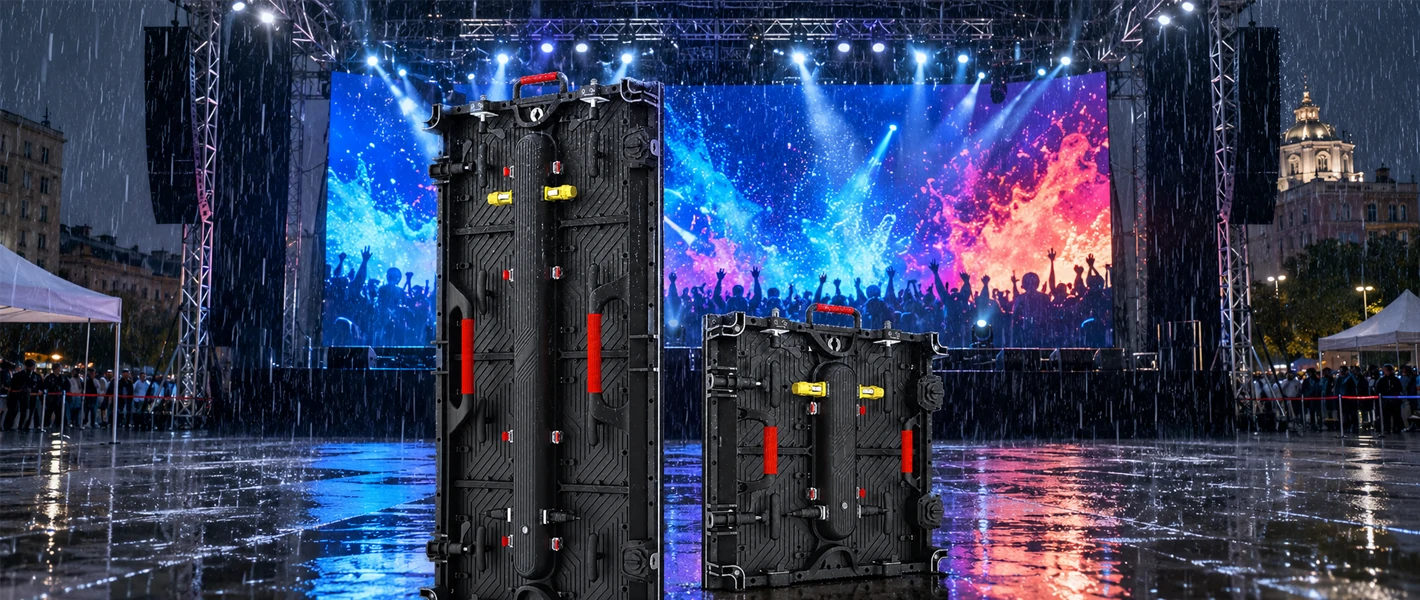

IP65 Outdoor Protection

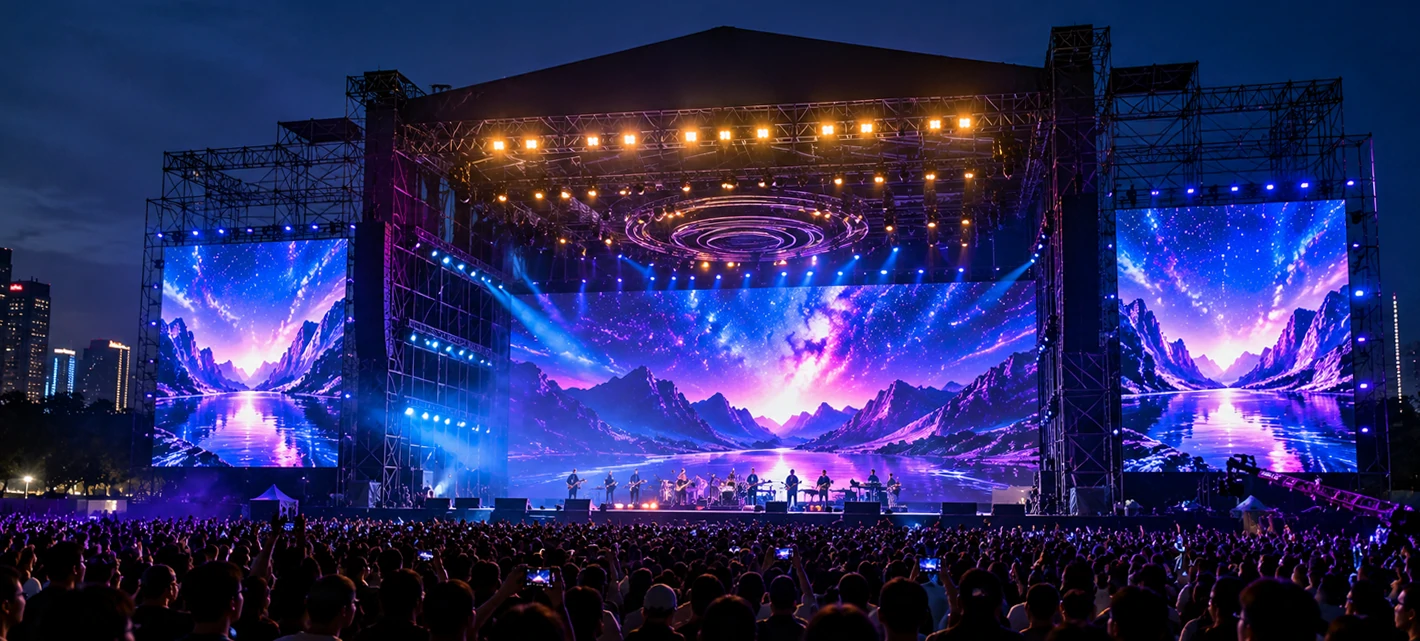

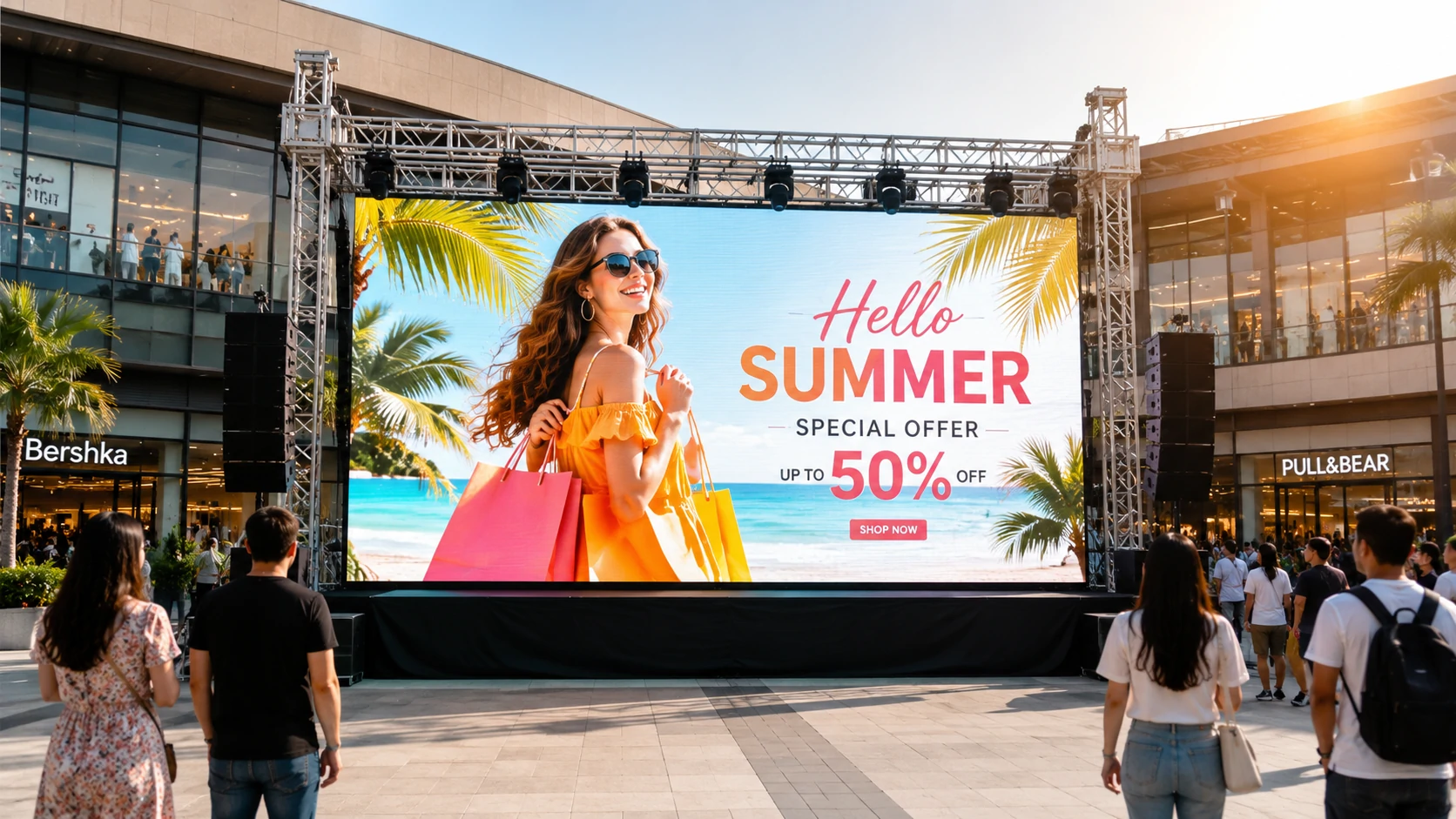

Outdoor version provides waterproof and dustproof protection for festivals, concerts, and outdoor events.

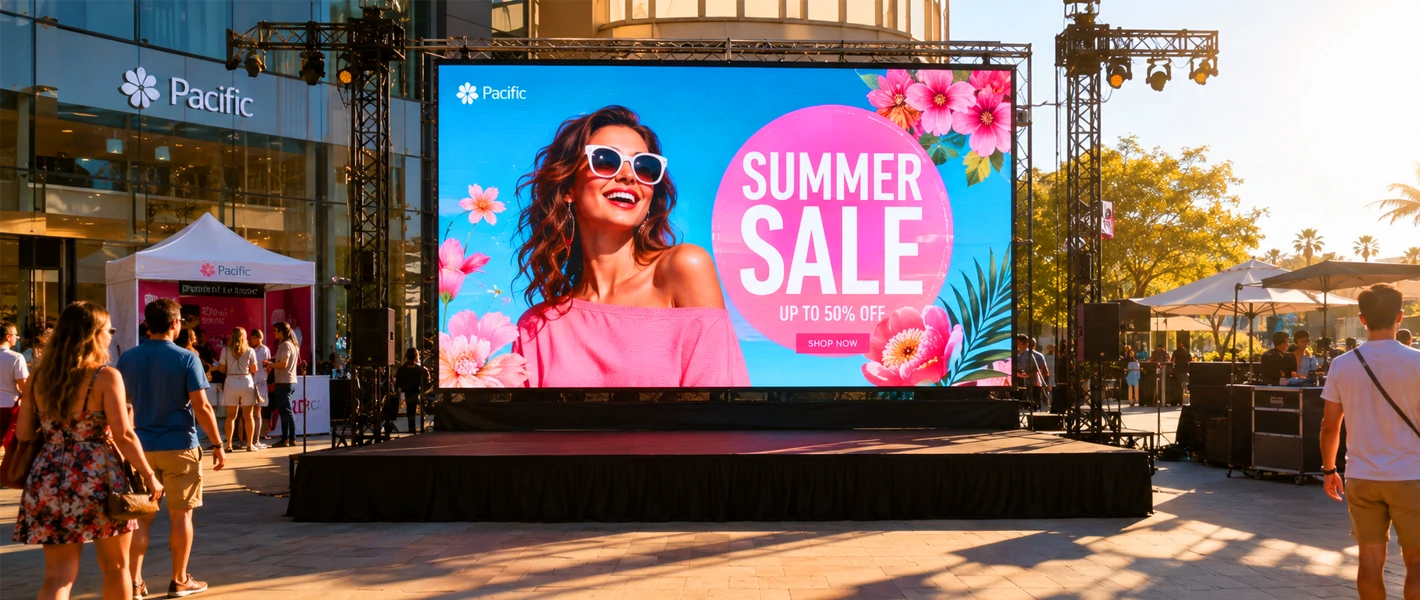

5000nits High Brightness for Outdoor Use

Delivers 45000–5000 nits of brightness, ensuring vivid and clear images even under direct sunlight.

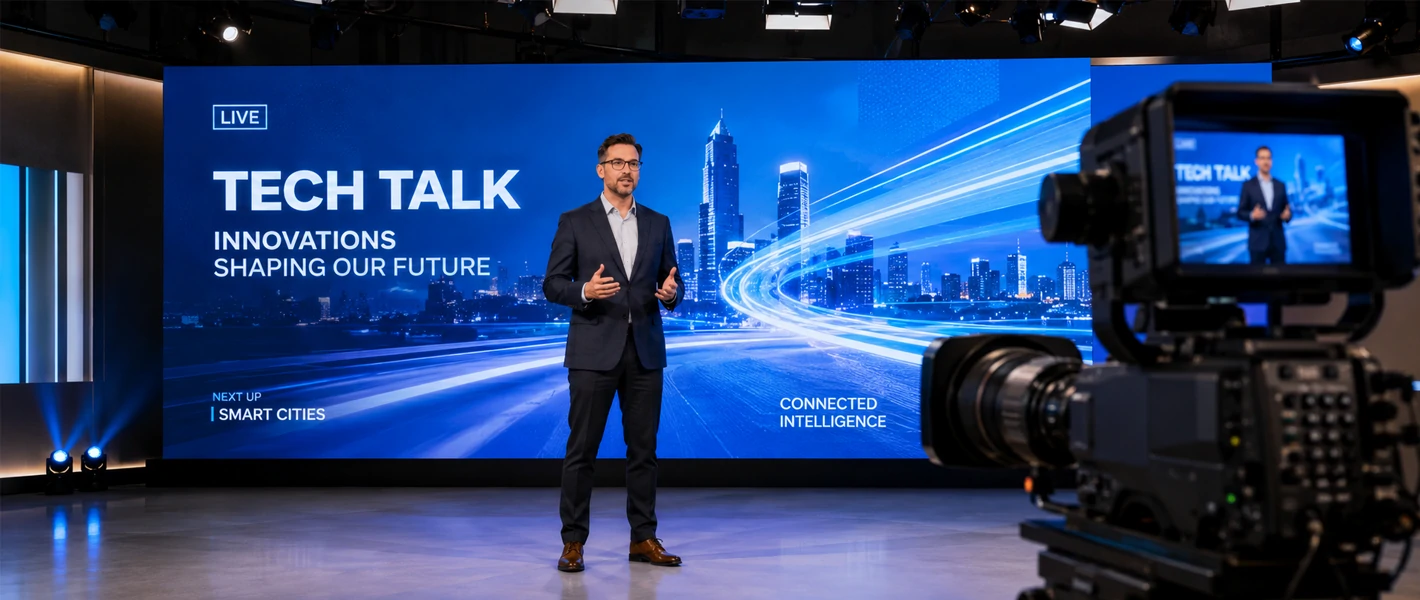

3840–7680Hz High Refresh Rate

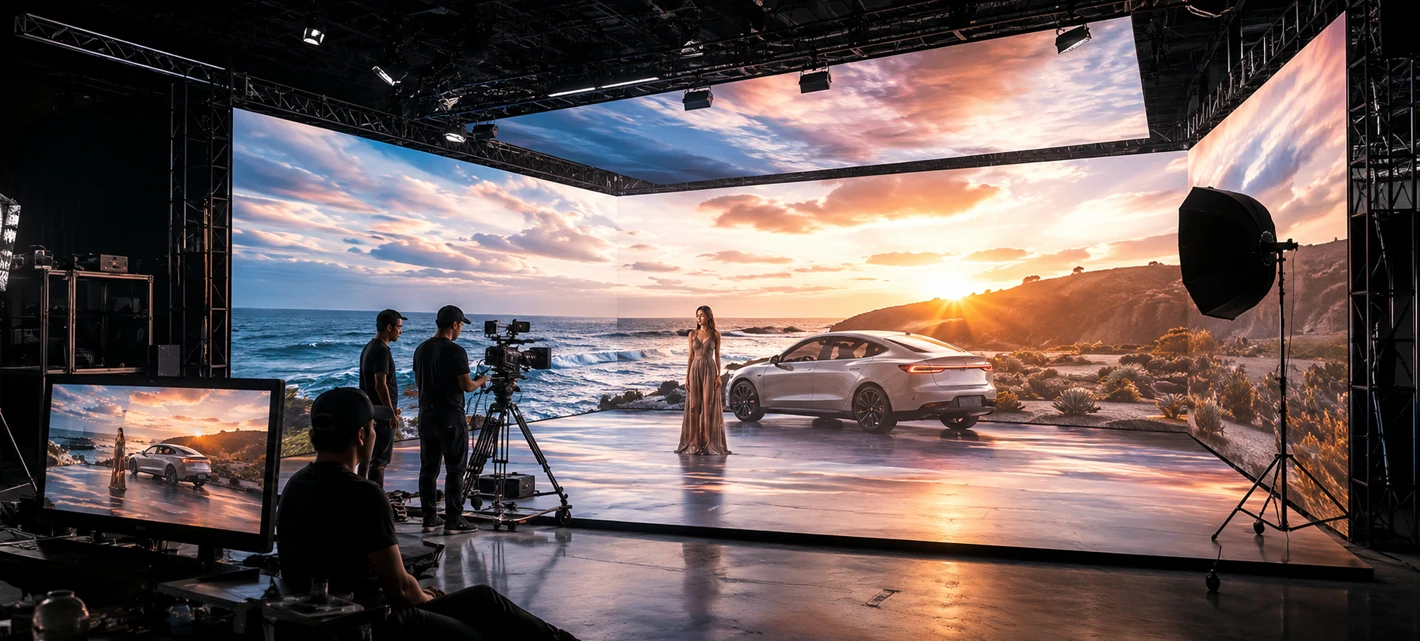

Smooth, stable, and camera-friendly visuals for filming, live events, and XR applications.

High-Performance Fast Lock

Designed for quick installation, easy dismantling, and stable splicing, while ensuring better load-bearing performance and screen flatness.

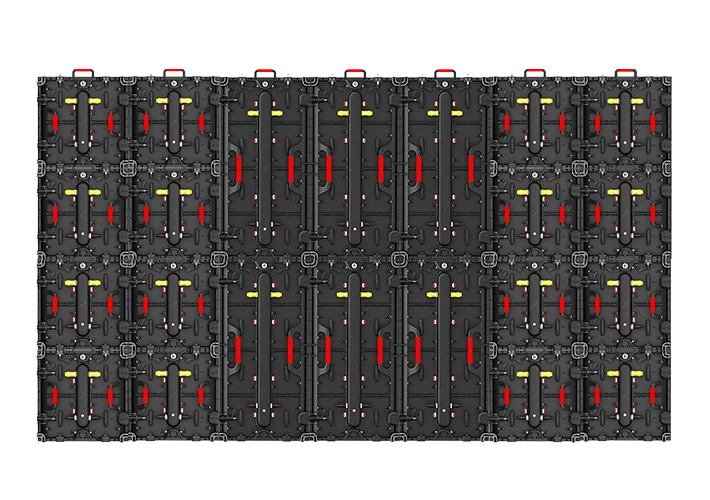

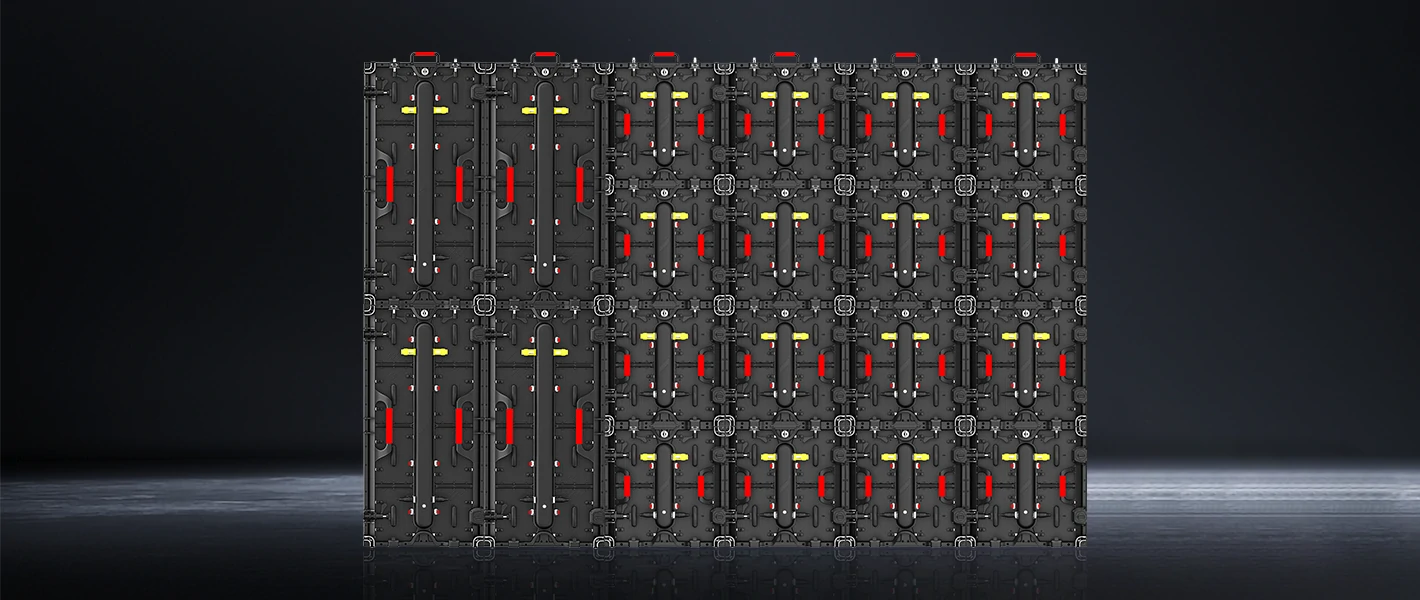

Flexible Cabinet Combination

The 500×500mm and 500×1000mm cabinets can be seamlessly interlocked, providing greater flexibility for different screen sizes, stage layouts, and installation environments.

Next-Generation GOB Display Technology

High Refresh, High Brightness, Reliable Operation

Advanced GOB packaging technology delivers higher brightness, deeper contrast, superior color uniformity, and enhanced reliability for premium fine-pitch LED display applications.

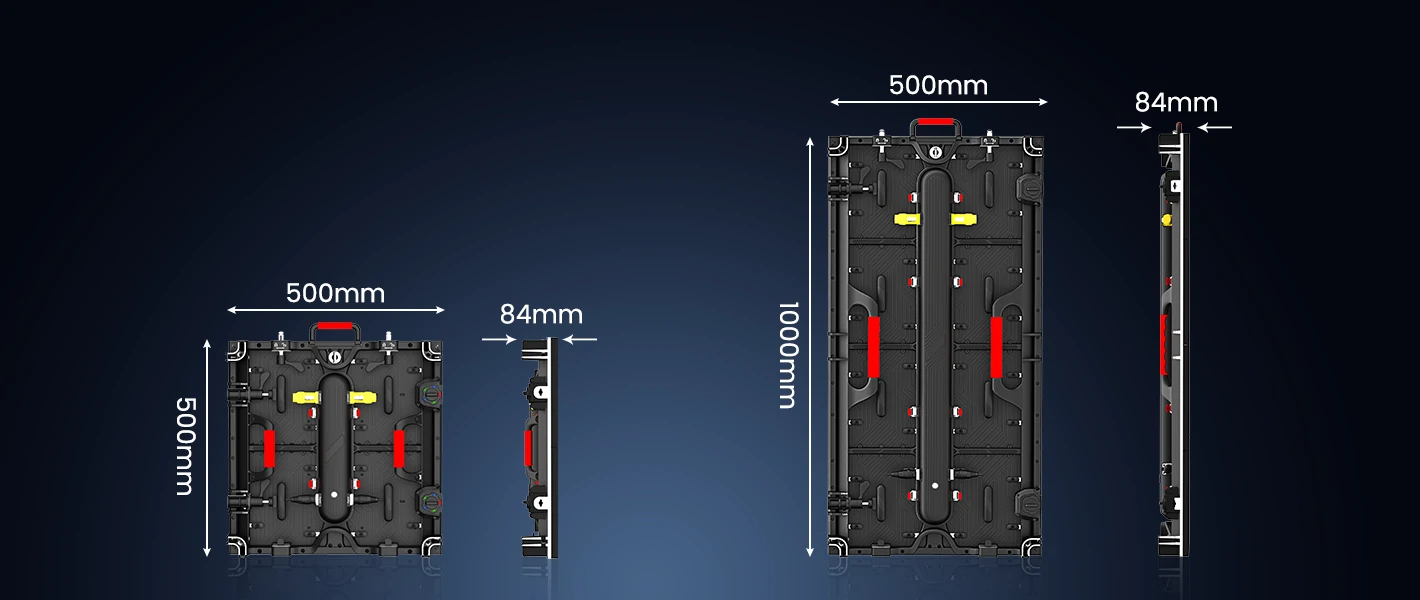

Slim 500×500mm Cabinet

Featuring a standardized 500×500mm cabinet with an ultra-slim 84mm depth, the lightweight die-casting aluminum structure enables precise alignment, seamless installation, and reduced labor costs for outdoor projects.

Lightweight Design

Weighing only 8kg per cabinet, the lightweight design makes transportation, installation, and maintenance easier while reducing labor costs and improving installation efficiency.

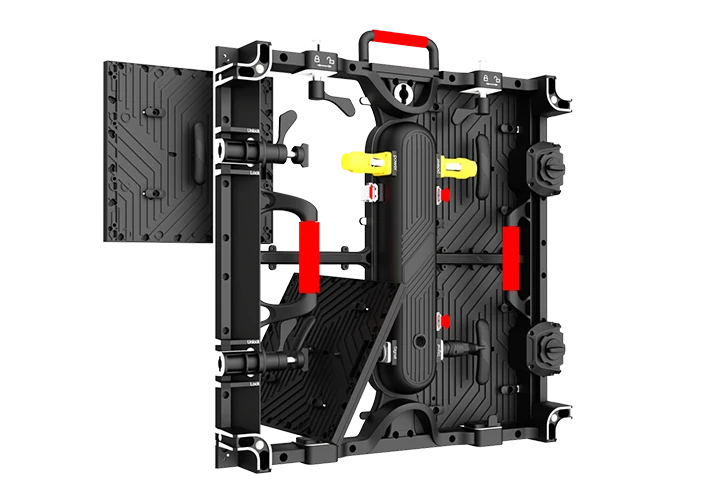

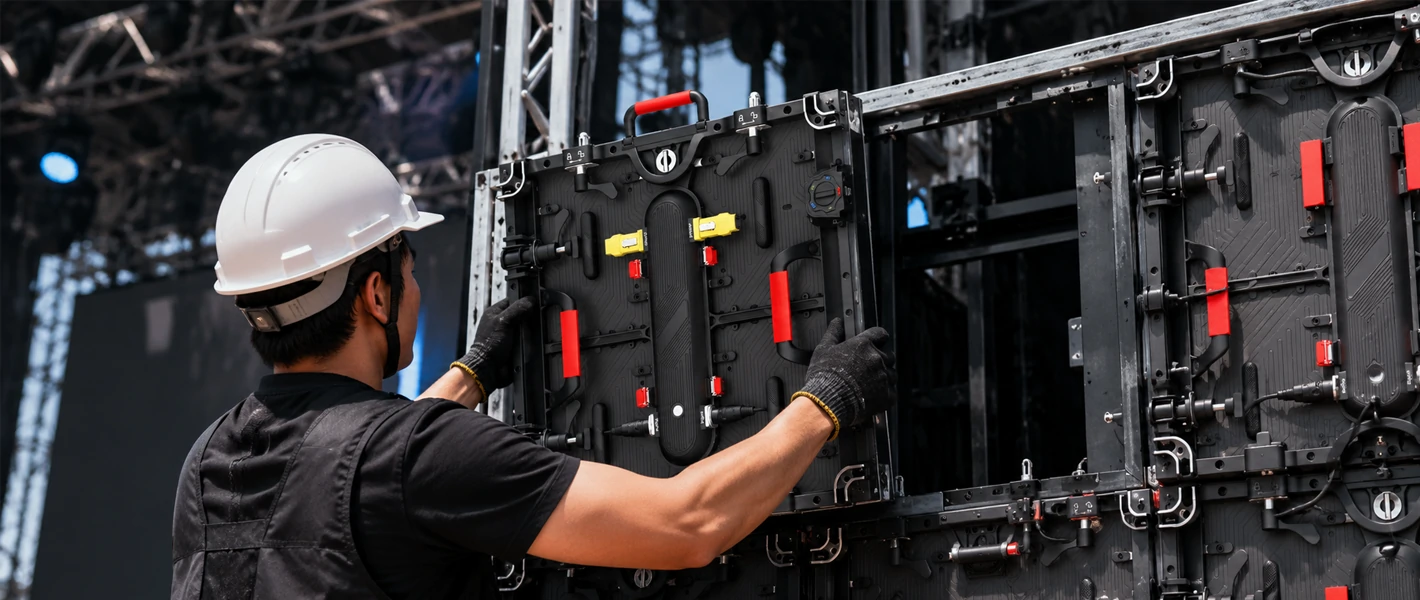

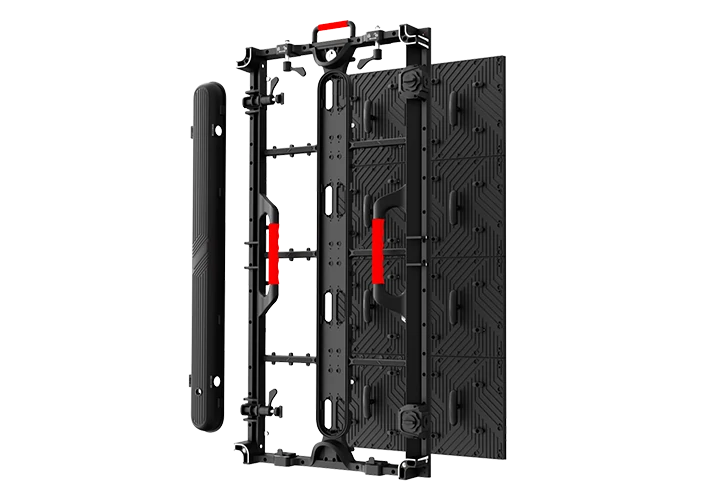

Front & Rear Maintenance

Supports both front and rear service, allowing quick access to modules, power supplies, and receiving cards for efficient maintenance.

Up to 30% Energy Saving

Powered by Common Cathode Technology, providing optimized power distribution that reduces energy consumption by up to 30% while lowering operating costs.

Corner Protection & Seamless Splicing

Integrated corner protection helps prevent module damage during transportation and installation, while precision cabinet alignment ensures seamless and perfectly flat displays.

Innovative Arc Lock

Compatible with straight and curved configurations, the precision arc lock offers adjustable angles of -5°, -2.5°, 0°, +2.5°, and +5°, ensuring quick assembly and seamless alignment.

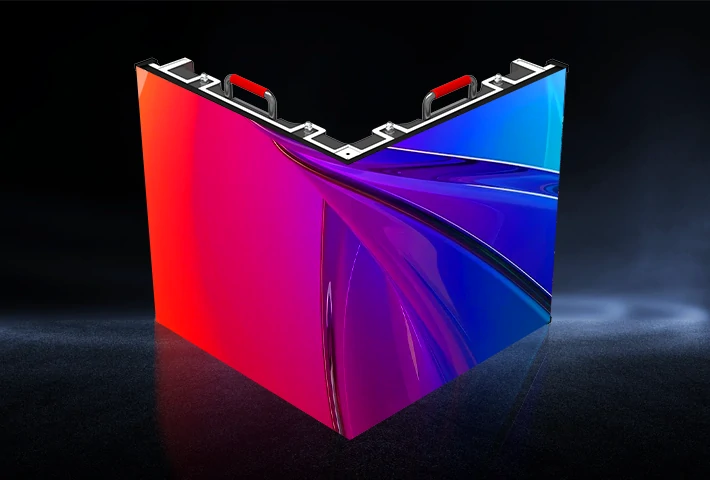

45° Right-Angle Installation

Corner Splicing · Creative Structures · More Flexible Stage Design

Indoor Product Parameters

Given the continuous iteration and innovation of the products, the parameters are provided solely for preliminary reference purposes, and the actual specifications may be subject to updates.

Specification	P1.25	P1.56	P1.95	P2.5	P2.604	P2.976	P3.91	P4.81
LED Type	SMD1010(GOB)	SMD1212(GOB)	SMD1515(GOB)	SMD1515(GOB)	SMD1515(GOB)	SMD1515	SMD2020	SMD2020
Physical Density(Dot/m²)	640000	409600	262144	160000	147456	112896	65536	43264
Module Resolution	200X200	160X160	128X128	100X100	96X96	84X84	64X64	52X52
Module Size(W×H)	250X250
Cabinet Size(mm)	500X500X84	500X500X84	500X500X84	500X500X84	500X500X84	500X500(1000)X84	500X500(1000)X84	500X500(1000)X84
Cabinet Resolution	400X400	320X320	256X256	200X200	192X192	168X168/168X336	128X128/128X256	104X104/104X208
Module Quantity(W×H)	2X2	2X2	2X2	2X2	2X2	2X2/2X4	2X2/2X4	2X2/2X4
Weight(kg)	8	8	8	8	8	8/14.5	8/14.5	8/14.5
Maintenance	Front/rear
Cabinet Material	Die-cast Aluminum
Brightness(Nits)	≥600	≥600	≥800	≥800	≥800	≥800	≥1000	≥1000
Color Temperature(K)	5000-12000(Optional)
Viewing Angle(H/V)	160°/160°
Viewing Distance	3-50m	3-50m	3-100m	4-150m	4-150m	6-200m	4-100m	4-100m
Contrast Ratio	15000:1
Frame rate	50/60
Drive Mode	1/50 scan	1/40 scan	1/32 scan	1/25 scan	1/32 scan	1/28 scan	1/16 scan	1/13 scan
Grey Scale	12-16bit(Optional)
Refresh Rate(Hz)	3840-7680
Max Power consumption(W/m²)	600
Avg. power consumption(W/m²)	200-300
Protection level	IP31
Power input	AC90-264V,47-63Hz
Working temp./Humidity(℃/RH)	-20~60℃/10%~85%
Storage temp./Humidity(℃/RH)	-20~60℃/10%~85%

Outdoor Product Parameters
