What is the ECOB Series Flip Chip COB LED display designed for?

The DDW ECOB Series is designed for professional indoor visualization projects including control rooms, command centers, conference rooms, corporate spaces, showrooms and other high-end commercial environments that require fine pixel pitch, low power consumption and reliable long-term operation.

What pixel pitches are available for the ECOB Series?

The ECOB Series is available in P0.625, P0.78, P0.93, P1.25, P1.56 and P1.87 pixel pitches. The P0.625 configuration reaches a pixel density of approximately 2.56 million pixels per square meter, providing high-resolution images for close-viewing professional applications.

What cabinet sizes are available for the ECOB Series?

The ECOB Series supports 600 × 337.5mm and 600 × 675mm die-cast aluminum cabinets. The 600 × 337.5mm format follows the standard 16:9 aspect ratio, making it easier to configure Full HD, 4K and 8K professional LED video walls.

How does the ECOB Series reduce power consumption and heat generation?

The ECOB Series uses a common cathode low-power circuit design to improve energy efficiency and reduce unnecessary heat generation. Lower operating temperatures help improve long-term stability for meeting rooms, control centers and other applications requiring extended operating hours.

Does the ECOB Series support full front maintenance?

Yes. The ECOB Series supports front service maintenance, allowing modules and internal components to be accessed from the front. This makes installation and maintenance easier for wall-mounted, embedded and space-limited indoor LED video wall projects.

What visual performance does the ECOB Series provide?

The ECOB Series provides a 3840Hz refresh rate, up to 1000 nits optional brightness, a 10000:1 contrast ratio and 160° horizontal and vertical viewing angles. These specifications support smooth video reproduction, deep blacks and consistent image quality across professional visualization environments.

How durable is the ECOB Series COB surface?

The ECOB Series features a matt COB surface with 4H hardness and IP54 PCB surface protection. The protected surface can be cleaned with clean water according to the specified maintenance requirements, improving durability and simplifying routine maintenance for long-term indoor installations.

Why choose DDW ECOB Series for professional COB LED video wall projects?

DDW ECOB Series combines Flip Chip COB technology, pixel pitches from P0.625 to P1.87, 600 × 337.5mm and 600 × 675mm cabinet options, 3840Hz refresh rate, 10000:1 contrast, common cathode low-power design, full front maintenance and IP54 surface protection. It is designed for system integrators, distributors and professional project teams delivering high-resolution indoor LED video walls.

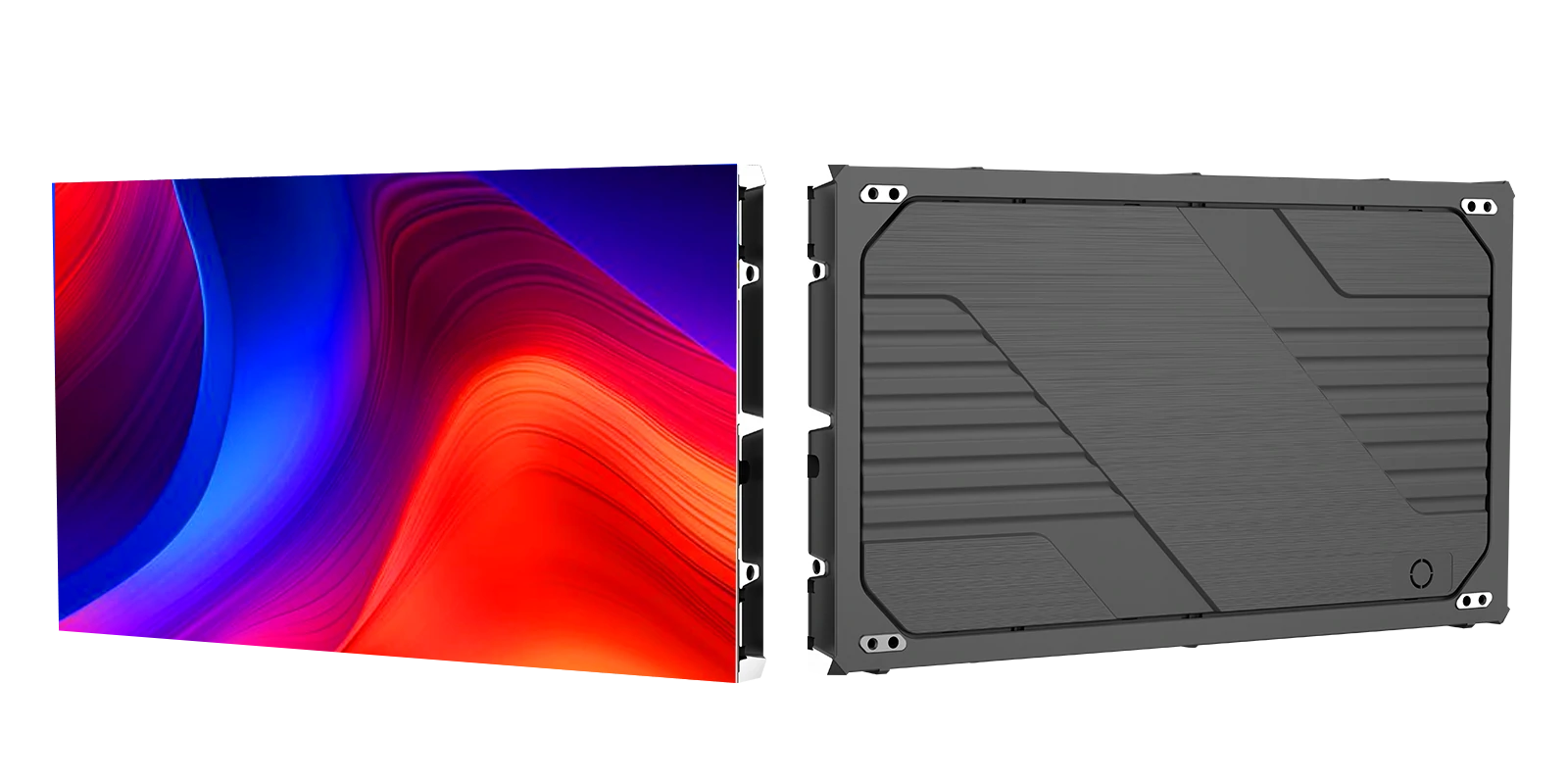

ECOB Series Flip Chip COB LED Display | Energy Efficient Video Wall

ECOB SERIES

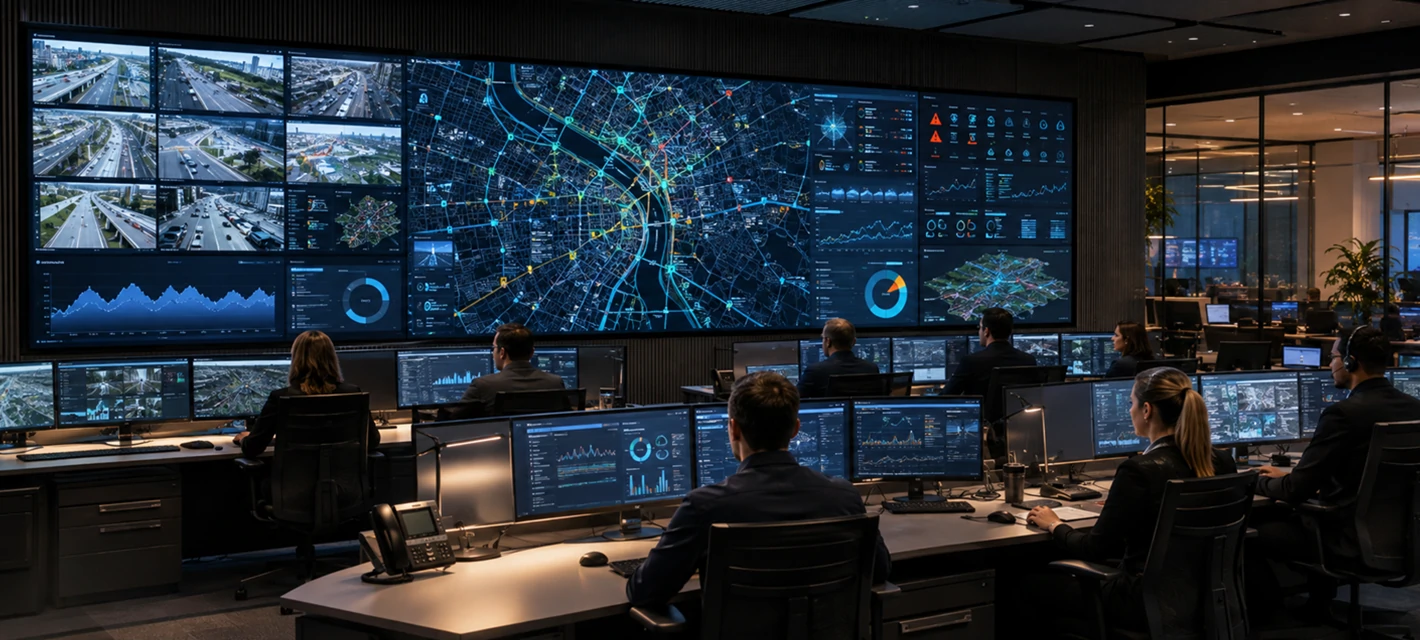

Application

Tag:

Mini Flip Chip COB Technology

Advanced Mini COB structure for stronger protection and stable image performance.

10000:1 High Contrast Ratio

Deep blacks, clear details, and premium indoor visual quality.

Common Cathode Low Power Design

Lower power consumption and reduced heat for long-term operation.

3-in-1 Integrated System

Power supply, control system, and HUB card integrated for lighter and more stable screen performance.

Front Service Design

Easy front maintenance for wall-mounted and space-limited indoor installations.

IP54 Washable Surface

PCB surface protection supports cleaning with clean water for easier maintenance.

High Precision Stitching

Micron-level tolerance and adjustable structure for better screen flatness.

Multiple Pixel Pitch Options

P0.625 / P0.78 / P0.93 / P1.25 / P1.56 / P1.87 available.

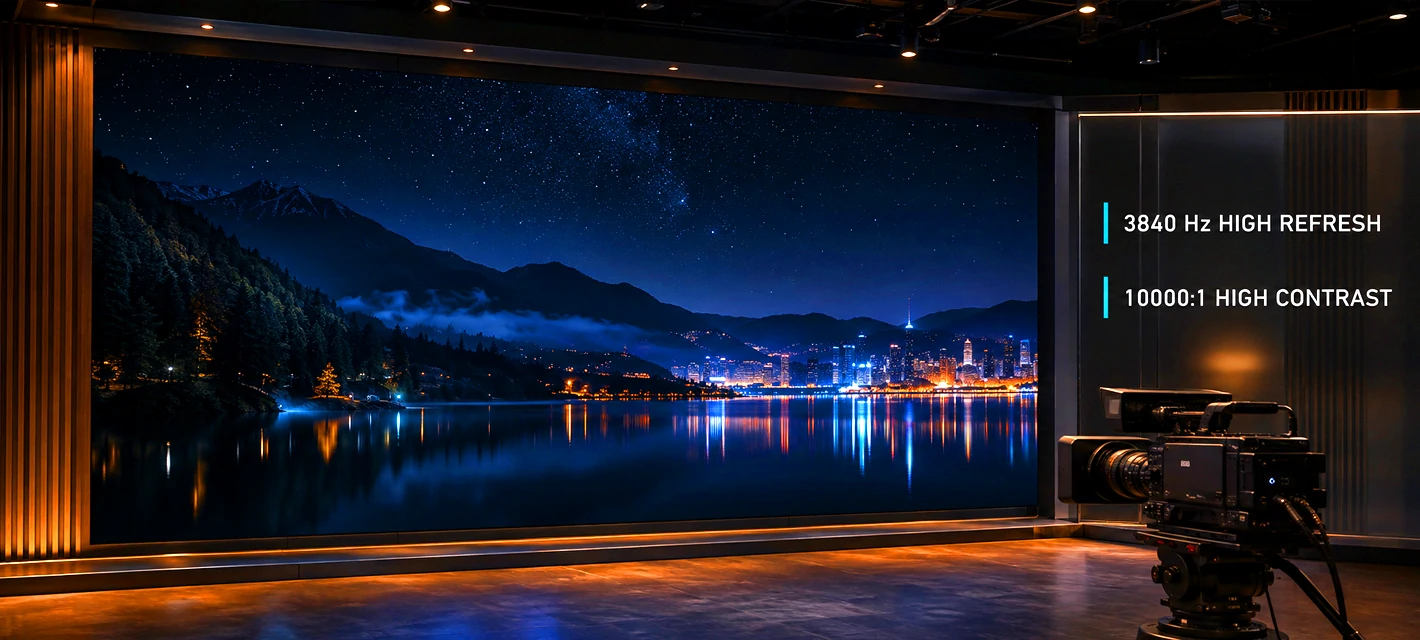

3840Hz High Refresh Rate

With a 3840Hz refresh rate, ECOB Series delivers smooth and stable visuals while reducing flicker and scan lines, making it suitable for video playback, meeting presentations, and control room applications.

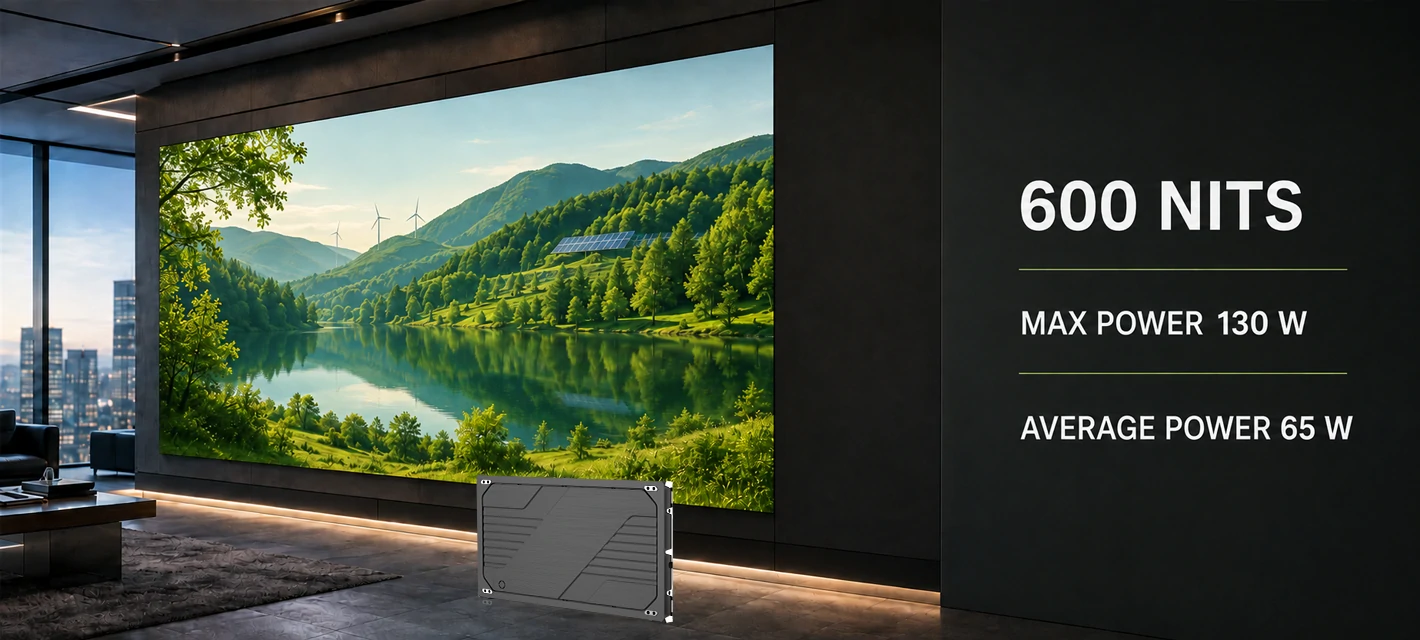

Common Cathode Low Power Design

The common cathode circuit design helps reduce power consumption and heat generation, improving long-term operating stability for continuous indoor display applications.

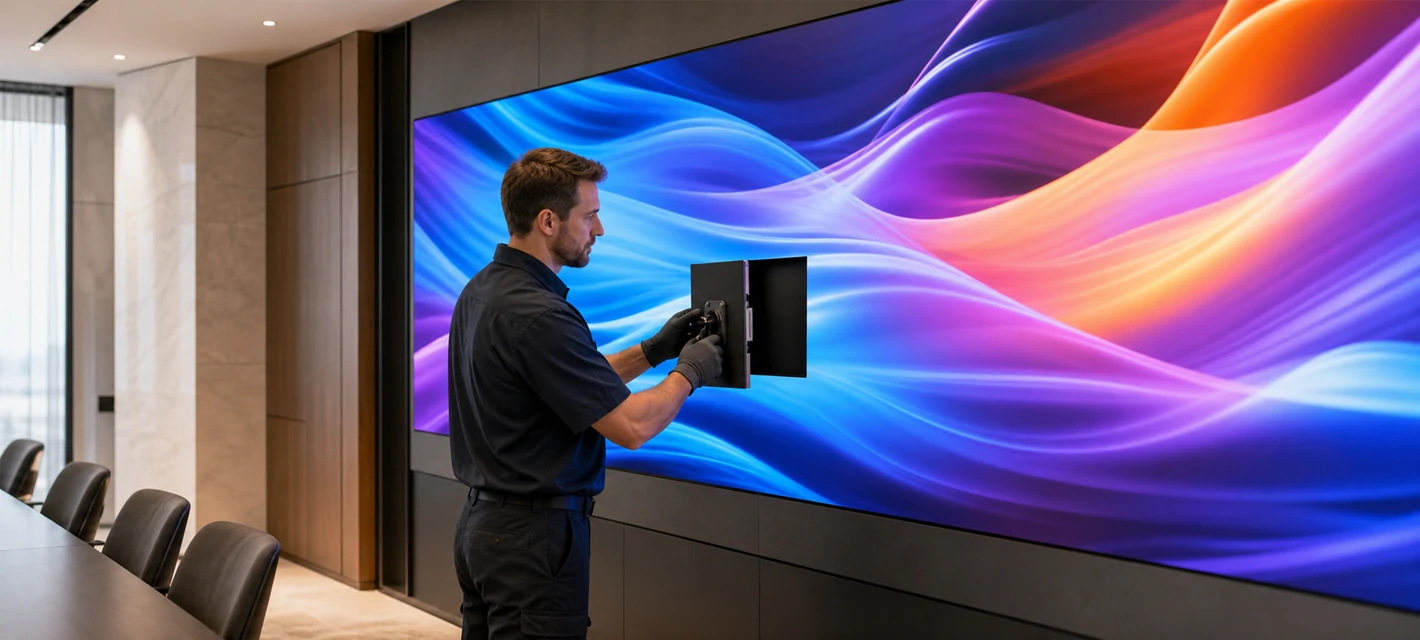

Front Service Design

ECOB Series supports front service maintenance, allowing easier access for module and component servicing. It is suitable for wall-mounted, embedded, and space-limited indoor installations.

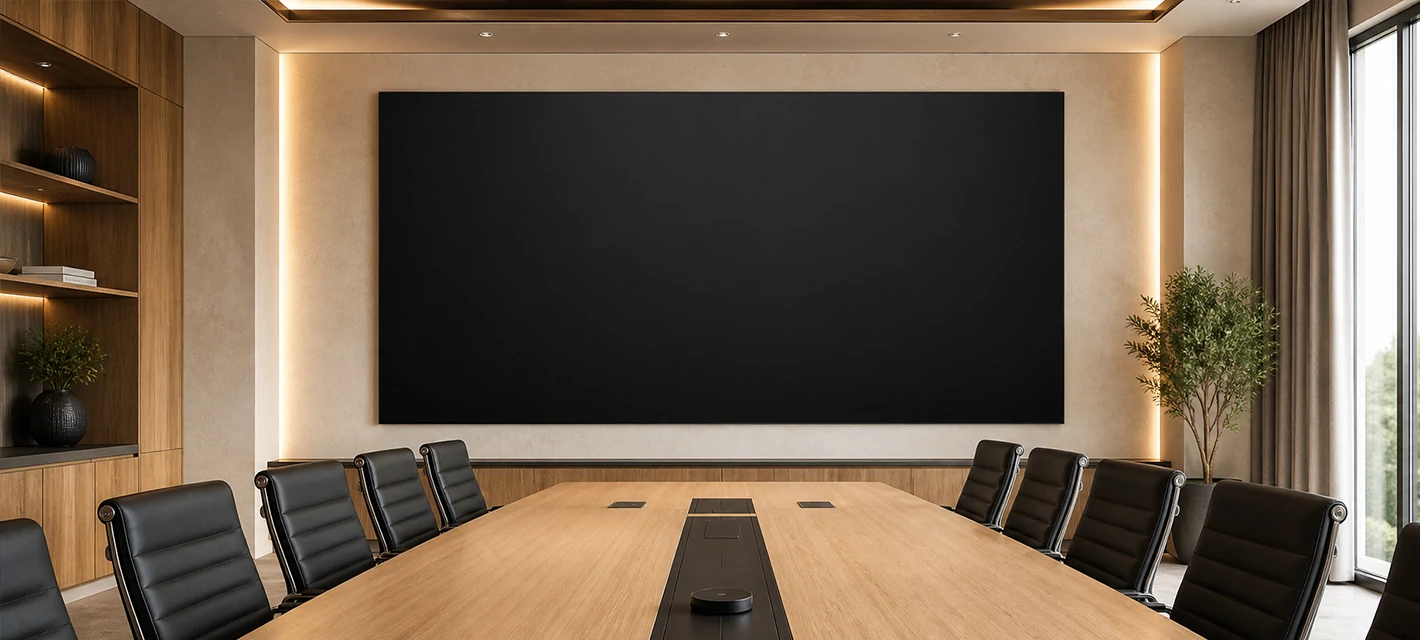

Better Dark Color Uniformity

ECOB Series provides better dark color uniformity, reducing grayish blacks, color blocks, and brightness inconsistency. The overall screen image appears cleaner, more uniform, and more professional.

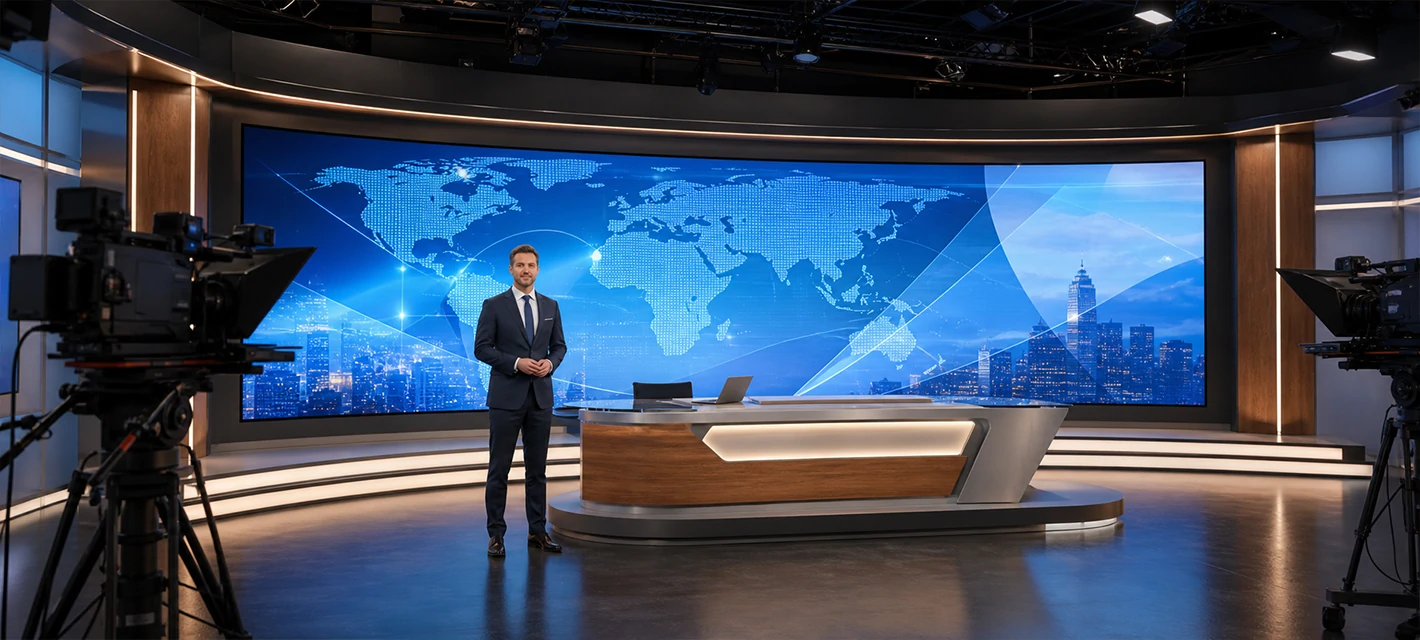

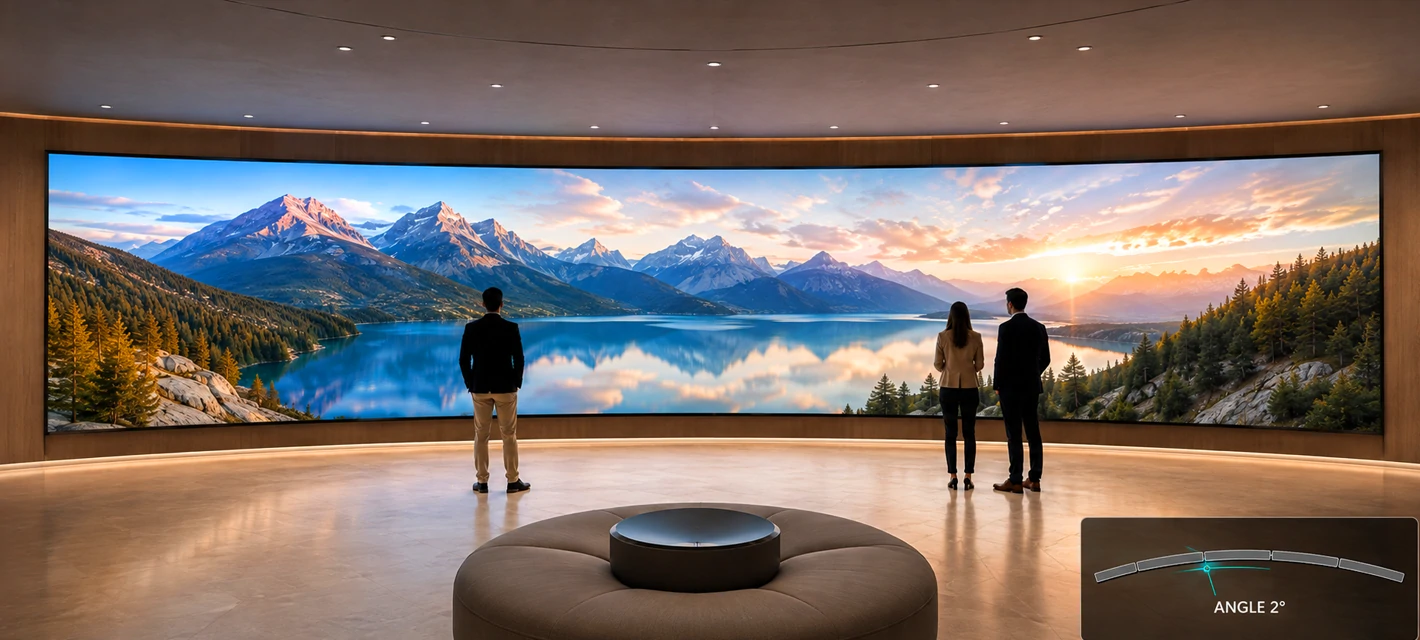

Inner Curved Installation

ECOB Series supports inner curved installation, with a 2° optional angle, enabling curved LED video walls and creative indoor display designs.

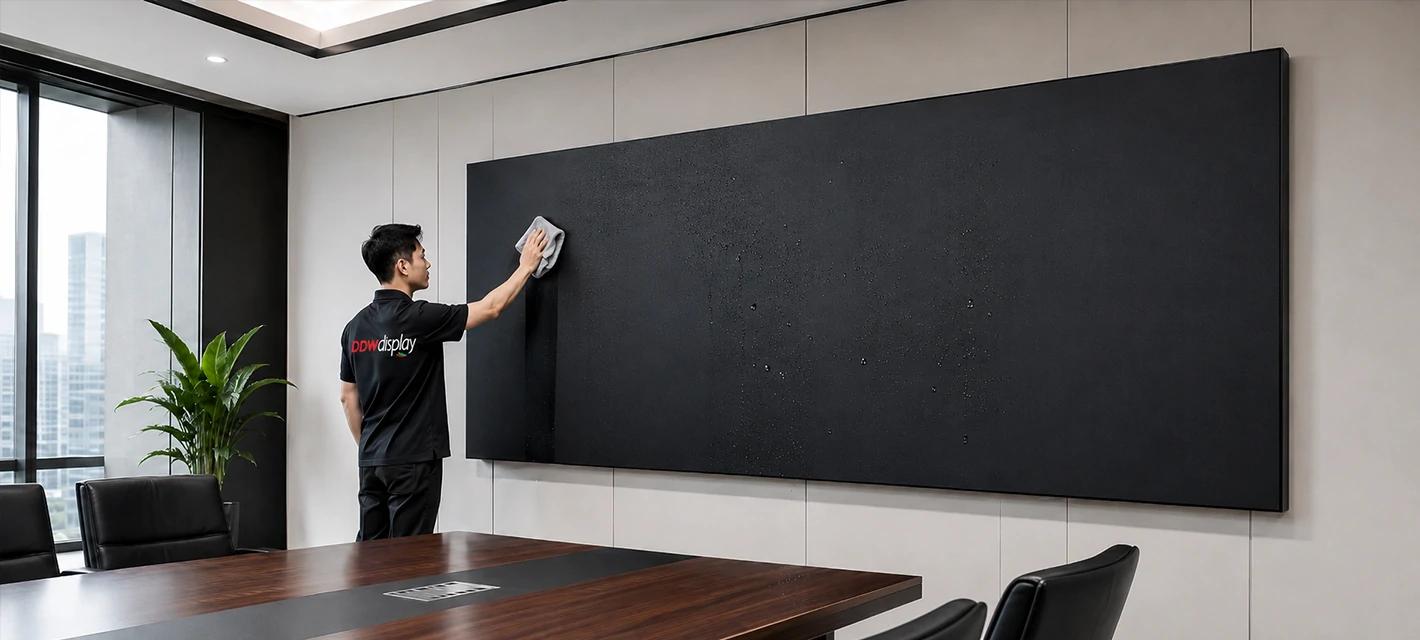

IP54 protection

The PCB surface supports IP54 protection and can be cleaned with clean water, making daily maintenance easier for long-term indoor commercial use.

LOW POWER. RELIABLE PERFORMANCE.

ECOB Series adopts a common cathode low-power circuit and front service structure, helping reduce heat generation, simplify maintenance, and improve long-term reliability for wall-mounted, embedded, and space-limited indoor commercial display applications.

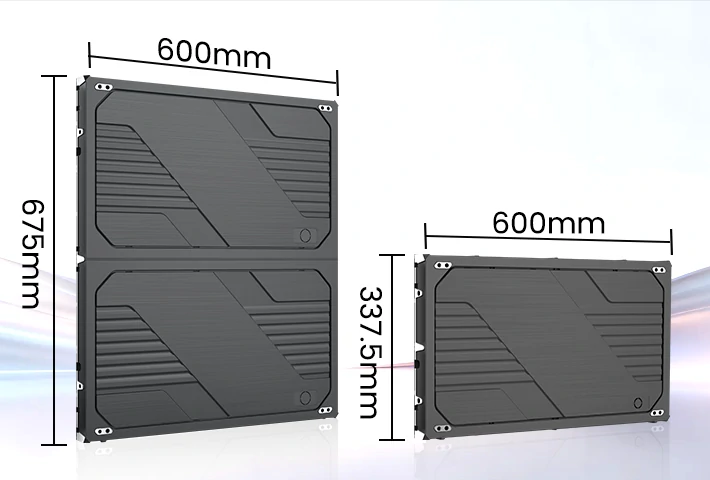

Flexible Panel Sizes

Two panel sizes are available: 600×337.5mm 600×675mm

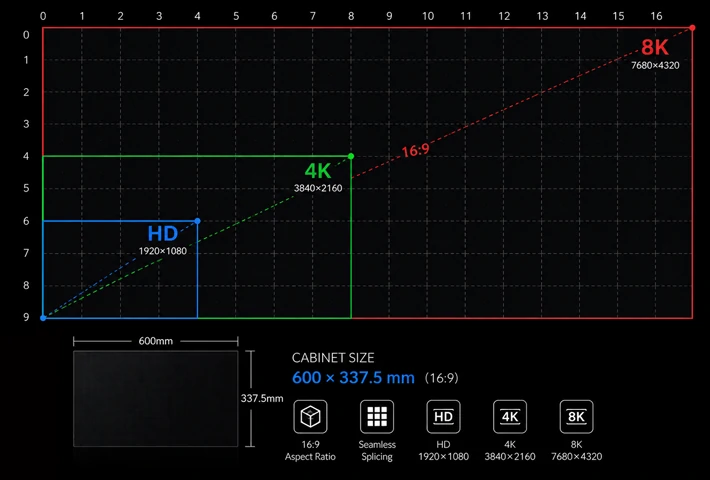

Standard 16:9 Golden Ratio

ECOB Series supports a standard 16:9 display ratio, making it easier to build pixel-to-pixel HD, 4K, and 8K display systems for meeting rooms, command centers, and professional display environments.

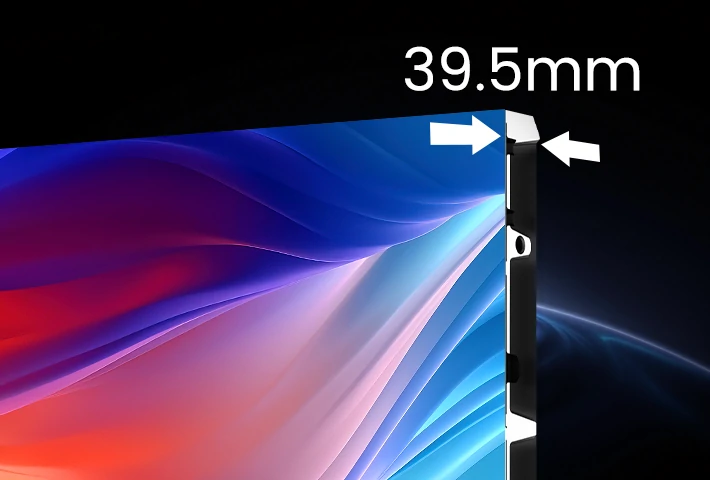

39.5mm Ultra-Slim Cabinet

With only 39.5mm cabinet depth, the screen delivers a slim, clean, and space-saving installation effect for meeting rooms, control rooms, showrooms, and high-end indoor environments.

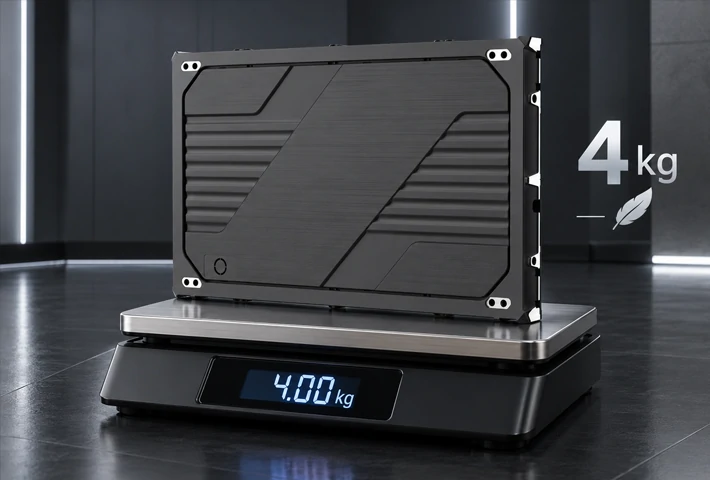

4kg Lightweight Die-Cast Aluminum Cabinet

The cabinet weighs only 4kg and uses aluminum die-casting material, offering high precision, better flatness, excellent strength, and easier installation.

Product Parameter

Click and long-press on the form to swipe left or right.

Pixel Pitch	P0.625	P0.78	P0.93mm	P1.25mm	P1.56mm	P1.87mm
Pixel Density	2,560,000 px/㎡	1,638,400 px/㎡	1,137,777 px/㎡	640,000 px/㎡	409,600 px/㎡	284,444 px/㎡
LED Chip	Flip Chip
Module Size (W*H)	150*168.75mm
Module Resolution	240*270 dots	192*216 dots	160*180 dots	120*135 dots	96*108 dots	80*90 dots
Surface Treatment	Matt COB
Surface Hardness	4H
Panel Size (WHD)	600mm675mm39.5mm / 600mm337.5mm39.5mm
Panel Weight	7.9kg (600675mm) / 4kg (600337.5mm)
Panel Resolution (dots)	9601080 / 960540	768864 / 768432	640720 / 640360	480540 / 480270	384432 / 384216	320360 / 320180
Material	Die-casting Aluminium
Circuit Design	Options: Common Cathode Circuit / Common Anode Circuit
Flash Correction Storage	Applicable
Brightness	Standard 600nits / 1000nits optional
Refresh Rate	3840Hz
Contrast Ratio	10000:1 (Condition without lighting)
Color Temperature	9300K (Standard)
Viewing Angle	H160°, V160°
Input Voltage	AC 100~240V 50/60Hz
Max. Power Consumption (White Balance 600nits)	190w/panel (600675mm) 95w/panel (600337.5mm)	170w/panel (600675mm) 85w/panel (600337.5mm)	150w/panel (600675mm) 75w/panel (600337.5mm)	140w/panel (600675mm) 70w/panel (600337.5mm)	140w/panel (600675mm) 70w/panel (600337.5mm)	130w/panel (600675mm) 65w/panel (600337.5mm)
Maintenance Way	Front Service
IP level of PCB serface	IP54 (Washable by clean water)
Lifetime at 50% Brightness	100,000 hours
Operating Temperature / Humidity	-10°C-+40°C/10%RH-90%RH
Stroage Temperature / Humidity	-20°C-+60°C/10%RH-90%RH
Certificate	CCC, EMC CLASS-A, ROHS, CQC
Application	Indoor
