KCOB SERIES

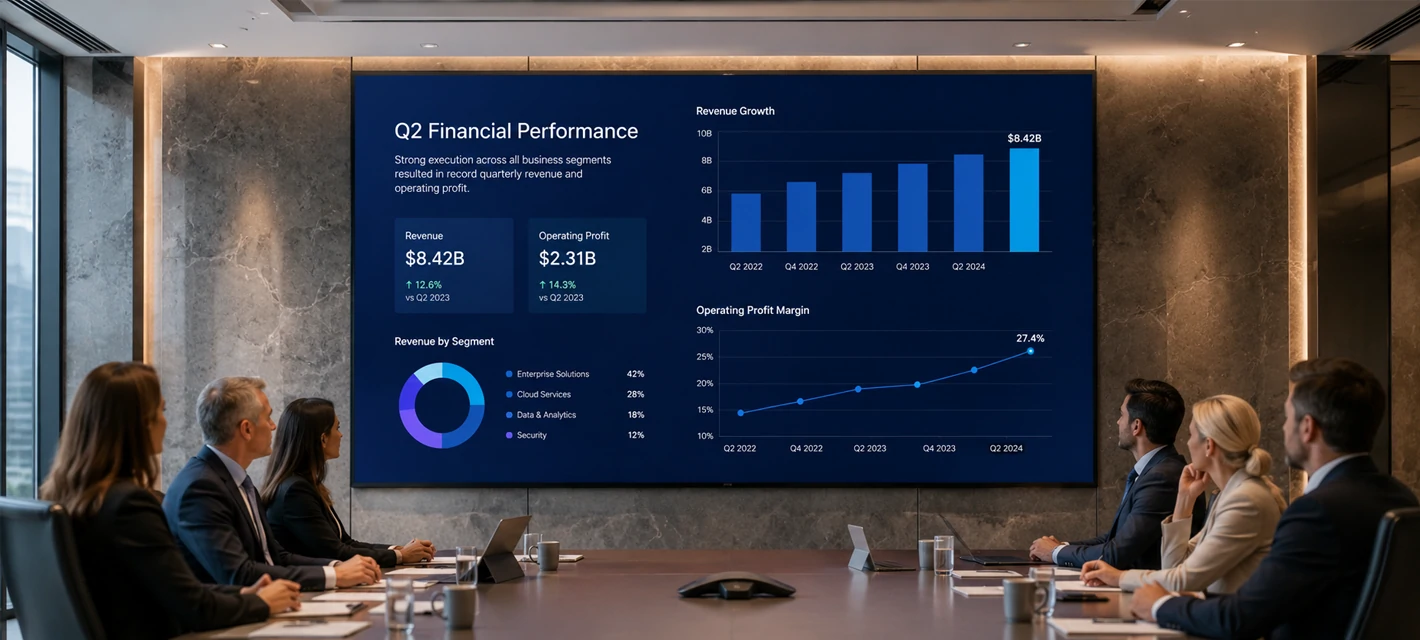

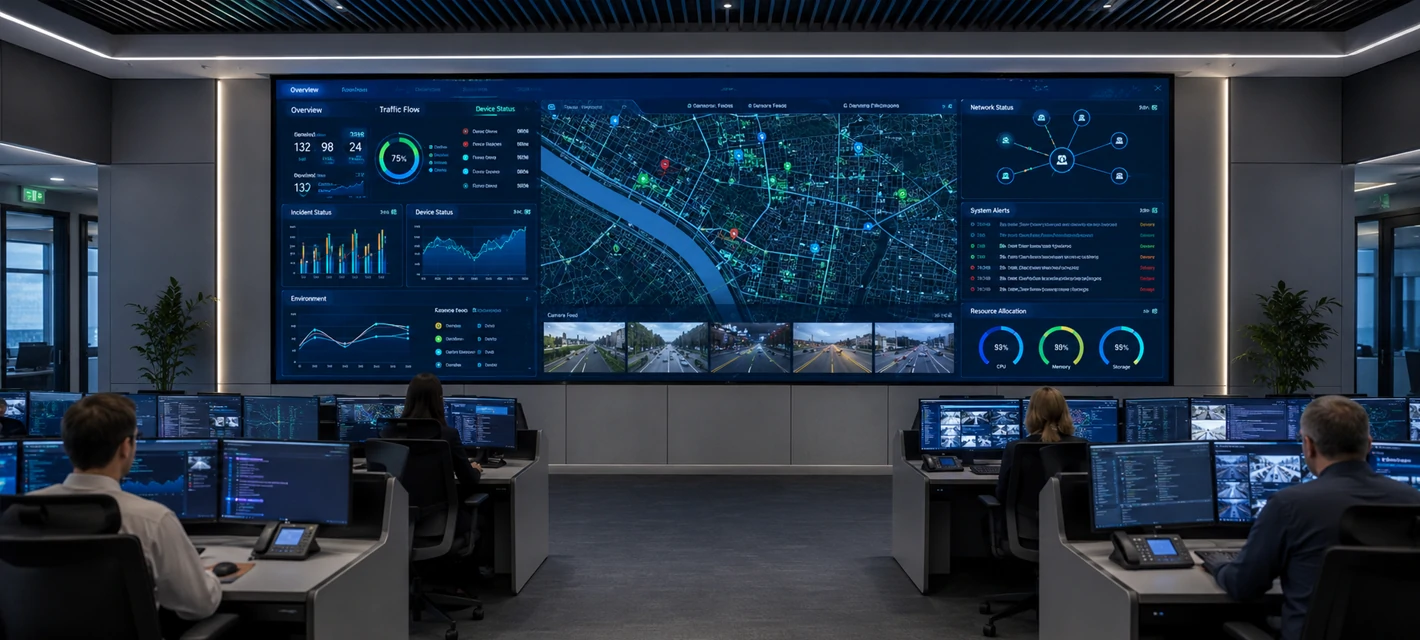

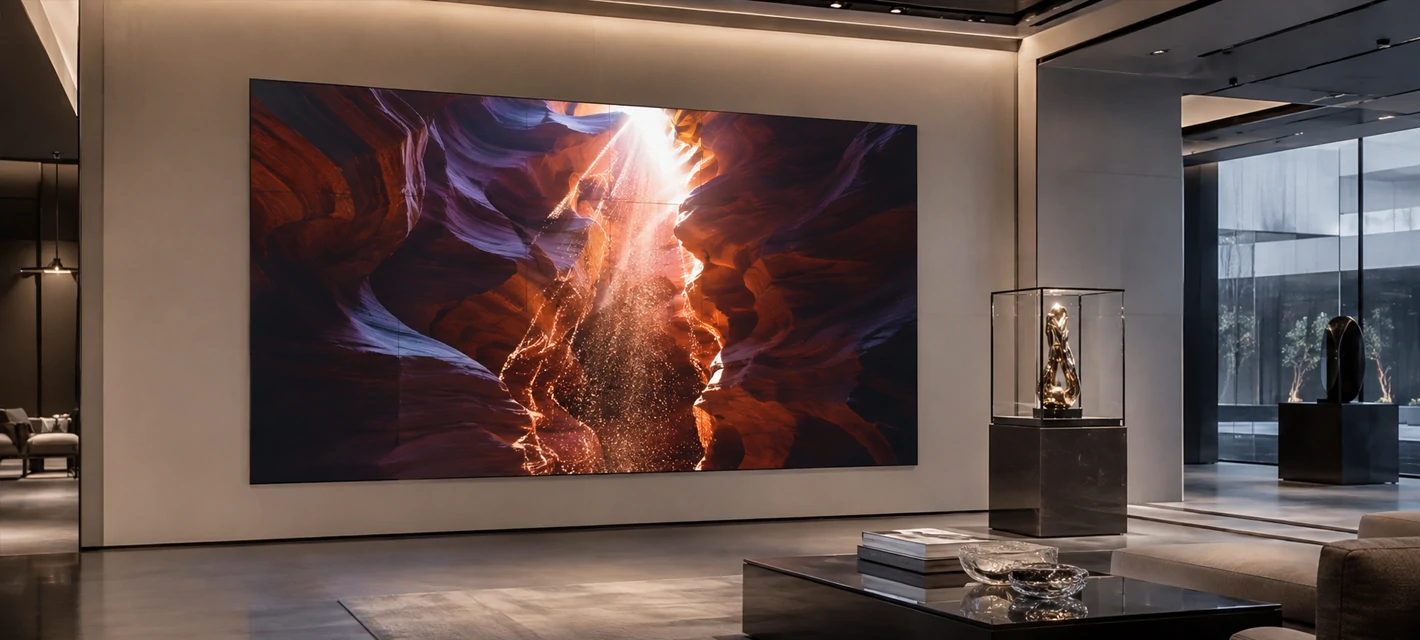

Application
Ultra-Slim Cabinet
Lightweight Die-Cast Aluminum
Large Module Design
Front Maintenance Design
Professional Visual Performance
Wide Viewing Angle
High Uniformity Display
Low Power Consumption

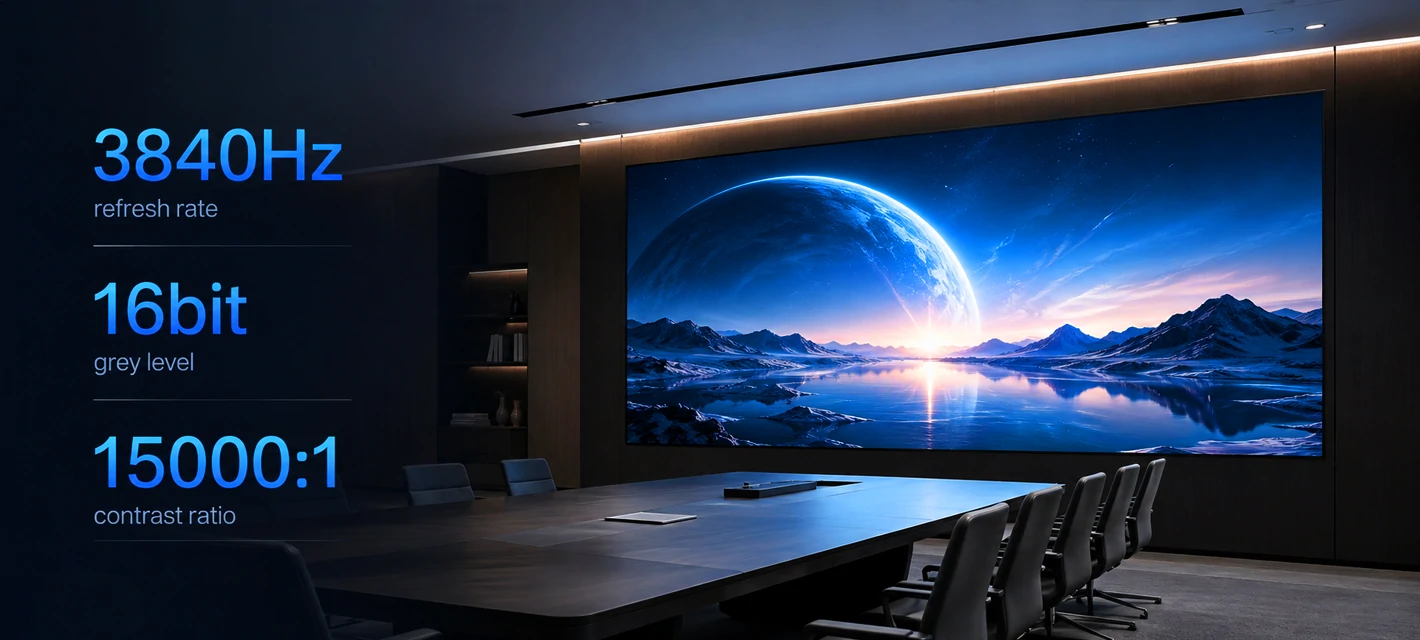

Professional Visual Performance
With 3840Hz refresh rate, 16bit grey level, and 15000:1 contrast ratio, KCOB Series delivers smooth, detailed, and high-contrast image performance for professional indoor display applications.

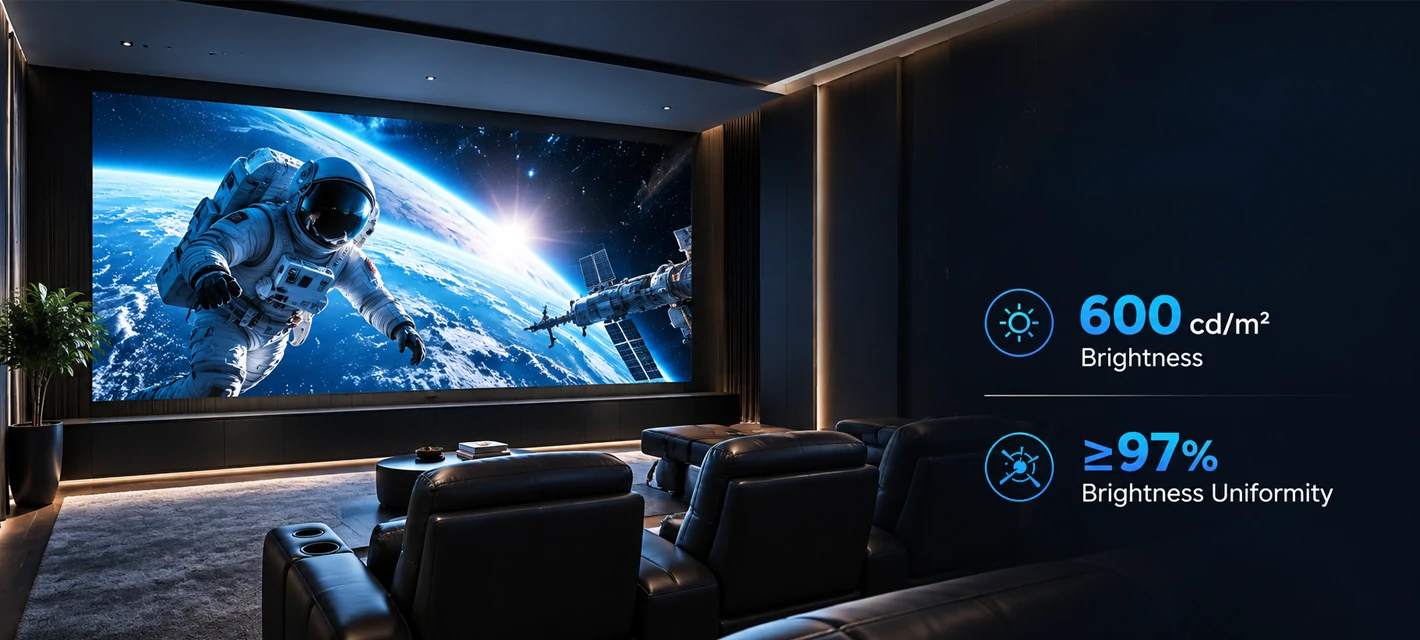

High Brightness & Excellent Uniformity
KCOB Series provides 600cd/m² brightness, ≥97% brightness uniformity, and ≤±0.003Cx, Cy color uniformity, delivering stable and consistent image performance across the whole screen.

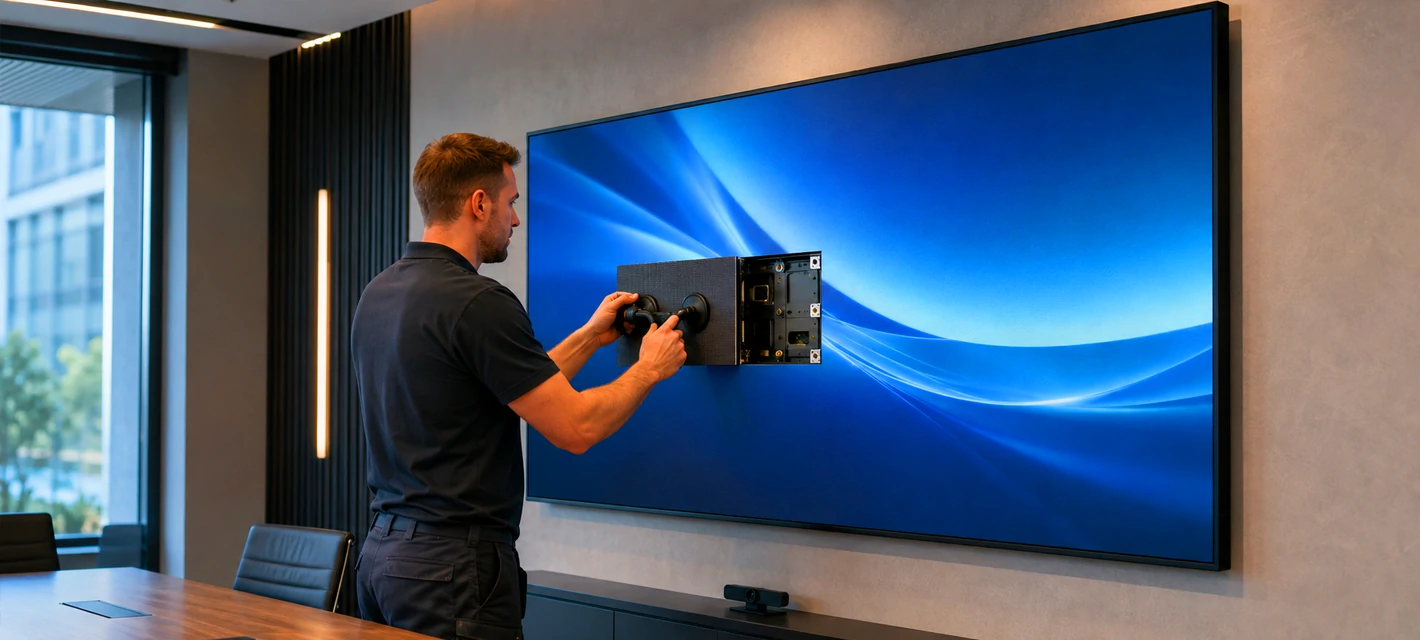

Full Front Maintenance
All key components, including modules, power supply, and receiving card, can be maintained from the front, making it ideal for wall-mounted and space-limited indoor installations.

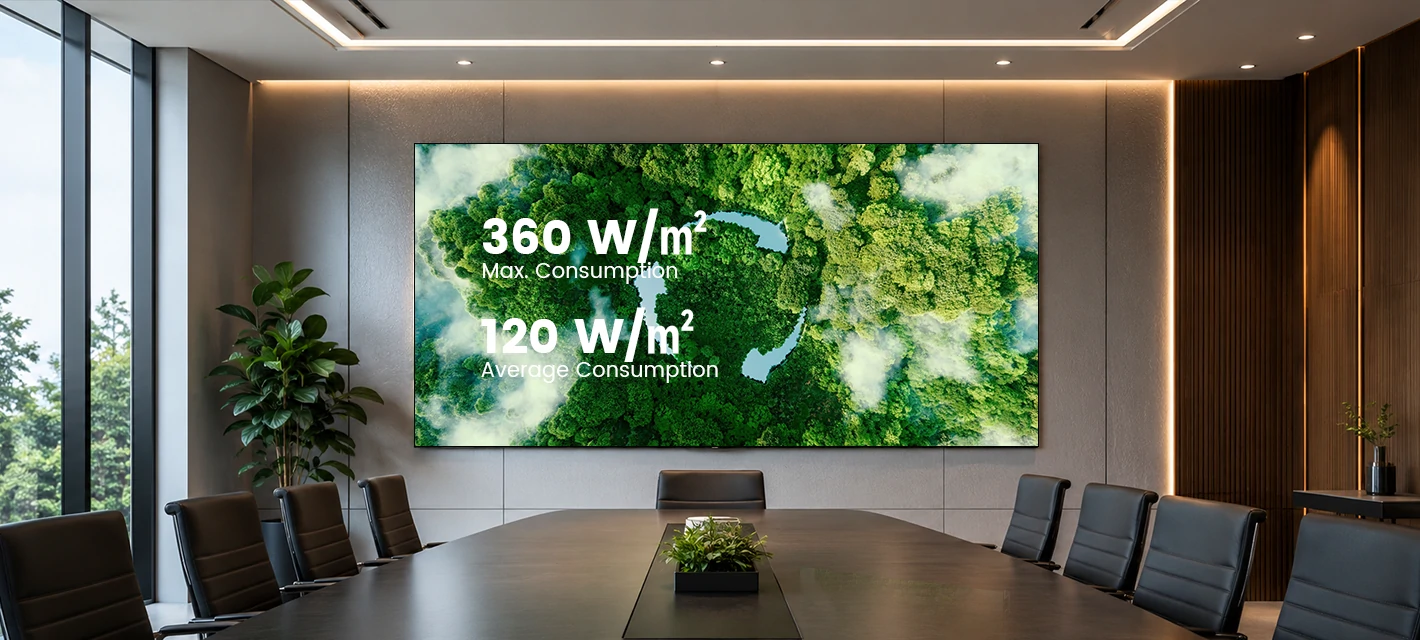

Low Power Consumption
With ≤360W/m² maximum power consumption and ≤120W/m² average power consumption, KCOB Series helps reduce energy usage while maintaining stable display performance.

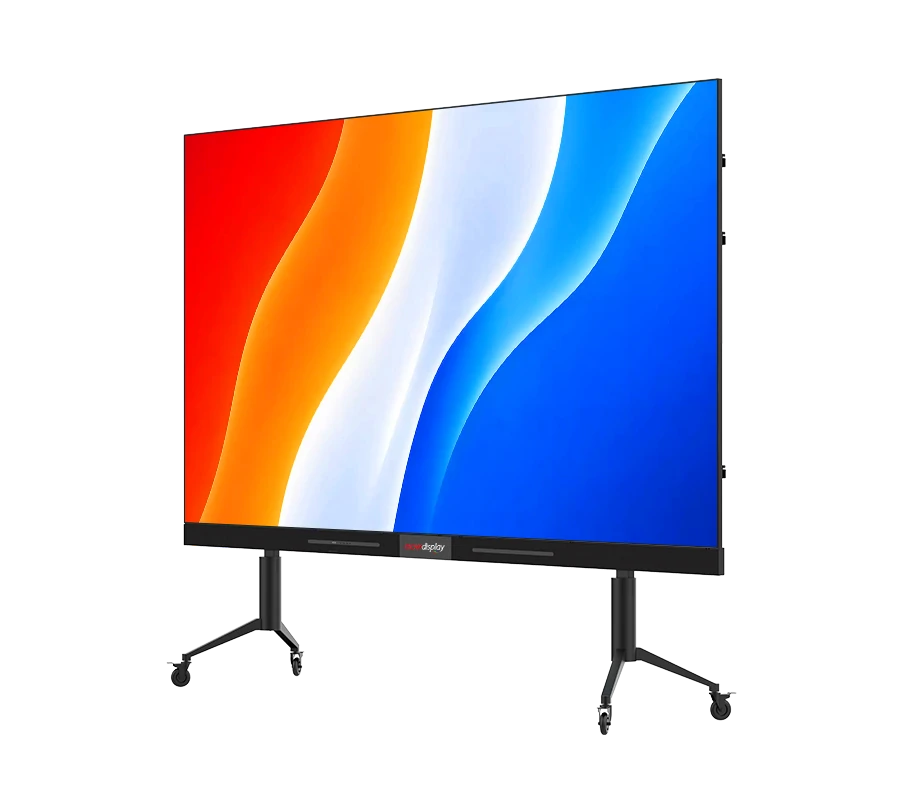

Mobile bracket optional
Easy to move and deploy for meeting rooms, classrooms, showrooms, and multi-function spaces.
SLIM DESIGN. STABLE PERFORMANCE.
With a 600×337.5mm full die-cast aluminum cabinet, 29.3mm ultra-slim body, 300×168.75mm large module design, and built-in hook quick lock, KCOB Series enables faster installation, better flatness, and easier front maintenance.

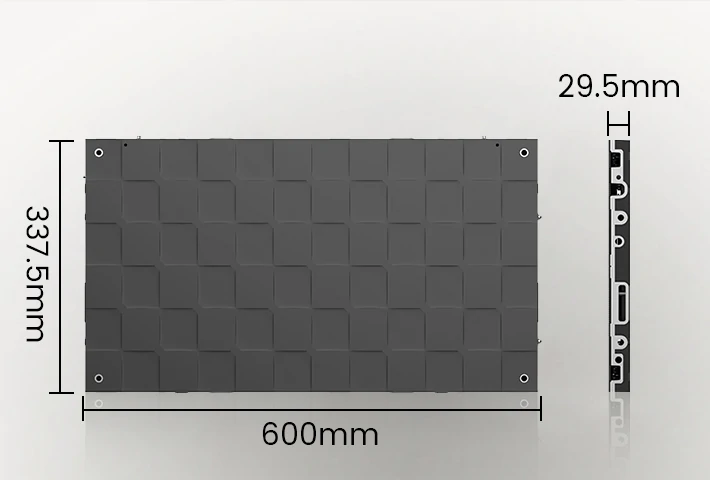

600×337.5mm Standard Cabinet Design
KCOB Series adopts a 600×337.5mm indoor LED cabinet, designed for standard 16:9 display ratios and easy splicing for Full HD, 2K, 4K, and larger display systems.

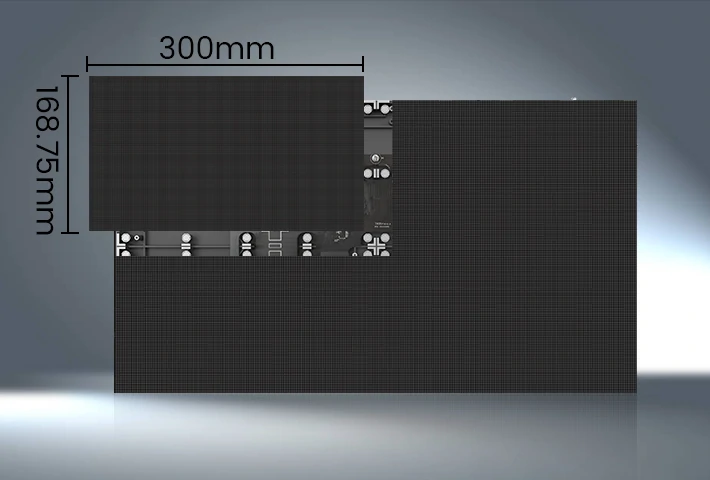

300×168.75mm Large Module Design
Each cabinet consists of four 300×168.75mm modules, reducing module quantity and splicing gaps while improving screen flatness, installation efficiency, and maintenance convenience.

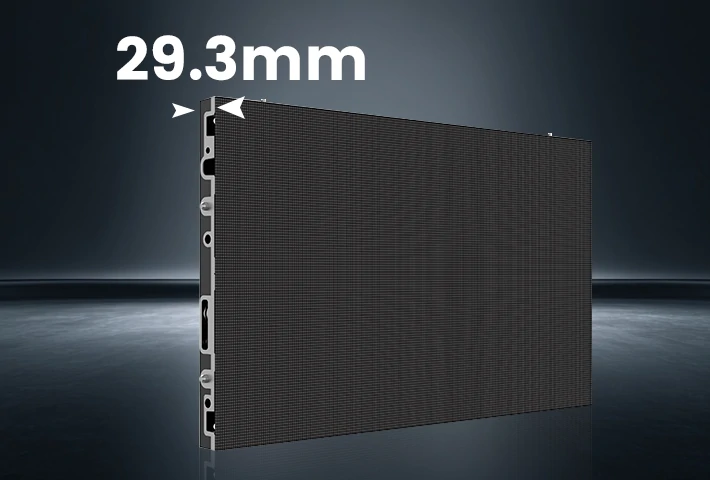

29.3mm Ultra-Slim Cabinet
With only 29.3mm cabinet depth, the screen delivers a slim, clean, and space-saving installation effect for meeting rooms, control rooms, showrooms, and high-end indoor environments.

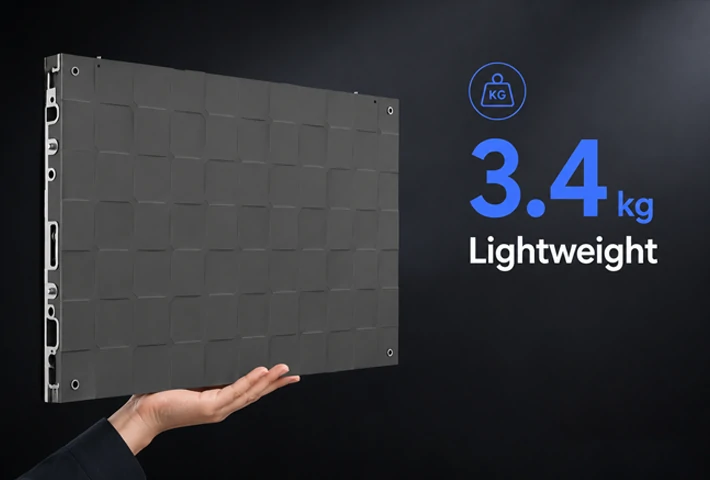

3.4kg Lightweight Die-Cast Aluminum Cabinet
The cabinet weighs only 3.4kg and uses aluminum die-casting material, offering high precision, better flatness, excellent strength, and easier installation.

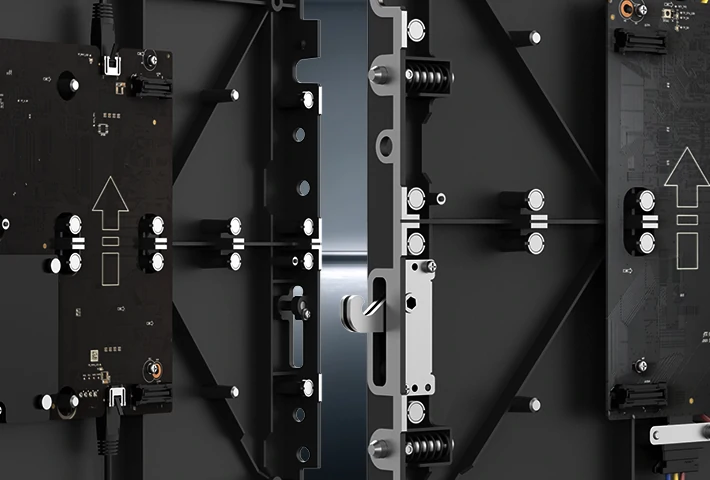

Built-in Hook Quick Lock
Quick alignment and secure locking for faster installation and stable screen splicing.
Product Parameter
Click and long-press on the form to swipe left or right.
| Pixel Pitch | 0.9375 mm | P1.25 | P1.5625 |
| Pixel Configuration | Flip-chip COB | ||
| Pixel Density | 1137777 dots/㎡ | 640000 dots/㎡ | 409600dots/㎡ |
| Modules Component | 2 × 2 | ||
| Dimensions (W × H × D) | 600 mm × 337.5 mm × 29.3 mm (23.622" × 13.287" × 1.154") | ||
| Resolution | 640 × 360 | 480x270 | 384x216 |
| Area | 0.2025 ㎡ | ||
| Weight | 3.4 kg | ||
| Cabinet Material | Aluminium die casting | ||
| Maintenance Method | Front maintenance for all components | ||
| Dimensions | 300 × 168.75 mm | ||
| Module Resolution | 320 × 180 | 240x135 | 192x108 |
| White Balance Brightness | 600 cd/㎡ | ||
| Color Temperature | 3000-10000 K adjustable | ||
| Viewing Angle | 160°(H)/160°(V) | ||
| Contrast Ratio | 15000:1 | ||
| Color Uniformity | ≤ ± 0.003Cx，Cy | ||
| Brightness Uniformity | ≥ 97％ | ||
| Driving Method | Constant current driving | ||
| Frame Frequency | 60 Hz | ||
| Refresh Rate | 3840 Hz | ||
| Grey Level | 16 bit | ||
| Max. Consumption | 300≤ 360 W/㎡ （600nits） | ||
| Average Consumption | 100≤ 120 W/㎡ | ||
| Input Voltage | 100~240 VAC ± 10％ | ||
| Working Temperature | -10 ℃ to 40 ℃ (14 ℉ to 104 ℉) | ||
| Working Humidity | 10% to 90% RH (without condensation) | ||
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) | ||
| Storage Humidity | 10% to 90% RH (without condensation) | ||
