3840-7680Hz High refresh rate
Key Product Features
3.7kg Ultra-Light Cabinet
Front & Rear Maintenance
7680Hz High Refresh Rate
High Brightness
Flexible Flat & Curved Splicing
40% Faster Installation

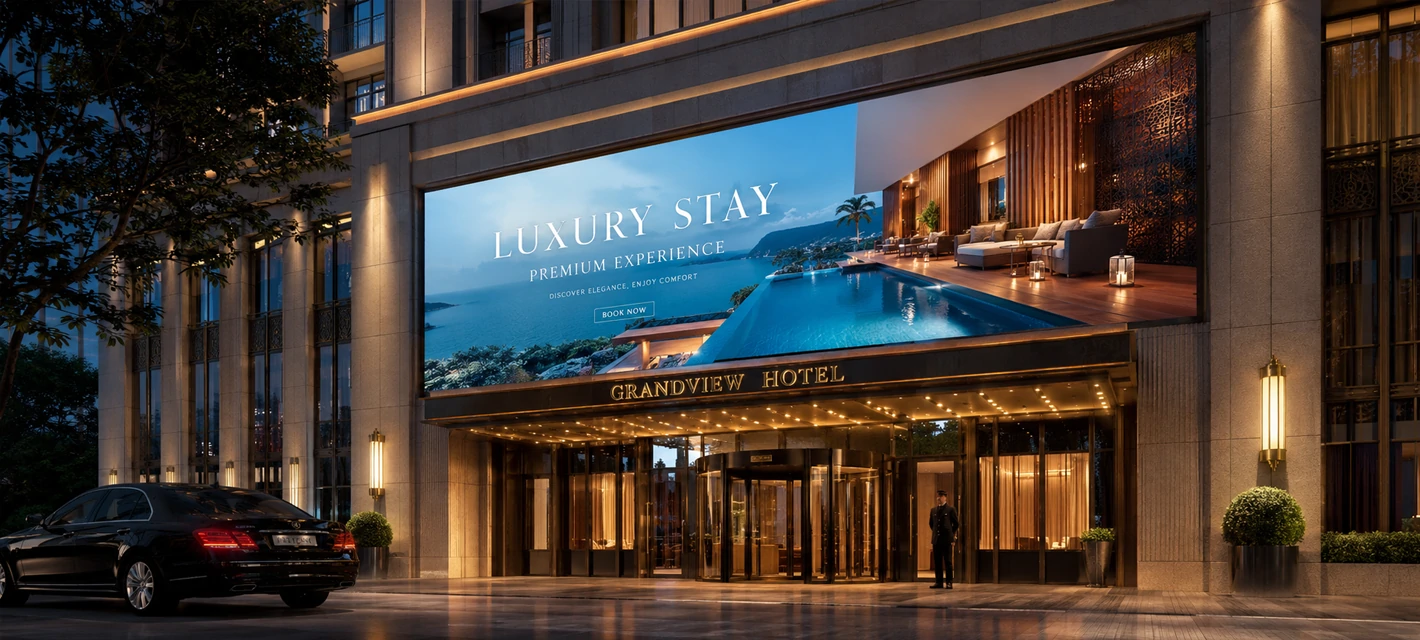

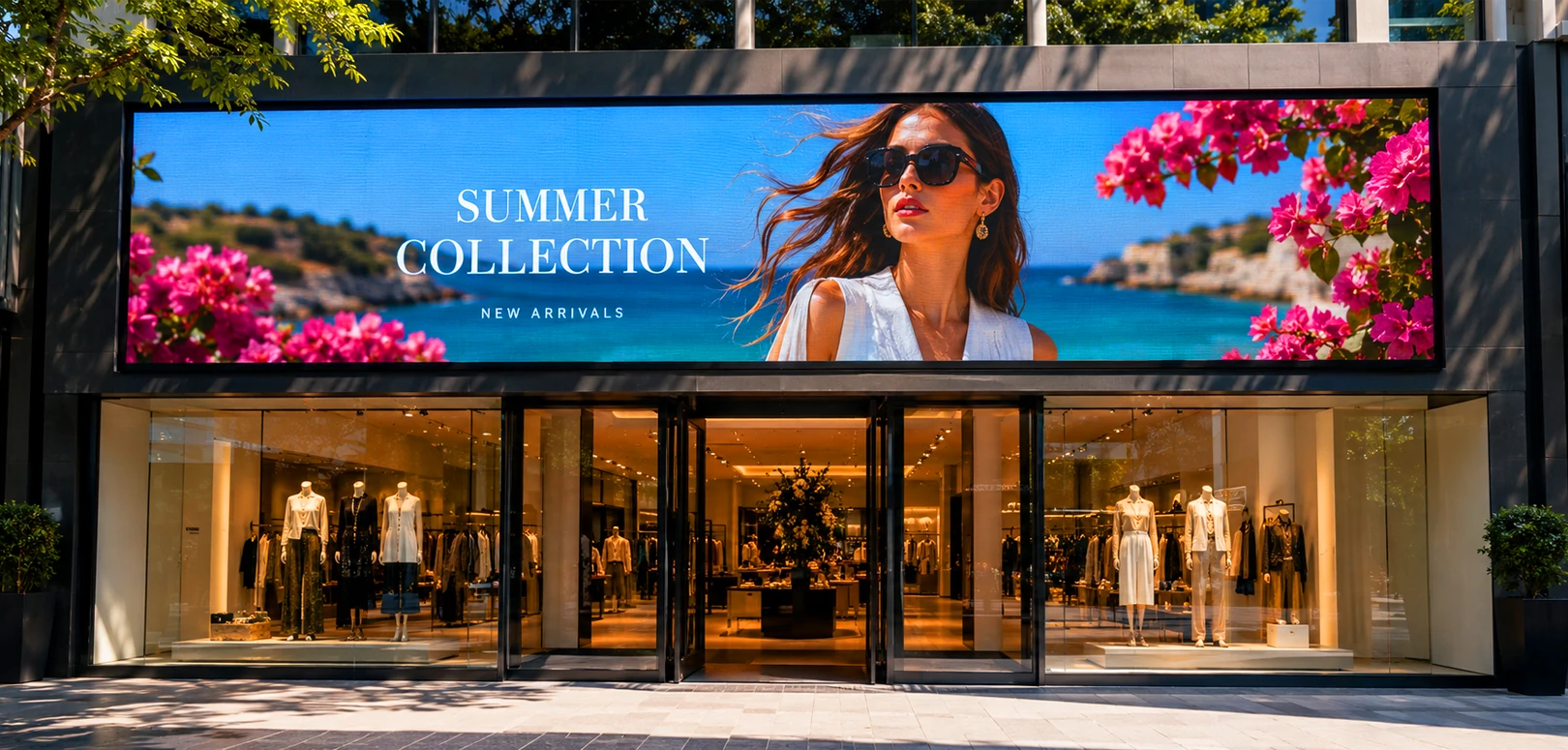

Application Scenario

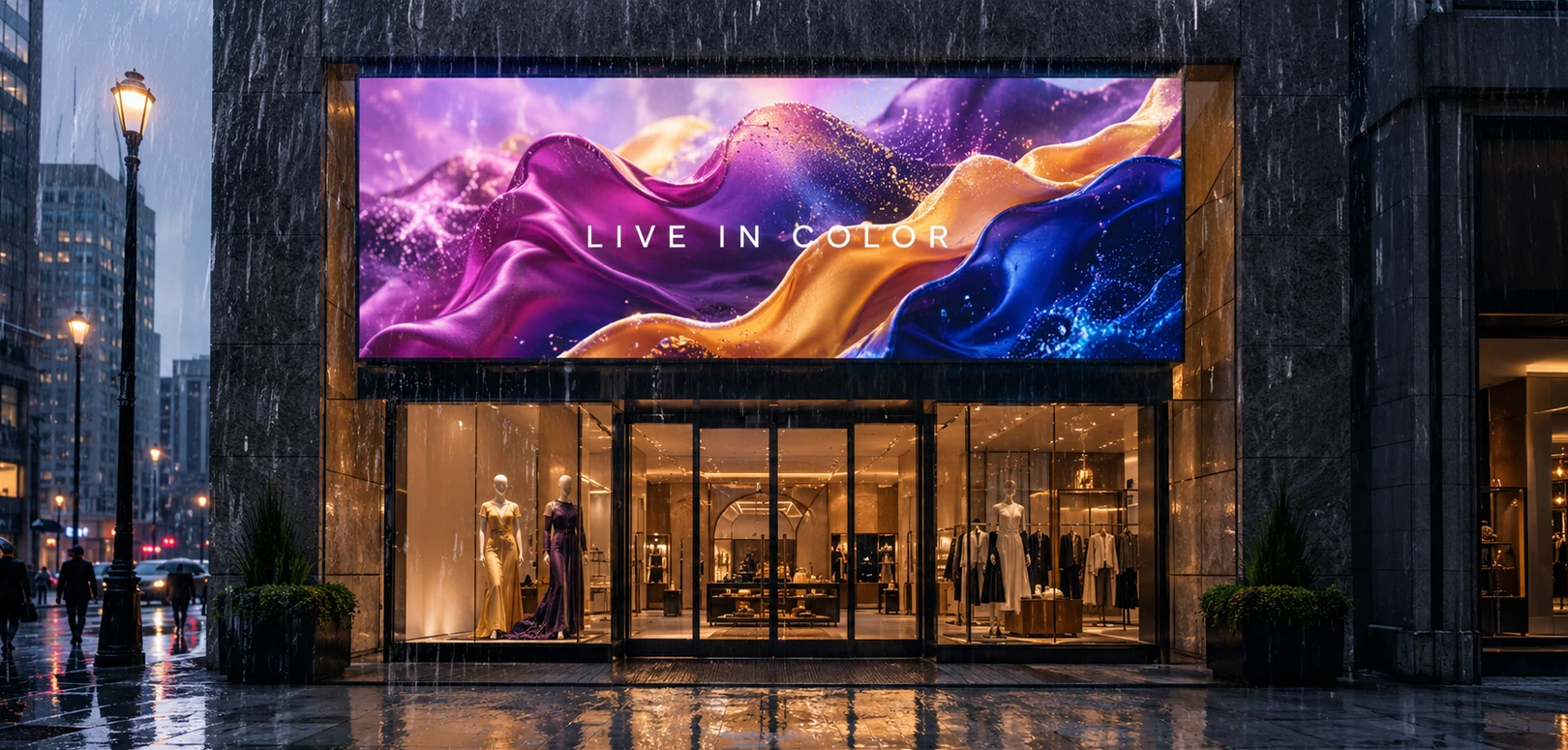

IP65 outdoor protection
With front and rear protection ratings of IP65, the unit offers excellent water and dust resistance, making it suitable for outdoor advertising environments.

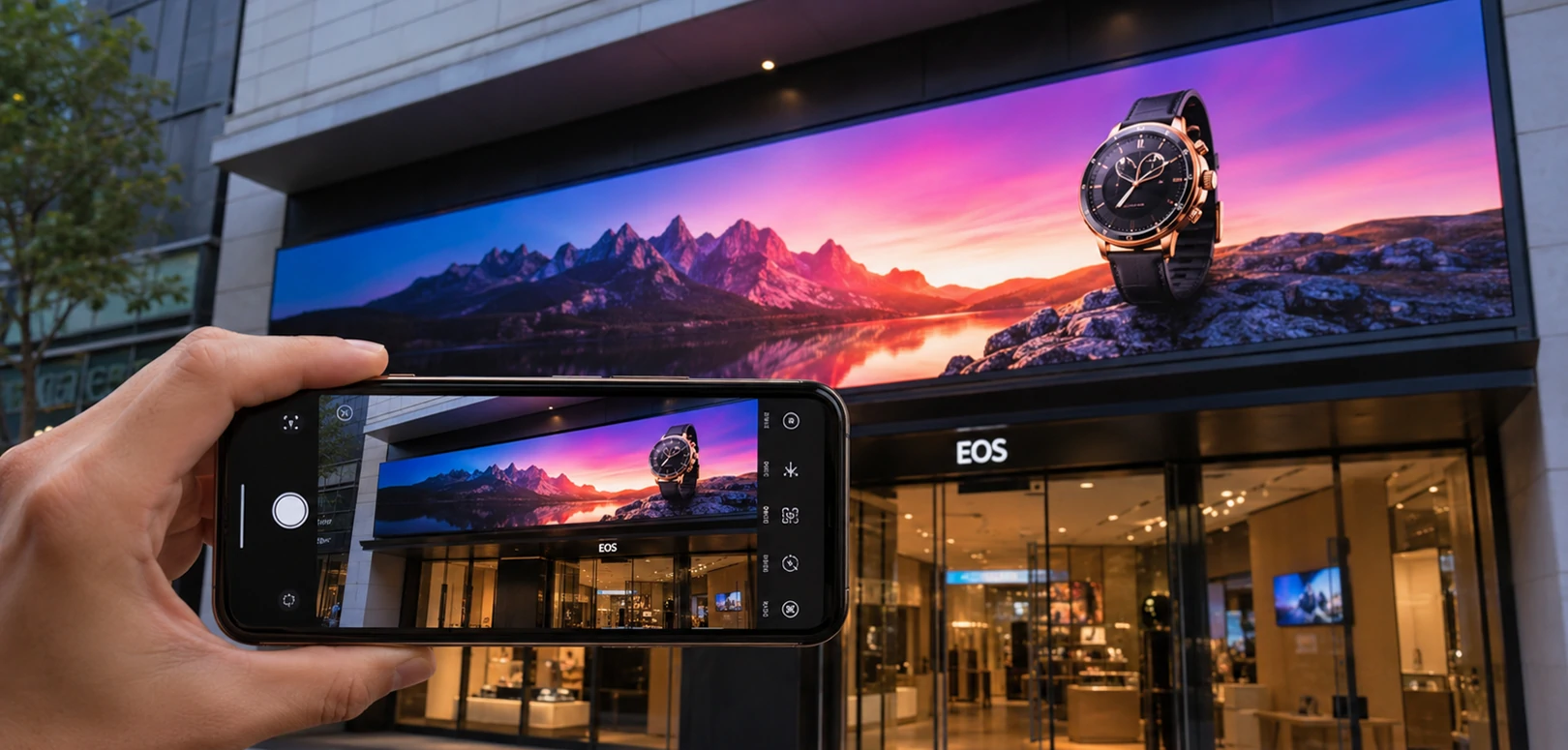

7680Hz High Refresh Rate

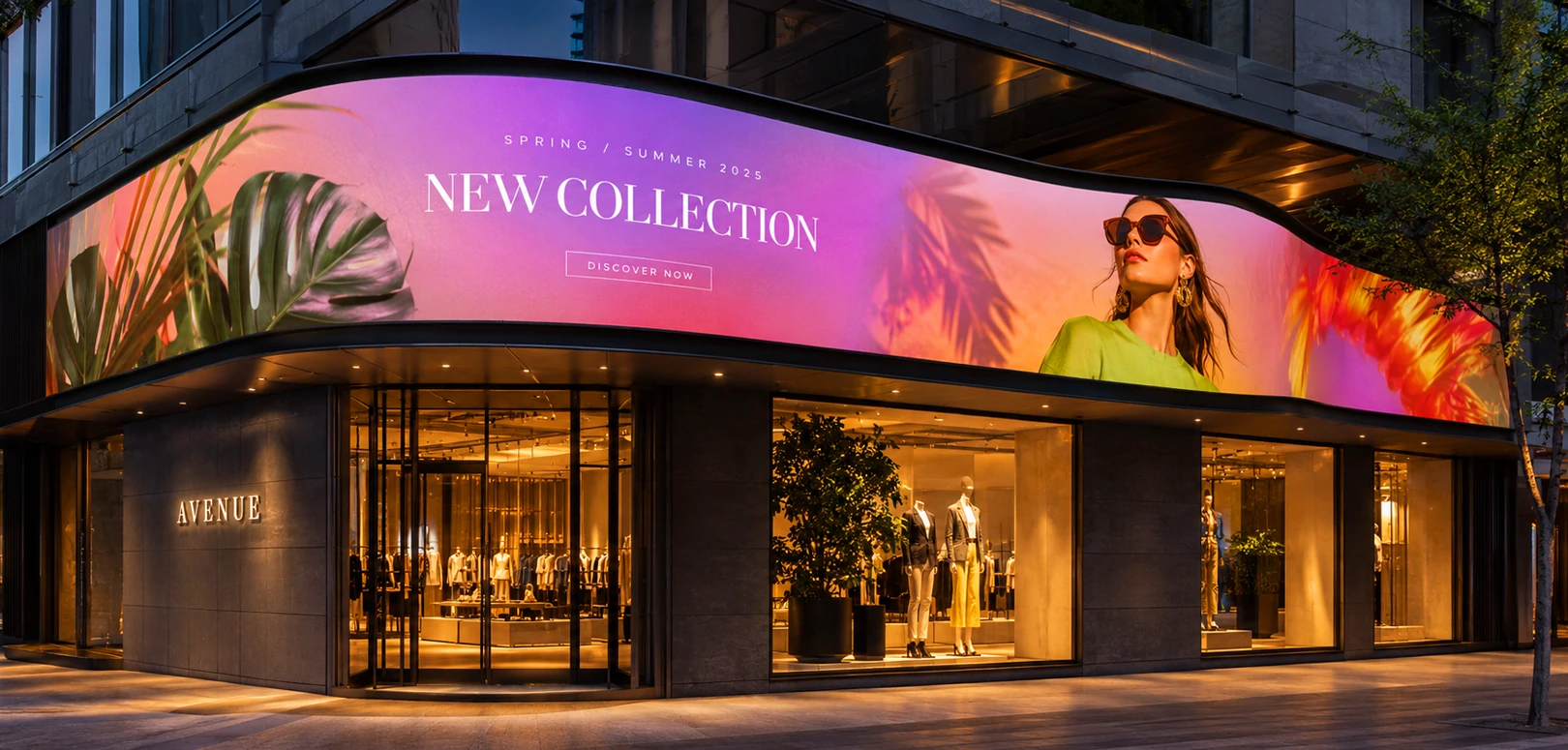

Supports Flat and Curved Configurations
The small outdoor LED billboard supports both flat and curved screen solutions, enabling circular, curved, concave, convex, and corner display configurations to meet diverse design needs for creative retail stores and commercial advertising.

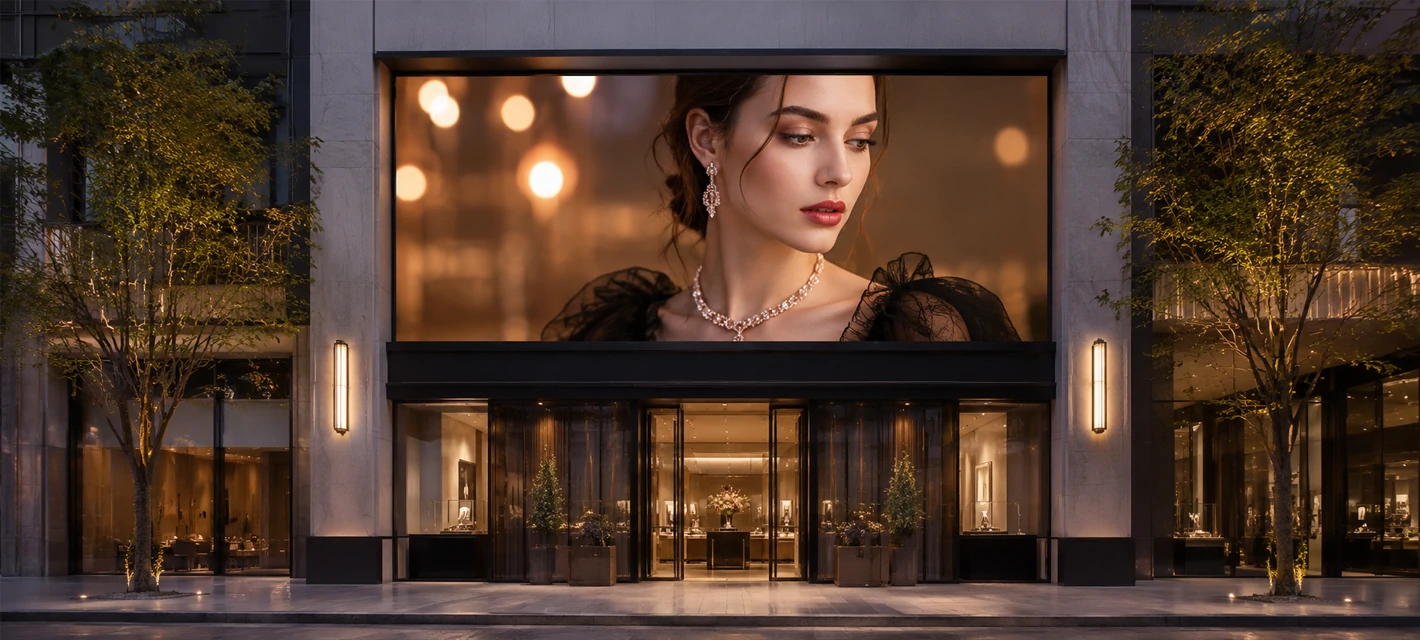

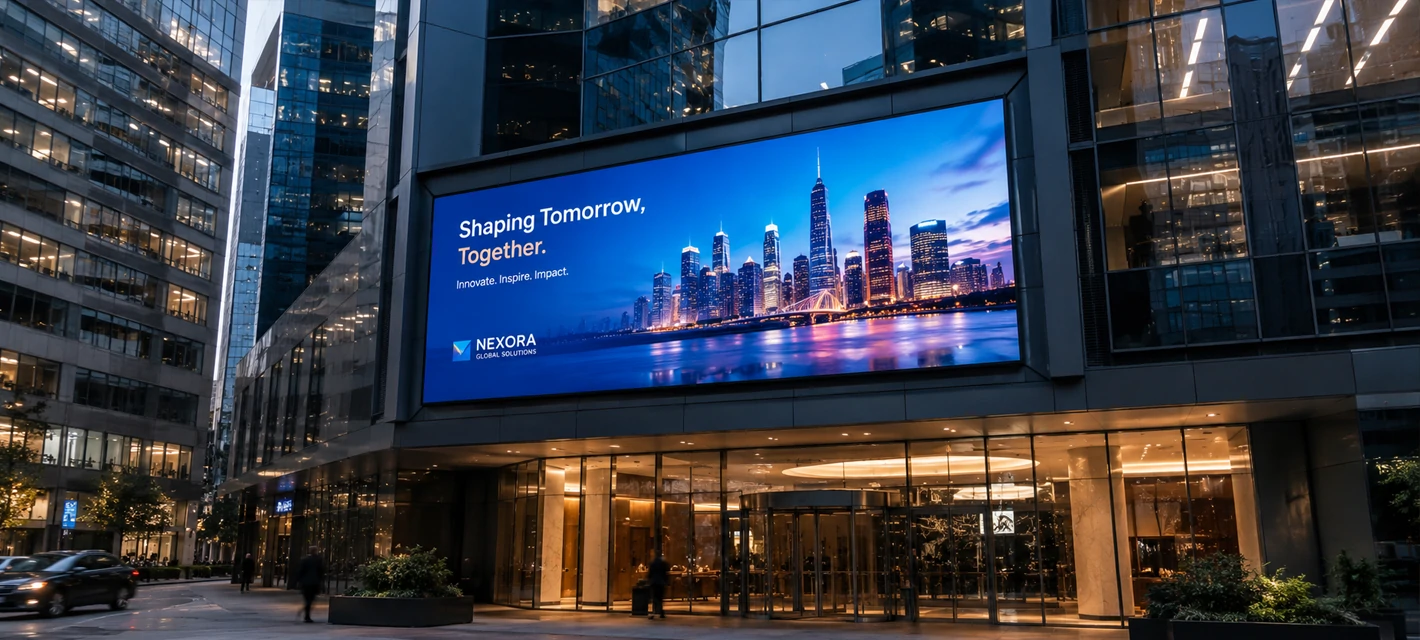

High-Brightness Outdoor Display
The high brightness outdoor LED signage delivers brightness levels reaching 5,000–6,000 nits, ensuring clear and vibrant advertising visuals even in bright outdoor daylight and high-glare environments.
Key factors for outdoor advertising screens
Safe & Reliable
High Brightness & Uniformity
High Stability & Long Lifespan
Ultra-High Refresh Rate
High Contrast Ratio
Energy-Efficient Design
Front & Rear Maintenance
Reliability Tested
Product Advantages
Modules are easy to maintain and can be assembled more freely.
Quick-lock Design
Plug and Play
Front & rear maintenance
Unique design
Product Features

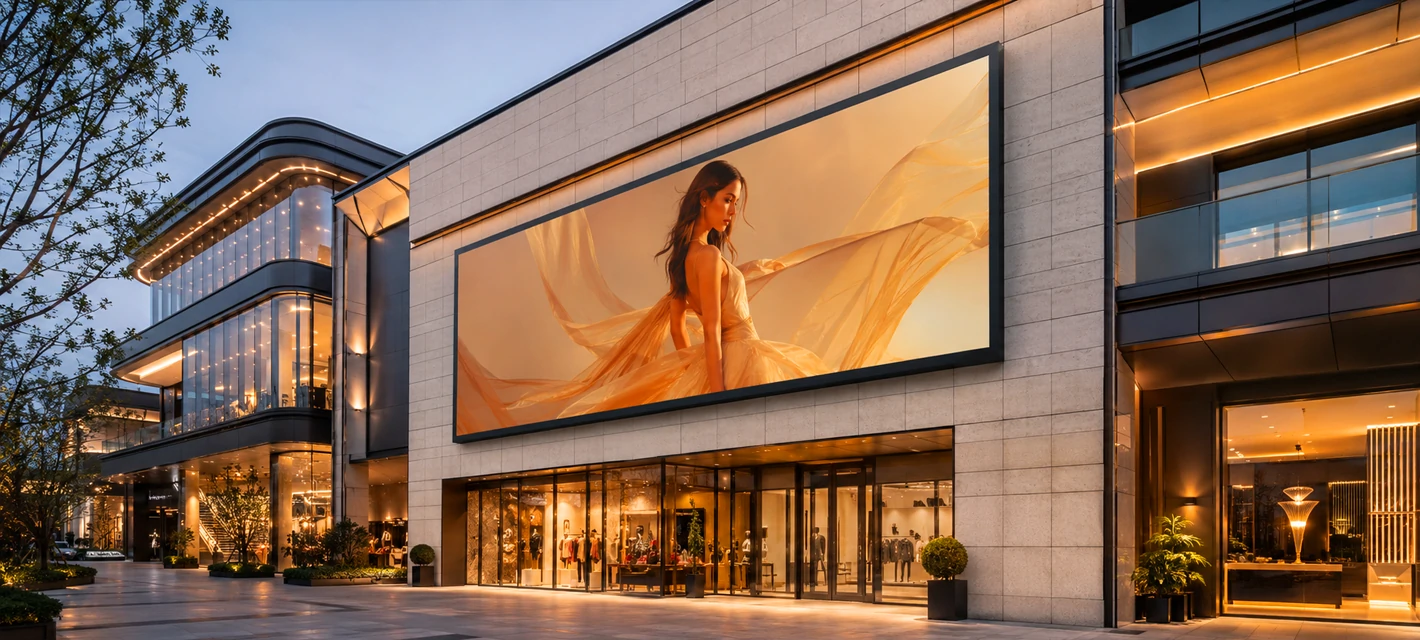

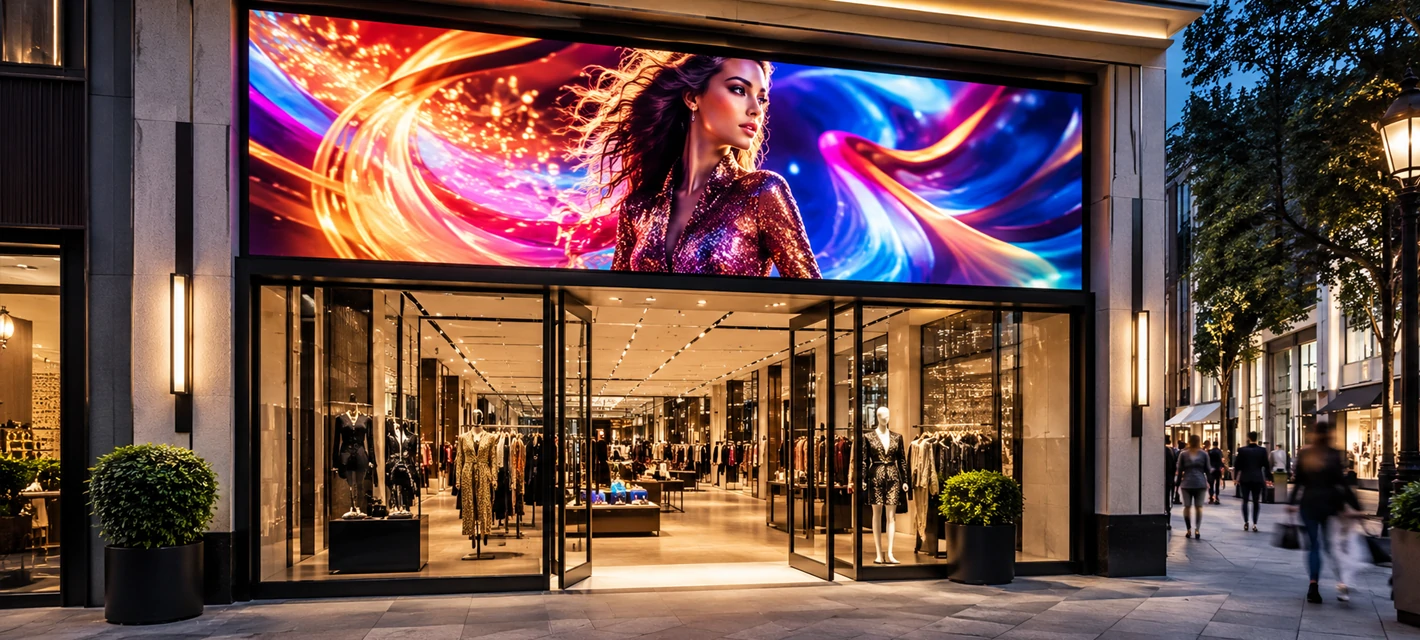

Designed for small outdoor billboards, storefront signs, and commercial facades with 3.7kg ultra-light cabinets and 7680Hz smooth visuals.
60mm Ultra-Slim Cabinet Design
NOVA Series features an ultra-slim 60mm cabinet, creating a cleaner and lighter installation effect for storefront signs, small outdoor billboards, station advertising, and commercial facade displays.
Strong compatibility
Compatible with NOVA Flex Series
Efficient Heat Dissipation
The multi-stage heat dissipation design includes fan-free cooling, large-area cooling fins, and natural convection airflow, reducing failure rates and ensuring long-term outdoor stability.
Ultra-lightweight
The lightweight outdoor LED display weighs as little as 3.7kg per unit, making handling, installation, storage, and transport easier, and is ideal for small-scale outdoor advertising screens and storefront signage projects.
Product Parameter
Click and long-press on the form to swipe left orright.
| Pixel Pitch (mm) | 3.9 | 6.66 |
| Module Dimensions (mm) | 480×320×21.5 | 480×320×21.5 |
| Module Resolution (pixels) | 123×82 | 72×48 |
| Cabinet Dimensions (mm) | 480×320×60 | |
| Cabinet Resolution (pixels) | 123×82 | 72×48 |
| Main Structure Material | Aluminum Profile + Plastic / Die-cast Aluminum | |
| Weight (kg) | 3.7 | |
| Brightness (nits) | 5000 | 6000 |
| Gray Level (bit) | 14~16 | |
| Contrast | ≥5000:1 | |
| Refresh Rate (Hz) | ≥7680 | |
| Viewing Angle (H/V) | 160°/+45°~-65° | |
| Protection Level (F/B) | IP65/IP65 | |
| Input AC Voltage | 100-240V 50/60Hz | |
| Working Temperature (°C) | -20~50 | |
| Operating Humidity (RH) | 10%~90% (no condensation) | |
| Installation Methods | Fixed + Wall Mounting | |
| Maintenance Method | Front/Rear Maintenance | |
| Max Power / Average Power (W/m²) | 710/250 | 760/270 |
