| Specs Applications | Indoor | Outdoor | |||
| Pixel Pitch (mm) | 1.95 | 2.604 | 2.976 | 2.976 | 3.91 |
| Module Dimensions(mm) | 500x250x15.7 | ||||
| Module Resolution(pixels) | 256x128 | 192x96 | 168x84 | 168x84 | 128x64 |
| Pixel composition | 3-1RGB | ||||
| LED type | SMD1212 2in1 | SMD1515 2in1 | SMD1515 2in1 | SMD1415 | SMD1921 |
| Working voltage (DC) | 4.5V | ||||
| Cabinet Dimensions(mm) | 500x500x73.5 | ||||
| Cabinet Resolution(pixels) | 256x256 | 192x192 | 168x168 | 168x168 | 128x128 |
| Main Structure Material | Die-cast aluminum | ||||
| Weight (kg) | 7.5 | ||||
| Max WB Brightness(nits) | 1000 | 4000 | 5000 | ||
| Gray Level (bit) | 14-16 | ||||
| Contrast | ≥3000:1 | ≥4000:1 | ≥3500:1 | ||
| Refresh rate (Hz) | 7680 | ||||
| Viewing angle (H / V) | 160°/140° | ||||
| Protection Level (F/ B) | IP30 | IP65 | |||
| Input AC Voltage | 100-240V 50/60Hz | ||||
| Working Temperature(°C) | -10~40 | -20~50 | |||
| Operating Humidity(RH) | 10%~60%(no condensation) | 10%~90%(no condensation) | |||
| Installation Methods | Stacking + Hoisting | ||||
| Maintenance Methods | Front and rear maintenance | ||||
| Max Power/Average Power(W/m²) | 580/195 | 550/190 | 630/210 | 630/210 | 630/220 |
| Control Distance | Cat6e Lan cable: <100m; Single-mode fiber cable: <10km | ||||
AXIS SERIES
AXIS SERIES
AXIS SERIES
AXIS SERIES
AXIS SERIES
500x500mm, Flat, Curve, P1.95 P2.604 P2.976 P3.91 P4.81, SMD 2in1 LED
Key Product Features
Tag:
AXIS Series professional rental LED screen adopts a die-cast aluminum cabinet with a slim and robust structure for excellent flatness. It supports front and rear maintenance, hard connection, and magnetic modules, and delivers 7680Hz high refresh rate, 160° wide viewing angle, high brightness, and high contrast for smoother, clearer, and more realistic visual performance.
Application Scenario
Press Conference

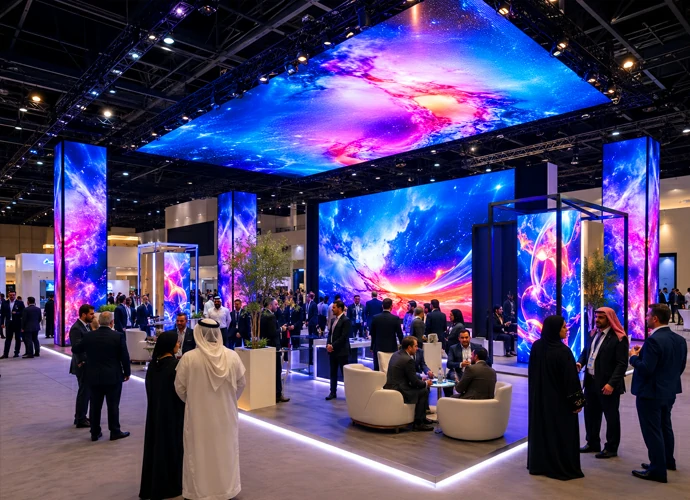

Trade Shows
Sports event

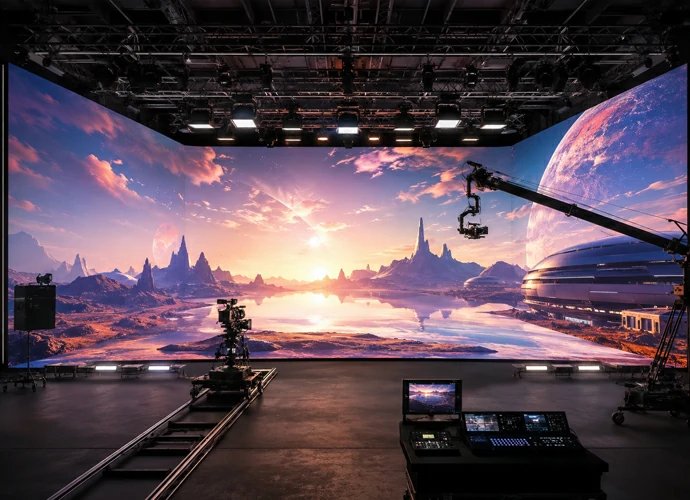

Virtual shooting
Music Festival

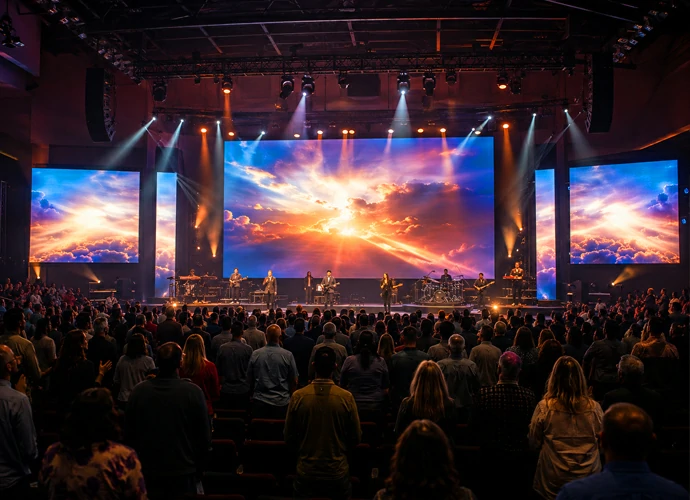

Church
AXIS series
IP65 waterproof
Curved &Right angle available
5000nits high brightness
Front Rear maintenance
V0 Flame Retardant
7680Hz High Refresh Rate
Pixel Pitch
P1.95 P2.604 P2.97 P3.91
Cabinet size
500*500mm
Module size
500*250mm
Weight
7.5kg
Brightness
1000-1200cd/m²(indoor) 4000-5000cd/m²(outdoor)
Refresh rate
7680Hz
High end rental
- 7680Hz High Refresh
- 5000nits High brightness
- IP65 waterproof
Market Trends
Rental LED displays are gaining strong market momentum, with China-brand share increasing from 28% in 2016 to 60% in 2023. With improved image quality, fine-pitch technology, and cost advantages, rental LED is becoming a leading choice for events, exhibitions, and stage applications.

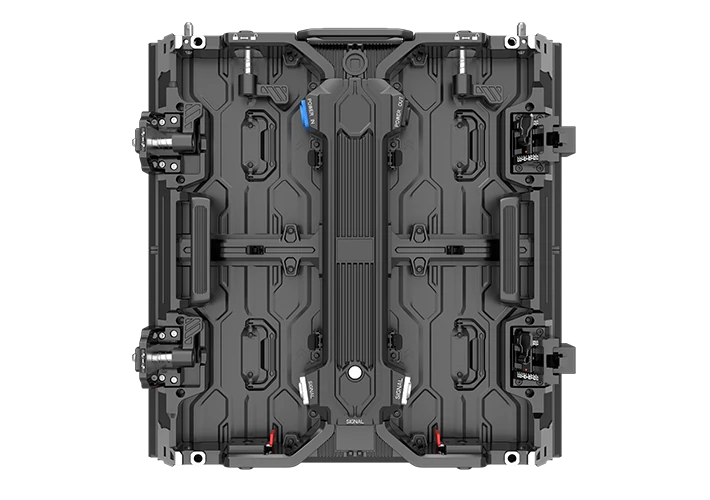

CABINET DIAGRAM
The modular rental LED display offers excellent design details, including cabinet handles, fixed cabinet slots, fast-lock magnetic adsorption modules, module installation knobs, and detachable power and signal connectors with a removable power box, ensuring easy installation and reliable performance.

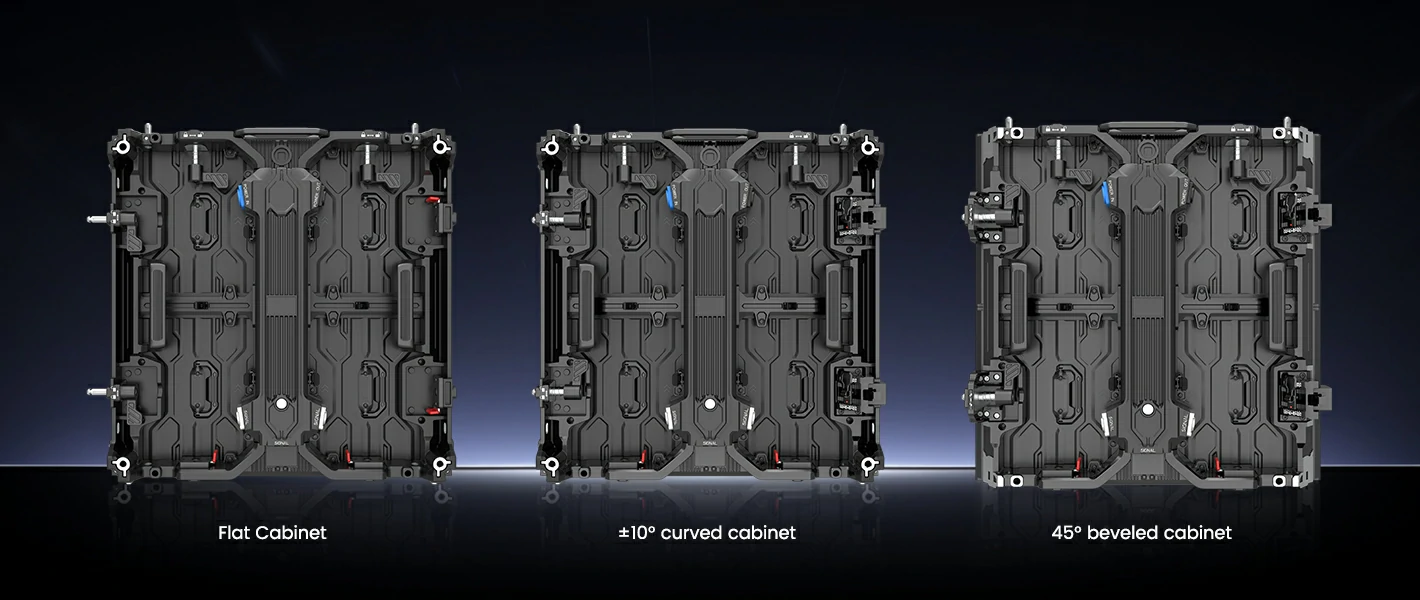

Cabinet Options Available
The indoor outdoor rental LED screen is available in flat cabinet, 10° curved cabinet, and 45° right-angle cabinet options, enabling flexible configurations for various rental and stage applications.
2-in-1 lamp beads
Industry-leading high-thrust 2-in-1 lamp beads, reliable and durable for indoor P1.95 ,P2.604
AXIS ONE series
AXIS Series
Next-Generation Visual Technology.
Professional Visual Performance
The high refresh rate LED display features advanced visual technology that delivers better color performance, smoother images, eye protection, and energy-efficient operation.
01

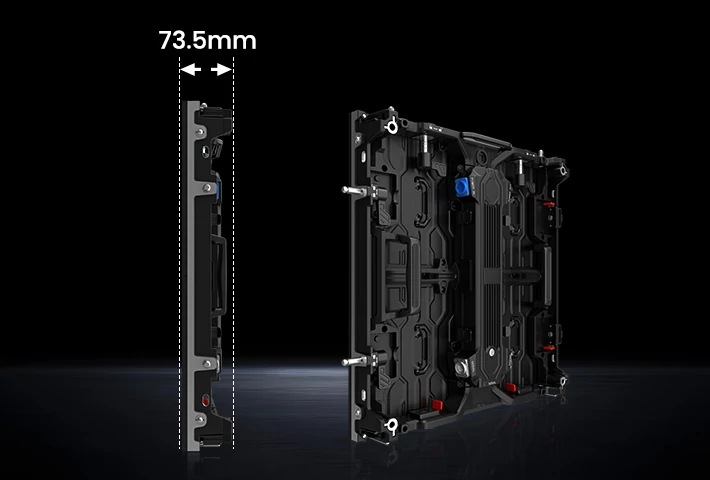

73.5mm Ultra-Slim Cabinet
Thinner Design · Easier Installation · Better Rental Efficiency
02

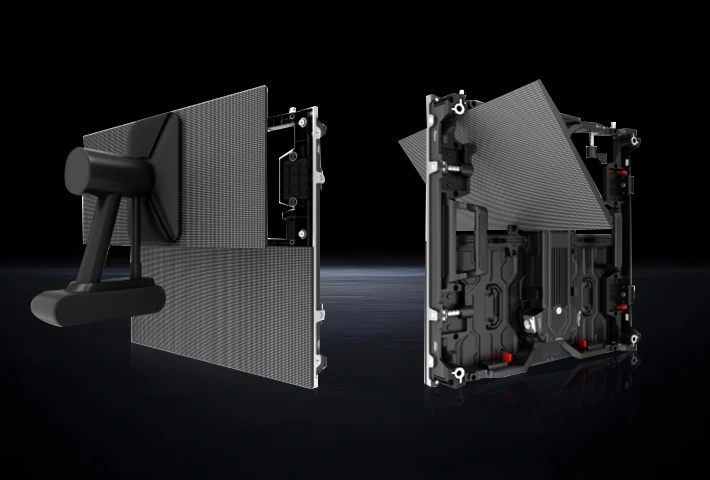

Front & Rear Module Maintenance
Easy module access, faster service, and more flexible installation for rental projects.
03
7.5kg Lightweight Design
Built for easier handling, faster setup, and higher rental efficiency.
04
Die cast aluminum cabinet
Surface gloss technology
7680Hz Ultra-High Refresh Rate
Engineered for professional live visuals, delivering smoother images, reduced flicker, less moiré, and excellent camera performance for stage, rental, and broadcast applications.
IP65 Outdoor Waterproof Protection
waterproof, corrosion-resistant, dust-proof, high temperature resistant.

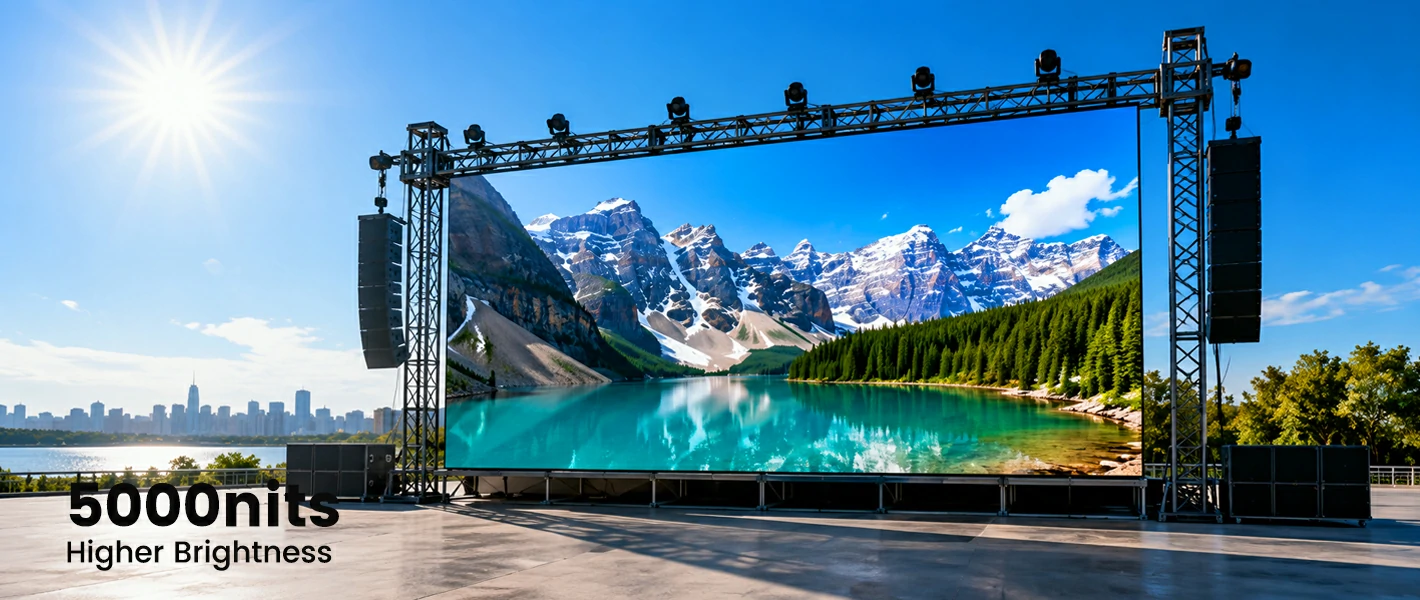

5000nits High Brightness
Clear Visuals Even Under Outdoor Sunlight.tant.

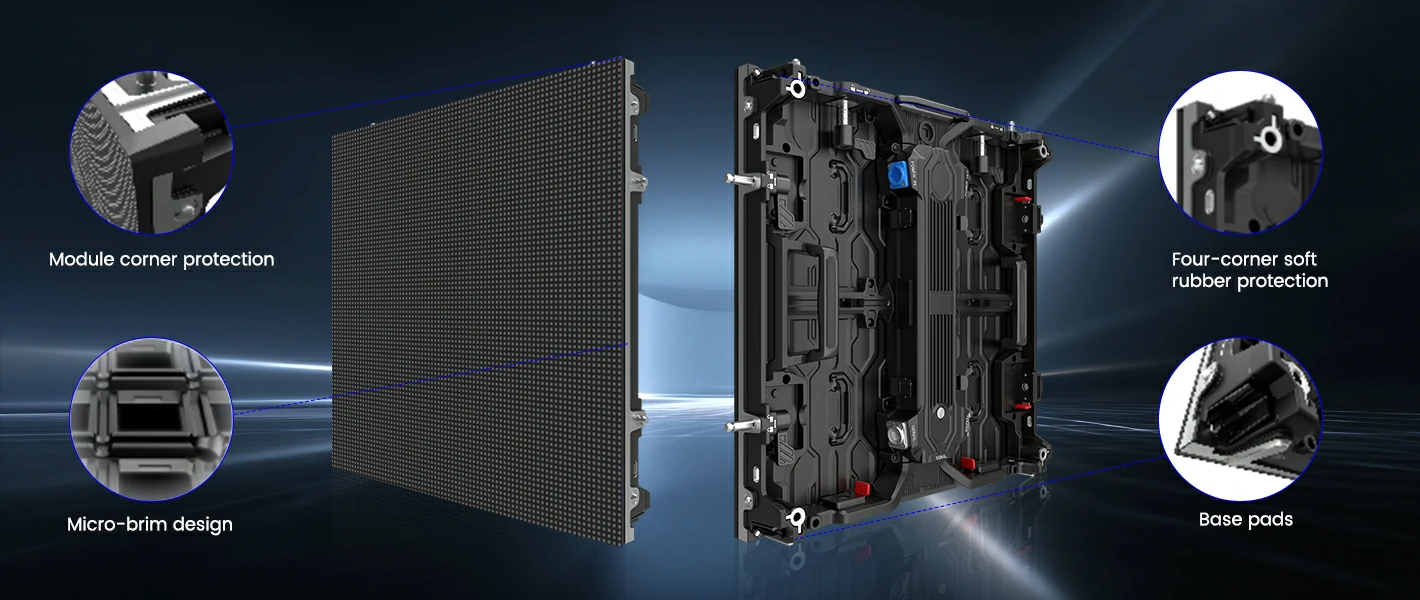

Anti-Collision Protection Design
The cabinet features soft silicone rubber corner protection and a recessed module base design, effectively protecting LED pixels from impact during installation, transportation, and rental use.

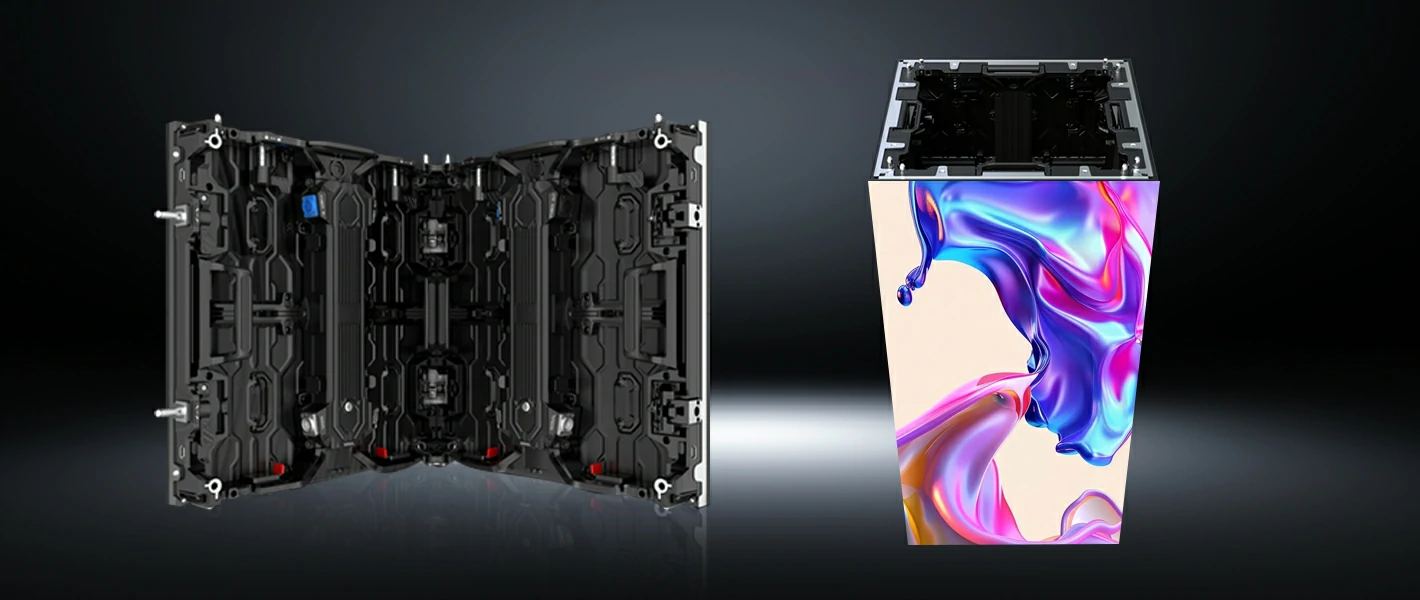

90°SPLICING INSTALLATION
Customizable 45° beveled cabinet, two cabinets can be directly assembled at a 90 degree angle, right angle is so easy.
Curved shape
The curved rental LED display adopts a curved shape design for flexible installation and creative stage applications.
