3840-7680Hz High refresh rate
Key Product Features
Flexible Curved Splicing
306mm Minimum Bending Radius
90° Corner Splicing
5000nits Outdoor Brightness

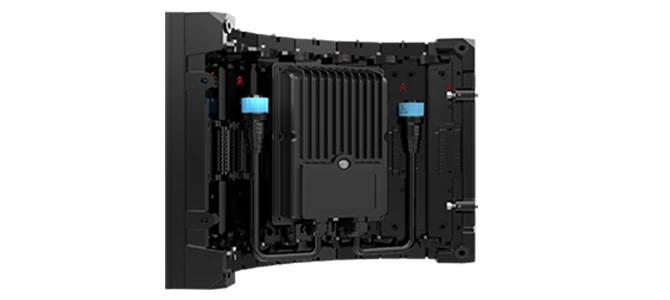

Front & Rear Maintenance
Efficient Heat Dissipation
Application Scenario

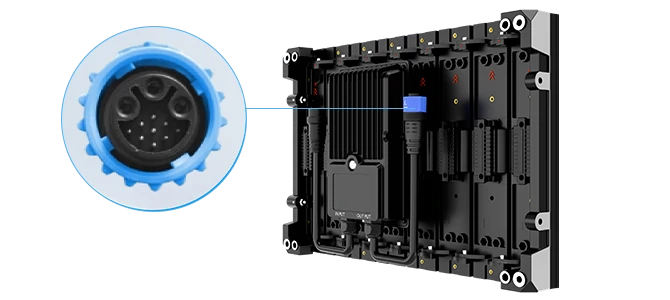

IP65 outdoor protection
IP65 outdoor LED display features front and rear IP65 protection ratings, offering excellent water and dust resistance, making it suitable for outdoor advertising environments.
7680Hz High Refresh Rate
306mm Minimum Bending Radius
The outdoor curved LED display features a minimum bending radius of about 306mm, enabling compact curved installation needs and making it suitable for columns, curved walls, and special-shaped LED display applications.
5000nits Outdoor High Brightness
With brightness up to 5000nits, NOVAflex delivers clear and vivid visuals even in outdoor bright-light environments.
Key factors for outdoor advertising screens
Safe & Reliable
High Brightness & Uniformity
High Stability & Long Lifespan
Ultra-High Refresh Rate
High Contrast Ratio
Energy-Efficient Design
Front & Rear Maintenance
Reliability Tested
Product Advantages
Modules are easy to maintain and can be assembled more freely.
Flexible design

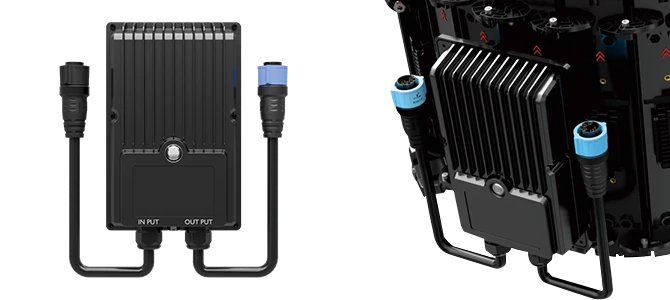

Plug and Play
Fearless Restrictions
Unique design
Product Features

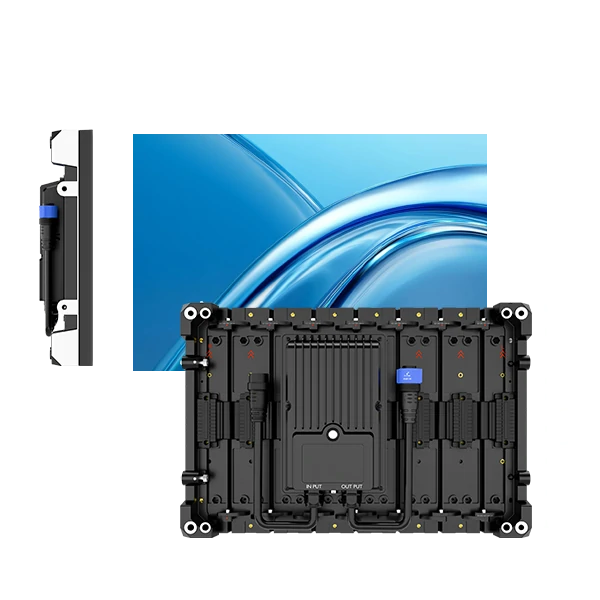

NOVA flex Series is a flexible outdoor LED display with 5000nits brightness, IP65 protection, 4.1kg lightweight cabinet, and front & rear maintenance, ideal for curved outdoor advertising, building facades, stadiums, and stage rentals.
90° Corner Splicing
The curved outdoor LED screen supports 90° corner installation, making it suitable for storefront corners, building edges, and creative outdoor advertising structures.

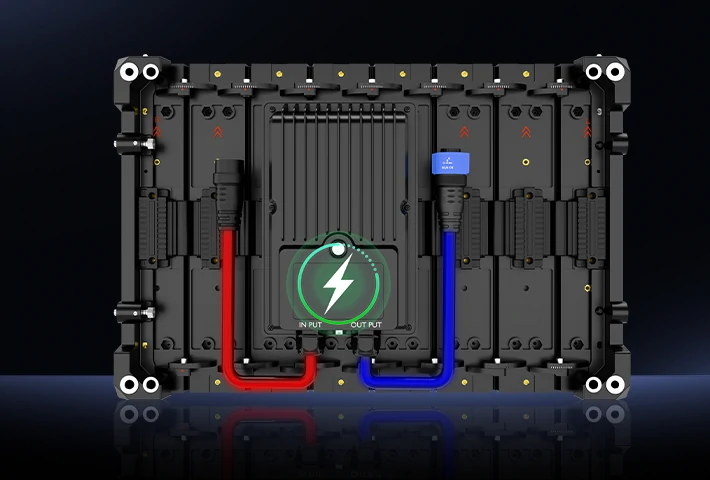

30% Energy Saving
The dual-voltage energy-saving design precisely controls RGB chip voltage, reducing power consumption by about 30% compared with conventional solutions.

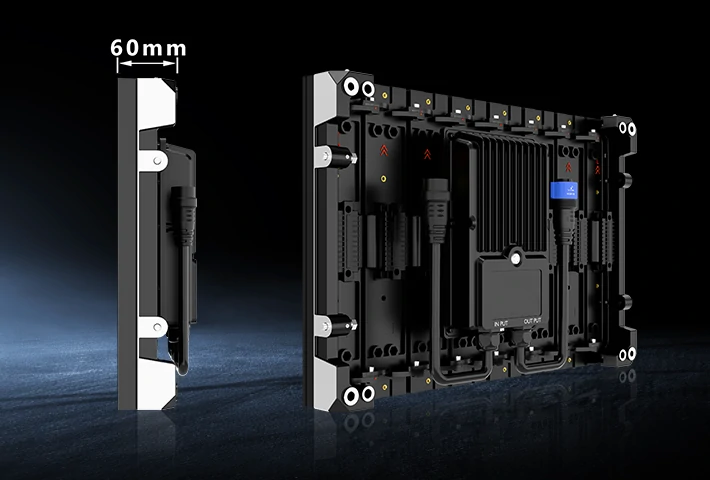

60mm Ultra-Slim Cabinet Design
NOVA Series features an ultra-slim 60mm cabinet, creating a cleaner and lighter installation effect for storefront signs, small outdoor billboards, station advertising, and commercial facade displays.
Strong compatibility
The flexible storefront LED display is compatible with the NOVA Series, enabling seamless integration for various retail and commercial display applications.

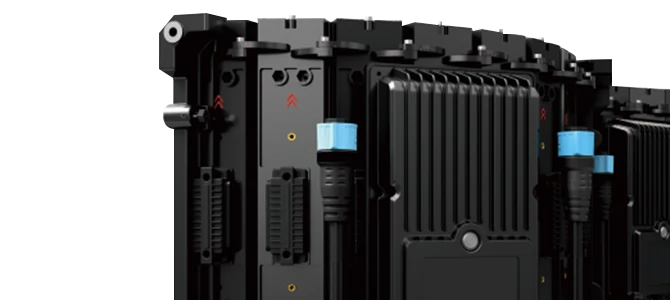

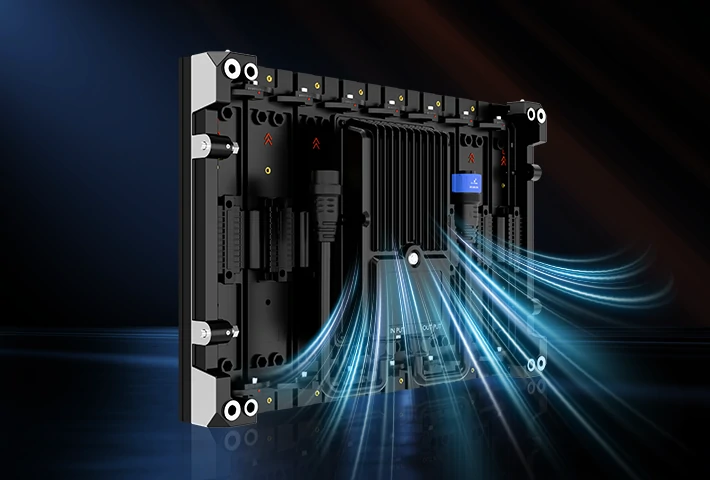

Efficient Heat Dissipation
The distributed heat dissipation design helps reduce the temperature of electronic components, improving stability and extending service life.

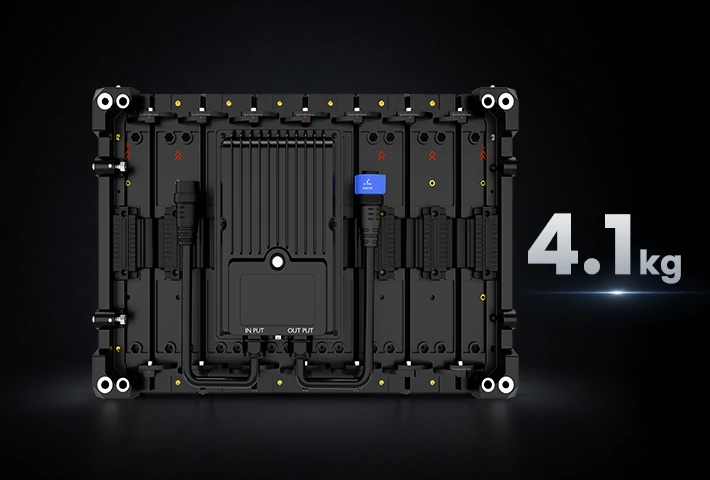

Lightweight design
Each cabinet weighs about 4.1kg, making transportation, installation, and maintenance easier.

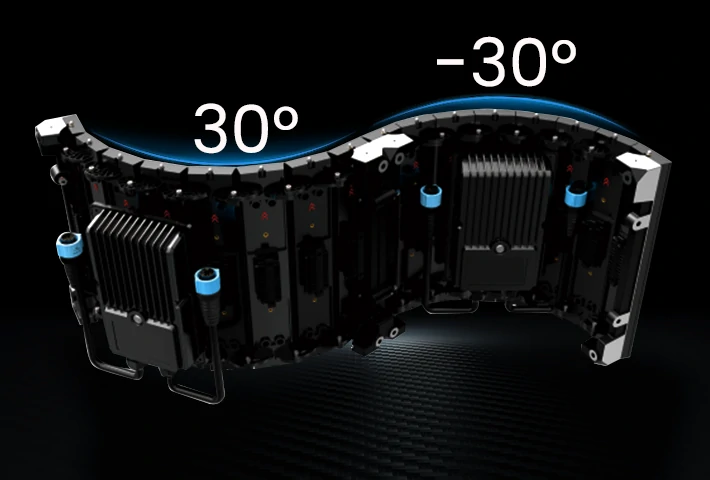

Flexible Curved Splicing

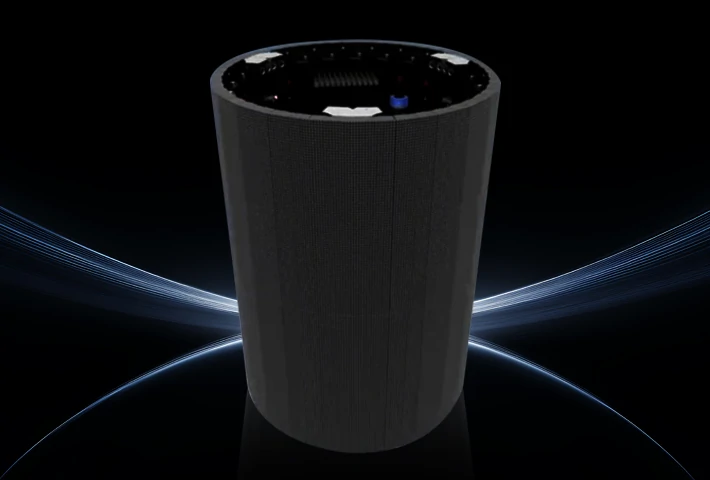

NOVAflex supports inner curve, outer curve, cylindrical, S-shaped, and creative splicing designs,
Product Parameter
Click and long-press on the form to swipe left orright.
| Pixel Pitch (mm) | 3.9 | 6.66 |
| Module Dimensions (mm) | 58.5×320×21.5 | 60×320×21.5 |
| Module Resolution (pixels) | 15×82 | 9×48 |
| Cabinet Dimensions (mm) | 468×320×60 | 480×320×60 |
| Cabinet Resolution (pixels) | 120x82 | |
| Main Structure Material | Aluminum Profile + Plastic/ Die-cast Aluminum | |
| Weight (kg) | 4.1 | |
| Brightness (nits) | 5000 | 6000 |
| Gray Level (bit) | 14~16 | |
| Contrast | ≥3000：1 | |
| Refresh Rate (Hz) | ≥7680 | |
| Viewing Angle (H/V) | 160°/+45°~-65° | |
| Protection Level (F/B) | IP65/IP65 | |
| Input AC Voltage | 100-240V 50/60Hz | |
| Working Temperature (°C) | -20~50 | |
| Operating Humidity (RH) | 10%~90% (no condensation) | |
| Installation Methods | Fixed + Wall Mounting | |
| Maintenance Method | Front/Rear Maintenance | |
| Max Power / Average Power (W/m²) | 710/250 | 760/270 |
