3840-7680Hz High refresh rate
Key Product Features

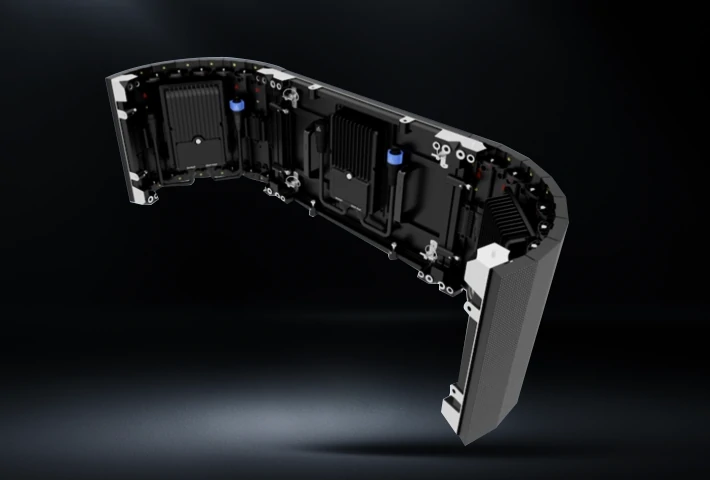

Flexible Curved Splicing
306mm Minimum Bending Radius
90° Corner Splicing
5000nits Outdoor Brightness
Front & Rear Maintenance
Efficient Heat Dissipation

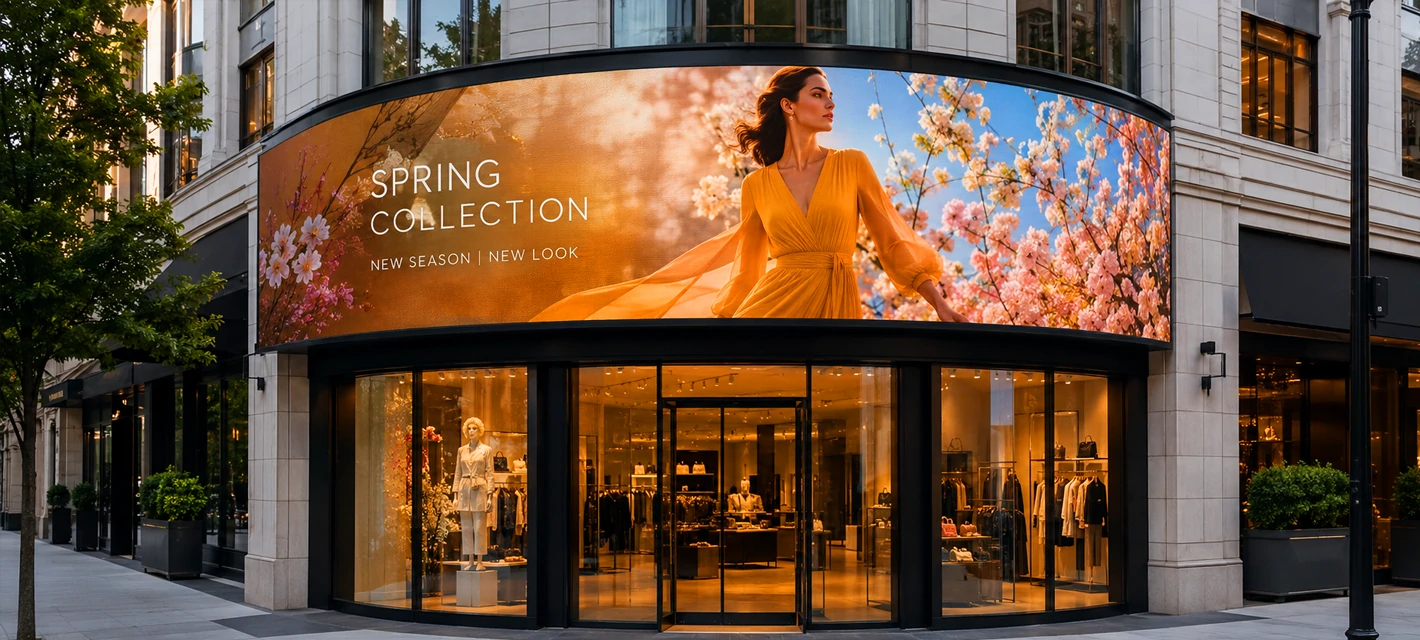

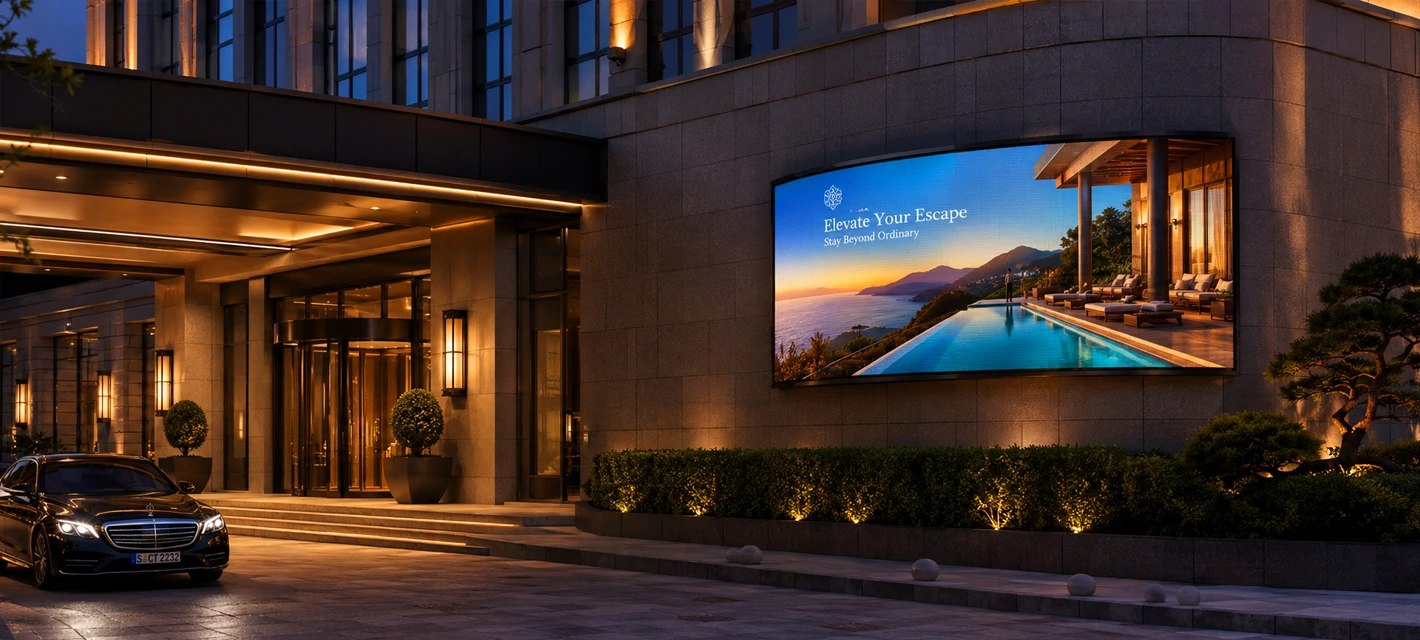

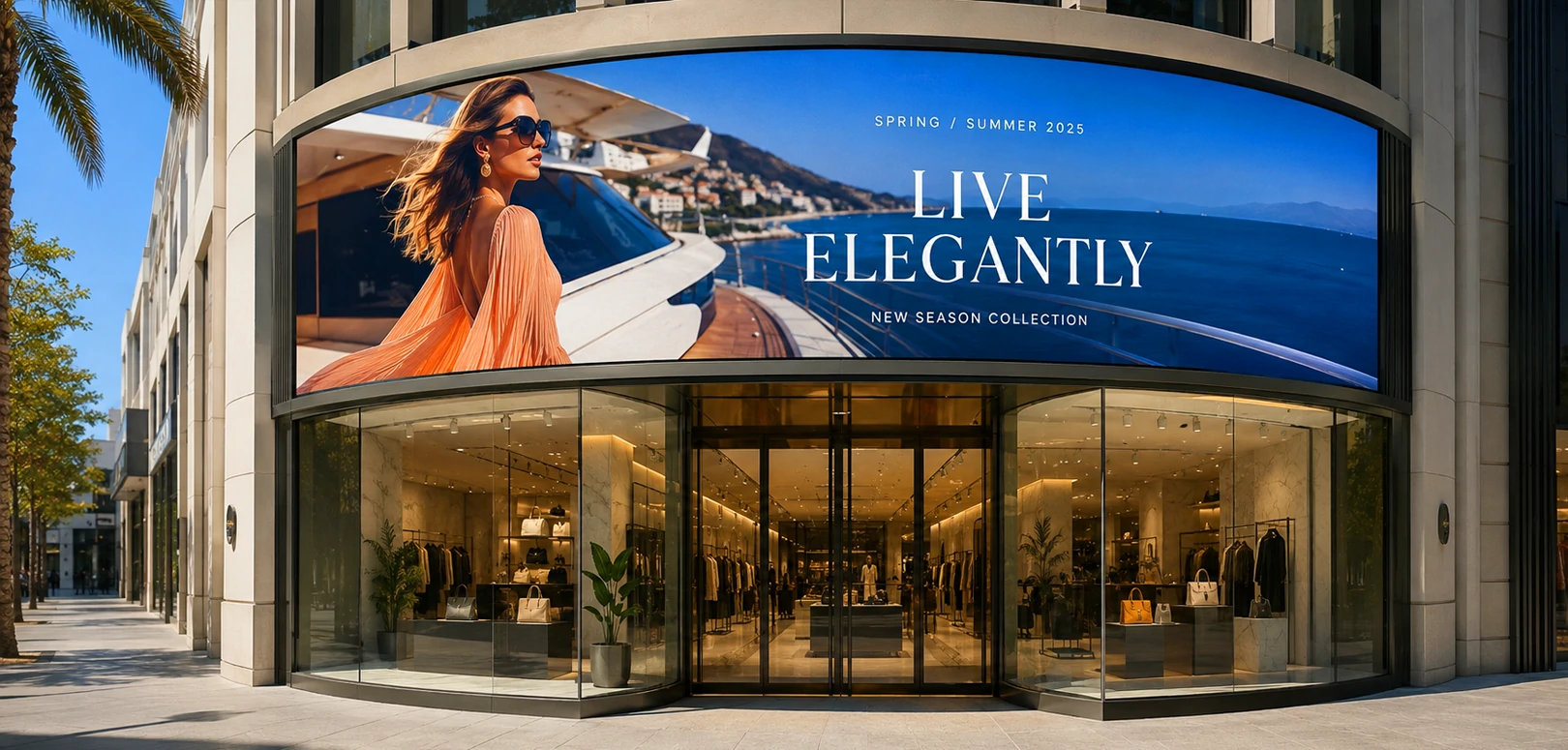

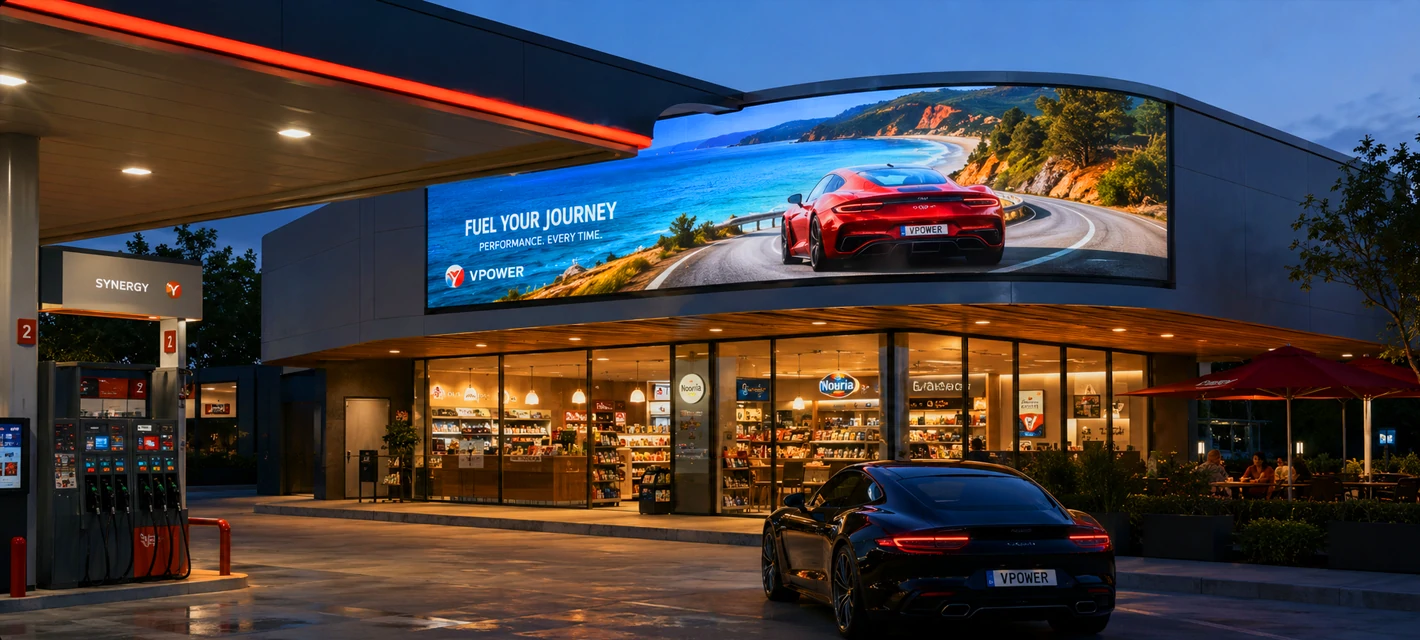

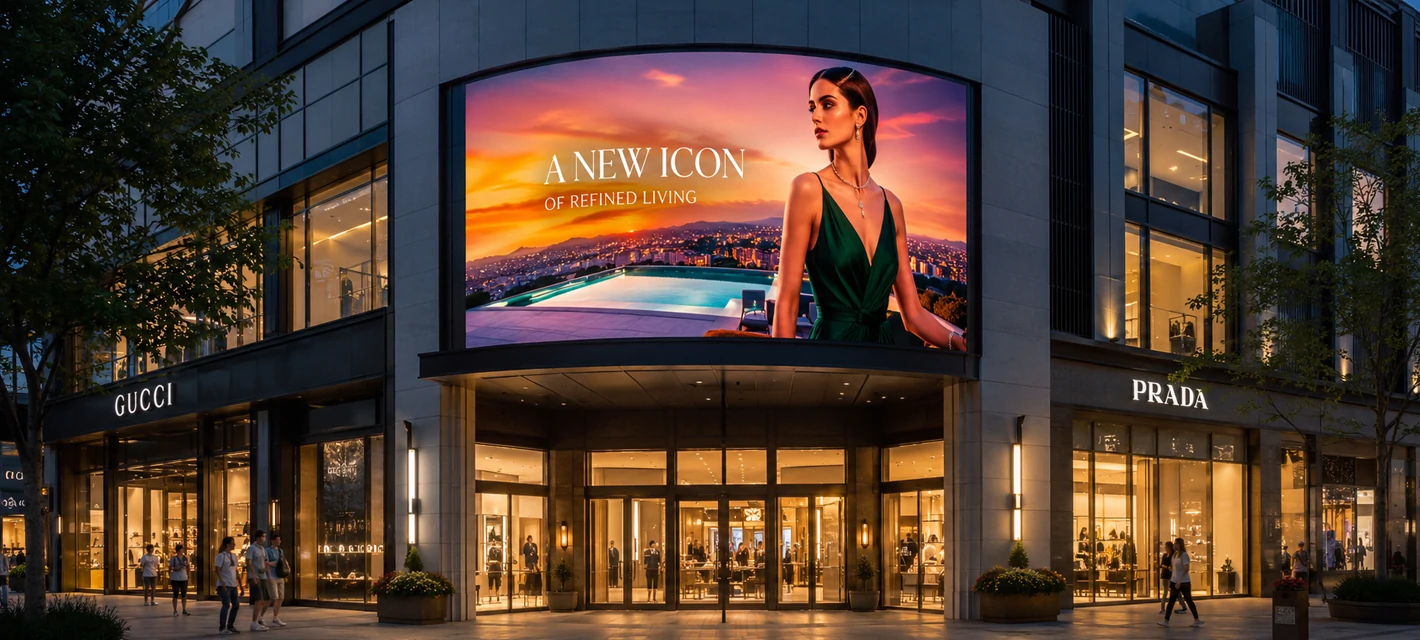

Application Scenario
IP65 outdoor protection
With front and rear protection ratings of IP65, the unit offers excellent water and dust resistance, making it suitable for outdoor advertising environments.
7680Hz High Refresh Rate
306mm Minimum Bending Radius

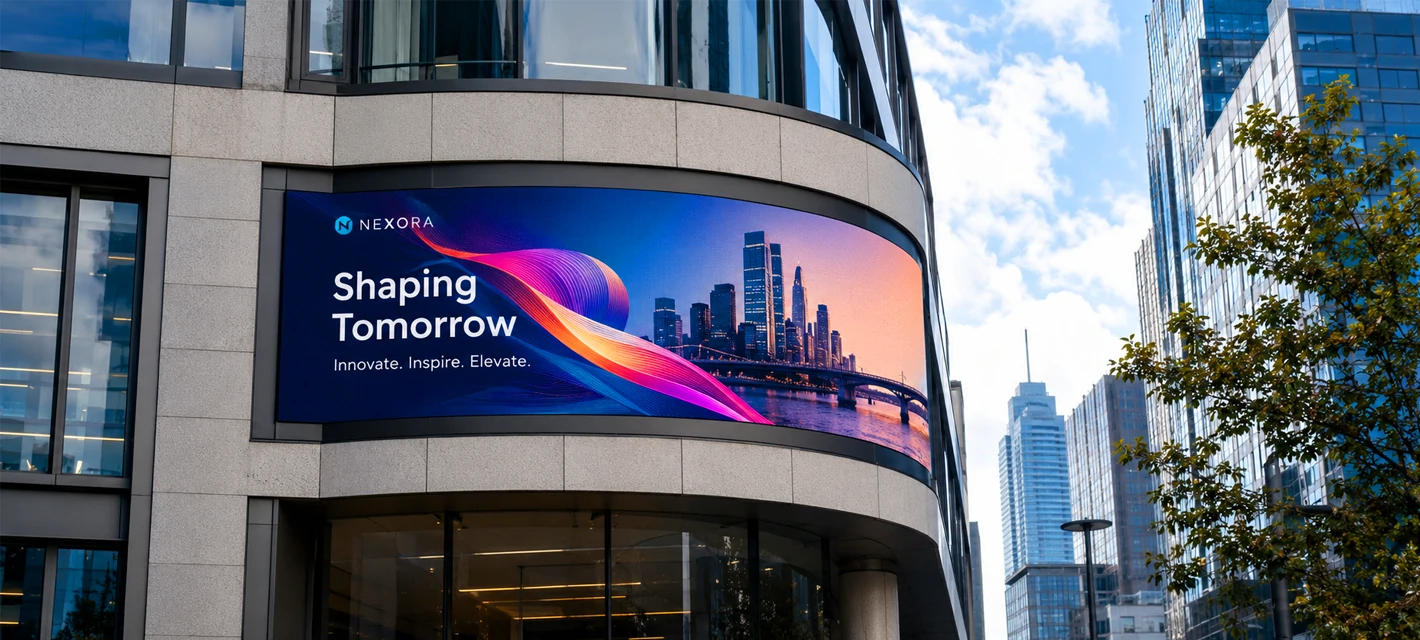

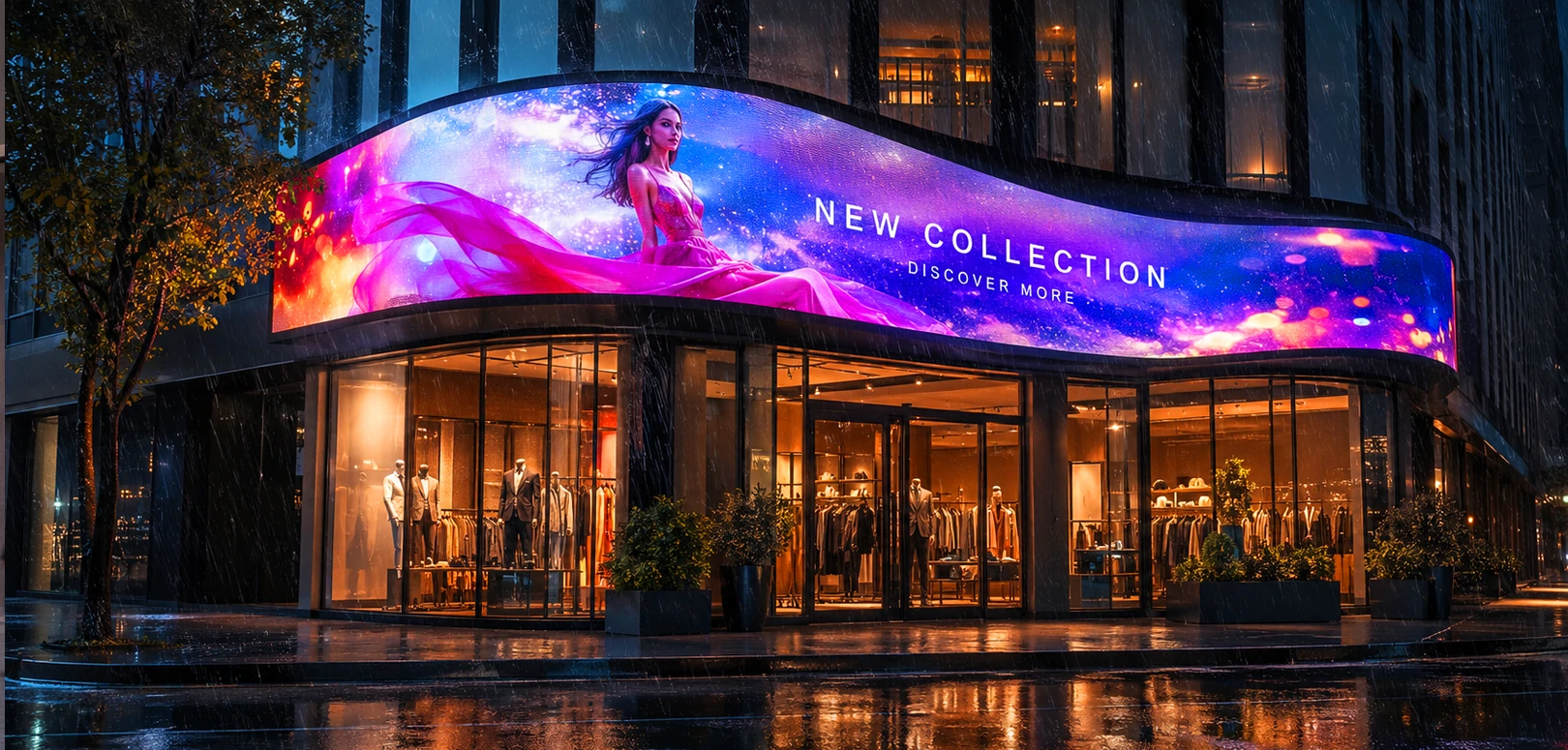

With a minimum bending radius of about 306mm, it can meet more compact curved installation needs, suitable for columns, curved walls, and special-shaped LED displays.
5000nits Outdoor High Brightness
With brightness up to 5000nits, NOVAflex delivers clear and vivid visuals even in outdoor bright-light environments.
Key factors for outdoor advertising screens
Safe & Reliable
High Brightness & Uniformity
High Stability & Long Lifespan

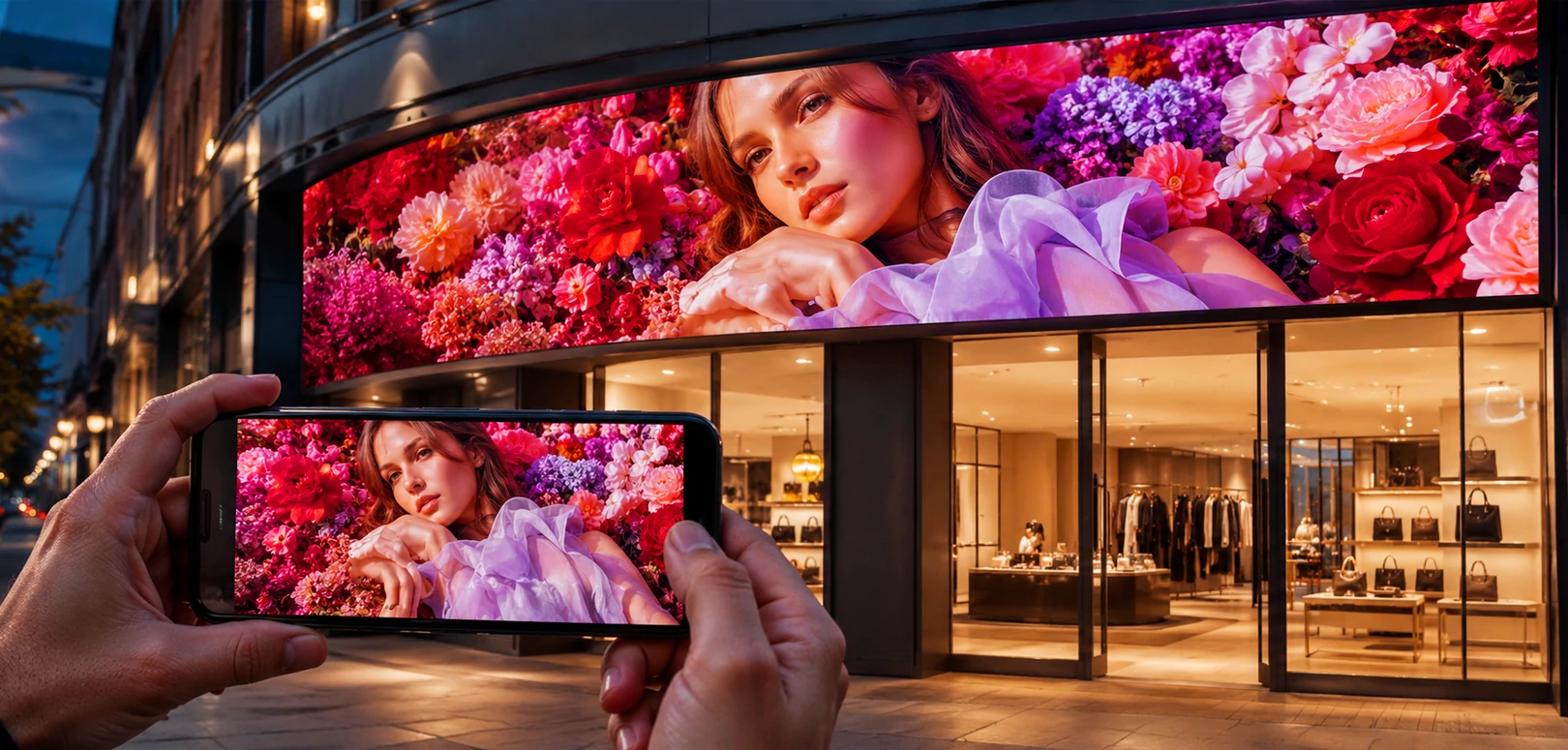

Ultra-High Refresh Rate
High Contrast Ratio
Energy-Efficient Design
Front & Rear Maintenance
Reliability Tested

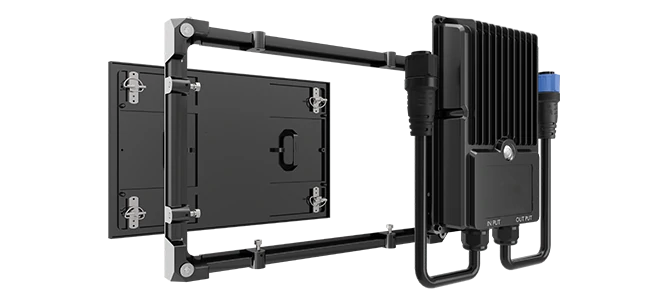

Product Advantages
Modules are easy to maintain and can be assembled more freely.

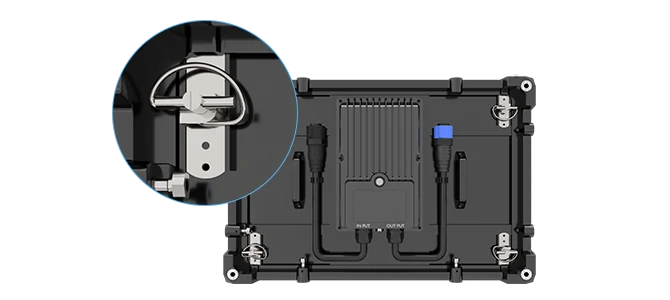

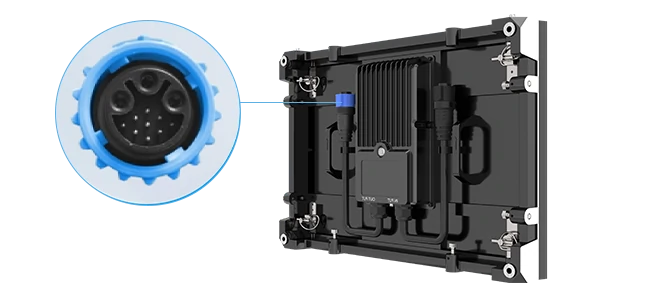

Quick-lock Design
Plug and Play
Front & rear maintenance
Unique design
Product Features

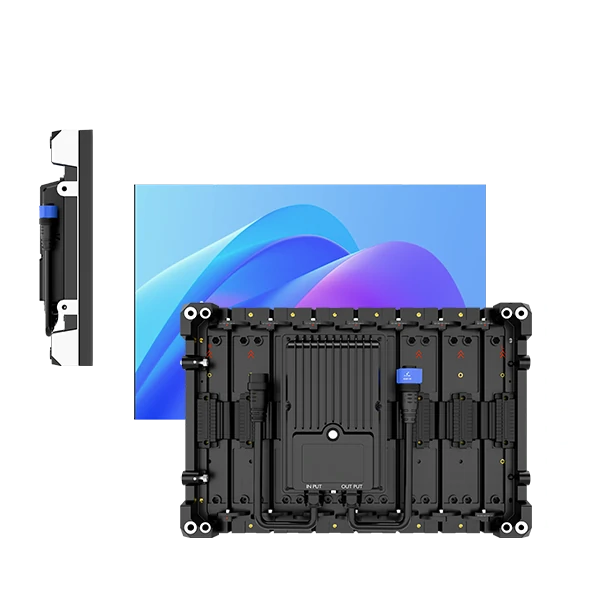

Designed for small outdoor billboards, storefront signs, and commercial facades with 3.7kg ultra-light cabinets and 7680Hz smooth visuals.

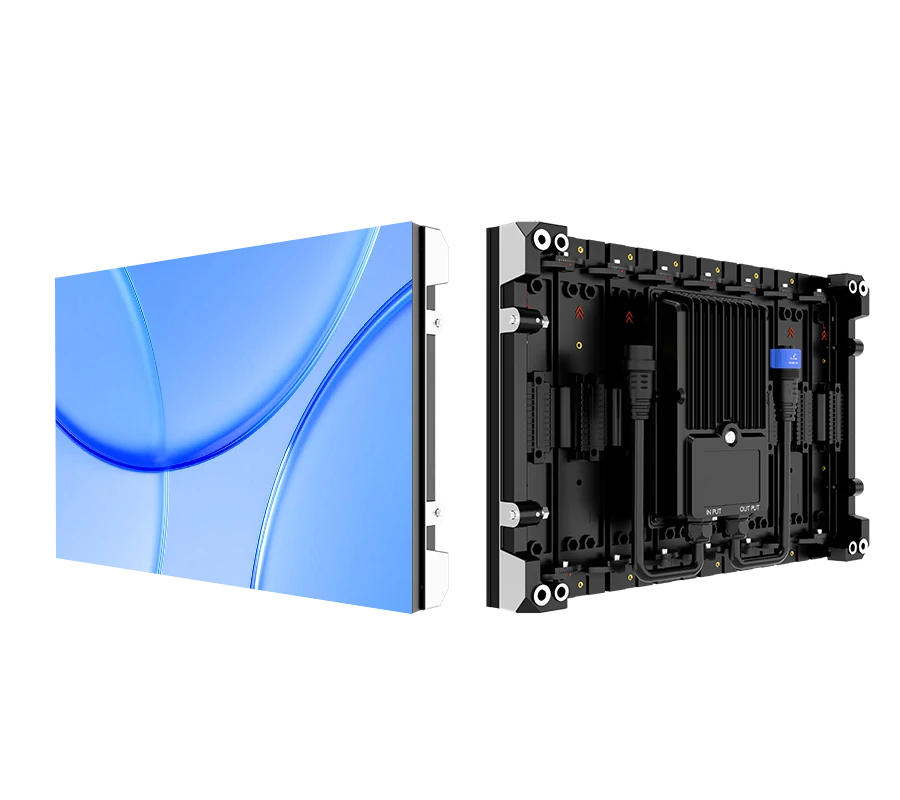

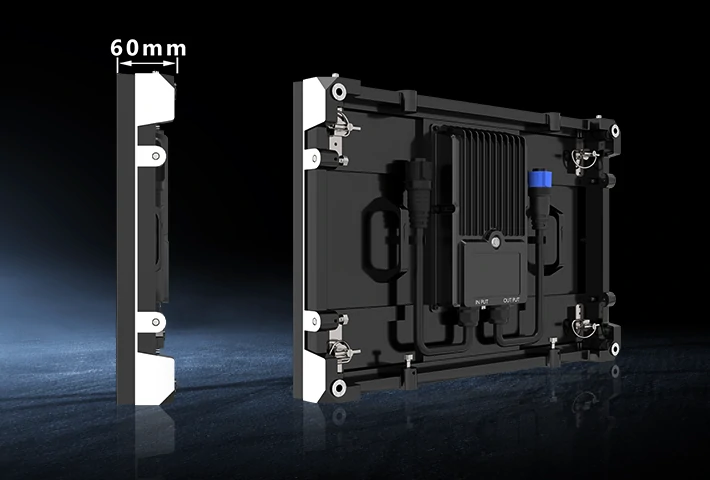

60mm Ultra-Slim Cabinet Design

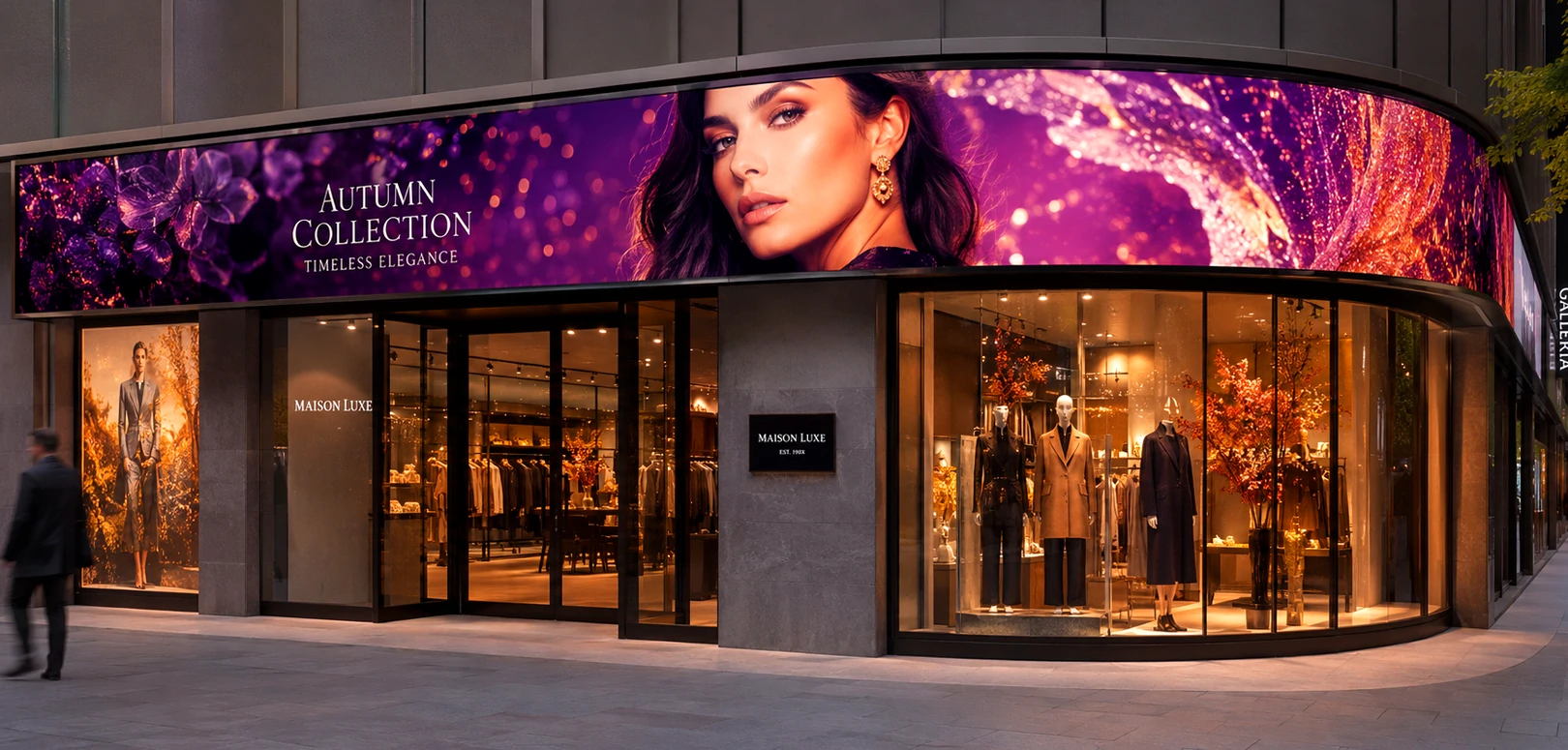

NOVA Series features an ultra-slim 60mm cabinet, creating a cleaner and lighter installation effect for storefront signs, small outdoor billboards, station advertising, and commercial facade displays.
Strong compatibility
Compatible with NOVA Flex Series

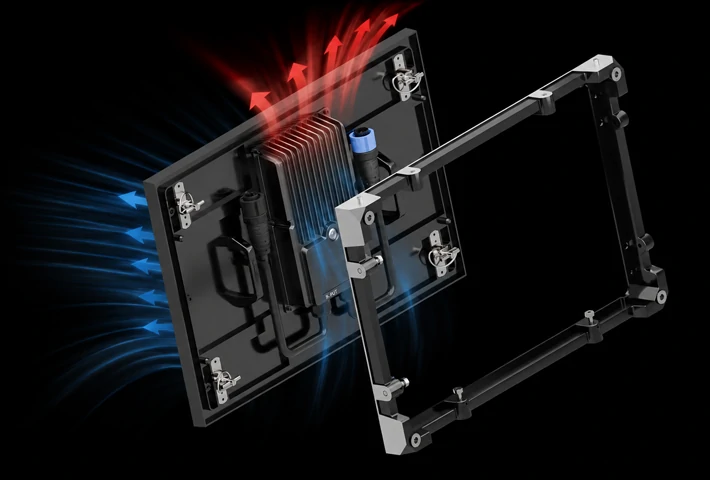

Efficient Heat Dissipation
The multi-stage heat dissipation design includes fan-free cooling, large-area cooling fins, and natural convection airflow, reducing failure rates and ensuring long-term outdoor stability.

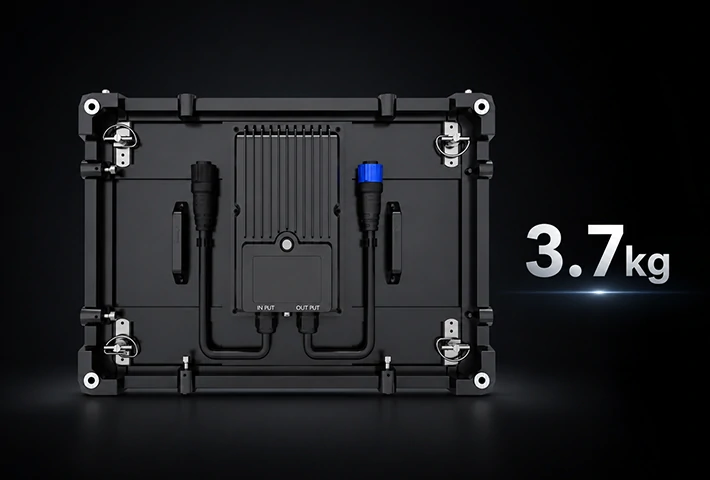

Ultra-lightweight
Weighing as little as 3.7kg per unit, the cabinet makes handling, installation, storage, and transport easier—making it ideal for small-scale outdoor advertising screens and storefront signage projects.
Product Parameter
Click and long-press on the form to swipe left orright.
| Pixel Pitch (mm) | 3.9 | 6.66 |
| Module Dimensions (mm) | 480×320×21.5 | 480×320×21.5 |
| Module Resolution (pixels) | 123×82 | 72×48 |
| Cabinet Dimensions (mm) | 480×320×60 | |
| Cabinet Resolution (pixels) | 123×82 | 72×48 |
| Main Structure Material | Aluminum Profile + Plastic / Die-cast Aluminum | |
| Weight (kg) | 3.7 | |
| Brightness (nits) | 5000 | 6000 |
| Gray Level (bit) | 14~16 | |
| Contrast | ≥5000:1 | |
| Refresh Rate (Hz) | ≥7680 | |
| Viewing Angle (H/V) | 160°/+45°~-65° | |
| Protection Level (F/B) | IP65/IP65 | |
| Input AC Voltage | 100-240V 50/60Hz | |
| Working Temperature (°C) | -20~50 | |
| Operating Humidity (RH) | 10%~90% (no condensation) | |
| Installation Methods | Fixed + Wall Mounting | |
| Maintenance Method | Front/Rear Maintenance | |
| Max Power / Average Power (W/m²) | 710/250 | 760/270 |
