What is the LUXIS Series flip chip outdoor LED display designed for?

The LUXIS Series is engineered for premium outdoor fixed installation projects, including digital billboards, transportation hubs, stadiums, commercial buildings, smart cities, and large-scale media facades where maximum brightness, reliability, and energy efficiency are required.

What are the advantages of flip-chip LED technology?

Flip-chip technology eliminates traditional wire bonding, improving heat dissipation, reducing thermal resistance, increasing reliability, and enabling brightness up to 10,000 nits with lower power consumption. It also delivers longer service life for continuous outdoor operation.

Why does the LUXIS Series use an aluminum-composite module base?

The module base uses approximately 90% aluminum with reinforced engineering plastic around the edges. This hybrid structure provides excellent heat dissipation, improved mechanical strength, lighter weight, and better corrosion resistance than conventional plastic module housings.

Is the LUXIS Series suitable for coastal environments?

Yes. The full-aluminum cabinet, aluminum-composite module structure, and corrosion-resistant materials make the LUXIS Series suitable for coastal cities, ports, seaside commercial buildings, and other high-humidity outdoor environments.

Does the LUXIS Series support front maintenance?

Yes. The LUXIS Series supports both front and rear maintenance. Its spring-lock module design allows technicians to quickly remove or replace LED modules, reducing maintenance time while improving installation efficiency.

What cabinet sizes are available?

The LUXIS Series is available in 500 × 500 mm, 500 × 1000 mm, and 1000 × 1000 mm cabinets. Since both width and height are based on 500 mm increments, the system provides excellent flexibility for custom outdoor screen dimensions.

How bright is the LUXIS Series?

The LUXIS Series delivers brightness up to 10,000 nits while maintaining high energy efficiency through flip-chip LED technology, making it suitable for direct sunlight, outdoor advertising, transportation displays, and high-ambient-light environments.

Why choose the DDW LUXIS Series for professional outdoor LED projects?

The DDW LUXIS Series combines flip-chip LED technology, up to 10,000 nits brightness, an aluminum cabinet, aluminum-composite module base, spring-lock front maintenance, IP65 protection, 3840Hz/7680Hz refresh rate, and high corrosion resistance. It is designed for system integrators, media operators, and engineering contractors delivering long-life outdoor LED display projects.

LUXIS Series Flip Chip Outdoor LED Display | 10000 Nits Energy Saving

LUXIS SERIES

18000:1 High Contrast

The high contrast ratio brings deeper blacks, brighter highlights, richer details, and stronger visual impact for advertising content.

Loading video...

Key Product Features

Tag:

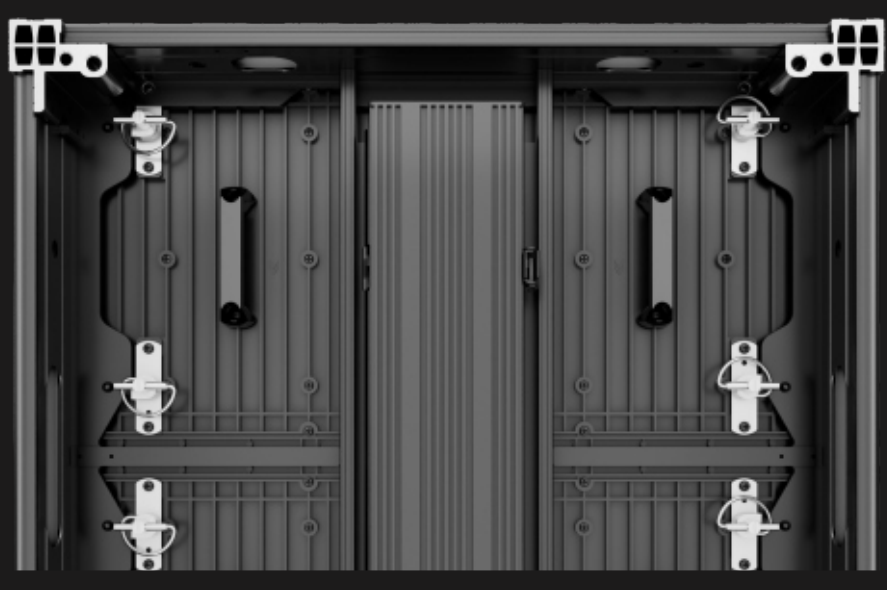

Lightweight Structure

Open-frame cabinet design reduces overall weight while maintaining excellent strength, durability, and reliable structural performance.

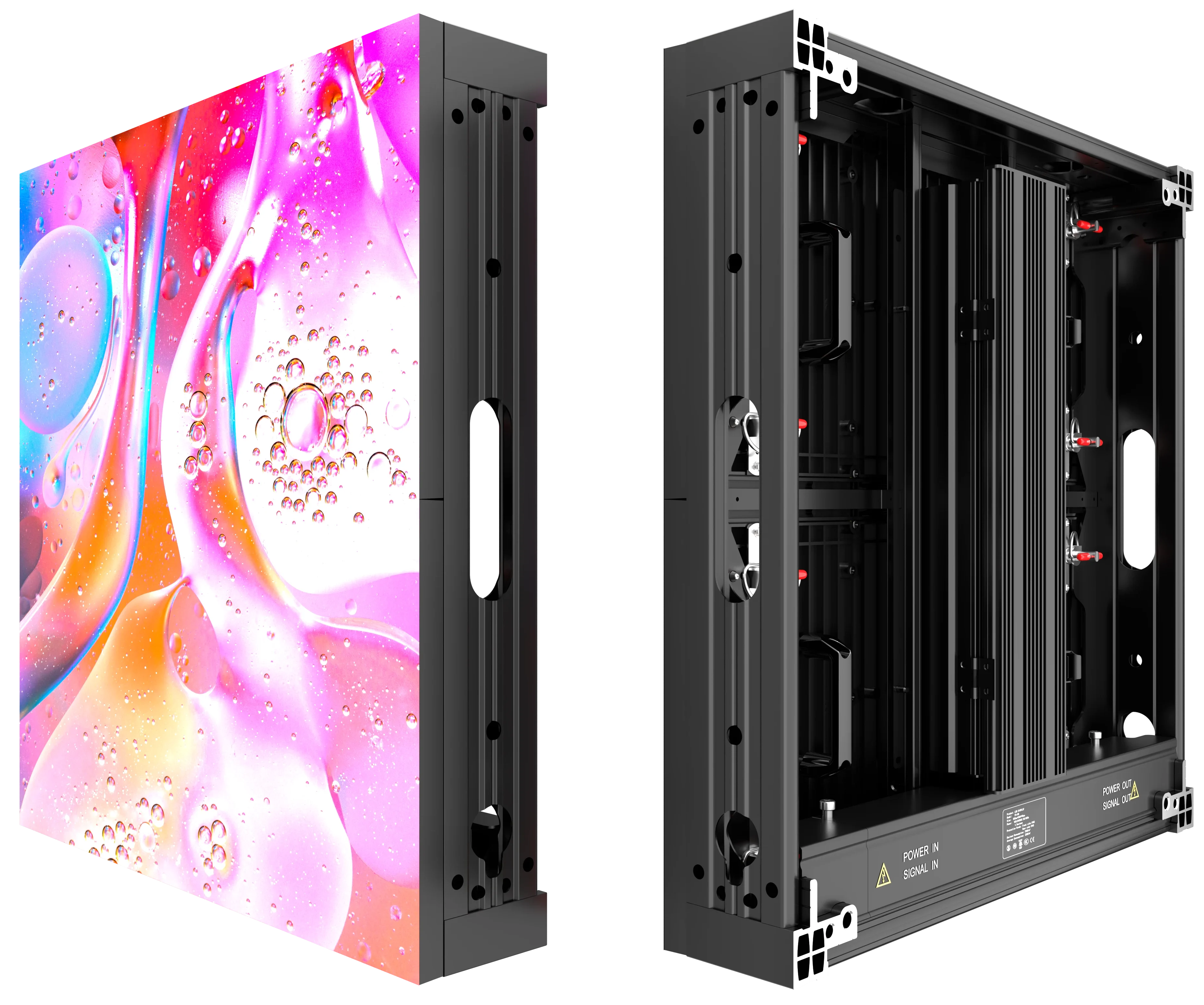

Front & Rear Maintenance

Featuring a modular cabinet structure, the front maintenance outdoor LED display enables easy front and rear access, simplifying installation, servicing, and maintenance operations.

High Thermal Conductivity

Full aluminum housing and conductive materials provide efficient heat dissipation, ensuring stable and reliable performance.

Ultra-High Brightness

Up to 10,000 nits brightness ensures clear visibility in sunlight, with excellent contrast and long-term stability.

Smart Module Technology

Integrated monitoring supports voltage, signal, temperature, diagnostics, and calibration data management for efficient operation.

True Color Performance

7680Hz refresh rate and 16-bit grayscale deliver vivid colors, smooth images, and outstanding visual consistency.

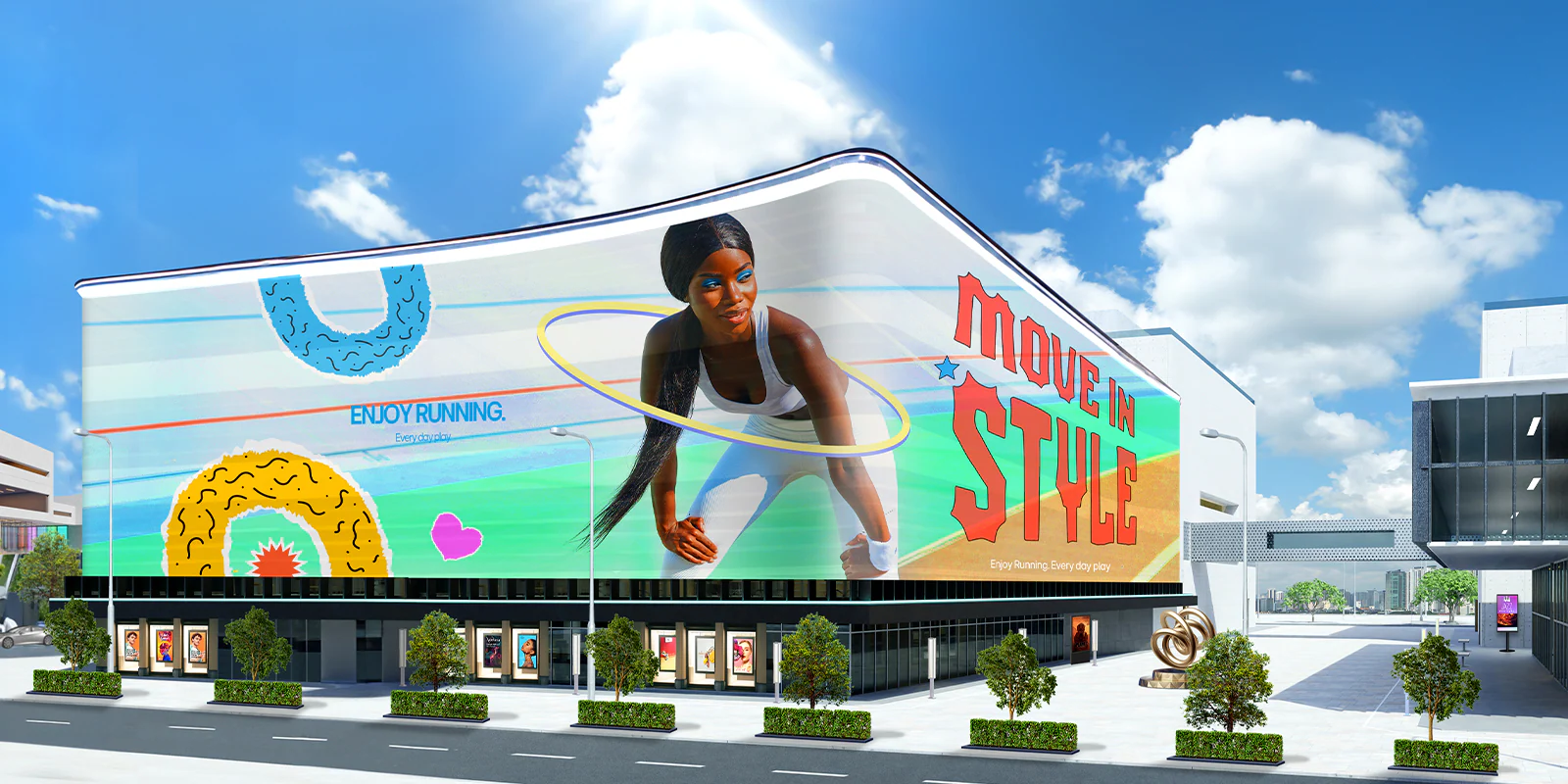

Application Scenario

Highway bollards

Outdoor 3D screen

Outdoor wall hanging

Stadium

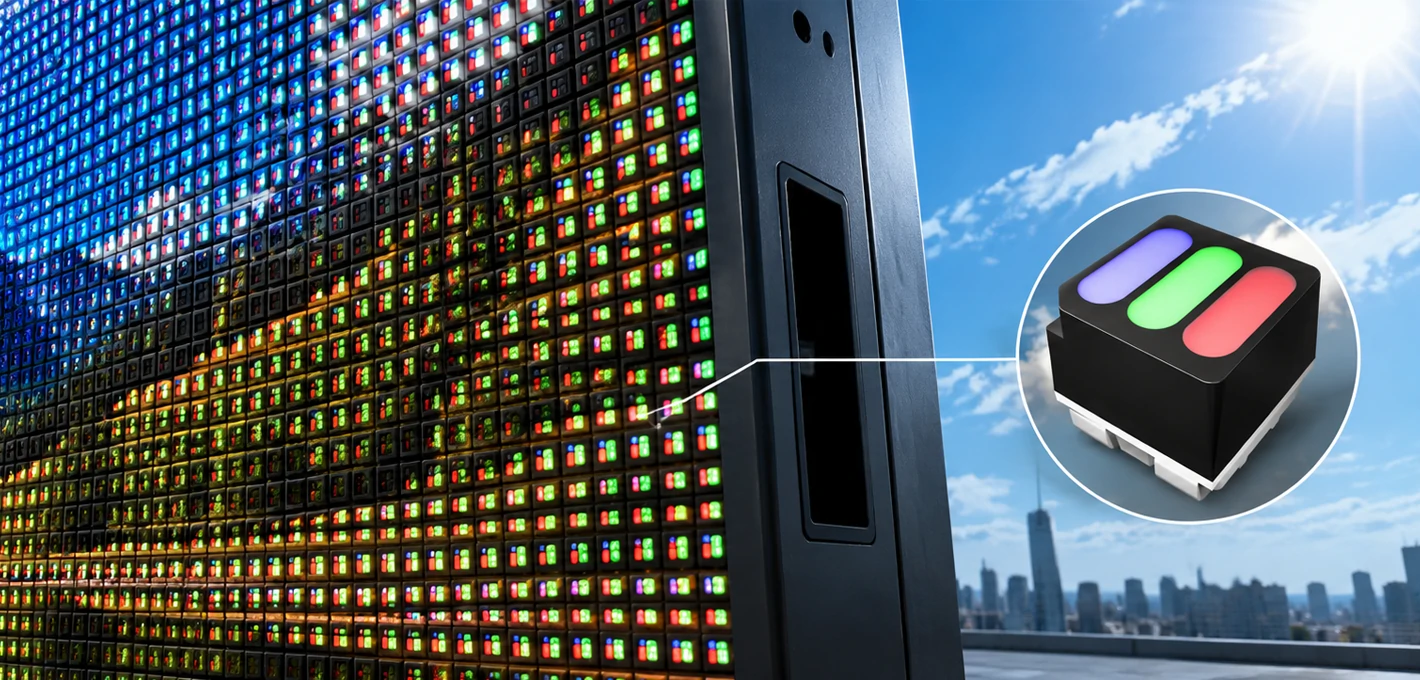

HY2020 High-Performance LED Lamp Beads

HY2020 LED lamp beads offer high brightness, high contrast, long lifespan, low power consumption, and stronger thrust resistance. Compared with traditional white SMD LEDs, they provide better black-screen consistency, higher contrast, stronger reliability, and better outdoor adaptability.

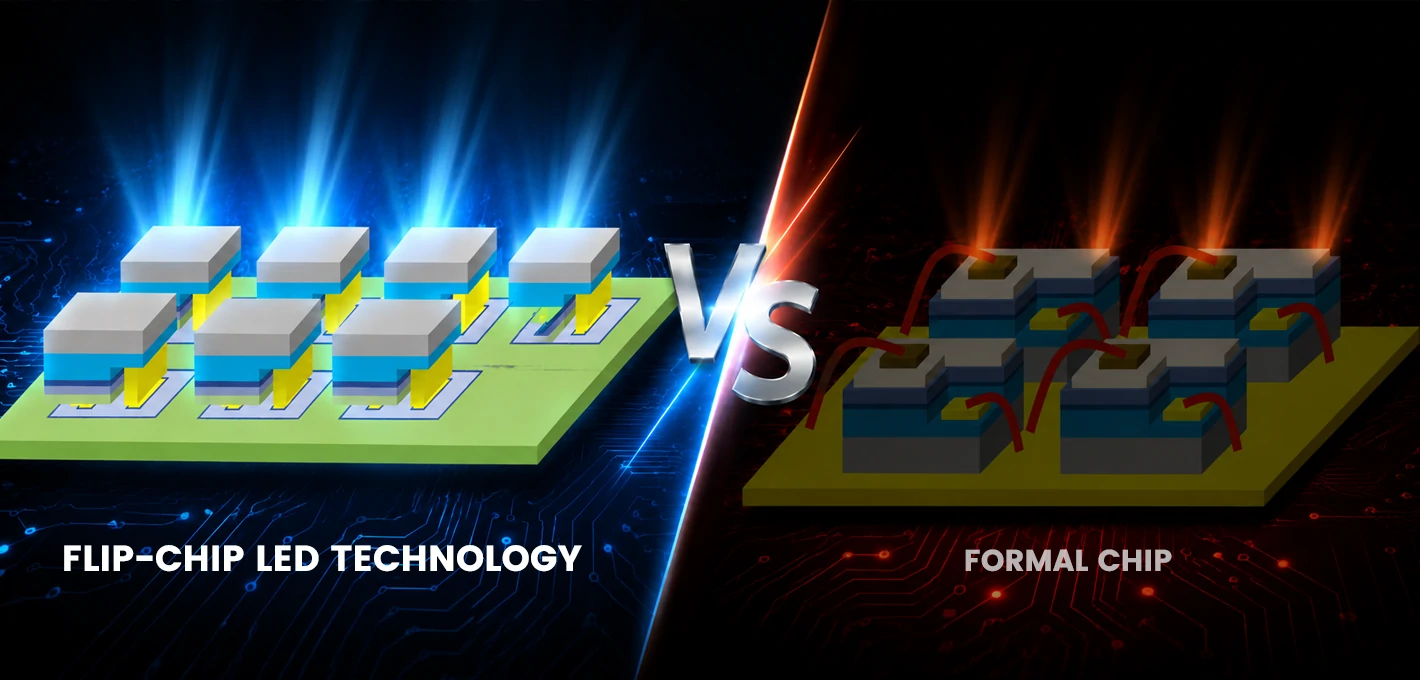

High-Brightness Flip-Chip LED Technology

The flip chip LED display offers a larger light-emitting area, no wire blocking, and higher brightness for improved visual performance.

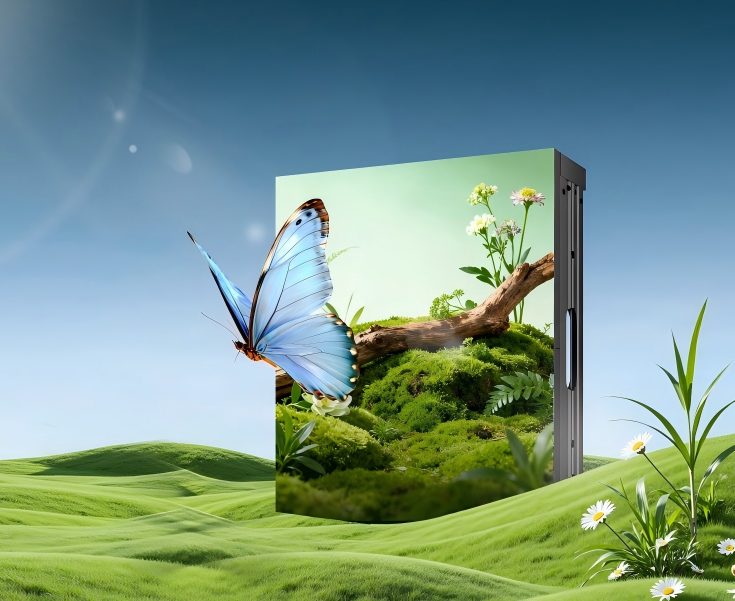

IP65 Front & Rear Protection

Designed as a durable aluminum outdoor LED display, the LUXIS series features up to IP65 protection, ensuring reliable performance in rain, dust, high temperatures, humidity, and other harsh outdoor environments.

Key factors for outdoor advertising screens

Product Advantages

Modules are easy to maintain and can be assembled more freely.

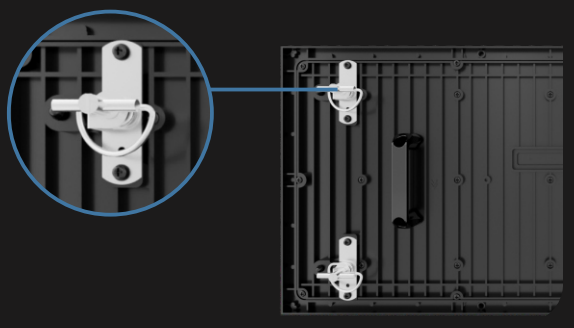

Heavy-duty spring latch

Easy installation & removal

Aluminum-plastic bottom shell

Stable and durable , it can eﬀectively protect the internal circuits and power supply.

Front & rear maintenance

Supports front and rear dual-side maintenance , making maintenance eﬃcient and convenient .

Professional mask design

It not only protects the panel , but also eﬀectively reduces light decay.

Ultra-high refresh rate

If the display refresh rate is too low, scan lines will appear in the camera’s footage, making it impossible to display a normal image.

LUXIS’s LED displays support refresh rates up to 7680Hz, resulting in better visual performance in cameras and accurately presenting the true image.

7680Hz High Refresh Rate: Fast response to dynamic images, no scan lines in photos.

Low refresh rate: Photos have scan lines.

Product Features

Professional Visual Performance

Excellent display, immersive experience, clear true colors, wide viewing angle.

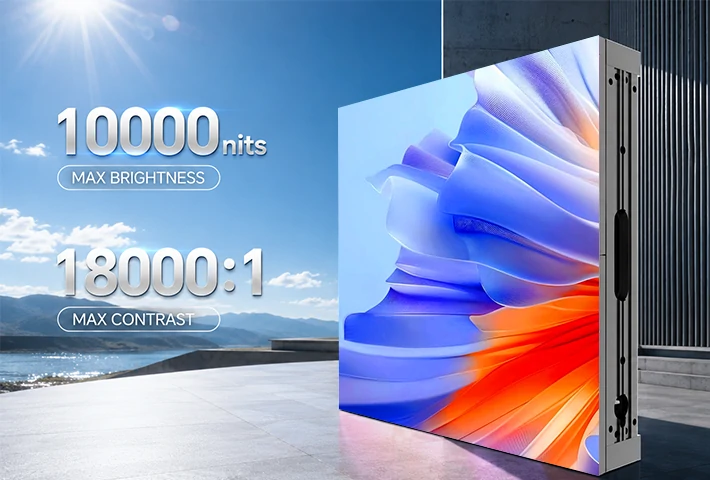

10,000-level Brightness & contrast, details fully revealed

The high brightness LED billboard delivers a clear, bright, and high-contrast display even in direct strong sunlight.

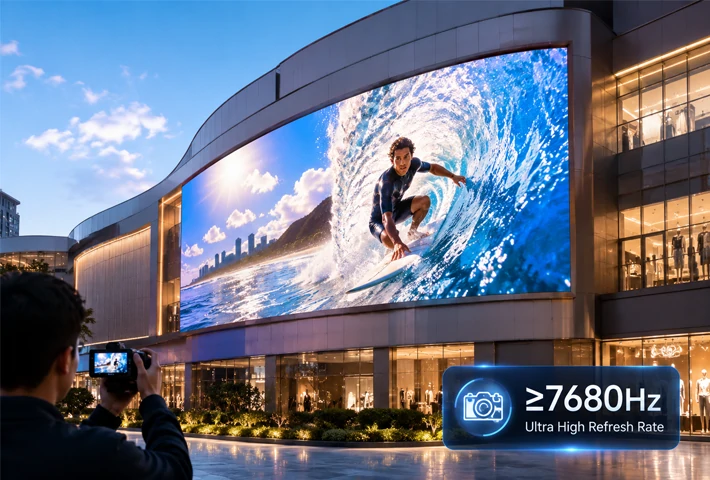

7680Hz High Refresh Rate

The LUXIS outdoor LED advertising screen delivers a refresh rate of ≥7680Hz, ensuring smoother and more stable visuals while reducing flicker and scan lines during camera recording.

Efficient Heat Dissipation

The multi-stage heat dissipation design includes fan-free cooling, large-area cooling fins, and natural convection airflow, reducing failure rates and ensuring long-term outdoor stability.

Energy-Saving Design

With dual-voltage drive technology, the energy saving outdoor LED display precisely controls RGB chip voltage to achieve high brightness, lower power consumption, and up to 30% energy savings.

Product Parameter

Click and long-press on the form to swipe left orright.

Pixel Pitch(mm)	3.91	4.81	5.68	5.71	6.66	8	10
Module Size(mm)	500x250x18			480x320
Module Resolution(pixels)	128x64	104x52	88x44	84x56	72x48	60x40	48x32
Pixel Configuration	1R1G1B
LED Type	HY2020
pixel density(Pixels/ m2)	65536	43264	30976	30625	22500	15625	10000

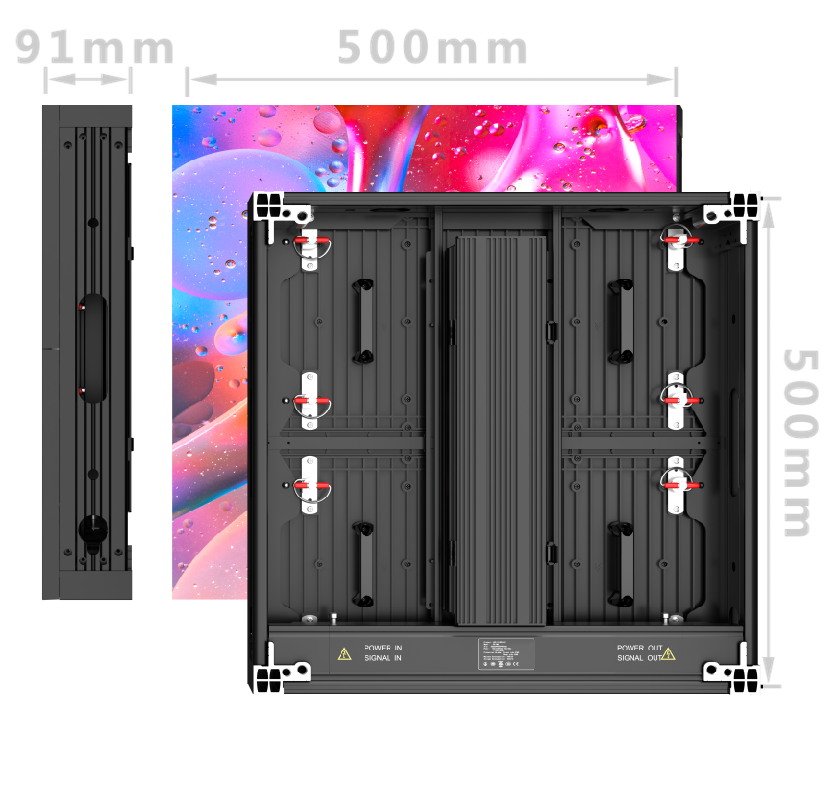

Cabinet Size(mm)	500x500x91			960x960x97
Cabinet Resolution(pixels)	128x128	104x104	88x88	168x168	144x144	120x120	96x96
Weight(kg)	8.5			26
Main Structure Material	Extruded Aluminum
Brightness(nit)	10000
gray level(bit)	16
Contrast Ratio	≥12000：1	≥15000：1	≥18000：1	≥18000：1	≥20000：1	≥25000：1	≥30000：1
refresh rate(Hz)	≥7680
Perspective (horizontal/vertical)	160°/140°
Protection level (front/back)	IP65/IP65
Input AC voltage	100-240 V
Operating Temperature	-20℃～50℃
Operating Humidity	10%RH～90%RH（No condensation）
Maintenance Method	Front maintenance/rear maintenance
Maximum/Average Power(W/ m2)	750/240			650/220
control distance	Cat5e Lan cable: <100m; Single-mode ﬁber cable: <10km
