FC SERIES

3840-7680 هرتز، معدل تحديث عالٍ

Provides smoother and more stable visuals, helping reduce flicker, scan lines, and moiré during filming or live broadcasting.
جاري تحميل الفيديو...
4,500 nits
6,000 nits
8,000 nits
10,000 nits
4,500 nits
4,500 nits
6,000 nits
6,000 nits
8,000 nits
8,000 nits
10,000 nits
10,000 nits

الميزات الرئيسية للمنتج

الوسم:
LED Advertising Screen لوحة إعلانات LED خارجية شاشة LED خارجية

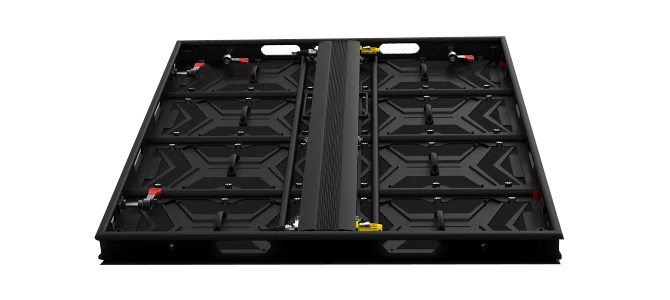

Lightweight Structure

Open-frame cabinet design reduces overall weight while maintaining excellent strength, durability, and reliable structural performance.

صيانة المقدمة والمؤخرة

Modular cabinet structure enables convenient front and rear access, simplifying installation, servicing, and maintenance operations.

High Thermal Conductivity

Full aluminum housing and conductive materials provide efficient heat dissipation, ensuring stable and reliable performance.

Ultra-High Brightness

Up to 10,000 nits brightness ensures clear visibility in sunlight, with excellent contrast and long-term stability.

Smart Module Technology

Integrated monitoring supports voltage, signal, temperature, diagnostics, and calibration data management for efficient operation.

True Color Performance

3840Hz refresh rate and 16-bit grayscale deliver vivid colors, smooth images, and outstanding visual consistency.

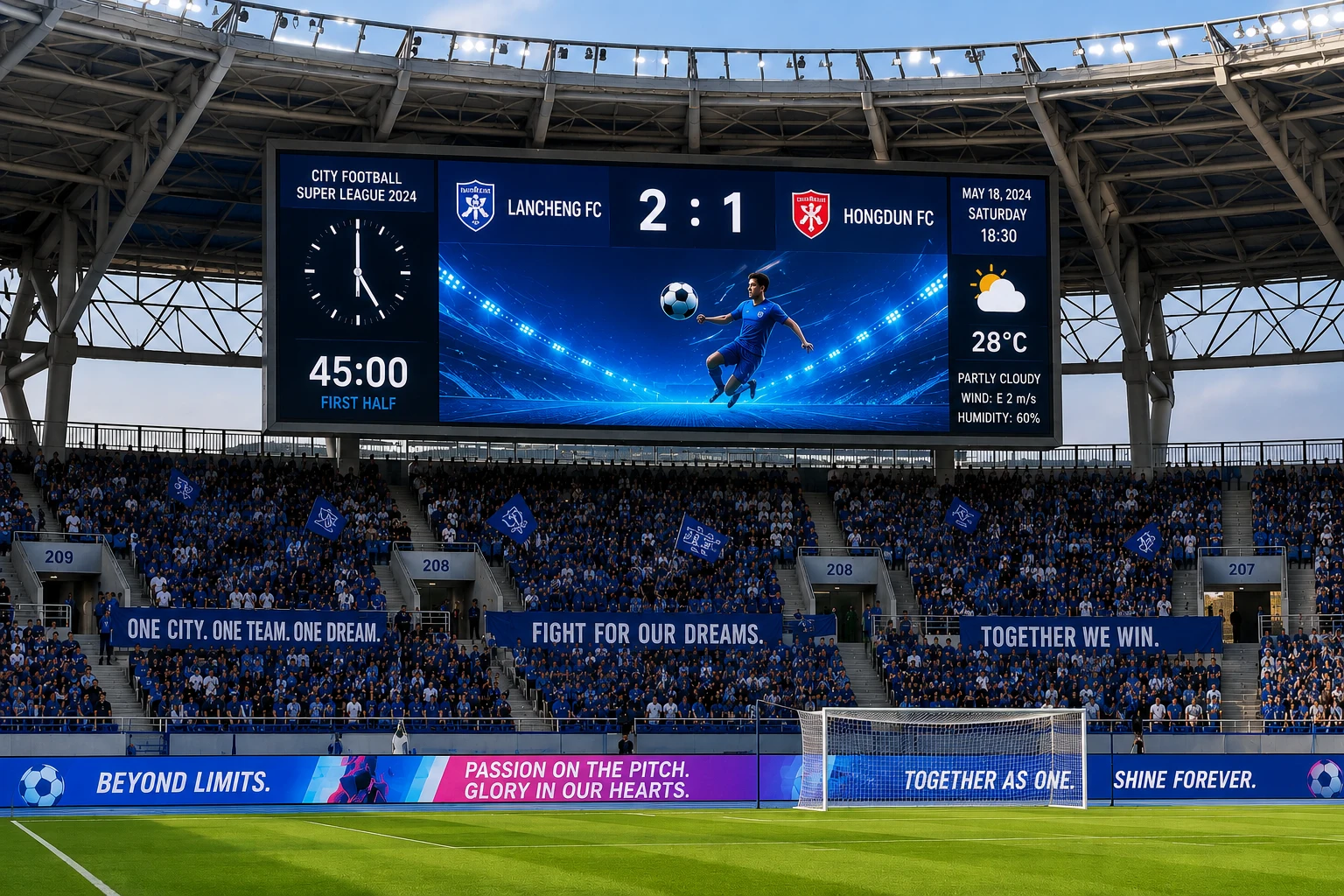

سيناريو التطبيق

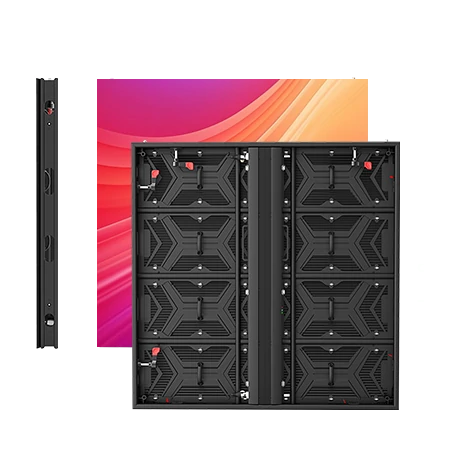

Multiple Cabinet Sizes Available

1000×1000 / 1000×750 / 1000×500 / 1500×1000 / 1500×750 / 1500×500 / 960×960 / 960×1280mm

صيانة المقدمة والمؤخرة

Designed as a front and rear maintenance LED screen, it supports easy access from both sides. LED modules can be quickly removed and replaced, reducing maintenance time and improving service efficiency for various installation methods and outdoor applications.

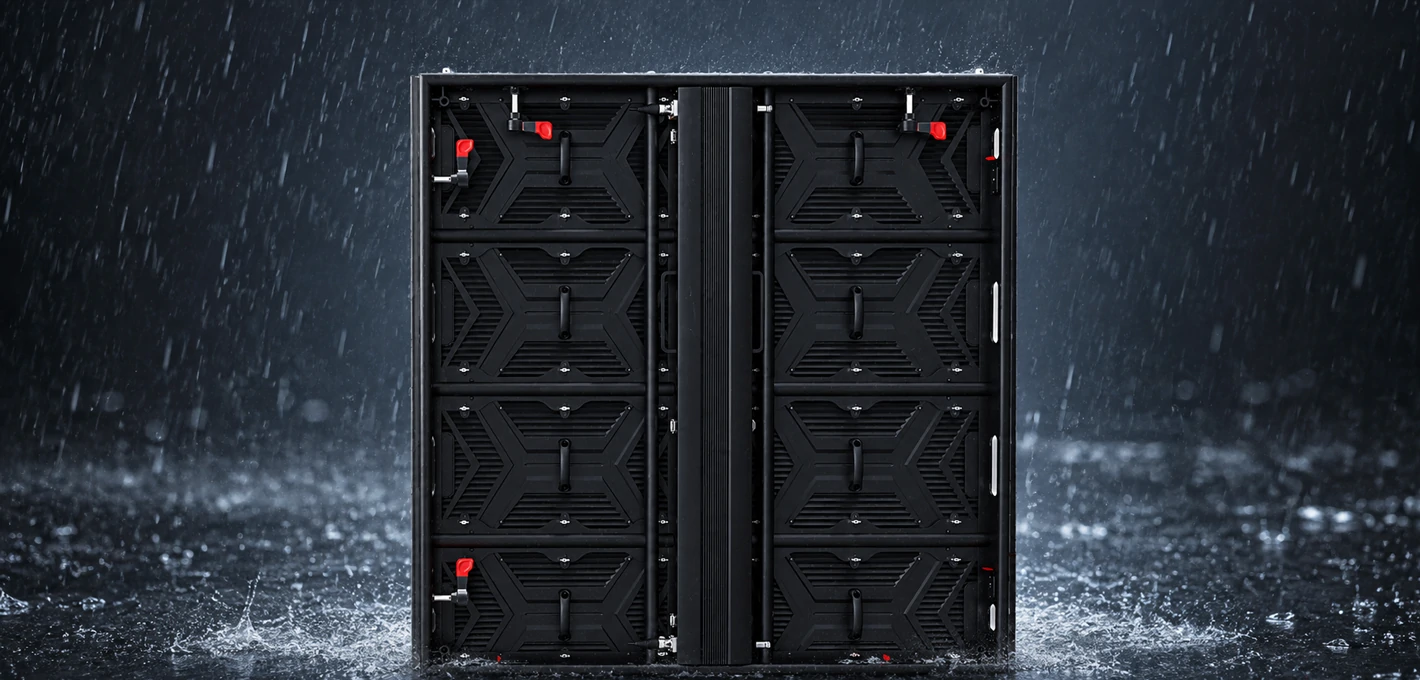

IP65 Front & Rear Protection

This IP65 outdoor LED display is built with IP65 waterproof and dustproof protection, delivering reliable performance in rain, dust, heat, humidity, and other demanding outdoor environments.

العوامل الرئيسية لشاشات الإعلانات الخارجية

آمنة وموثوقة

سطوع عالٍ وتوحيد عالٍ

استقرار عالٍ وعمر تشغيلي طويل

معدل تحديث فائق الارتفاع

نسبة تباين عالية

تصميم موفر للطاقة

صيانة المقدمة والمؤخرة

تم اختبار موثوقيتها

مزايا المنتج

تتميز الوحدات بسهولة صيانتها ويمكن تجميعها بمرونة أكبر.

Mask design

Matte corrugation module mask achieves ultra-high contrast

Aluminum-plastic bottom shell

Aluminum profile cabinet is light weight, which saves tranportation cost and installation cost

Fast installation

Stainless fast lock High precision aluminum alloy panelQuick assembly . Good flatness

Hot-swapping

Hard connection supports full front access

Creative styling

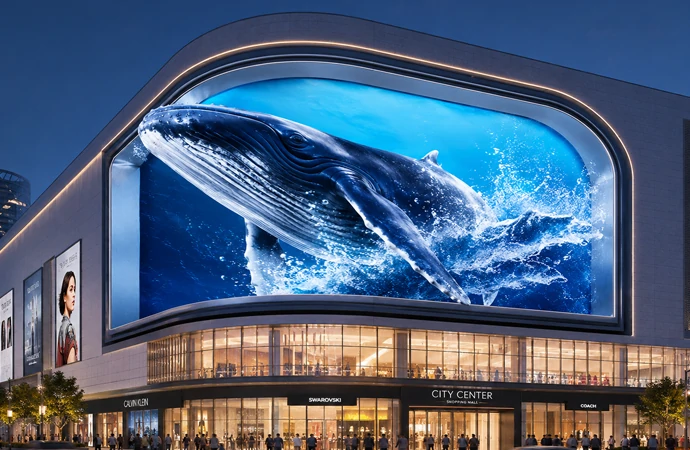

Designed as a flexible outdoor LED advertising screen, it supports multiple splicing and installation methods, including right angles and arcs, and can be used for naked-eye 3D display solutions.

Arc splicing
Right angle

ميزات المنتج

الأداء البصري الاحترافي

Excellent display, immersive experience, clear true colors, wide viewing angle.

01

10,000-level Brightness & contrast, details fully revealed

Designed as a high brightness LED billboard, it ensures clear, vivid, and high-contrast display performance even in direct strong sunlight.

ddwdisplay-20260618_072045
02

خفيف الوزن

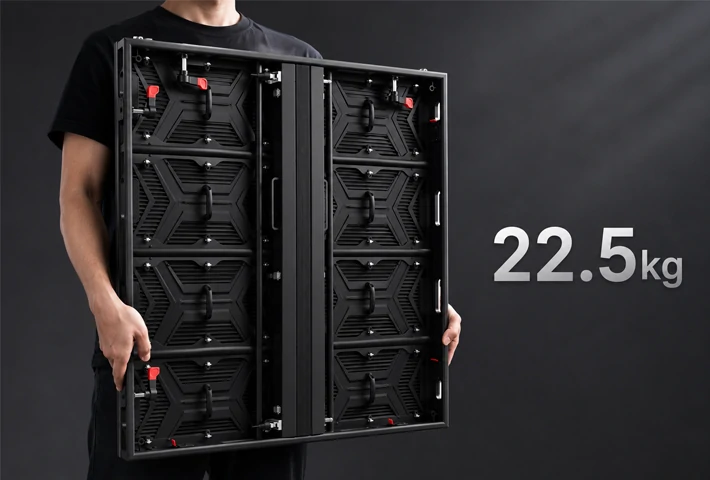

FC Series features a lightweight aluminum LED cabinet, only 83mm thick and 22.5kg per 1000×1000mm cabinet, making it about 35% lighter than traditional iron cabinets for easier installation and maintenance.

22.75kg
03

التخلص الفعال من الحرارة

Aluminum profiles and plastic bottom shell modules for better heat dissipation

ddwdisplay-20260618_072047
04

30% Energy Saving

The FC Series is a common cathode LED display that reduces power consumption by approximately 30%, helping lower long-term operating costs for outdoor advertising applications.

ddwdisplay-20260618_072047

معلمات المنتج

انقر واضغط مطولاً على النموذج للتمرير إلى اليسار أو اليمين.

Parameter960×960 / 960×1280 Cabinet1000×1000 Cabinet + Optional Sizes
مسافة البكسلP4P5P5.71P6.66P8P10P2.976P3.91P4.81P6.25P7.81P10.42
LED TypeSMD1921SMD1921SMD2727SMD2727SMD2727SMD2727SMD1415SMD1921SMD1921SMD2727SMD2727SMD2727
Physical Density (dots/m²)625004000030625225001562510000112896655364326425600163849216
Module Resolution120×8096×6484×5672×4860×4048×32168×84128×64104×5280×4064×3248×24
Module Size (W×H, mm)480×320500×250
Cabinet / Panel Size (mm)960×960 / 960×12801000×1000 optional: 1500×1000 / 1500×750 / 1500×500 / 1000×750 / 1000×500
Cabinet Resolution240×240192×192168×168144×144120×12096×96336×336256×256208×208160×160128×12896×96
Module Quantity (W×H)2×3 / 2×42×4
Cabinet Weight (kg)21 / 2722.5
Maintenance ModeFront & Rear
Cabinet Materialالألومنيوم
السطوع (نيت)5000–10000 (Optional)5500–10000 (Optional)6000–10000 (Optional)5000–5500 (Optional)5500–10000 (Optional)6000–10000 (Optional)
Color Temperature (K)5000–12000 (Optional)
زاوية الرؤية (أفقي/رأسي)140° / 160°
أفضل مسافة للمشاهدة3–100m4–100m4–100m4–100m4–100m10–200m3–100m4–100m4–100m6–150m8–150m10–200m
Contrast Ratio15000:1
Frame Rate / Frequency (Hz)50/60
Drive / Scan Mode1/8 scan1/8 scan1/7 scan1/6 scan1/4 scan1/2 scan1/21 scan1/8 scan & 1/16 scan1/7 scan & 1/13 scan1/8 scan1/4 scan1/2 scan
Gray Level14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)14–16bit (Optional)
معدل التحديث (هرتز)3840–7680
Max Consumption (W/m²)650–750
Avg Consumption (W/m²)100–200
مستوى الحمايةIP65
Power InputAC90–264V, 47–63Hz
Working Temp / Humidity-20~60°C / 10%~85%RH
Storage Temp / Humidity-20~60°C / 10%~85%RH
CertificationCCC / CE / RoHS / FCC / CB / TUV / IEC / BIS
