سلسلة TAD
HIGH DEFINITION
The flexible transparent LED film uses high refresh rate display technology to deliver clear and delicate image performance.
الميزات الرئيسية
لاصق شفاف
شفافية عالية
خفيف الوزن ومرن
سهولة التركيب
نحيف وبسيط
شاشة عالية السطوع
التشغيل الموفر للطاقة
أحجام قابلة للتخصيص

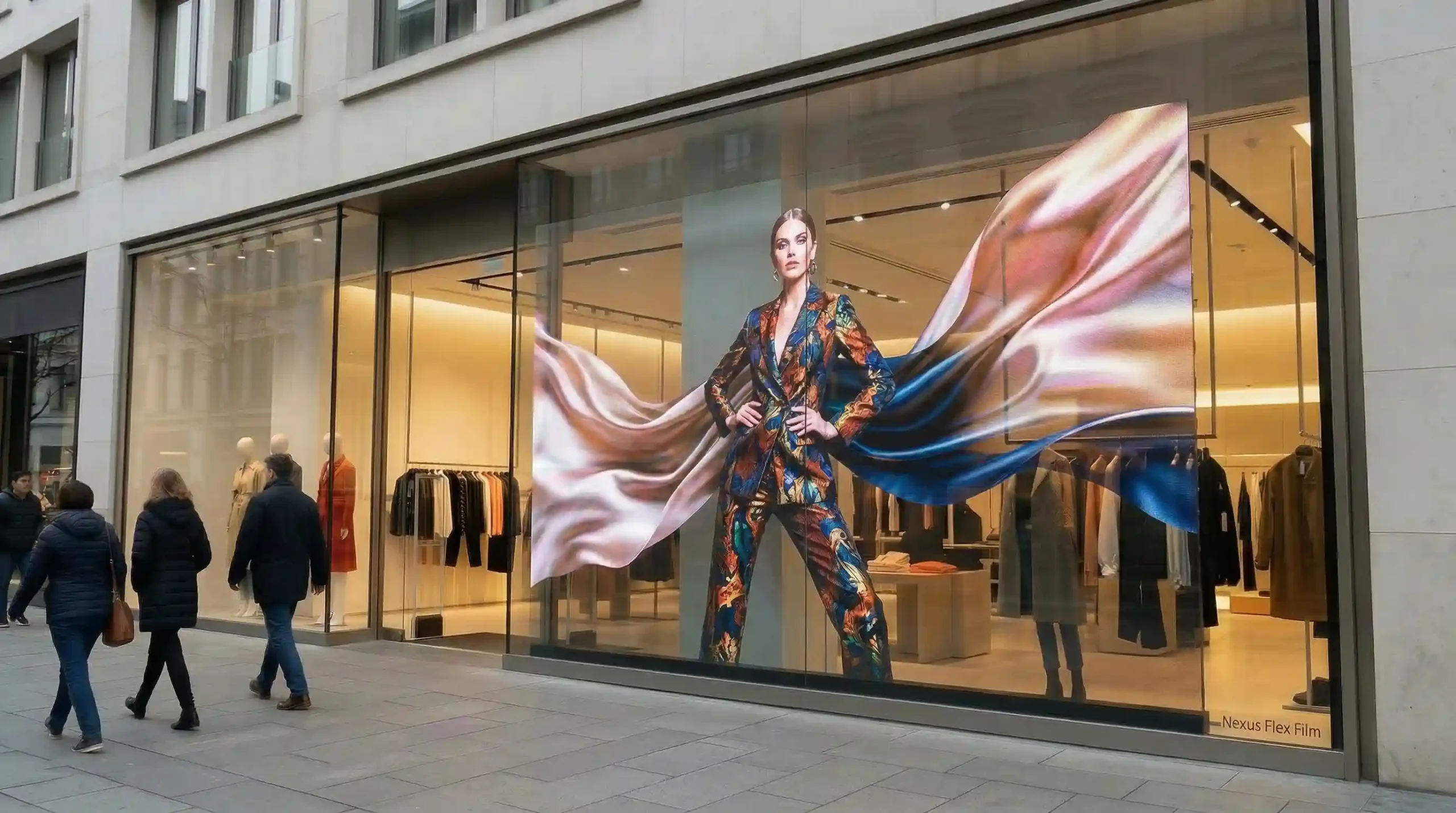

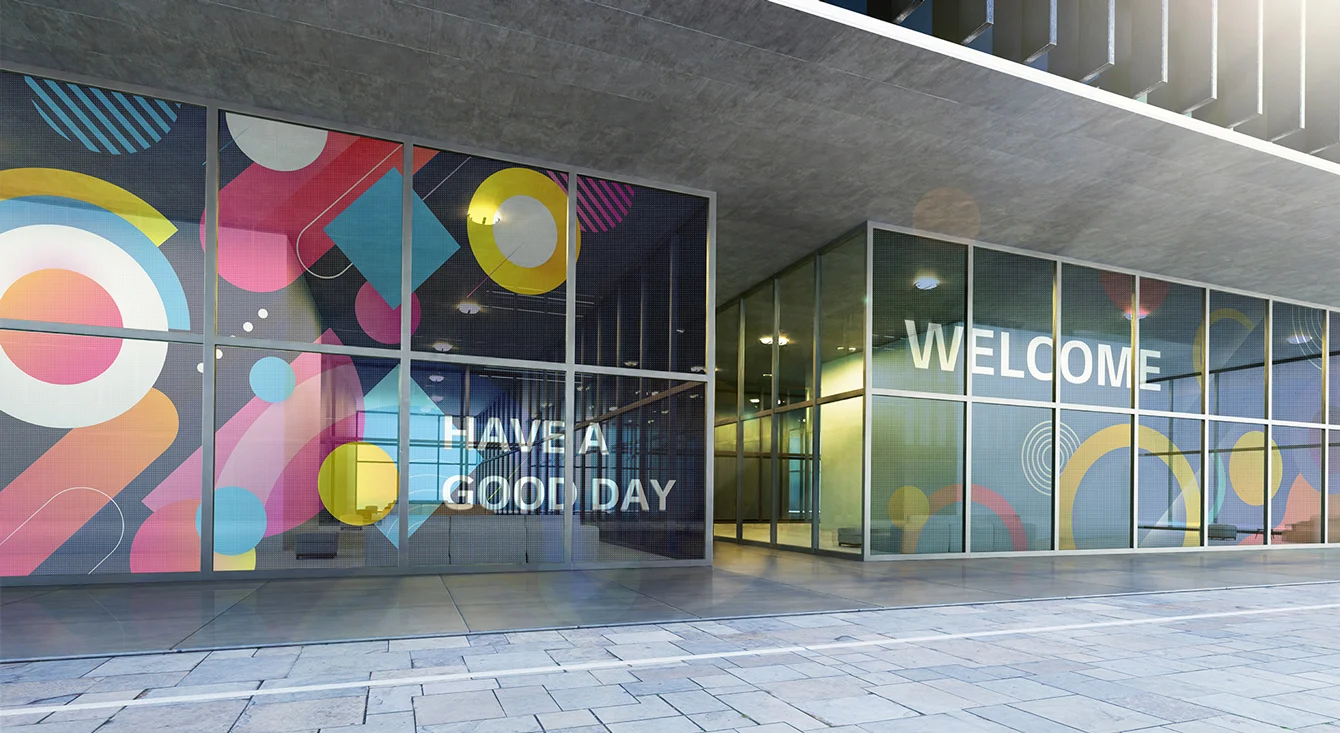

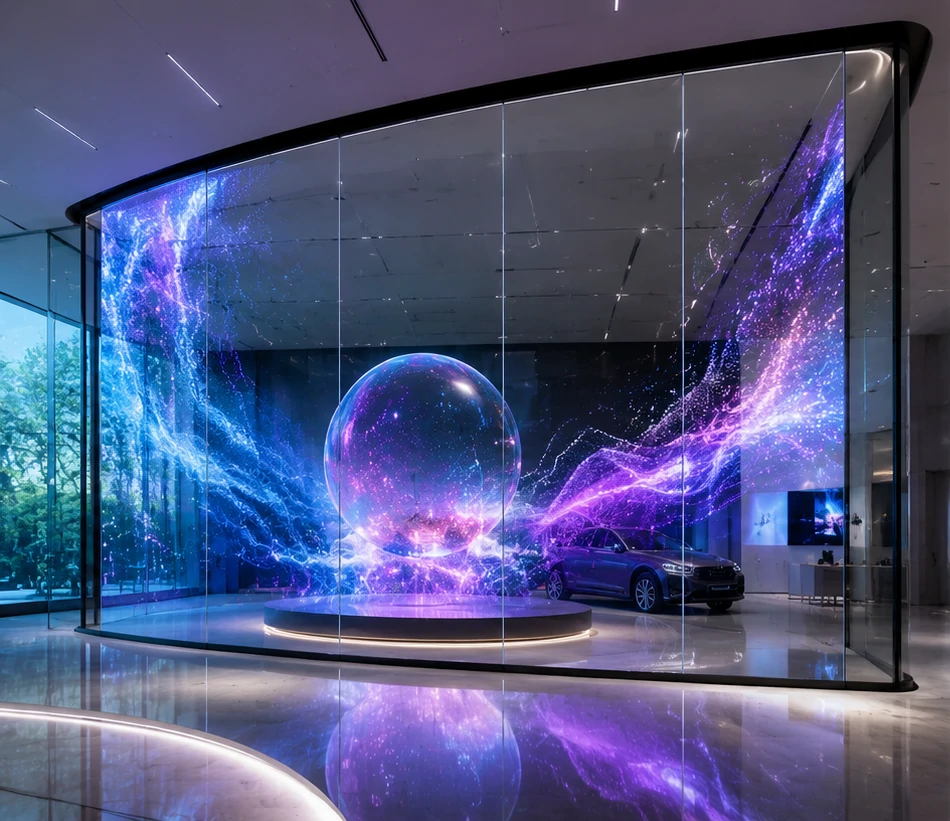

سيناريو التطبيق
سلسلة TAD
حل شاشات LED اللاصقة الشفافة
Transparent Adhesive LED Screen
تقنية جديدة تمامًا

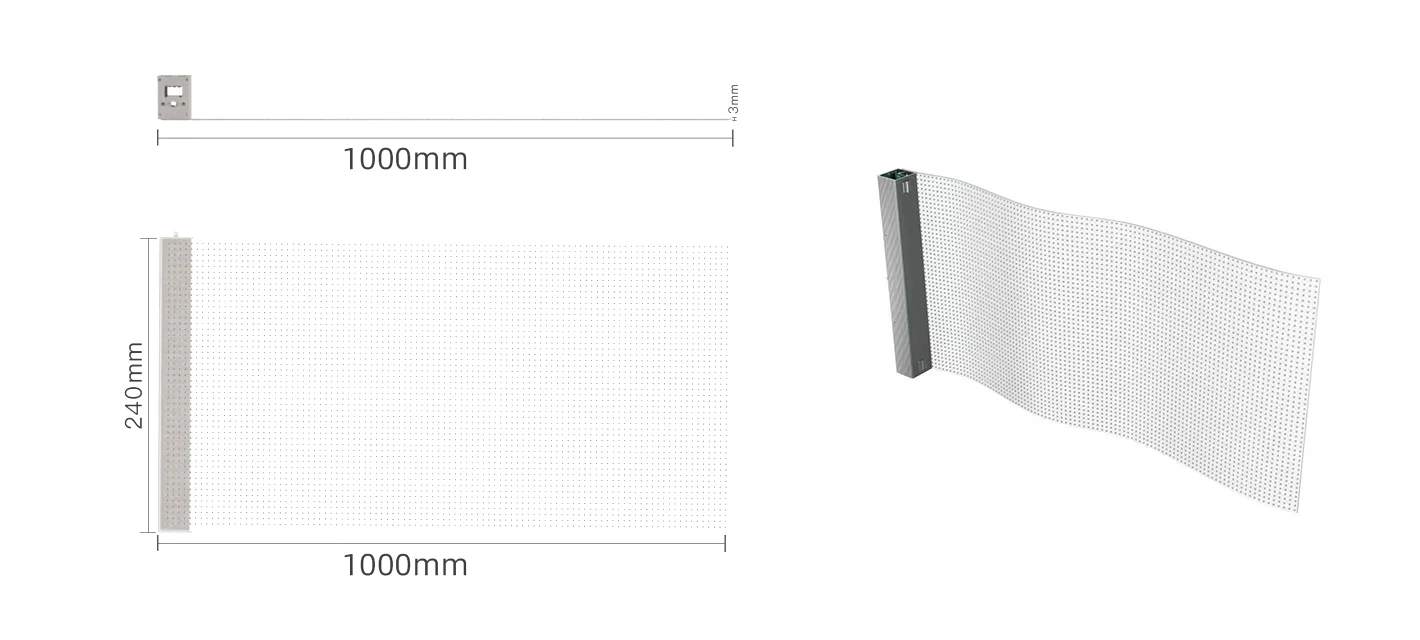

أبعاد الوحدة
1000×240/1200×240/1500x240mm 1000×480/1200×480/1500x480mm

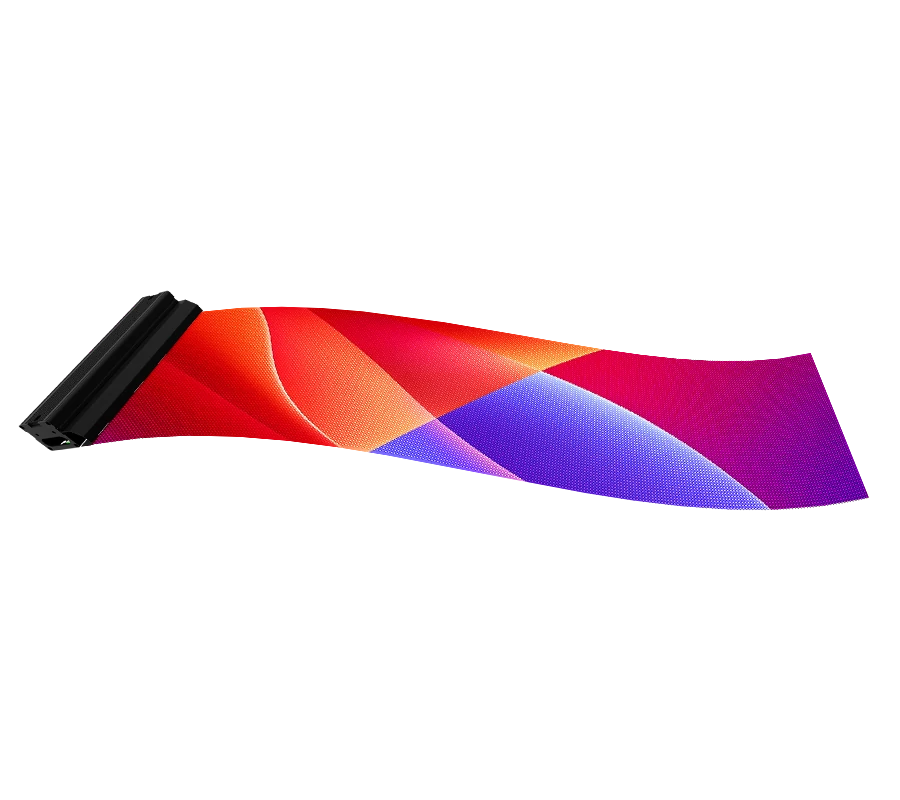

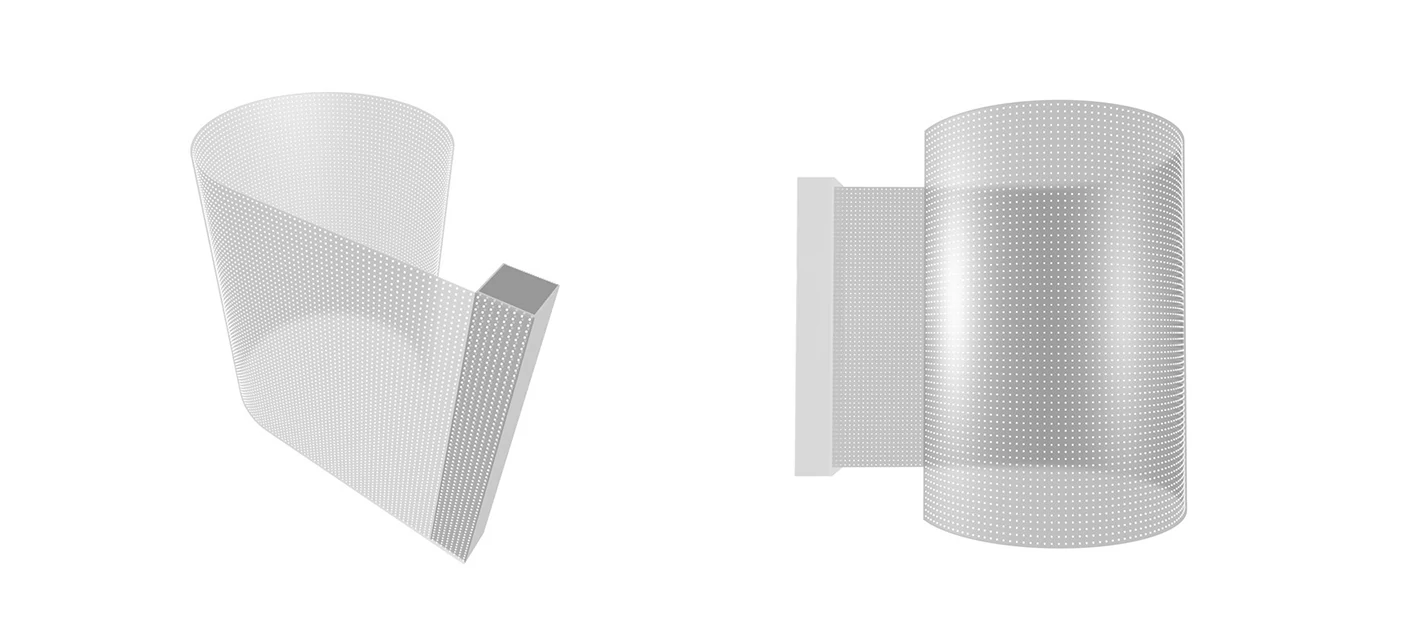

HIGH FLEXIBLE
Flexible design: Made of flexible materialsit can be flexibly bent
تكنولوجيا العرض المرئي من الجيل التالي.
توفر التكنولوجيا البصرية المتطورة ألوانًا أفضل وصورًا أكثر سلاسة وحماية للعين وأداءً موفرًا للطاقة.

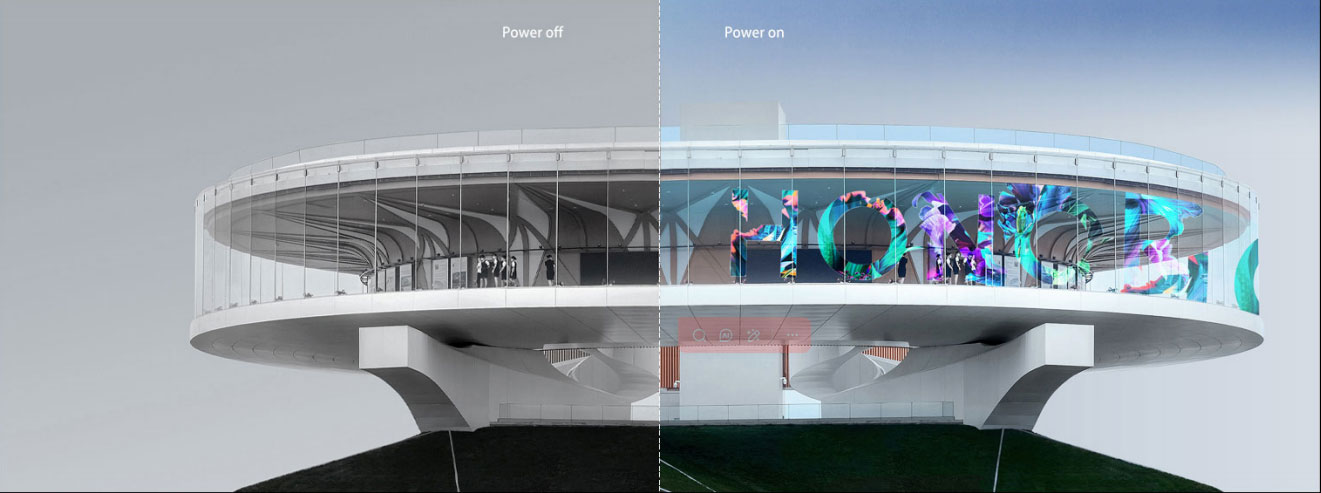

شفافية عالية
The glass LED display offers up to 85–90% transparency, allowing natural light to pass through without affecting glass lighting.
HIGH INTENSITY PROTECTION
Anti-UV, anti-cracking, no yellowing or shedding within 3-4 years

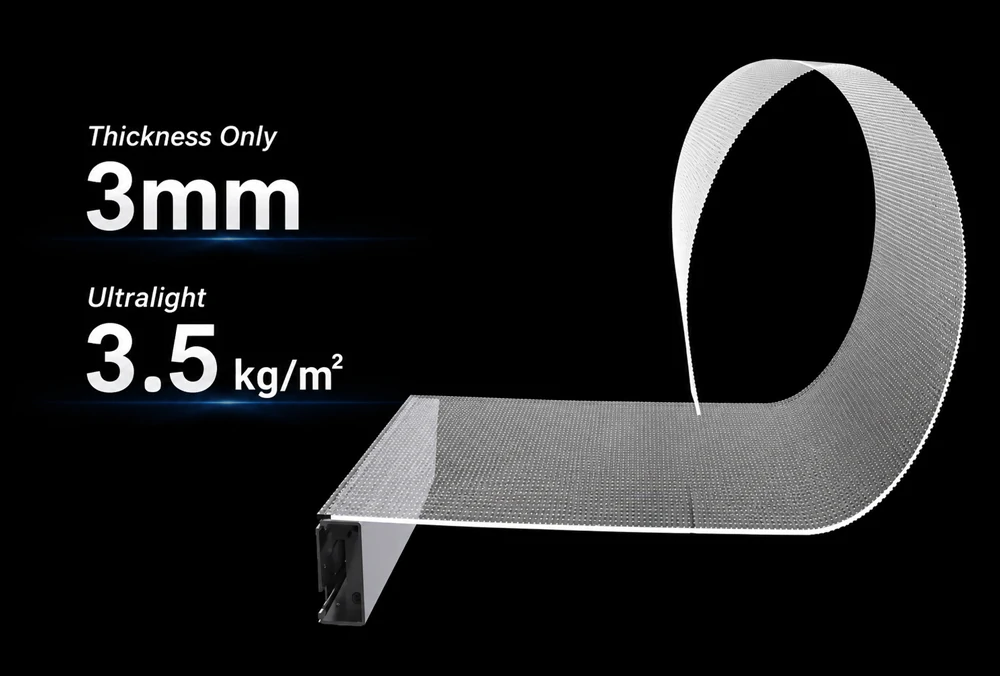

ULTRA LIGHT AND ULTRA-THIN
The thickness is only 3mm, and the weight is as light as 3.5kg/m2

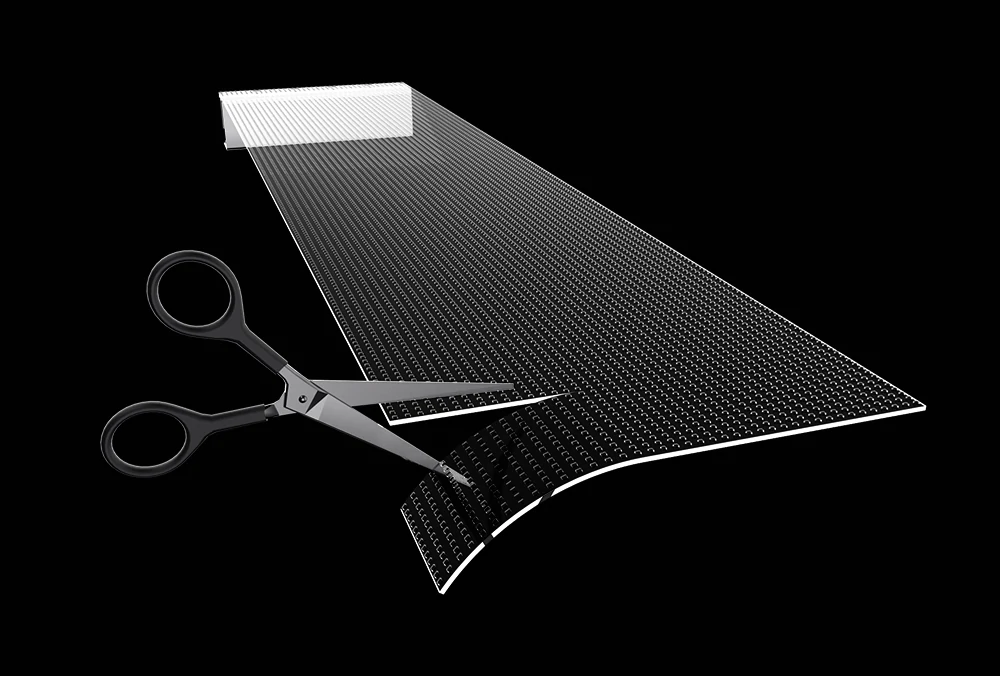

CUTTABLE
The cuttable LED film display supports arbitrary cropping, is not limited by size or shape, meets different dimensional requirements, and enables more creative display designs.
HIGH DEFINITION
The high brightness transparent LED film uses high refresh rate display technology to deliver clear and delicate image performance.
WIDE VIEWIGN ANGLE
Designed as a high-performance semi-outdoor transparent LED screen, it delivers a 140° ultra-wide viewing angle with no dead angles or color shift, helping cover a larger audience area and attract more foot traffic.
SAFE AND BEAUTIFUL
Designed as a minimalist LED film for glass wall, it features no visible screen components and a hidden power supply system, ensuring safe, reliable operation while maintaining a clean and beautiful appearance.
معلمات المنتج
انقر واضغط مطولاً على النموذج للتمرير إلى اليسار أو اليمين.
| Product Specifications | P4-4 | P4-8 | P5 | P6 | P8 | P10 | P16 |
| مسافة البكسل | 4mm*4mm | 4mm*8mm | 5mm*5mm | 6mm*6mm | 8mm*8mm | 10mm*10mm | 15.625mm*15.625mm |
| Pixels | 62500 dots/㎡ | 31250 dots/㎡ | 40000 dots/㎡ | 27889dots/㎡ | 15625dots/㎡ | 10000dots/㎡ | 3906dots/㎡ |
| LED Specifications | SMD1212 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| حجم الوحدة | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| Module Resolution | 250*60 | 250*30 | 200*48 | 167*40 | 125*30 | 100*24 | 64*15 |
| Pixel Resolution | 250*250/㎡ | 250*125/㎡ | 200*200/㎡ | 167*167/㎡ | 125*125/㎡ | 100*100/㎡ | 64*64/㎡ |
| النفاذية | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥90% | ≥90% |
| Cabinet Wiring | Internal wiring (neat back panel) | ||||||
| الوزن | ≤3.5KG/㎡ | ||||||
| White Balance Brightness | 3000cd/㎡ | ||||||
| Peak Power Consumption | 400 W/㎡ | ||||||
| Average Power Consumption | Approx. 200 W/㎡ (depending on video source) | ||||||
| Refresh Rate | ≥3840Hz | ||||||
| Grayscale Level | 16Bit | ||||||
| Brightness Control Level | 0-255 levels | ||||||
| Color Temperature | 3200K-8500K (adjustable) | ||||||
| Frame Rate | ≥60Hz | ||||||
| Viewing angle | H-H140 degrees V-V140 degrees | ||||||
| Input signal | DVI/VGA, composite video | ||||||
| Control method | Synchronous box (computer screen control) or asynchronous box (WiFi connection for mobile app screen control or USB flash drive screen control) | ||||||
| Protection level | IP30 | ||||||
| Power supply requirements | AC 220V ±10%, 50-60Hz, (optional wide voltage 110V and 9~36V) | ||||||
| درجة حرارة التشغيل | -20～50 degrees Celsius | ||||||
| Theoretical service life | 100,000 hours | ||||||
