Curved LED Screen Installation Guide

Written & reviewed by Steven — Senior LED Display Engineer at DDW, 14 years of experience in LED screen design, installation and technical support.

Published: Juni 18, 2026

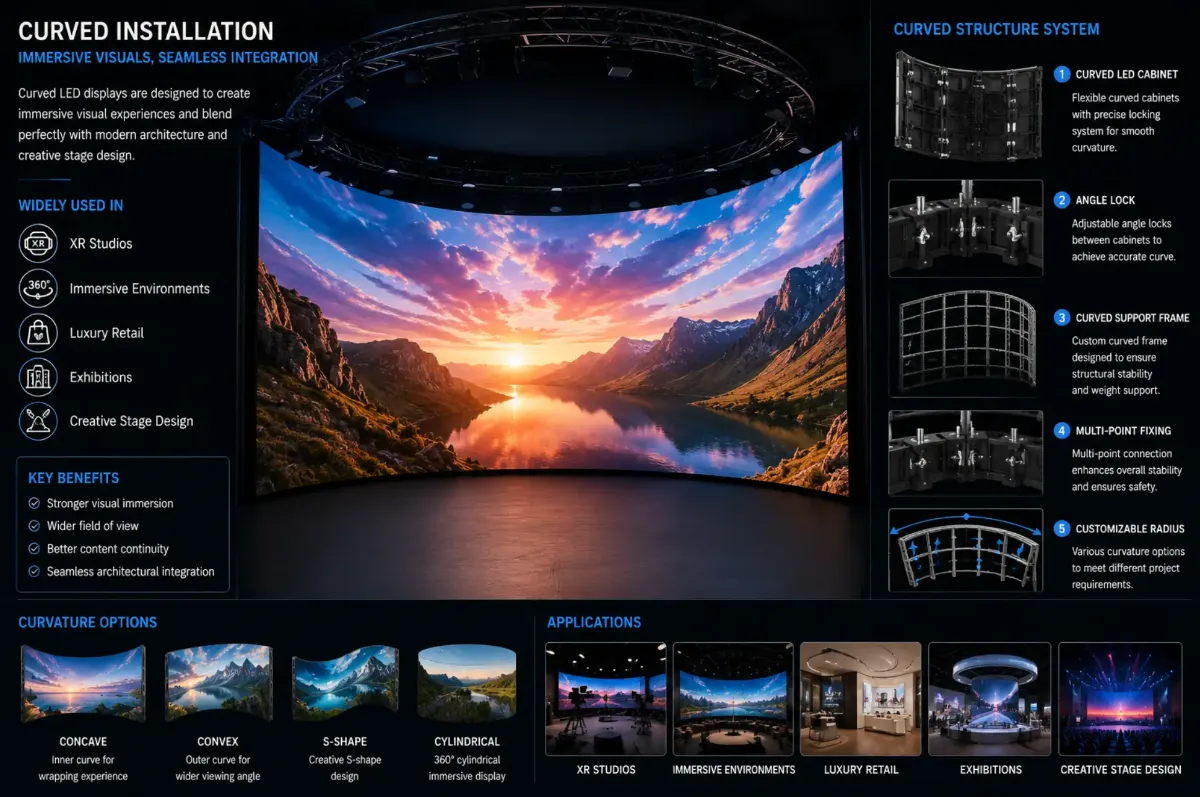

Quick answer: Curved LED screens are built by joining cabinets with adjustable curve locks, typically in small steps (for example ±5° to ±15° per cabinet), to form concave or convex arcs. The minimum radius depends on cabinet width and lock range; flexible modules are used for tighter curves and cylinders.

Curved LED displays are increasingly used in:

XR-Studios
immersive Umgebungen
Luxus-Einzelhandel
exhibitions
kreatives Bühnenbild

Curved structures help create stronger visual immersion and architectural integration.

Why Curved LED Installation Is More Difficult

Curved systems require much higher precision than flat screens.

Challenges usually include:

cabinet angle consistency
structural alignment
seamless connection
signal Synchronisierung

Even small installation deviation may create visible visual distortion.

Why Cabinet Design Matters in Curved Projects

Not all LED cabinets support curved installation equally well.

Professional curved systems usually require:

dedicated curved locks
flexible cabinet structures
precision mechanical adjustment

Dies ist besonders wichtig in:

XR-Dreharbeiten
Museen, die den Besucher in eine andere Welt entführen
luxury commercial visualization

Curved LED Installation Tips

Plan the radius first: cabinet width ÷ angle per joint defines the arc; check it against the minimum radius.
Concave vs convex: concave walls wrap the audience (XR, immersive rooms); convex walls suit pillars and exterior corners.
Keep seams tight: small gaps become visible dark lines on curves.
Use a curved frame for permanent installs so the arc stays accurate.
Recalibrate brightness and color after installation.

DDW Engineer Notes: Curved LED screen installation

Many curved LED projects fail not because of image quality, but because of poor structural precision.

In immersive applications, visual continuity is often more important than simply achieving curvature.

FAQ

What is the minimum radius for a curved LED screen?

It depends on cabinet width and curve lock range. Standard cabinets often allow radii of a few meters; flexible LED modules can go much tighter.

Can any LED cabinet be curved?

No. Curved installation needs cabinets with curve locks or dedicated curved or flexible modules. Flat-only cabinets will leave gaps.

Is a curved LED screen good for XR studios?

Yes. Concave curved LED walls are standard in XR and virtual production because they surround the camera with consistent background imagery.
