Quick answer: SMD (Surface-Mounted Device) LED displays use packaged LEDs that contain red, green and blue chips in one small housing, soldered onto the module surface. SMD is the most widely used LED screen technology because it balances cost, color quality, wide viewing angles and easy single-LED repair across pitches from about P1.2 to P10.

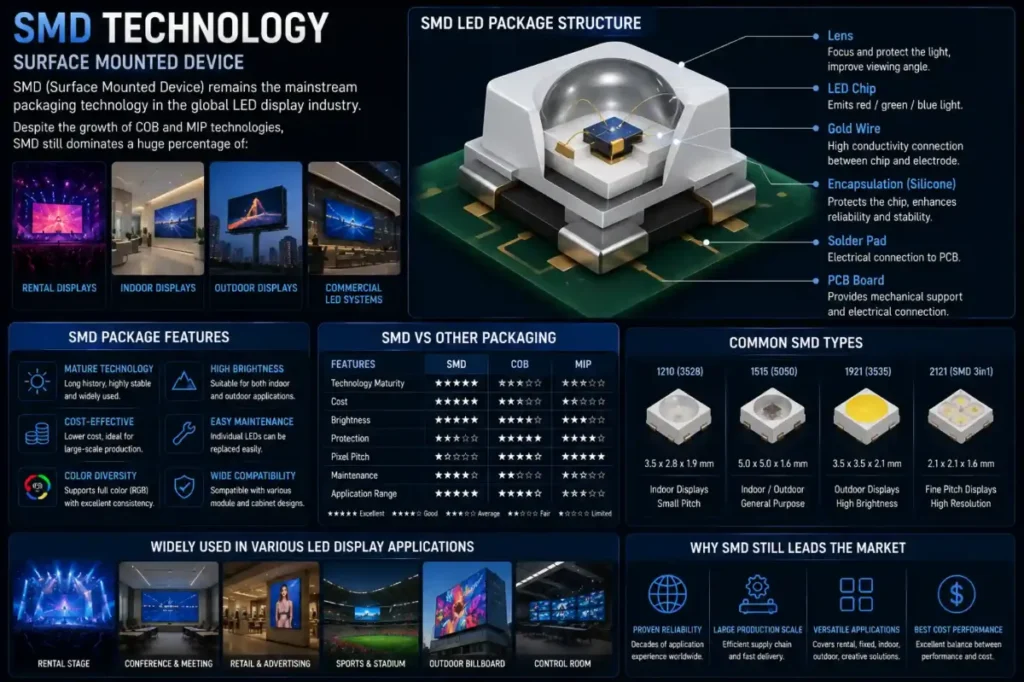

SMD 기술
Why SMD Became the Industry Standard
SMD technology provides strong balance between:
- production efficiency
- 화질
- cost control
- viewing angle
- brightness performance
This makes it suitable for a very wide range of applications.
Why Rental Displays Still
Prefer SMD
Many rental LED systems continue using SMD because it provides:
- 경량 구조물
- 강렬한 밝기
- 성숙한 생산 기술
- 비용 효율성
- 폭넓은 적용 범위
이는 특히 다음과 같은 경우에 흔히 나타납니다:
- concerts
- touring stages
- 전시회
- event production
DDW Engineer Notes: SMD LED display technology
Although newer technologies are rapidly developing, SMD remains extremely competitive in many real-world projects.
특히 다음 분야에서:
- 임대 신청서
- outdoor environments
- 중음역 프로젝트
SMD still offers excellent balance between performance and practicality.
SMD LED Package Sizes
| Package | 일반적인 픽셀 피치 | Use |
|---|---|---|
| 1010 / 1212 | P1.2–P1.9 | Indoor fine pitch |
| 1515 / 2121 | P2.0–P3.9 | Indoor and rental |
| 1921 / 2727 / 3535 | P3.9–P10 | Outdoor LED screens |
FAQ
What does SMD mean in LED screens?
SMD means Surface-Mounted Device: each LED package holds red, green and blue chips and is soldered onto the surface of the LED module.
Is SMD good for outdoor LED displays?
Yes. Outdoor SMD packages (like 1921 or 2727) with proper waterproofing are now standard for outdoor LED screens from about P3 to P10.
What are the weaknesses of SMD?
Exposed LEDs can be knocked off during installation or cleaning, and very fine pitches below about P1.2 become harder to produce reliably.
