Quick answer: LED display signal loss appears as a “no signal” screen, frozen images or cabinets dropping out. Check the video source and cable first, then the sending card or processor, network cables (Cat6 up to about 100 m) and connectors. Use fiber for long runs and a backup loop so one broken cable does not black out the screen.

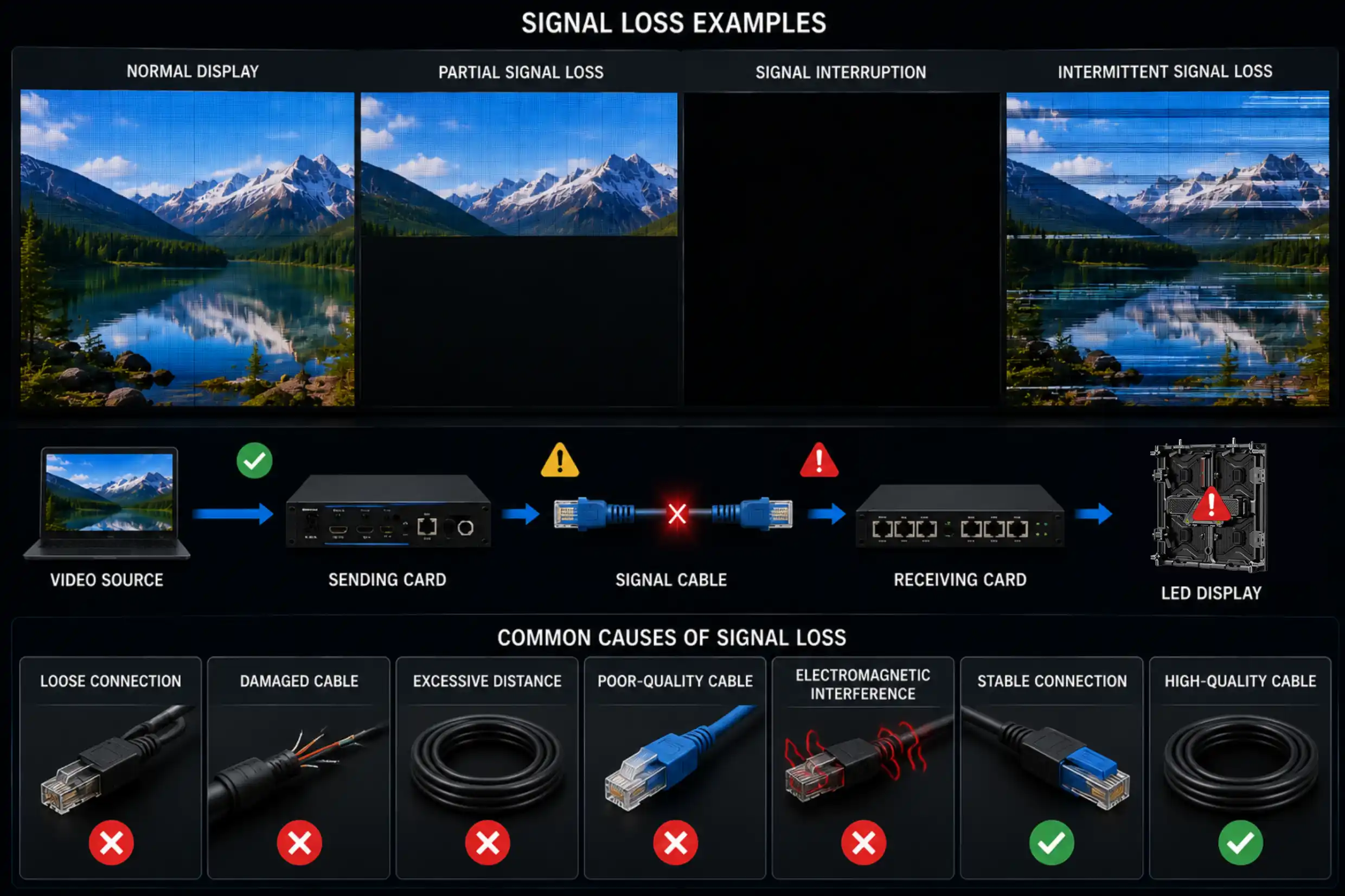

Signal loss may cause:
- image freezing
- الأجزاء السوداء
- synchronization problems
- intermittent display failure
In large LED systems, stable signal transmission is just as important as display quality itself.
Why Signal Systems Become More Complex in Large Projects
Modern LED systems may involve:
- video processors
- sending cards
- receiving cards
- نقل الألياف الضوئية
- backup signal systems
The larger the system becomes, the more important signal architecture becomes.
Why Long-Distance Transmission Creates Risk
Long cable distances may increase:
- signal attenuation
- interference
- synchronization instability
ويصبح هذا الأمر بالغ الأهمية بشكل خاص في:
- stadium projects
- شبكات الإعلانات الخارجية
- large XR stages
- broadcast systems
DDW Engineer Notes: LED display signal loss
Many temporary signal issues are actually caused by poor cable management rather than hardware failure.
Professional installations usually prioritize:
- organized routing
- backup signal paths
- stable grounding
- interference prevention
especially in live event environments.
Signal Loss Troubleshooting Steps
| Symptom | Likely Cause | What to Do |
|---|---|---|
| Whole screen “no signal” | Source or input cable | Check HDMI/DVI/SDI source and input selection |
| All cabinets after one point black | Broken network cable | Replace cable at the first dark cabinet |
| Random dropouts on long runs | Cable too long or interference | Use shielded Cat6 or fiber; separate from power cables |
| Frozen image | Processor or sending card issue | Restart processor; check firmware and settings |
FAQ
Why does my LED screen say no signal?
The video source, input cable or input selection on the processor is usually the cause; check them first.
How far can LED display network cables run?
About 100 m for Cat5e/Cat6; use fiber optic converters for longer distances.
How can I prevent LED signal loss during events?
Use a redundant backup loop, high-quality shielded cables and a backup sending card or processor.
