Quick answer: LED video wall resolution = screen width (mm) ÷ pixel pitch × screen height (mm) ÷ pixel pitch. For example, a 4 × 2.25 m LED screen at P2.5 has 1600 × 900 pixels. Full HD (1920×1080) at P2.5 needs a 4.8 × 2.7 m screen.

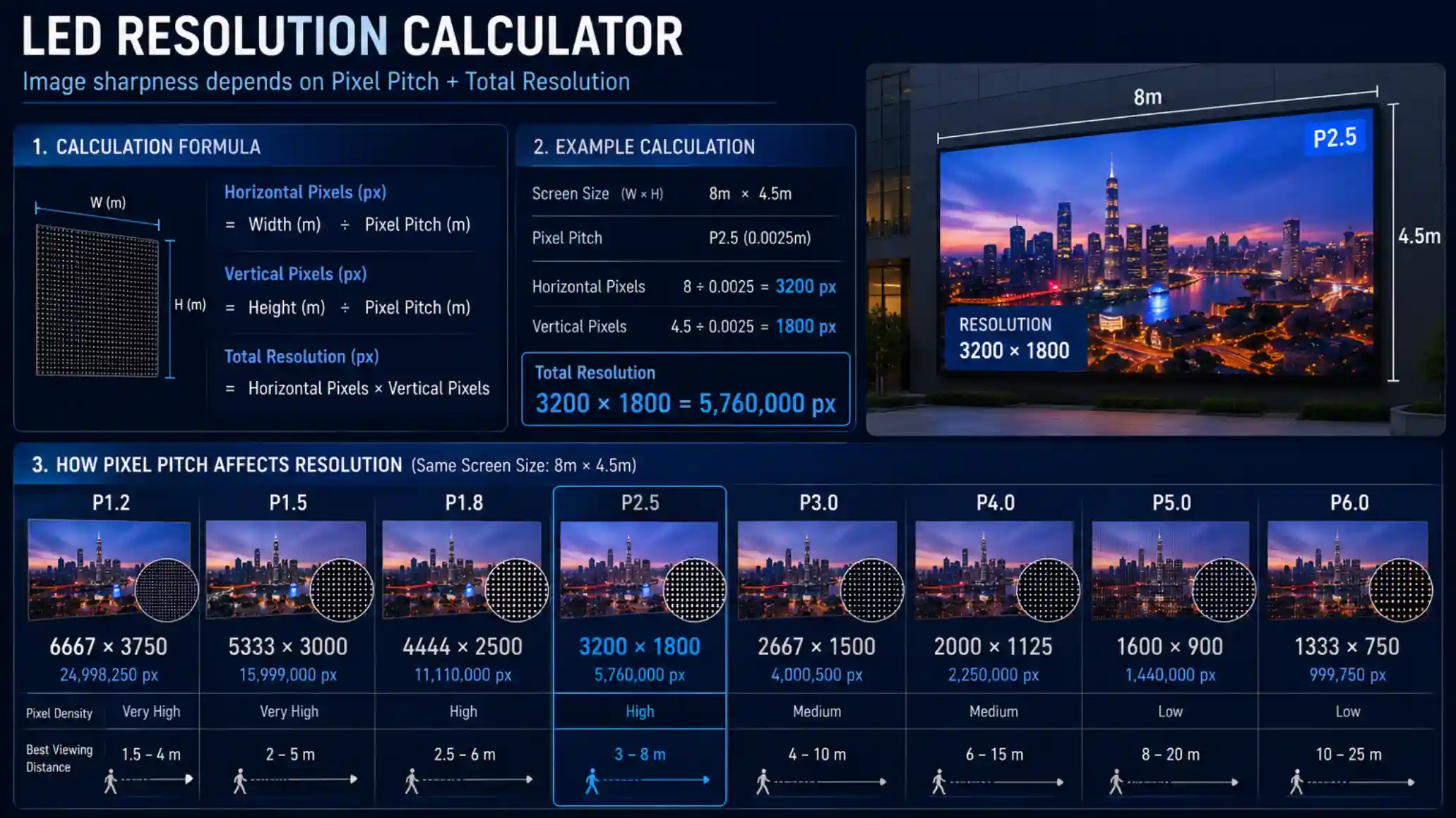

Resolution Calculator
Many customers focus heavily on screen size, but ignore one critical factor:
screen resolution.
In LED display projects, image sharpness depends not only on distancia entre píxeles, but also on total pixel resolution.
How LED Resolution Is Calculated
The calculation is relatively simple.
Formula:
Screen Width ÷ Pixel Pitch = Horizontal Pixels
Screen Height ÷ Pixel Pitch = Vertical Pixels
Ejemplo:
A 6m × 3m P2.5 LED screen:
6000mm ÷ 2.5 = 2400 pixels
3000mm ÷ 2.5 = 1200 pixels
Final resolution:
2400 × 1200
Why Resolution Matters in Real Projects
Higher resolution becomes especially important for:
- fine text
- hojas de cálculo
- data dashboards
- luxury product videos
- Grabación en XR
- broadcast applications
For large outdoor billboards viewed from far away, extremely high resolution is often unnecessary.
But for close-viewing conference rooms or control centers, insufficient resolution can reduce readability significantly.

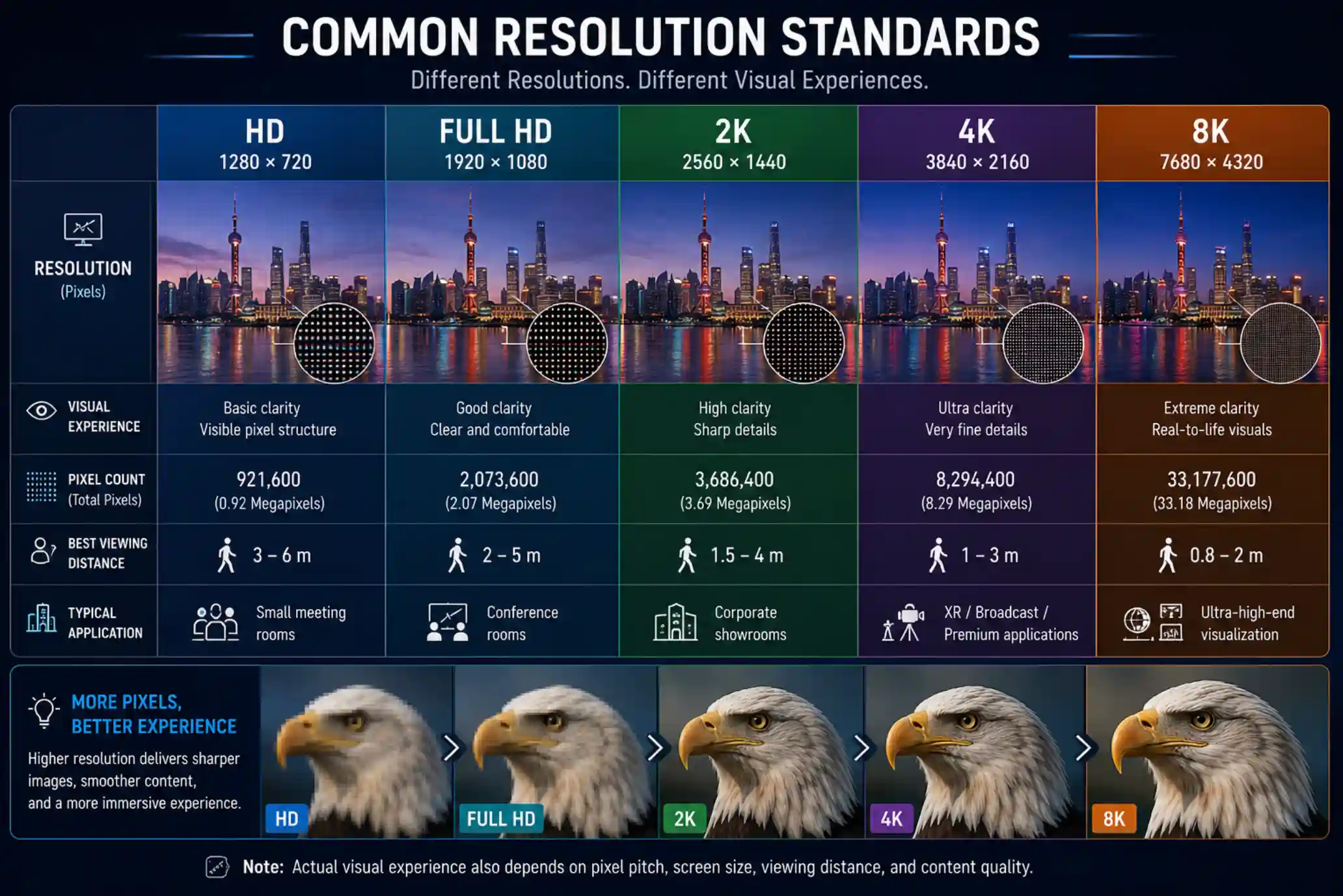

Common Resolution Standards
Resolución | Typical Application |
HD | Small meeting rooms |
Full HD | Salas de reuniones |
2K | Salas de exposición corporativas |
4K | XR / Broadcast / Premium applications |
8K | Ultra-high-end visualization |
Why Some LED Screens Look Blurry
In many projects, blurry image quality is not caused by the LED itself.
The actual reason is often:
- insufficient total resolution
- paso de píxeles excesivamente grande
- incorrect screen proportion
- low-quality source content
Esto es especialmente habitual en:
- salas de conferencias
- tiendas minoristas
- centros de comando
DDW Engineer Notes: LED video wall resolution
Many customers request 4K LED displays without considering actual viewing distance.
In some medium-sized conference rooms, Full HD may already provide excellent visual performance.
The real goal is not chasing the highest resolution.
It is achieving the most balanced visual experience.
FAQ
How do I calculate LED screen resolution?
Divide the screen width and height in millimeters by the pixel pitch. A 5,000 × 3,000 mm screen at P2.5 gives 2000 × 1200 pixels.
How big is a 4K LED video wall?
A 4K LED video wall (3840×2160) is about 5.8 × 3.2 m at P1.5 or 9.6 × 5.4 m at P2.5.
Does an LED display need to be Full HD?
Not always. The video processor scales content to the LED screen, so native resolution only needs to match viewing distance and content detail.
