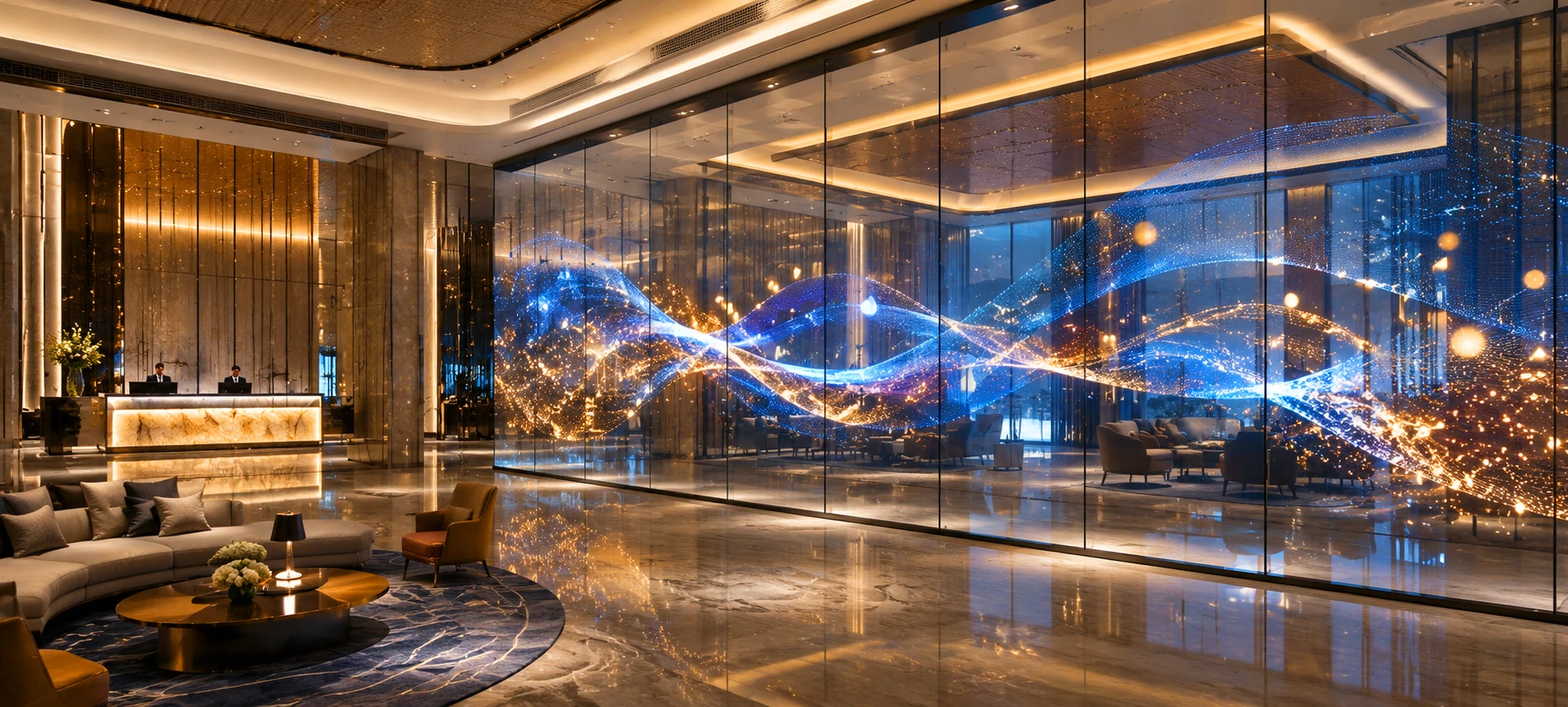

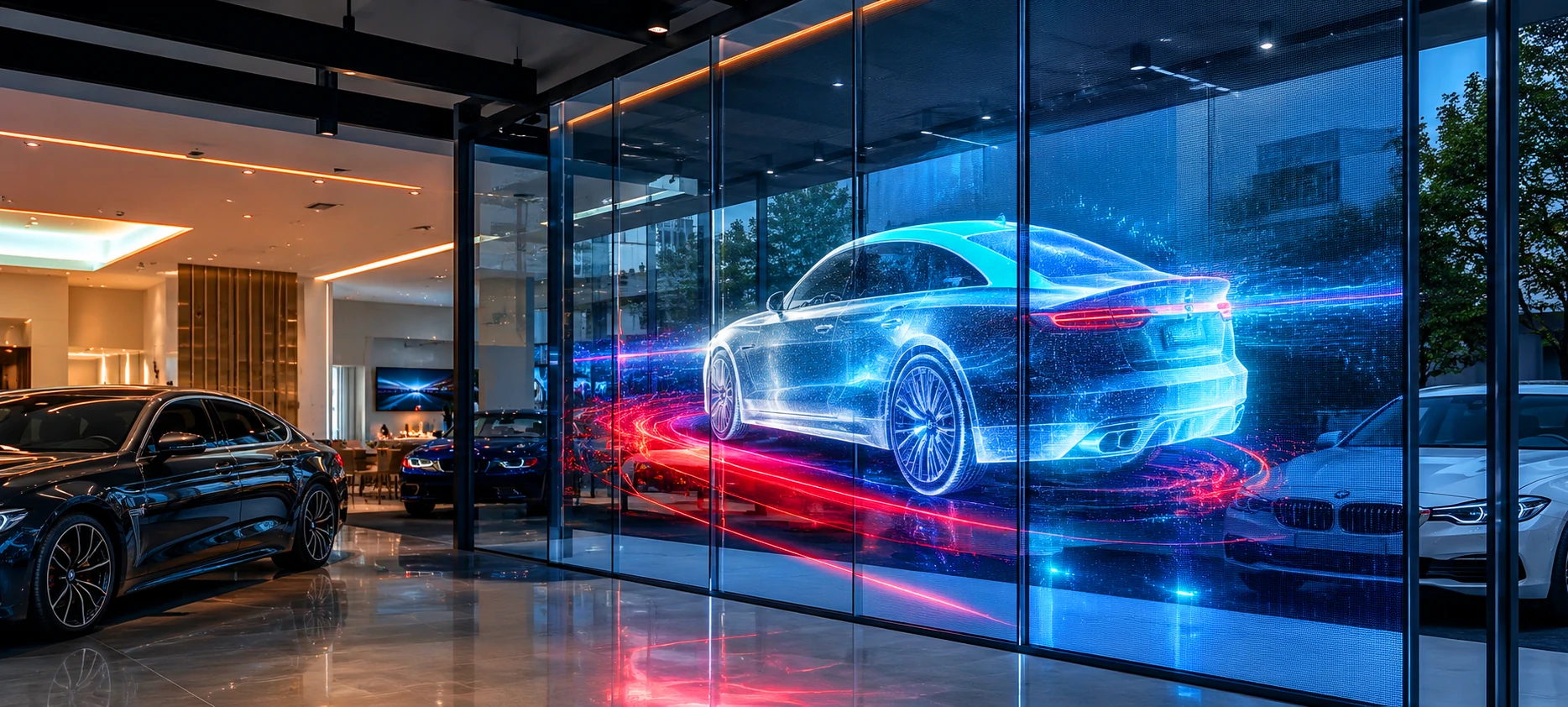

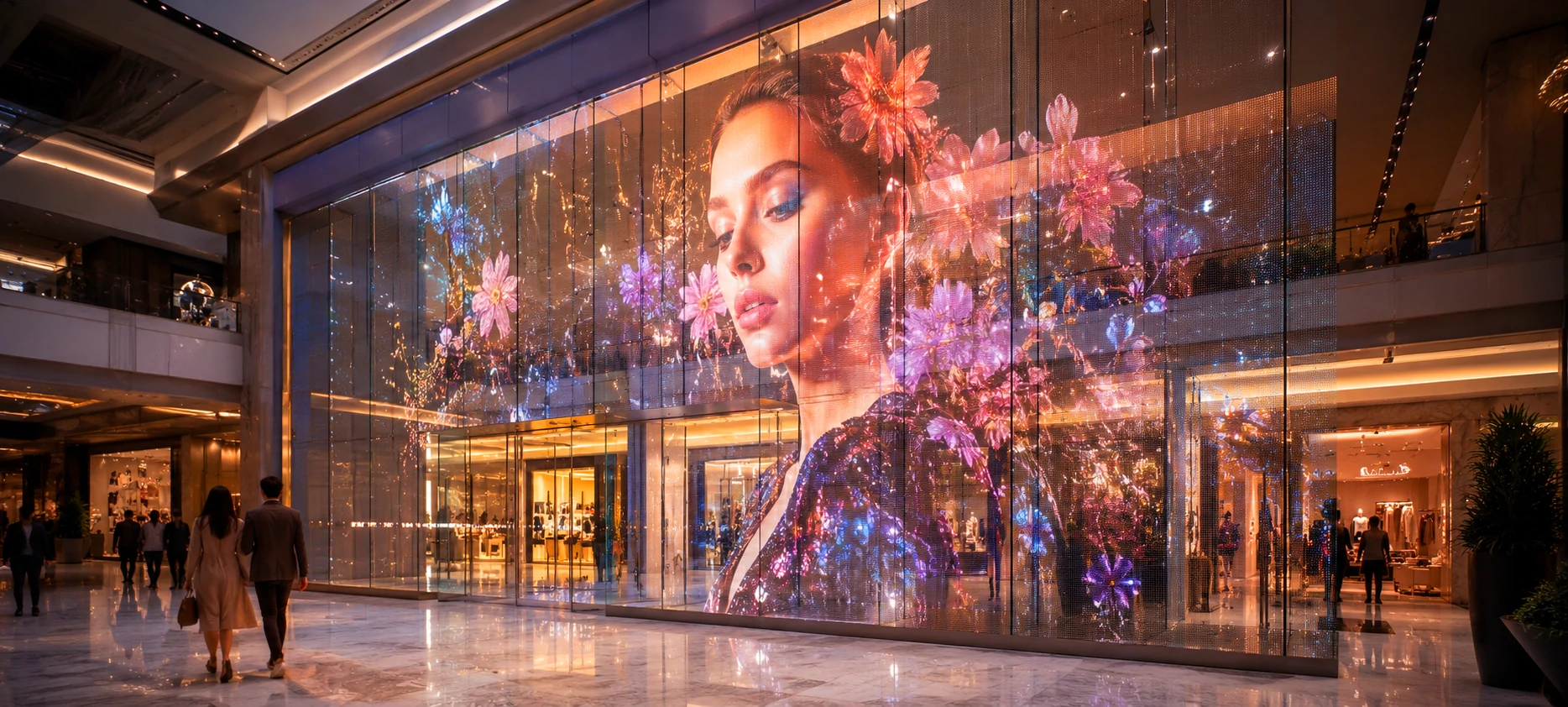

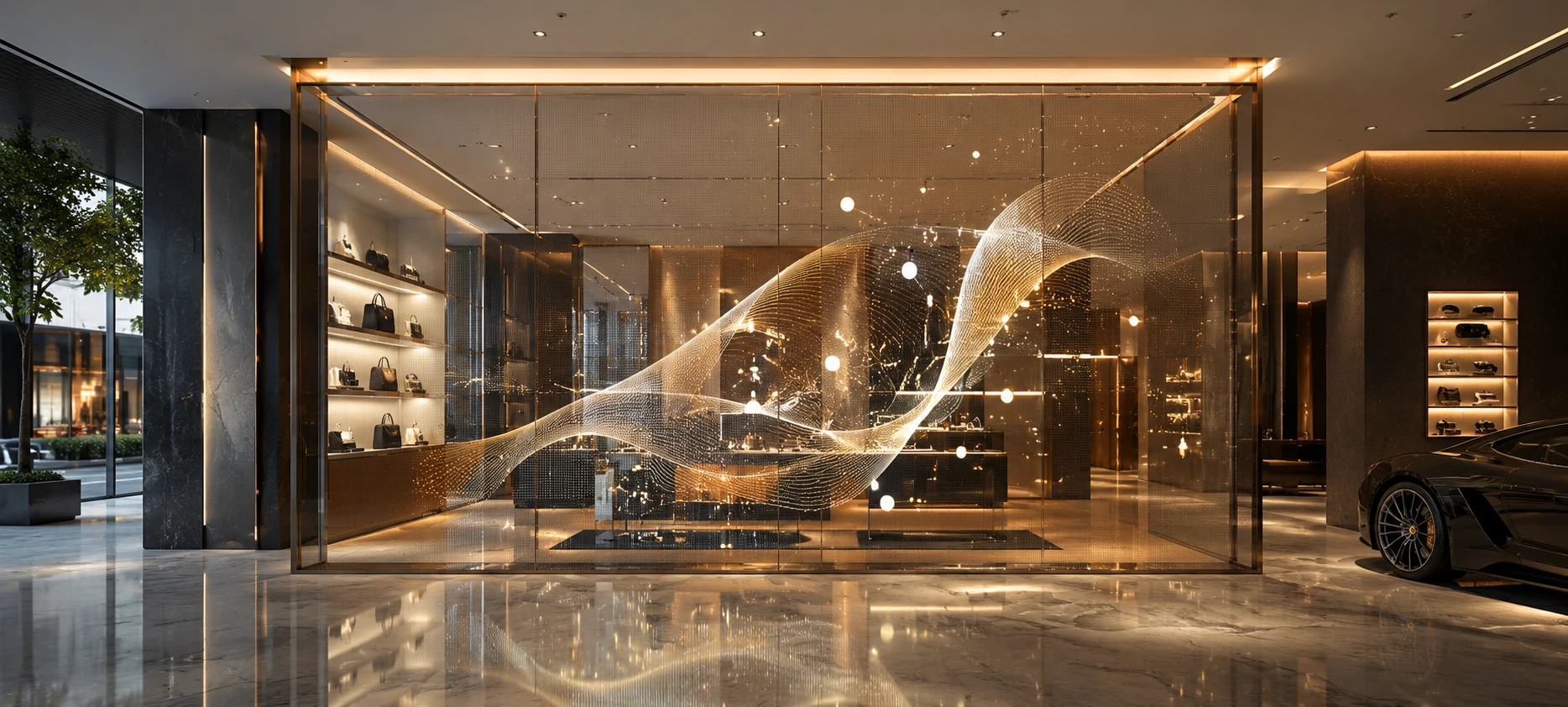

Escenario de aplicación
Tag:
High Transparency

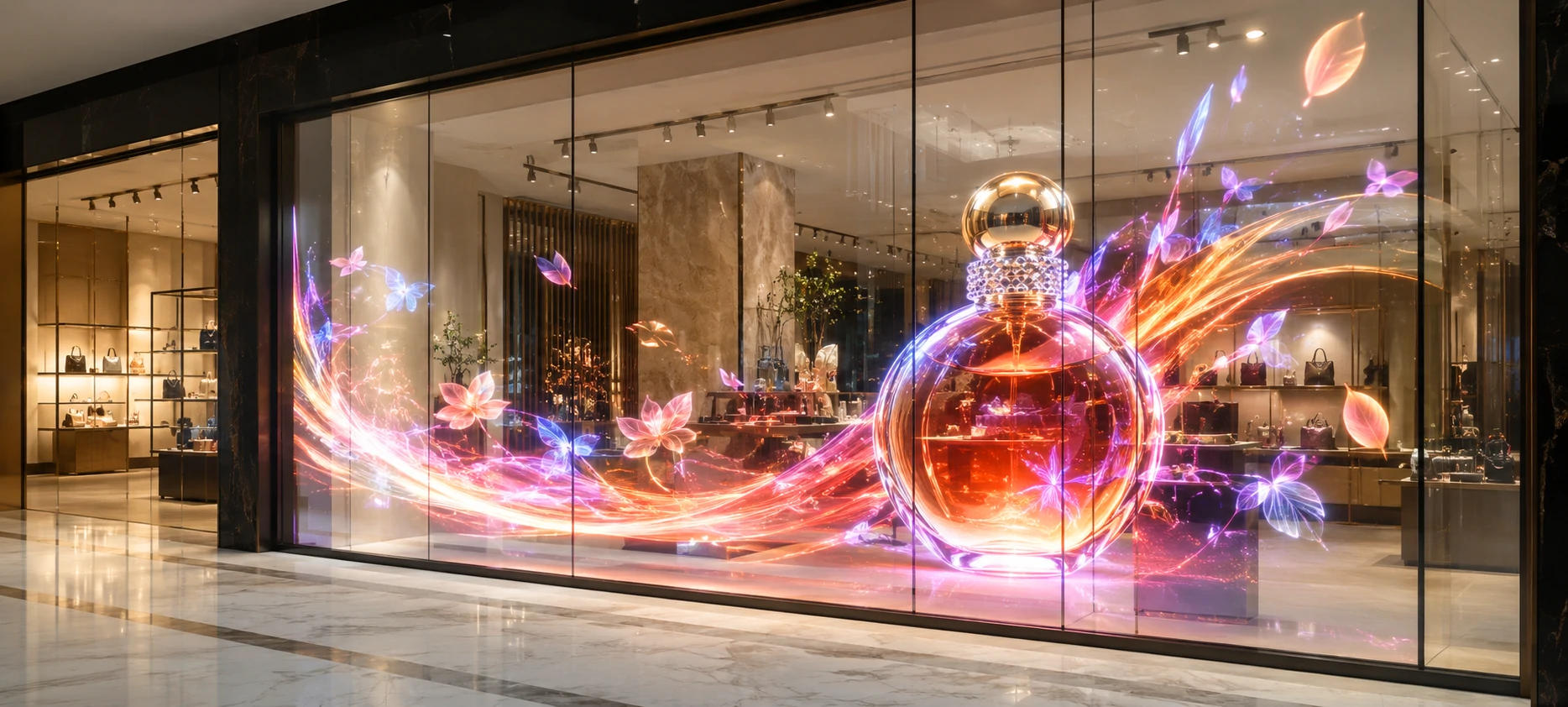

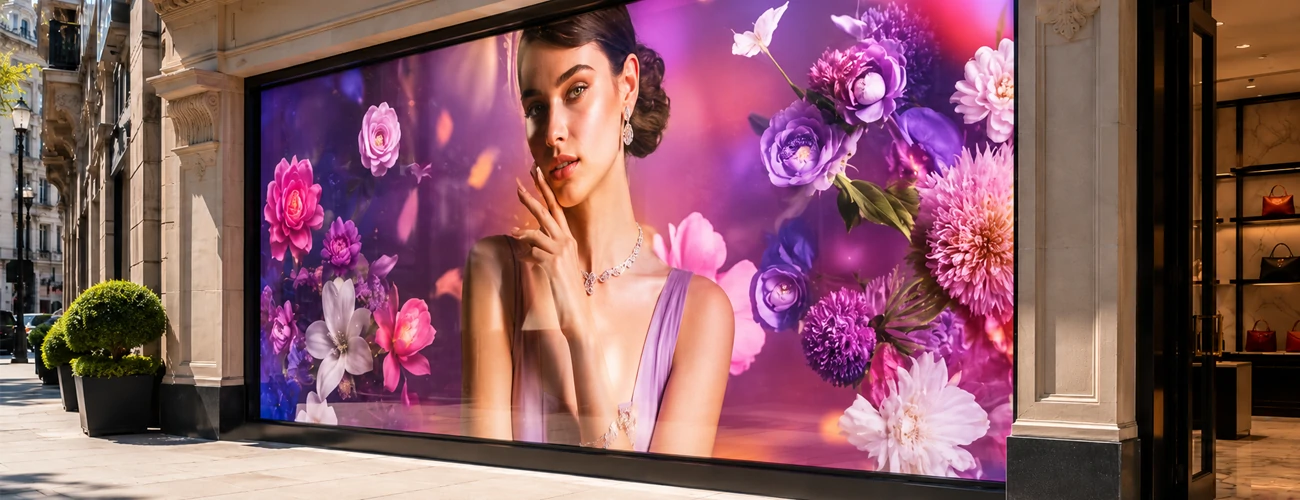

Maintains excellent glass visibility and natural light transmission, making it ideal for retail windows, glass walls, and commercial indoor spaces.
High Brightness Display
Delivers vivid and eye-catching visuals in bright indoor environments such as shopping malls, showrooms, and brand stores.
Lightweight & Slim Structure
The lightweight cabinet design reduces installation load and makes the screen easier to install on glass walls and indoor structures.
Magnetic Installation Design
Supports fast magnetic installation, making setup more convenient and efficient for commercial display projects.
Front & Rear Maintenance
Modules and key components can be maintained from both the front and rear, reducing service time and improving maintenance efficiency.
3840Hz High Refresh Rate
Provides smooth and stable image performance with less flicker, making it suitable for advertising videos, filming, and commercial displays.
Energy-Saving Performance
Designed with lower power consumption for long-term indoor operation, helping reduce operating costs.
Wide Application Scenarios
Perfect for retail windows, shopping malls, brand stores, exhibition halls, hotel lobbies, office buildings, and indoor glass curtain walls.
Customizable colors
Available in white and black
4500–5000nits High Brightness
Clear Visuals for Retail Windows & Semi-Outdoor Spaces

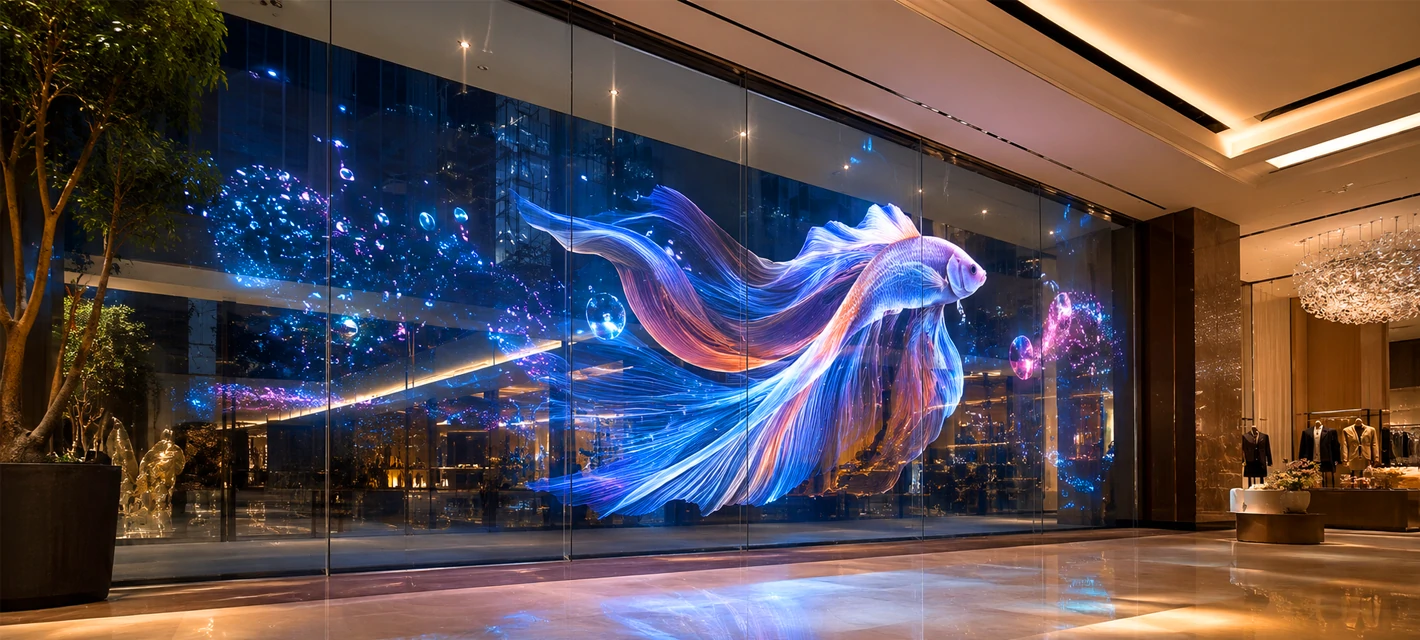

3840Hz High Refresh
High refresh-rate and grayscale for professional live visuals.

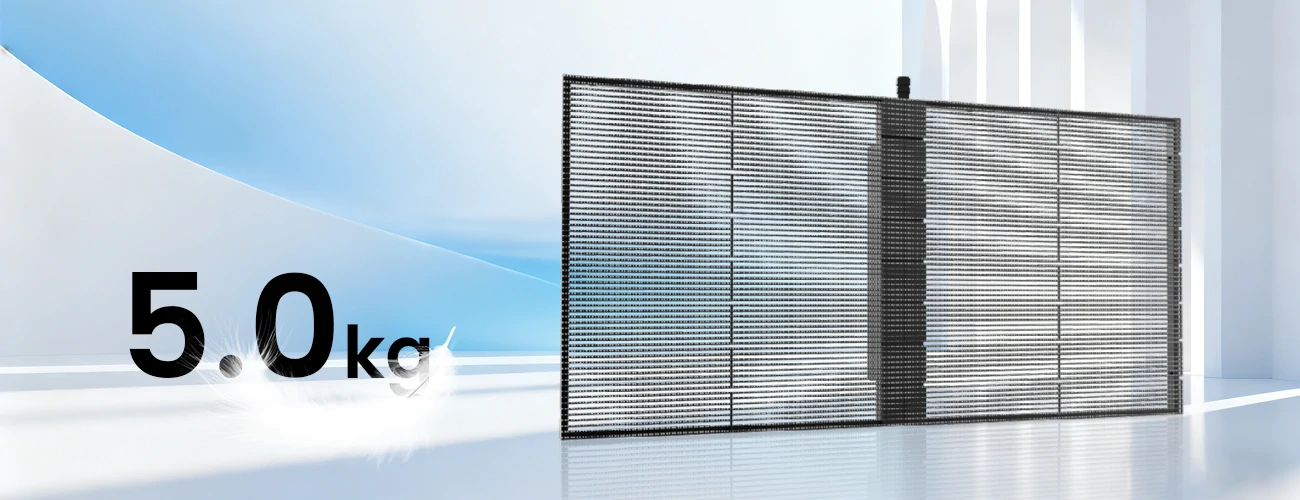

Only 5kg Lightweight Design
Slim Design · Easy Installation · Lower Structural Load

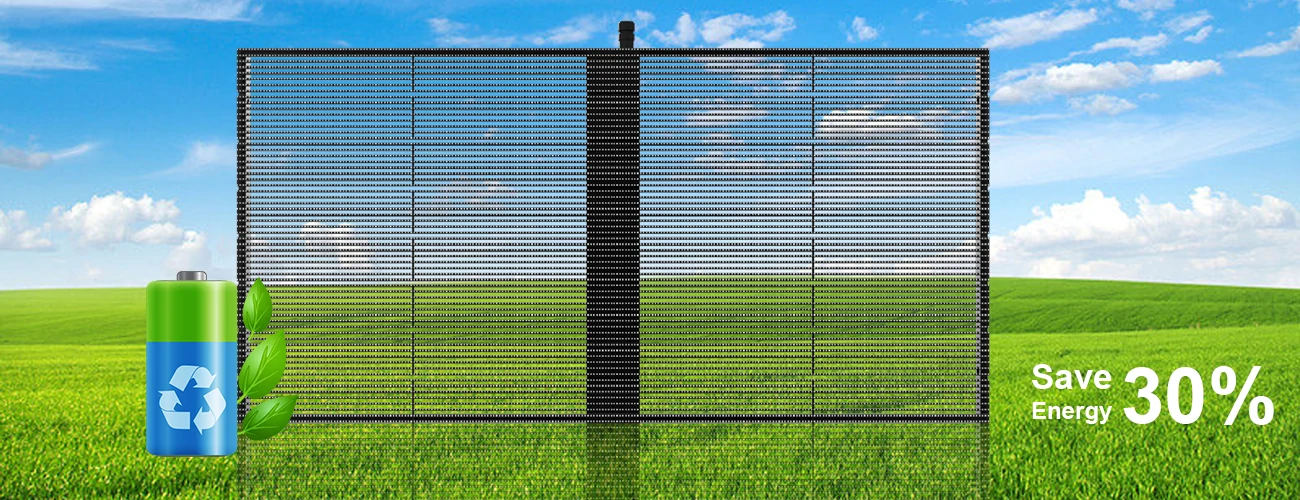

30% Energy Saving
Product Parameter
Click and long-press on the form to swipe left or right.
| ixel Pitch (mm) | P2.6-5.2 | P2.8-5.6 | P3.91-7.82 | P3.91-7.82 | P7.82 |
|---|---|---|---|---|---|
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 73,728 | 61,952 | 32,768 | 32,768 | 16,384 |
| Module Resolution (Pixel) | 192x24 | 176x22 | 128x16 | 128x16 | 64x16 |
| Module Size (mm) | 500x125 | 500x125 | 500x125 | 500x125 | 500x125 |
| Driving Mode (Duty) | 1/12 | 1/11 | 1/8 | 1/16 | 1/4 |
| Cabinet Size (mm) | 1000x1000 | 1000x1000 | 1000x1000 | 1000x1000 | 1000x1000 |
| Cabinet Weight (KG) | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 |
| Brightness (CD/㎡) | 4000 | 5000 | 4500 | 2500 | 4500 |
| Transparency | 50 | 53 | 58 | 58 | 60 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 800 | 800 | 800 | 800 | 800 |
| Avg. Power Consumption (W/㎡) | 220 | 220 | 220 | 220 | 220 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protecting Grade | IP33 | IP33 | IP33 | IP33 | IP33 |
