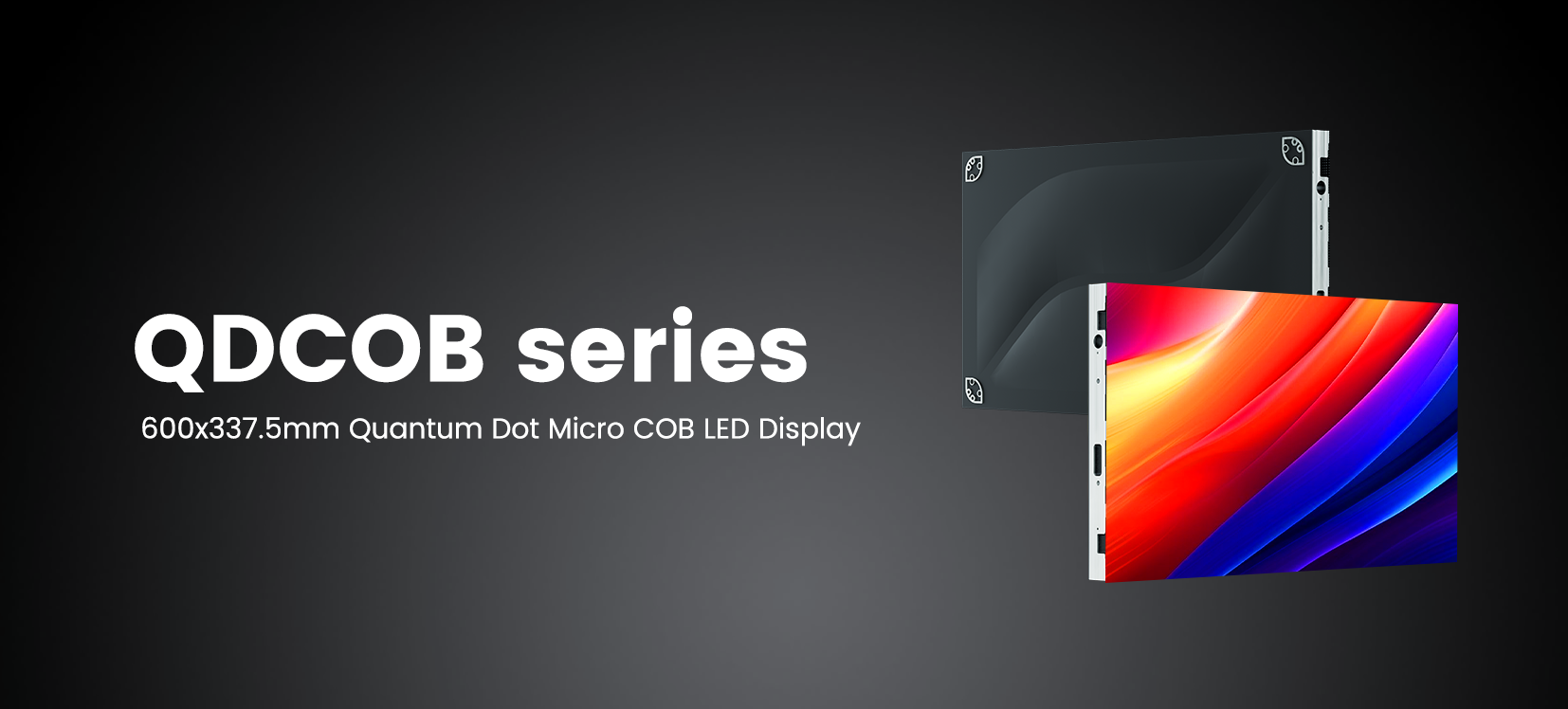

QDCOB series

Quantum Dot COB, P0.78 P0.93 P1.25 P1.56, 600x337.5mm

Features

Upto 3840Hz

Upto 3840-7680Hz

Wide Viewing Angles

Wide Viewing Angles

Dual Card Backup

Dual Card Backup

High Flexibility

High Flexibility

Magnetic Suction Installation

Magnetic Suction Installation

Front Maintenance

Front Maintenance

Die Cast Aluminum

Die Cast Aluminum

6.5kg/pc

5.2kg/pc

Advantages

QDCOB series Ultra fine HD LED screen
Feature Description
  • - Ultra-thin and light body design
  • - 1200nits high brightness indoor led display
  • - Beyond 25000:1 high contrast ratio
  • - No color difference
  • - Full front maintenance.
  • - Low power consumption: 30% energy saving

Video

QDCOB series Ultra fine HD LED screen

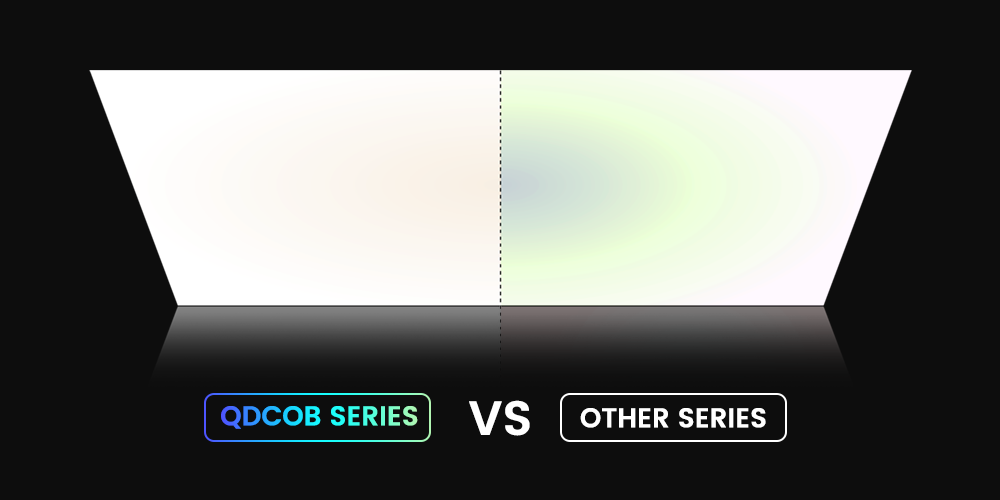

No Color Deviation

No color deviation at all angles, color temperature change less than 200K 15 times better than traditional screens.

QDCOB Series
Better color stability

Eliminate color deviation caused by uneven screen temperature and current

D Series

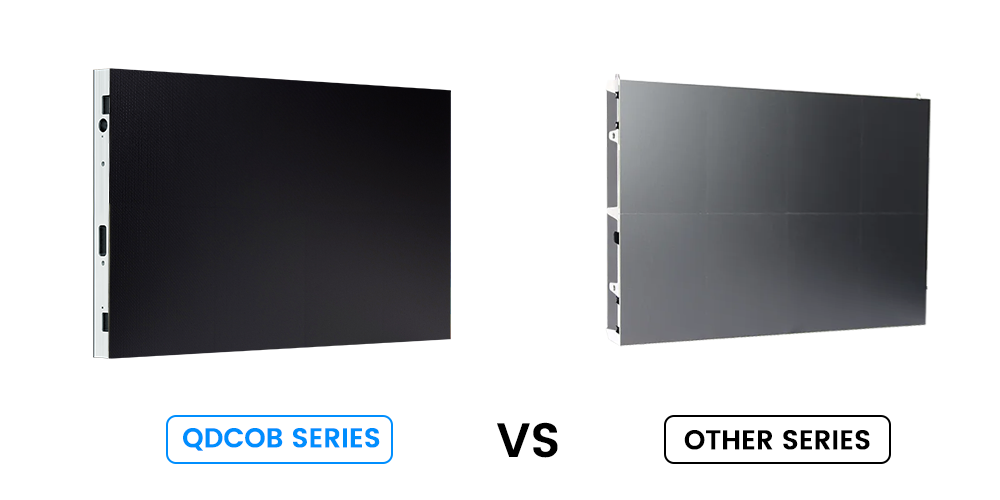

High ink color consistency

Dark uniform background enhances contrast with bright content.

qdcob Series

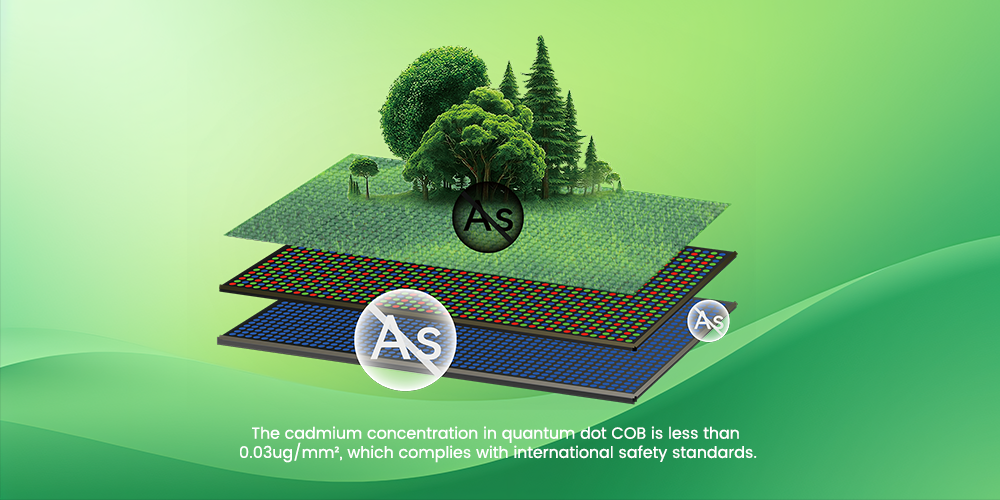

Environment protection

Quantum dot COB is arsenic-free and non-toxic, more environmentally friendly and safer

qdcob Series

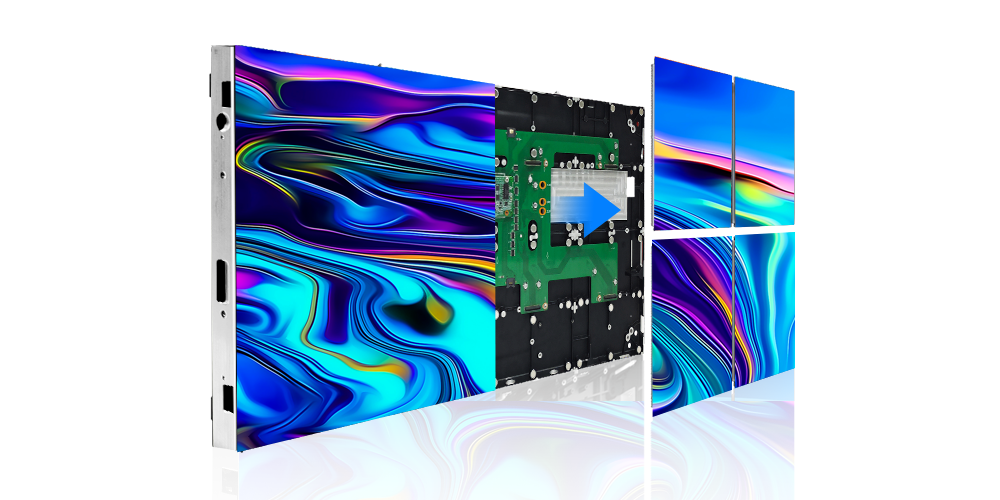

Full front maintenance

The full front maintenance design of DCOB series LED display allows for easy maintenance of the LED module, power supply, and receiving card from the front.

qdcob Series

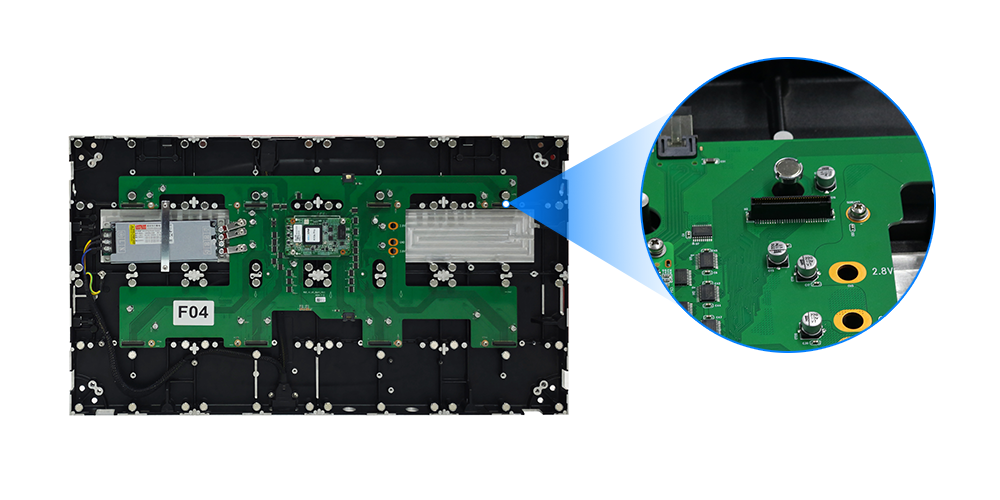

HUB connection design

Adopts a HUB connection design, eliminating the need for additional DC power cords and cables, making installation easier and saving time and effort.

qdcob Series

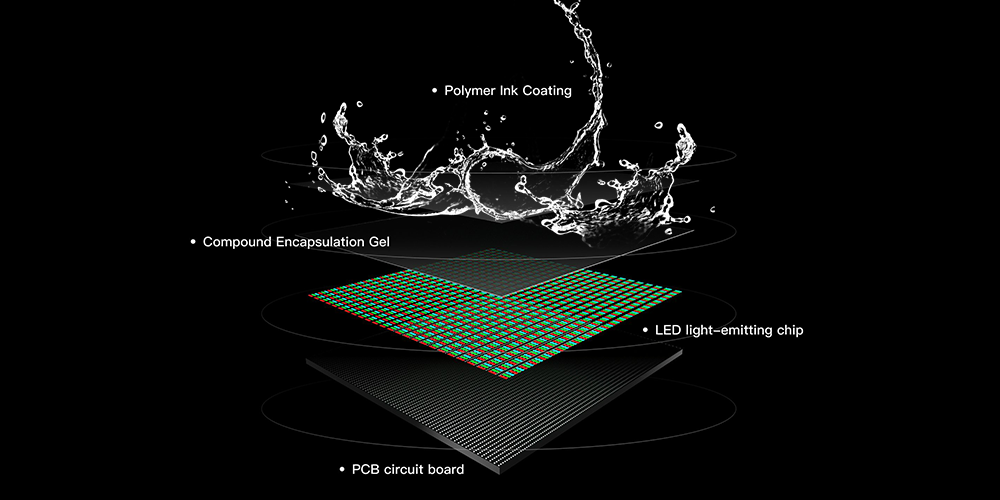

IP65 Surface waterproof

The point light source becomes an area light source, and the surface treatment can effectively achieve waterproof, dustproof, anti-static,anti-impact, etc。

qdcob Series
16:9 Ratio

600×337.5mm, has an aspect ratio of 16:9, and supports standard 2K, 4K, and 8K resolutions, presenting extremely clear details and lifelike picture quality.

QDCOB Series
30% energy saving

Low power consumption: 30% more energy-efficient than conventional COB LED screens

qdcob Series

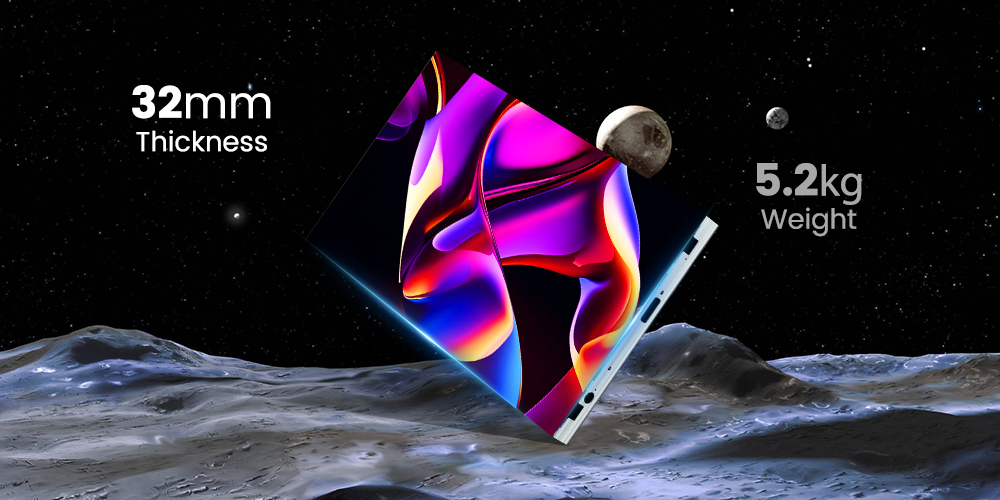

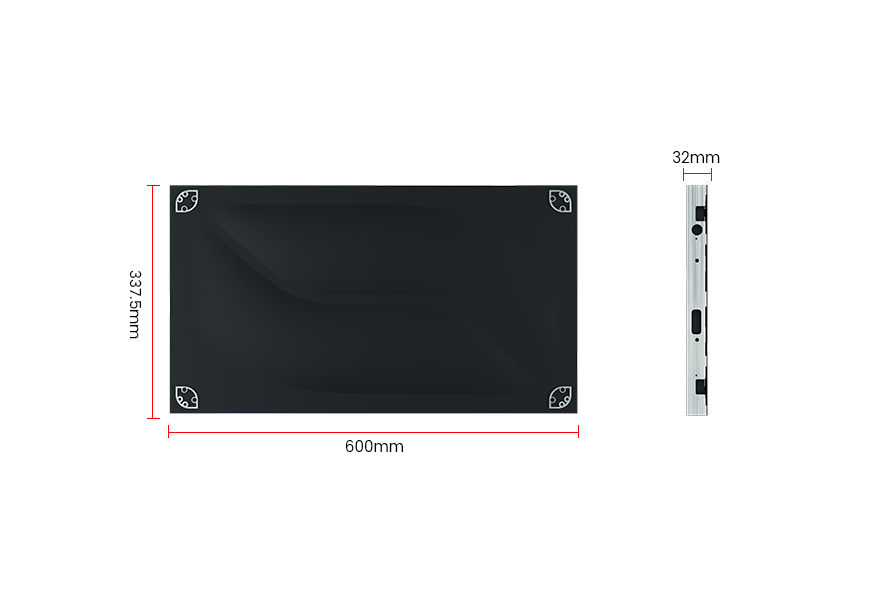

Ultra Thin and Light

COB LED screen is only 32mm thick and weighs as little as 5.2kg, which saves space while providing an excellent visual experience, perfectly integrating with simple design.

qdcob Series

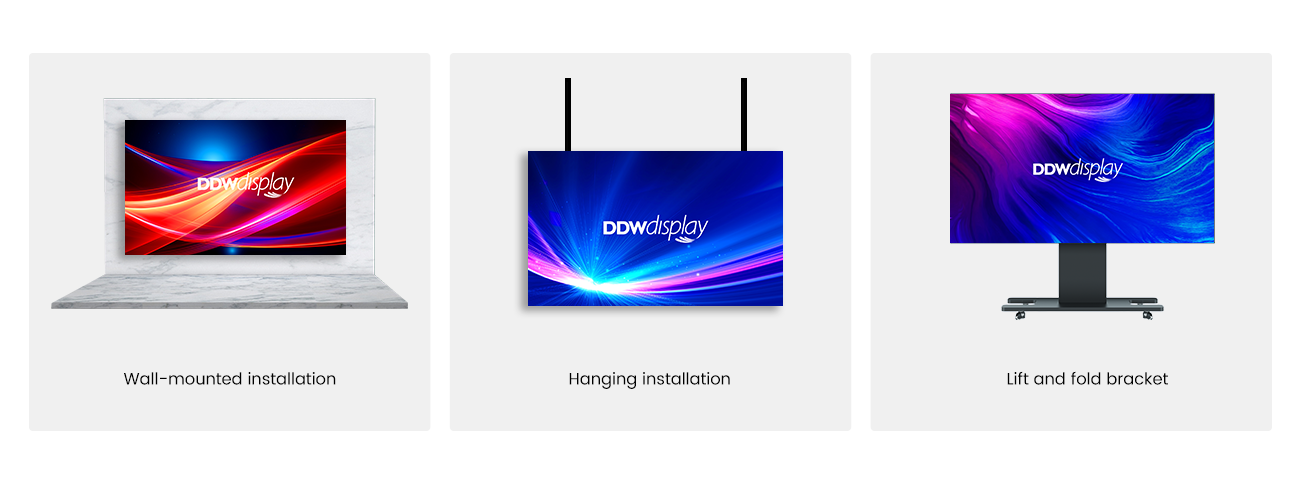

Installation

Various installation mode
QDCOB series

Specifications

Pixel Pitch (mm) P0.78 P0.9375 P1.25 P1.5625
Module resolution 205x230 160x180 120x135 96x108
Module size (mm) 150x168.75
Cabinet resolution 820x460 640x360 480x270 384x216
Cabinet size (mm) 600x337.5x32
Cabinet weight (kg) 5.2
Pixel density (dots/m²) 1508800 1137777 640000 409600
Cabinet flatness (mm) ≤0.15
Single-point brightness correction yes
Single-point color correction yes
Brightness (nits) 600-1200
Color temperature (K) 3000-10000 adjustable
Viewing angle 170°/170°
Chroma uniformity ±0.003
Frame rate (Hz) 50&60
Refresh rate (Hz) 3840/7680
Center distance deviation <3%
Brightness uniformity ≥97%
40 ° C/RH90% test Through testing

Accessories

Video Processor
Video Processor
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Receiving card
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Power cabinet
led module
LED Module

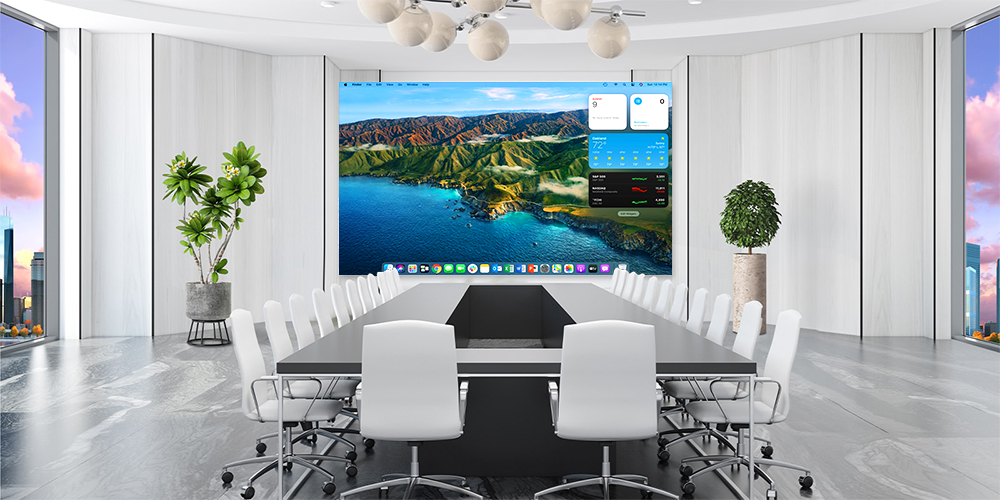

Application scenarios
