Transparent LED Screen

3DH series Holographic film LED screen

3DH series Holographic film LED screen

P2.5 P3.91 P6.25 P8 P10 size:250x1025/250x1200/250x1500/260x1200/260x1500

inquiry Download Brochure

3DH series Holographic film LED screen.pdf

Features

Advantages

Video

Parameters

Installation

Specifications

Accessories

Features

3840 Hz

Wide Viewing Angles

High Transparency

1200-5000cd/㎡

Magnetic Suction Installation

Flexible Frame

Easiest Installation

≤3kg/m²;

Advantages

3DH series Indoor Transparent LED screen

Feature Description

- High brightness up to 5000 nits/sqm for day time use

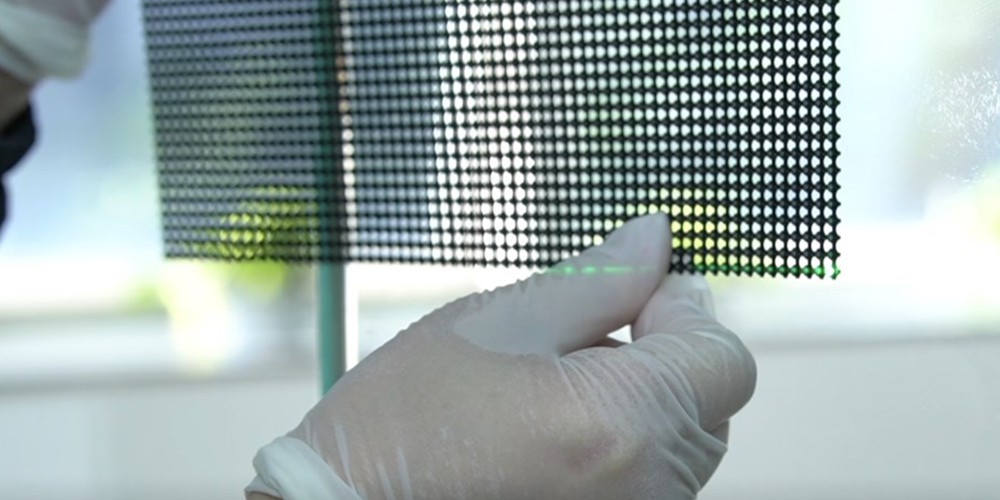

- Up to 90% transparency

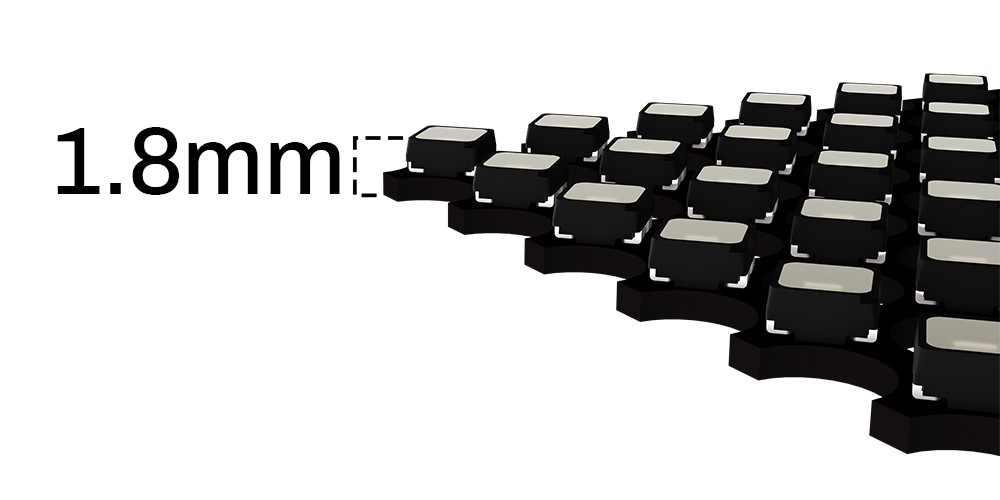

- Weighs only 3KG/㎡, thickness only 3mm
- Customized Sizes
- Easy to install and maintain

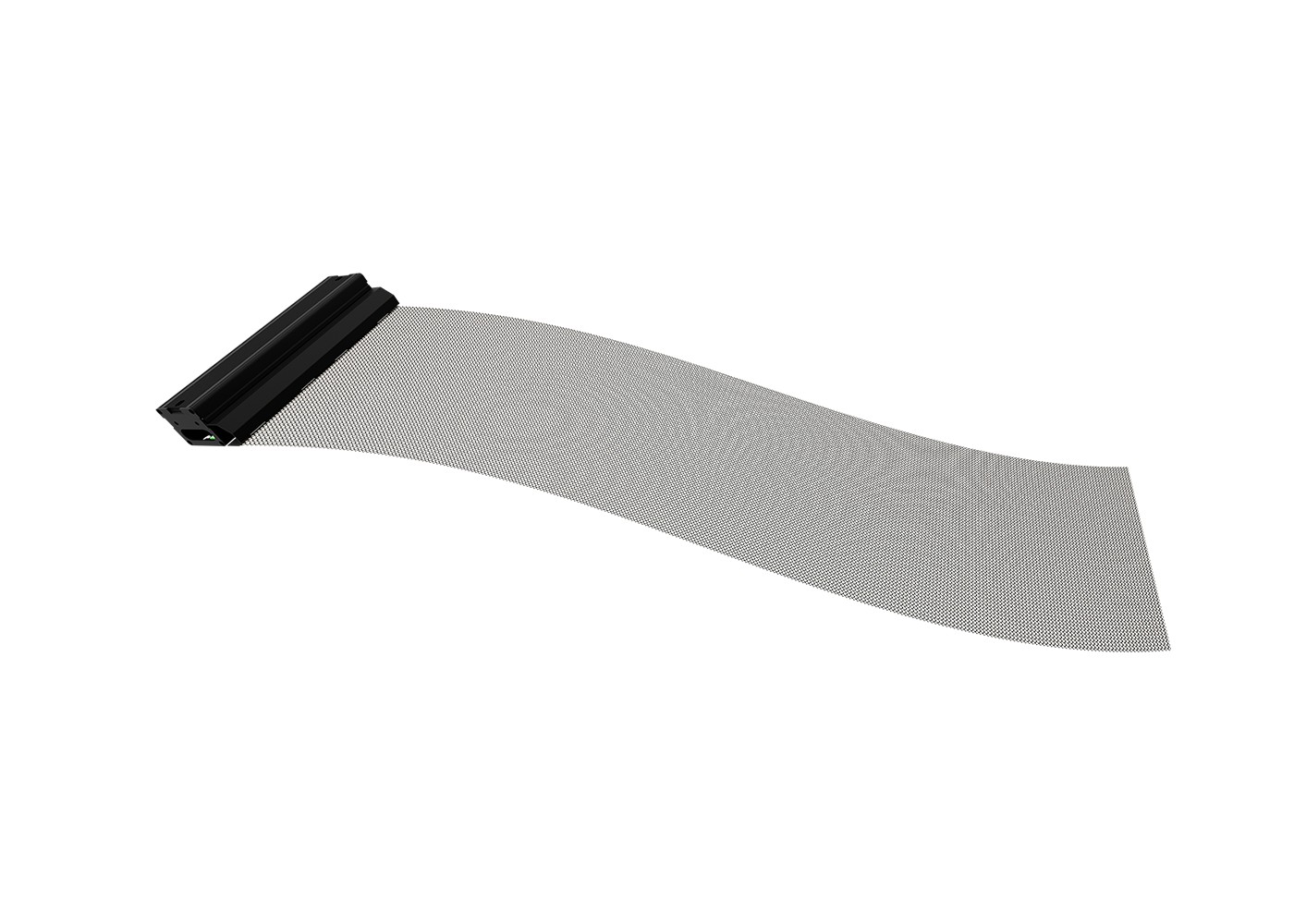

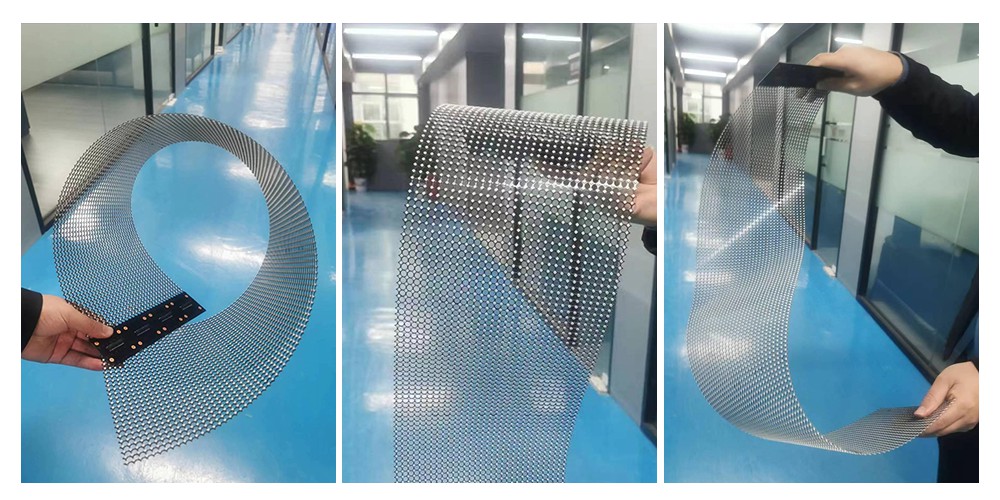

- Ultra-flexible and can be used to create a variety of shapes such as round, curved and wavy

Video

Parameters

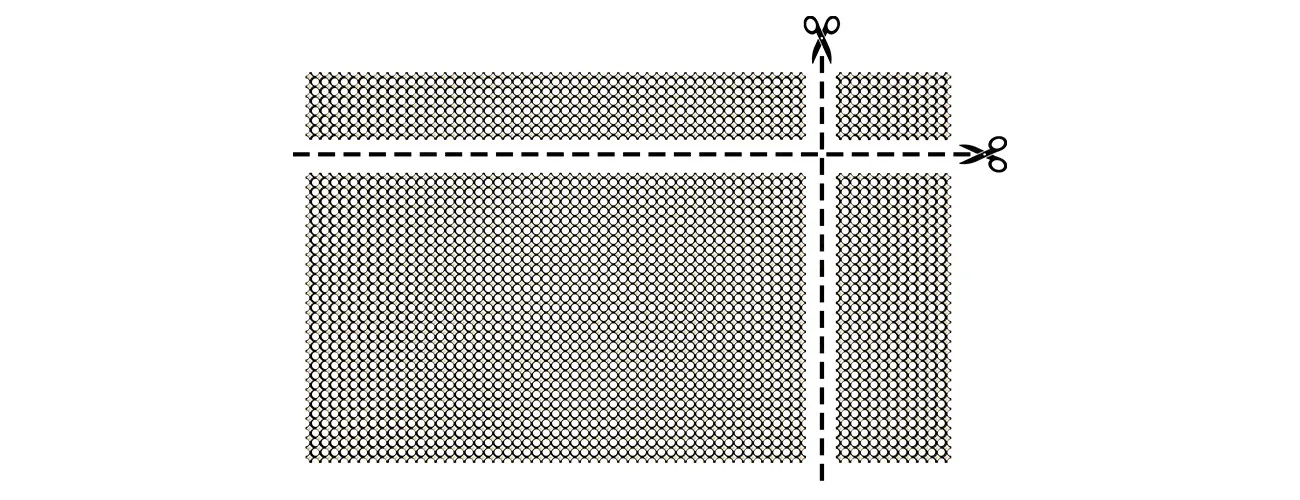

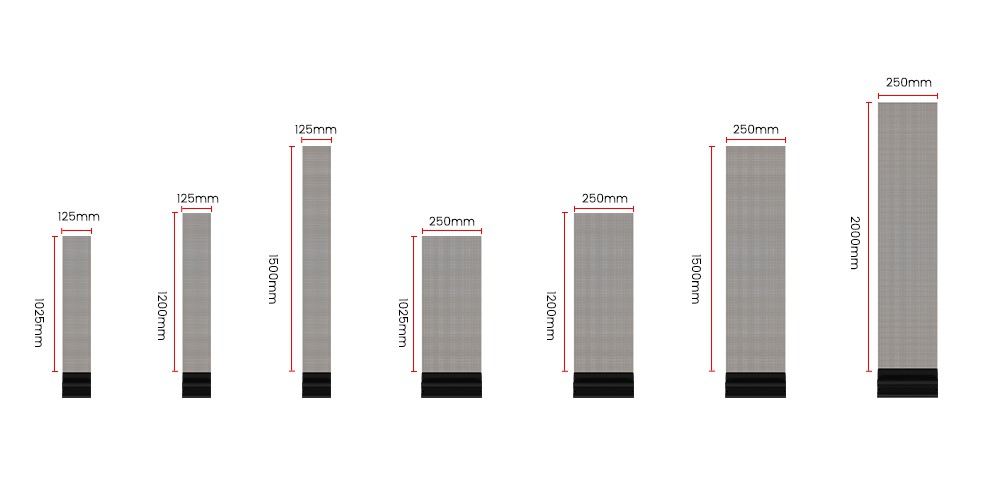

Support Any Size Cropping

The product supports point-by-point cutting and can be applied to curtain walls of various shapes and sizes

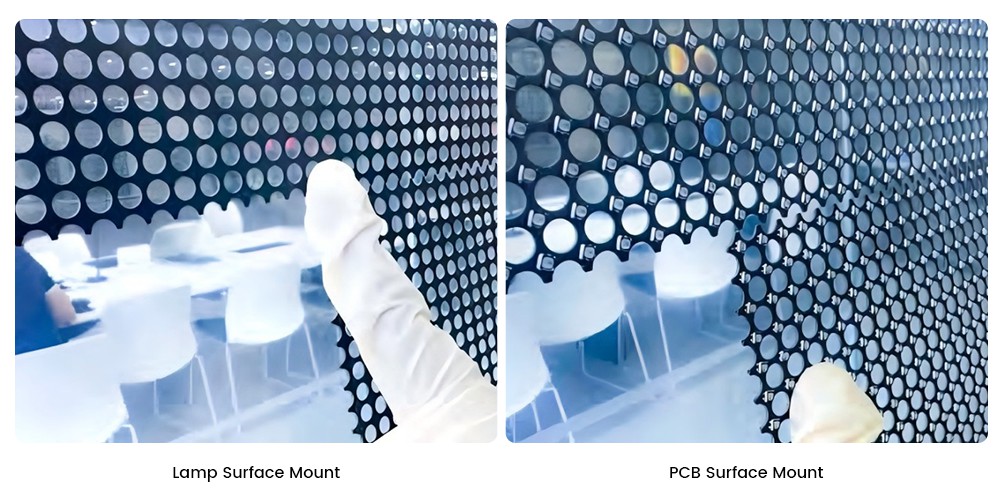

95% High transparency

Industry debut, no structural keel! Truly fully transparent,visual transparency can reach 90%.

Cost-saving installation

No steel frame structure or changes to the building's appearance are needed, effectively reducing transportation and installation costs.

Safe and Beautiful

No components on the screen, hidden power supply, safe and reliable, clean and beautiful

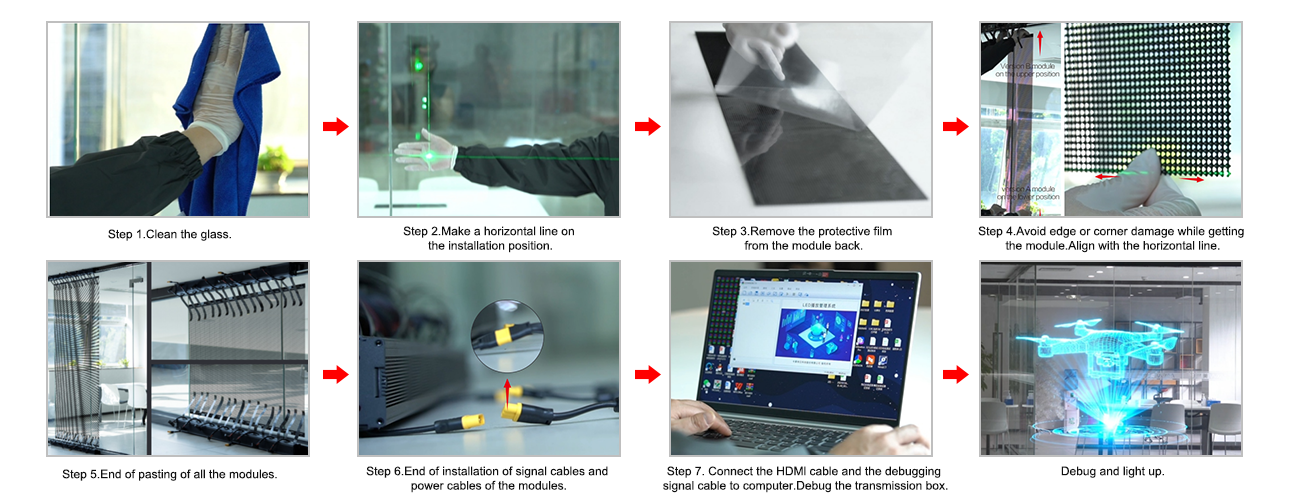

Installation

Specifications

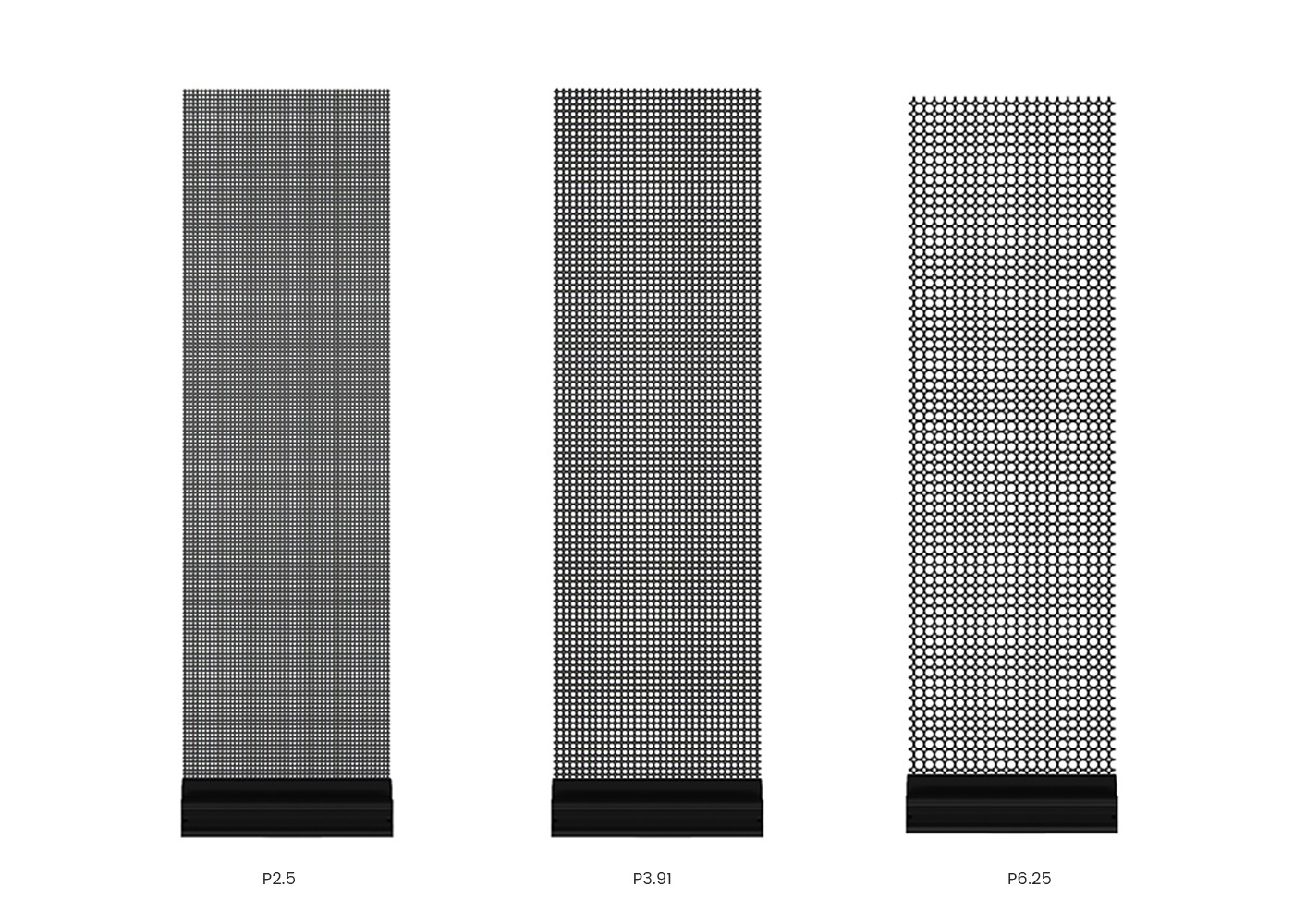

Pixel pitch (mm)	P2.5	P3.91	P6.25	P10
Pixel density (dot/ m²)	160000	65536	25600	10000
sensory transparency	70%	80%	90%	85%

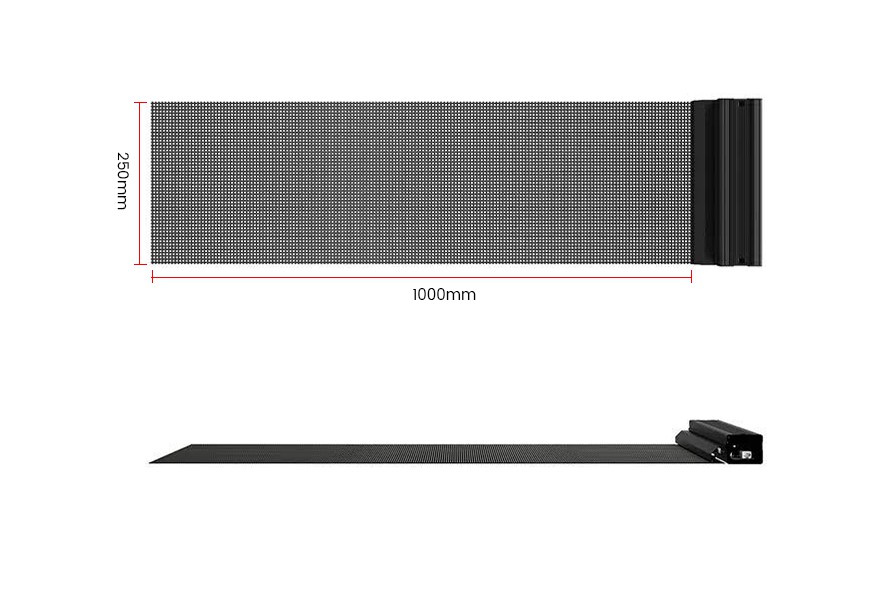

Display area of the whole machine (mm(w*h)	125x1000	250x1000/250x1175	250x1175/250x1475	250x1175/250x1475
Overall machine dimensions (mm) (w*h)	/	250x1025/250x1200/250x1500	250x1200/250x1500	250x1200/250x1500
Overall machine resolution (dot)	50x400	64x256/64x300	40x188/40x236	25x148
Weight (Kg/SET)	6.5	6	5	6.5
Brightness (cd/ m²)	0-1200	≥3000	≥5000	0-4000
scanning method	Single point single control, static drive
Package form	Lamp driver integrated package
Lamp bead working life	≥ 100,000 hours
Grayscale	16bit
Maximum power consumption (W/ m²)	1000			800
Average power consumption (W/ m²)	350	375		300
LED control system	synchronous/asynchronous
Input working voltage	AC100~240V 50/60Hz
Module working voltage	DC4.2V ±0.2V
Operating temperature	0~50℃
Working humidity	20%RH ~ 85%RH, no condensation
storage temperature	-20℃ ~60℃
Storage humidity	10%RH ~ 85%RH, no condensation
Cabinet material	/
Installation and use environment	indoor
Packing and shipping	Pearl cotton+wooden box/aviation

Accessories

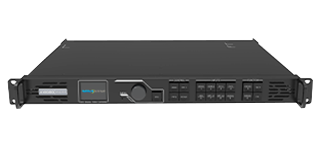

Video Processor

Power Supply

Control Box

CAT-5 Network cable

AC Power cable

Transmission box Cable

Power cable

Flight case
