Aflex series
500x500mm, Ultra Curve, P2.604 P2.976 P3.91, SMD GOB
Feature Description
- - ±45° Ultra flexible
- - High precision design
- - 700-4500 high brightness
- - Ultra-light design
- - 3840Hz High refresh

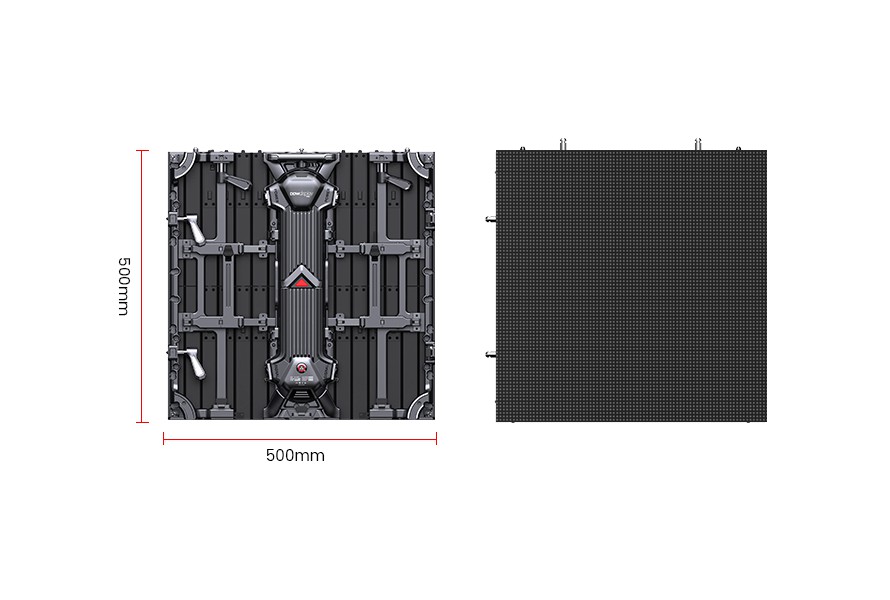

500x500mm, Ultra Curve, P2.604 P2.976 P3.91, SMD GOB
3840HzHz
Strong compatibility
Outdoor IP65 Waterproof
High Scalability
Ultra-Flexible Cabinet
Rear Maintenance
Die Cast Aluminum
7.5kg

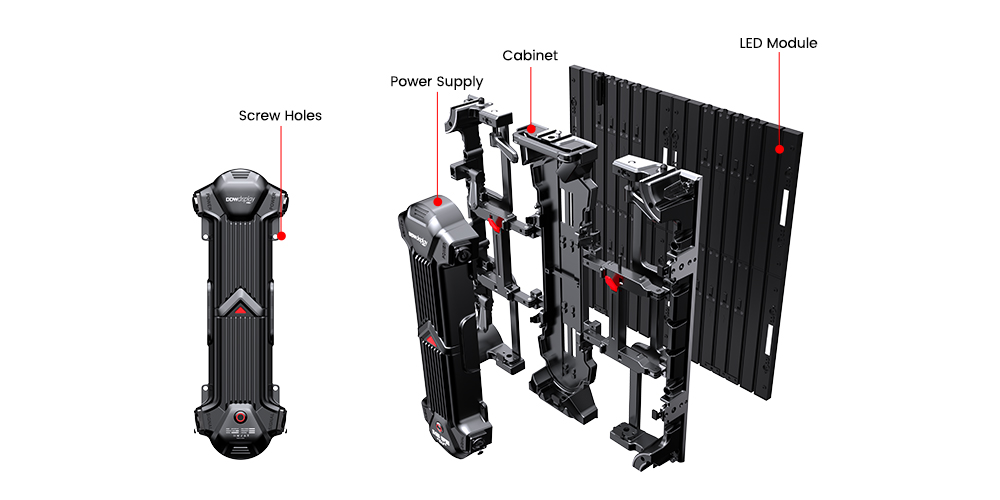

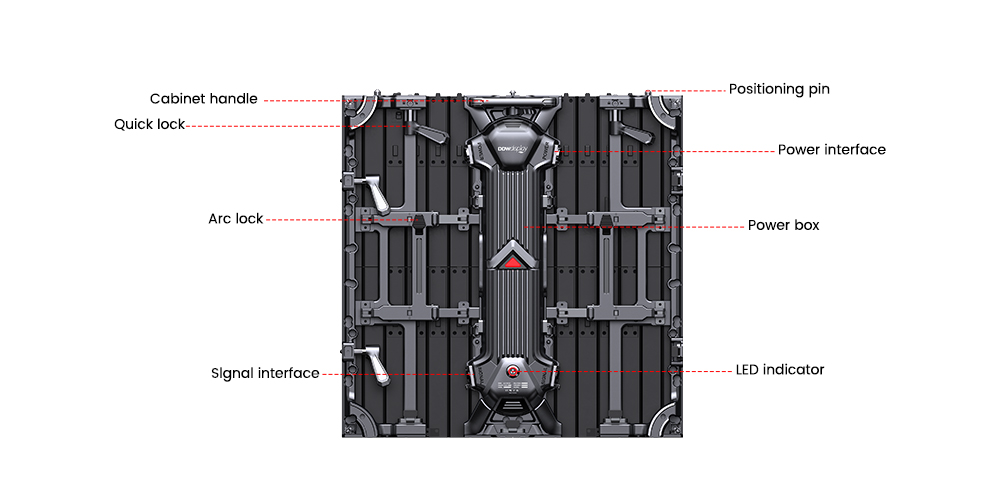

The power box adopts HUB connection design, and maintenance requires removing the screws first.
Rental LED display is designed with four corner guards to effectively prevent damage to the LED during transportation, installation, operation and disassembly

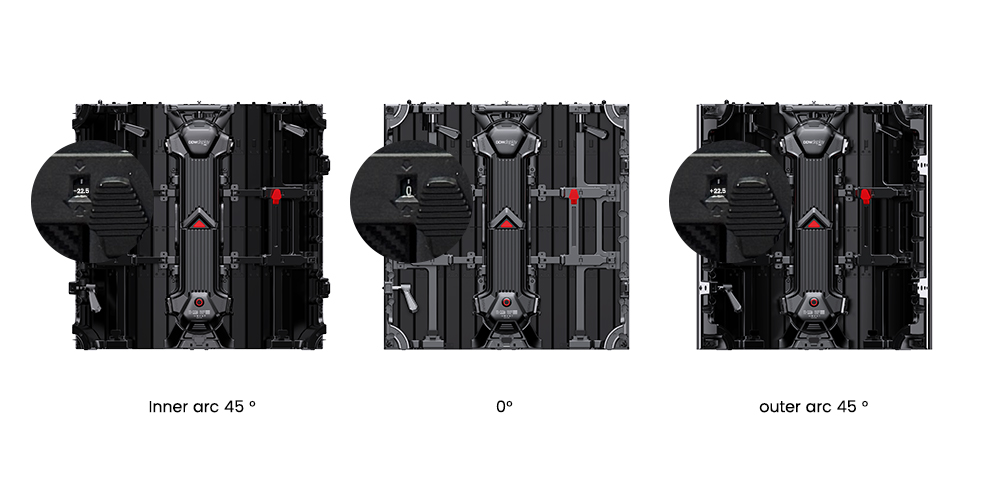

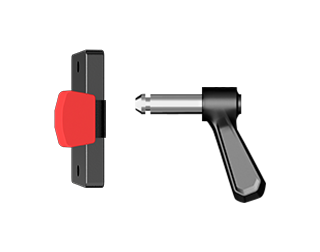

A single cabinet can be curved ±45°

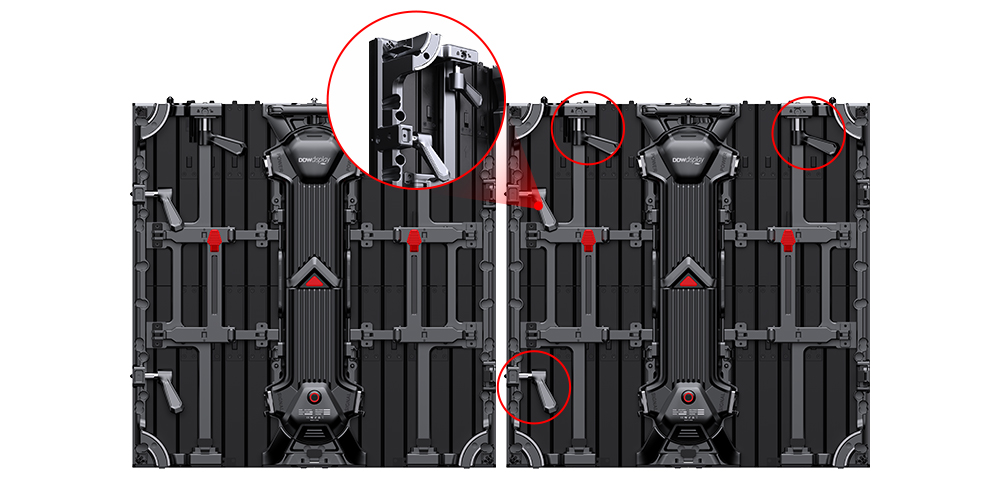

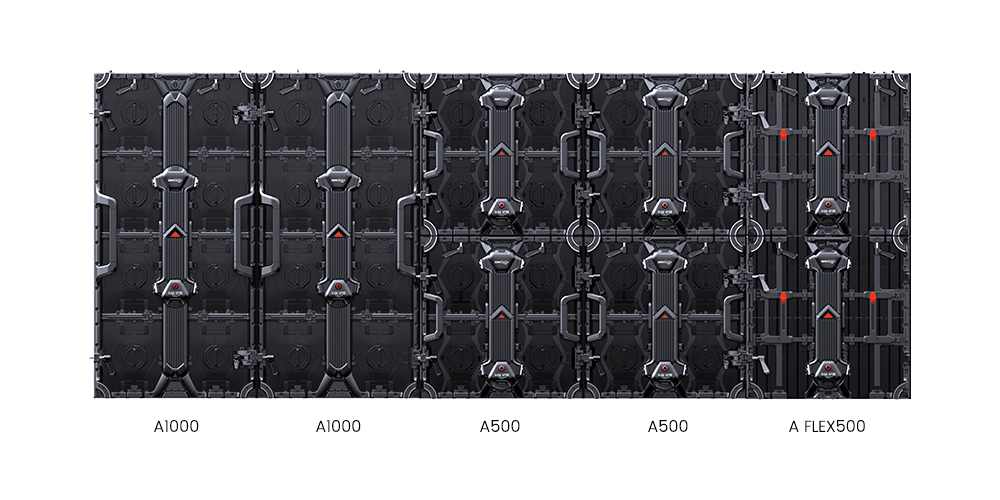

Support A series cabinet type splicing to achieve seamless integration

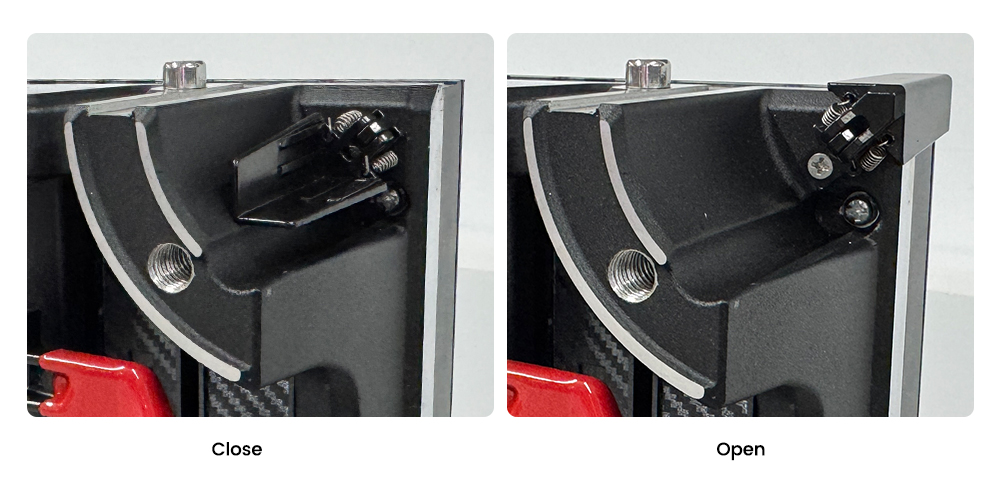

The cabinet is equipped with four quick locks to support single-person simple and fast installation

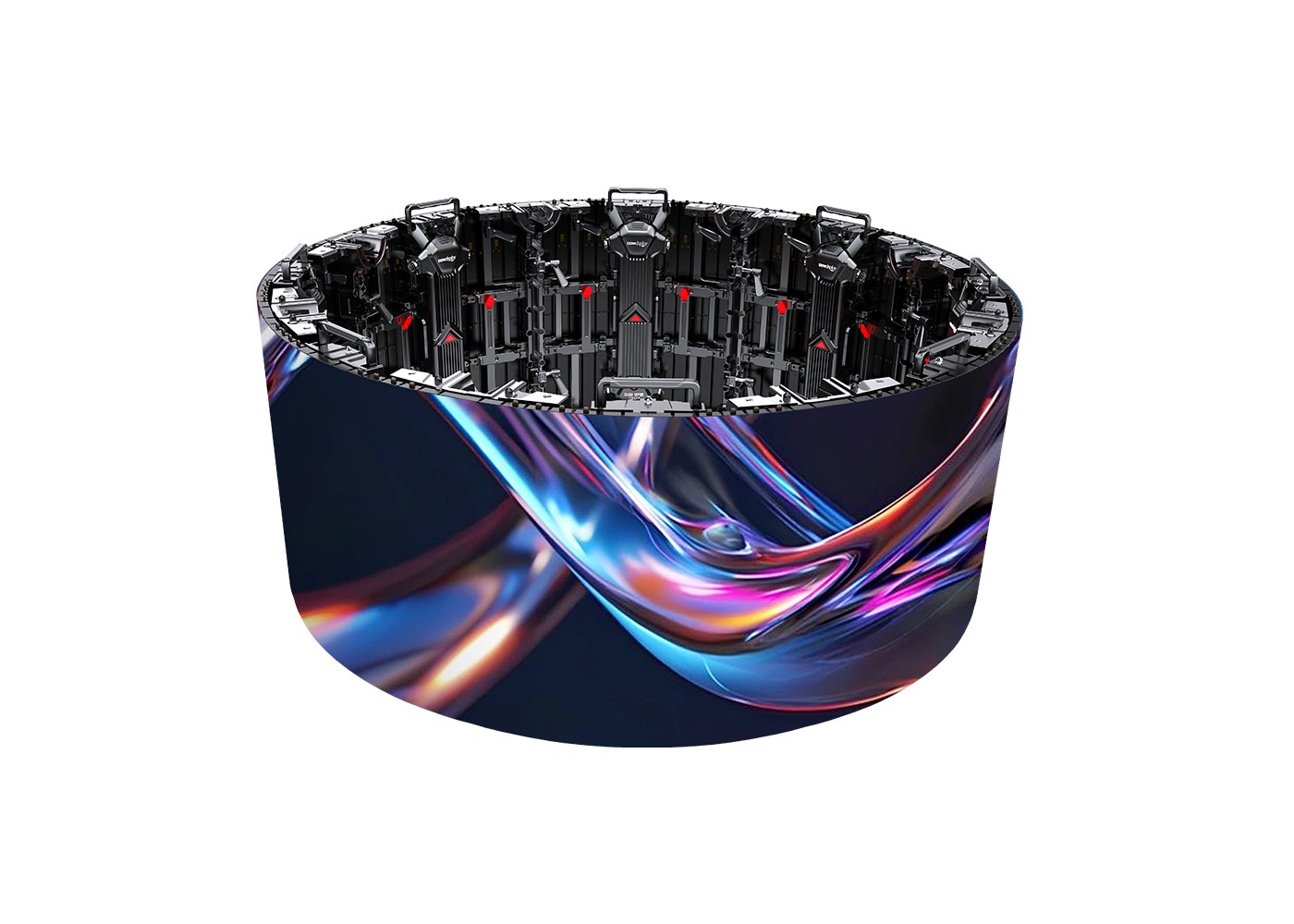

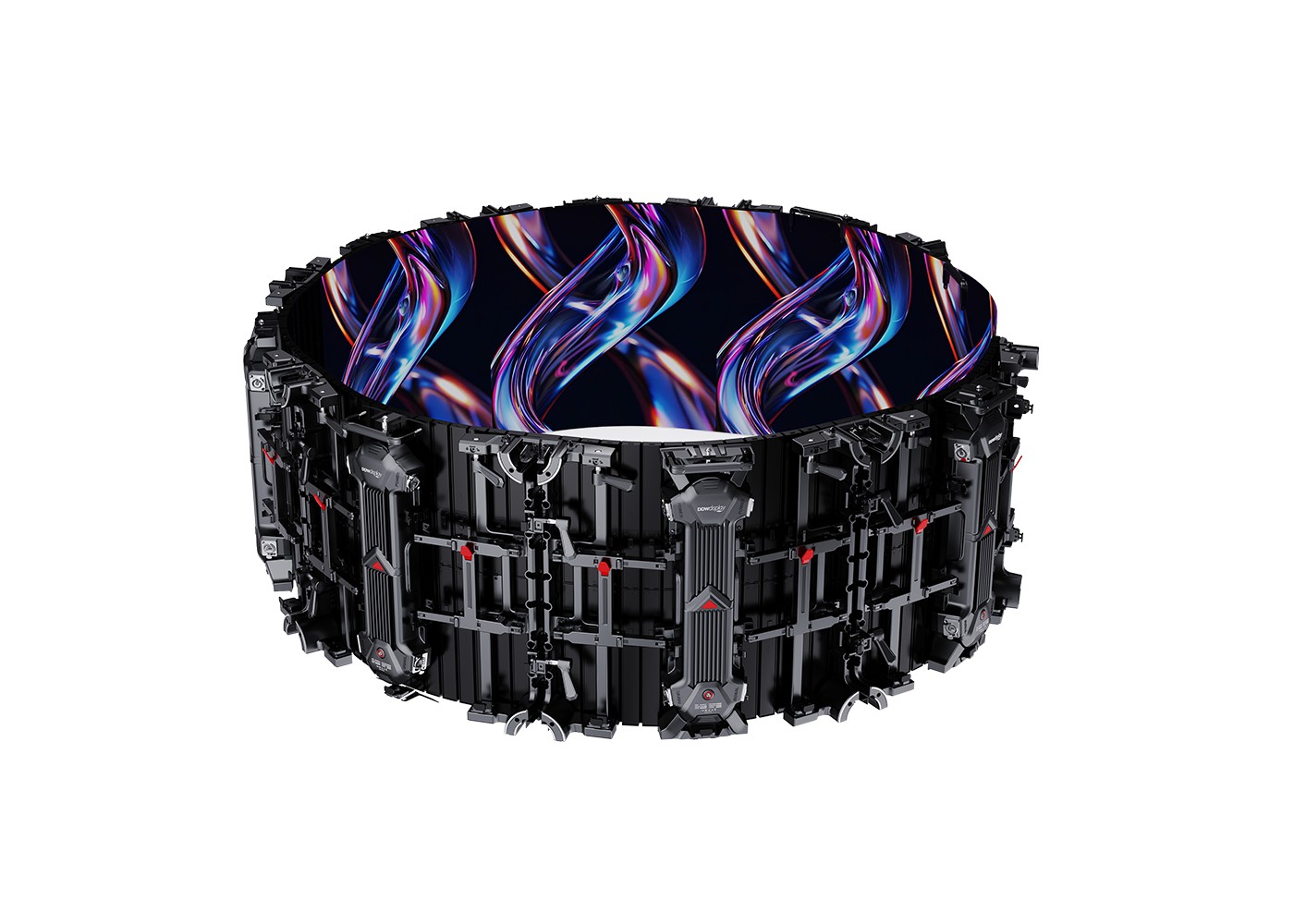

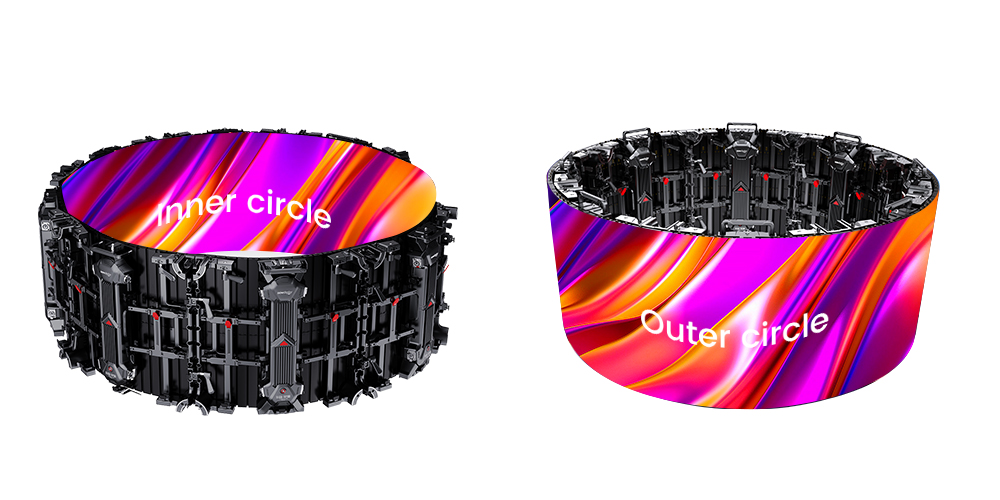

It can be easily assembled into cylindrical LED screens. Only 8 cabinets are required to assemble into a ring.

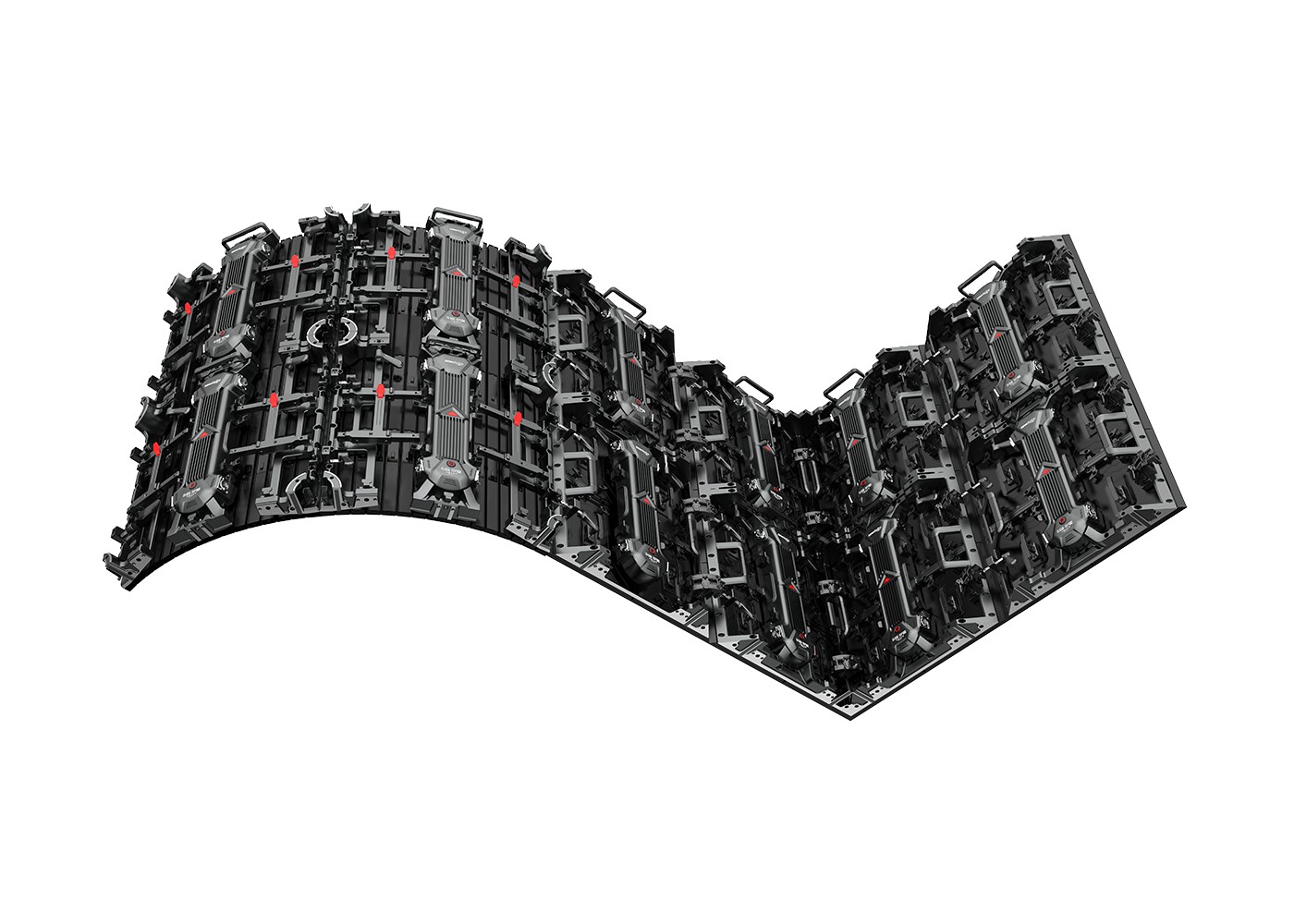

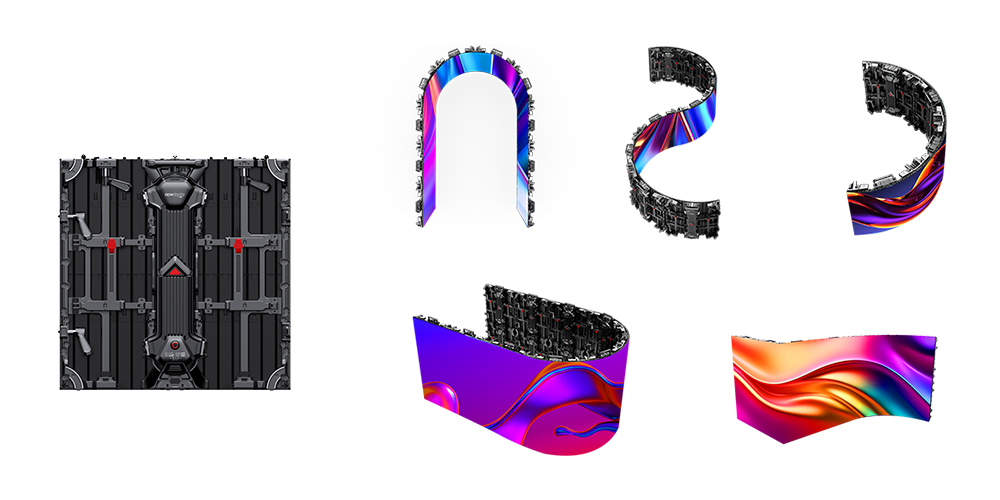

The ultra-curved cabinet can be easily assembled into various creative shapes
| Pixel pitch (mm) | P2.604(indoor) | P2.976(indoor) | P3.91(indoor) | P2.976(outdoor) | P3.91(outdoor) |
| Lamp model | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD2020 |
| Module pixel resolution(dots) | 192*192 | 168*168 | 128*128 | 192*192 | 128*128 |
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Pixel density (dots/m²) | 147474 | 112896 | 65410 | 147474 | 65410 |
| Brightness(nits) | 700 | 700 | 700 | 4200 | 4200 |
| white color temperature(°) | 6000~10000 | 6000~10000 | 6000~10000 | 6000~10000 | 6000~10000 |
| Viewing angle(°) | H:160V:140 | H:160V:140 | H:160V:140 | H:160V:140 | H:160V:140 |
| Panel dimention | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 |
| Cabinet material | Die-casing aluminum | Die-casing aluminum | Die-casing aluminum | Die-casing aluminum | Die-casing aluminum |
| Panel weight | 7.5KG | 7.5KG | 7.5KG | 7.5KG | 7.5KG |
| Grey scale | 14Bit | 14Bit | 14Bit | 14Bit | 14Bit |
| Frame frequency | 60Hz/50Hz | 60Hz/50Hz | 60Hz/50Hz | 60Hz/50Hz | 60Hz/50Hz |
| refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Driving method | 1/32s | 1/28s | 1/16s | 1/21s | 1/16s |
| Working Voltage(V) | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Input Power(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max Power consumption/panel(w) | 480 | 480 | 480 | 480 | 480 |
| Power consumption/panek(w) | 160 | 160 | 160 | 160 | 160 |
| Lifespan(H) | 100000 | 100000 | 100000 | 100000 | 100000 |
| IP Level | IP31 | IP31 | IP31 | IP65 | IP65 |
