P0.625/P0.78125/P0.9/P1.2/P1.5 16 : 9 DCOB215: 480×270×28mm/DCOB27: 600×337.5×28mm/DCOB54: 1200×675×28mm, high flatness, Front service design for easy install and disassemble, High definition quality image with excellent visual performance.

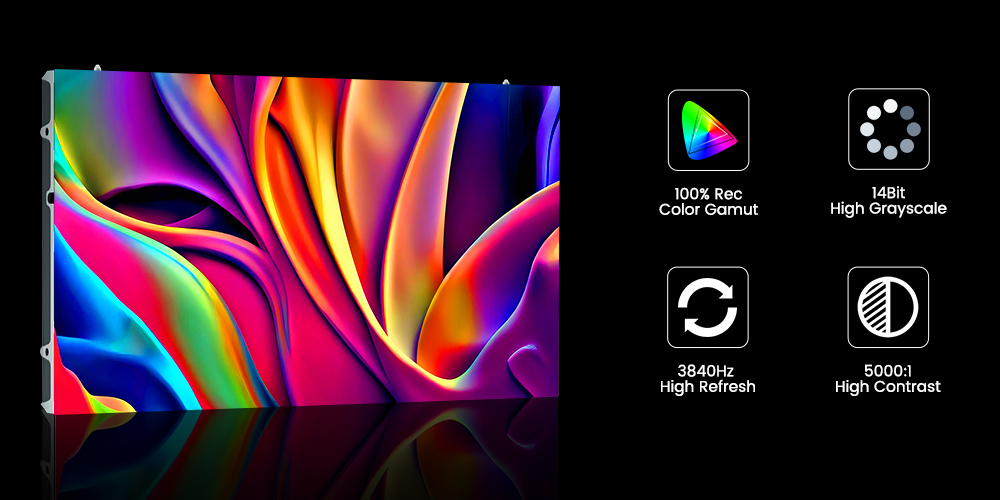

Upto 3840Hz

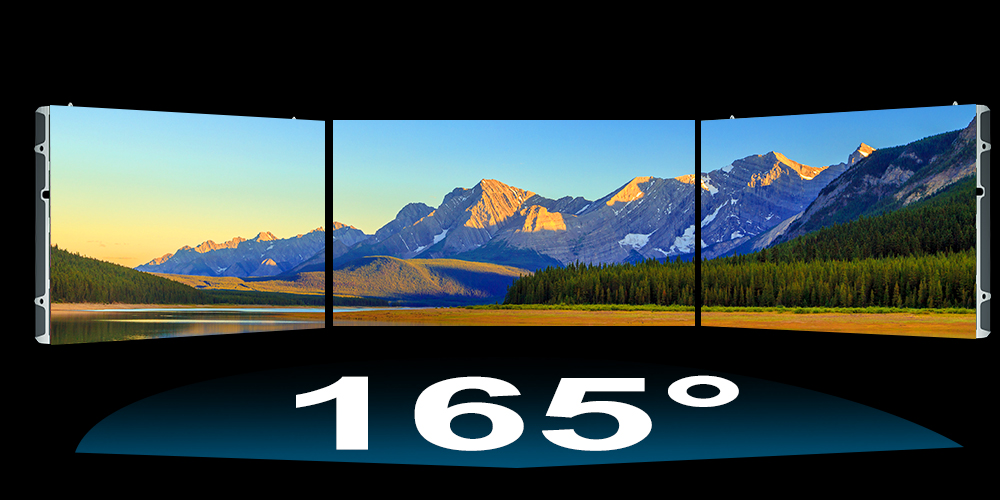

Wide Viewing Angles
Dual Card Backup
High Flexibility
Magnetic Suction Installation

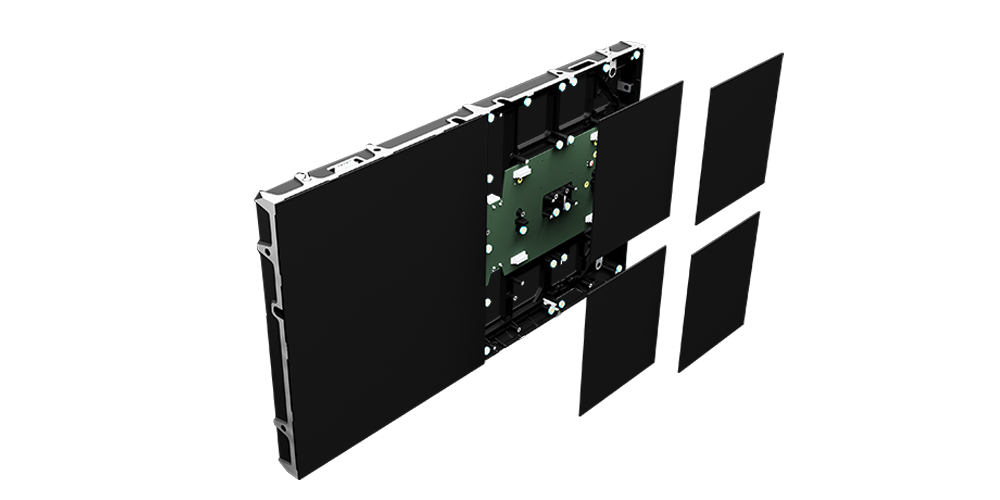

Front Maintenance
Die Cast Aluminum
4.7kg/pc

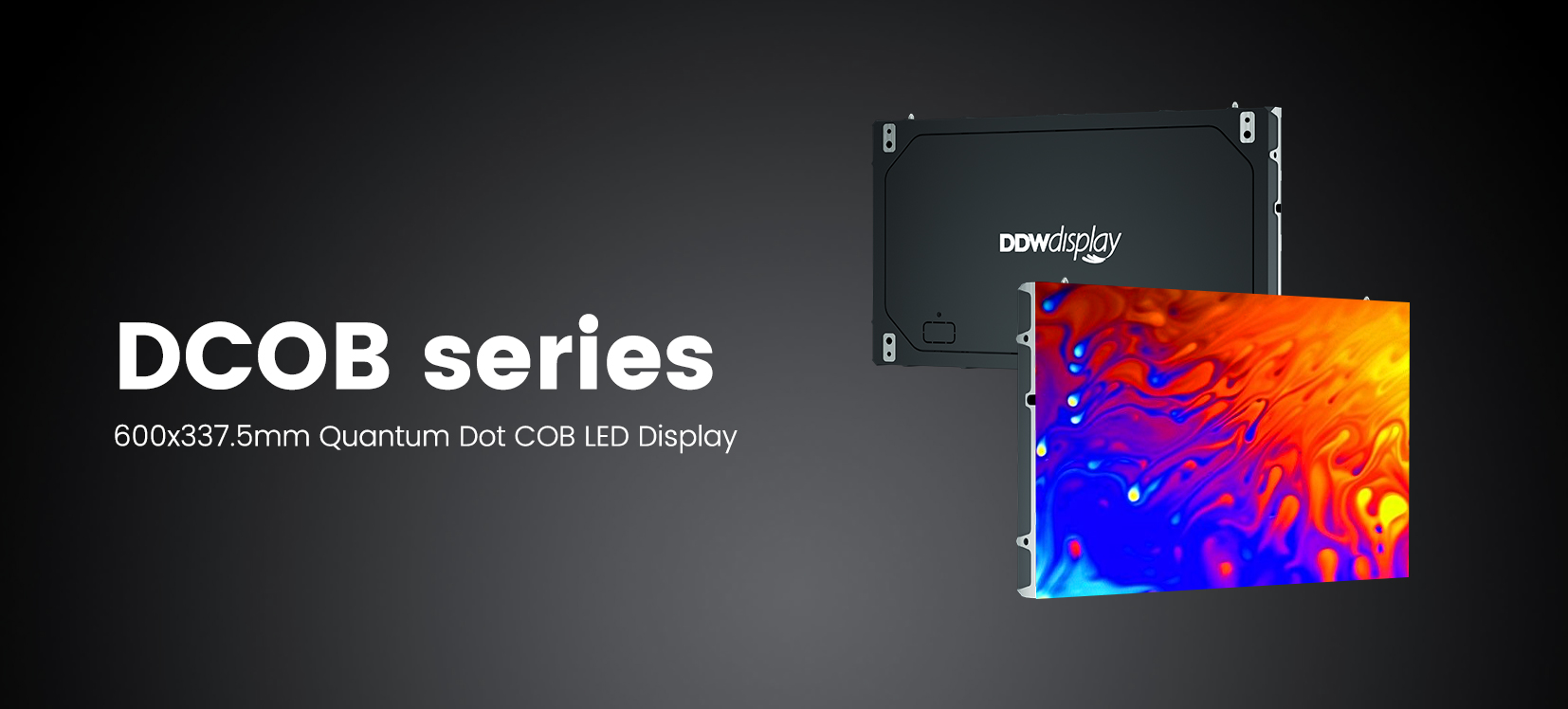

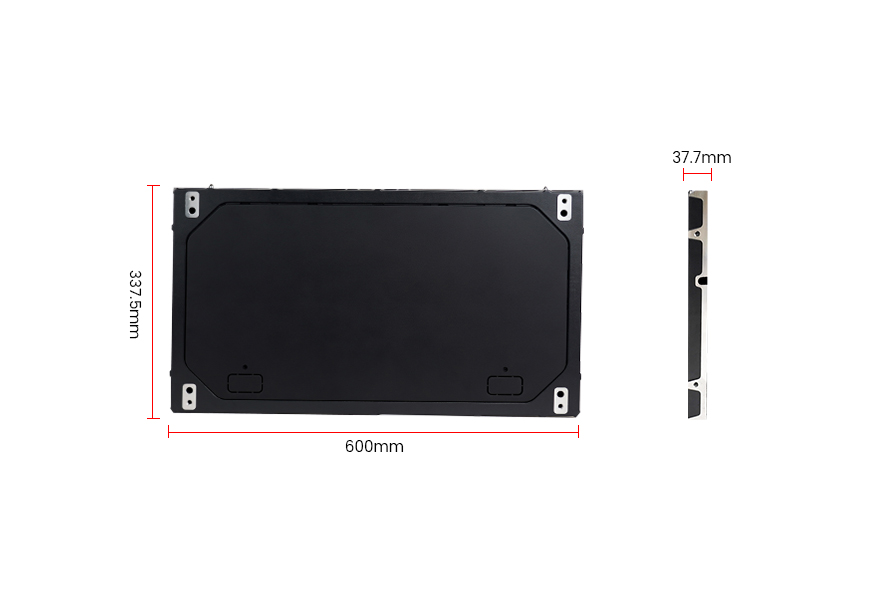

DCOB215: 480×270×28mm/DCOB27: 600×337.5×28mm/DCOB54: 1200×675mm.

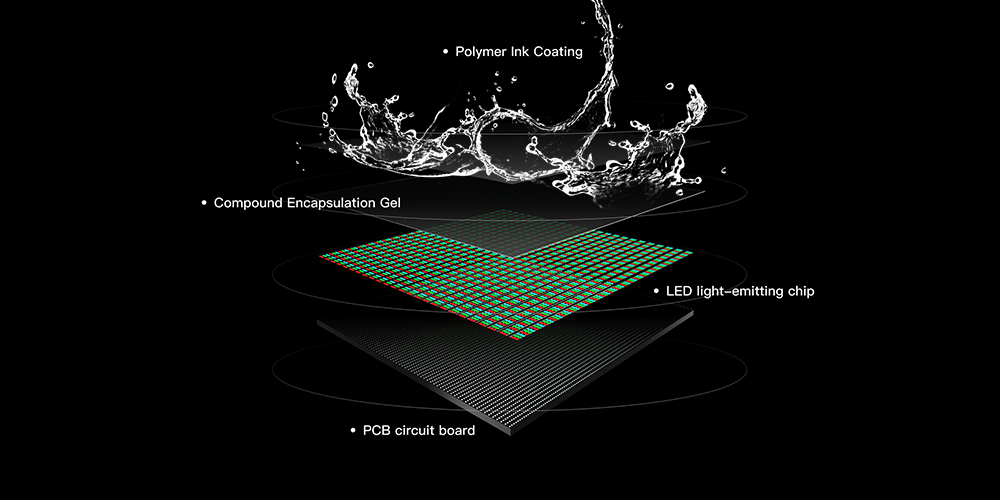

Adopts flip chip COB encapsulation.waterproof dustproof,anti-collision.and Antistatic etc
Cured with epoxy resin to improve the protective performance

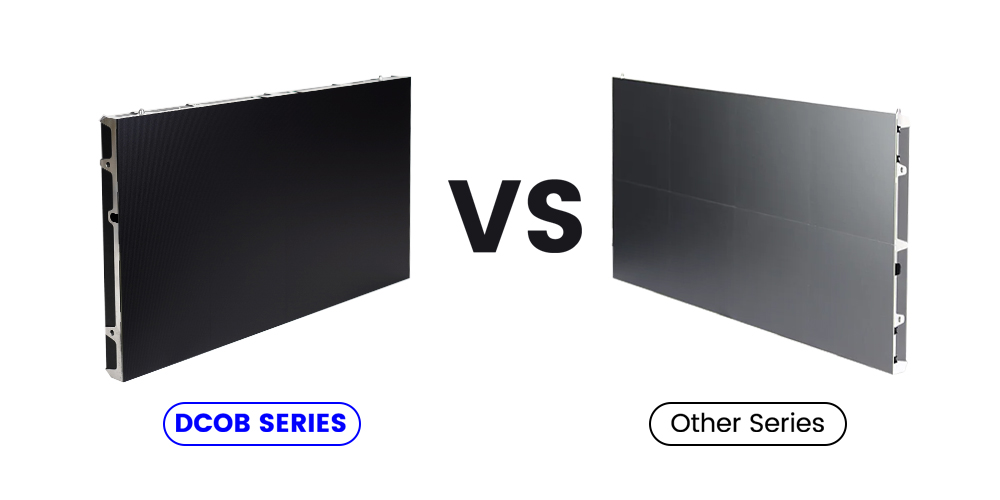

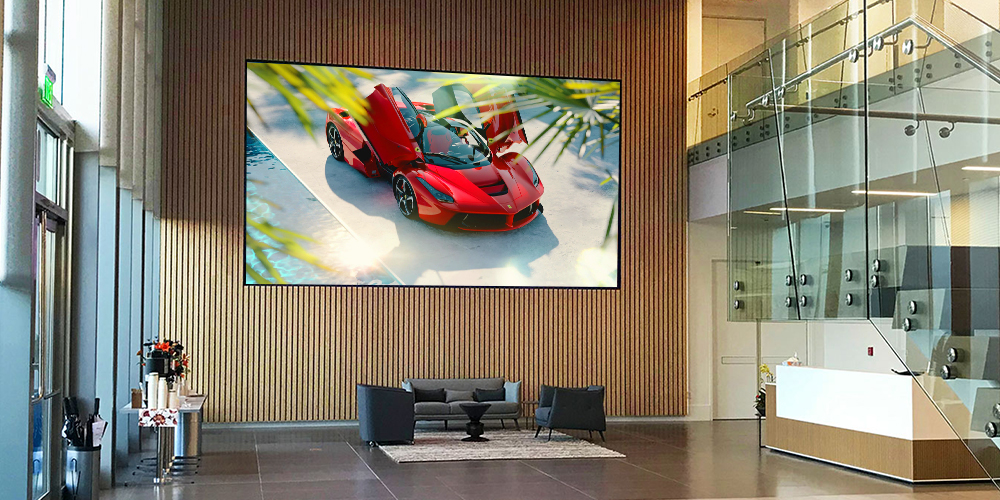

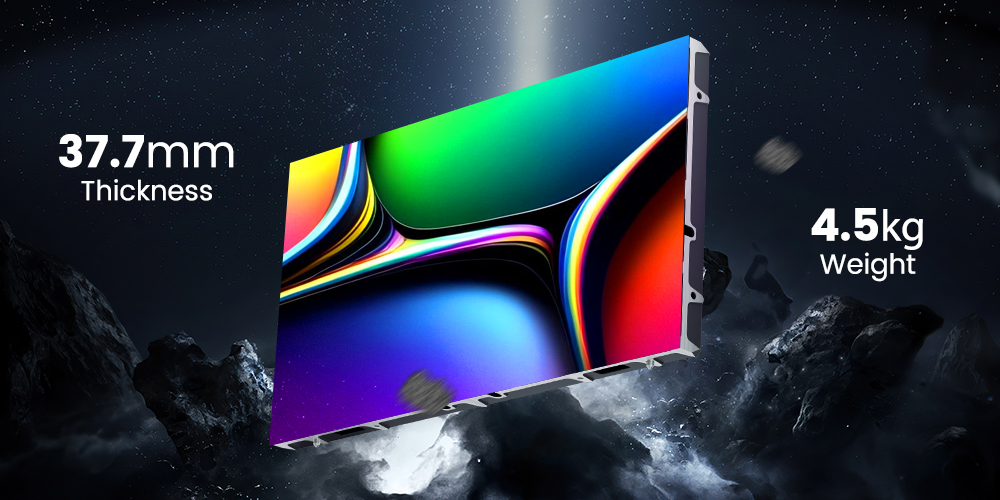

The indoor LED display, with a thickness of only 28mm and a weight of only 3.16KG can effectively reduce the footprint of the device and bring an ample visual experience to the indoor space.

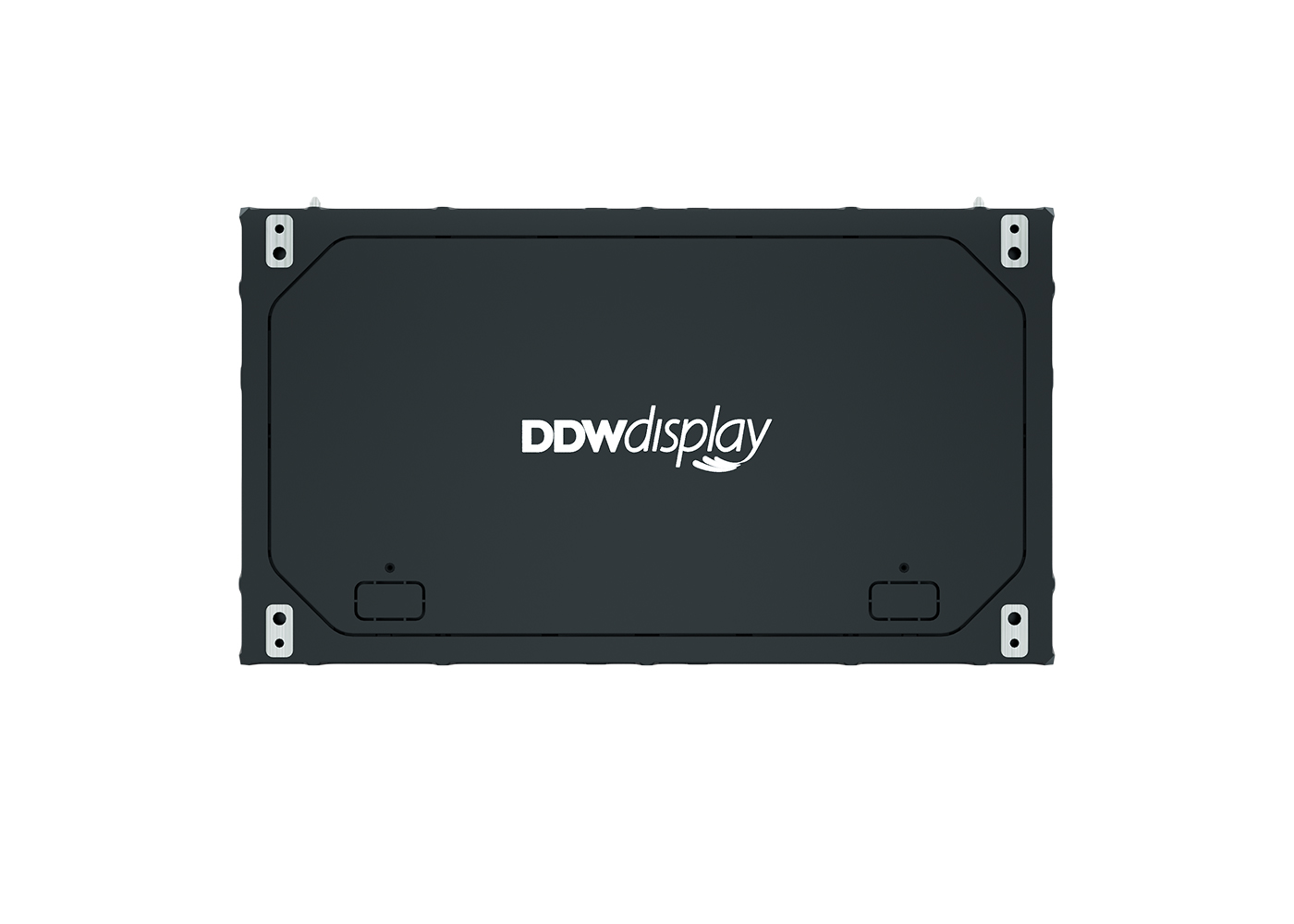

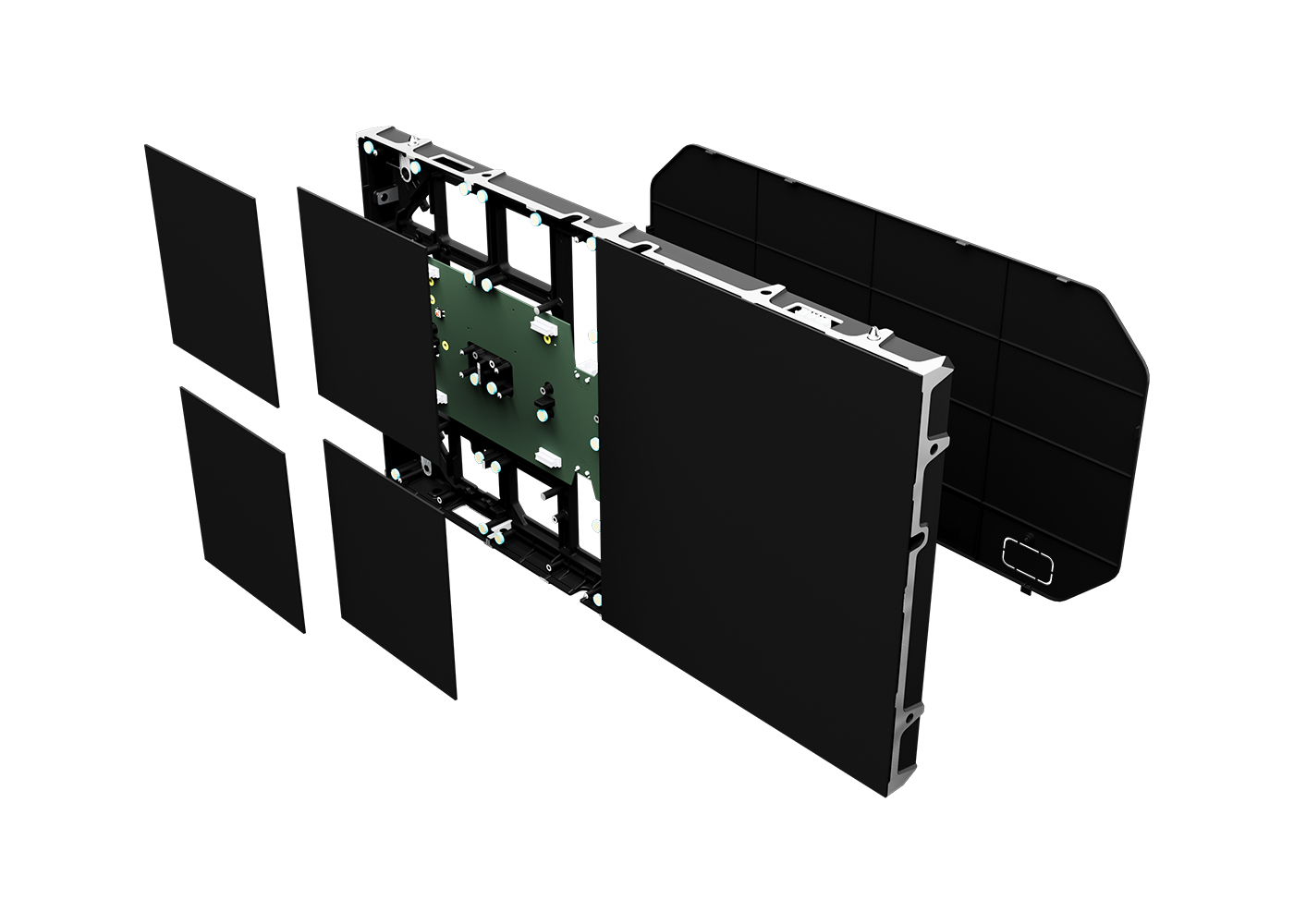

The front service HD LED screen with ultra thin cabinet, meets, the needs of small space,enhancing the vision of the space as well as its' visionary effect. It allows for easy maintenance, saving time and labor on site.

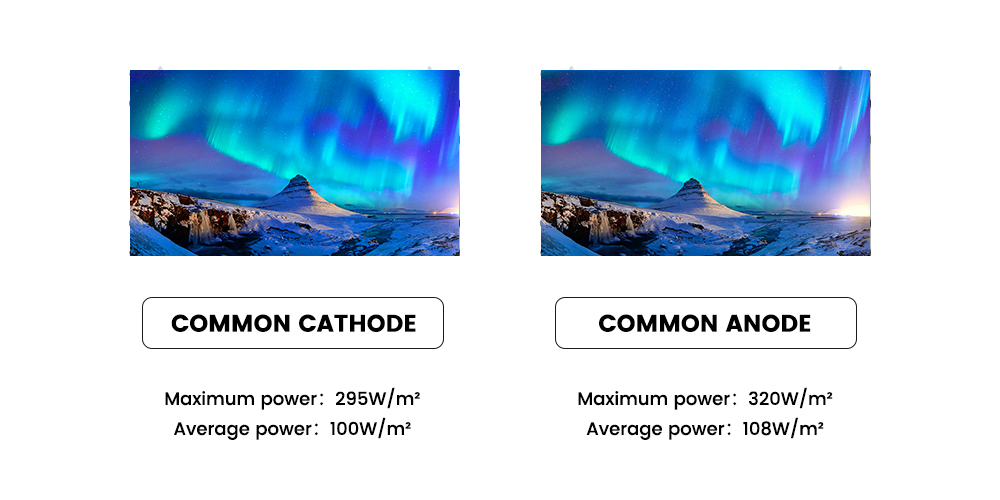

Can effectively save energy and dissipate heat through the flip-chip LED plus common cathode drive.
Power supplies, signal cables and receiving cards are double backup, to ensure supply power normally, it can perfect response to emergencies.

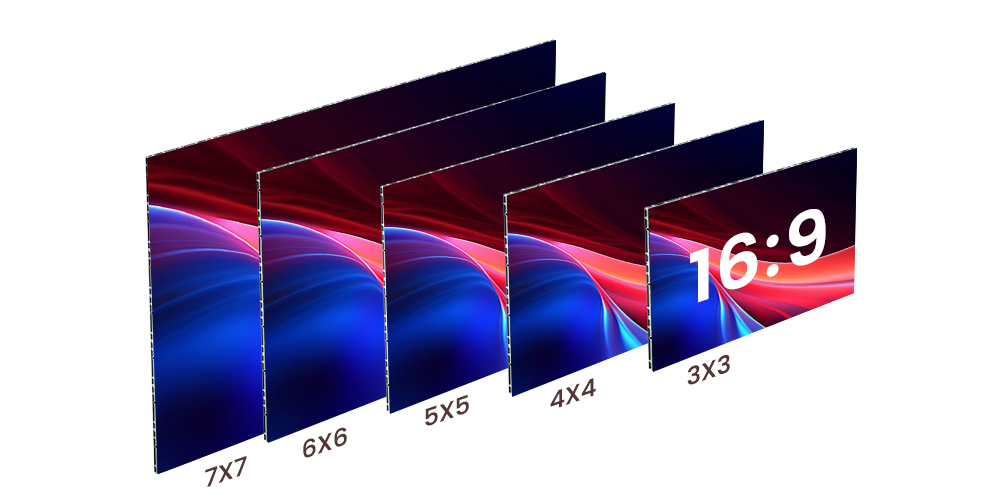

Aspect ratio of 16:9. It achieves standard 2K, 4K, and 8K resolutions and presents the most realistic details.
| Pixel Pitch (mm) | 0.75 | 1 | 1.25 | 1.5 |
| Cabinet Resolution (mm)(W×H) | 640×360 | 480×270 | 384×216 | 320×180 |
| Brightness (nits)(Colour temp 6500K) | Factory delivery standard: 1000 after calibration | |||
| Pixel Density (dots/m²) | 1,777,778 | 1,000,000 | 640,000 | 444,444 |
| Cabinet Size (mm)(W×H×D) | 480×270×28 | |||
| Cabinet Weight (kg) | 3.11 | |||
| Refresh Rate (Hz) | 3840~7680 | |||
| Cabinet Flatness (mm) | ≤0.1 | |||
| Pixel Configuration | COB | |||
| Contrast Ratio | ≤1,000,000:1 , Ultra high contrast ratio | |||
| Gray Scale (bit) | 16 (Control system algorithm processing) | |||
| Max. Power Consumption (W/m²) | ≤600 | ≤500 | ≤450 | |
| Avg. Power Consumption (W/m²) | ≤200 | ≤170 | ≤150 | |
| Pixel Pitch (mm) | 0.78125 | 0.9375 | 1.25 | 1.5625 |
| Cabinet Resolution (mm)(W×H) | 768×432 | 640×360 | 480×270 | 384×216 |
| Brightness (nits)(Colour temp 6500K) | Factory delivery standard: 1000 after calibration | |||
| Pixel Density (dots/m²) | 1,638,400 | 1,137,778 | 640,000 | 409,600 |
| Cabinet Size (mm)(W×H×D) | 600×337.5×28 | |||
| Cabinet Weight (kg) | 4.69 | |||
| Refresh Rate (Hz) | 3840~7680 | |||
| Cabinet Flatness (mm) | ≤0.1 | |||
| Pixel Configuration | COB | |||
| Contrast Ratio | ≤1,000,000:1 , Ultra high contrast ratio | |||
| Gray Scale (bit) | 16 (Control system algorithm processing) | |||
| Max. Power Consumption (W/m²) | ≤600 | ≤500 | ≤450 | |
| Avg. Power Consumption (W/m²) | ≤200 | ≤170 | ≤150 | |
| Pixel Pitch (mm) | 0.6.25 | 0.78 | 0.93 | 1.25 | 1.5625 |
| Cabinet Resolution (mm)(W×H) | 1920x1080 | 1536x864 | 1280x720 | 768x432 | 768x432 |
| Brightness (nits)(Colour temp 6500K) | Factory delivery standard: 1000 after calibration | ||||
| Pixel Density (dots/m²) | 2,560,000 | 1,638,400 | 1,137,776 | 640,000 | 409600 |
| Cabinet Size (mm)(W×H×D) | 1200×675×28 | ||||
| Cabinet Weight (kg) | 17.5 | ||||
| Refresh Rate (Hz) | 3840~7680 | ||||
| Cabinet Flatness (mm) | ≤0.1 | ||||
| Pixel Configuration | COB | ||||
| Contrast Ratio | ≤1,000,000:1 , Ultra high contrast ratio | ||||
| Gray Scale (bit) | 16 (Control system algorithm processing) | ||||
| Max. Power Consumption (W/m²) | ≤600 | ≤500 | ≤450 | ||
| Avg. Power Consumption (W/m²) | ≤240 | ≤200 | ≤180 | ||
