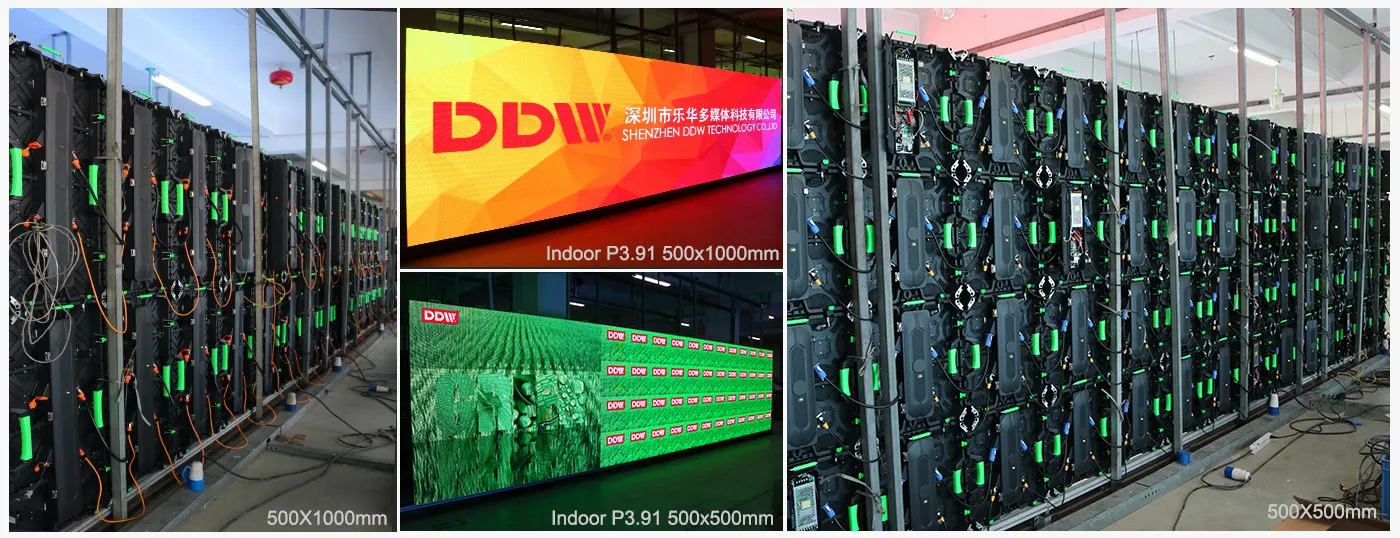

This is the most economical rental led screen with an optional cabinet size of 500mm*500mm, 500mmx1000mm. It’s applicable to most stage rental events, such as stage construction, indoor and outdoor activities of led video wall construction, etc. The 3840Hz high refresh rate brings excellent visual performance to your applications. Flexible locking system and lightweight cabinet ensure quick assembly and disassembly with only one technician.
1920Hz/3840Hz
Wide Viewing Angles
Outdoor IP65 Waterproof
High Scalability
Magnetic Suction Installation
Front Rear Maintenance
Die Cast Aluminum
7kg/12.5kg

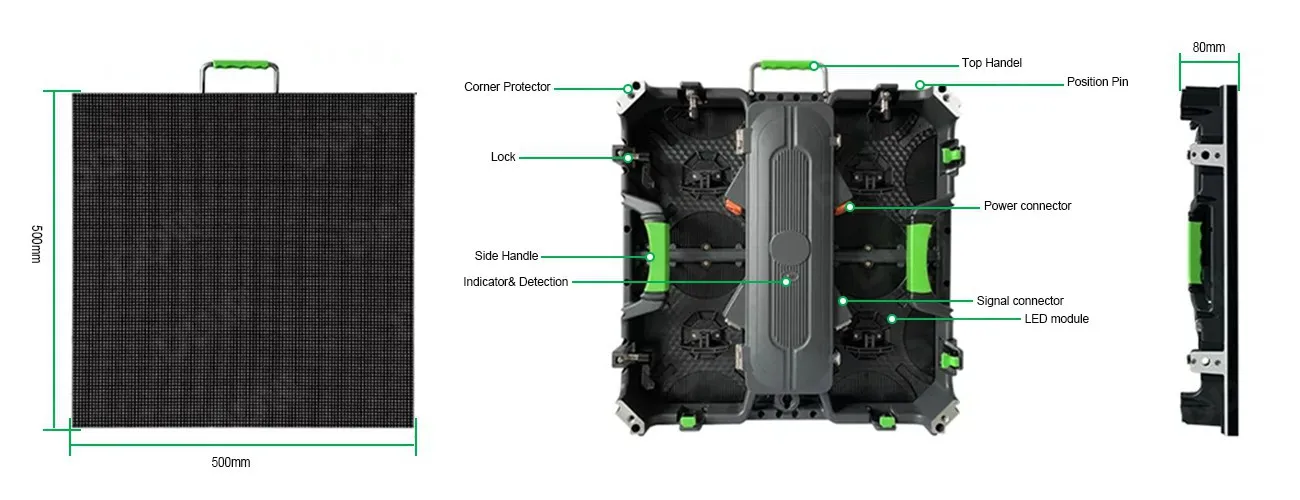

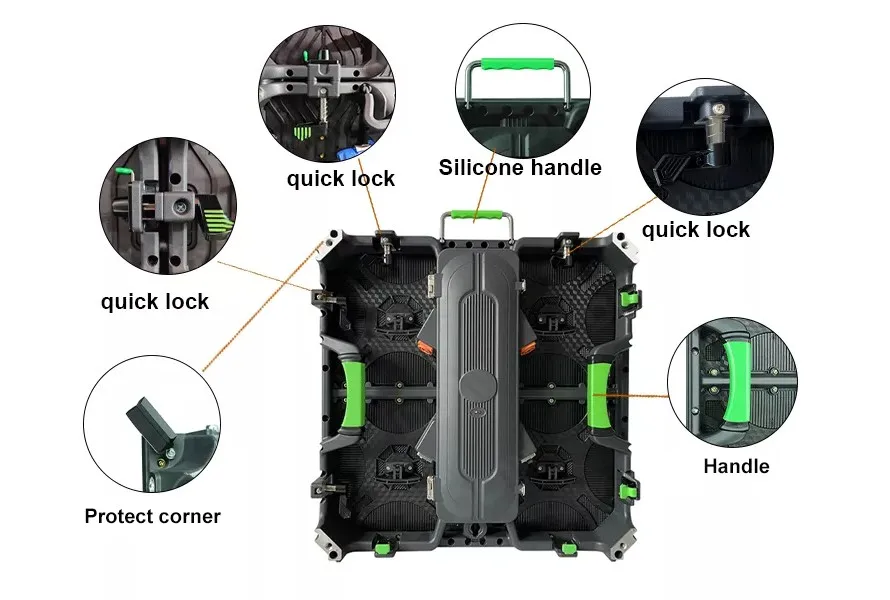

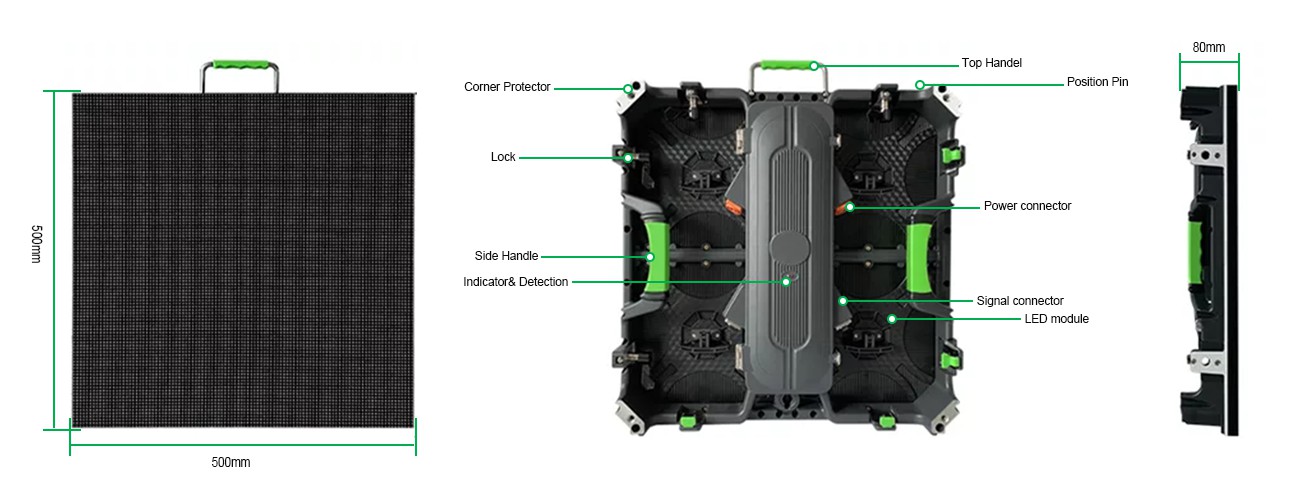

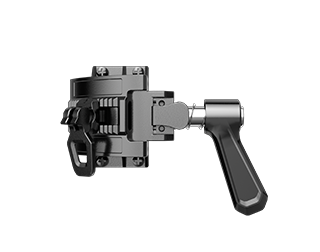

Each cabinet (include all components) is only 7.5 kg , four sets strong fast lock to make assembling to be easier.

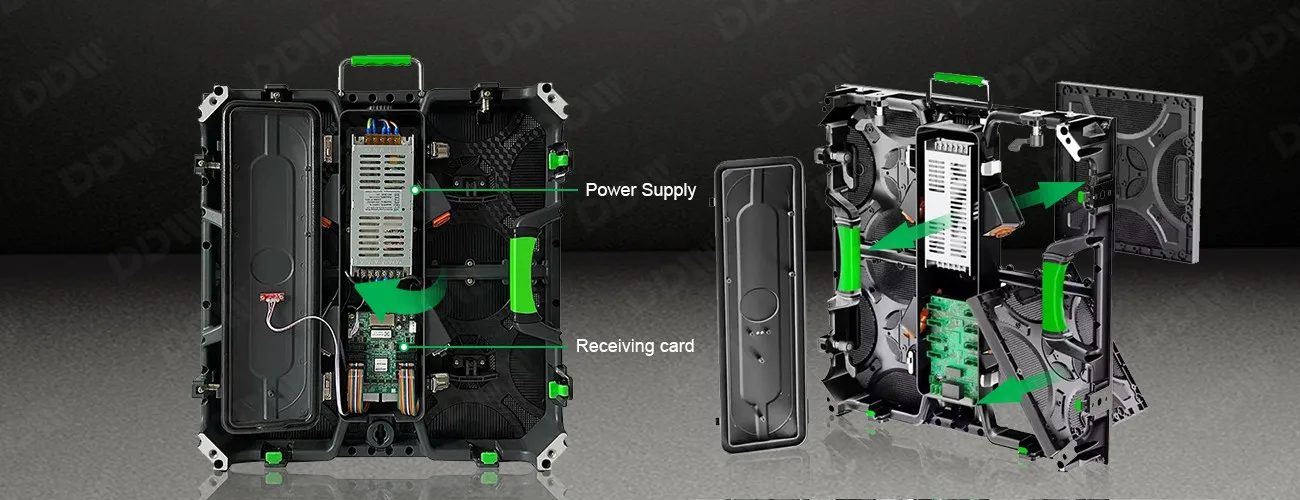

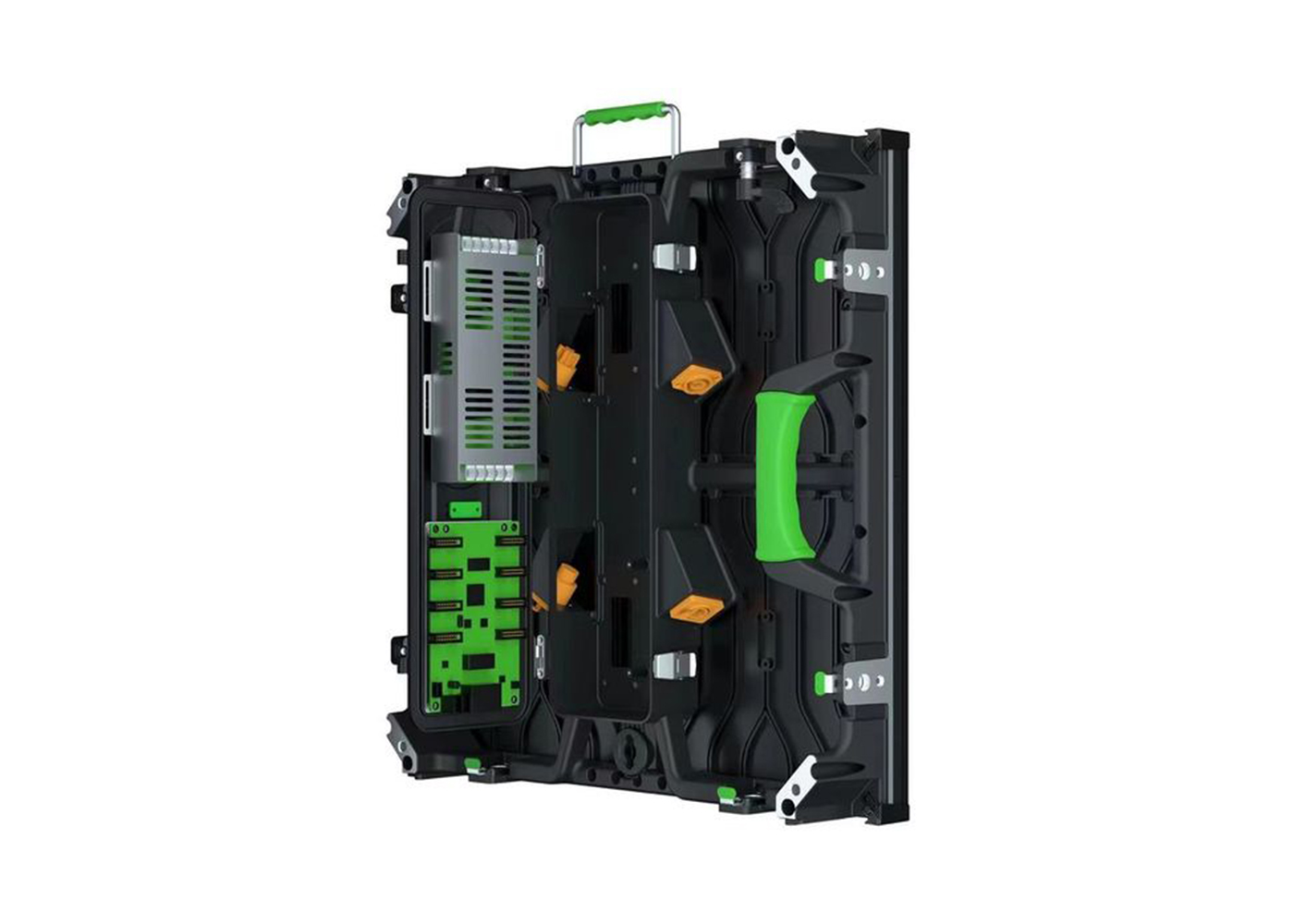

RA-Series is module and receiving card with flat cable,outdoor back access

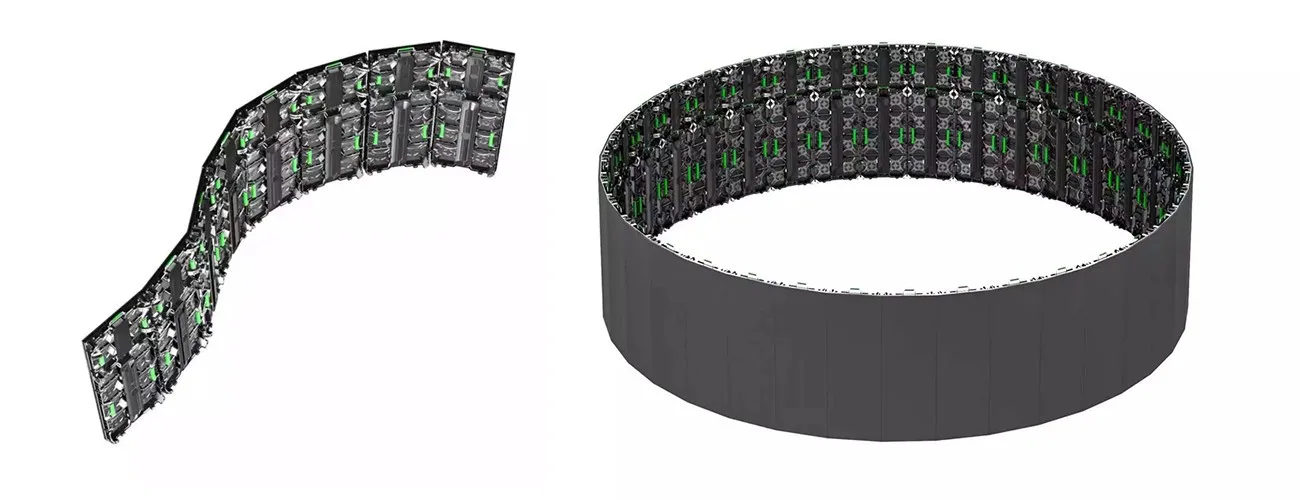

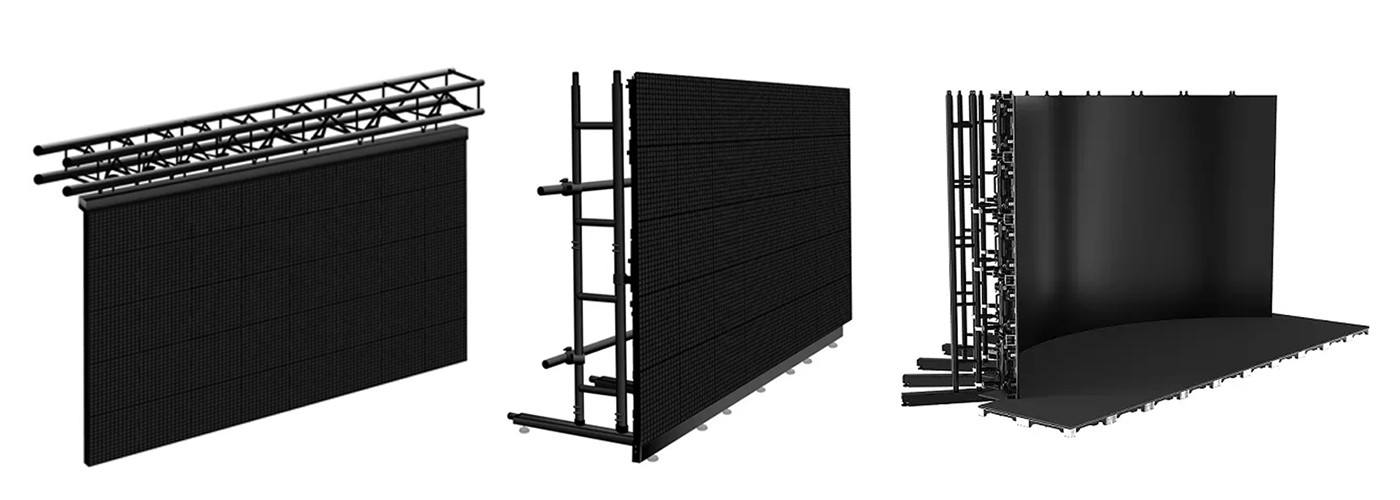

Allows to make curve video wall Inner outer arcs 15°,0°,-15° adjustable,right angle combination and other creative combinations
| Model | P2.604 | P2.976 | P3.91 | P4.81 |
| Module size(mm) | 250x250 | 250×250 | 250×250 | 250×250 |
| Module resolution (dot) | 96x96 | 84×84 | 64×64 | 52×52 |
| Scanning | 1/32S | 1/28S | 1/16S | 1/13S |
| SMD | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Maintenance | Front/Back | Front/Back | Front/Back | Front/Back |

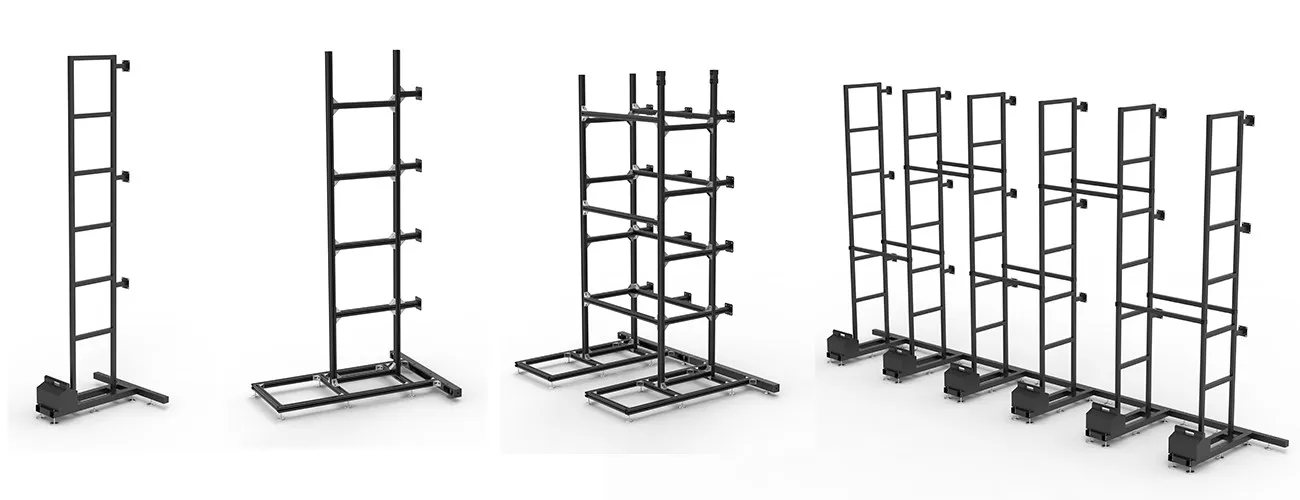

| Installation | Hanging/streching | Hanging/streching | Hanging/streching | Hanging/streching |

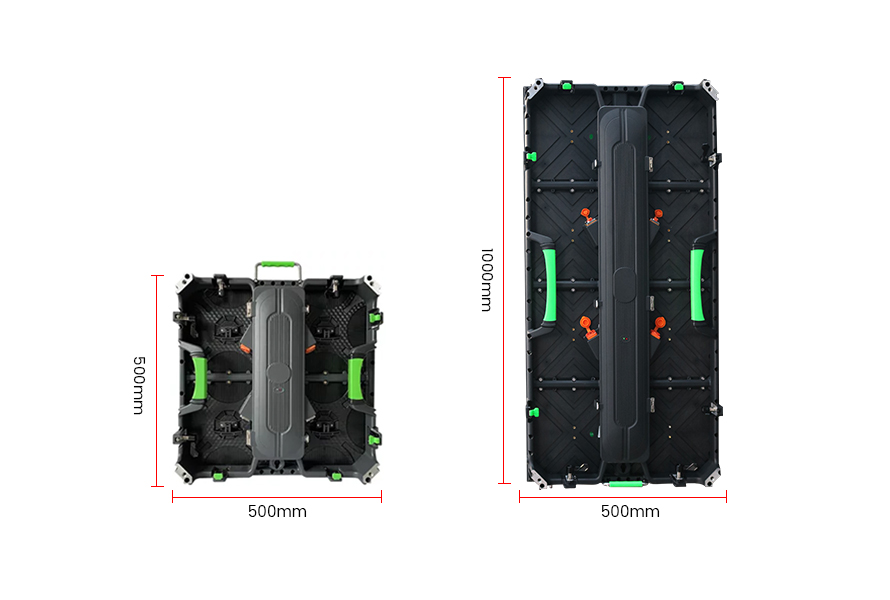

| Cabinet size(mm) | 500x500/500x1000mm | 500×500/500×1000 | 500×500/500×1000 | 500×500/500×1000 |
| Density(dot/m²) | 147456 | 112896 | 65536 | 43264 |
| Brightness(cd/m²) | ≥600 | 800-1200/4500-6500 | 800-1200/4500-6500 | 800-1200/4500-6500 |
| Max. Power Consumption（w） | 800 | 800 | 800 | 800 |
| Average Power Consumption（w） | 400 | 400 | 400 | 400 |
| Cabinet weight (kg) | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 | 7.5/12.5 |
| Cabinet material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| IP rate | IP31 | IP31/IP65 | IP31/IP65 | IP31/IP65 |
| Grayscale | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Refresh rate(hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Frame change frequency | 50/60hz | 50/60hz | 50/60hz | 50/60hz |
| Horizontal viewing angle | >140° | >140° | >140° | >140° |
| Vertical viewing angle | >140° | >140° | >140° | >140° |
| Best viewing distance | >3m | >3m | >4m | >5m |
| Input Voltage | AC110V - AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V |
| Module Max. current | 5.0-7.0 | 5.0-7.0 | 6.0-7.5 | 5.5-7.0 |
| Temperature-operating | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ |
| Humidity-operating | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Life span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| MTBF (H) | >10,000 | >10,000 | >10,000 | >10,000 |
This is a rental screen with excellent details. Optional cabinet size: 500mm*500mm and 500mm*1000mm. The main feature is to support the front maintenance of the module, as well as the design of the pluggable hub board and the processing of various details. It supports flexible construction methods such as arc and right-angle installation, making construction and maintenance more convenient. It is suitable for rental activities that have high requirements for installation timeliness and maintenance convenience, such as virtual video capture (XR), high-end stage construction, and LED screen construction for indoor and outdoor activities, etc. Up to 7680Hz refresh rate and gray scale bring the best visual performance to your application. A flexible locking system and lightweight cabinet ensure quick assembly and disassembly with only one technician.
