FI series Indoor LED screen

FI series is the most cost-effective LED display, which is suitable for indoor fixed installation. Its main feature is that the led module is designed with magnets. The panel is light, and the distance between the surface and the wall is only 110mm. No cooling system is required. When installing, just stick the module on the surface to the pre installed framework. The installation method is very convenient and light. If maintenance is required, just remove the module at the front to facilitate maintenance.

Features

3840 Hz

Wide Viewing Angles

High Strength Structure

Magnetic Suction Installation

Common Cathode Design

Front Rear Maintenance

Quality SPCC Cabinet

600-1000nits Brightness

Advantage

FI series Indoor LED screen
Feature Description
  • - Iron cabinet, convenient and simple design
  • - 3840Hz High refresh
  • - High refresh rate, the screen playback is clearer and smoother
  • - Simple structure,lron cabinet design, light weight
  • - Easy installation with connector design Saving about 1/3 installation time

Video

FI series Indoor LED screen

Parameters

High Quality Frame

First class design for iron cabinet, each cabinet (include all components) has four sets strong fast lock to make assembling to be easier.

FI series Indoor LED screen

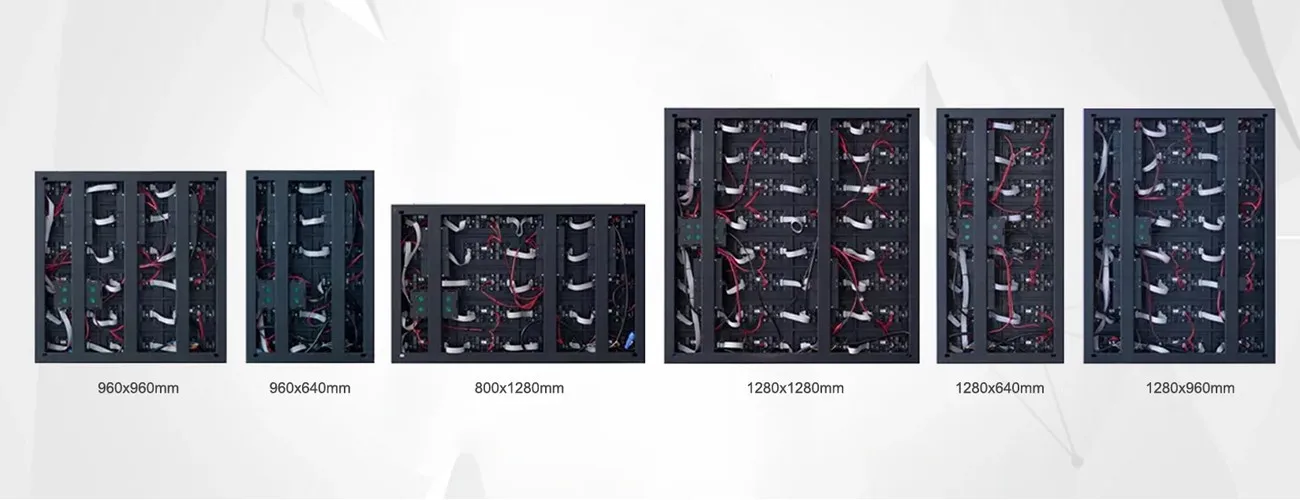

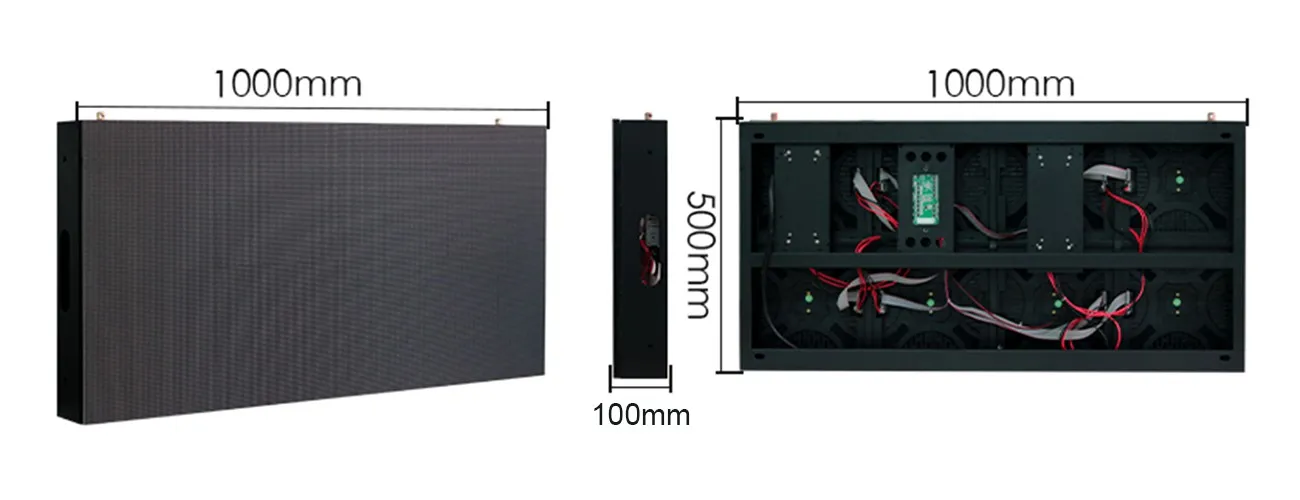

Cabinet Size Customized

Flexible cabinet size:960*640/960*960/800*1280/1280*500/1280*960/1280*1280mm

FI series Indoor LED screen

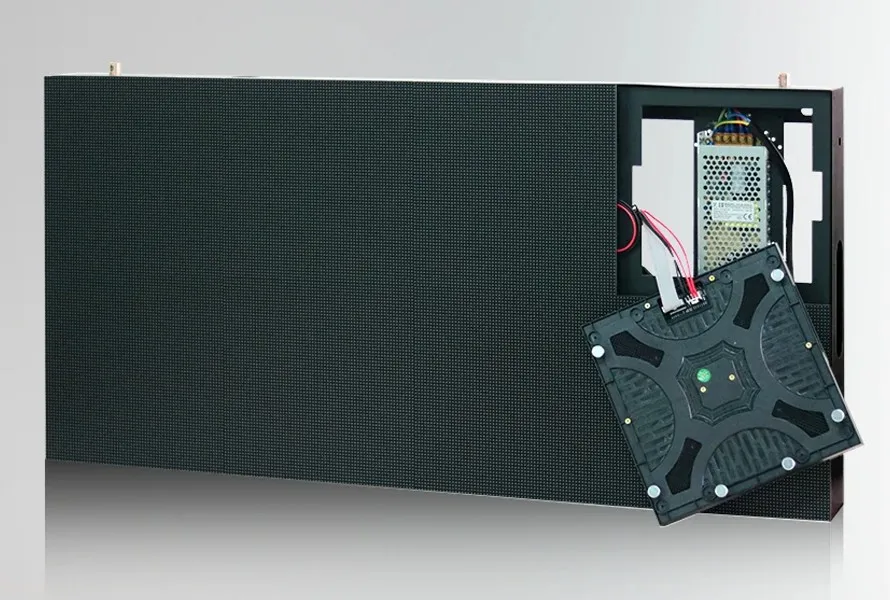

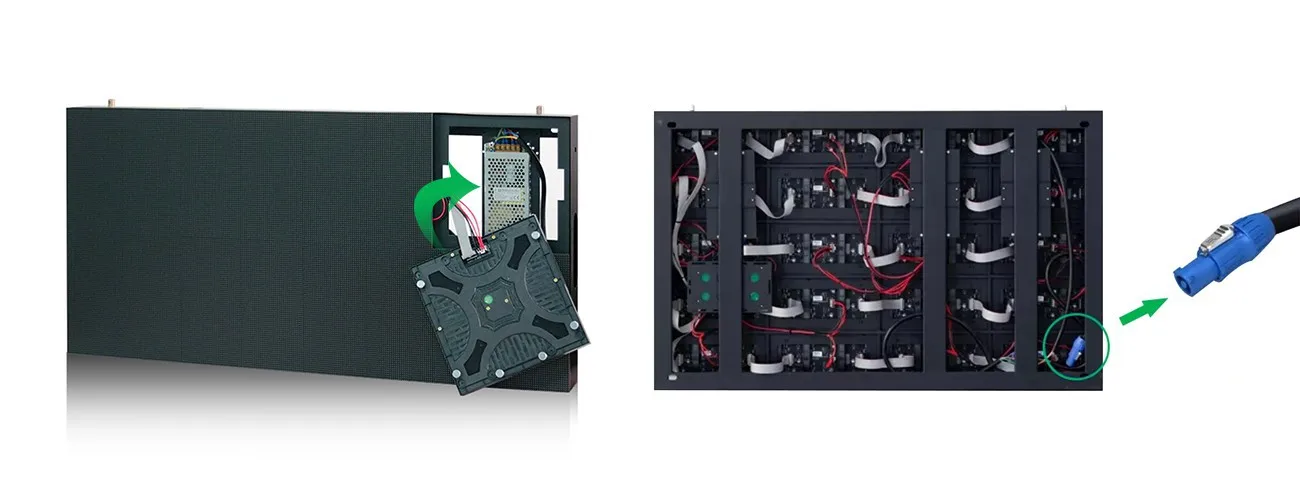

Front maintenance

The front maintenance, installation and maintenance of magnetic suction module are convenient,Easy installation with connector design Saving about 1/3 installation time

FI series Indoor LED screen

Installation

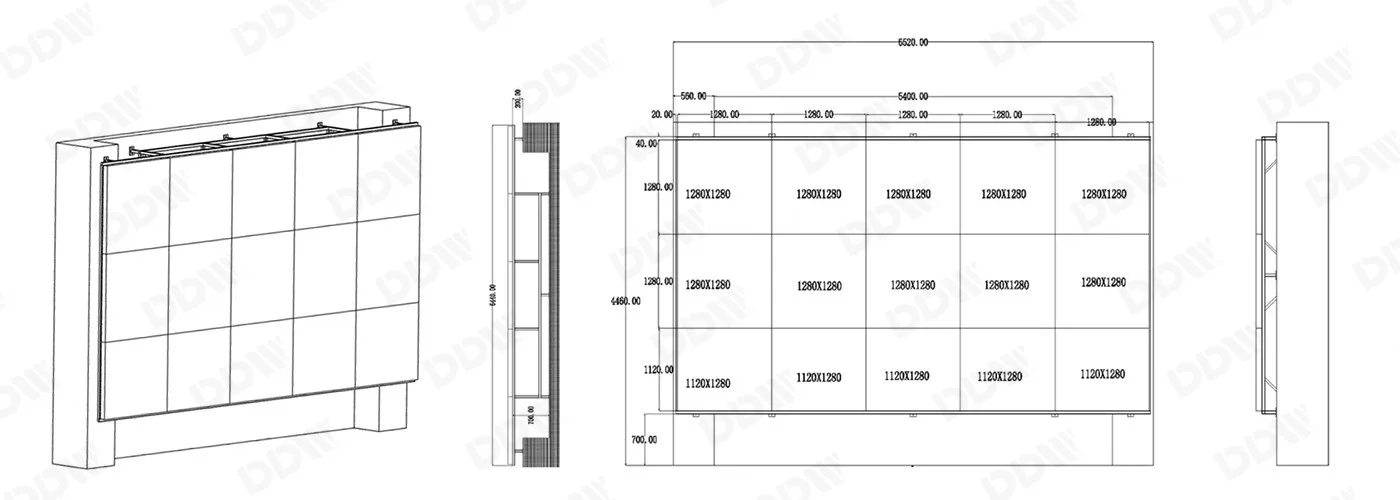

Installation Diagram
FI series Indoor LED screen

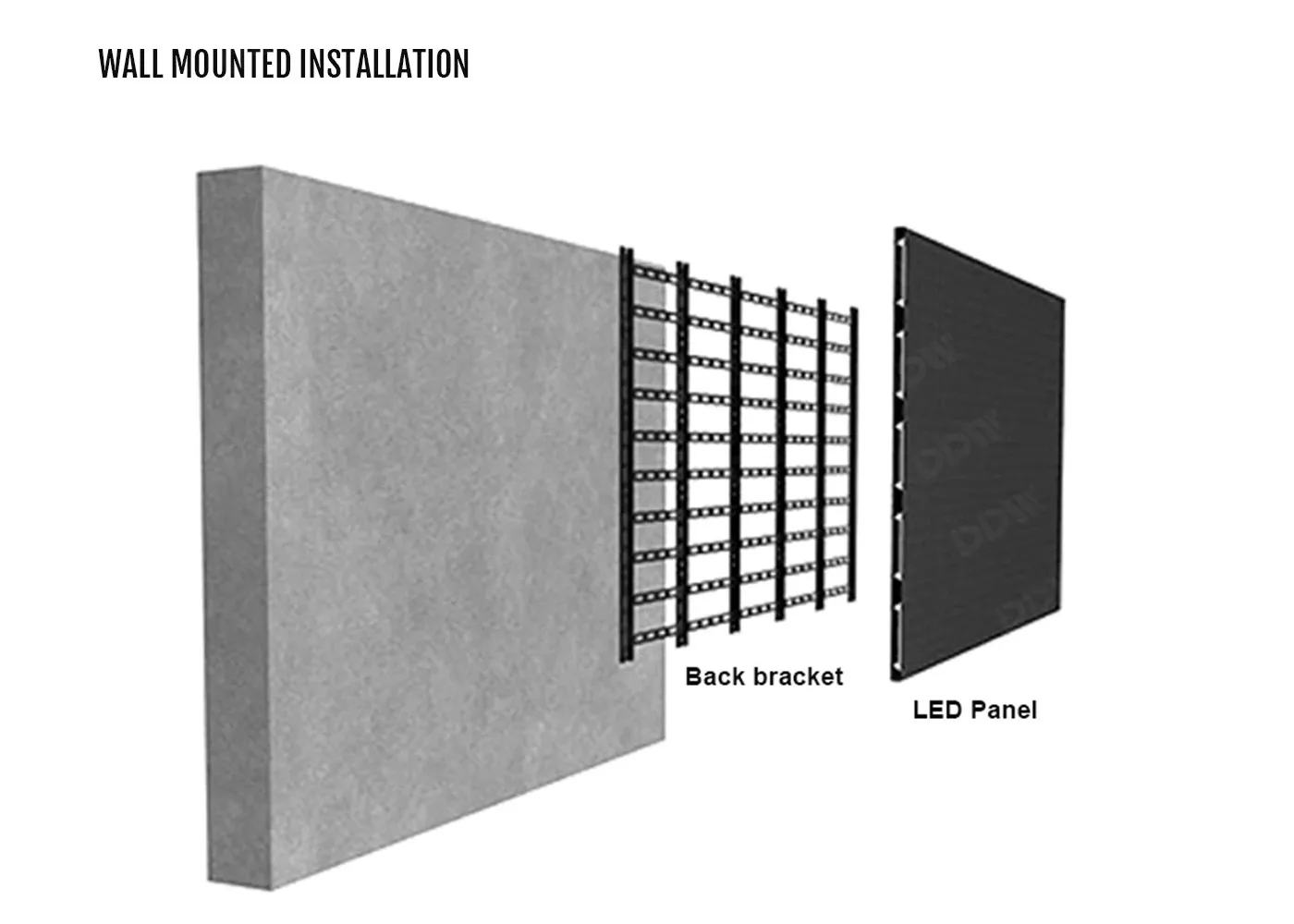

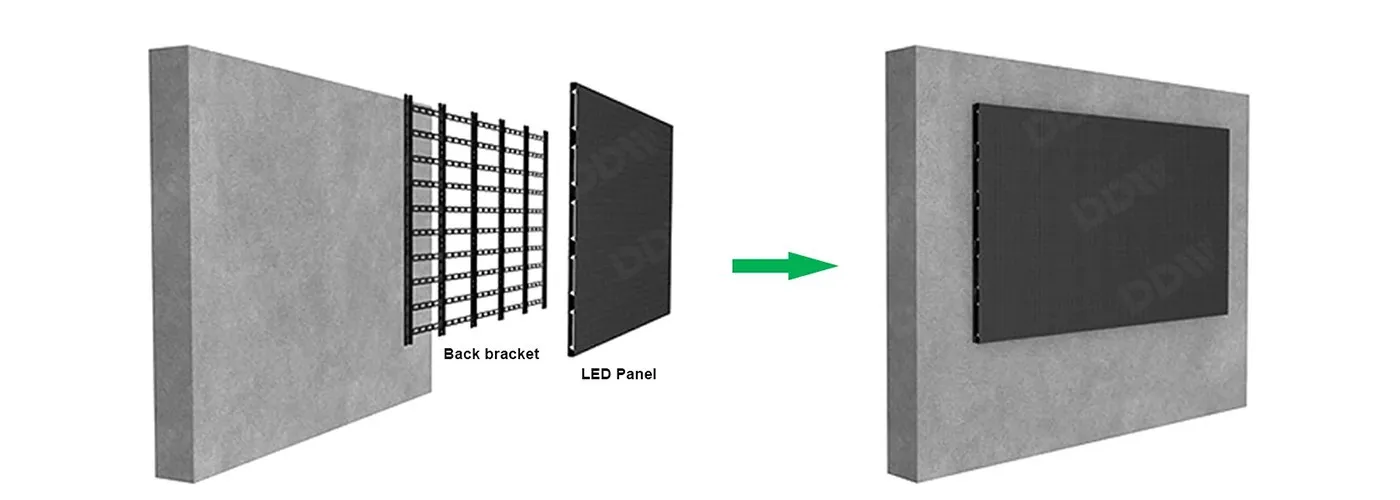

Wall-mounted installation
FI series Indoor LED screen

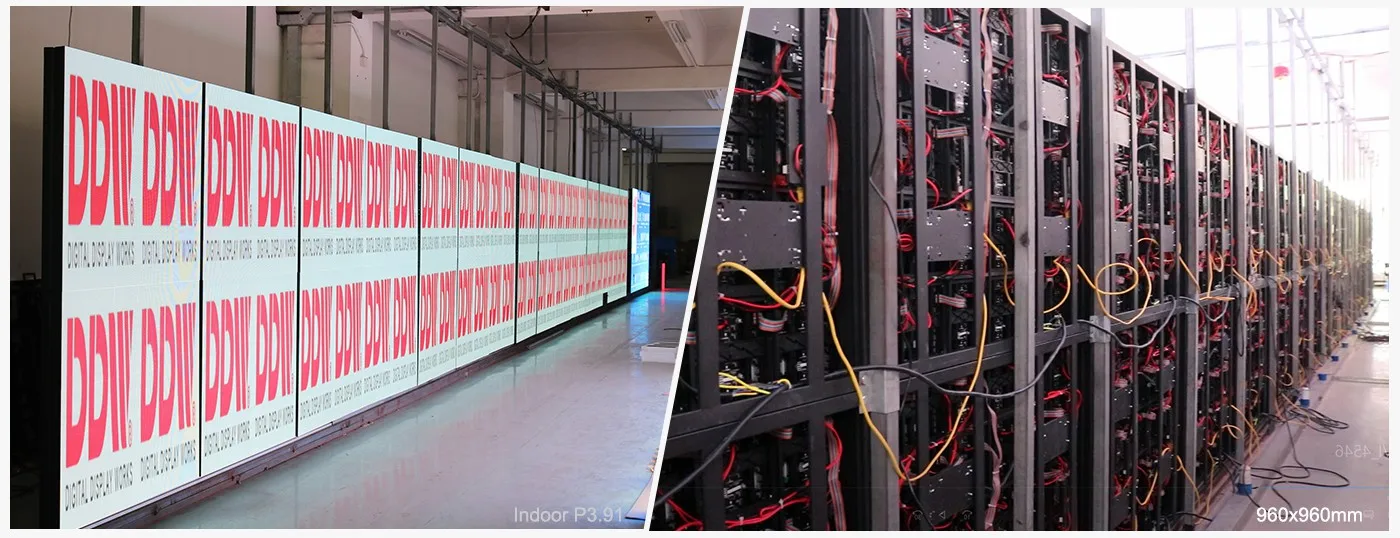

Aging test
FI series Indoor LED screen

Specifications

Module size(mm) 320×160 320×160 250x250 192×192 250x250 320×160 250x250 192×192 320×160
Module resolution (dot) 160×80 128×256 84x84 64×64 64x64 64×32 52x52 32×32 64X32
Scanning 1/40S 1/32S 1/28S 1/32S 1/16S 1/20S 1/13S 1/16S 1/16S
SMD 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B
Maintenance Front Front Front Front Front Front Front Front Front
Installation Front/Back Front/Back Front/Back Front/Back Front/Back Front/Back Front/Back Front/Back Front/Back
Cabinet size(mm) 960×960 960×960 960x960 960×960 960x960 960×960 960x960 960×960 960×960
Density(dot/㎡) 250000 160000 112896 111111 66410 62500 43222 40000 40000
Brightness(cd/㎡) 800 800 800 800 800 800 800 800 800
Max. Power Consumption 600w 600w 600W 600w 600W 600w 600W 600w 600w
Average Power Consumption 200w 200w 200W 200w 200W 200w 200W 200w 200w
Cabinet weight (kg/m²) 20kg 20kg 13kg 20kg 13kg 20kg 13kg 20kg 20kg
Cabinet material Iron Iron Iron Iron Iron Iron Iron Iron Iron
IP rate IP31 IP31 IP 31 IP31 IP 31 IP31 IP 31 IP31 IP31
Grayscale 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1
Refresh rate(hz) 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Frame change frequency 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz
Horizontal viewing angle >140° >140° >140° >140° >140° >140° >140° >140° >140°
Vertical viewing angle >140° >140° >140° >140° >140° >140° >140° >140° >140°
Best viewing distance >2m >2.5m >3m >3m >4m >4m >4m >5m >6m
Input Voltage AC110V – AC220V AC110V – AC220V AC110V - AC220V AC110V – AC220V AC110V - AC220V AC110V – AC220V AC110V - AC220V AC110V – AC220V AC110V – AC220V
Module Max. current 3.5-4.5 4.0-5.0 2.5-3.5 2.5-3.5 3.0-4.5 3.0-4.5 3.0-4.5 3.0-3.5 3.0-3.5
Temperature-operating ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃  ﹣10℃~60℃ ﹣10℃~60℃  ﹣10℃~60℃ ﹣10℃~60℃  ﹣10℃~60℃ ﹣10℃~60℃
Humidity-operating 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90%
Life span (H) ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000
MTBF (H) >10,000 >10,000 >10,000 >10,000 >10,000 >10,000 >10,000 >10,000 >10,000

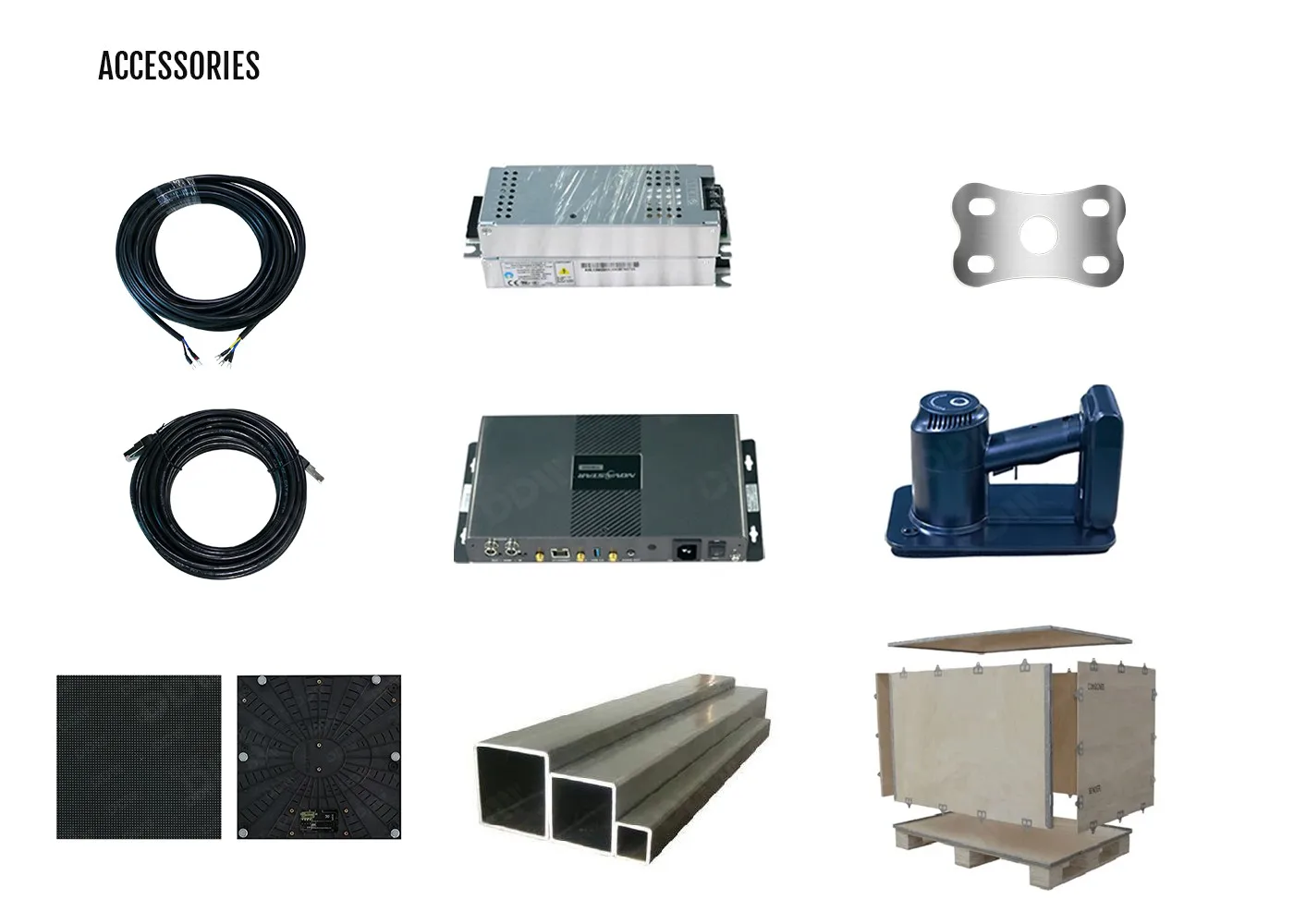

Accessories

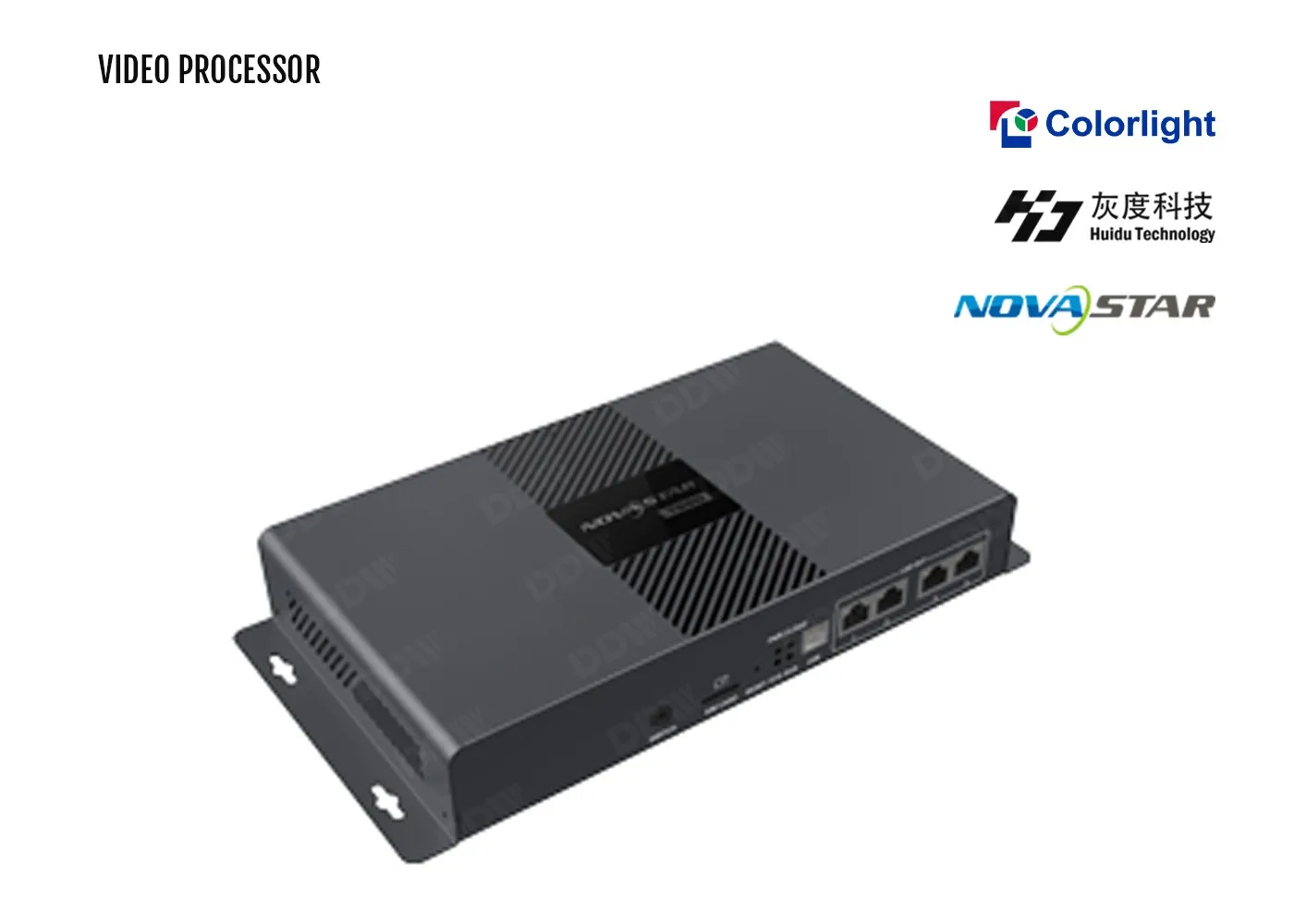

Sending box
Sending box
Power Supply
Power Supply
Pickup card
Pickup card
Outdoor Movable power cabinet
Connecting piece
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Front maintenance tools

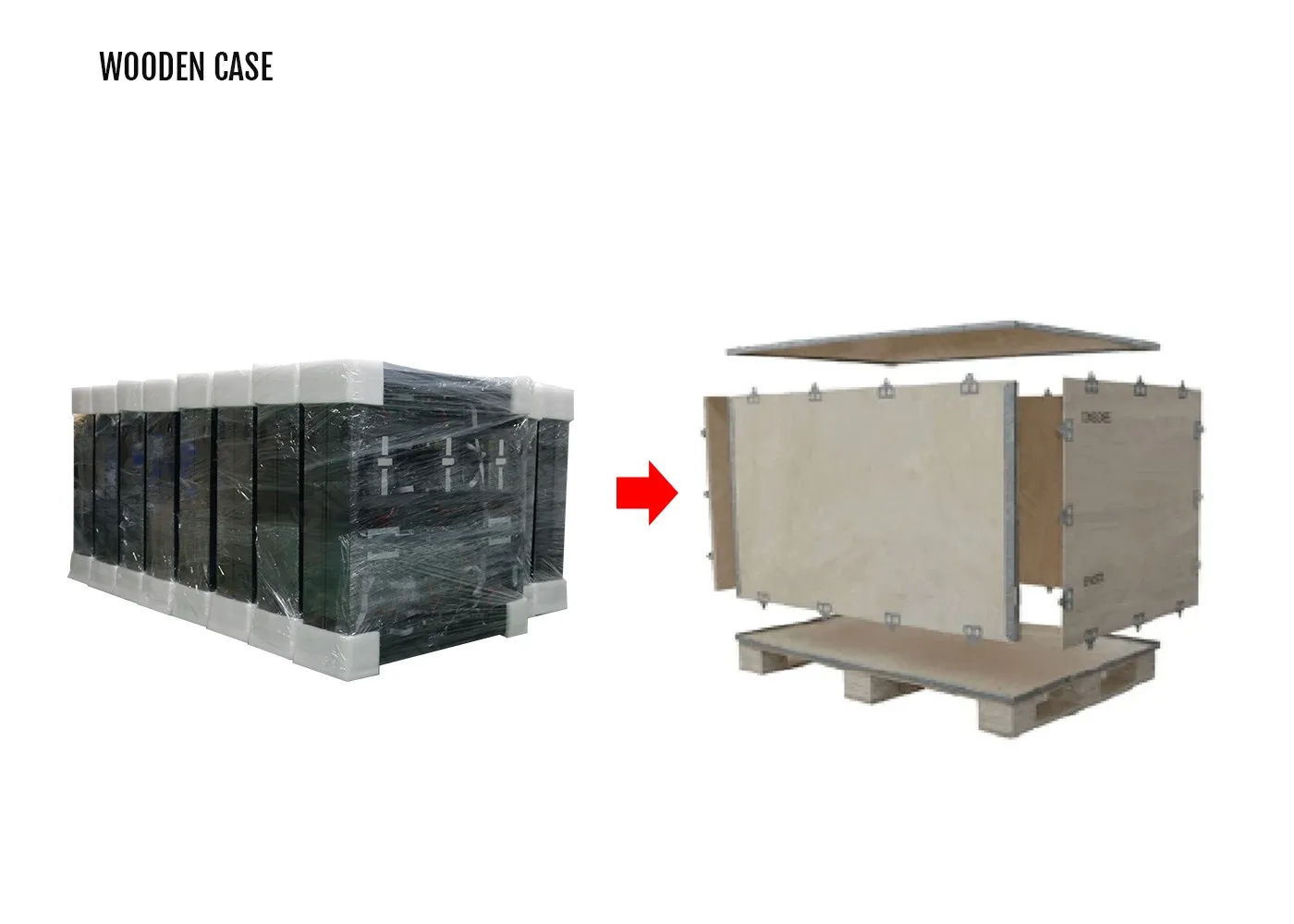

Wooden case packing
LED module
