LED Display Screen Repair Method Common Fault Handling

Reading volume: 406

Release time :2023-04-27

Estimated reading time: 1 minute

Subscription:50

Introduction

LED display failure and cause analysis

LED display failure and cause analysis

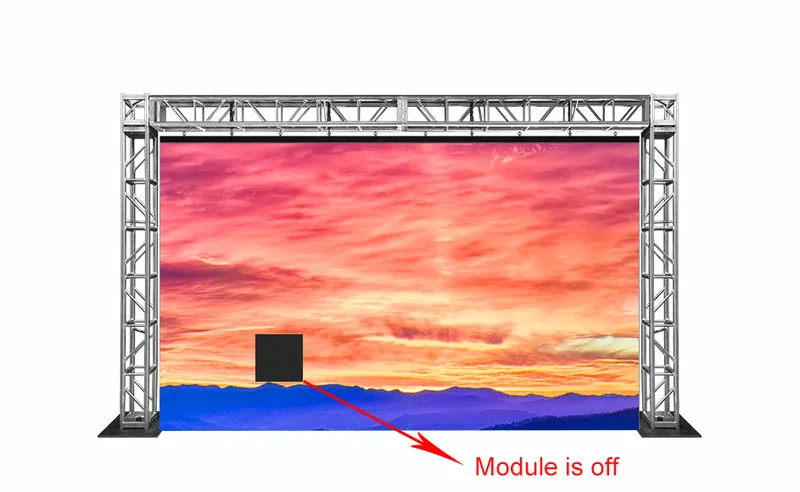

Symptom 1: One unit board does not light up

LED display failure and cause analysis

Causes of failure:

1. There is no +5v;

2. The data line is broken.

Fault analysis and treatment:

1. The power supply is broken, replace the power supply;

2. Replace the data cable.

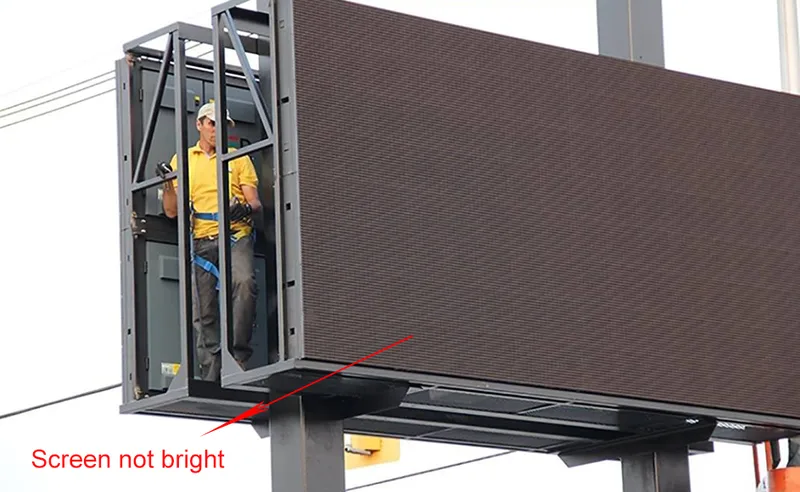

Symptom 2: Full screen is not bright

LED display failure and cause analysis



Causes of failure:

1. The main controller does not have +5v;

2. The whole screen does not have AC power;

 3. The computer settings are incorrect.

Fault analysis and treatment:

1. The power supply is broken, replace the power supply;

2. Check the power supply circuit;

3.  Reset the computer

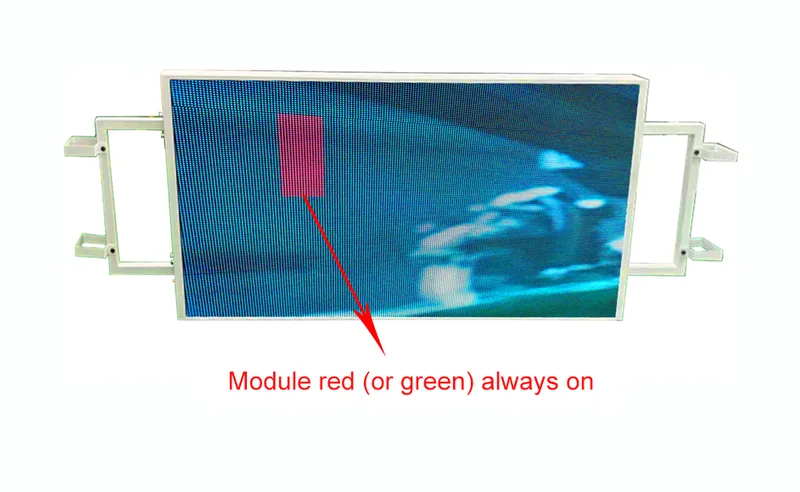

Symptom 3: A certain unit is always on red (or green)

LED display failure and cause analysis



Causes of failure:

1. There is a problem with the data cable connecting this unit;

2 There is a problem with the corresponding distribution board;

3. A certain unit board is faulty.

Fault analysis and treatment:

1. Reinsert the data cable and pay attention to the direction;

2. Replace a data cable;

3. Replace the distribution board;

4. Replace the unit board.

Symptom 4: Abnormal communication

LED display failure and cause analysis



Cause of failure:

1. Whether the software setting is correct;

2. Whether the communication line is connected;

3. There is a problem with MAX323

Fault analysis and treatment:

1. Restart the computer and turn on the monitor again;

2. Re-set;

3. Measure with a digital meter;

 4. Replace the MAX23 chip

Symptom 5: The entire screen is lit every few lines horizontally, and is not lit every few lines

Cause of failure: The network is not plugged in properly.

Fault Analysis and Handling: Plug in the Network

Accessory location

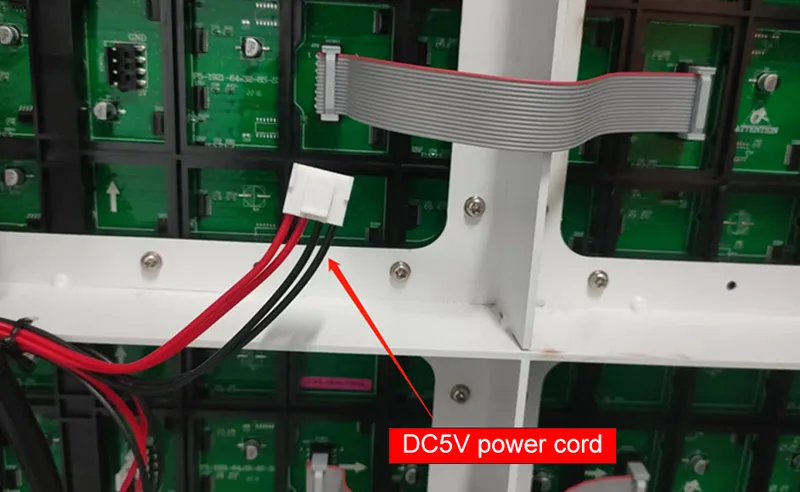

1. DC 5V line

LED display failure and cause analysis

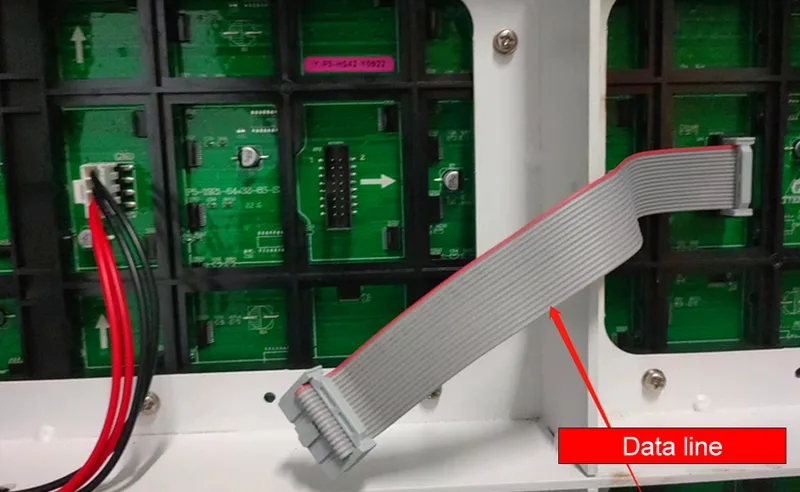

2.Data cable

LED display failure and cause analysis

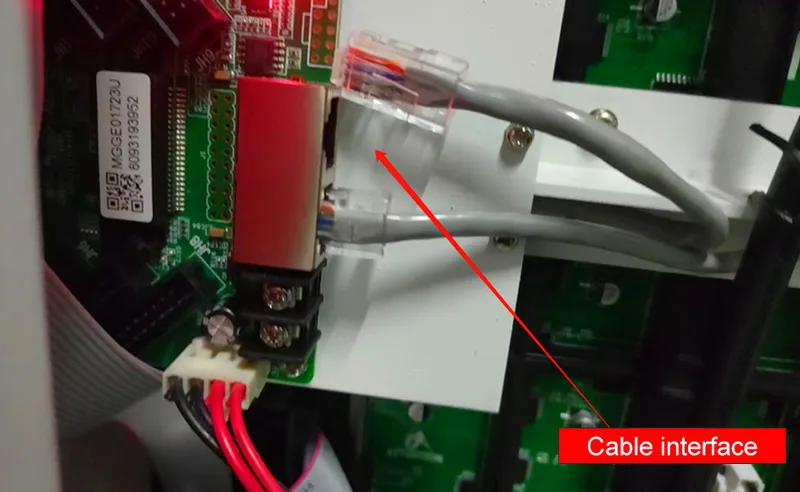

3. Network interface

LED display failure and cause analysis
