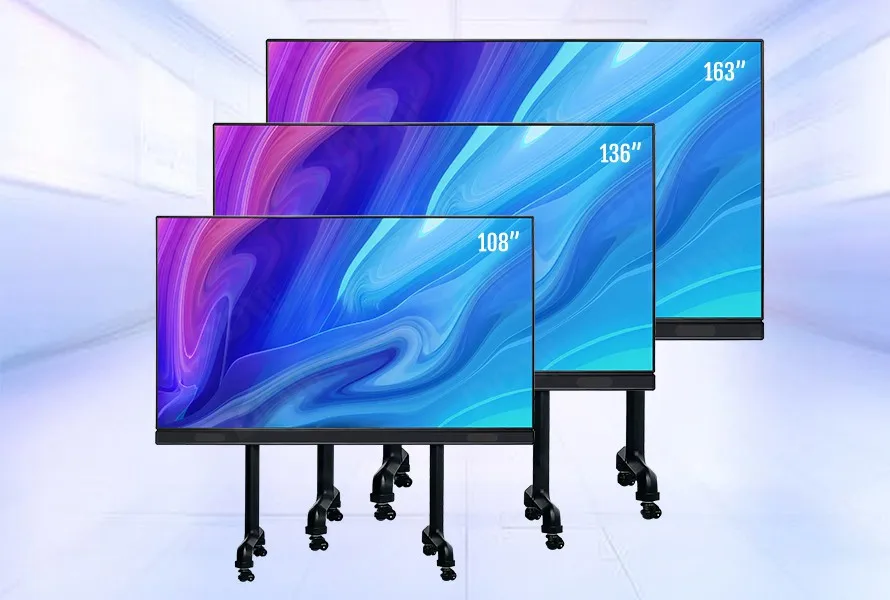

CB series All in One LED TV

LED conference all-in-one machine is a super-large intelligent seamless splicing screen with excellent screen body technology, and a new generation of multi-functional display products combined with efficient conference system. Support multi-party video communication, information broadcasting, collaborative whiteboard, wireless projection, and combine high-quality 2K/4K/8K intelligent large-screen display terminals to bring a safe, reliable, convenient and efficient, low-threshold, easy-to-use and easy-to-deploy ultimate video experience

Tag: Conference LED Screen All In One Led Display 4K Led Display
inquiry Download Brochure CB-series.pdf
Advantages
Video
Parameters
Installation
Specifications
Accessories

Features

3840 Hz

Wide Viewing Angles

Common Cathode Design

High Strength Structure

Magnetic Suction Installation

Front Maintenance

Easy to move

Wireless projection screen

Advantages

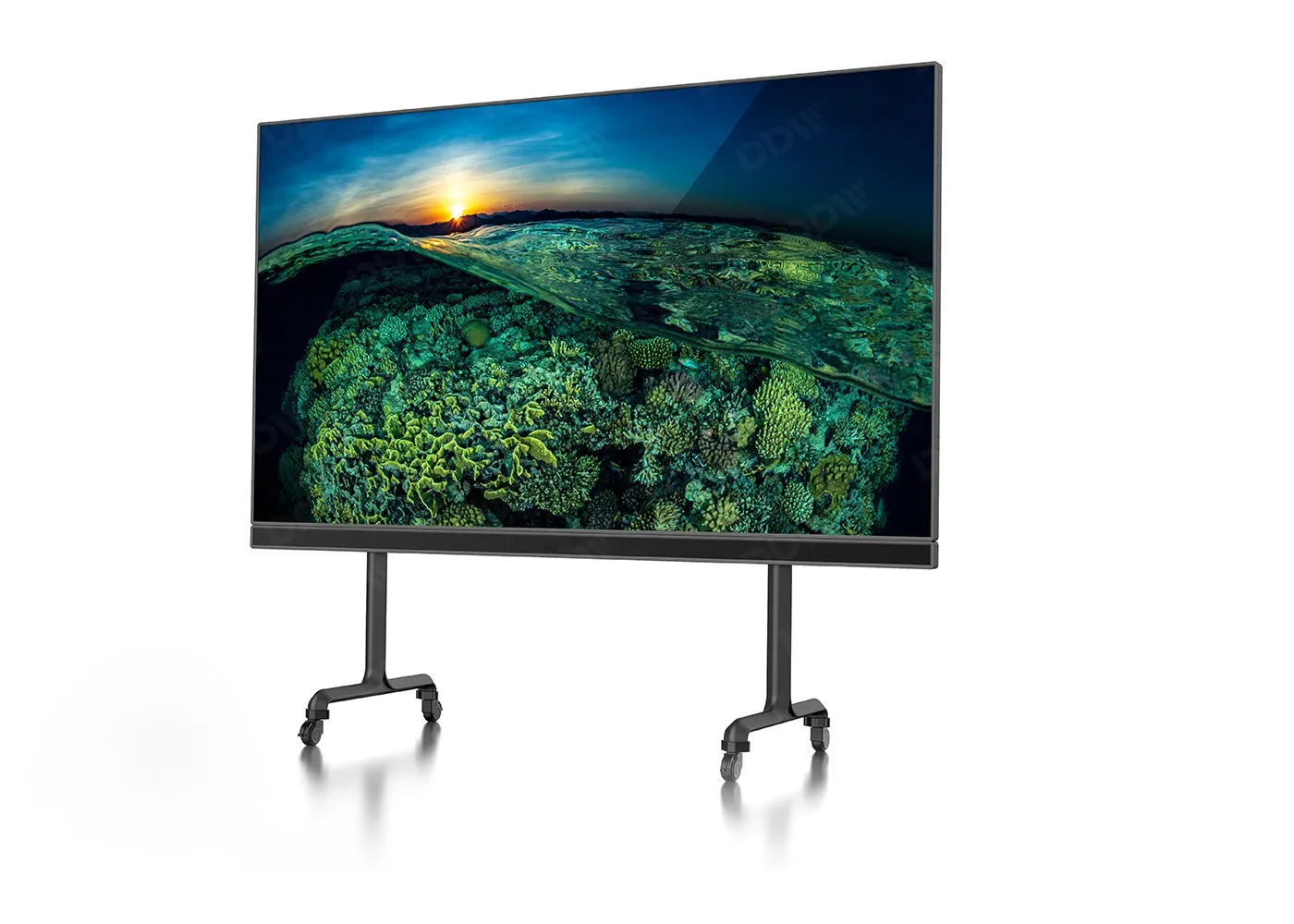

CB series All in One LED TV
Feature Description
  • - UHD full HD, intelligent brightness
  • - The interface is simple and easy to operate, and the installation is simple and easy to use.
  • - One-button start, wireless screen projection, USB plug and play;
  • - Simple and generous appearance, rich external interfaces
  • - Die-cast aluminum design, seamless border less

Video

CB series All in One LED TV

Parameters

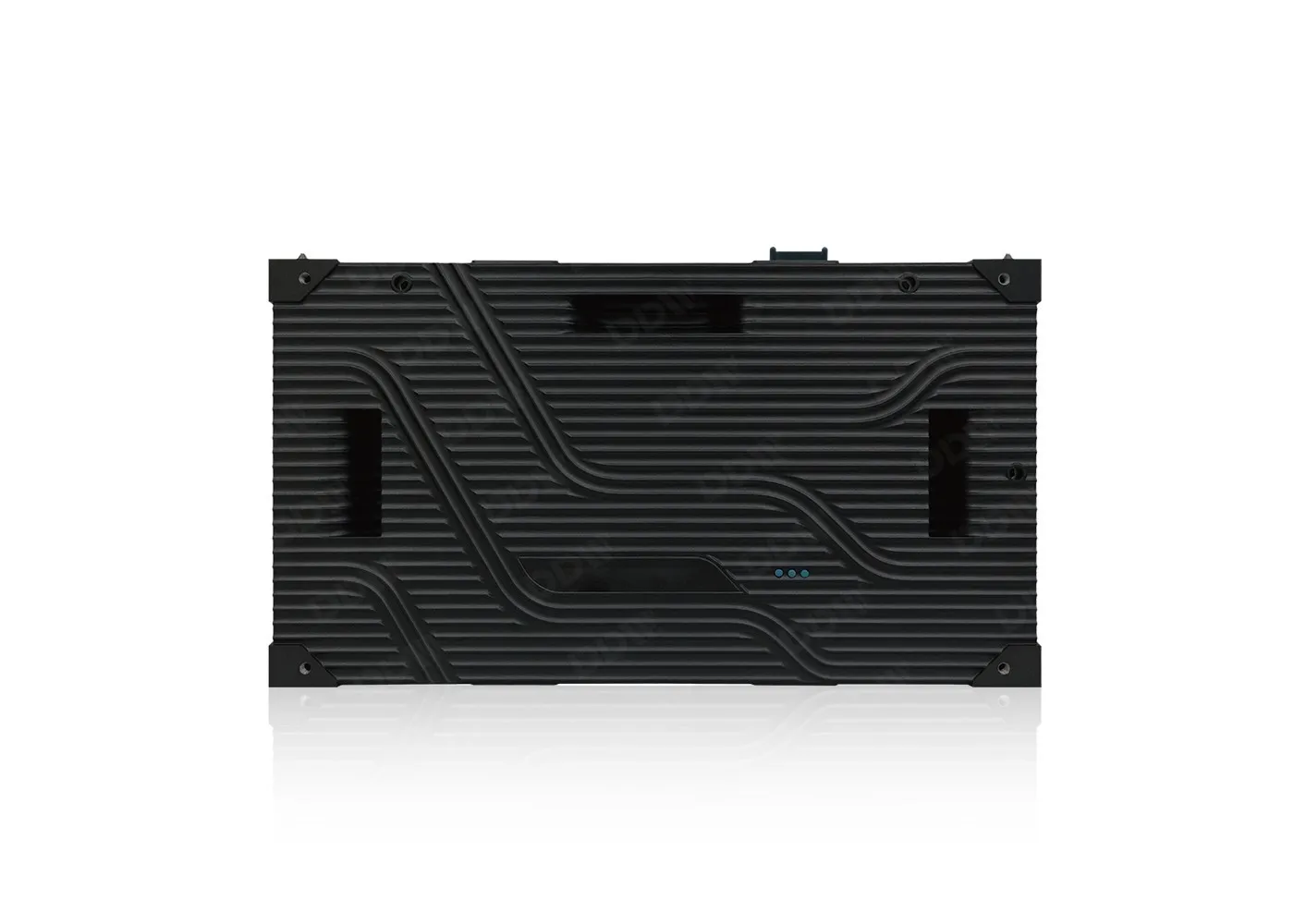

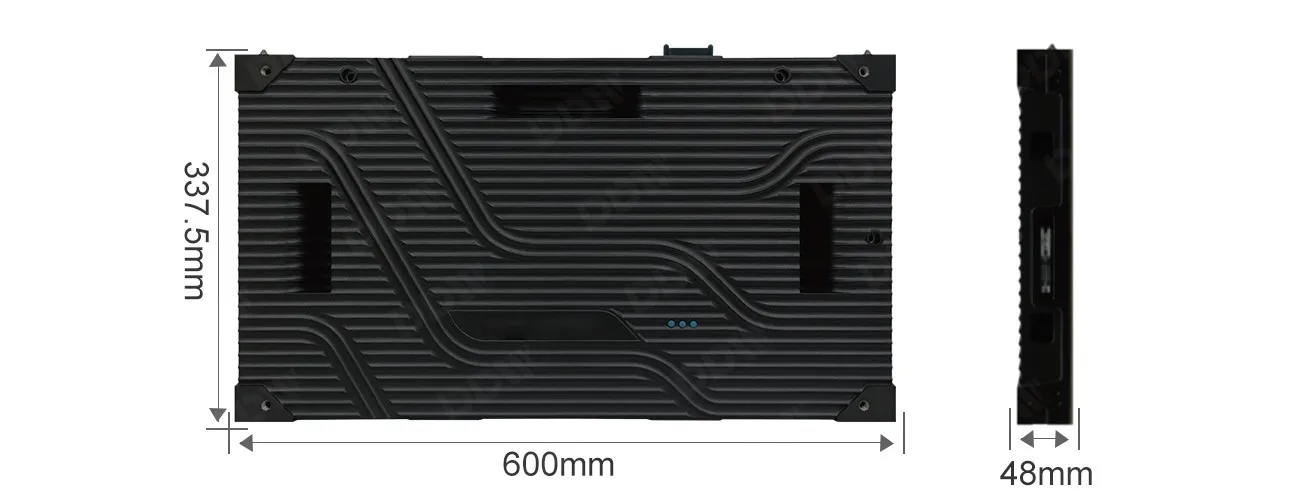

Standardized Cabinet Design

Can be quickly and seamlessly spliced into a large screen

CB series All in One LED TV

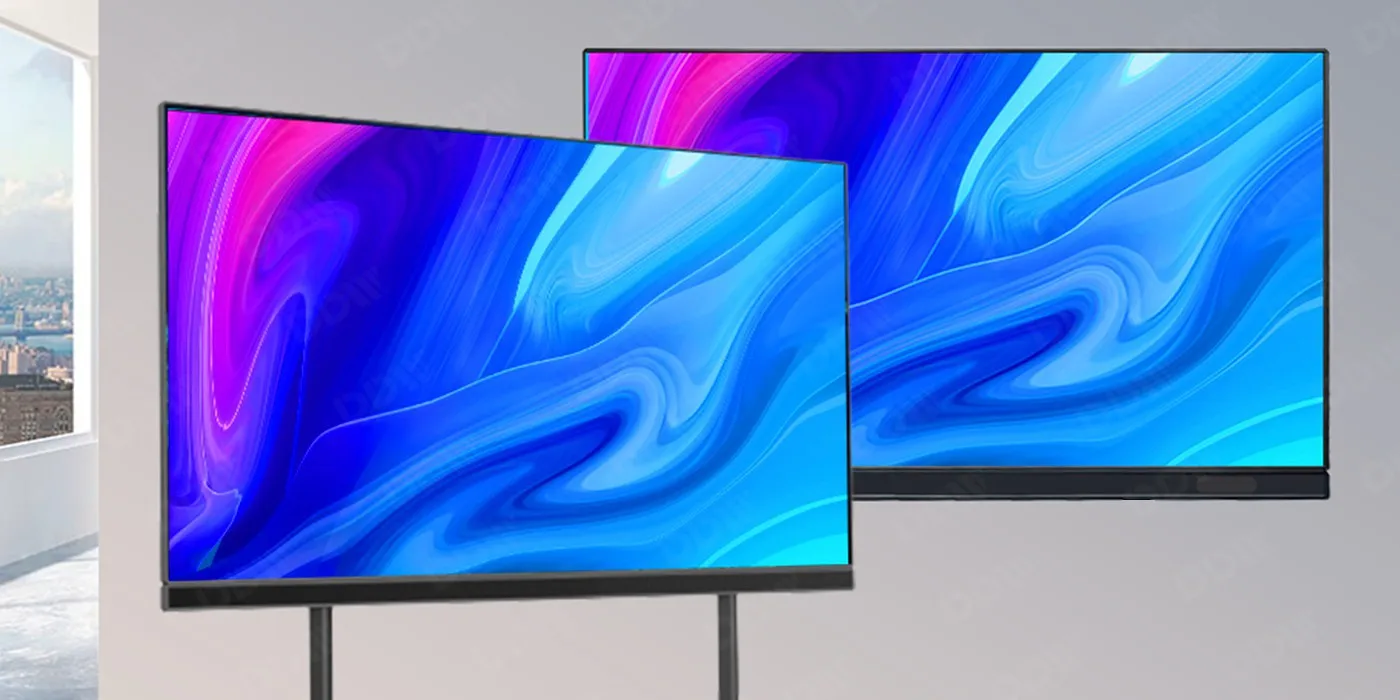

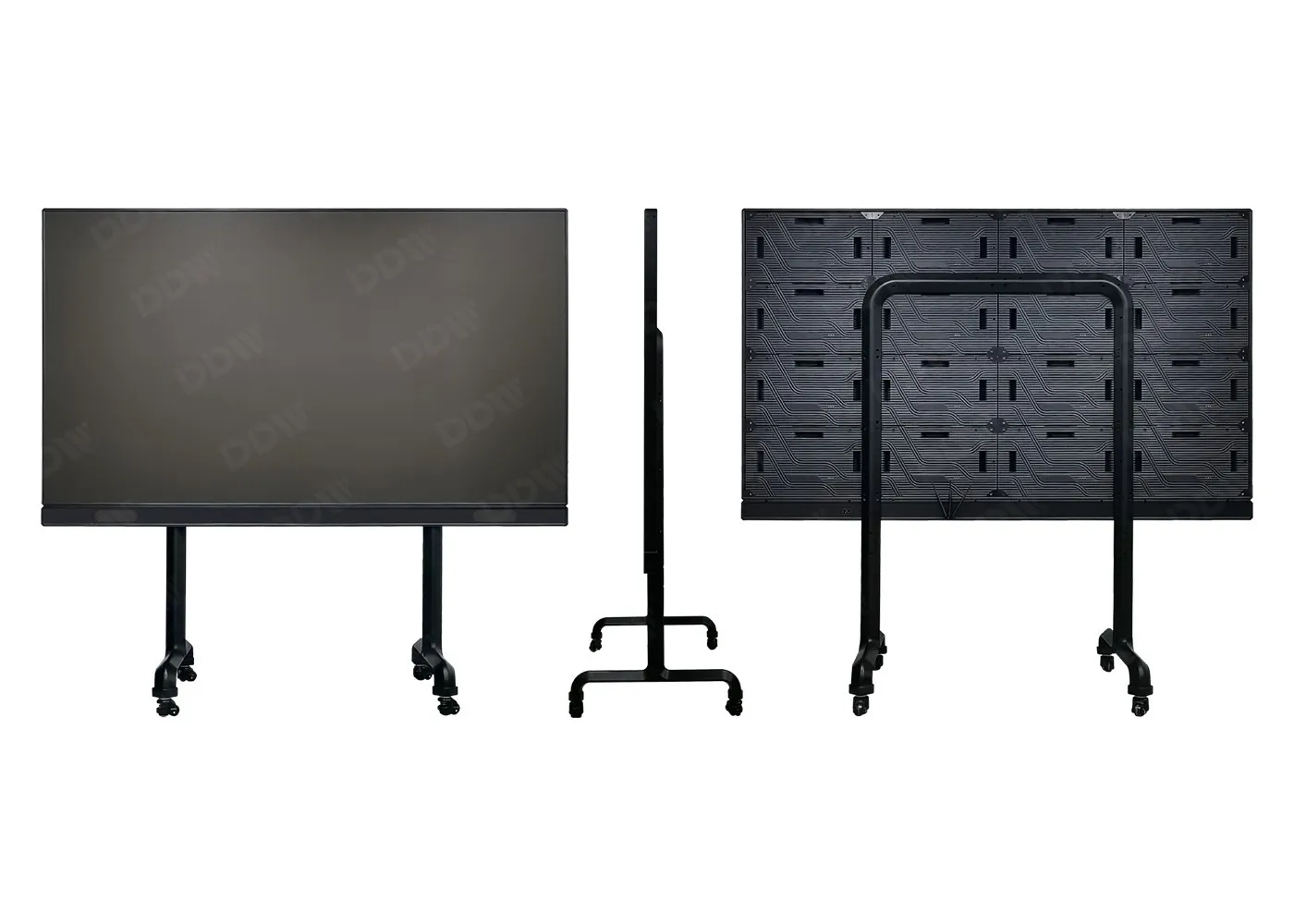

Simple and generous appearance

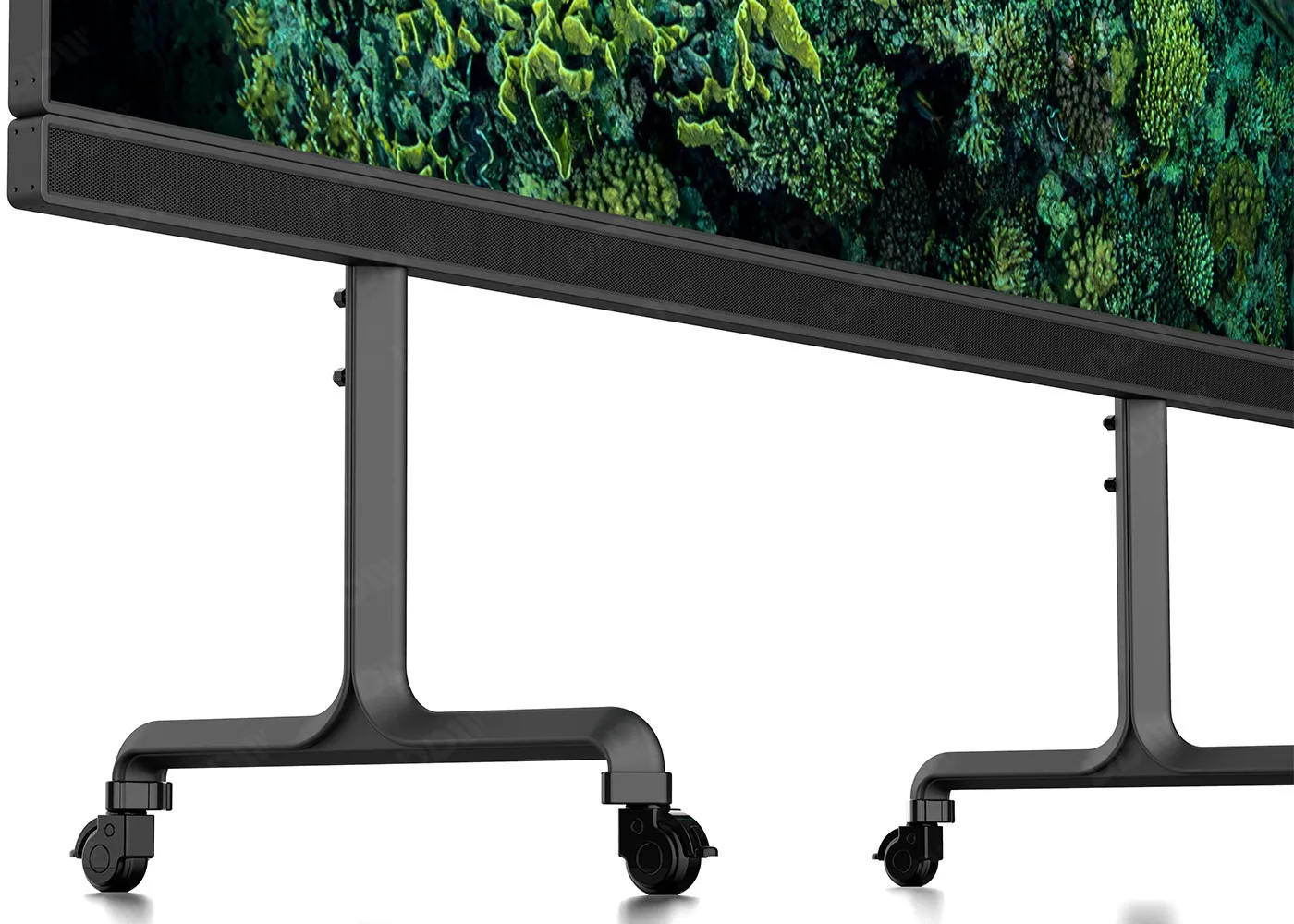

Simple and firm support design,four universal wheels are equipped as standard, with unlimited movement

CB series All in One LED TV

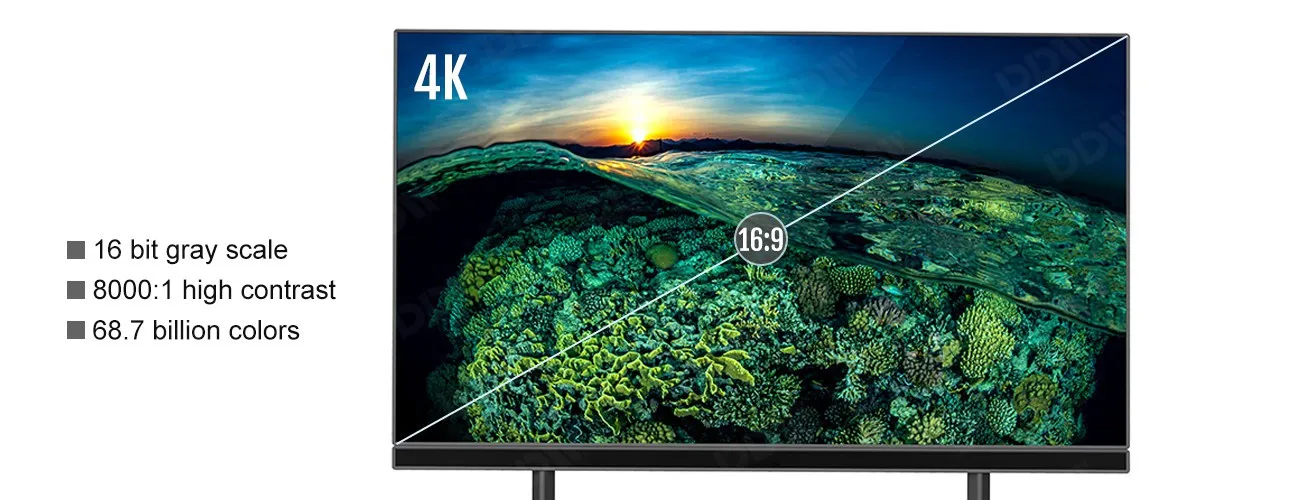

Standard All-in-One LED Screen

All-in-one LED screen for conferencing, with standard large size and 16:9 standard aspect ratio, it helps users to better facilitate presentations, brainstorming and decision-making.

CB series All in One LED TV

Installation

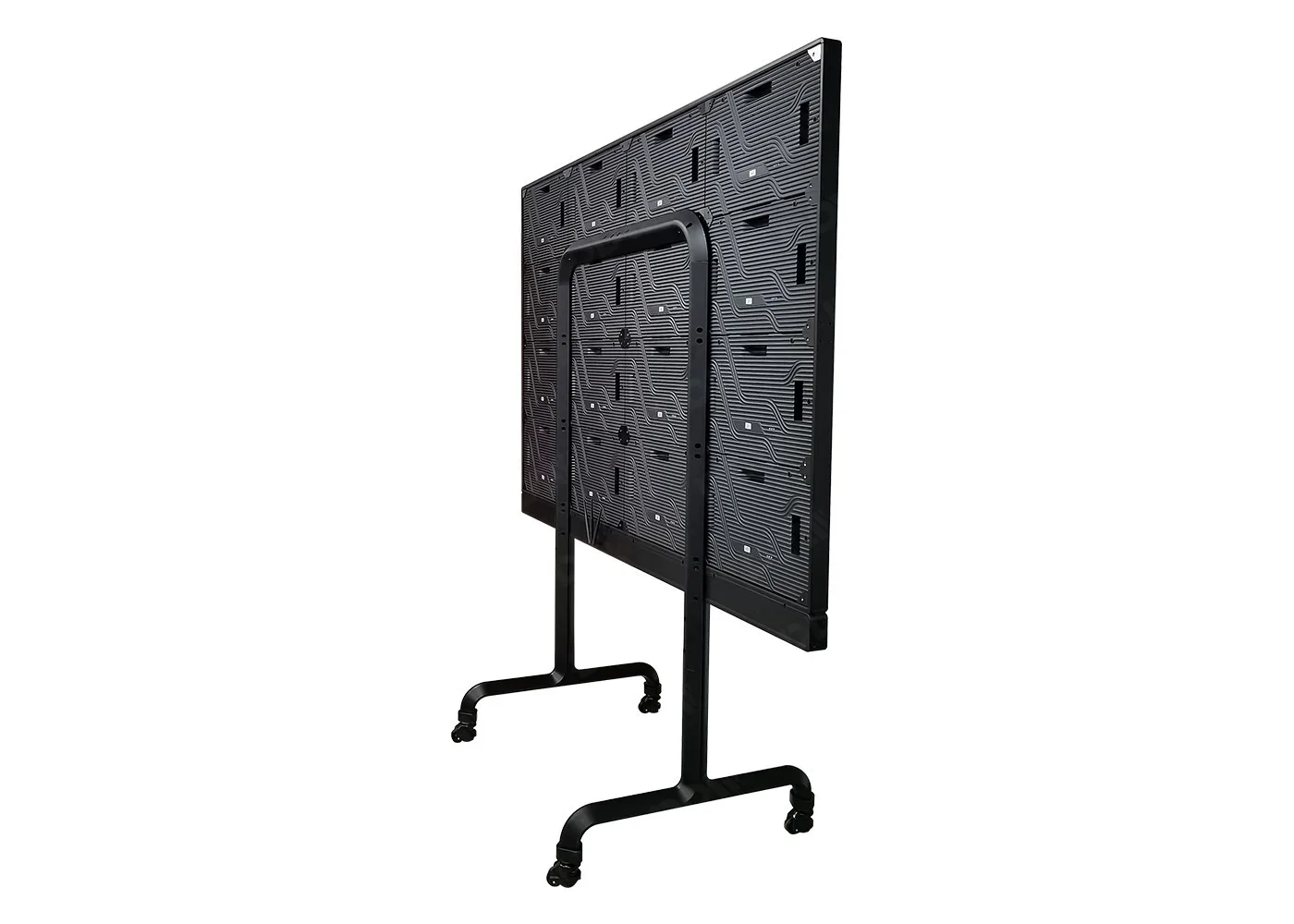

Aluminum profile support
CB series All in One LED TV

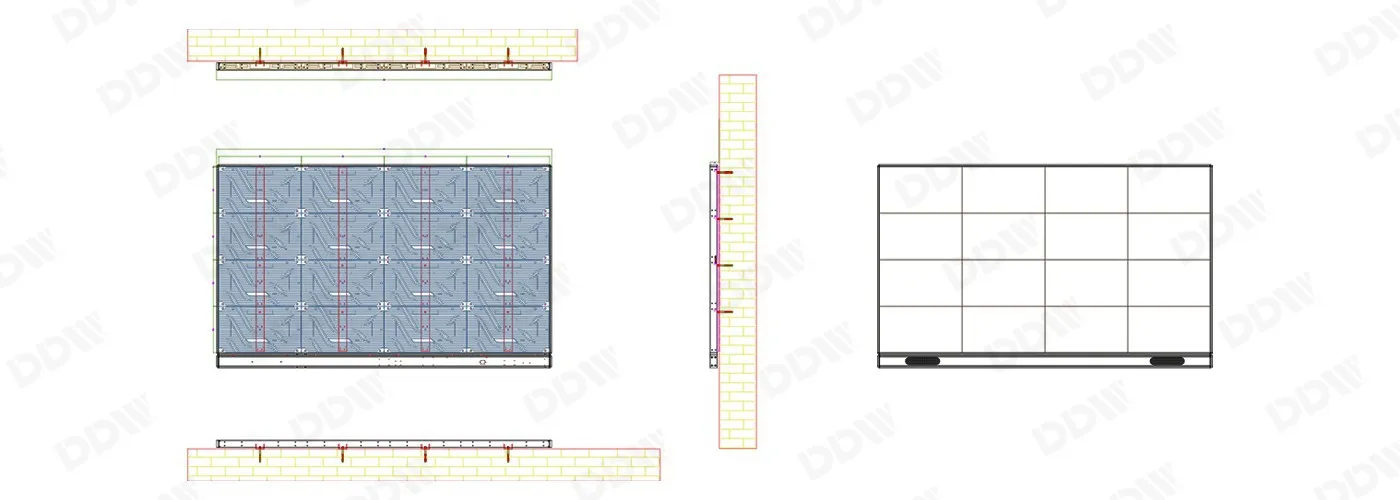

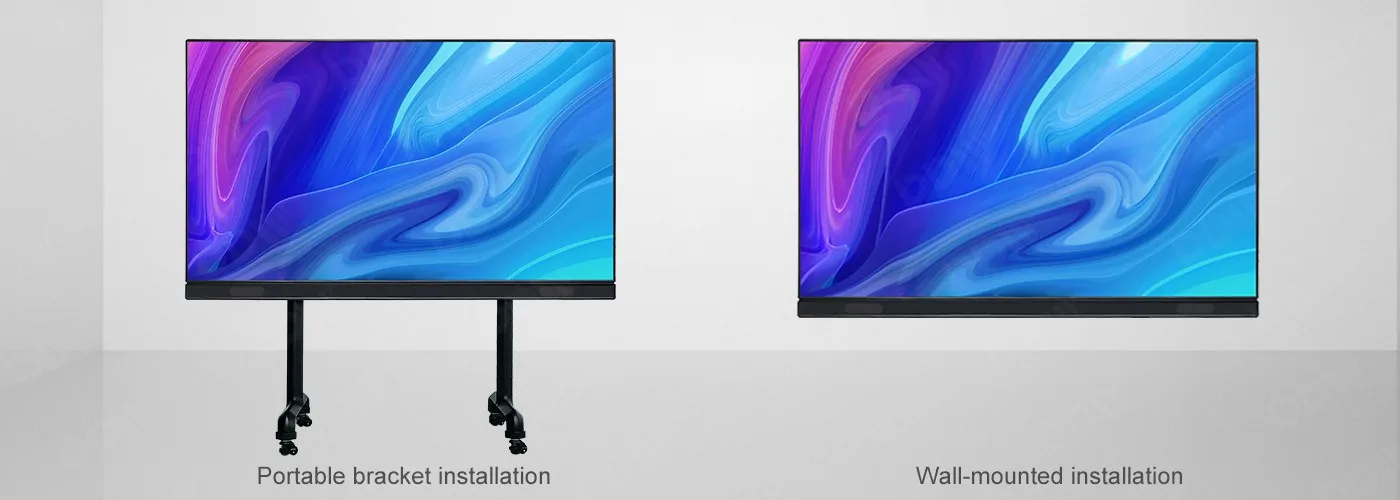

Various installation mode
CB series All in One LED TV
Aging test
CB series All in One LED TV

Specifications

ltem 108" 136 163"
LED Type SMD1010/COB SMD1010/C0B SMD1010/1515/C0B/Mini 4 in1
Physical Density (dots/m2) 640000 409600 284444/1137778
Pixel Pitch 1.25mm 1.56mm 1.875mm/0.9375mm
Screen sie ( not include the stand) 2430x1475mm 3030x18125mm 3630x2150mm
Whole screen Size(mm) 2430x2165mm 3030x2502.5mm 3630x2840mm
Refresh Rate(Hz) 3840 3840 3840
IP Grade . IP 31 IP 31 IP 31
Screen resolution (dots) 1920x1080 1920x1080 1920x1080/3840x2160
Video interface HDMIx3 (2 input 1 output) USB3.0, USD2.0x2, RF
Signal interface Rj45, USB-B, Wif, Bluetooth, Infrared
Audio interface Internal 2x5W speakers, External audio interface
Installation mode Moveable (standard)/wall mounting(optinal/front maintenance
Input Power AC90-264V, 47-63 Hz
Working Temperature/Humidity (°C/RH) -20~60*C / 10%~85%
Storage Temperature/Humidity (°C/RH) -20~60°C / 10%~85%

Accessories

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet
Flight case
Flight case
