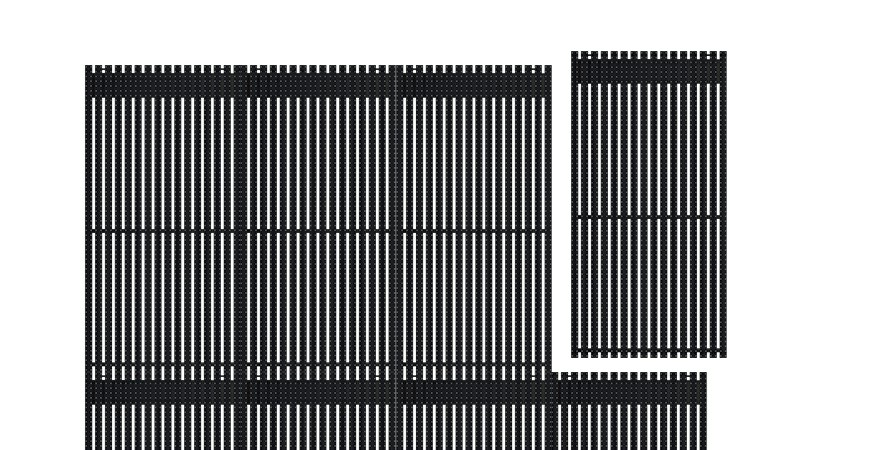

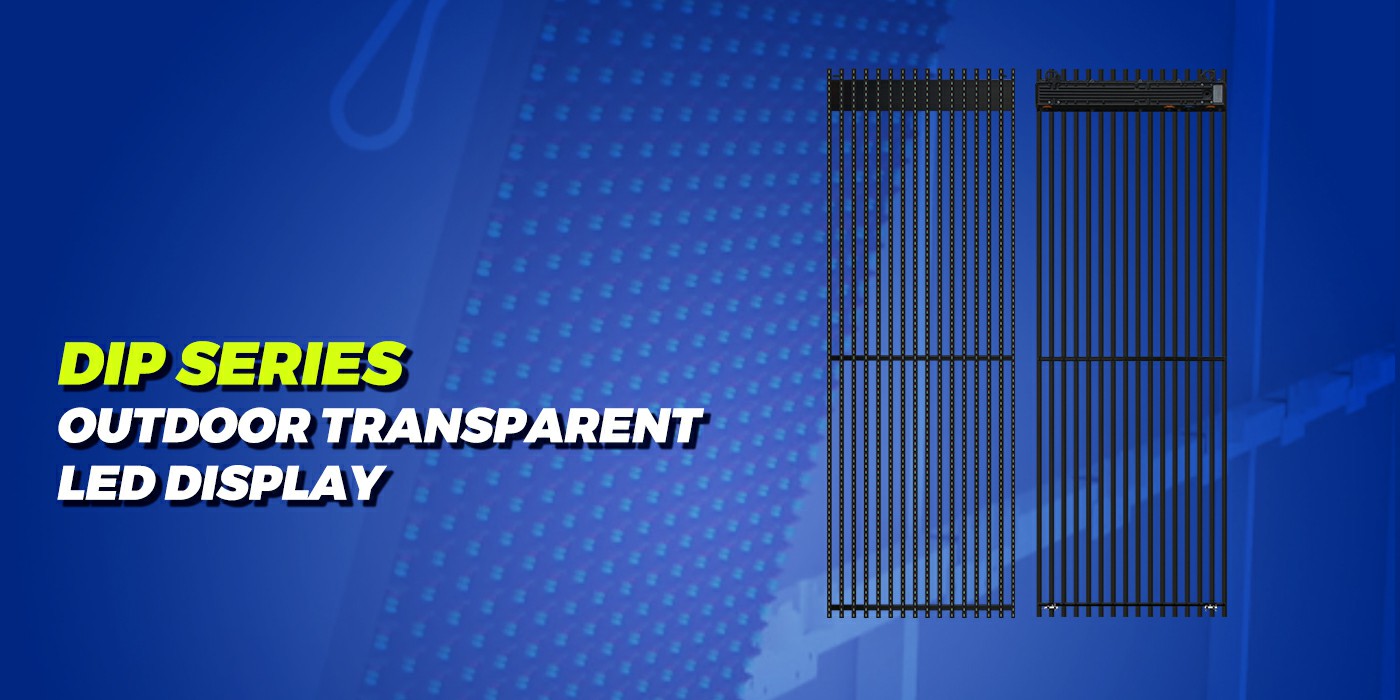

DIP series Outdoor Transparent LED screen

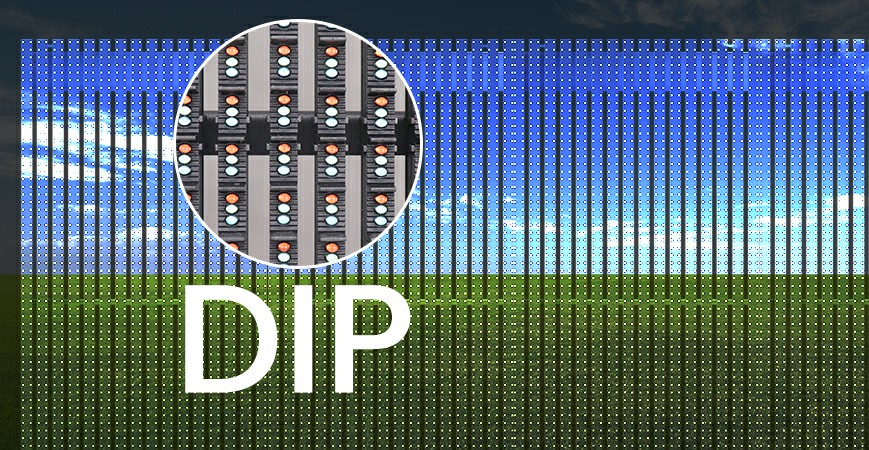

DIP series has the advantages of high transparency because of its DIP(Double in-line package) technology, high protection level, light weight, easy installation and maintenance, etc. Specially designed for outdoor using, and can be quickly assembled and disassembled to meet the needs of various application scenes.


3840 Hz

Wide Viewing Angles

High Transparency


Magnetic Suction Installation

Front Rear Maintenance

Die Cast Aluminum

IP67 Waterproof


DIP series  Outdoor Transparent LED screen
Feature Description
  • - High transparency, high light transmittance
  • - Simple structure and light weight
  • - Fast installation and easy maintenance
  • - Green energy saving, good heat dissipation
  • - 3840Hz High refresh


DIP series  Outdoor Transparent LED screen

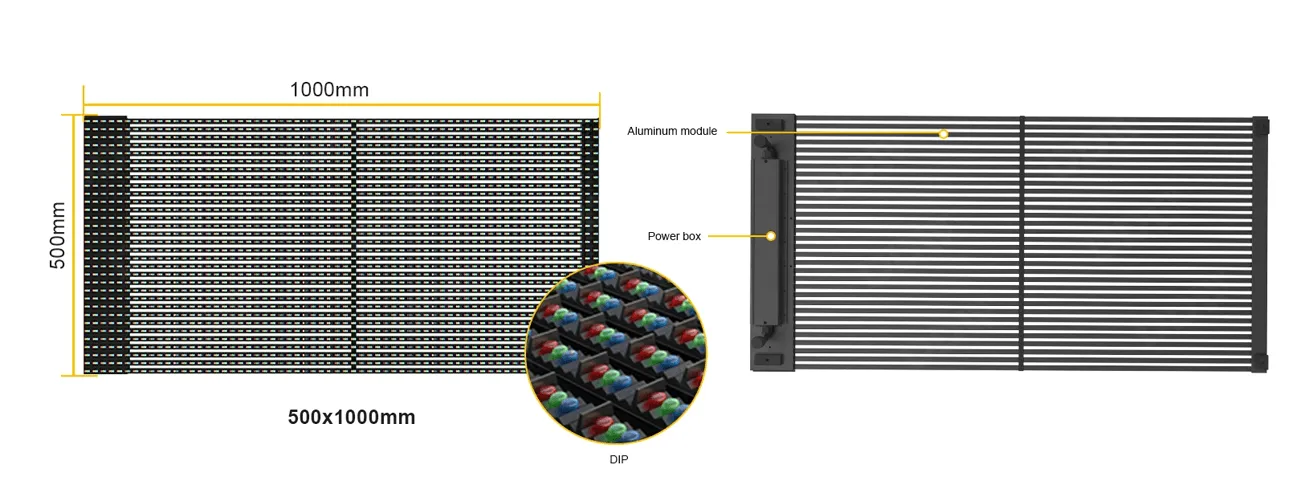

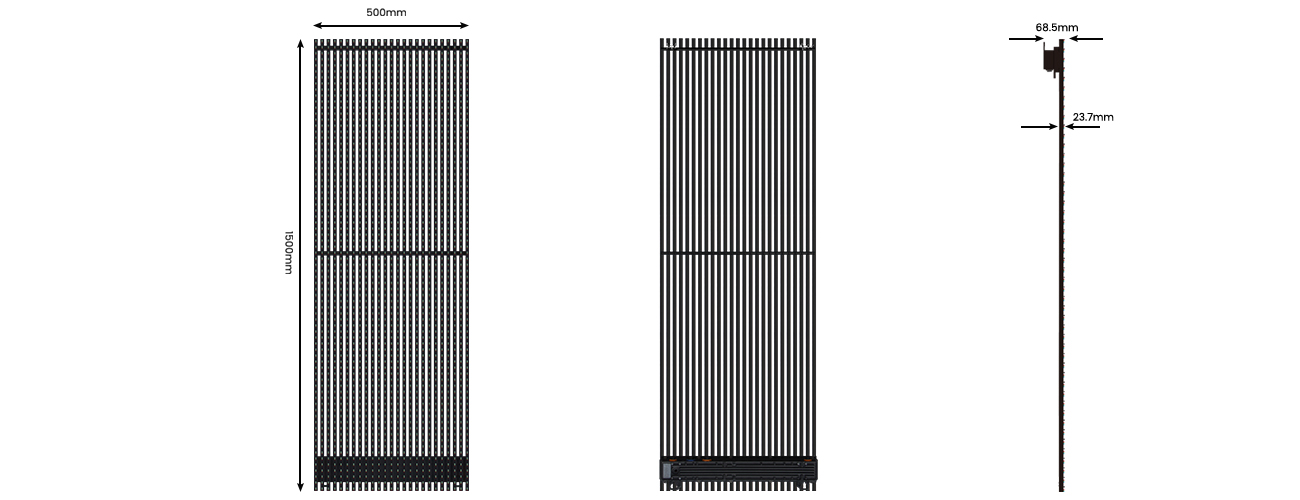

Cabinet Specs

First class design for die casting cabinet frame, each cabinet (include all components) is only 9kg ,Size: 500x500mm 500x1000mm 1000x1000mm

DIP series  Outdoor Transparent LED screen

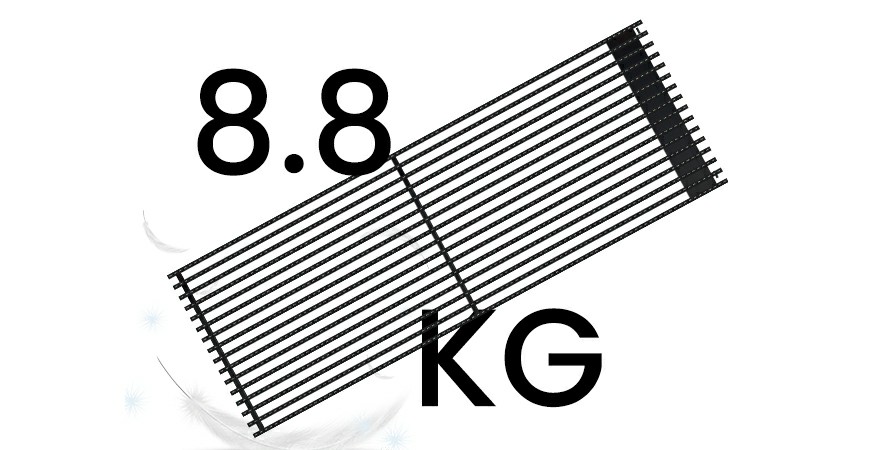

Ultra light design

Weight: 9kg/cabinet Aluminum alloy natural heat dissipation ,Lightweight design can save transportation costs

DIP series  Outdoor Transparent LED screen

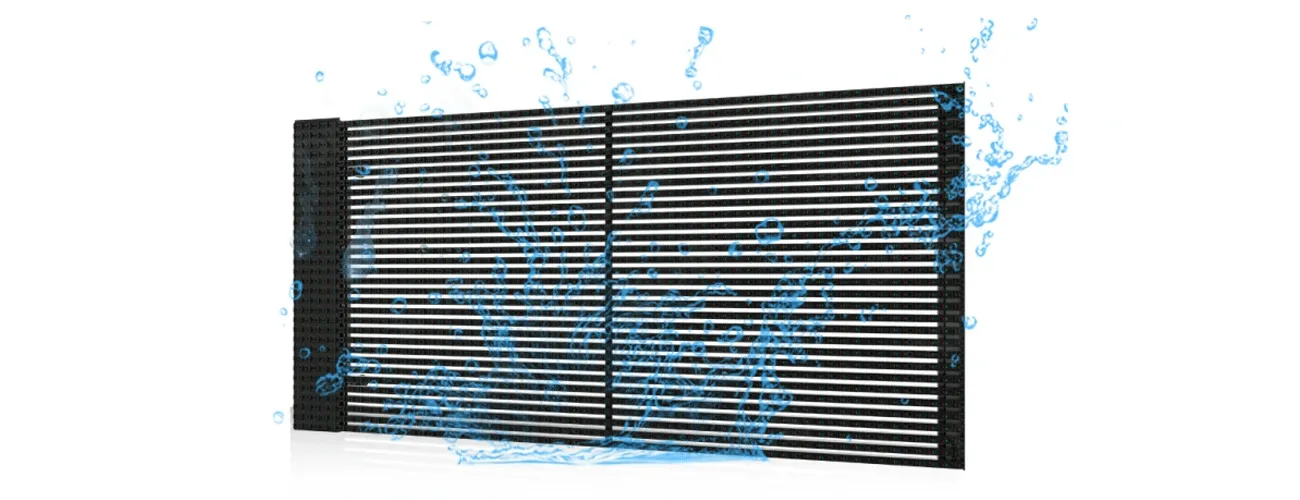

IP67 waterproof

IP67 waterproof and dust proof,suitable for both outdoor use

DIP series  Outdoor Transparent LED screen

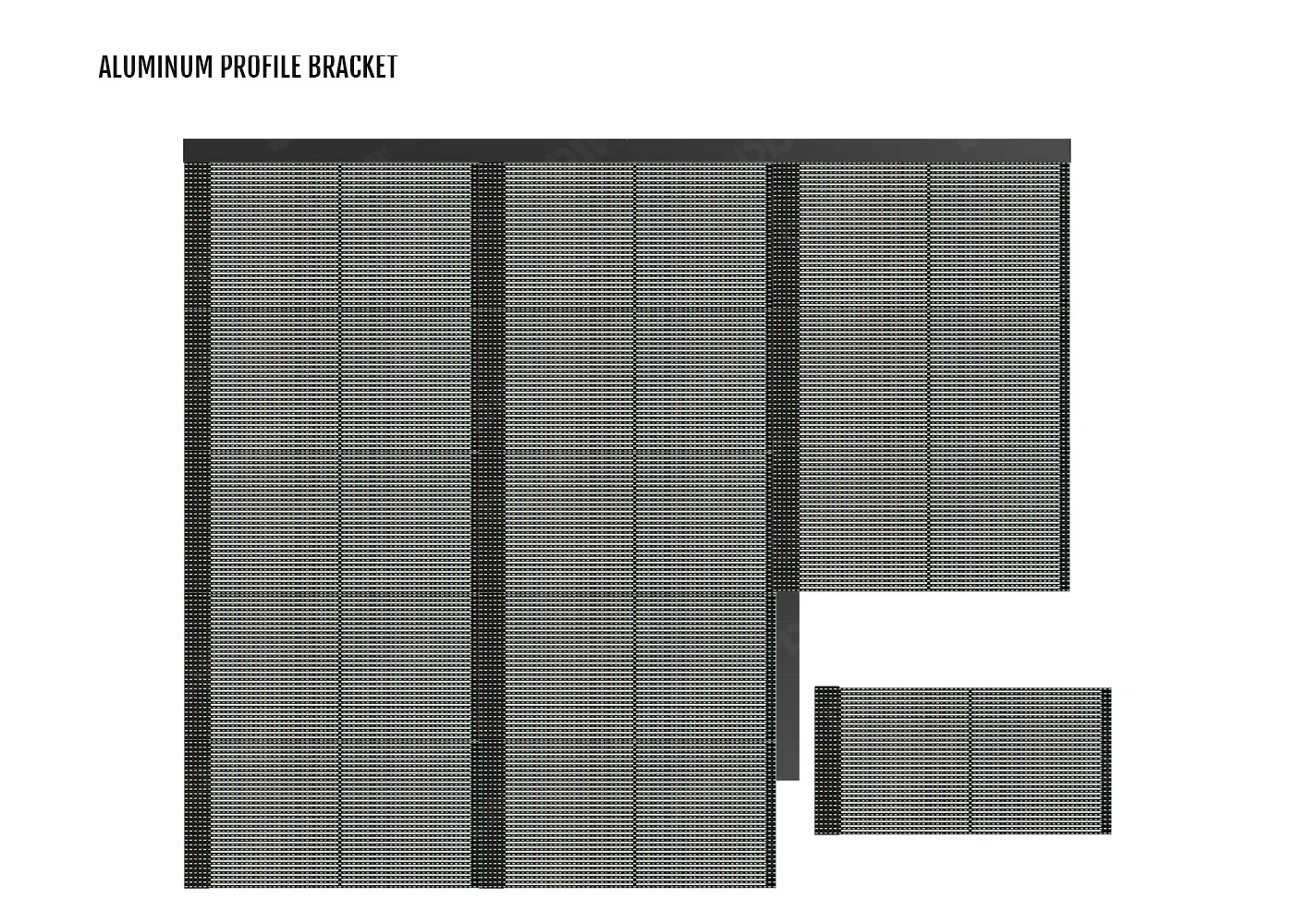

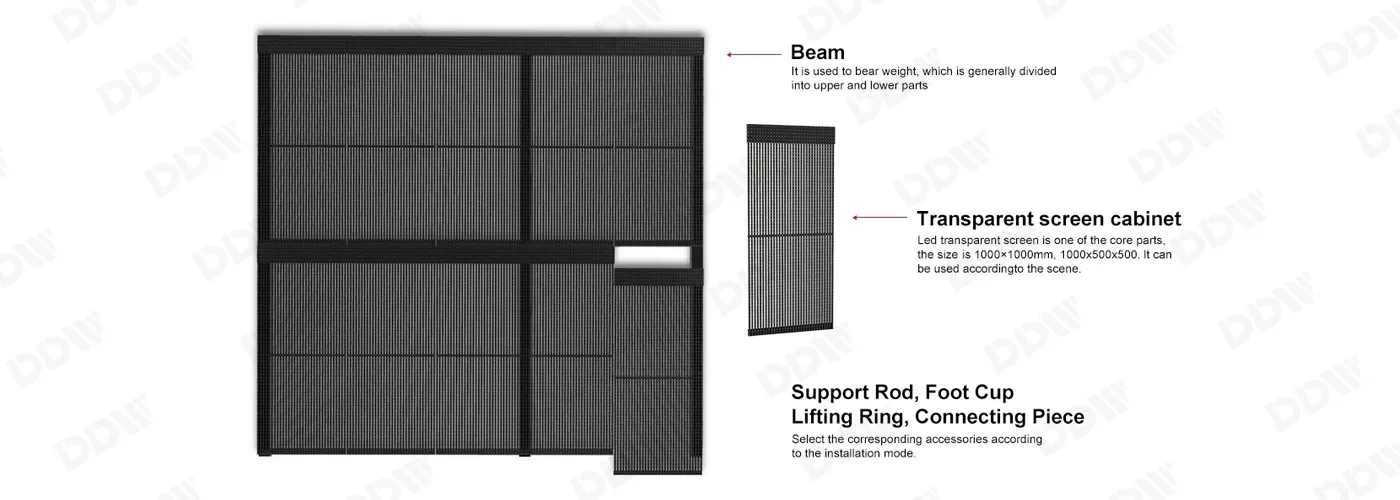

Easy installation
DIP series  Outdoor Transparent LED screen

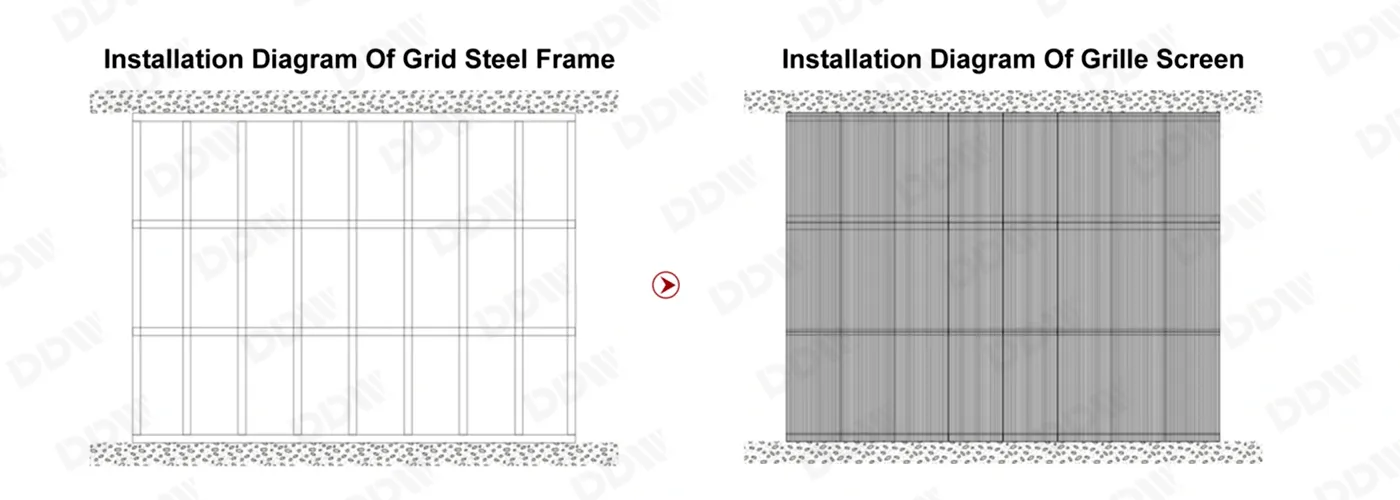

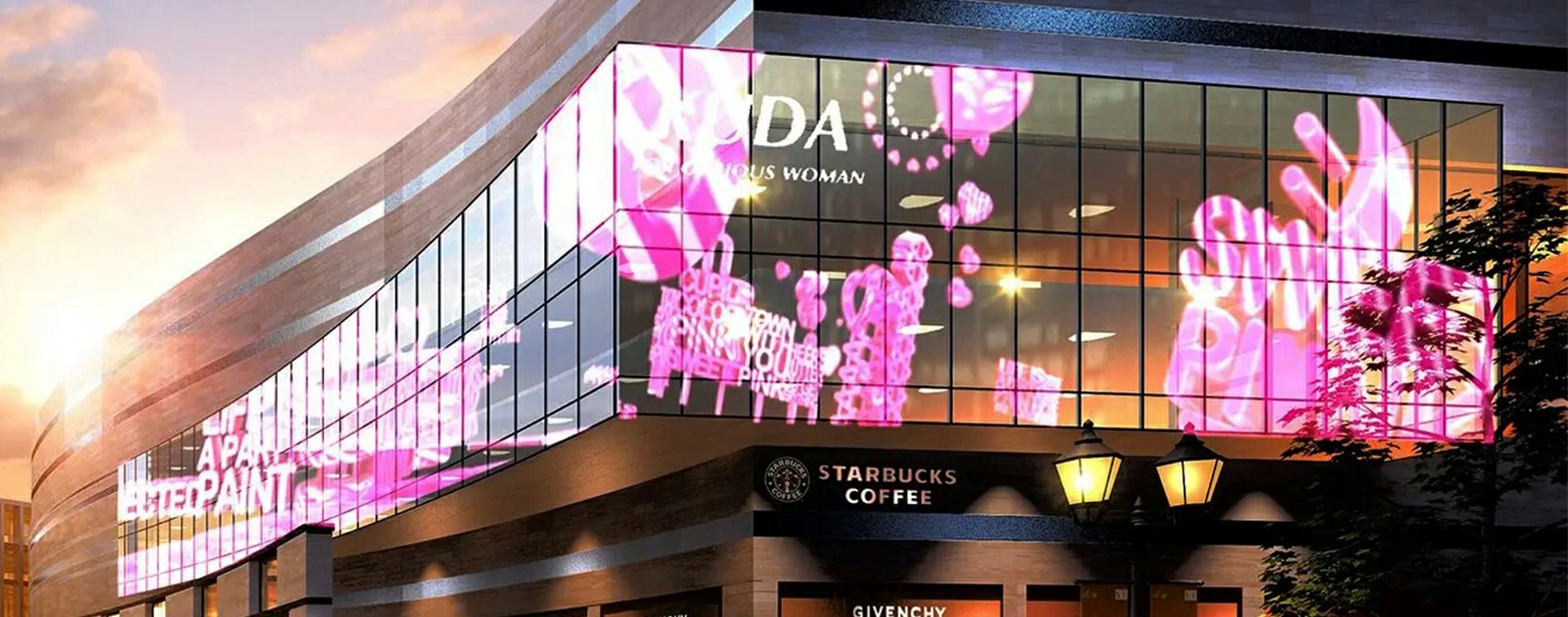

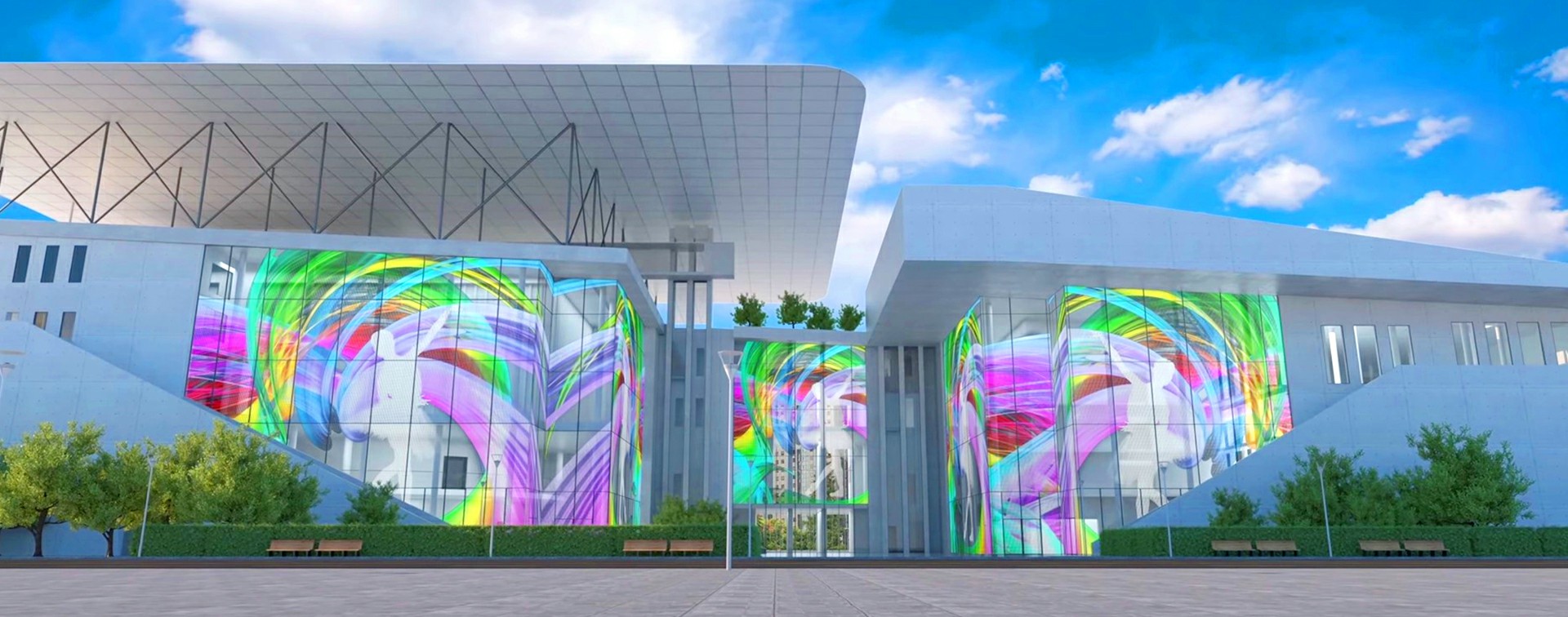

Embedded installation
DIP series  Outdoor Transparent LED screen


Model P15.625 P20 P25 P31.25
Pixel Picth 15.625(mm) 20(mm) 25(mm) 31.25(mm)
Cabinet size (mm) 1000*500 1000*500 1000*500 1000*500
LED DIP346 DIP346 DIP346 DIP346
Density points(㎡) 4096 2500 1600 1024
Installation Front/Back Front/Back Front/Back Front/Back
Cabinet material Iron/aluminum Iron/aluminum Iron/aluminum Iron/aluminum
IP rate IP 67 IP 67 IP 67 IP 67
Grayscale 10000:1 10000:1 10000:1 10000:1
Refresh rate(hz) 1920-3840 1920-3840 1920-3840 1920-3840
Frame change frequency 50/60hz 50/60hz 50/60hz 50/60hz
Horizontal viewing angle >140° >140° >140° >140°
Vertical viewing angle >140° >140° >140° >140°
Best viewing distance >8m >8m >8m >8m
Input Voltage AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V

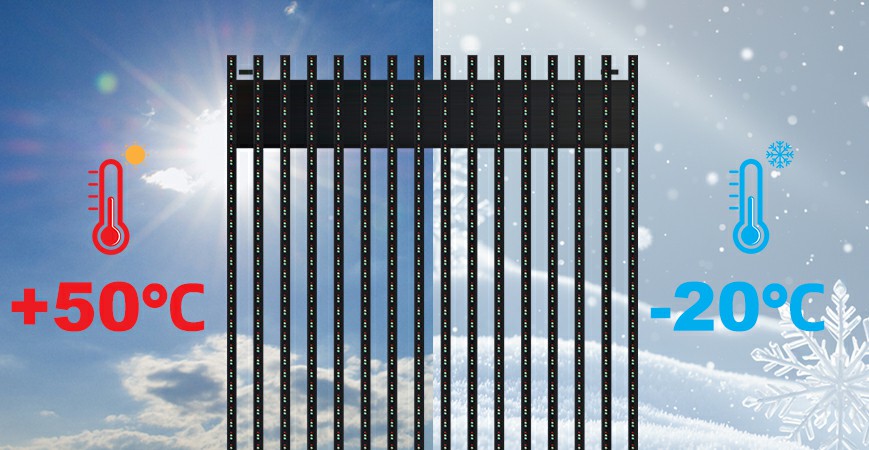

Temperature-operating ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃
Humidity-operating 10%~90% 10%~90% 10%~90% 10%~90%
Life span (H) ≥100,000 ≥100,000 ≥100,000 ≥100,000
MTBF (H) >10,000 >10,000 >10,000 >10,000

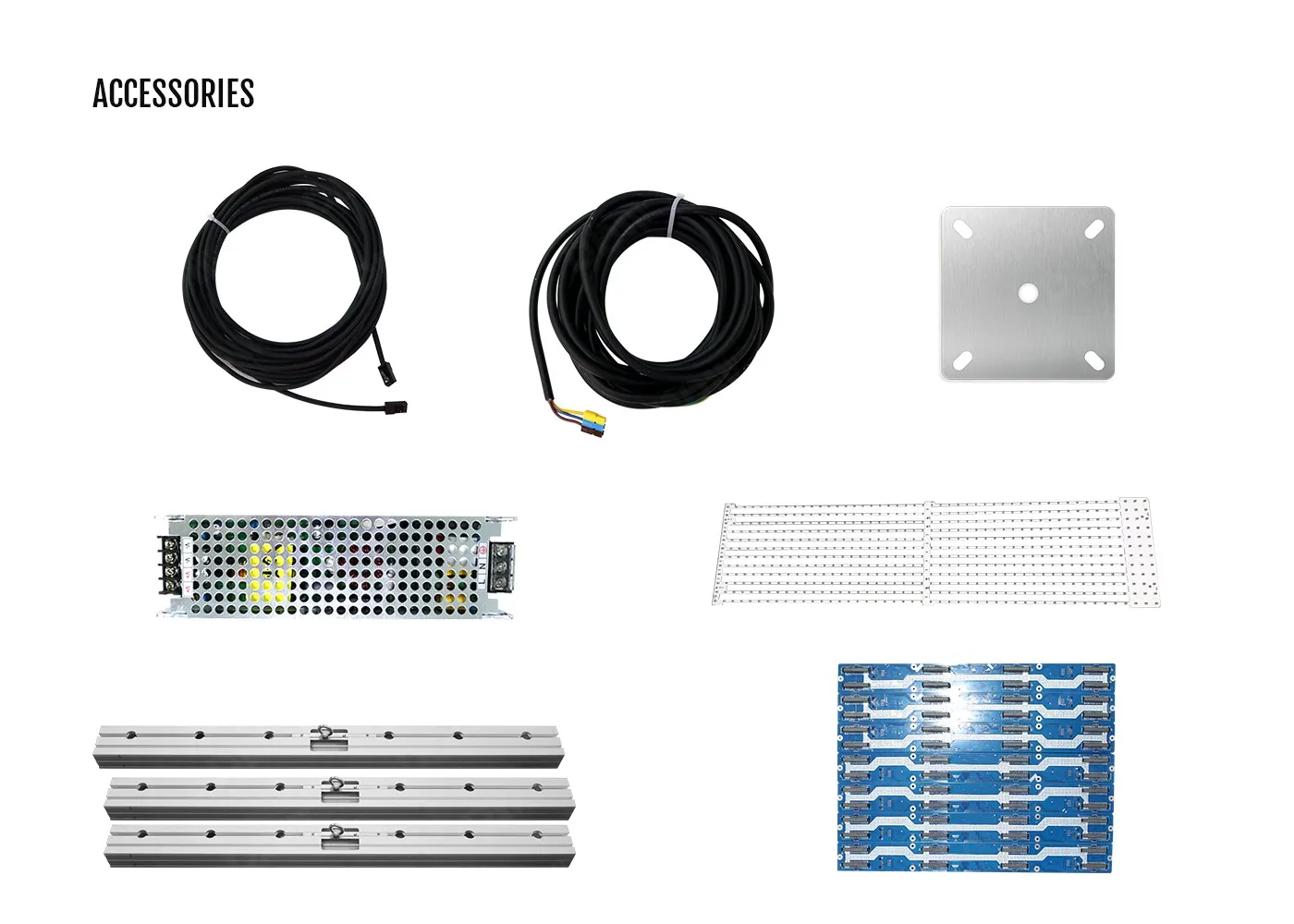

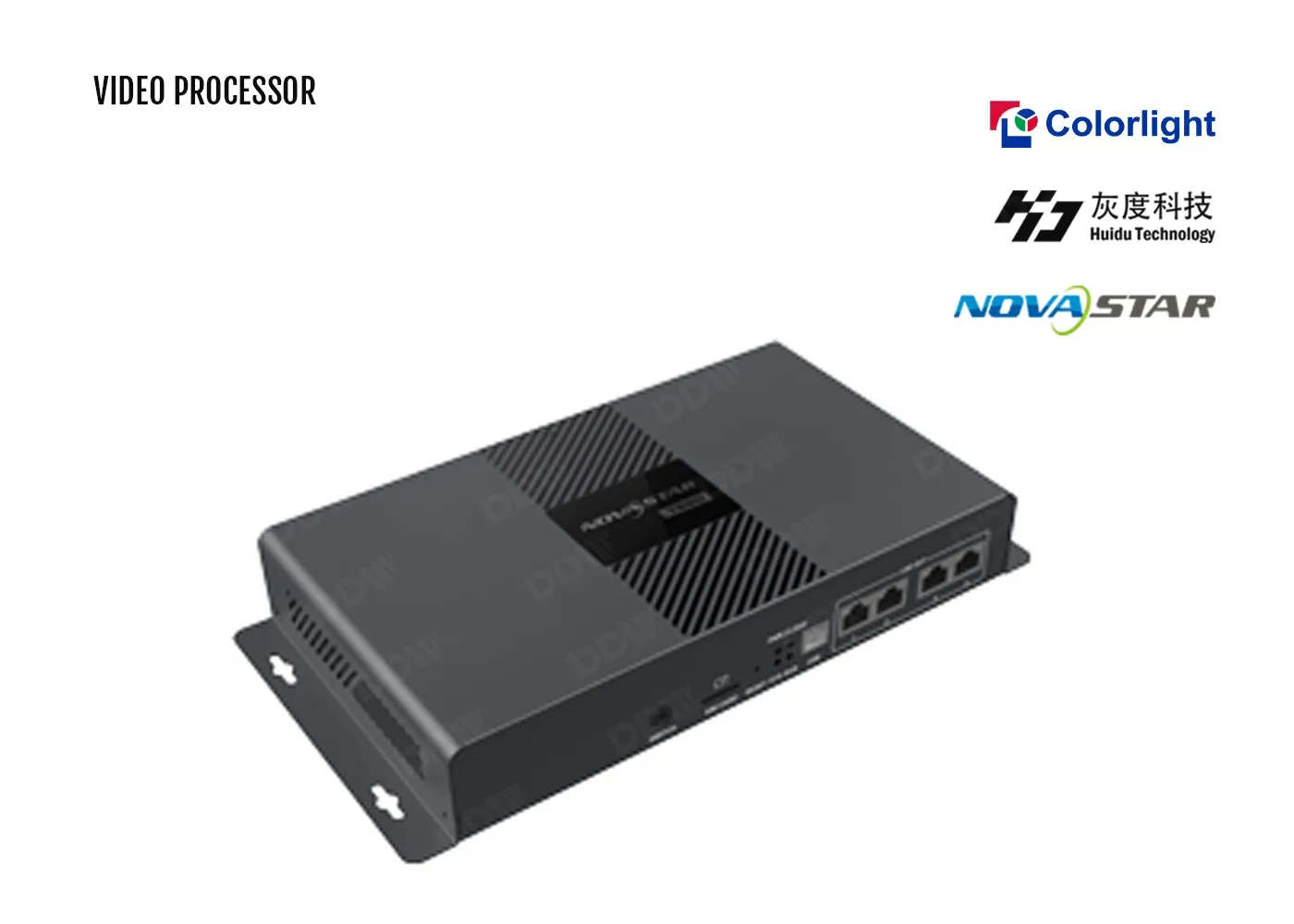

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED module
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Outdoor Movable Power Cabinet
Adapter board

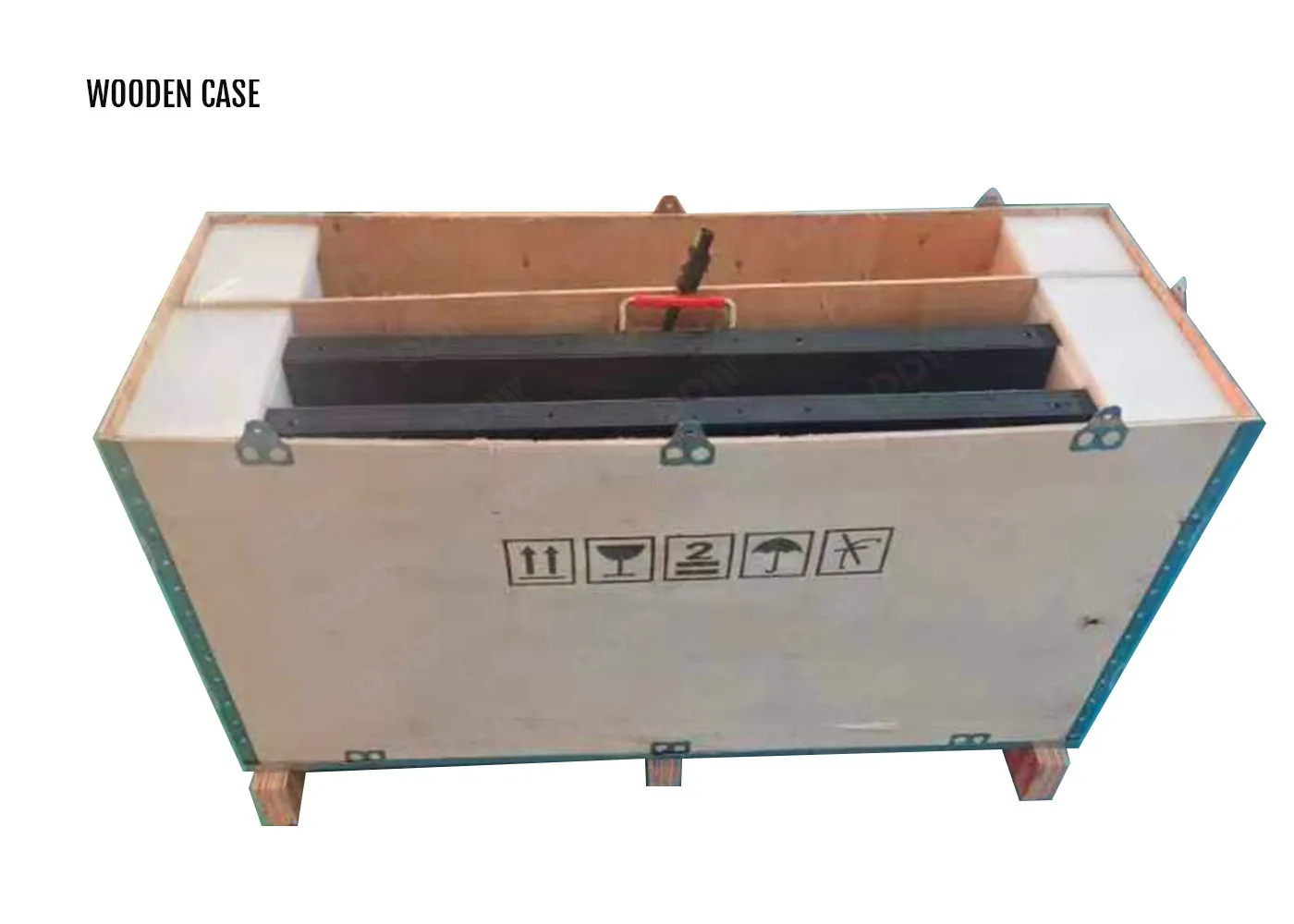

Flight case
Connecting piece
