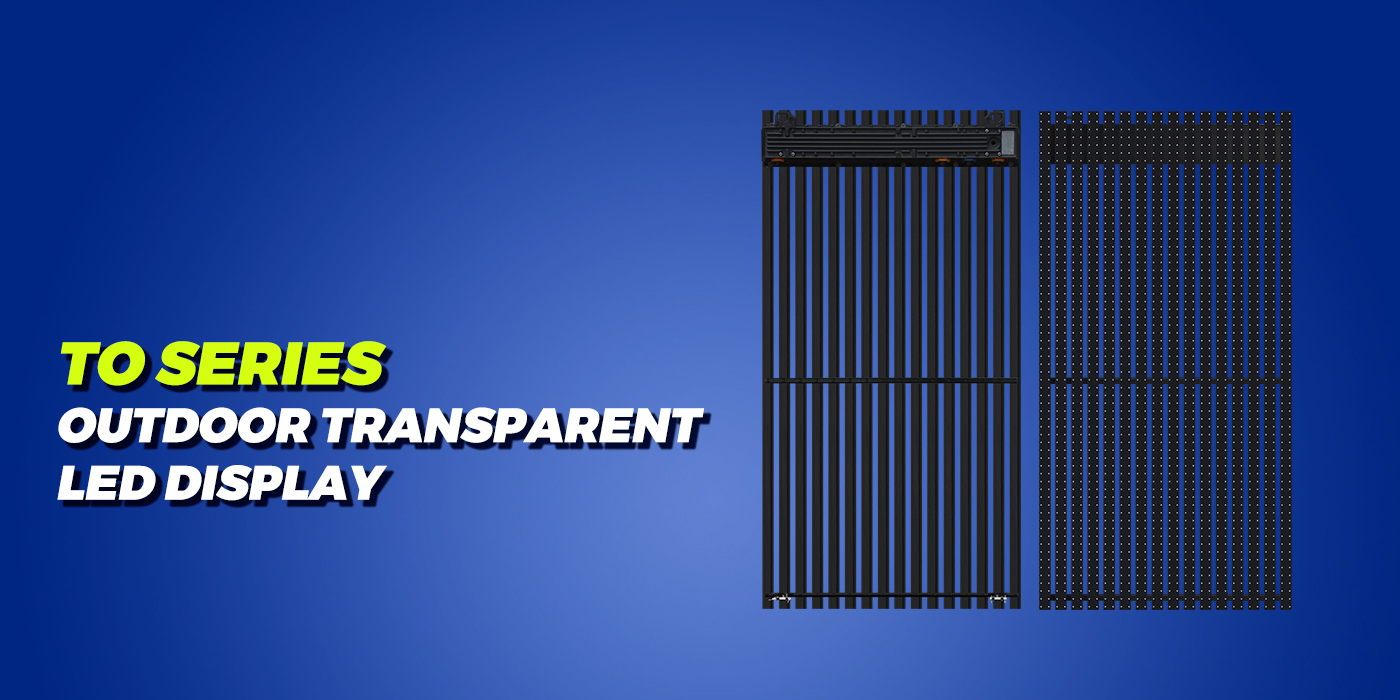

TO series Outdoor Transparent LED Screen

P3.9-7.8 P5.2-10.4 P10.42-10.42 P15.6-15.6 1000x500x80mm Die cast aluminum outdoor IP65 waterproof

Features

3840 Hz

Wide Viewing Angles

High Transparency

5500cd/㎡

Magnetic Suction Installation

Front Rear Maintenance

Die Cast Aluminum

IP65 Waterproof

Advantages

TO series  Outdoor Transparent LED screen
Feature Description
  • - High transparency, high light transmittance

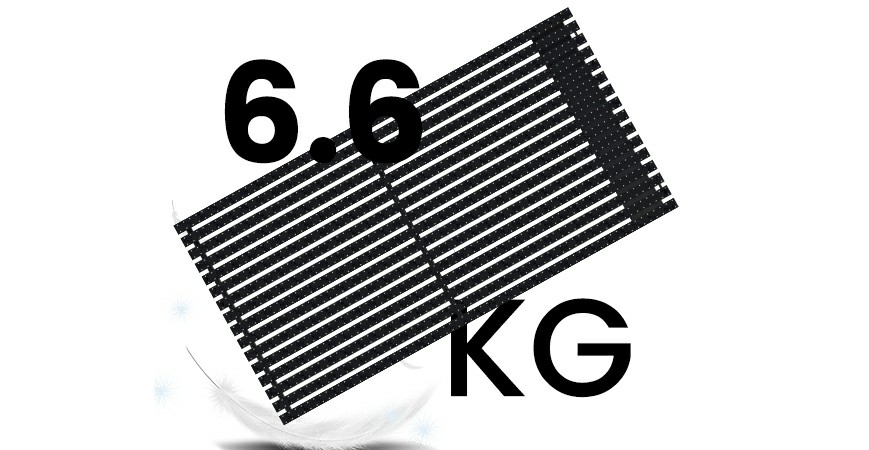

  • - Simple structure and light weight
  • - Fast installation and easy maintenance
  • - Green energy saving, good heat dissipation
  • - 3840Hz High refresh

Video

TO series

Features

3840 Hz

Wide Viewing Angles

High Transparency

5500cd/㎡

Magnetic Suction Installation

Front Rear Maintenance

Die Cast Aluminum

IP65 Waterproof

Curved installation

Arc angle 0 ° ± 2.5 ° ± 5 ° ± 7.5 ° ± 10 ° ± 12.5 °
TO series  Indoor Transparent LED screen

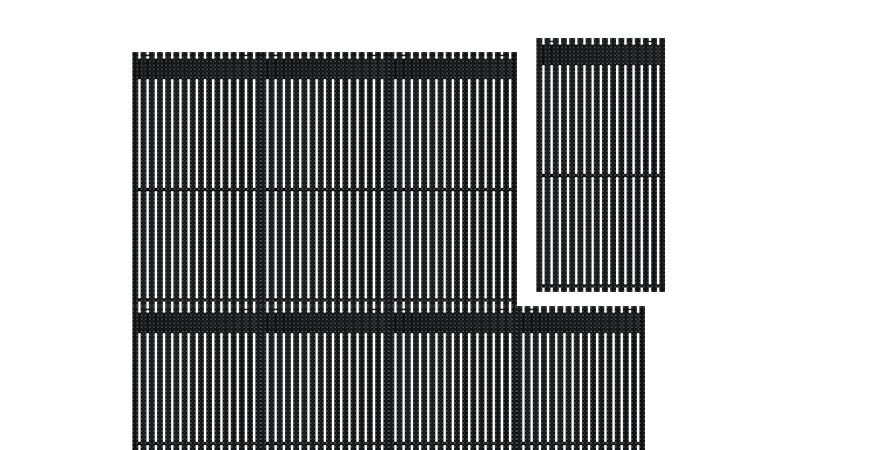

Various installation mode
TO series  Indoor Transparent LED screen

Specifications

  P3.9-7.8 P5.2-10.4 P10.42-10.42 P15.6-15.6
Pixel spacing (mm) 3.9*7.8mm 5.2*10.4mm 10.42*10.42mm 15.6*15.6mm
transparency 53% 58% 58% 71%
Physical pixels (dot/m²) 32768 18432 9216 4096
Cabinet  Pixels 256x64 192x48 96x48 64x32
Weight (Kg/m²) 7.5 7.5 7.5 7.5
Refresh rate (Hz) 3840 3840 3840 3840
Driver core ICN2153PWM MY9866 MY9866 ICN2038S
Scanning formula (1/8) (1/4) (1/2) static state

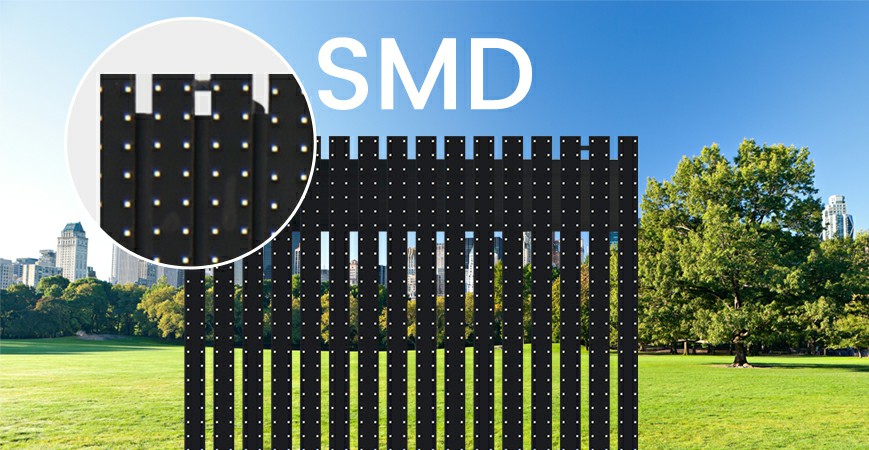

LED bead model SMD1921 SMD1921 SMD2727 SMD2727
Brightness (cd/m²) ≥ 4500 ≥ 4500 ≥4500 ≥5500
Working life of lamp beads ≥ 100000 kWh
Pixel composition RGB 3 in 1
Grayscale 14bit
Maximum power (W/m²) 800
Conventional power (W/m²) 260
LED control system Noah
Connection formula WiFi/DVI/HDMI/DP/USB/RJ45 Ethernet/Network Remote Control
Protection level IP65
Input voltage AC100~240V50/60Hz
Module input voltage DC4.7~5V ± 0.2V

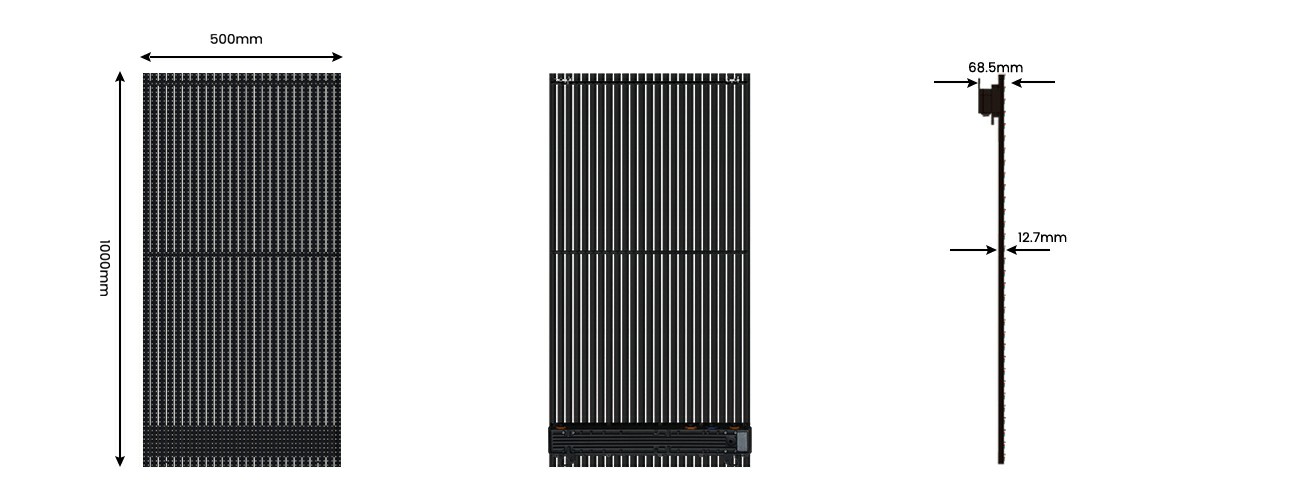

Cabinet size (mm) 1000x500x80
Cabinet material Die cast aluminum
Maintenance mode Front and rear maintenance
Working temperature and moderation Temperature -10~40 ℃, humidity -10% -90% - condensation
Installation method Hoisting (10 vertical boxes)/Barrier installation/Fixed installation

Accessories

Video Processor
Video Processor
Power Supply
Power Supply
LED suction cup
LED module
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Outdoor Movable Power Cabinet
Adapter board
Flight case
Connecting piece
