TAD series
HIGH DEFINITION
The flexible transparent LED film uses high refresh rate display technology to deliver clear and delicate image performance.
Key Product Features
Transparent Adhesive
High Transparency
Lightweight & Flexible
Easy Installation
Slim & Minimalist
High Brightness Display
Energy Efficient Operation
Customizable Sizes
Application Scenario
TAD series
Transparent Adhesive LED screen Solution
Transparent Adhesive LED Screen
Brand-new technology
MODULE DIMENSIONS
1000×240/1200×240/1500x240mm 1000×480/1200×480/1500x480mm
HIGH FLEXIBLE
Flexible design: Made of flexible materialsit can be flexibly bent
Next-Generation Visual Technology.
Advanced visual technology delivers better color, smoother images, eye protection, and energy-efficient performance.
HIGH TRANSPARENCY
The glass LED display offers up to 85–90% transparency, allowing natural light to pass through without affecting glass lighting.
HIGH INTENSITY PROTECTION
Anti-UV, anti-cracking, no yellowing or shedding within 3-4 years
ULTRA LIGHT AND ULTRA-THIN
The thickness is only 3mm, and the weight is as light as 3.5kg/m2
CUTTABLE
The cuttable LED film display supports arbitrary cropping, is not limited by size or shape, meets different dimensional requirements, and enables more creative display designs.
HIGH DEFINITION
The high brightness transparent LED film uses high refresh rate display technology to deliver clear and delicate image performance.
WIDE VIEWIGN ANGLE
Designed as a high-performance semi-outdoor transparent LED screen, it delivers a 140° ultra-wide viewing angle with no dead angles or color shift, helping cover a larger audience area and attract more foot traffic.
SAFE AND BEAUTIFUL

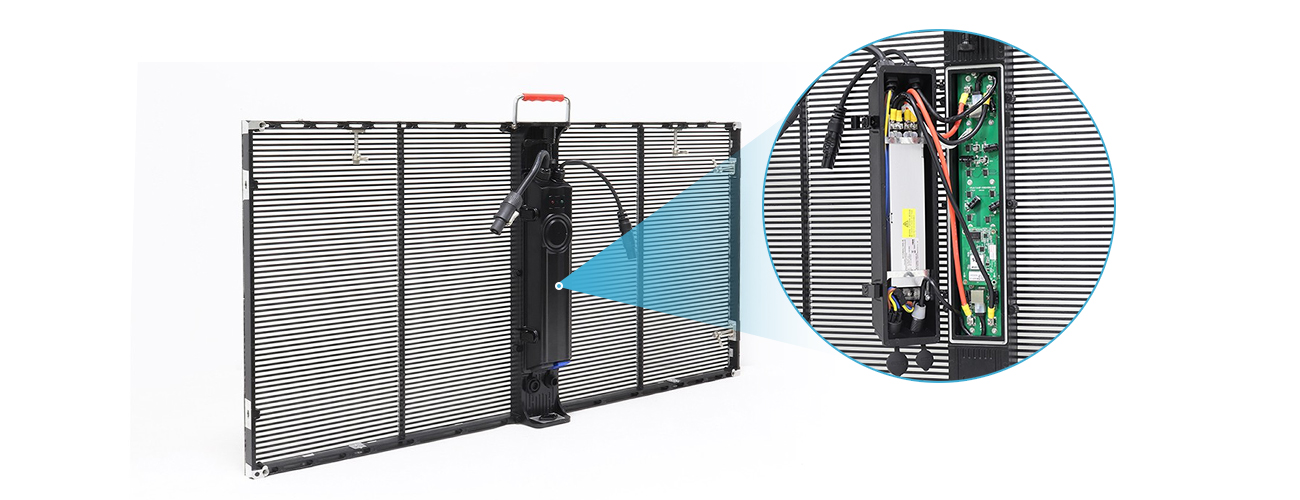

Designed as a minimalist LED film for glass wall, it features no visible screen components and a hidden power supply system, ensuring safe, reliable operation while maintaining a clean and beautiful appearance.
Product Parameter
Click and long-press on the form to swipe left or right.
| Product Specifications | P4-4 | P4-8 | P5 | P6 | P8 | P10 | P16 |
| Pixel Pitch | 4mm*4mm | 4mm*8mm | 5mm*5mm | 6mm*6mm | 8mm*8mm | 10mm*10mm | 15.625mm*15.625mm |
| Pixels | 62500 dots/㎡ | 31250 dots/㎡ | 40000 dots/㎡ | 27889dots/㎡ | 15625dots/㎡ | 10000dots/㎡ | 3906dots/㎡ |
| LED Specifications | SMD1212 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| Module Resolution | 250*60 | 250*30 | 200*48 | 167*40 | 125*30 | 100*24 | 64*15 |
| Pixel Resolution | 250*250/㎡ | 250*125/㎡ | 200*200/㎡ | 167*167/㎡ | 125*125/㎡ | 100*100/㎡ | 64*64/㎡ |
| Transmittance | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥90% | ≥90% |
| Cabinet Wiring | Internal wiring (neat back panel) | ||||||
| Weight | ≤3.5KG/㎡ | ||||||
| White Balance Brightness | 3000cd/㎡ | ||||||
| Peak Power Consumption | 400 W/㎡ | ||||||
| Average Power Consumption | Approx. 200 W/㎡ (depending on video source) | ||||||
| Refresh Rate | ≥3840Hz | ||||||
| Grayscale Level | 16Bit | ||||||
| Brightness Control Level | 0-255 levels | ||||||
| Color Temperature | 3200K-8500K (adjustable) | ||||||
| Frame Rate | ≥60Hz | ||||||
| Viewing angle | H-H140 degrees V-V140 degrees | ||||||
| Input signal | DVI/VGA, composite video | ||||||
| Control method | Synchronous box (computer screen control) or asynchronous box (WiFi connection for mobile app screen control or USB flash drive screen control) | ||||||
| Protection level | IP30 | ||||||
| Power supply requirements | AC 220V ±10%, 50-60Hz, (optional wide voltage 110V and 9~36V) | ||||||
| Operating temperature | -20～50 degrees Celsius | ||||||
| Theoretical service life | 100,000 hours | ||||||
