Quick answer: A fine pitch LED display is an LED screen with a pixel pitch below 2 mm (P2), typically P0.9–P1.9. It delivers a seamless, high-resolution image for viewing from about 1–5 m, and is used in control rooms, boardrooms, broadcast studios, retail and XR stages. Most fine pitch LED displays today use SMD, COB or MIP packaging.
What Is a Fine Pitch LED Display?
“Fine pitch” (also called small pixel pitch or narrow pixel pitch) refers to LED displays with a pixel pitch under 2 mm. With 250,000 to over 1,000,000 pixels per square meter, a fine pitch LED screen can show text, dashboards and 4K/8K video sharply even when viewers are only a few meters away — something that used to require LCD video walls or projectors.

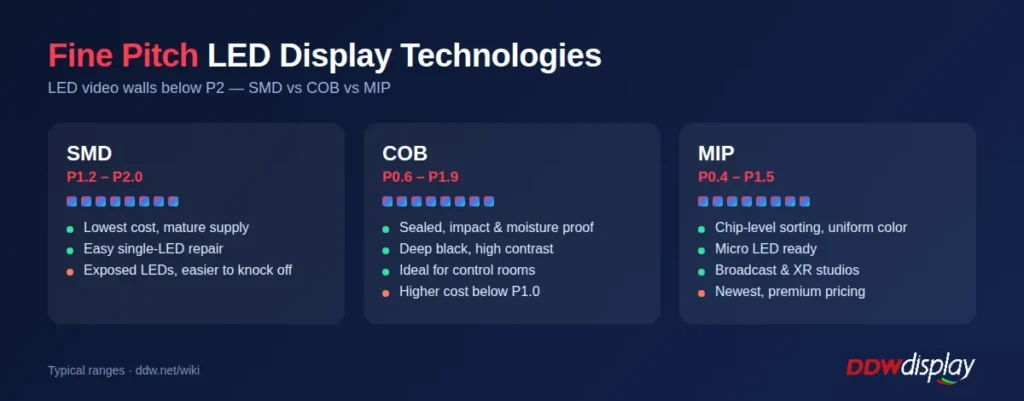

SMD vs COB vs MIP for Fine Pitch
| Technology | Typical Pitch | Strengths | Watch Out For |
|---|---|---|---|
| SMD | P1.2–P2.0 | Lowest cost, easy single-LED repair | Exposed LEDs can be knocked off |
| COB | P0.6–P1.9 | Sealed surface, impact and moisture resistant, deep black | Higher cost below P1.0 |
| MIP | P0.4–P1.5 | Chip-level sorting for uniform color, Micro LED ready | Newest, premium pricing |
Where Fine Pitch LED Displays Are Used
- Control rooms: 24/7 monitoring walls, usually P0.9–P1.5 COB.
- Boardrooms and meeting rooms: P1.2–P1.8 replacing projectors and LCD walls.
- Broadcast and XR studios: P1.2–P1.9 with high refresh rates for cameras.
- Retail and luxury stores: P1.5–P1.9 for close-up product visuals.
How to Choose a Fine Pitch LED Screen
- Match pixel pitch to the closest viewing distance (about 1 m per 1 mm of pitch).
- Choose COB for high-traffic or 24/7 environments where durability matters.
- Check refresh rate (3,840 Hz+) and grayscale for camera use.
- Plan front-service access if the screen is wall-mounted.
- Budget for a video processor that supports the full native resolution.
DDW Engineer Notes: Fine Pitch LED Display
For fine pitch projects we see the best long-term value in COB below P1.5: fewer dead pixels, easier cleaning and better contrast. Above P1.5, a high-quality SMD LED display is still the most cost-effective option.
FAQ
What pixel pitch is considered fine pitch?
LED displays with a pixel pitch below 2 mm (P2) are generally considered fine pitch; below about P1 is often called micro pitch.
Is COB better than SMD for fine pitch LED displays?
For P1.5 and below, COB is usually better thanks to its sealed, impact-resistant surface and higher contrast. SMD remains cheaper above P1.5.
How much does a fine pitch LED display cost?
Fine pitch LED displays cost more per square meter than standard indoor LED screens, and the price rises quickly as pitch drops below P1.2.
