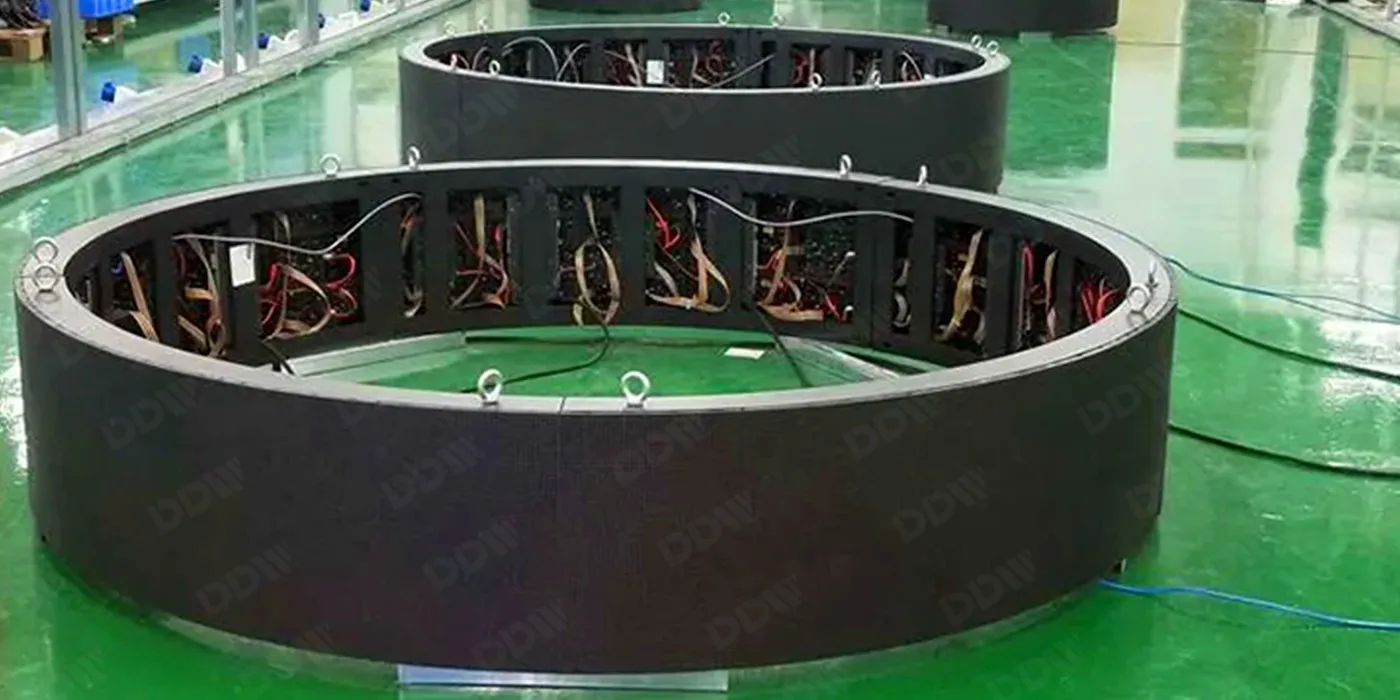

CL series Circular LED screen

Made out of P1.5 P1.8 P2 P2.5 240x120 320x160 flex led modules, widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.

Features

3840 Hz

Wide Viewing Angles

Arc installation

High Flexibility

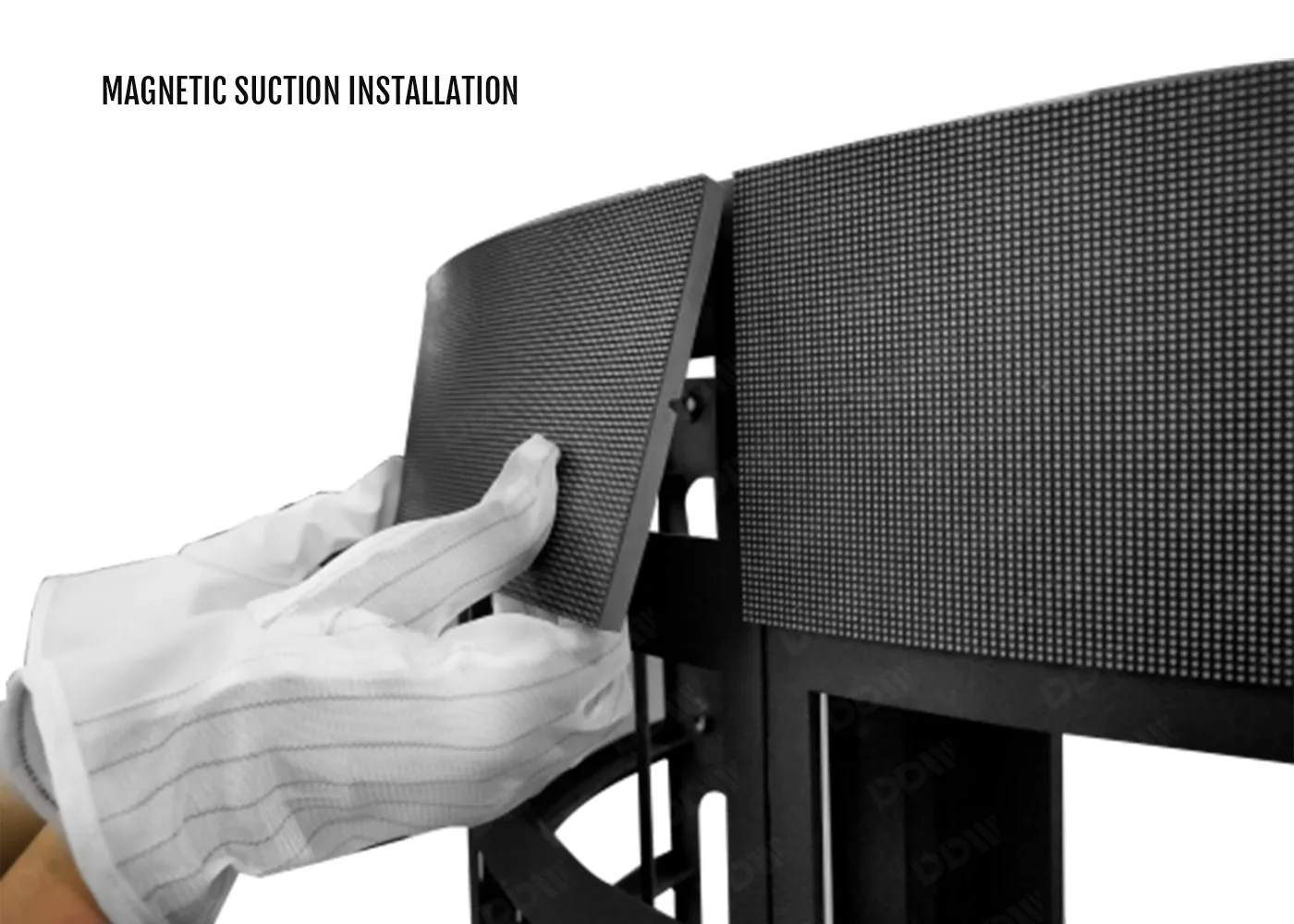

Magnetic Suction Installation

Front Maintenance

Soft silica gel

Low Power Consumption

Advantages

CL Series Circular LED screen
Feature Description
  • - Soft silicone back shell High contrast ratio
  • - Ultra-light and ultra-thin
  • - 160° Wide Viewing angle
  • - Remain picture clearly & seamless, no delay
  • - Simple & fast to maintain

Video

CL Series Circular LED screen

Parameters

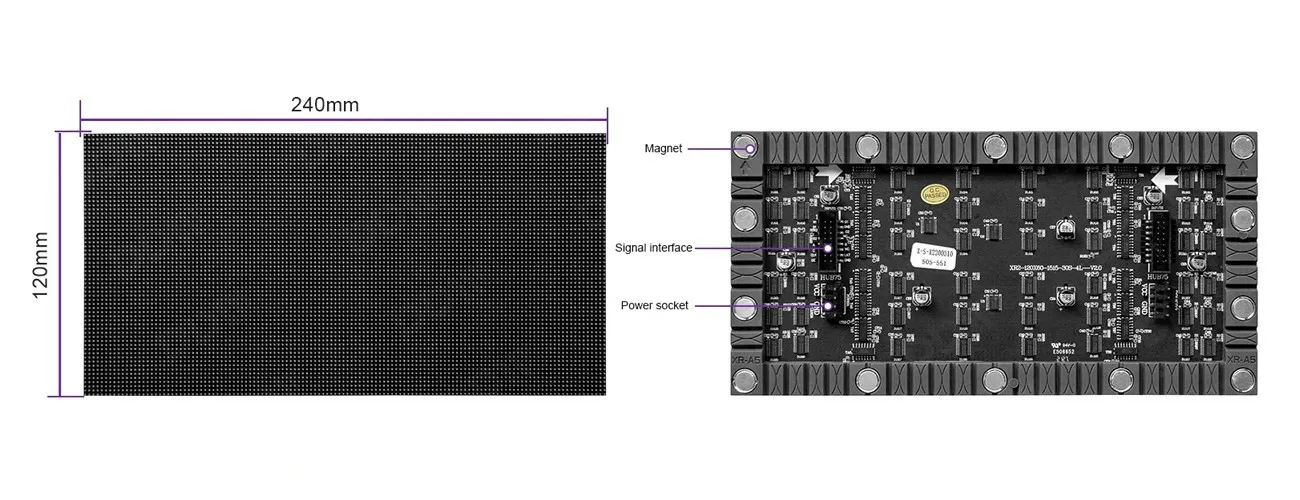

Module Specs

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.

CL Series Circular LED screen

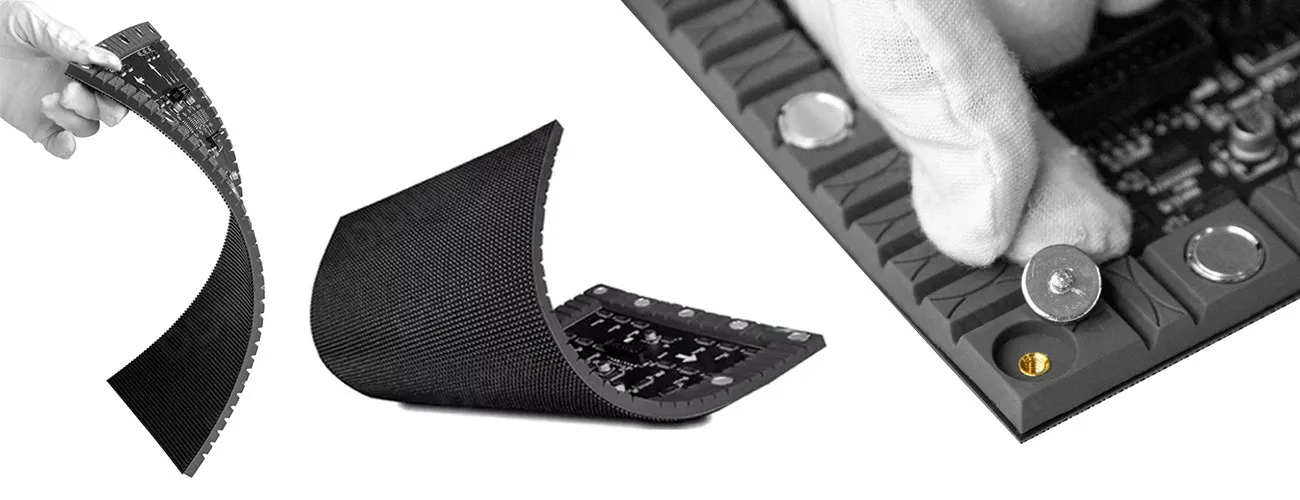

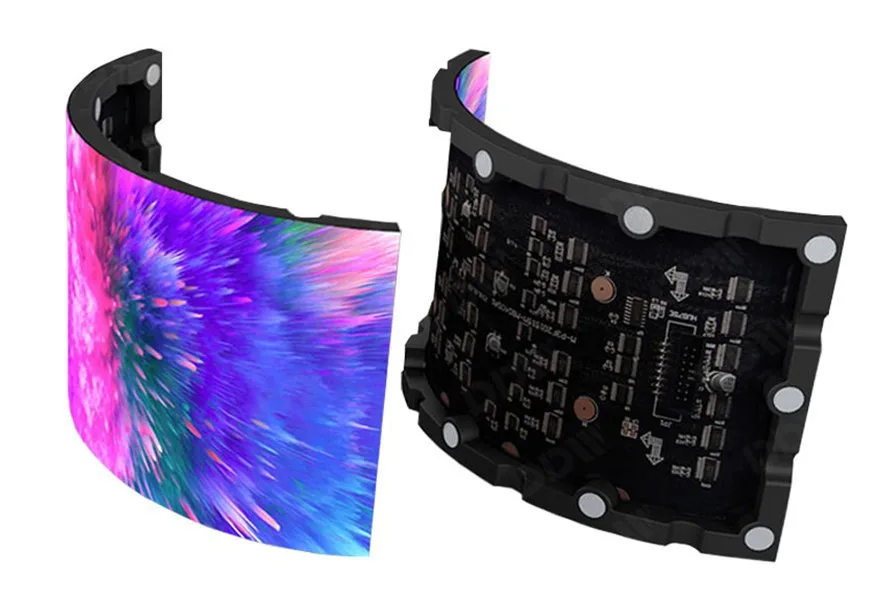

High flexibility

The module is soft and flexible, could be designed into any different shapes as you can imaging.

CL Series Circular LED screen

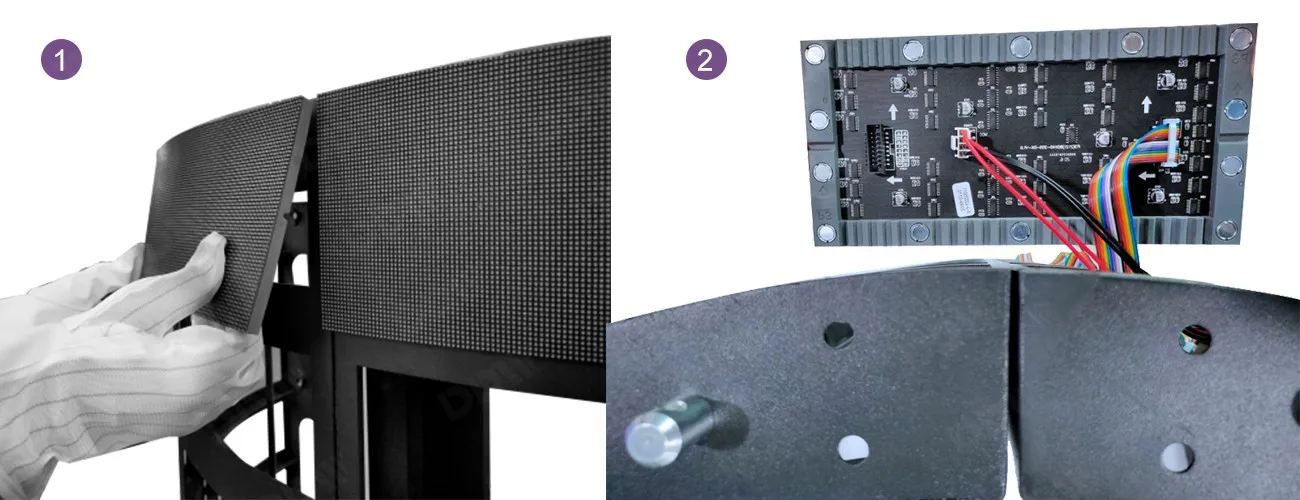

Paste by Magnets,Easy installation

There’re multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.

CL Series Circular LED screen

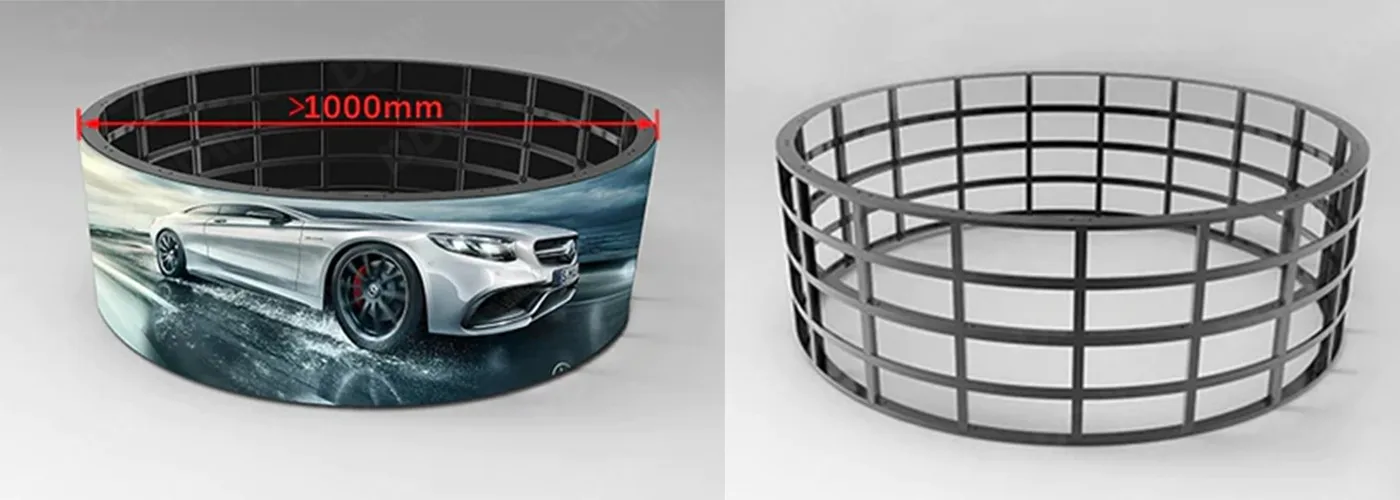

Installation

Standard Cabinet Dimensions
CL Series Circular LED screen

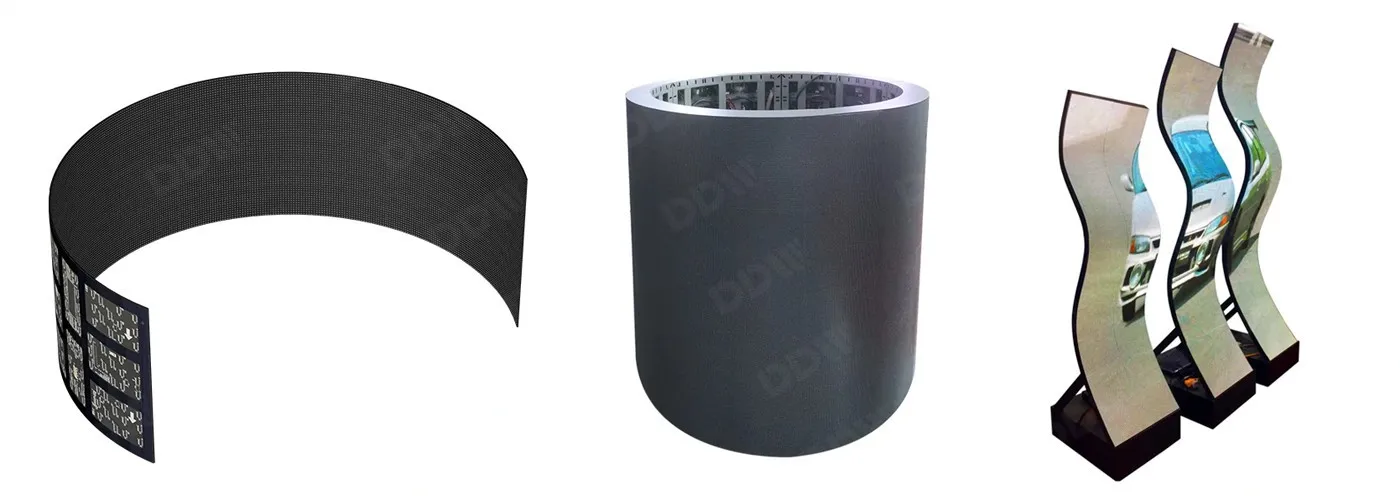

Various installation mode
CL Series Circular LED screen

Specifications

Pixel pitch P1.56 P1.875 P2 P2.5
Module size/mm 240*120 240*120 240*120 240*120
Weight 190g 170g 170g 170g
Color 1R1B1G 1R1B1G 1R1B1G 1R1B1G
Modulator tube SMD1010 SMD1010 SMD1010 SMD1515
Resolution 409600 284444 250000 160000
View angle 140° 140° 140° 140°
Brightness cd/m² 800-1200 800-1200 800-1200 800-1200
Best view distance/m >1.56 >1.875 >2 >2.5
Frame rate ≥60/sec ≥60/sec ≥60/sec ≥60/sec
Protective Grade IP31 IP31 IP31 IP31
Drive mode Dynamic scan Dynamic scan Dynamic scan Dynamic scan
Refresh rate/Hz 1920/3840 1920/3840 1920/3840 1920/3840
Scan Mode/s 1/48 1/32 1/32 1/32
Maximum power w/m² 700 700 700 700
Average power w/m² 350 350 350 350
Working temperature -15℃~+40℃ -15℃~+40℃ -15℃~+40℃ -15℃~+40℃
Storage Humidity -25%~+70% -25%~+70% -25%~+70% -25%~+70%
Controlling system Synchronous Synchronous Synchronous Synchronous

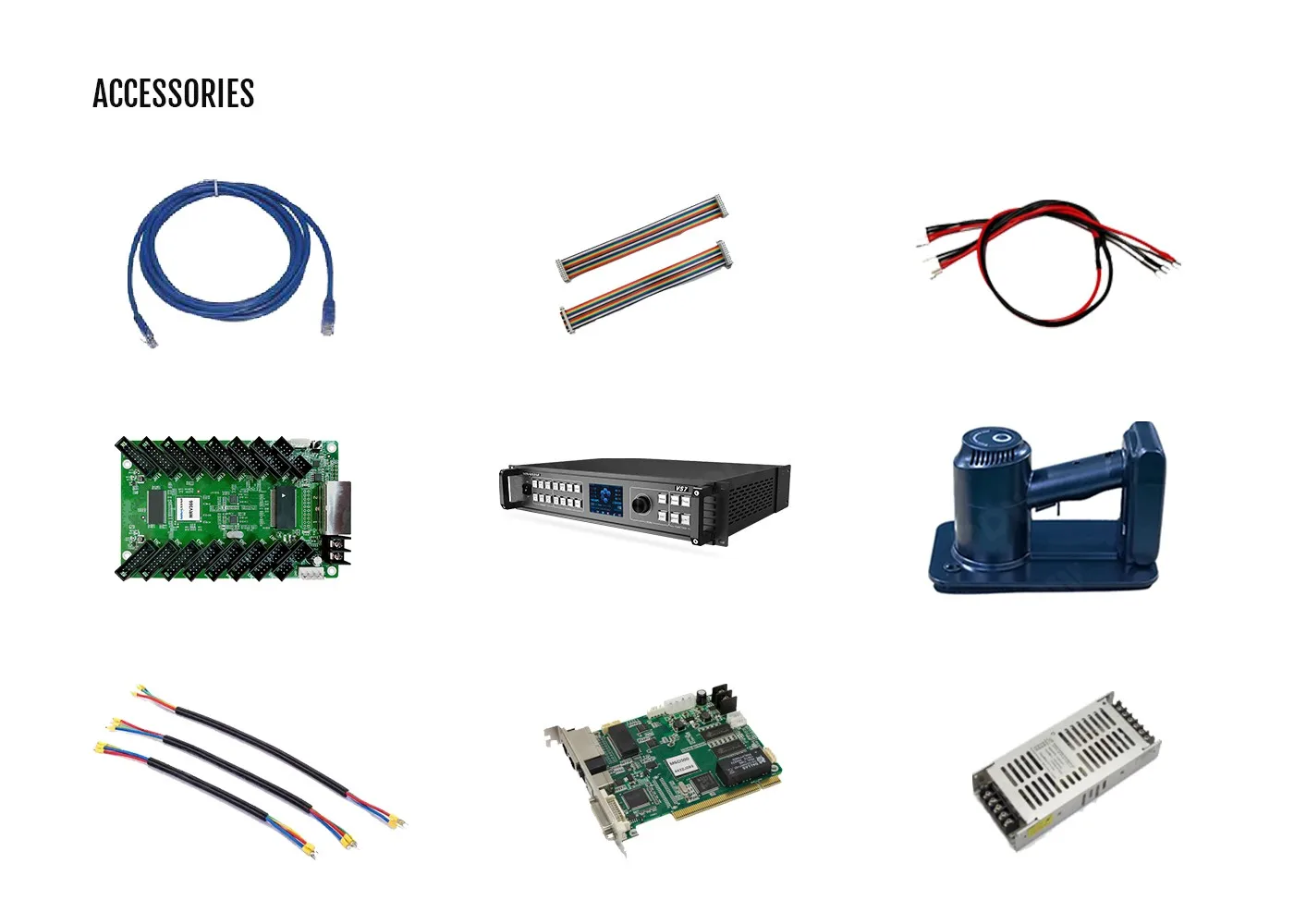

Accessories

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Receiving card
Receiving card

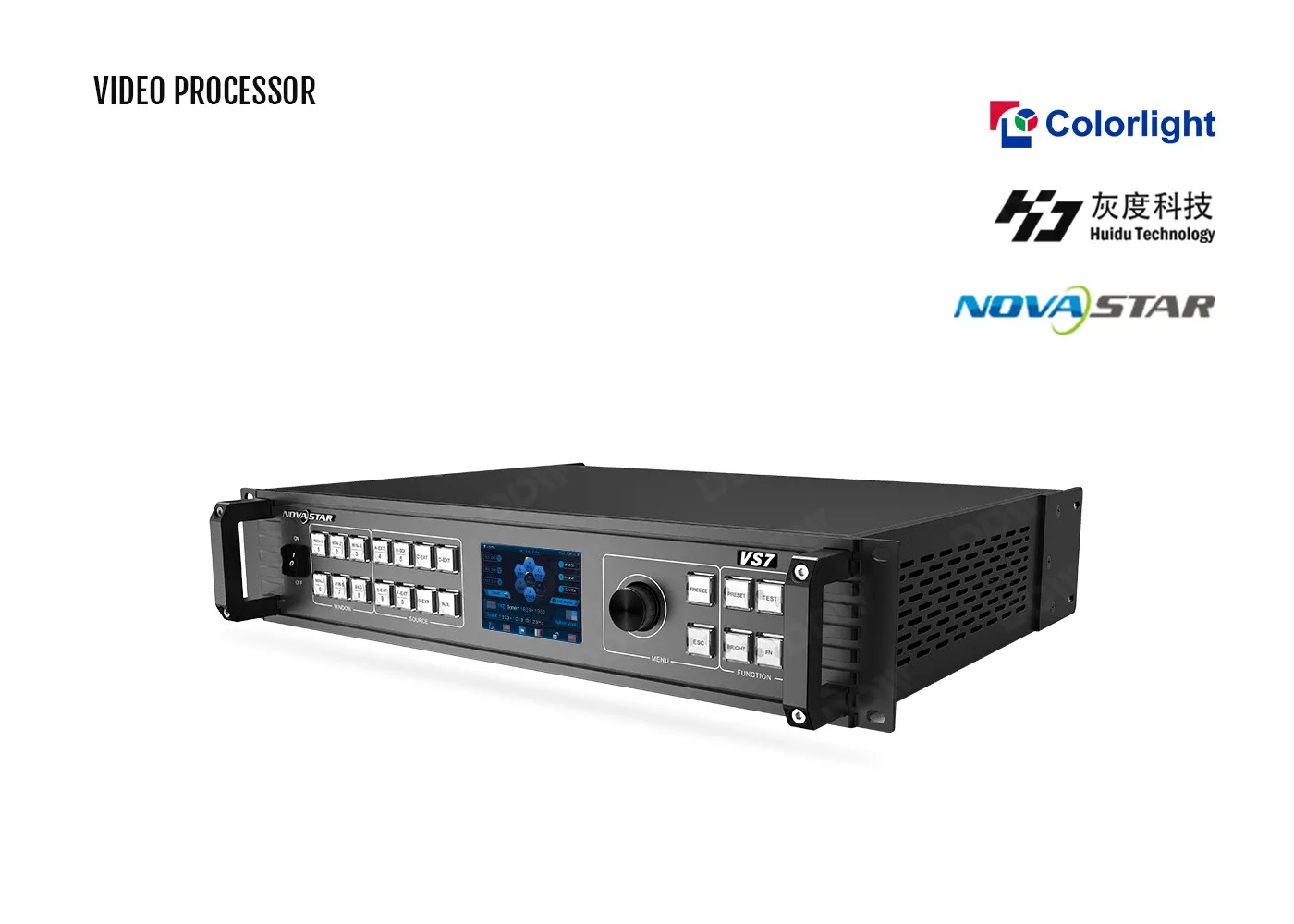

Video processor
Video processor
Power cable-Flat cable
Power cable-Flat cable
CAT cable 5V Power-cable
CAT cable 5V Power-cable

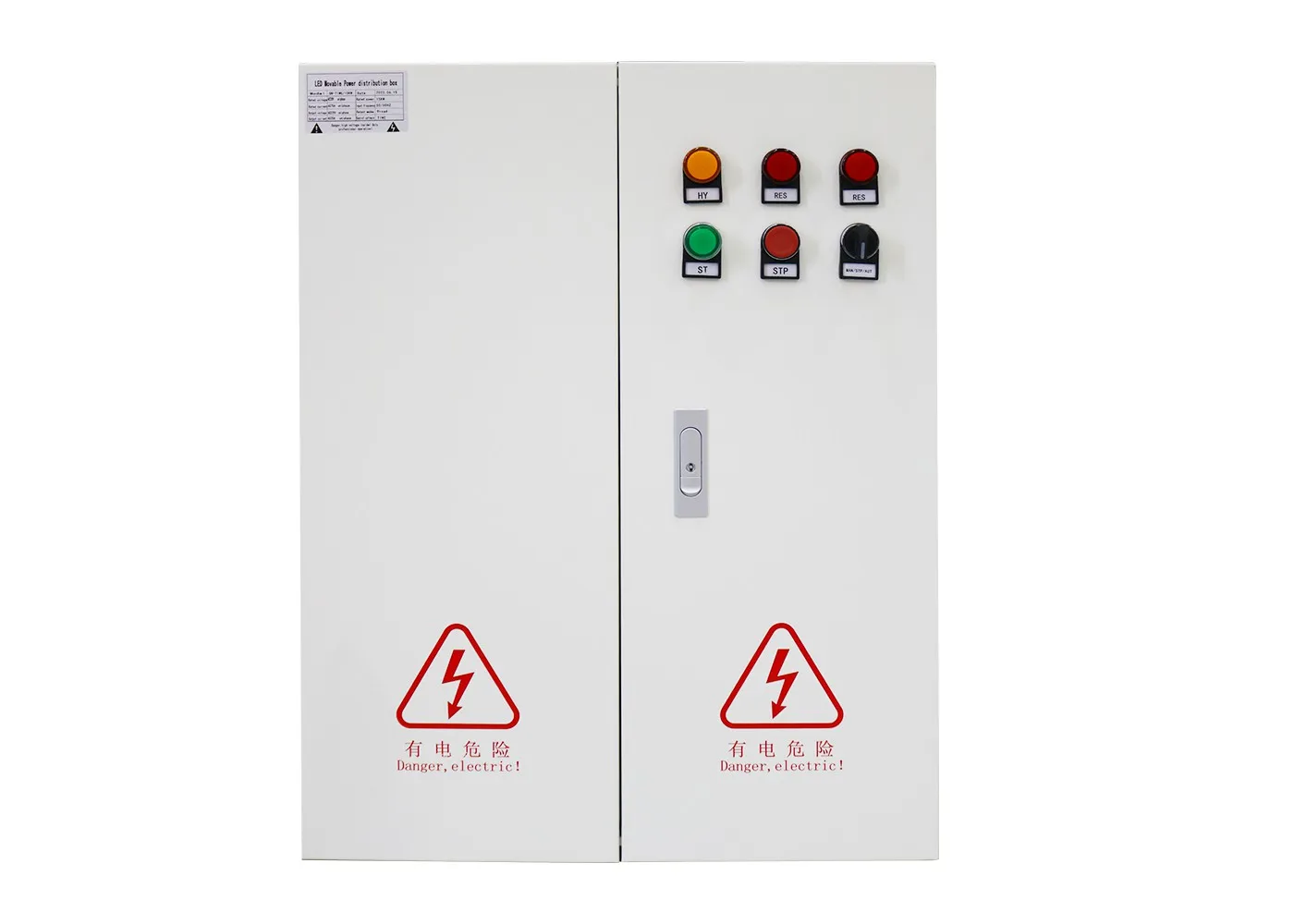

Power cabinet
Power cabinet
