What is the FC Series energy saving outdoor LED display designed for?

The FC Series is designed for professional outdoor fixed installation projects, including outdoor advertising billboards, 3D LED screens, stadium displays, highway signage, wall-mounted screens, building facades, and commercial media projects.

What makes the FC Series different from standard outdoor LED displays?

The FC Series uses a lightweight aluminum cabinet with plastic module base design, helping reduce cabinet weight, improve heat dissipation, and lower installation costs. It also supports common cathode energy-saving technology to reduce power consumption by about 30%.

How bright is the FC Series outdoor LED display?

The FC Series supports brightness options from 5000 to 10000 nits, depending on pixel pitch and configuration. This allows the display to remain visible under direct sunlight for outdoor advertising and large public display applications.

Does the FC Series support front and rear maintenance?

Yes. The FC Series supports both front and rear maintenance, making it suitable for different installation structures. Front maintenance helps save rear service space, while rear maintenance supports traditional outdoor billboard installations.

How lightweight is the FC Series cabinet?

The FC Series 1000 × 1000 mm cabinet weighs about 22.5 kg and is only 83 mm thick. Compared with traditional iron cabinets, it is about 35% lighter, helping reduce transportation, structure, and installation costs.

What cabinet sizes are available for the FC Series?

The FC Series supports multiple cabinet sizes, including 960 × 960 mm, 960 × 1280 mm, 1000 × 1000 mm, 1000 × 750 mm, 1000 × 500 mm, 1500 × 1000 mm, 1500 × 750 mm, and 1500 × 500 mm, giving project teams more flexibility for different screen sizes and structures.

What protection level does the FC Series provide?

The FC Series provides IP65 front and rear protection, helping the display resist rain, dust, humidity, high temperature, and other challenging outdoor environments.

Why choose the DDW FC Series for outdoor advertising projects?

The DDW FC Series combines 30% energy saving, lightweight aluminum cabinet structure, front and rear maintenance, IP65 protection, 5000–10000 nits brightness, 3840–7680Hz refresh rate, 14–16bit grayscale, and flexible cabinet sizes for professional outdoor media operators and engineering projects.

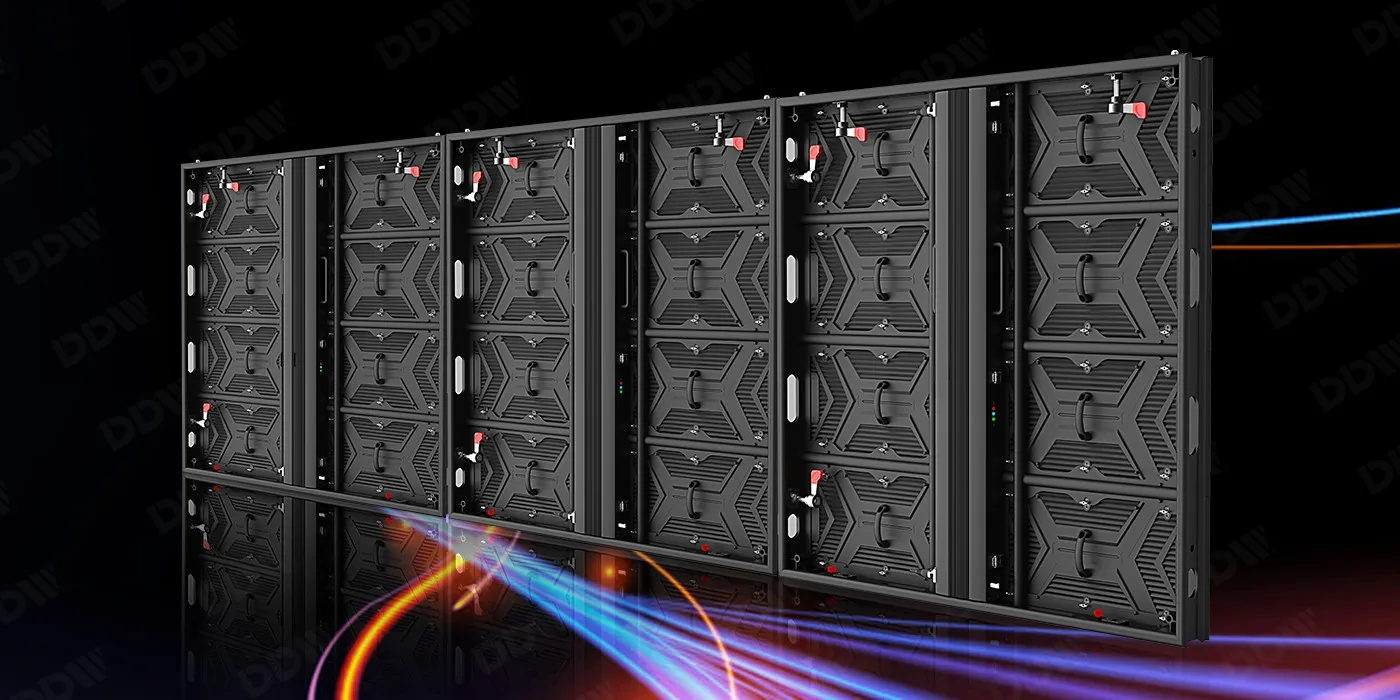

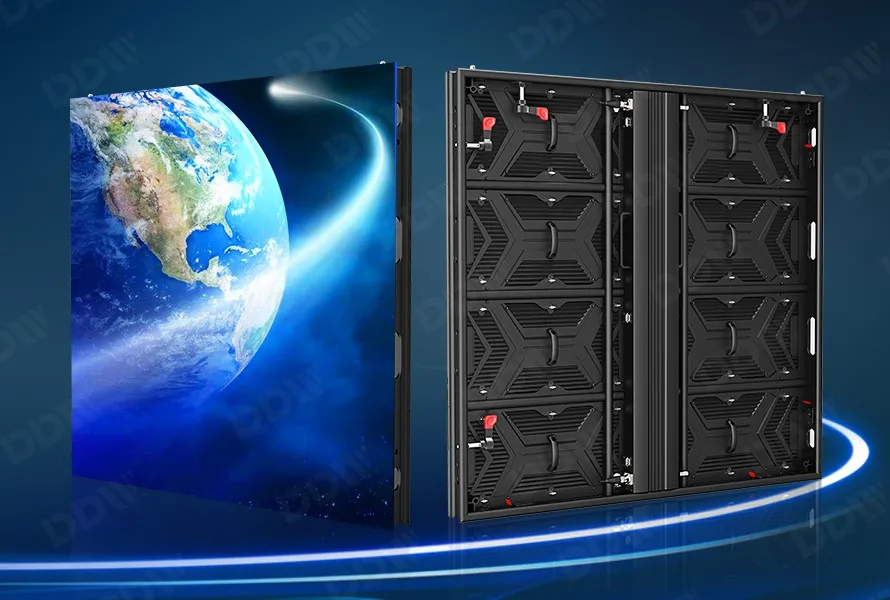

FC Series Energy Saving Outdoor LED Display | Lightweight Aluminum Cabinet

FC SERIES

3840-7680Hz High refresh rate

Provides smoother and more stable visuals, helping reduce flicker, scan lines, and moiré during filming or live broadcasting.

Loading video...

Key Product Features

Tag:

Lightweight Structure

Open-frame cabinet design reduces overall weight while maintaining excellent strength, durability, and reliable structural performance.

Front & Rear Maintenance

Modular cabinet structure enables convenient front and rear access, simplifying installation, servicing, and maintenance operations.

High Thermal Conductivity

Full aluminum housing and conductive materials provide efficient heat dissipation, ensuring stable and reliable performance.

Ultra-High Brightness

Up to 10,000 nits brightness ensures clear visibility in sunlight, with excellent contrast and long-term stability.

Smart Module Technology

Integrated monitoring supports voltage, signal, temperature, diagnostics, and calibration data management for efficient operation.

True Color Performance

3840Hz refresh rate and 16-bit grayscale deliver vivid colors, smooth images, and outstanding visual consistency.

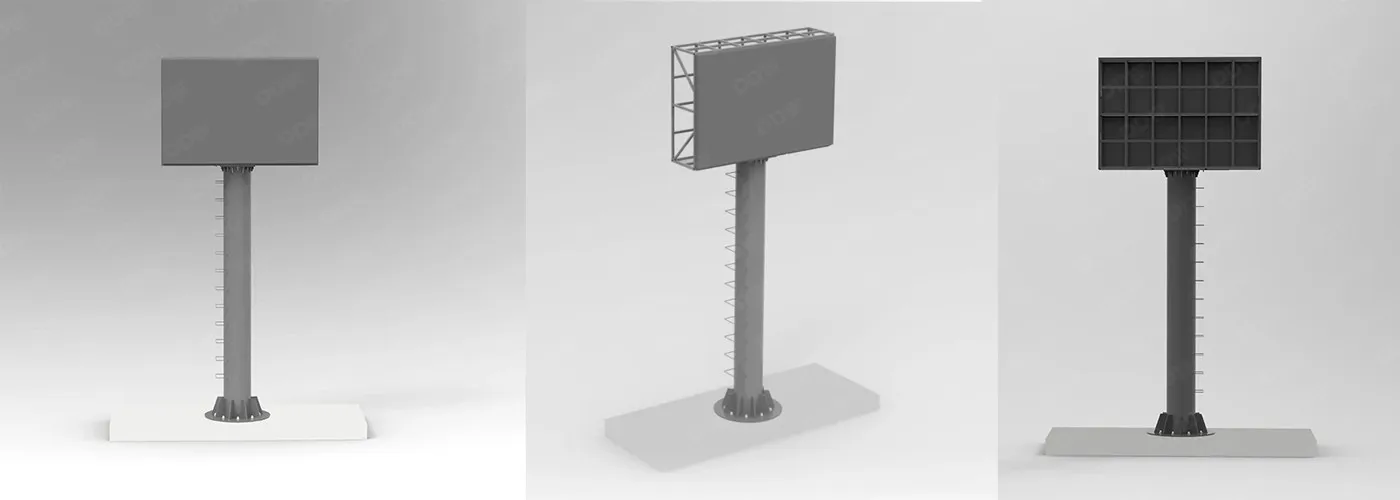

Application Scenario

Outdoor 3D LED Screen

Highway bollards

Outdoor wall hanging

Stadium

Multiple Cabinet Sizes Available

1000×1000 / 1000×750 / 1000×500 / 1500×1000 / 1500×750 / 1500×500 / 960×960 / 960×1280mm

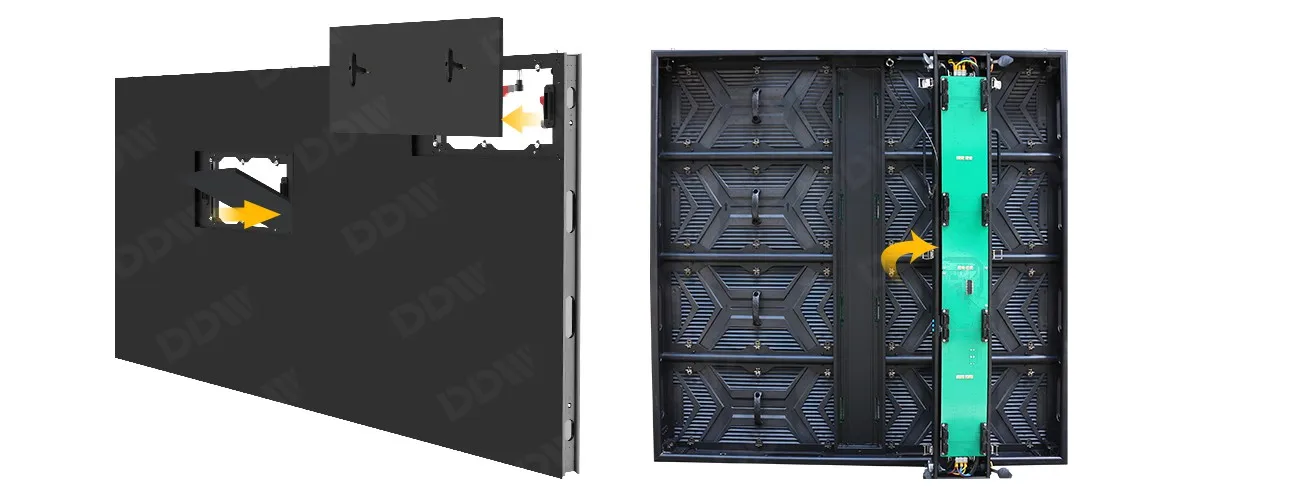

Front & Rear Maintenance

Designed as a front and rear maintenance LED screen, it supports easy access from both sides. LED modules can be quickly removed and replaced, reducing maintenance time and improving service efficiency for various installation methods and outdoor applications.

IP65 Front & Rear Protection

This IP65 outdoor LED display is built with IP65 waterproof and dustproof protection, delivering reliable performance in rain, dust, heat, humidity, and other demanding outdoor environments.

Key factors for outdoor advertising screens

Product Advantages

Modules are easy to maintain and can be assembled more freely.

Mask design

Matte corrugation module mask achieves ultra-high contrast

Aluminum-plastic bottom shell

Aluminum profile cabinet is light weight, which saves tranportation cost and installation cost

Fast installation

Stainless fast lock High precision aluminum alloy panelQuick assembly . Good flatness

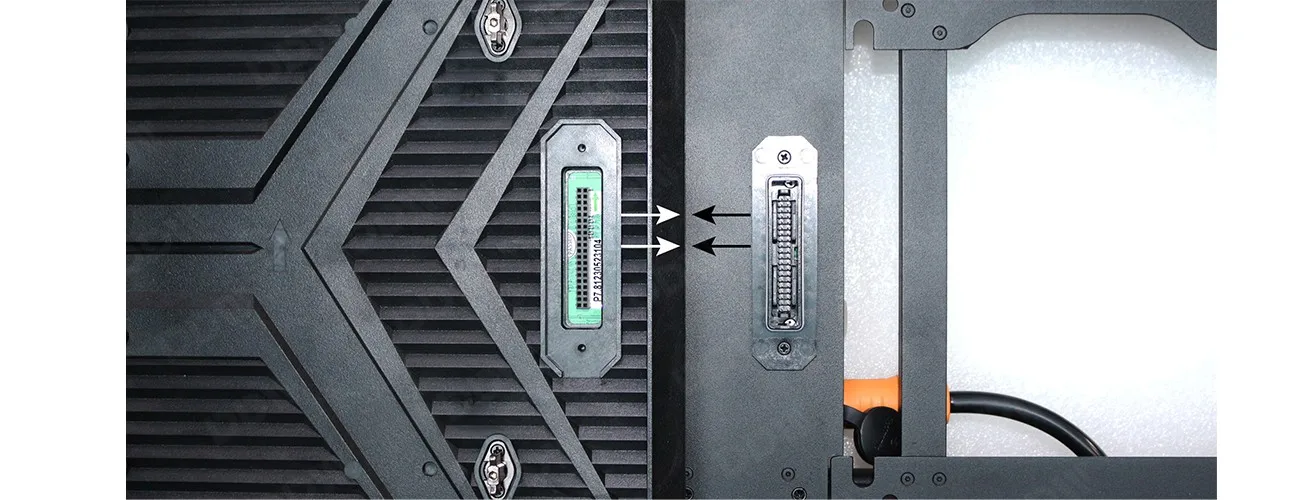

Hot-swapping

Hard connection supports full front access

Creative styling

Designed as a flexible outdoor LED advertising screen, it supports multiple splicing and installation methods, including right angles and arcs, and can be used for naked-eye 3D display solutions.

Arc splicing

Right angle

Product Features

Professional Visual Performance

Excellent display, immersive experience, clear true colors, wide viewing angle.

10,000-level Brightness & contrast, details fully revealed

Designed as a high brightness LED billboard, it ensures clear, vivid, and high-contrast display performance even in direct strong sunlight.

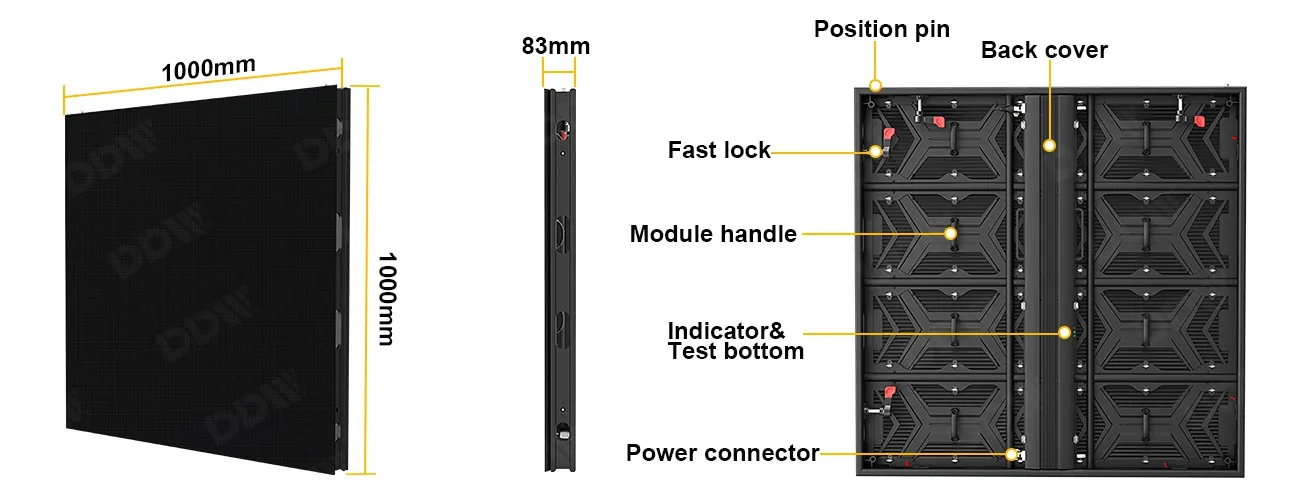

Lightweight

FC Series features a lightweight aluminum LED cabinet, only 83mm thick and 22.5kg per 1000×1000mm cabinet, making it about 35% lighter than traditional iron cabinets for easier installation and maintenance.

Efficient Heat Dissipation

Aluminum profiles and plastic bottom shell modules for better heat dissipation

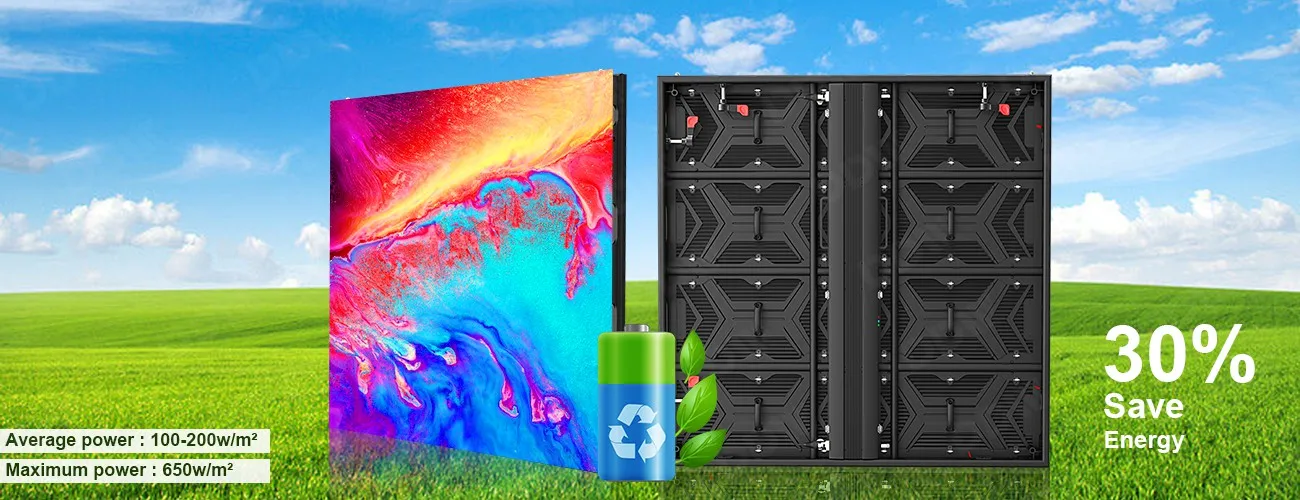

30% Energy Saving

The FC Series is a common cathode LED display that reduces power consumption by approximately 30%, helping lower long-term operating costs for outdoor advertising applications.

Product Parameter

Click and long-press on the form to swipe left orright.

Parameter

960×960 / 960×1280 Cabinet

1000×1000 Cabinet + Optional Sizes

Pixel Pitch

P5.71

P6.66

P10

P2.976

P3.91

P4.81

P6.25

P7.81

P10.42

LED Type

SMD1921

SMD2727

SMD1415

SMD1921

SMD2727

Physical Density (dots/m²)

62500

40000

30625

22500

15625

10000

112896

65536

43264

25600

16384

9216

Module Resolution

120×80

96×64

84×56

72×48

60×40

48×32

168×84

128×64

104×52

80×40

64×32

48×24

Module Size (W×H, mm)

480×320

500×250

Cabinet / Panel Size (mm)

960×960 / 960×1280

1000×1000 optional: 1500×1000 / 1500×750 / 1500×500 / 1000×750 / 1000×500

Cabinet Resolution

240×240

192×192

168×168

144×144

120×120

96×96

336×336

256×256

208×208

160×160

128×128

96×96

Module Quantity (W×H)

2×3 / 2×4

2×4

Cabinet Weight (kg)

21 / 27

22.5

Maintenance Mode

Front & Rear

Cabinet Material

Aluminum

Brightness (nits)

5000–10000 (Optional)

5500–10000 (Optional)

6000–10000 (Optional)

5000–5500 (Optional)

5500–10000 (Optional)

6000–10000 (Optional)

Color Temperature (K)

5000–12000 (Optional)

Viewing Angle (H/V)

140° / 160°

Best Viewing Distance

3–100m

4–100m

10–200m

3–100m

4–100m

6–150m

8–150m

10–200m

Contrast Ratio

15000:1

Frame Rate / Frequency (Hz)

50/60

Drive / Scan Mode

1/8 scan

1/7 scan

1/6 scan

1/4 scan

1/2 scan

1/21 scan

1/8 scan & 1/16 scan

1/7 scan & 1/13 scan

1/8 scan

1/4 scan

1/2 scan

Gray Level

14–16bit (Optional)

Refresh Rate (Hz)

3840–7680

Max Consumption (W/m²)

650–750

Avg Consumption (W/m²)

100–200

Protection Level

IP65

Power Input

AC90–264V, 47–63Hz

Working Temp / Humidity

-20~60°C / 10%~85%RH

Storage Temp / Humidity

-20~60°C / 10%~85%RH

Certification

CCC / CE / RoHS / FCC / CB / TUV / IEC / BIS
