FH series Outdoor LED screen

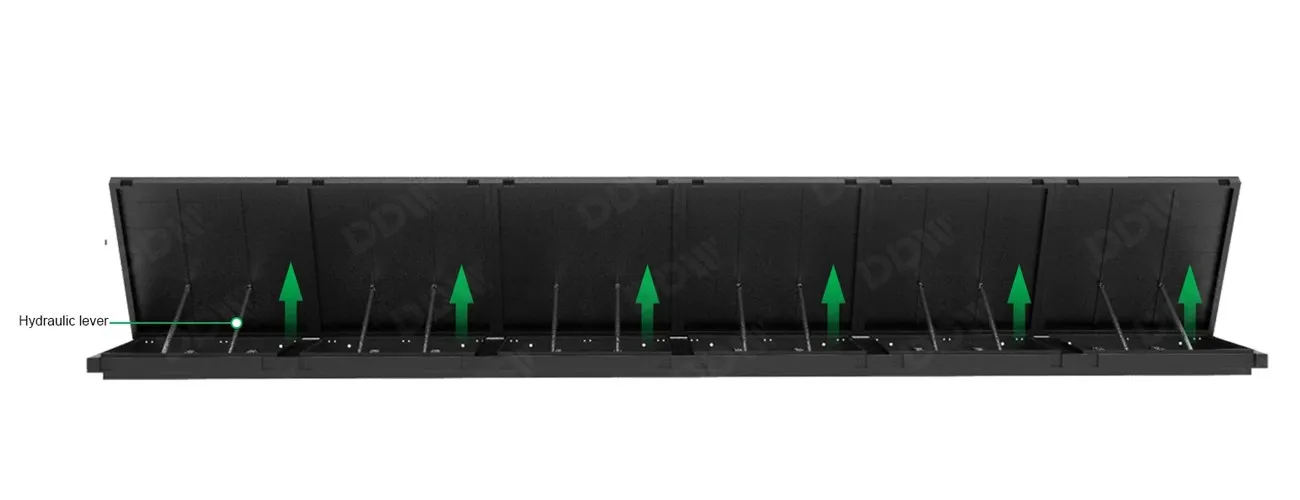

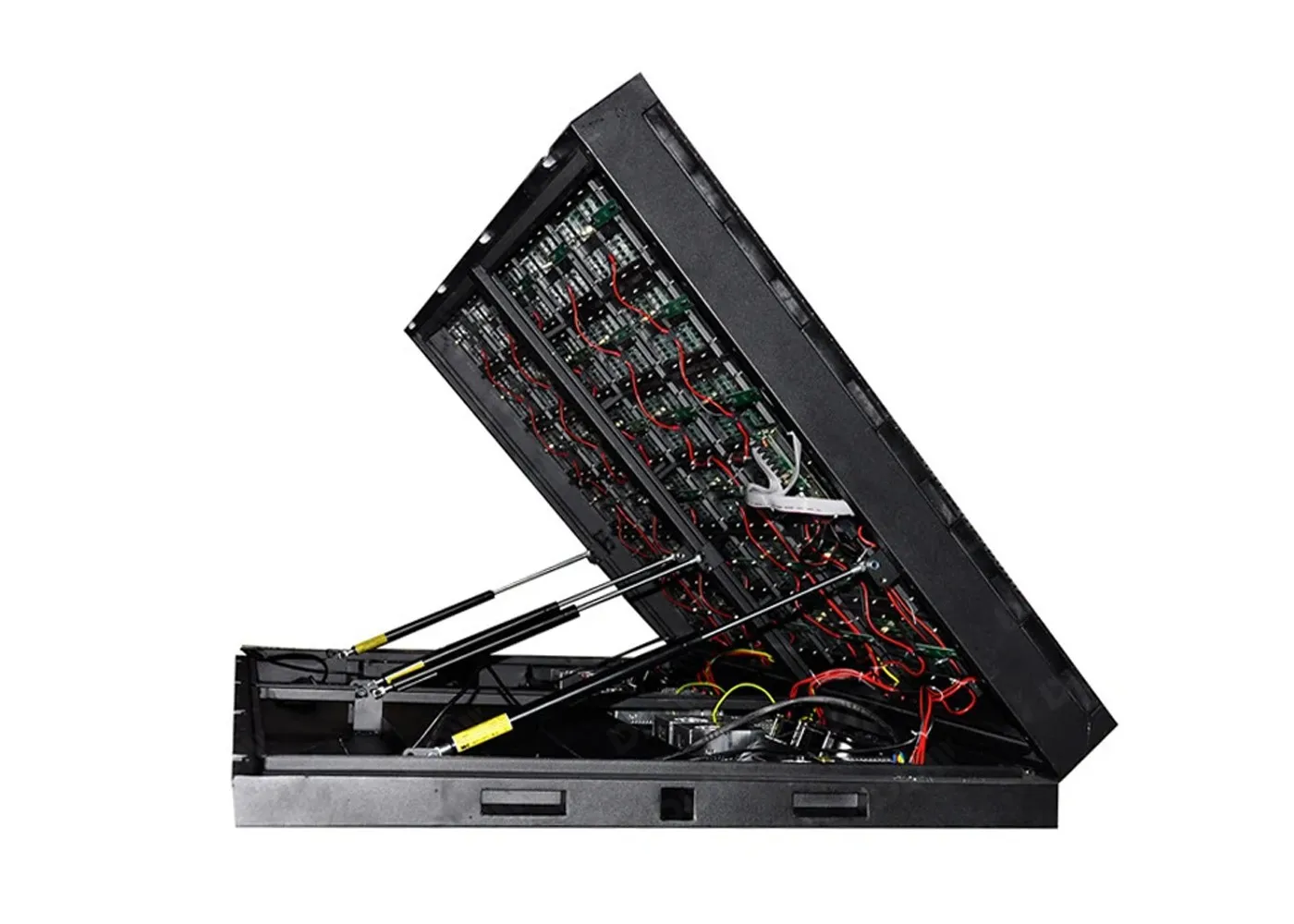

FH series is a fixed led display which support hydraulic rod openable LED display, which is suitable for outdoor fixed installation. Its main feature is that the entire led screen can be openable by just release the hydraulic bracket. We can do friendly and quick maintanence while open the front door. It’s a flexible outdoor led display.

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

Two-sided optional

Common Cathode Design

Front Rear Maintenance

Iron cabinet

7500cd High brightness

Advantages

FH series Outdoor Fixed LED screen
Feature Description
  • - High brightness, can be used in daytime and night time
  • - Waterproof IP65
  • - Customized LED screen size
  • - Single sided and double sided optional
  • - Front open,Easy maintenance

Video

FH series Outdoor Fixed LED screen

Parameters

Easy to Install

No need to do structure, can directly mounted the LED display on the wall with screws.

FH series Outdoor Fixed LED screen

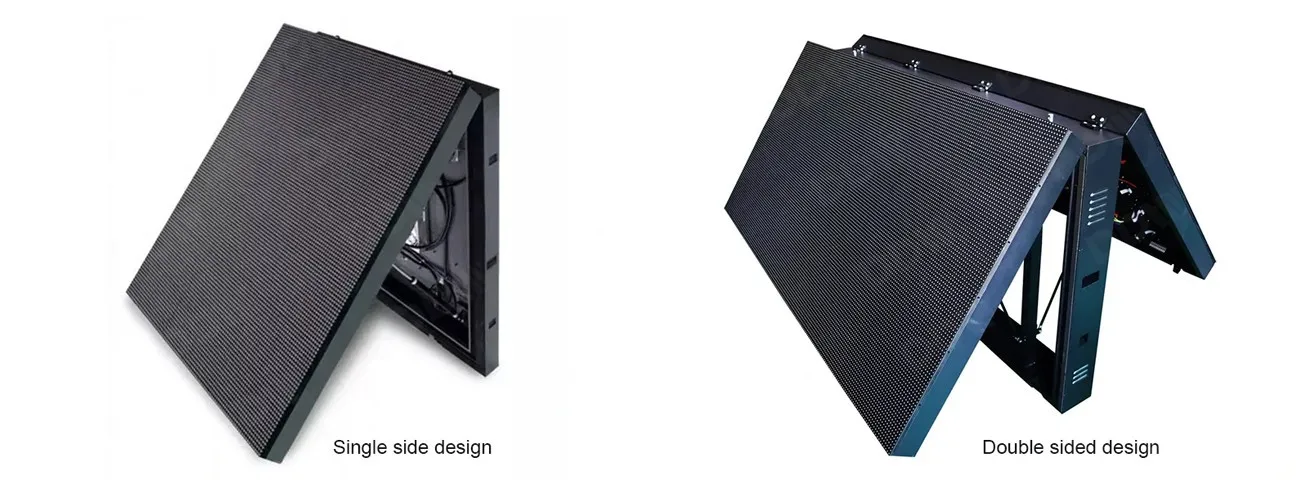

Single sided and double sided optional

Double-sided optional, multi-directional presentation of different images

FH series Outdoor Fixed LED screen

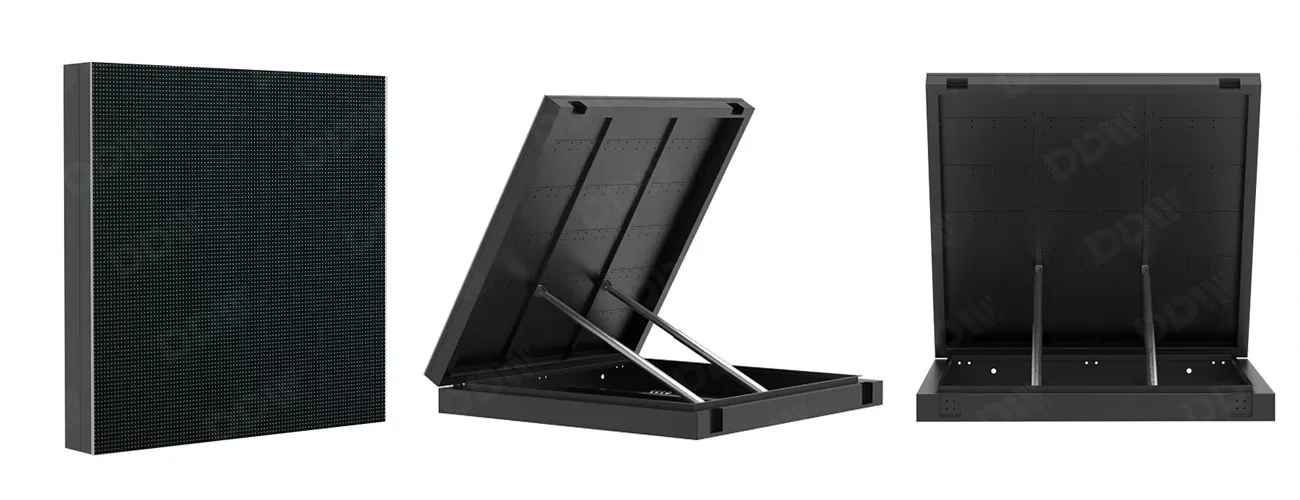

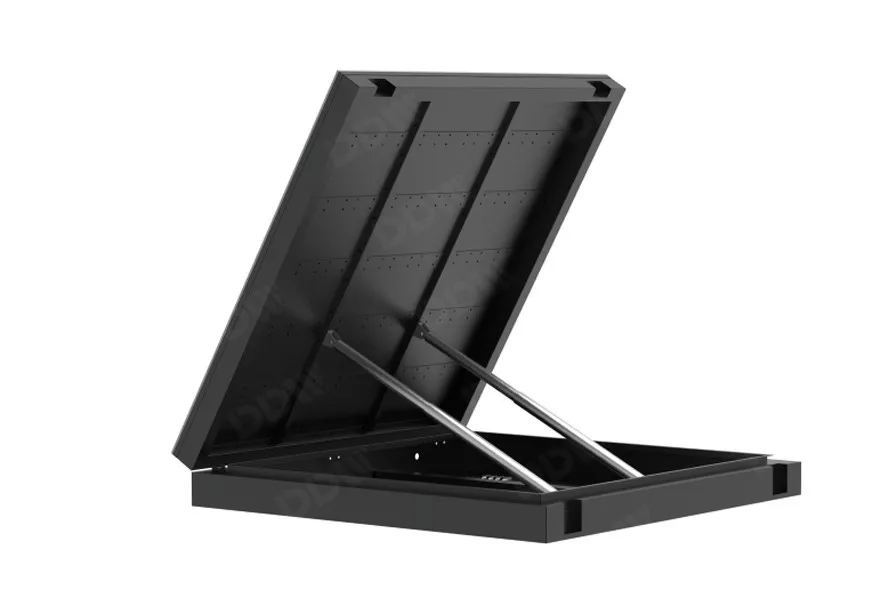

Easy to maintenance

The LED cabinets can be open from the front, maintenance person is easy to open and maintenance the LED Display from the front.

FH series Outdoor Fixed LED screen

Installation

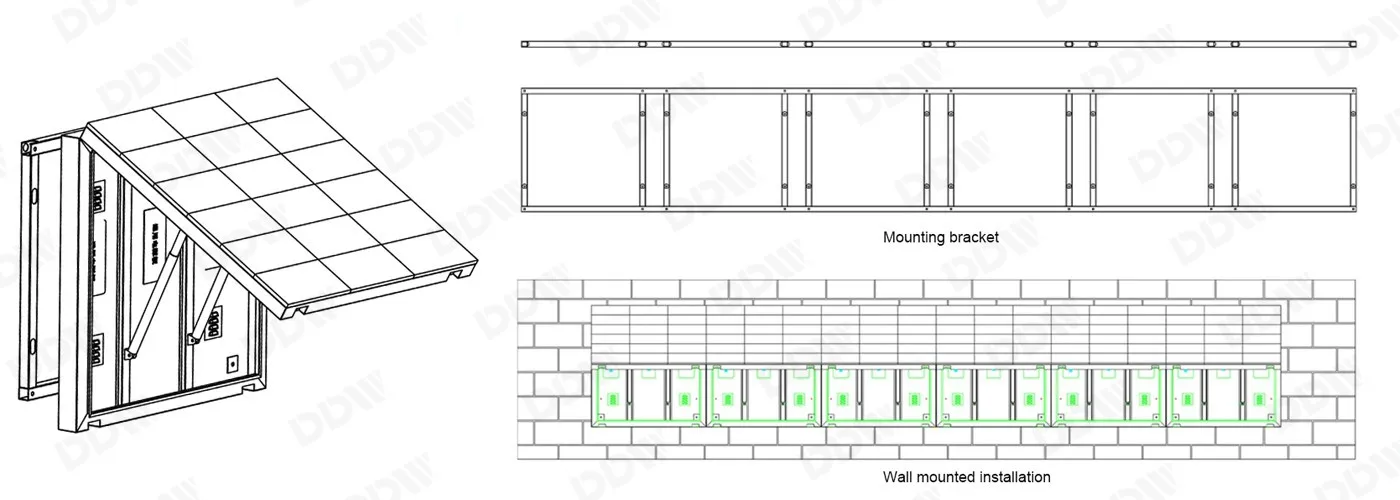

Installation Diagram
FH series Outdoor Fixed LED screen


Specifications

Model 2.5 P3 P4 P5 P6 P8 P10
Module size(mm) 192×192 192×192 320×160 320×160 192×192 320×160 320×160
Module resolution (dot) 64×64 64×64 80×40 64×32 32×32 40×20 32×16
Scanning 1/16S 1/16S 1/20S 1/8S 1/8S 1/5S 1/2S
SMD 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B
Maintenance Back Back Back Back Back Back Back
Installation Back Back Back Back Back Back Back
Cabinet size(mm) 960×960 960×960 960×960 960×960 960×960 960×960 960×960
Density(dot/㎡) 160000 111111 62500 40000 27777 15625 10000
Brightness(cd/㎡) 4200-4500 4200-4500 5000-6500 5000-6000 5000-6000 4000-5000 6000-7500
Max. Power Consumption 1000 1000 900 800 800 800 1000
Average Power Consumption 350 350 300 400 300 300 500
Cabinet weight (kg/m²) 40kg 40kg 40kg 40kg 40kg 40kg 40kg
Cabinet material Iron Iron Iron Iron Iron Iron Iron
IP rate IP 65 IP 65 IP 65 IP 65 IP 65 IP 65 IP 65
Grayscale 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1
Refresh rate(hz) 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Frame change frequency 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz
Horizontal viewing angle >140° >140° >140° >140° >140° >140° >140°
Vertical viewing angle >140° >140° >140° >140° >140° >140° >140°
Best viewing distance >2.5m >3m >4m >5m >6m >8m >10m
Input Voltage AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V
Module Max. current 4.5-5.5 4.5-5.5 5.5-7.5 5.5-7.5 3.5-5.5 5.5-7.0 8.0-10
Temperature-operating ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃
Humidity-operating 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90%
Life span (H) ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000
MTBF (H) >10,000 >10,000 >10,000 >10,000 >10,000 >10,000 >10,000

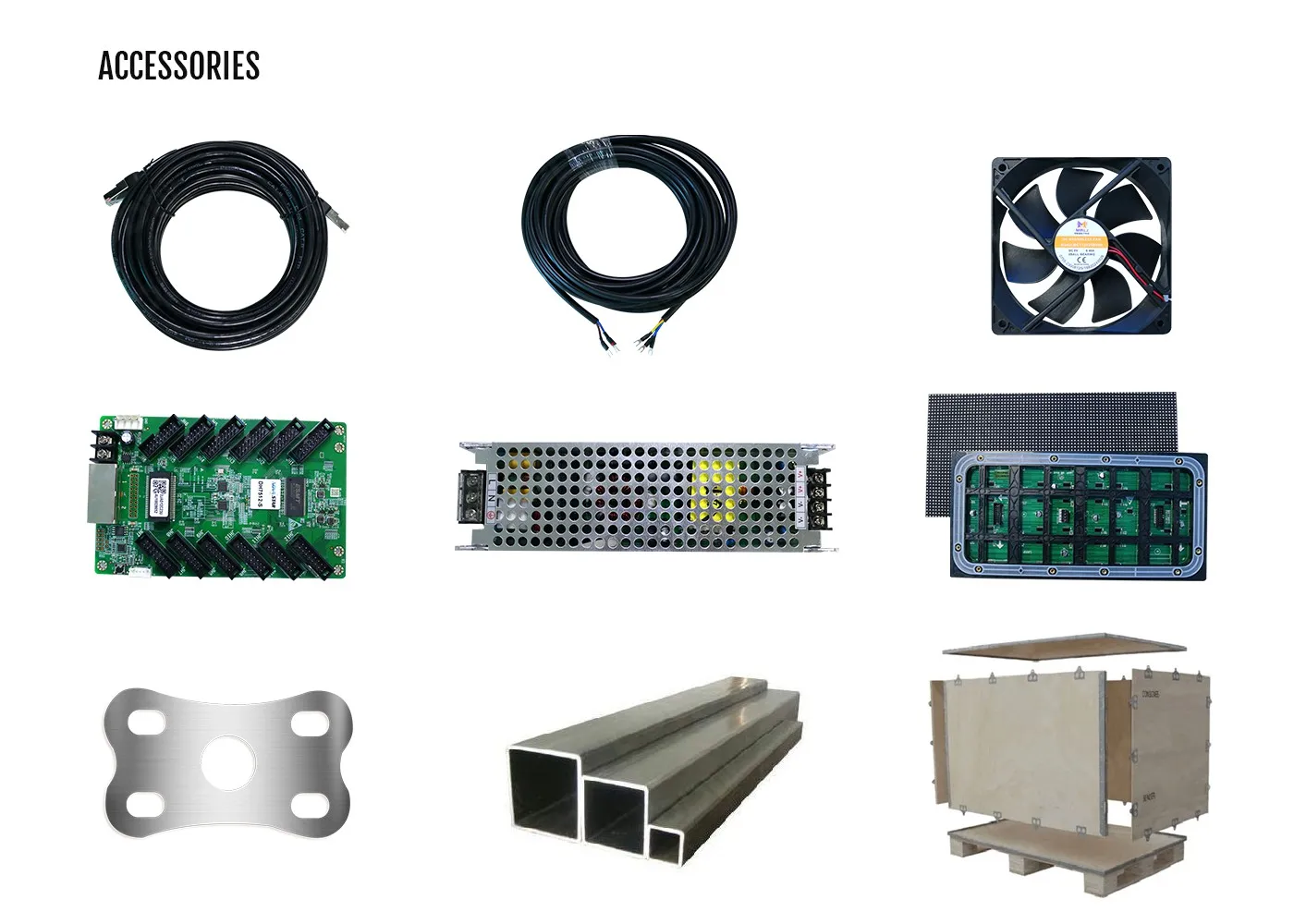

Accessories

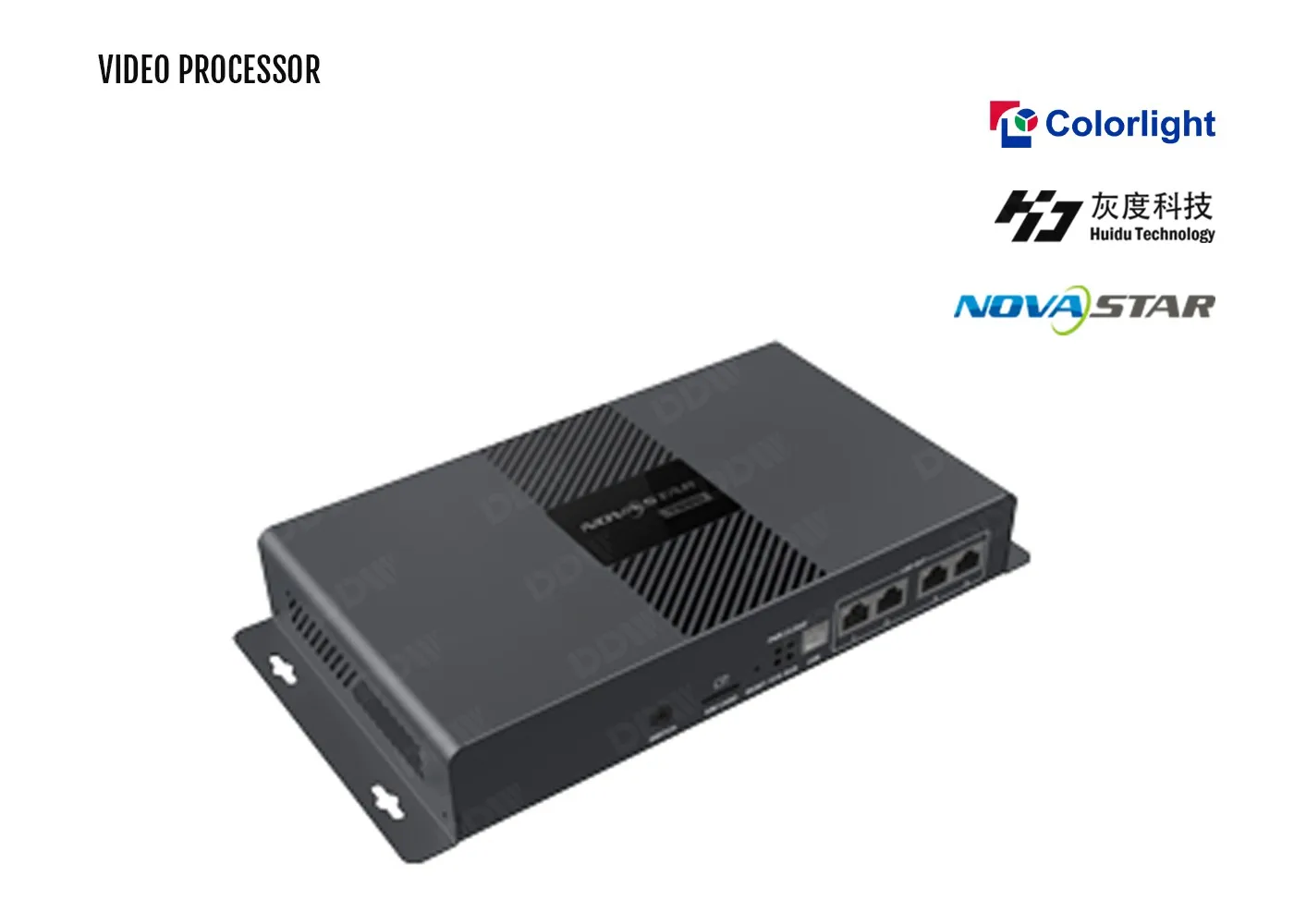

Sending box
Sending box
Power Supply
Power Supply
Pickup card
Pickup card
Outdoor Movable power cabinet
Connecting piece
Signal cable
Signal line
Power cable
Power line
Movable power cabinet
Cooling fan

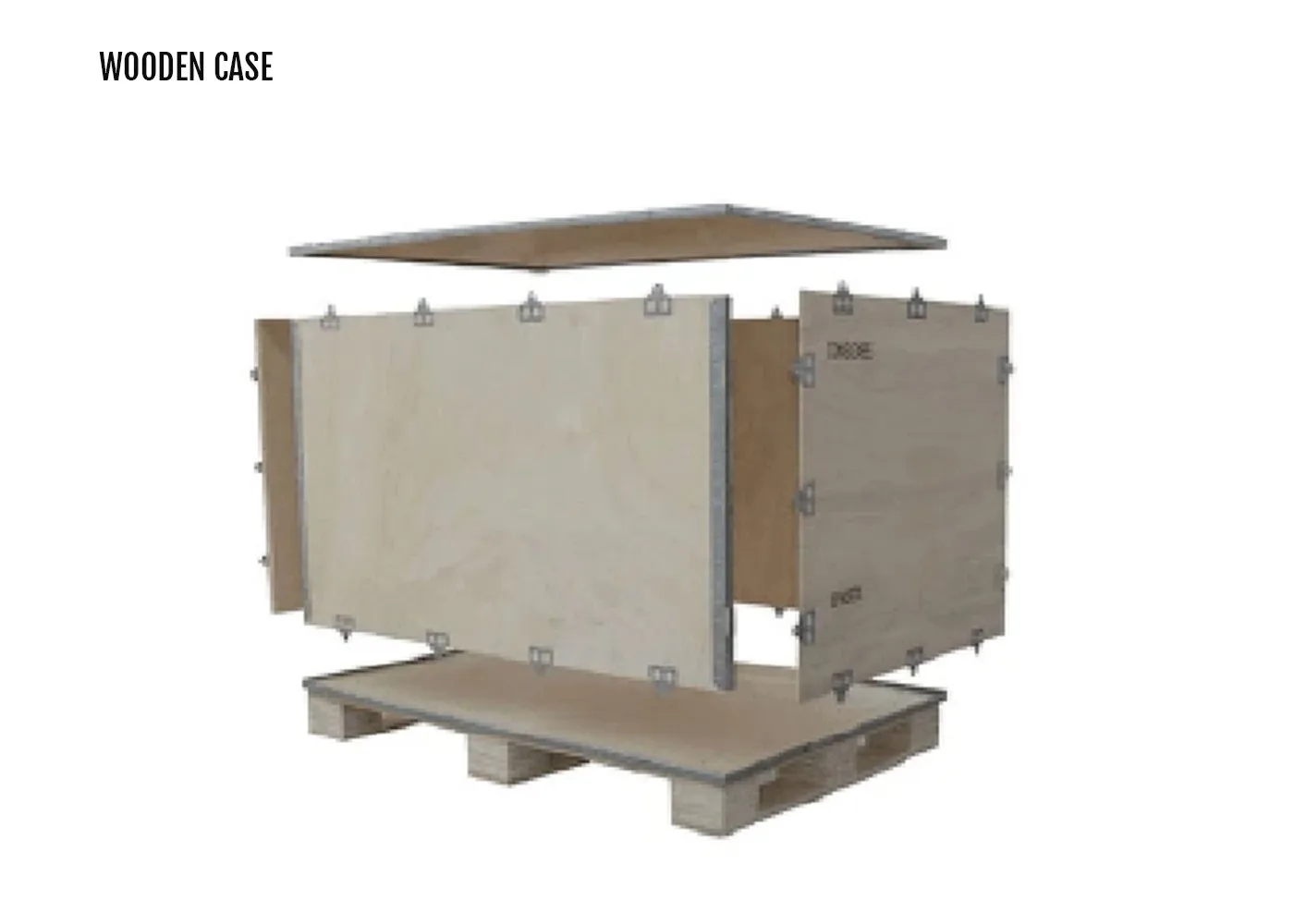

Wooden case packing
LED module
