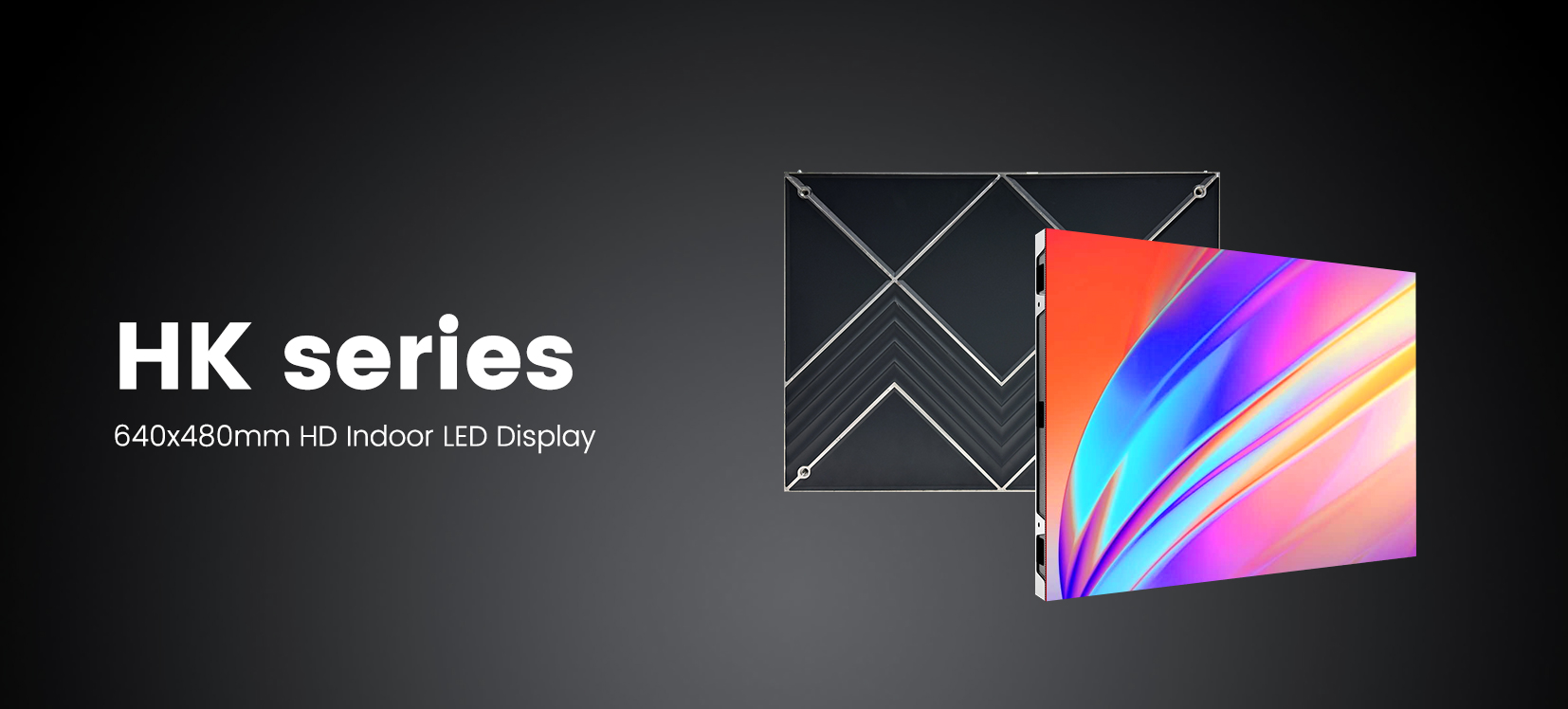

HK series HD LED screen
tag:
P1.25 P1.53 P1.86 P2 P2.5 640x480mm Curved aluminum LED cabinet HUB board connection
Inquiry
3840Hz refresh rate
Wide color gamut, uniform color, no rainbow effect, delicate and soft picture

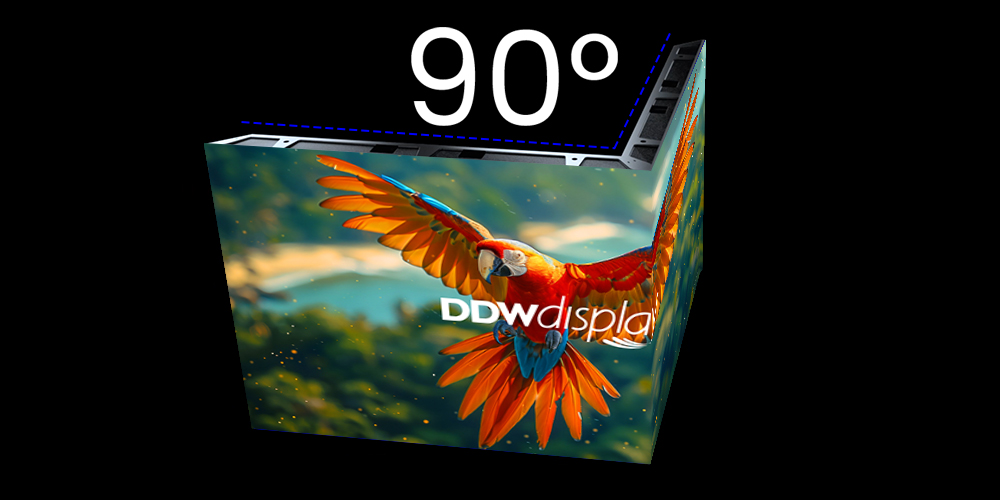

Right angle installation
Customizable 45 ° beveled cabinet installation with 90 ° right angle display

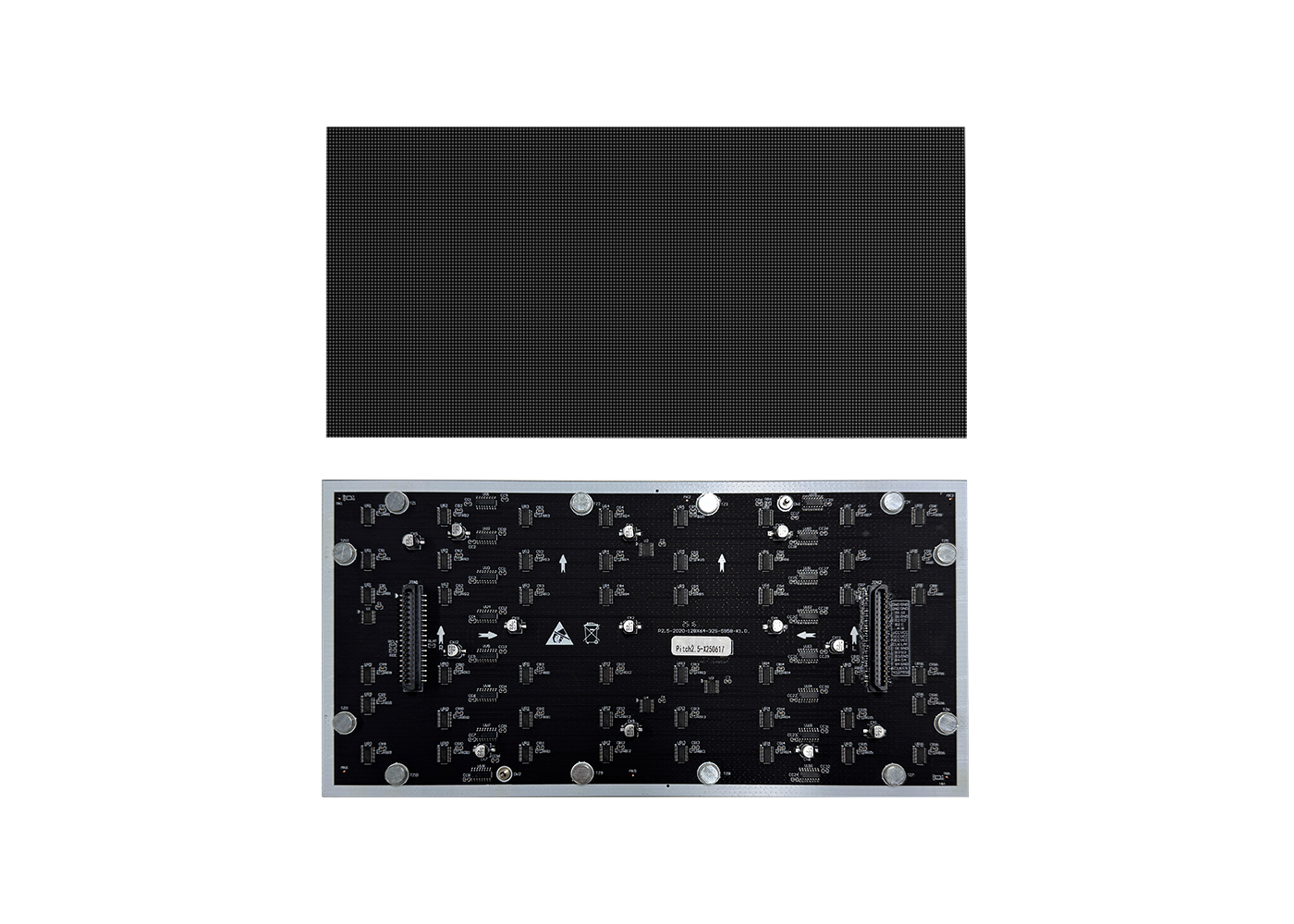

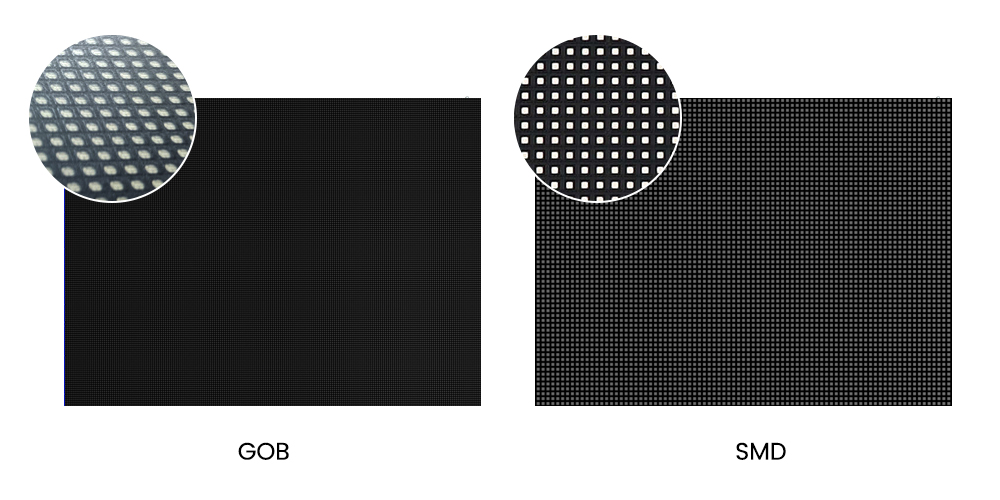

GOB and SMD are optional
GOB and SMD modules can be selected according to customer needs, with different application requirements for the modules

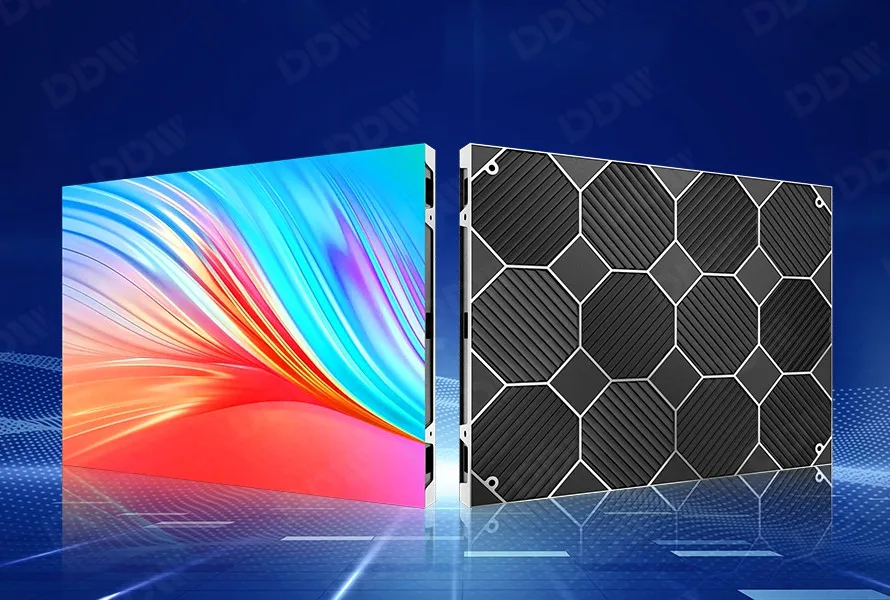

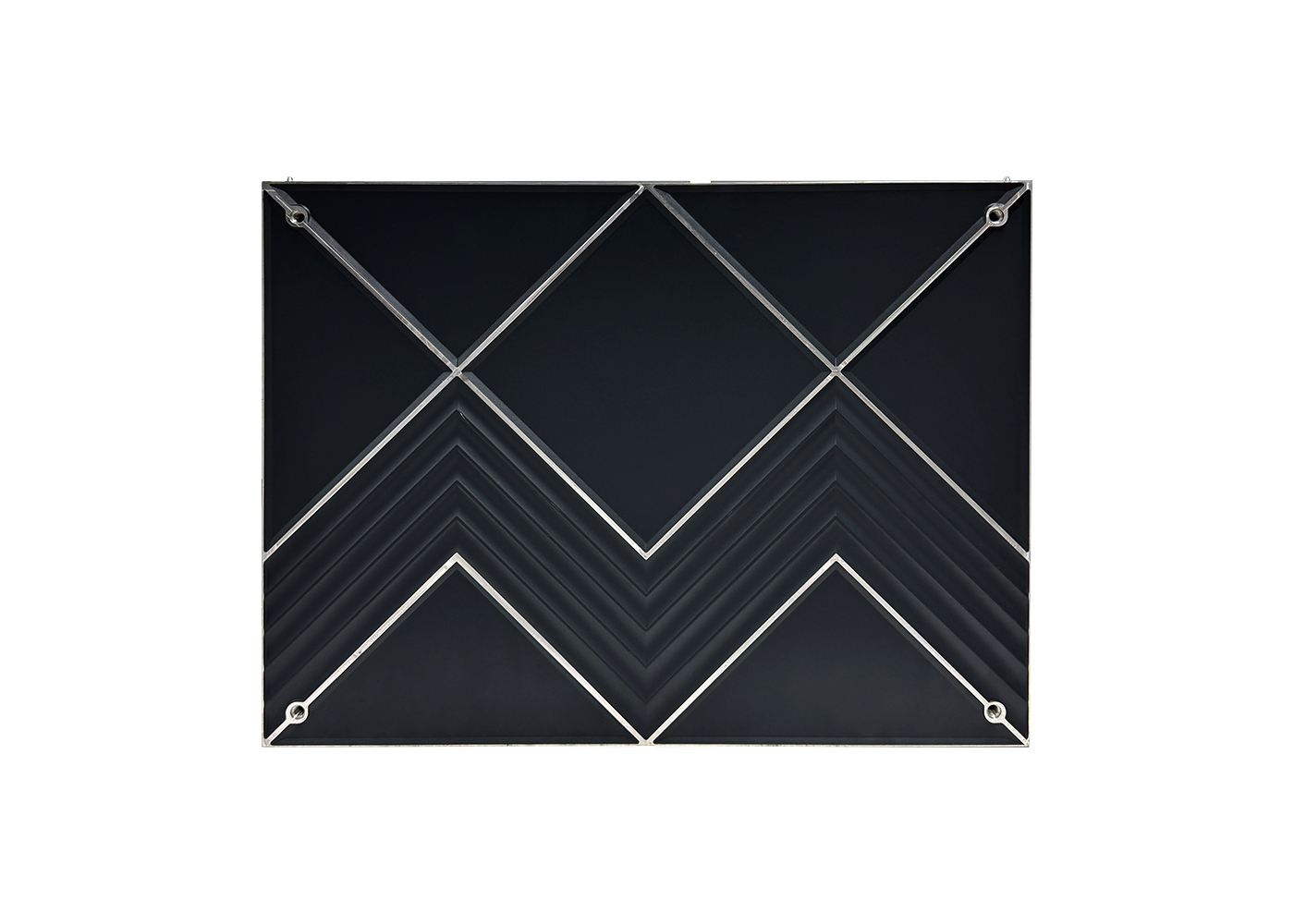

Die-cast aluminum design
CNC precision machining, seamless borderless, unlimited splicing Metal heat dissipation, ultra-quiet fanless design.

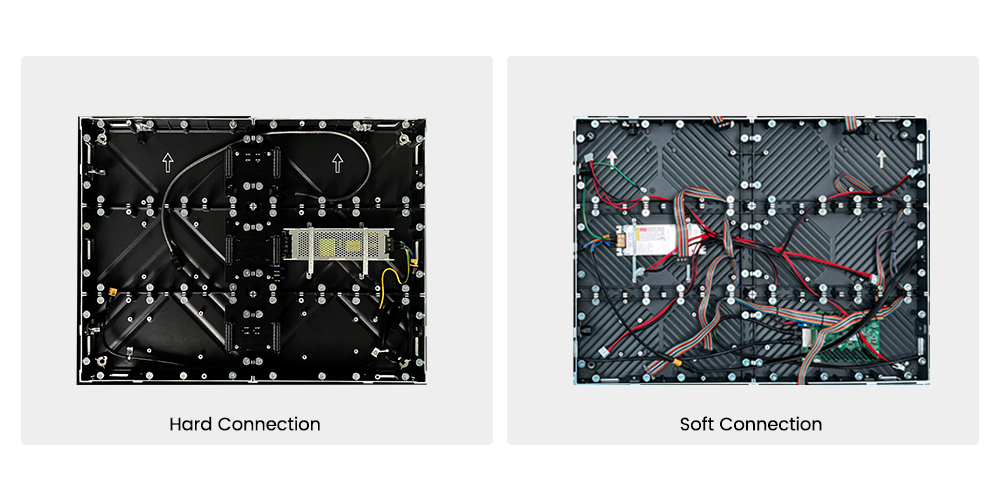

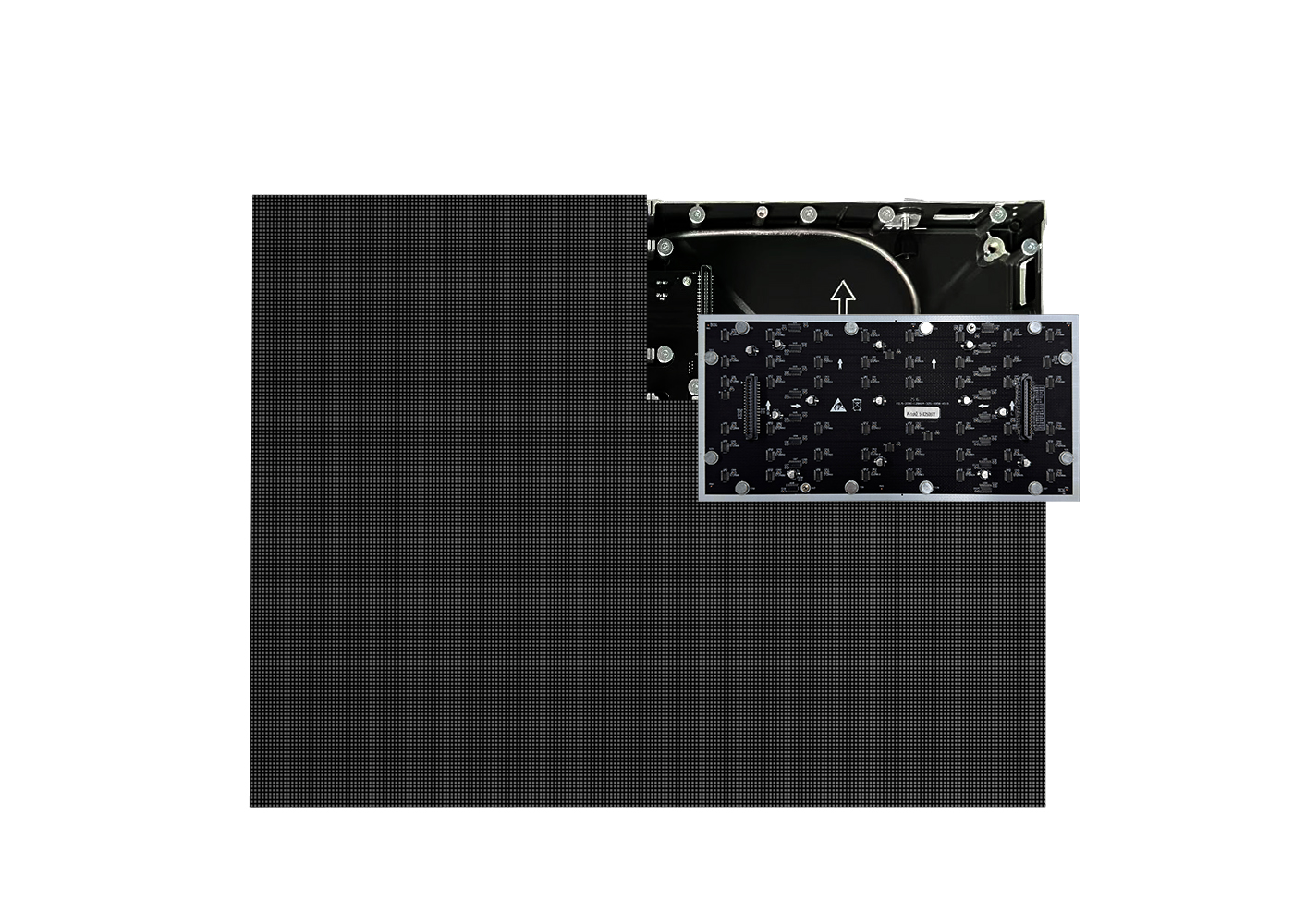

Soft Connection & amp;Hard Connection optional
Adopts a hub connection design, a thin and light module, and a simple cabinet structure.

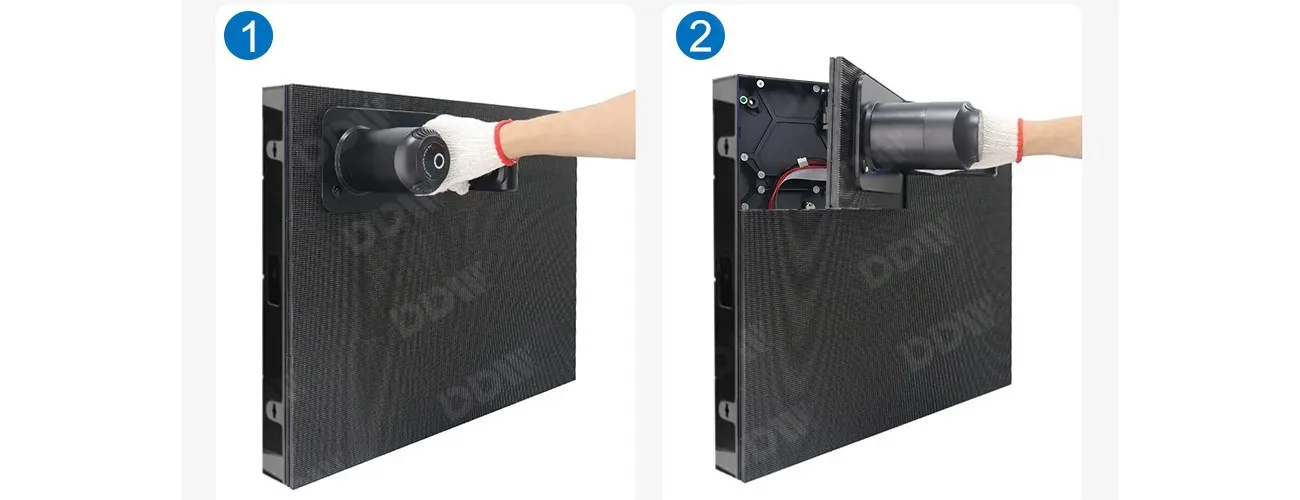

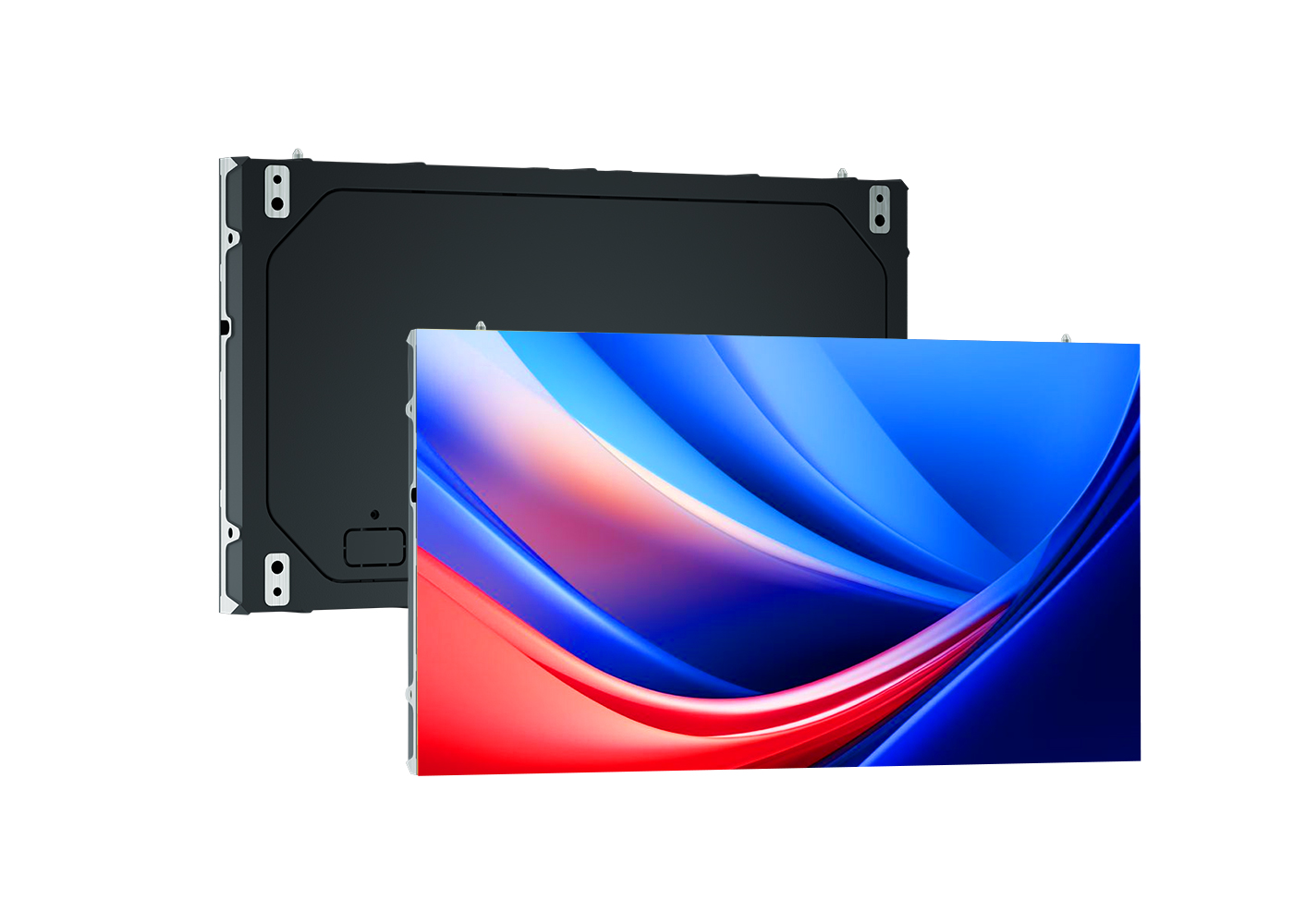

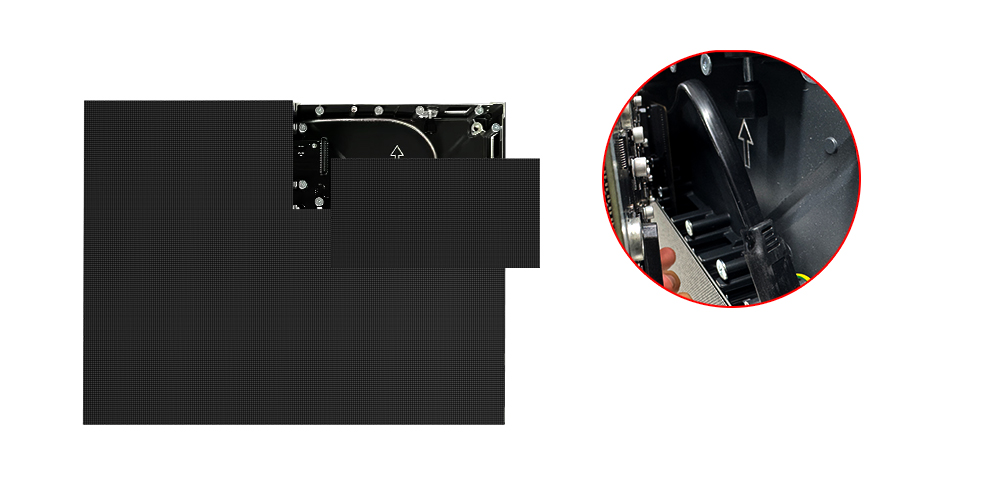

Full front maintenance
The full front maintenance design of DCOB series LED display allows for easy maintenance of the LED module, power supply, and receiving card from the front.

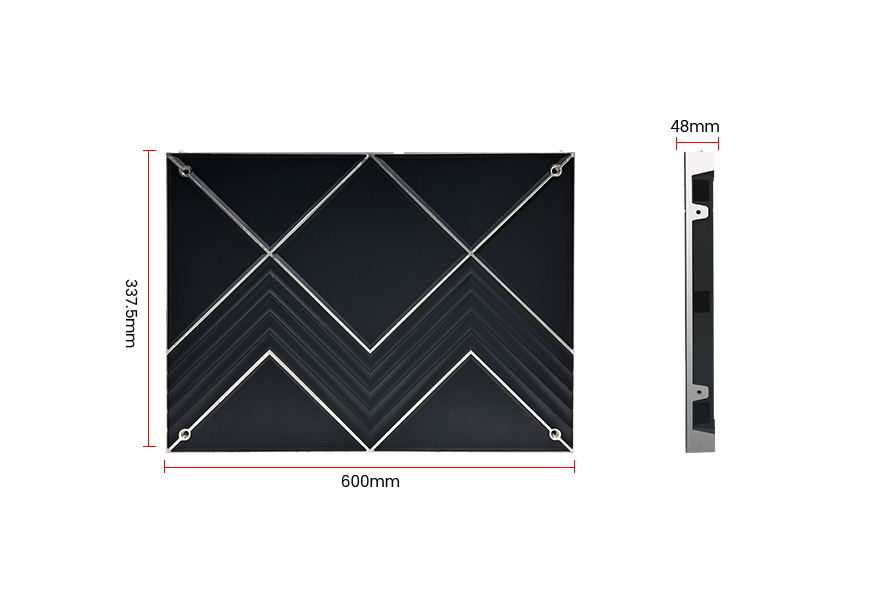

Ultra-thin Cabinet

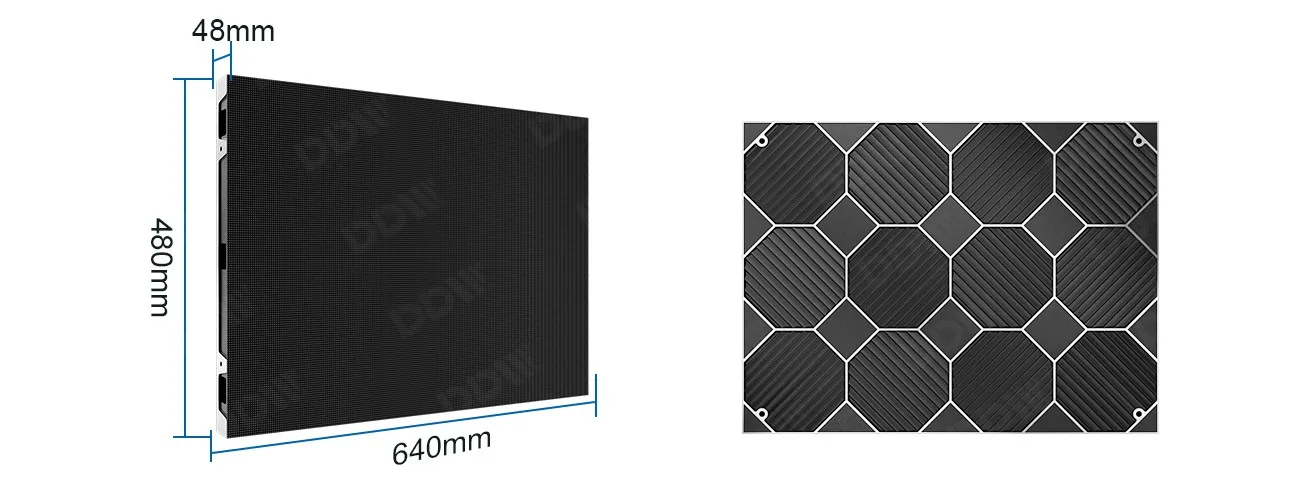

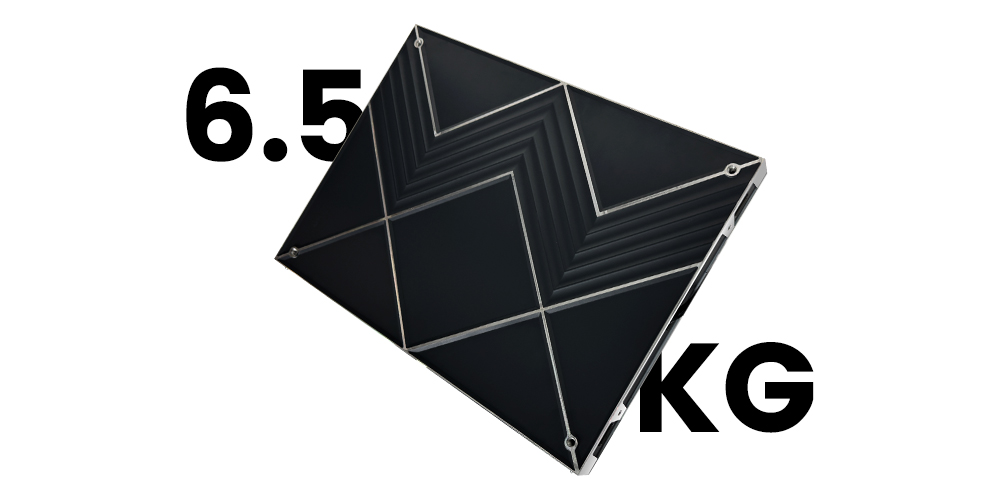

The thickness of HK series LED display is only 48mm, very thin and light, and the weight is only 6.5kg, which is easy to install, assemble and disassemble.

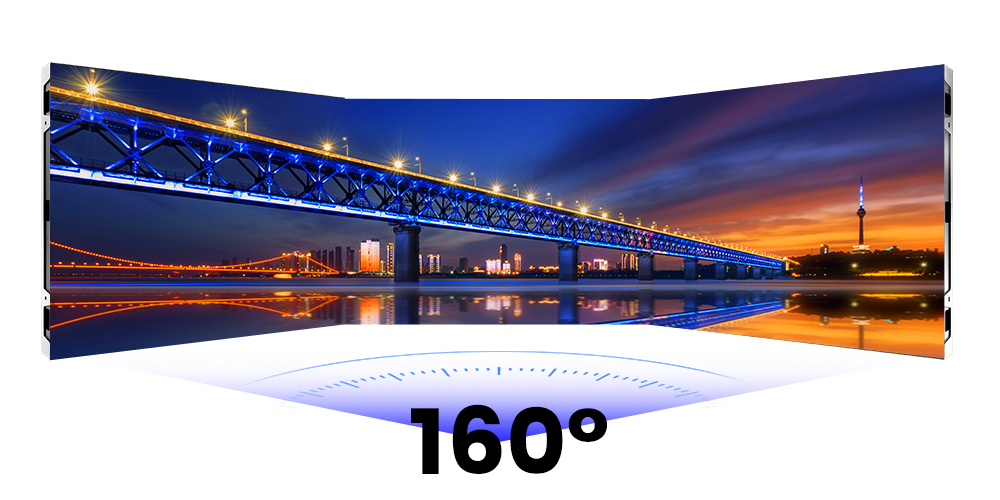

160 ° wide viewing angle
160 ° ultra wide viewing angle presents a perfect picture in multiple dimensions
-
3840Hz refresh rate
-
Right angle installation
-
GOB&SMD
-

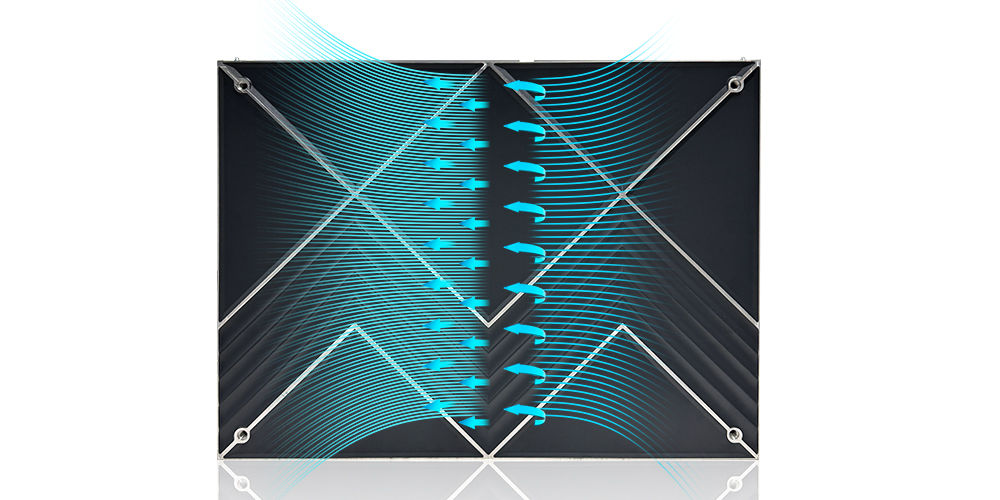

Efficient heat dissipation
-

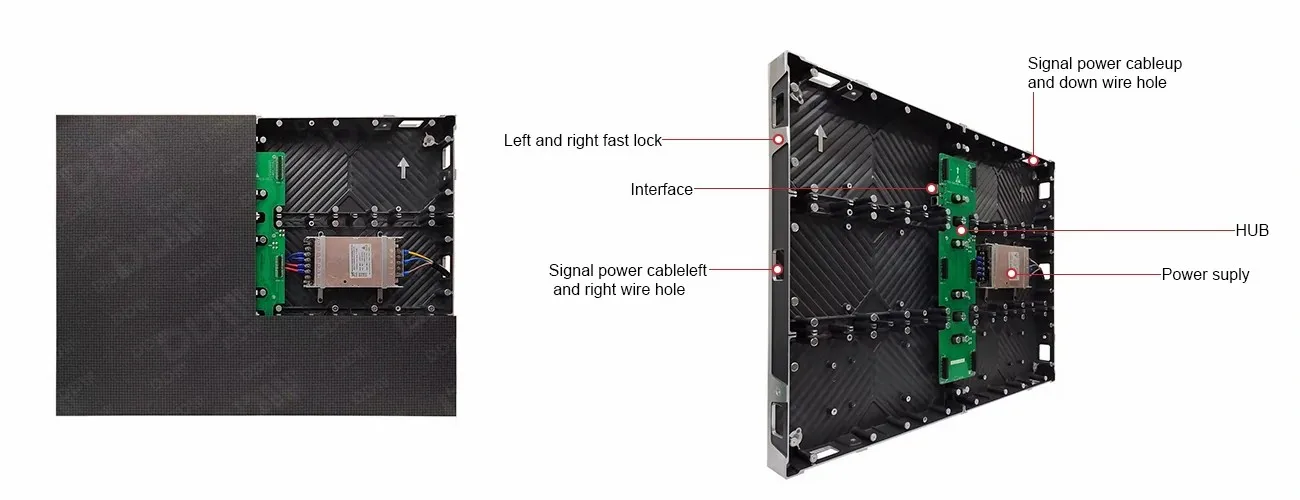

HUB board connection
-
Full Front Maintenance
-
Wider Color Gamut
-
160° Wide Viewing Angle
Download Brochure | ixel pitch(mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| LED package | SMD1010/1020 | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
| Module resolution (W×H) | 256×128pixels | 208×104pixels | 172×86pixels | 160x80pixels | 128×64pixels |
| Module dimension (W×H) | 320mm×160mm | ||||
| Cabinet resolution (W×H) | 512×384pixels | 416×312pixels | 344×258pixels | 320x160pixels | 256×192pixels |
| Module arrangement (W×H) | 2×3 | ||||
| Cabinet flatness | ≤0.1mm | ||||
| Cabinet dimensions(W×H) | 640mm×480mm | ||||
| Cabinet weight | 6.5kg | ||||
| Serviceability | Front-access | ||||
| dots/m² | 640,000dots/m² | 422,500dots/m² | 288,906dots/m² | 250000dots/m² | 160,000dots/m² |
| Brightness | 300-600cd/m² (adjustable) | ||||
| Viewing angle (H/V) | 160°/160° | ||||
| Screen flatness | ≥98% | ||||
| Chromaticity uniformity | ±0.003 | ||||
| Contrast ratio(max) | 8,000:1 | ||||
| IP rating | IP45 | ||||
| Color depth | 14-16bit | ||||
| Driving mode | 1/64S | 1/52S | 1/43S | 1/40s | 1/32S |
| Refresh rate | ≥3,840Hz | ||||
| Color temperature | 2,000K-9,500K(adjustable) | ||||
| Input voltage | AC: 110V-240V, 50-60Hz | ||||
| Max. power consumption | ≤600W/m² | ||||
| Ave. power consumption | 160W/m² - 265W/m² | ||||
| MTBF | ≥10,000hrs | ||||
| Operating environment - Temperature | -10℃ - +60℃ | ||||
| Operating environment - Humidity | 30% -75%RH (no condensation) | ||||
