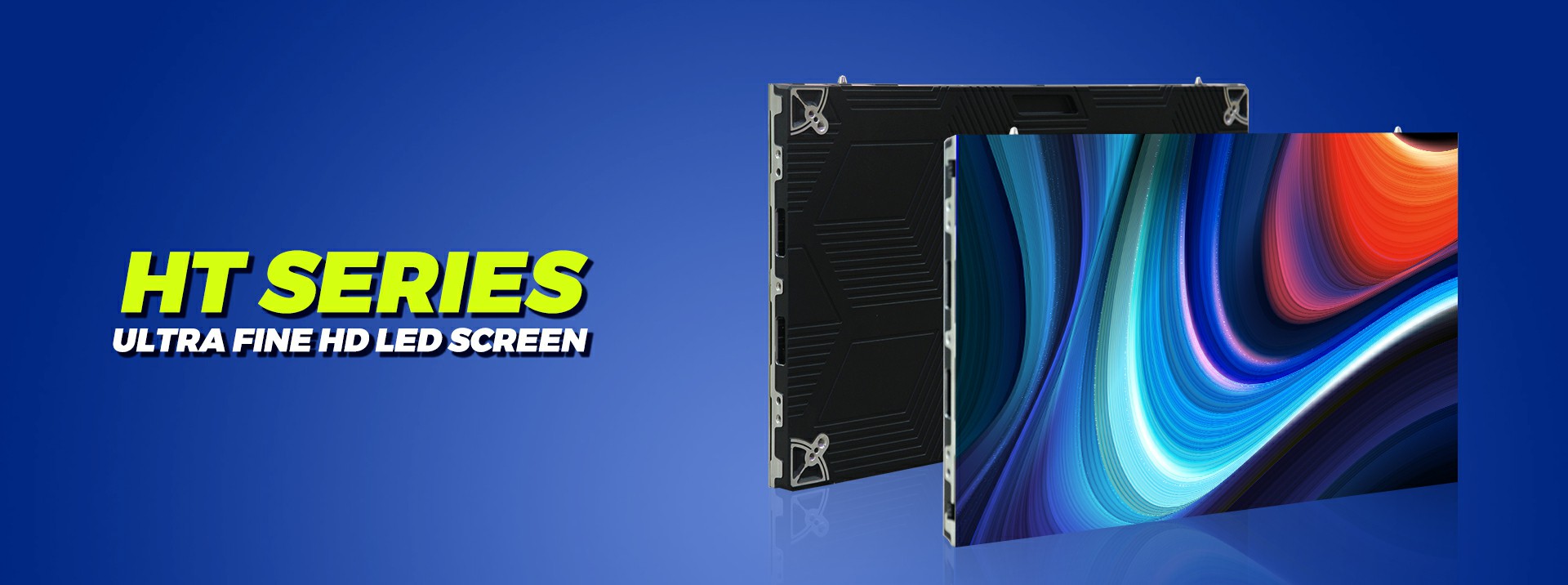

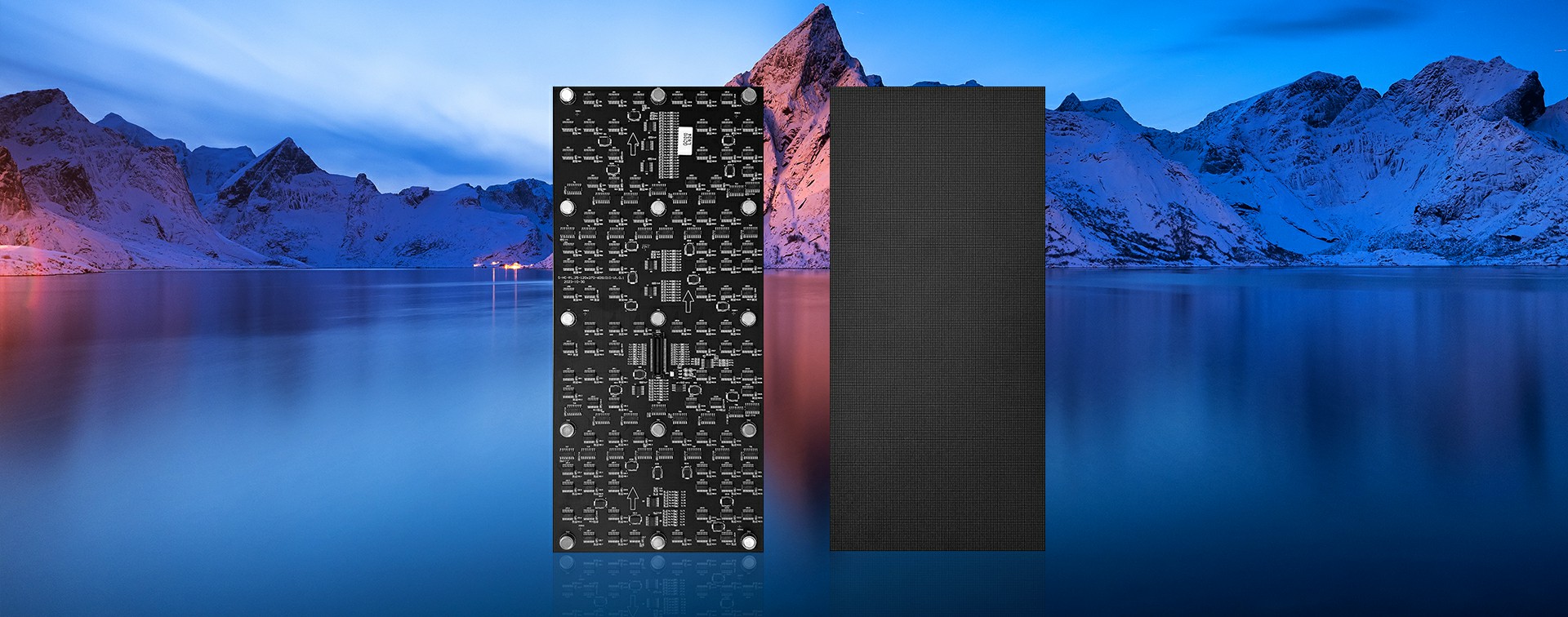

The HT series is a hub board designed cabinet with size 600 * 337.5, compatible with P0.93 P1.25 P1.56 1.87 pixel pitch. it supports the combination of 16:9 pictures according to specific arrangement. Key feature is to support power backup, system backup, flash storage and EMC. About the installation, it support front maintenance, fixed installation and ceiling installation.
Upto 3840Hz
Wide Viewing Angles
Common Cathode Design
High Flexibility

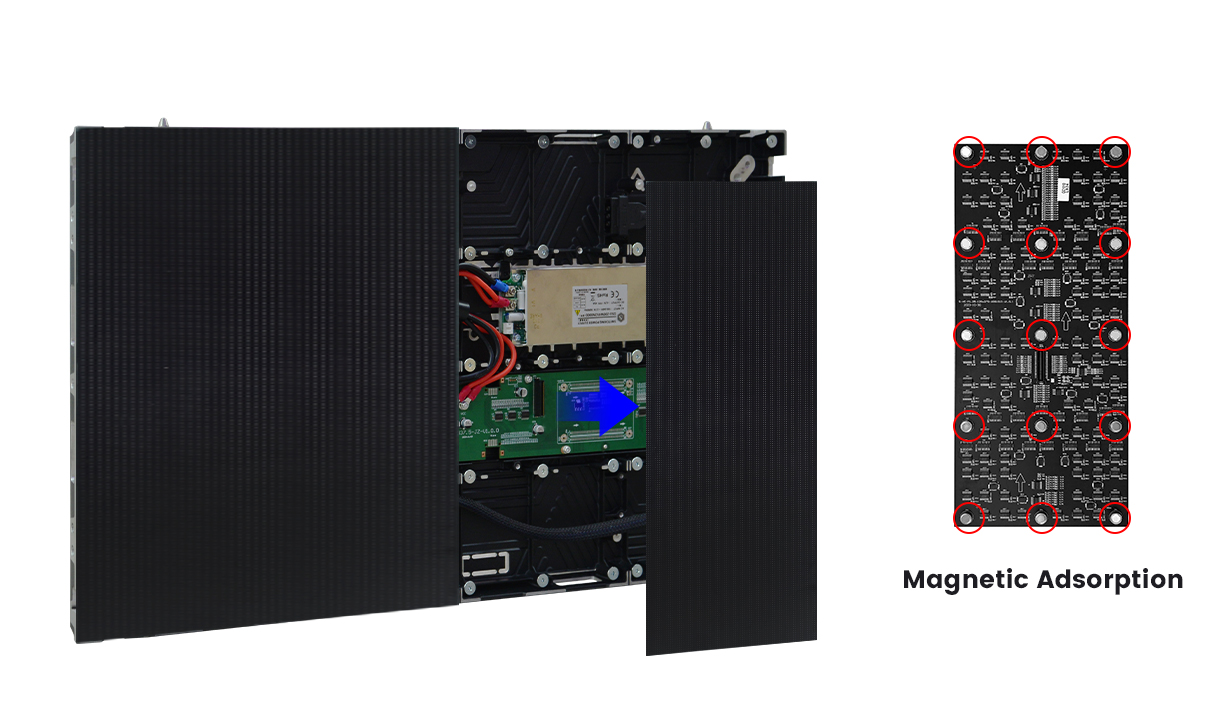

Magnetic Suction Installation
Front Maintenance
Die Cast Aluminum
7.5kg/pc

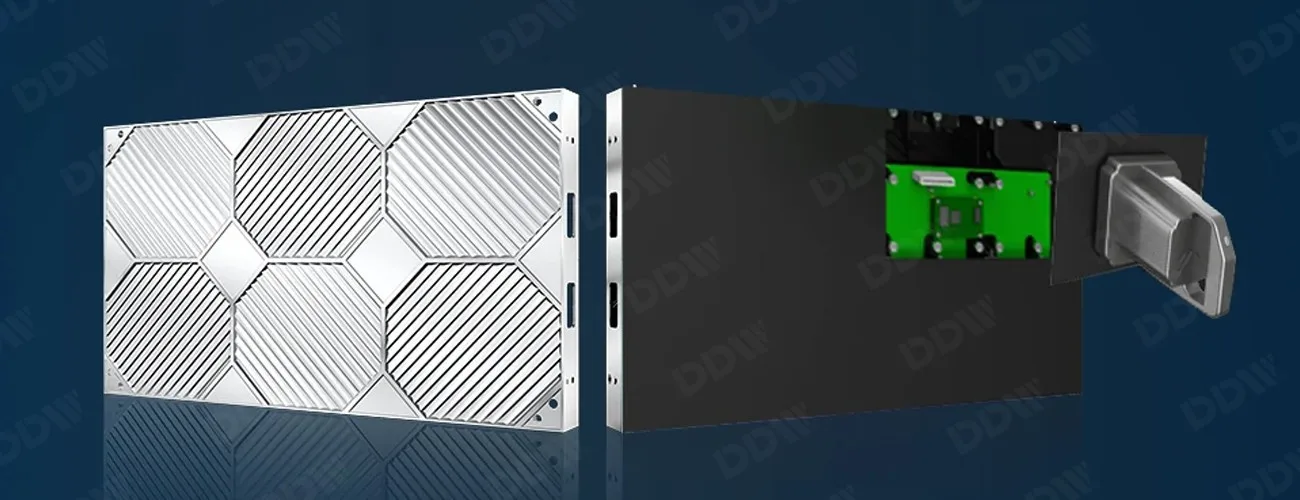

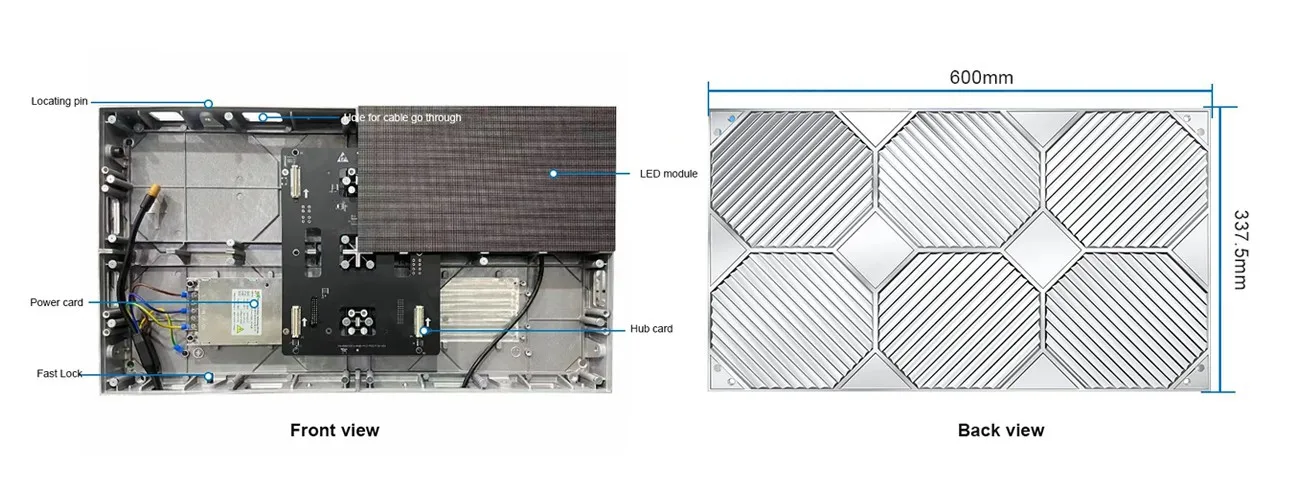

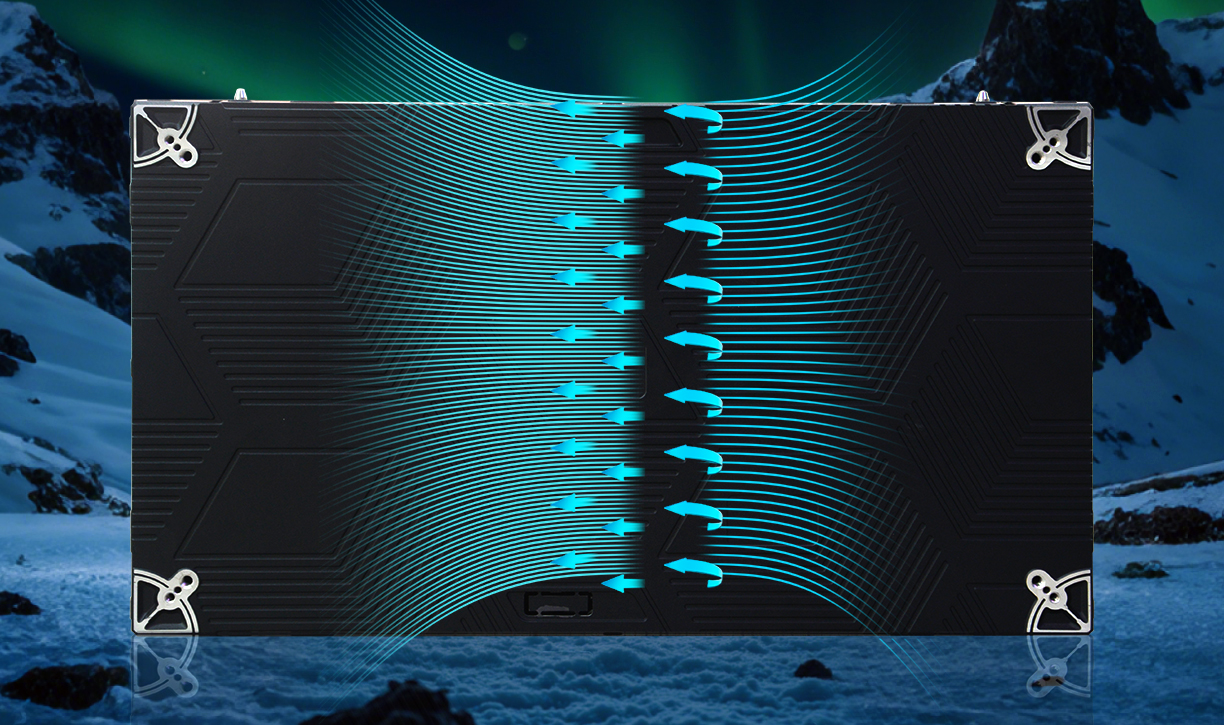

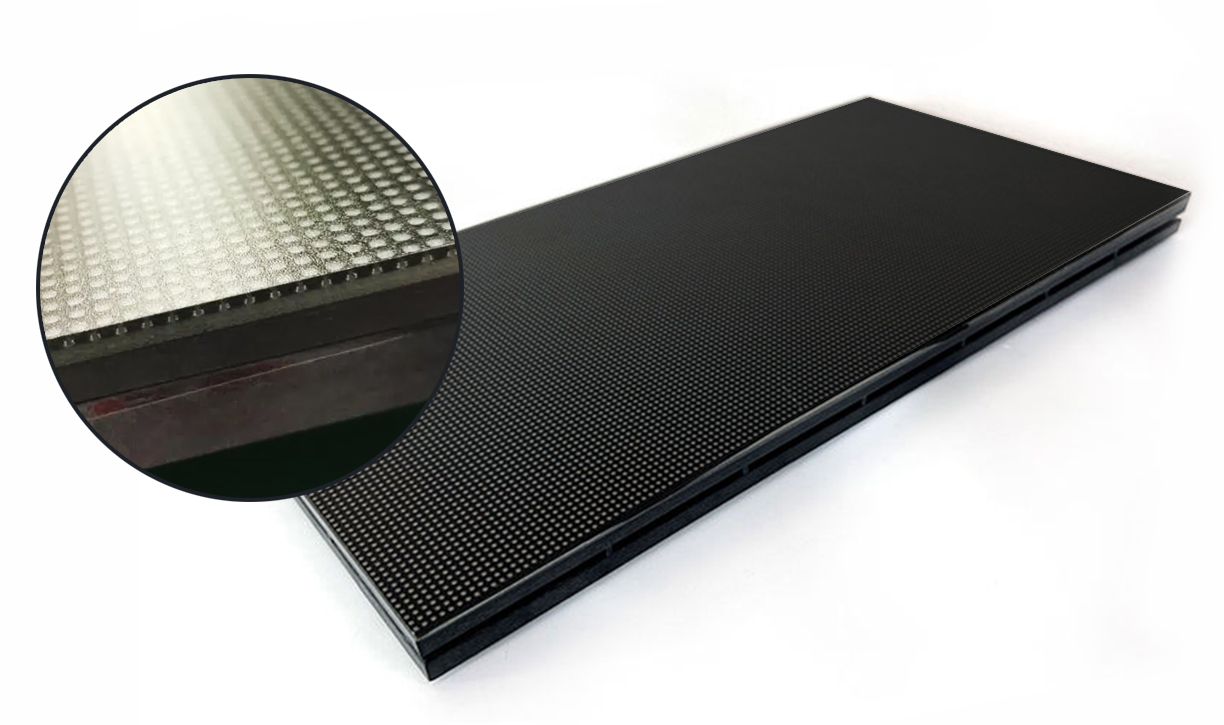

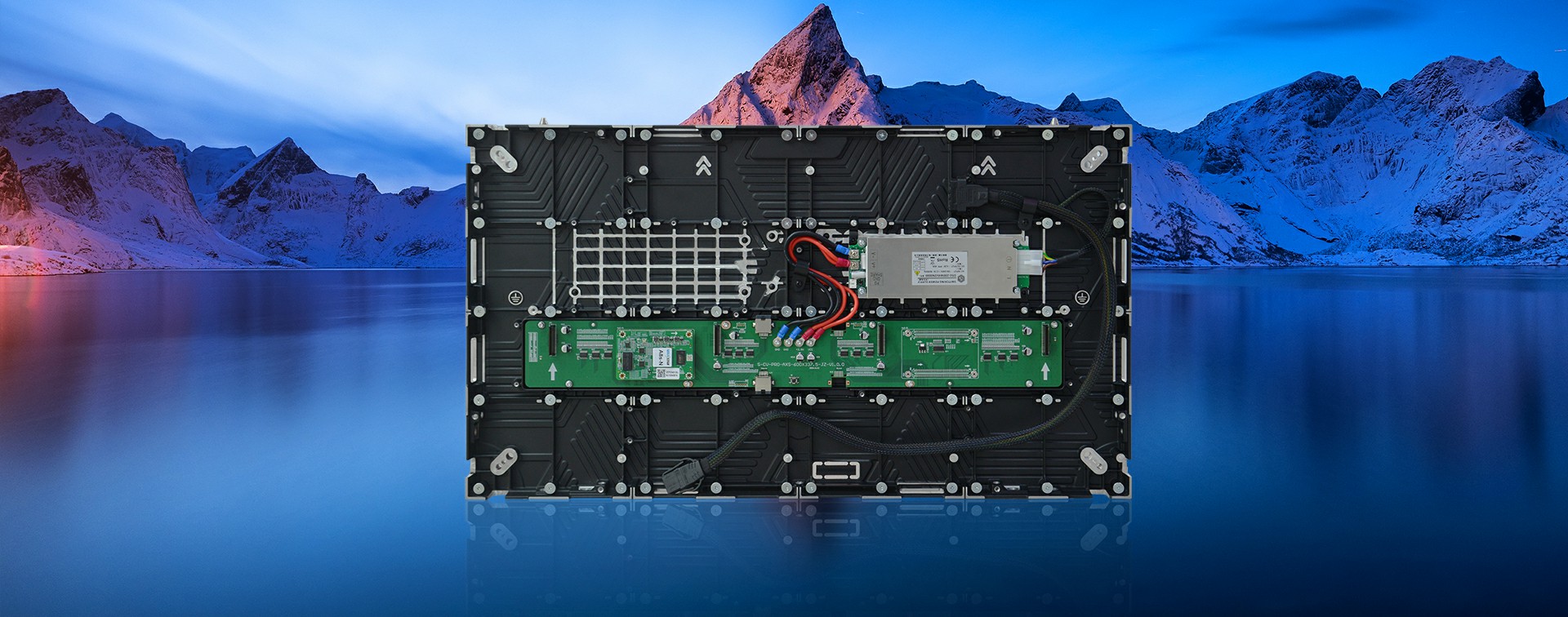

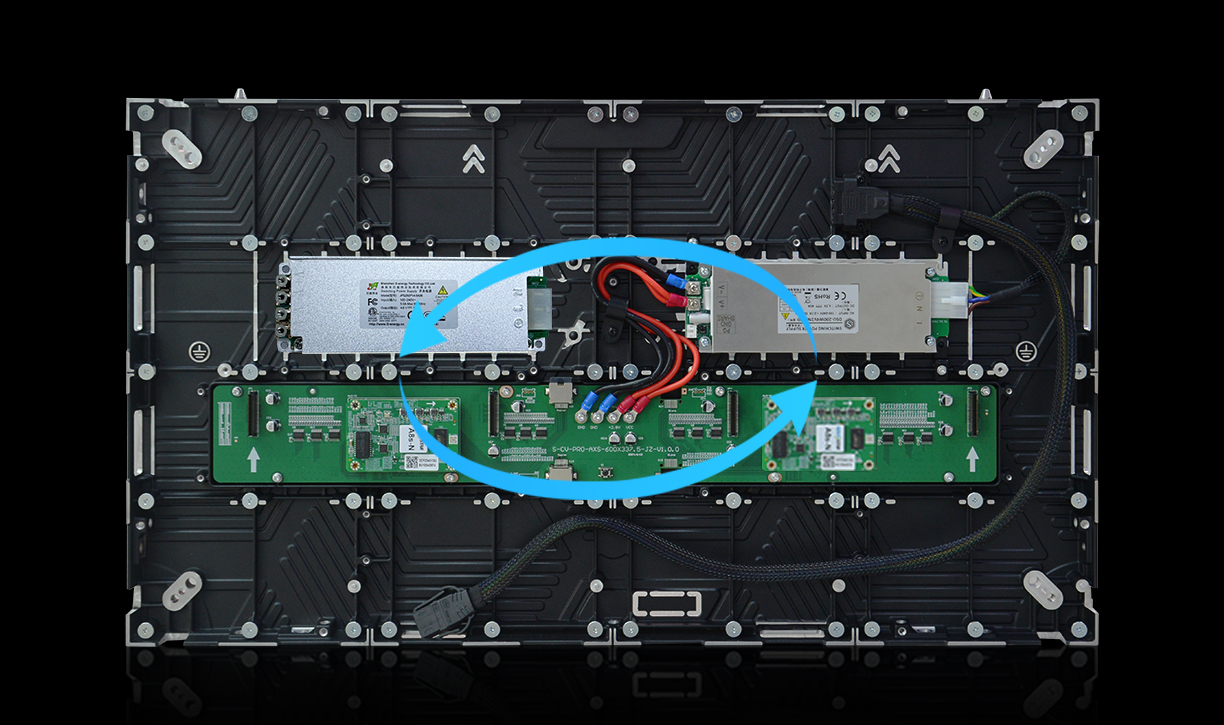

The cabinet adopts cable-less design and HUB board design(integrated power board and receiving card) which can be maintained in seconds, magnetic modules with front and rear maintenance

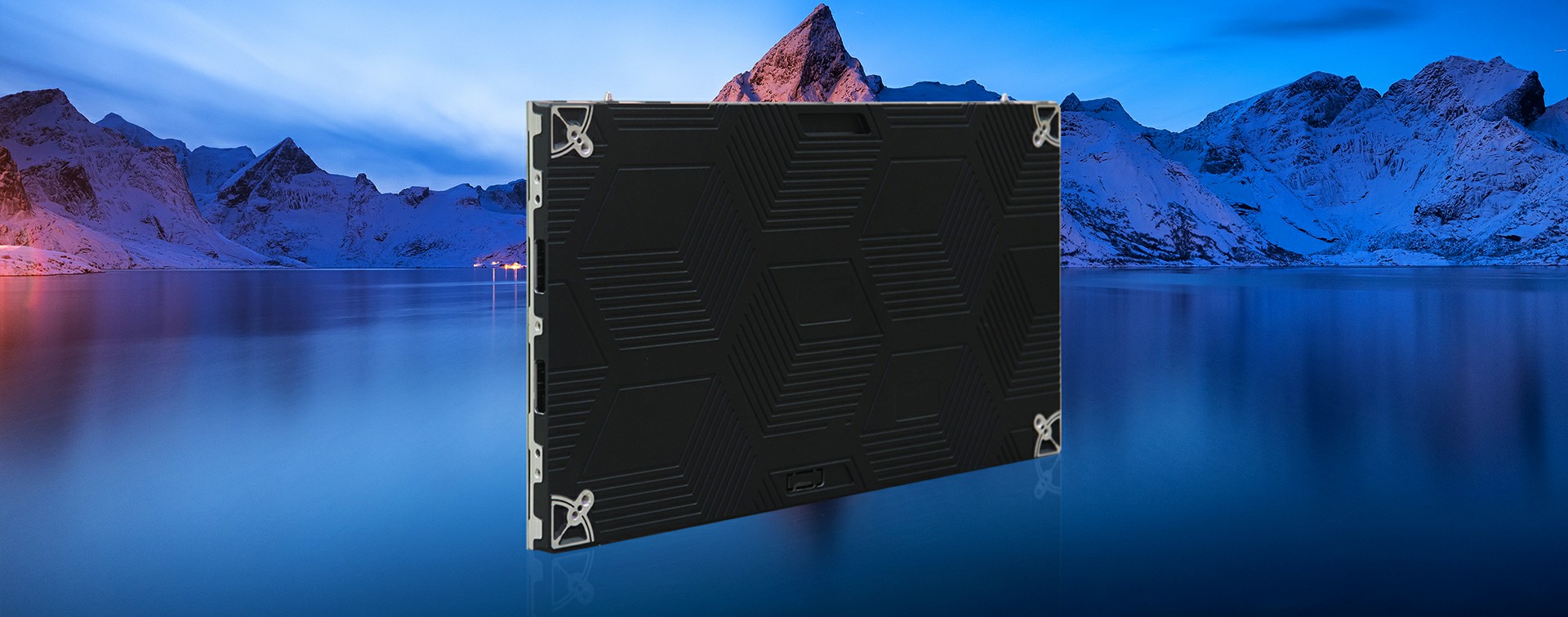

First class design for die casting cabinet frame, each cabinet (include all components) is only 7.5 kg , four sets strong fast lock to make assembling easier.
Support both front installation while fully front-accessible serviceability makes more friendly maintenance and saves your space.
| Pixel pitch | P0.93 | P1.25 | P1.56 | P1.87 |
| Pixel density | 113778 | 640000 | 409600 | 285204 |

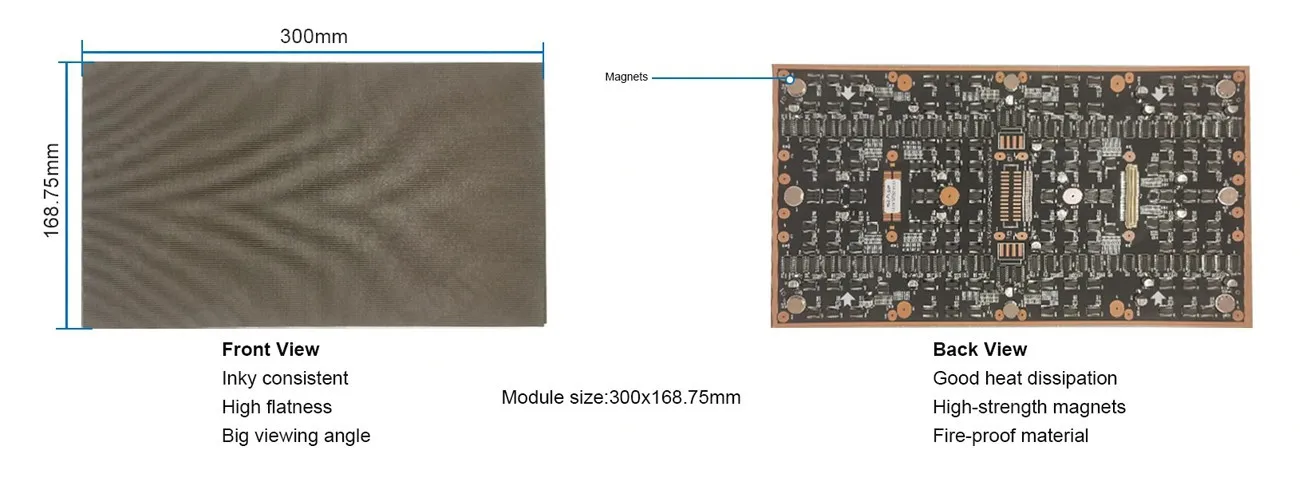

| Module size | 300x168.75mm | |||
| LED package | MiniLED | SMD1010 | SMD1212 | SMD1515 |
| Module resolution(pixels) | 320x160 | 240x135 | 191x108 | 160x90 |
| Module arrangement per cabinet | 2x2 | |||

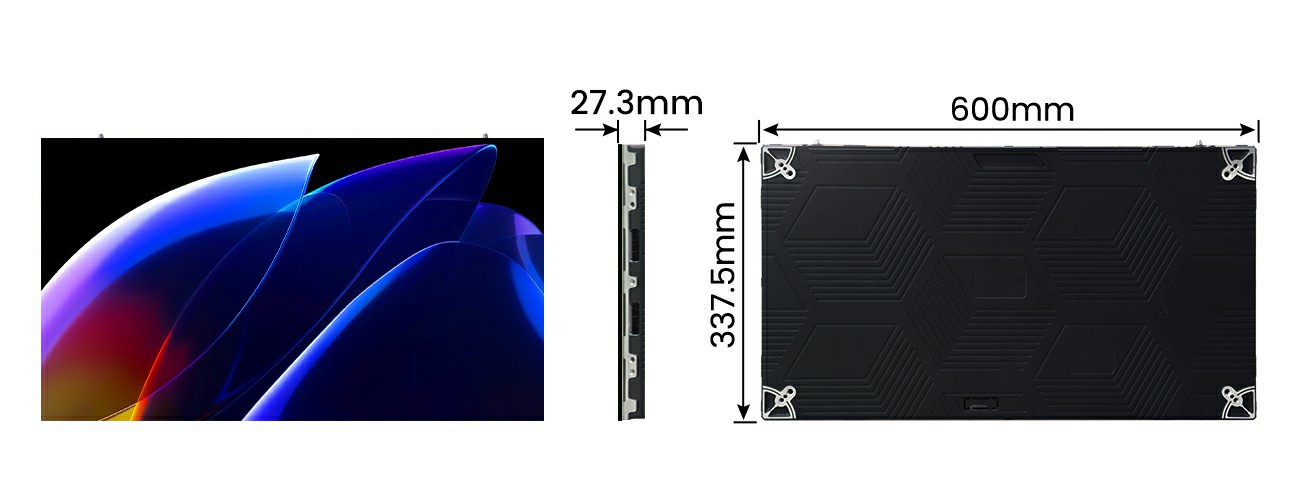

| Cabinet dimension | 600x337.5x52mm | |||
| Cabinet weight (including module) | 6.9kg | |||
| Cabinet resolution (pixels) | 640x360 | 480x270 | 384x216 | 320x180 |
| Maintenance | Full front service | |||
| System backup | Support | |||
| White balance brightness | 500-800cd/m² | |||
| Pixel-level calibration | Support | |||
| Color temperature | 6500K(adjustable) | |||
| Refresh rate | 3840Hz | |||
| Viewing angle | 160°(V/H) | |||
| Brightness uniformity | ≥99% | |||
| Grayscale level | 14-16bits | |||
| Contrast ratio | 5000:1 | |||
| Scanning mode | 1/60 | 1/60 | 1/64 | 1/45 |
| Working voltage (input) | 110-240V, 50/60Hz | |||
| Max./Avg. Power consumption | 500W/m²/165-260W/m² | |||
| Storage temperature&humidity (RH) | -20°C-50°C&35-75% | |||
| Working temperature&humidity (RH) | -20°C-50°C&35-75% | |||
| IP ratings | IP45 | |||
| Screen temperature rise | <5°C | |||

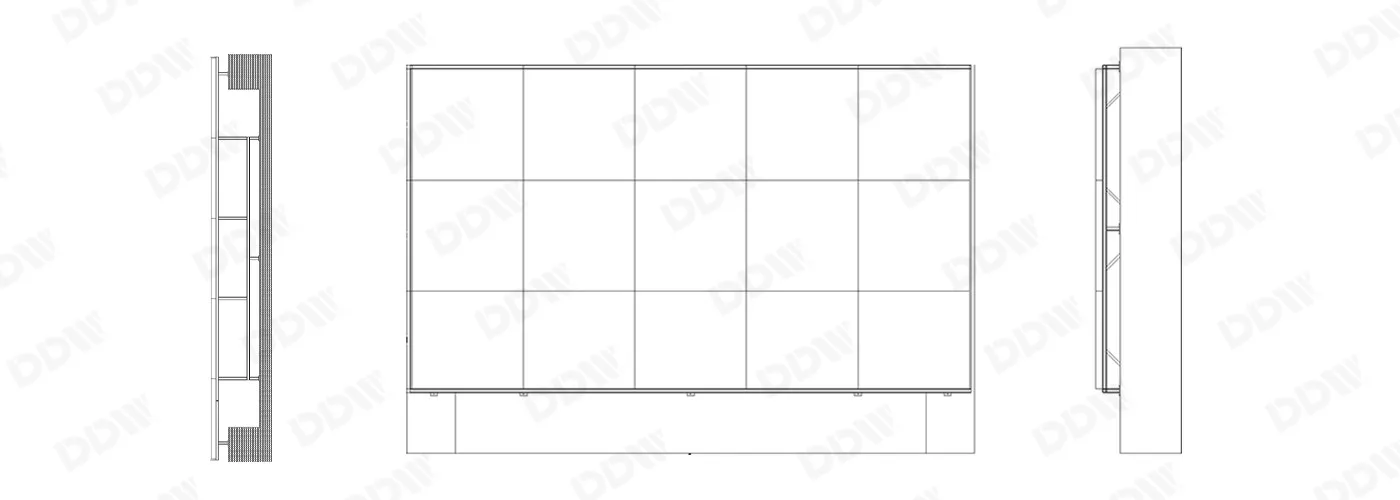

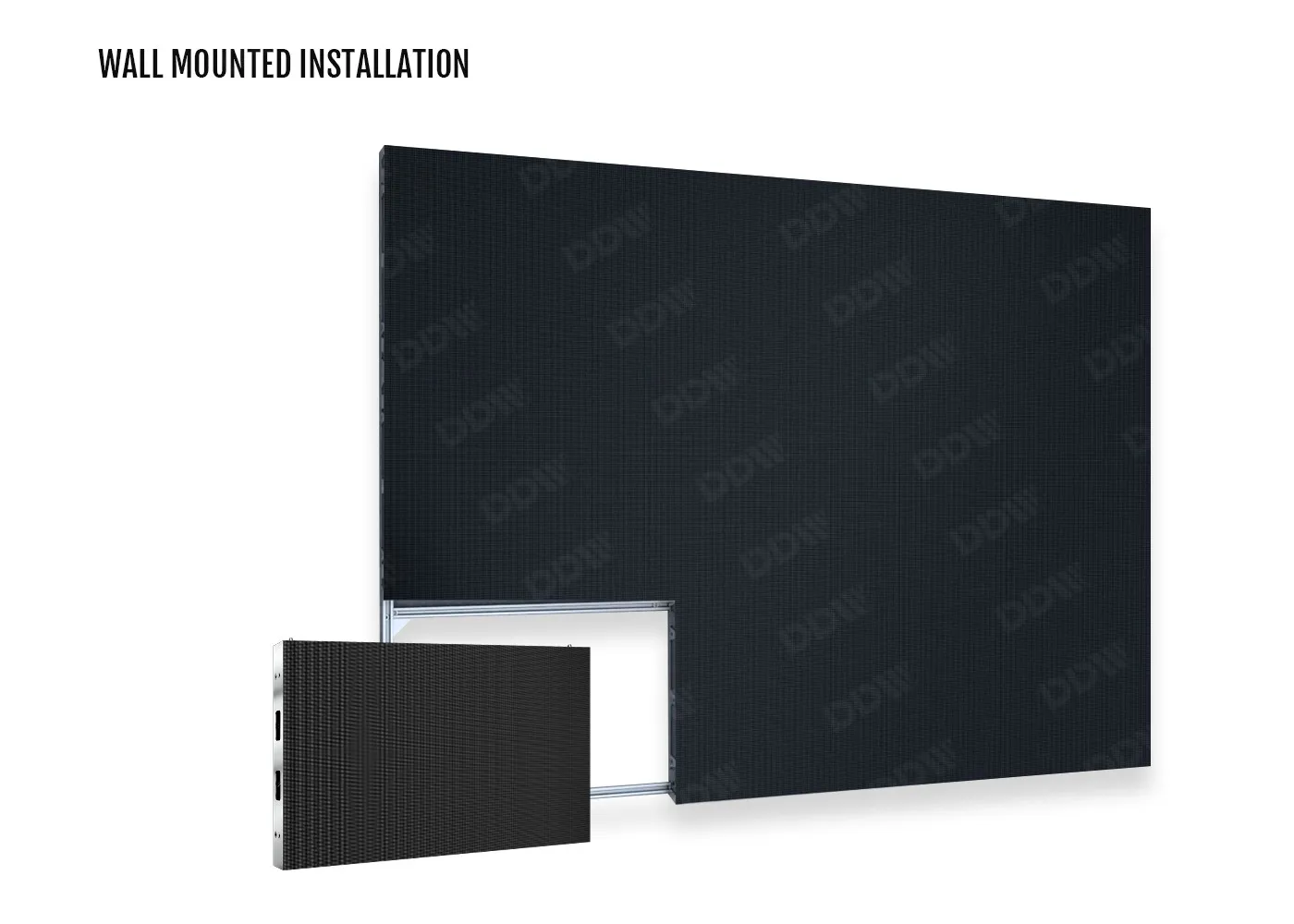

| Installation | On-wall/recessed/pedestal/suspended/stacked install | |||

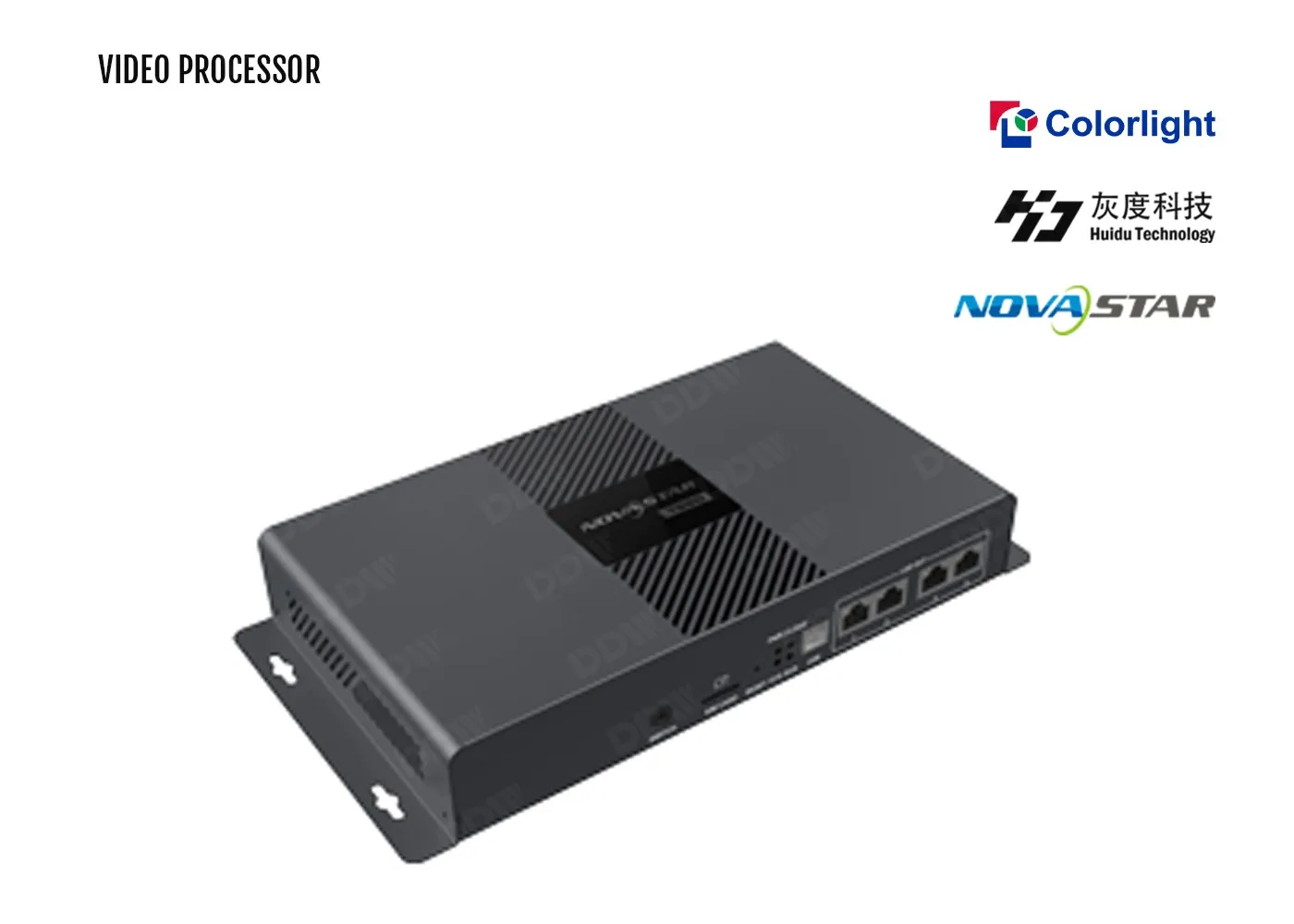

| Signal output | HDMI/VGA/DVI/DP | |||
16 : 9 Cabinet Design with 600×337.5x48mm size, high flatness, Front service design for easy install and disassemble, High definition quality image with excellent visual effect.
