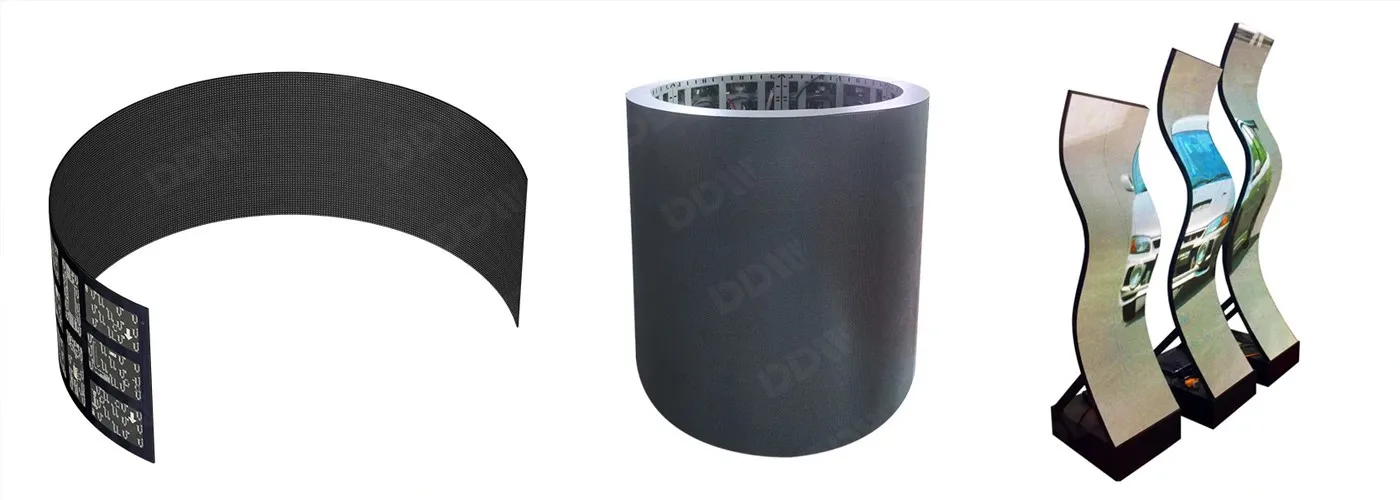

Made out of P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used for indoor curve LED screens for decoration,advertising,creative design studio,cylinder, sphere and any place need to realize some eye catching applications.
3840 Hz
Wide Viewing Angles
800-1200cd/²

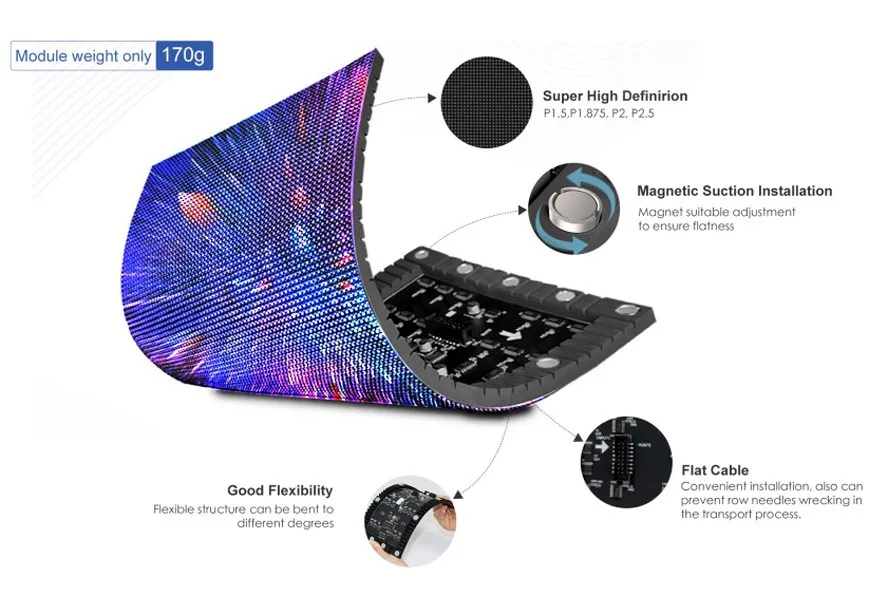

High Flexibility

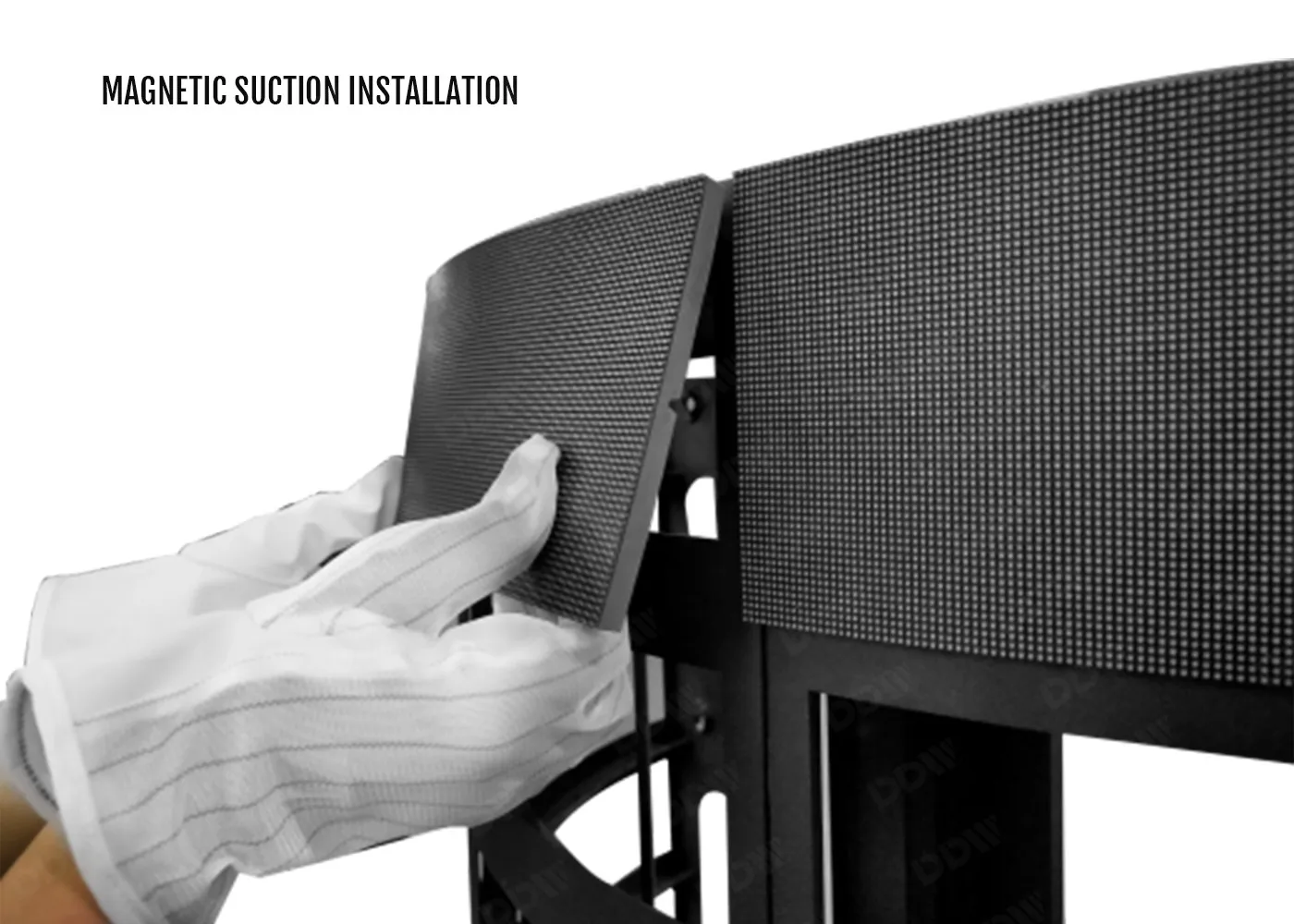

Magnetic Suction Installation
Front Maintenance
Soft silica gel
Arc installation

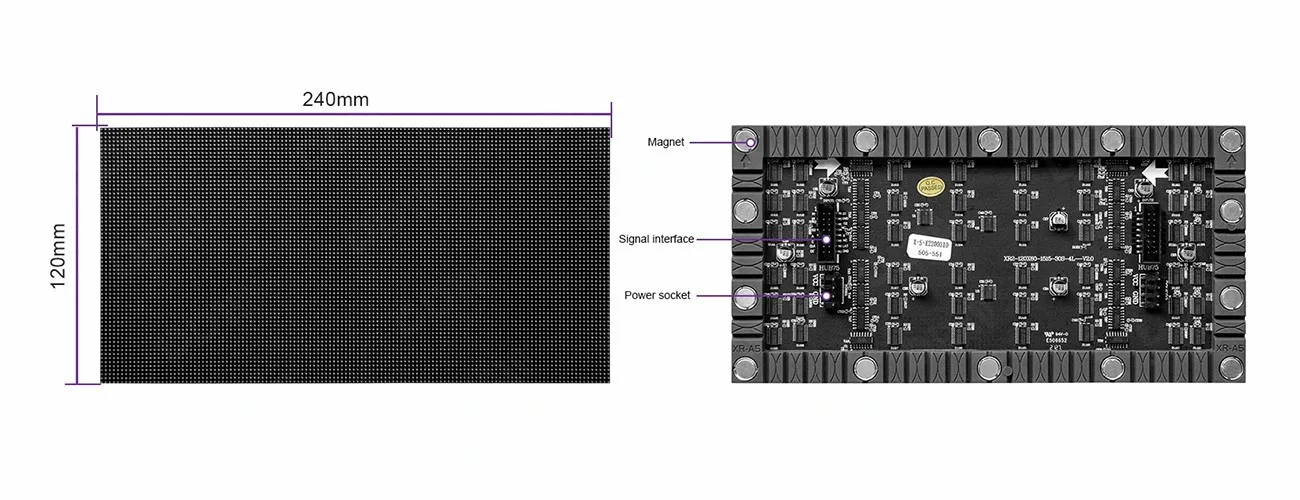

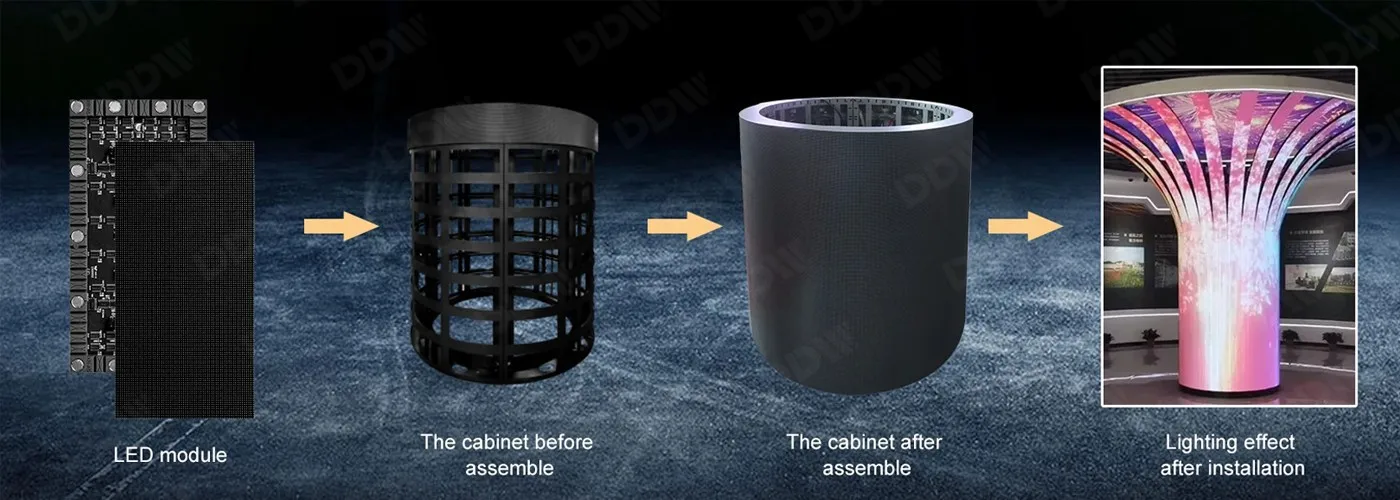

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.
Magnet suitable adjustment to ensure flatness

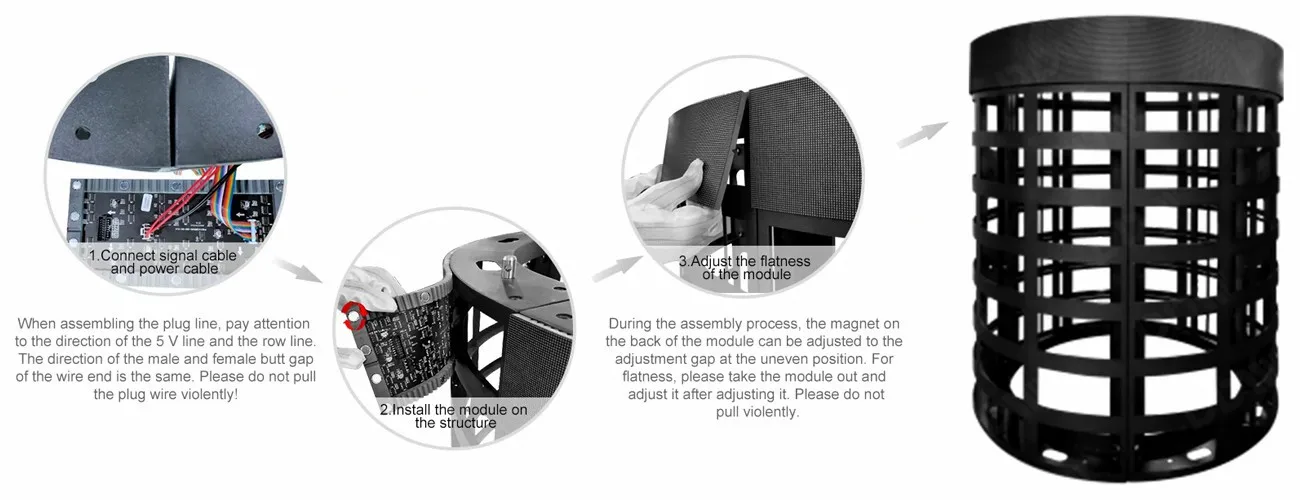

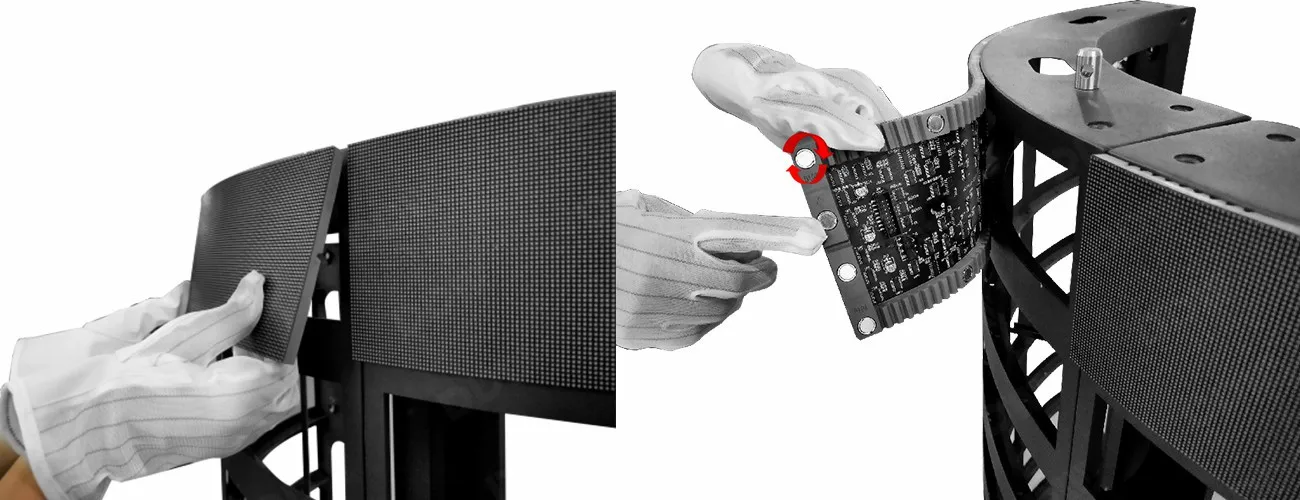

There’re multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.
| P1.25 | P1.579 | P1.667 | P1.875 | P2 | P2.5 | P3 | P4 | |
| Lamp bead packaging specification | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Pixel density (dots/m2) | 640000 | 401111 | 360000 | 284444 | 250000 | 160000 | 111111 | 62500 |
| Module size (mm) | 240x120x8.6 (L x H x T) | |||||||
|
Module Resolution |
192x96 | 152x76 | 144x72 | 128x64 | 120x60 | 96x48 | 80x40 | 60x30 |
| Refresh rate (Hz) | 3840 | |||||||
| Frame frequency (Hz) | 60hz | |||||||
| Gray level (bit) | 14-18bit | |||||||
| Signal interface mode | HUB75 | |||||||
| Module bottom shell material | Silicone soft bottom shell | |||||||
| Module weight (kg/piece) | 0.215 | 0.203 | 0.195 | 0.216 | 0.205 | 0.175 | 0.175 | 0.17 |
| Degree of protection | IP30 | |||||||
| Installation/maintenance mode | Front and rear installation/maintenance | |||||||
| Brightness (cd) | ≥600 | ≥650 | ≥650 | ≥750 | ≥750 | ≥750 | ≥750 | ≥750 |
| Color temperature (K) | ≤12000adjustable | |||||||
| coordinate | X:0.2500 Y:0.3000 | |||||||
| Brightness uniformity | ≥95% | |||||||
| Horizontal/vertical viewing angle | ≥170°/≥160° | ≥160°/≥140° | ||||||
| contrast ratio | ≥5000:1 | |||||||
Made out of multiple specs of P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used in shopping malls, science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas.
Learn More>
Made out of P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.
Learn More>
LED screens can provide any information you need to convey to students, teachers, and staff. Besides, the Digital led wall does it in an eye-catching method that’s sure to impress.
Learn More>

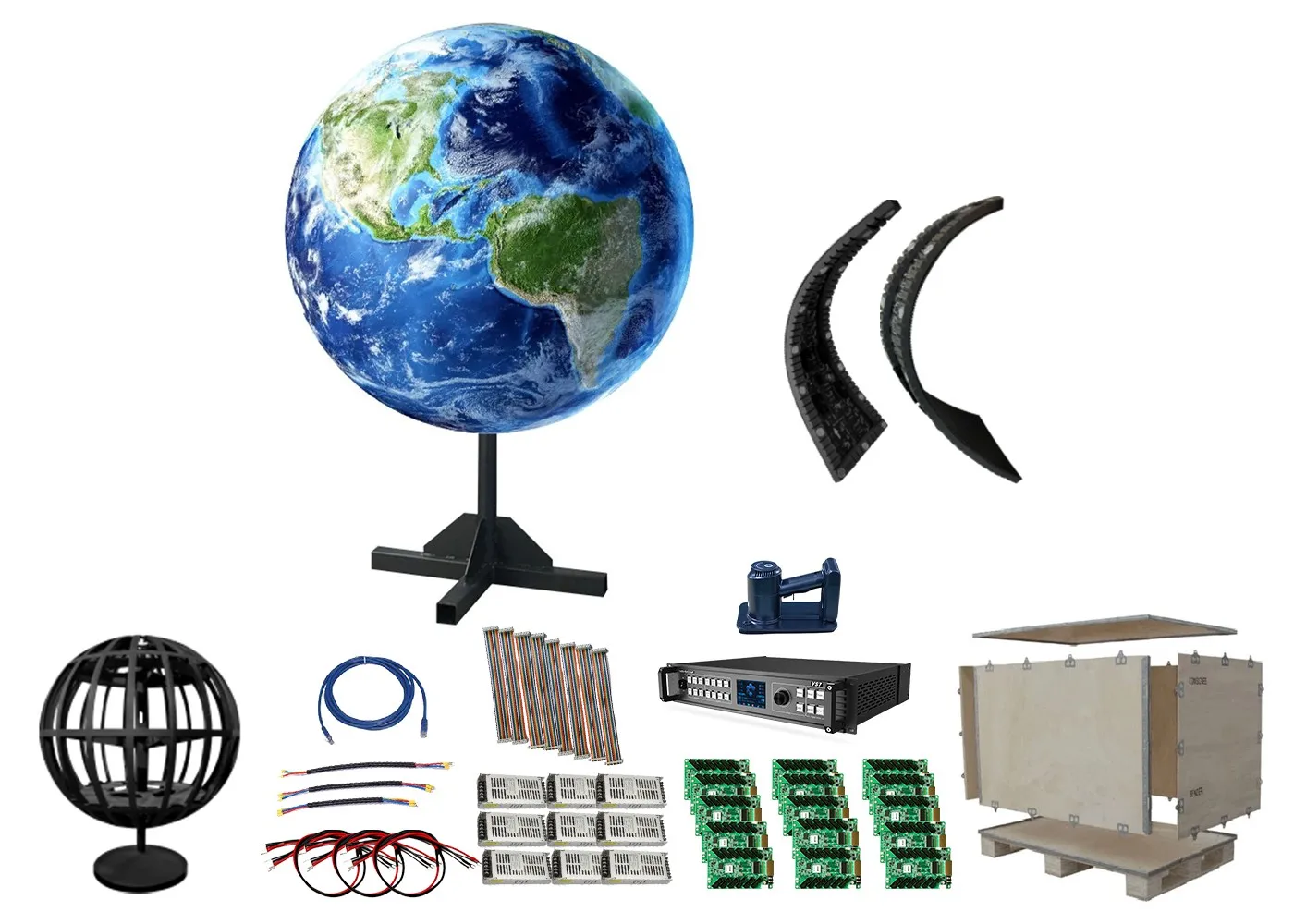

A Sphere LED display is a creative LED display, which is an important milestone in the development of LED display screen. It has the characteristics of multiple splicing display, flexible shaped display, uniform display, high-definition image without distortion, etc Spherical LED display has high commercial value. It is widely used in shopping malls, science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas. DDW Display is your ideal customized LED display supplier. No matter different sizes and creative shapes, we can provide all in one customize LED display solution according to your actual on-site requirements.
Learn More>

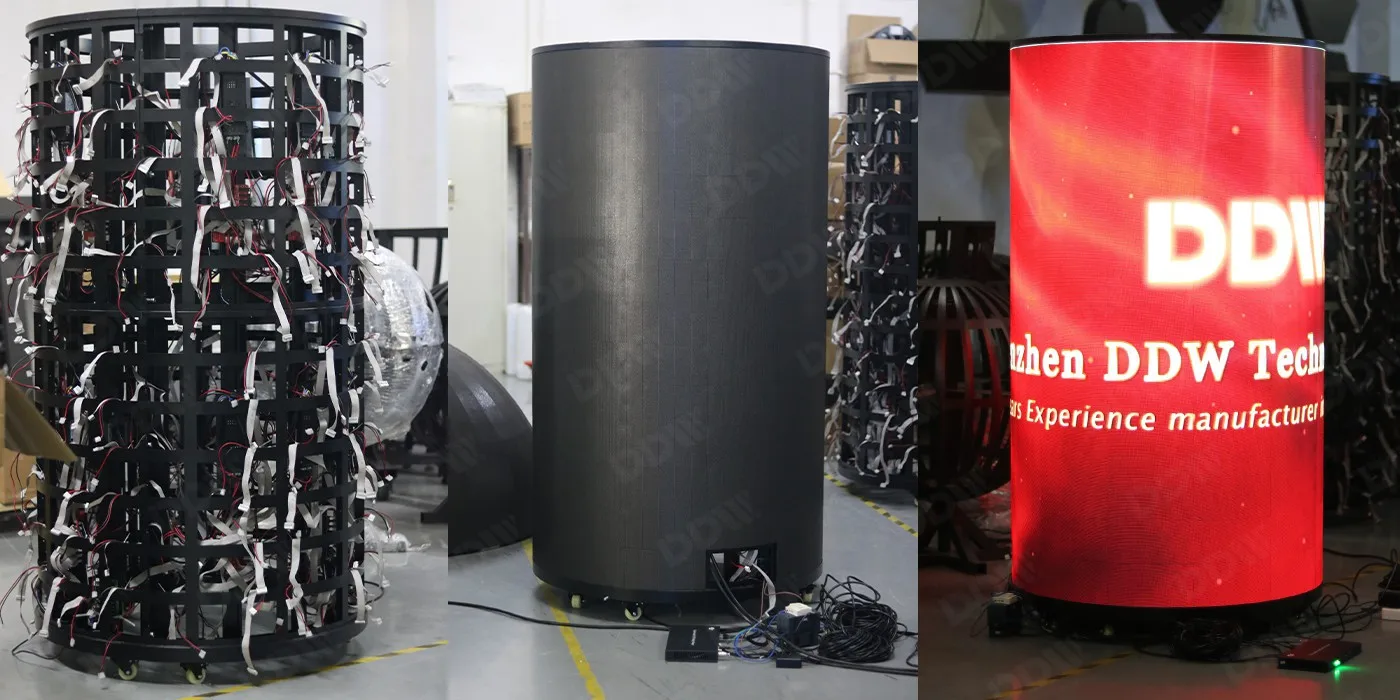

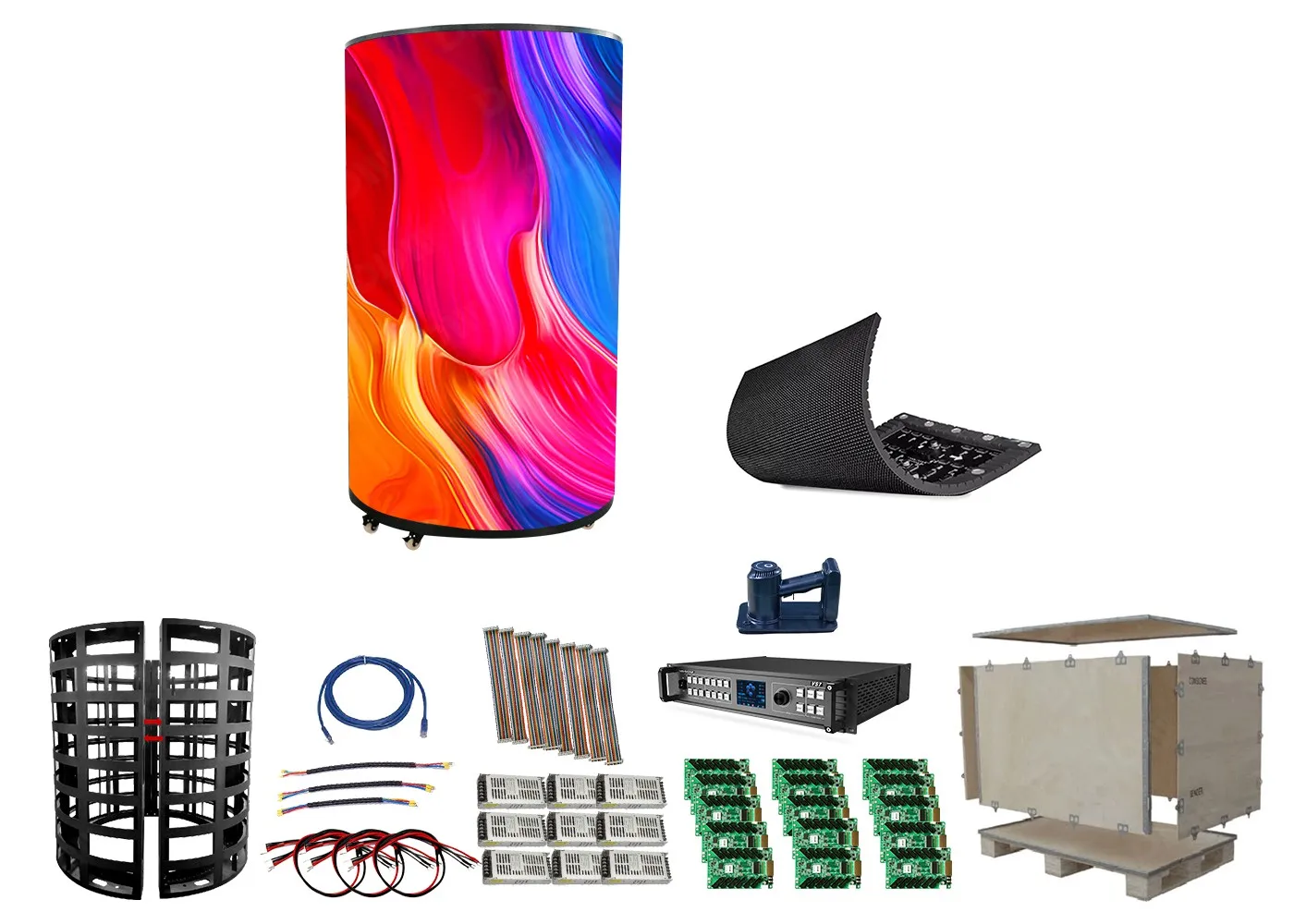

Cylinder LED display is a new floor standing creative LED display consist of flexible LED modules. It can be made as free floor standing type and can also be wrapped on the surface of the column. Widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.
