Flexible LED Screen

Interior P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.

Features

3840 Hz

Wide Viewing Angles

Arc installation

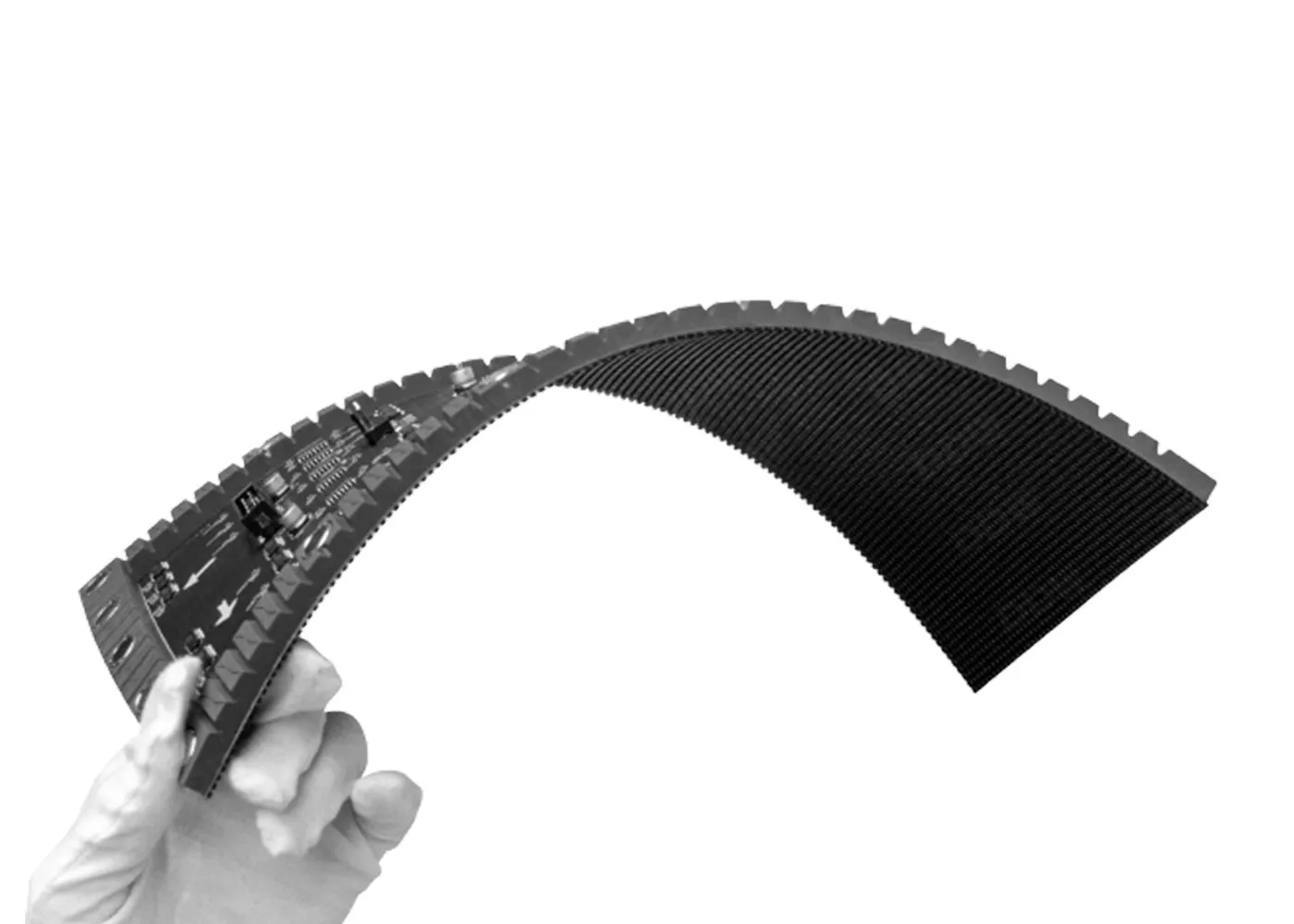

High Flexibility

Magnetic Suction Installation

Front Maintenance

Die Cast Aluminum

Low Power Consumption

Advantages

CY Series Cylinder LED screen
Feature Description
  • - Soft silicone back shell High contrast ratio
  • - Ultra-light and ultra-thin
  • - 160° Wide Viewing angle
  • - Remain picture clearly & seamless, no delay
  • - Simple & fast to maintain

Video

CY Series Cylinder LED screen

Parameters

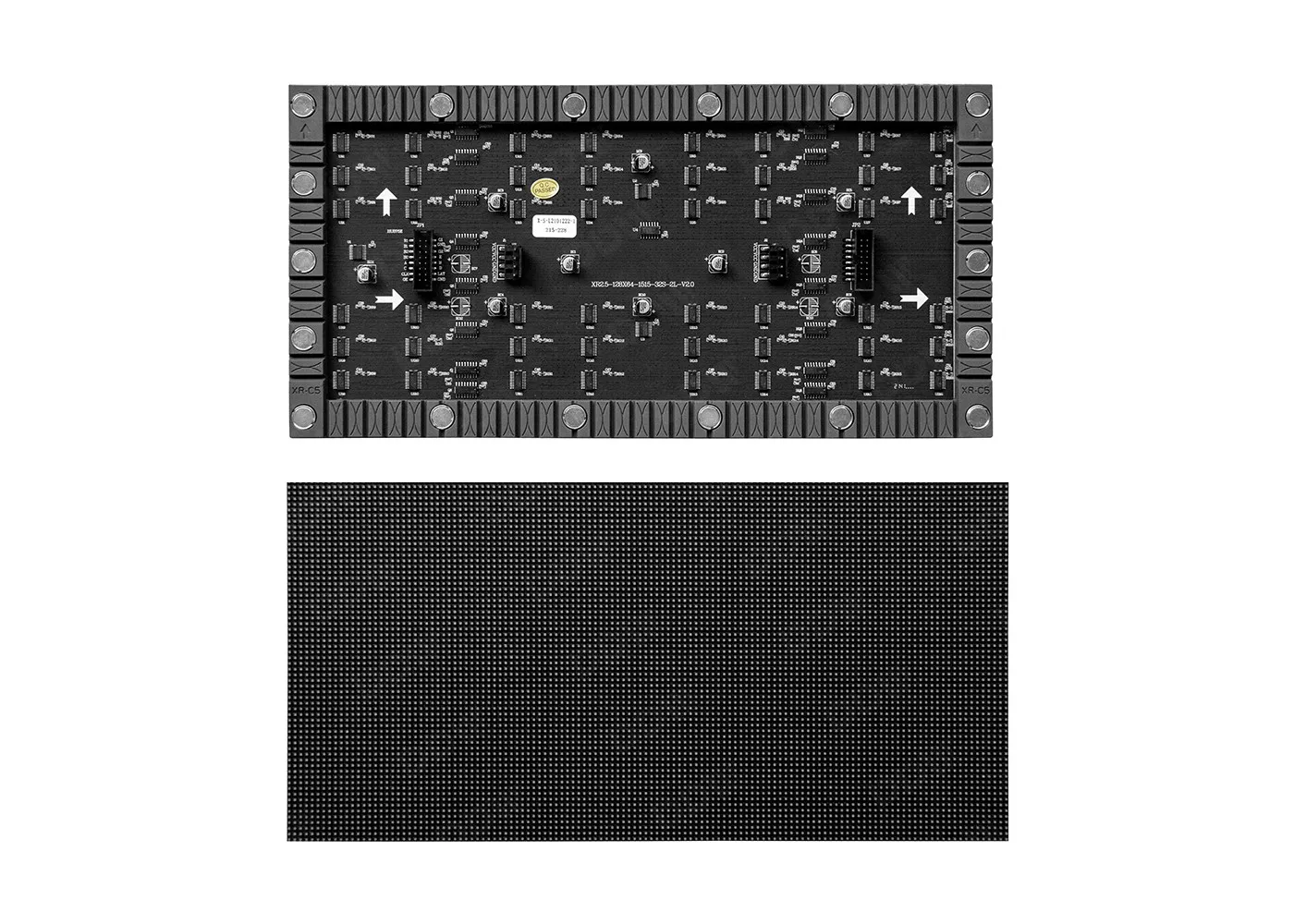

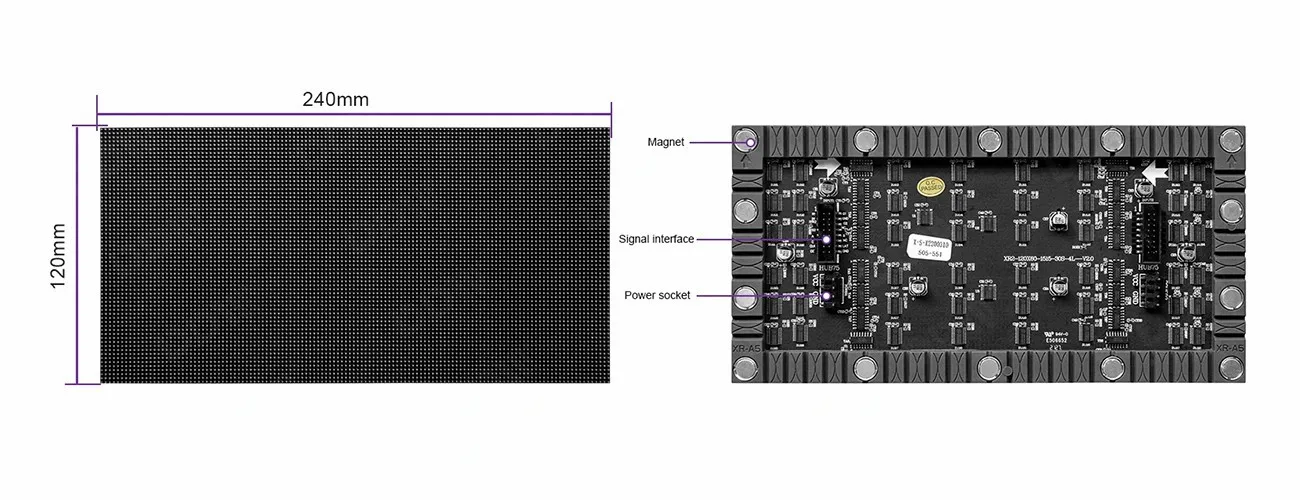

Module Specs

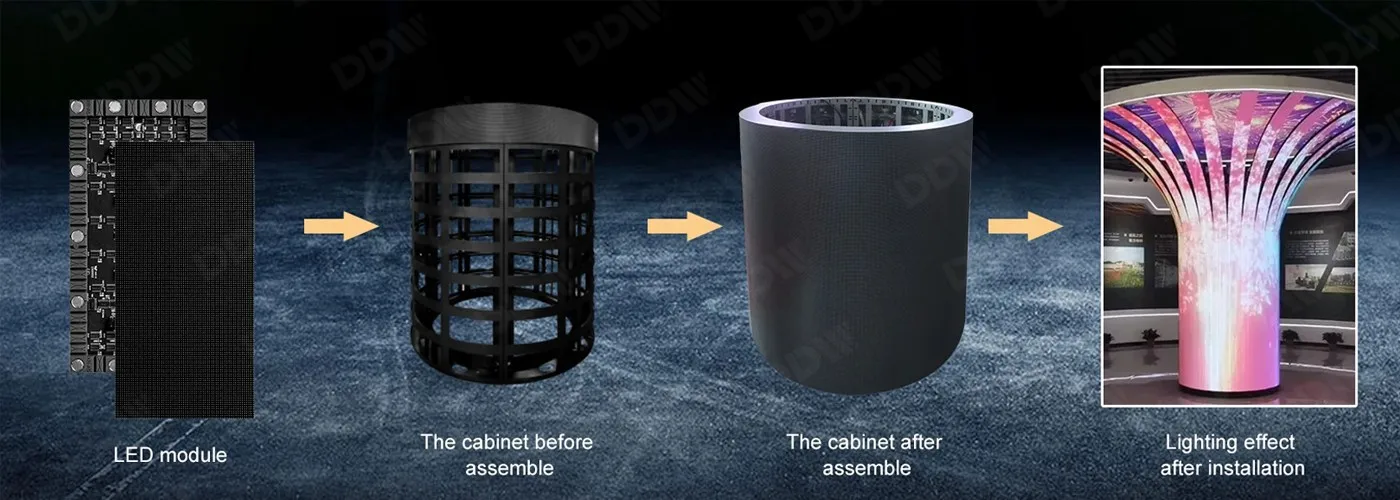

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.

CY Series Cylinder LED screen

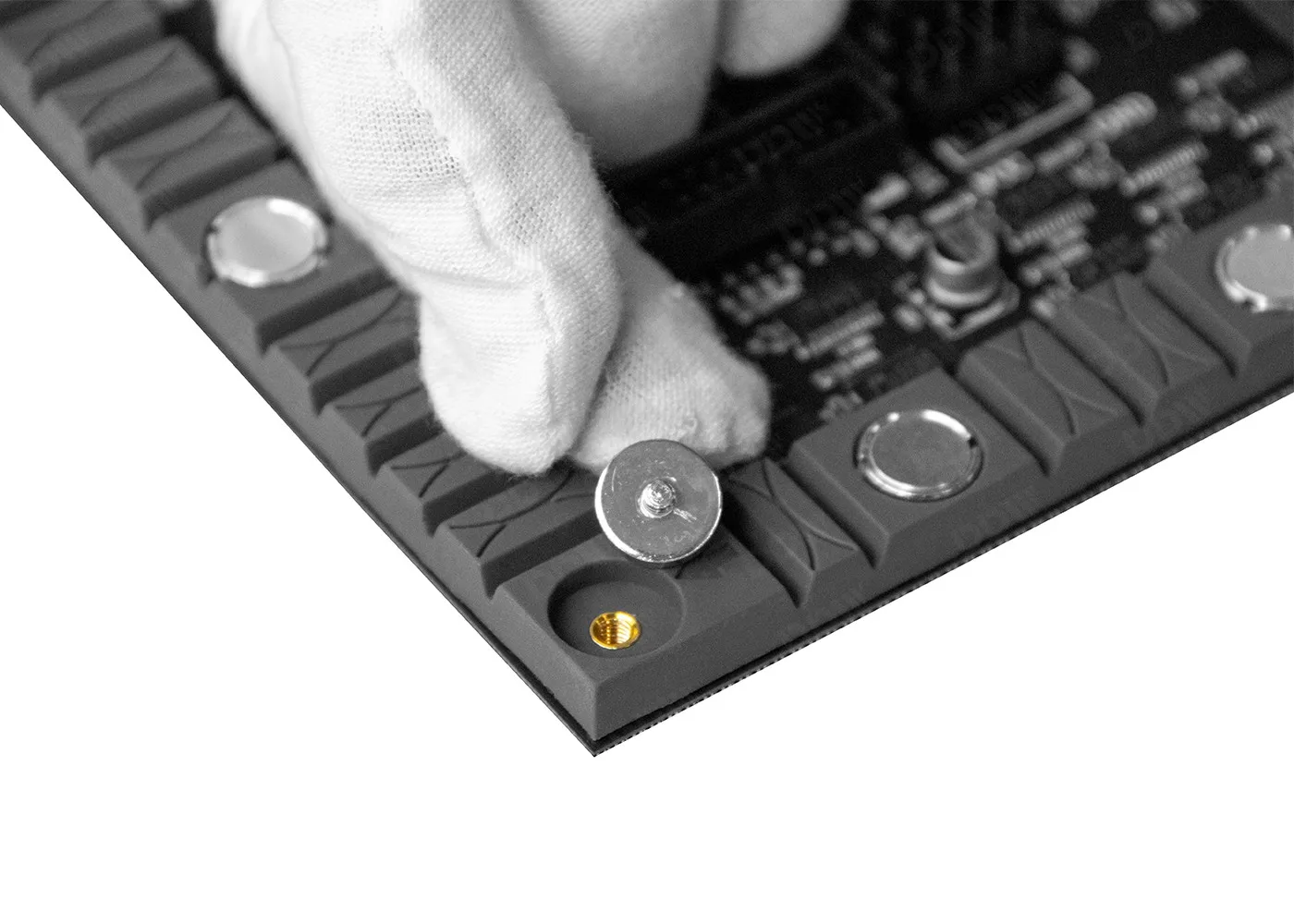

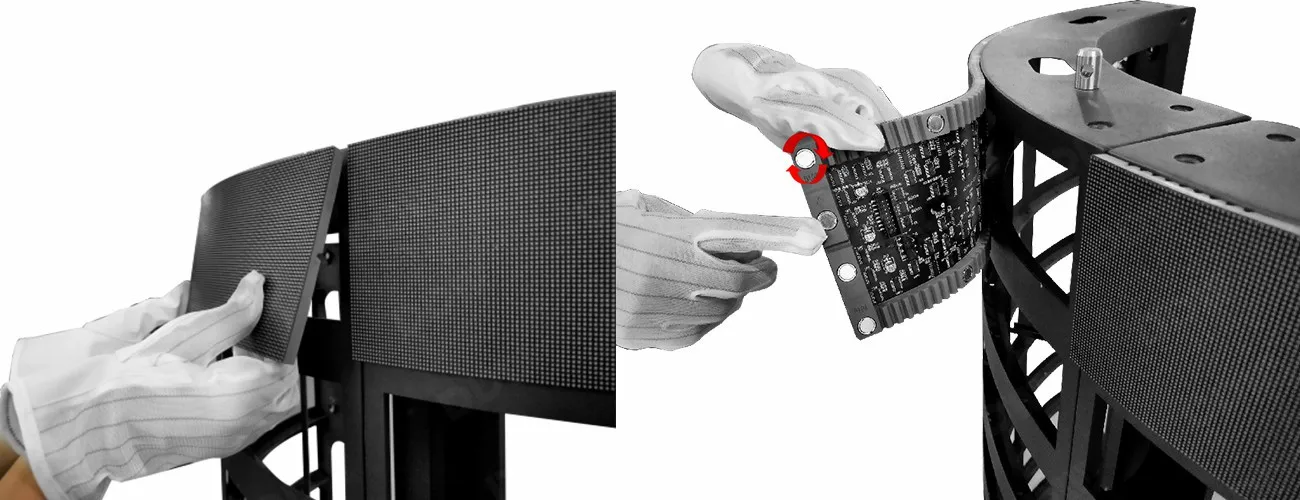

Magnetic suction installation

Magnet suitable adjustment to ensure flatness

CY Series Cylinder LED screen

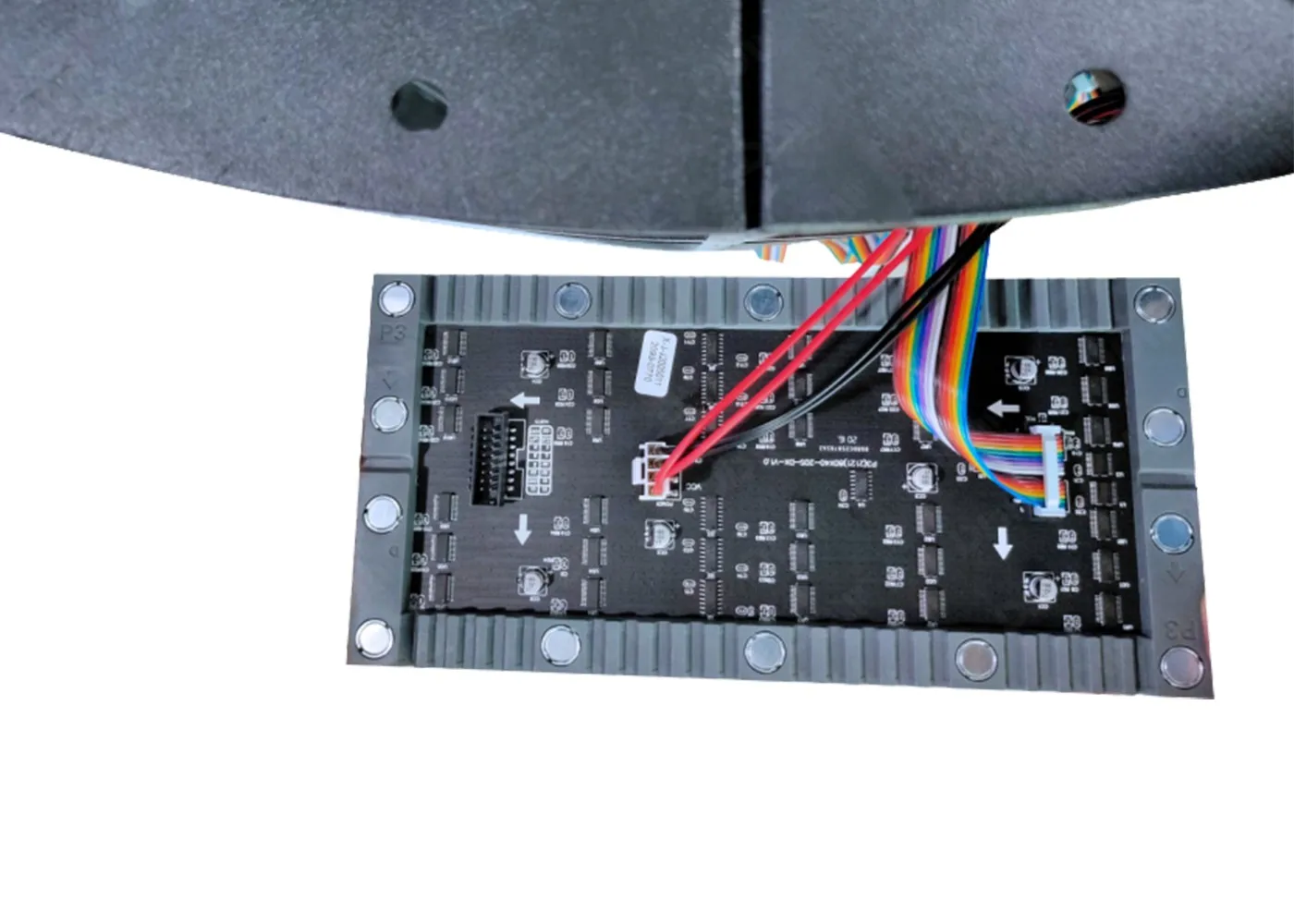

Paste by Magnets,Easy installation

There're multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.

CY Series Cylinder LED screen

Installation

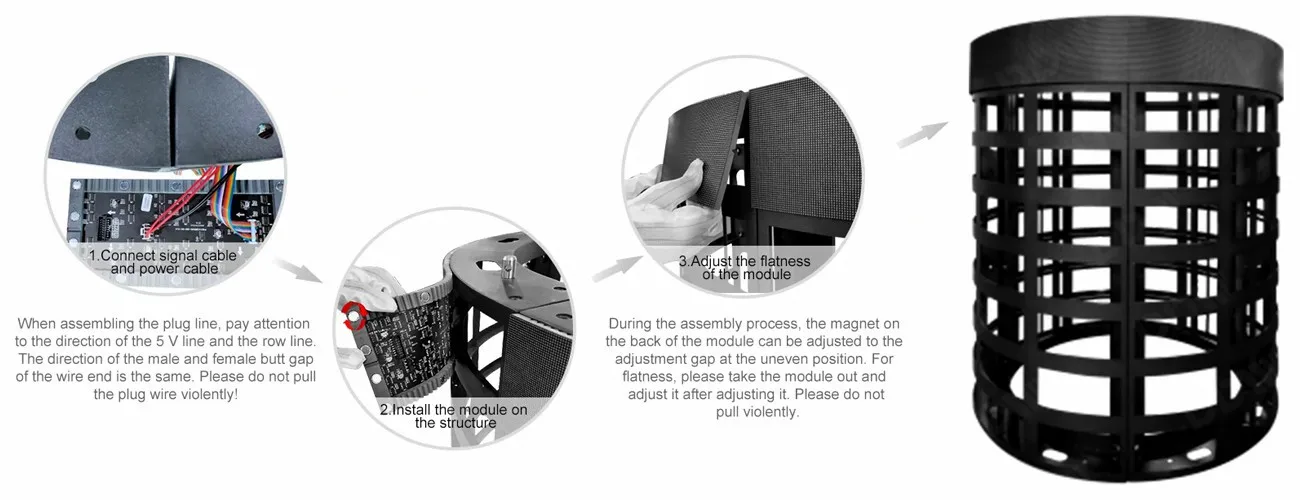

Installation steps
CY Series Cylinder LED screen

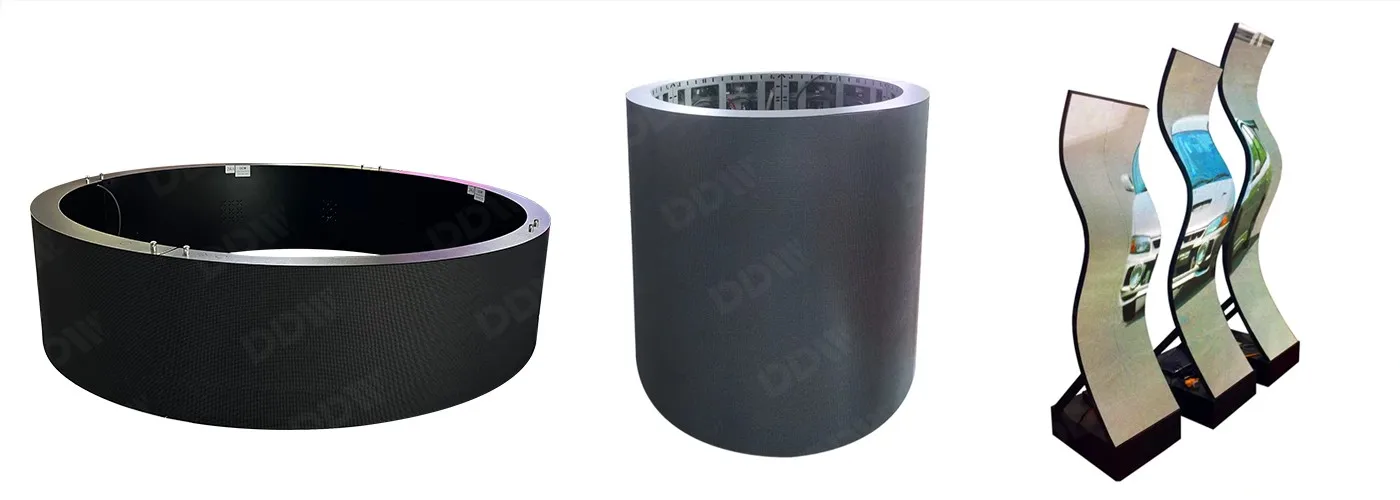

Various installation mode
CY Series Cylinder LED screen

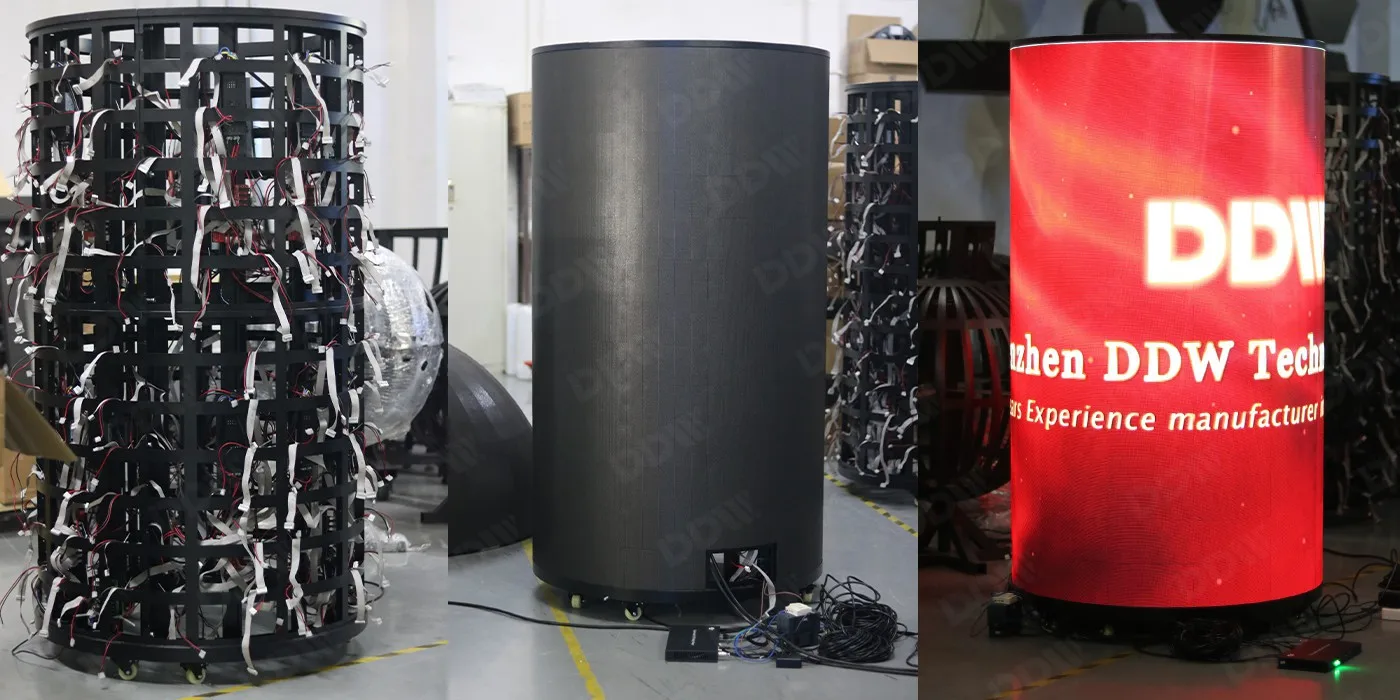

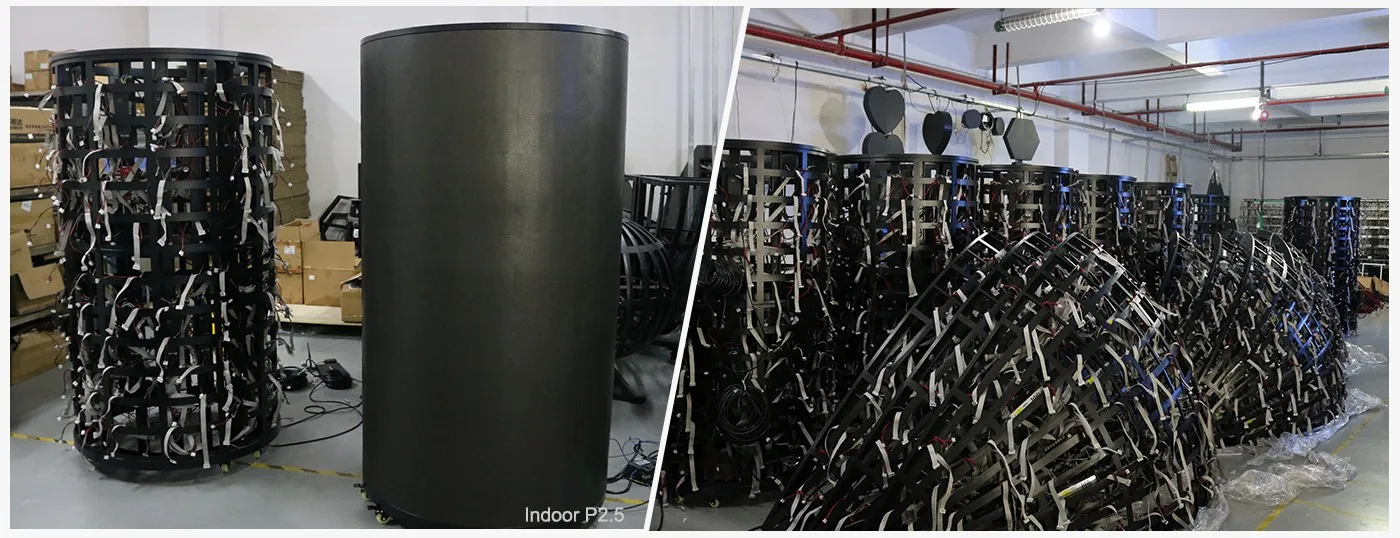

Aging test
CY Series Cylinder LED screen

Specifications

  P1.25 P1.579 P1.667 P1.875 P2 P2.5 P3 P4
Lamp bead packaging specification SMD1010 SMD1212 SMD1212 SMD1515 SMD1515 SMD1515 SMD2020 SMD2020
Pixel density (dots/m2) 640000 401111 360000 284444 250000 160000 111111 62500
Module size (mm) 240x120x8.6 (L x H x T)
Module Resolution

192x96 152x76 144x72 128x64 120x60 96x48 80x40 60x30
Refresh rate (Hz) 3840
Frame frequency (Hz) 60hz
Gray level (bit) 14-18bit
Signal interface mode HUB75
Module bottom shell material Silicone soft bottom shell
Module weight (kg/piece) 0.215 0.203 0.195 0.216 0.205 0.175 0.175 0.17
Degree of protection IP30
Installation/maintenance mode Front and rear installation/maintenance
Brightness (cd) ≥600 ≥650 ≥650 ≥750 ≥750 ≥750 ≥750 ≥750
Color temperature (K) ≤12000adjustable
coordinate X:0.2500        Y:0.3000
Brightness uniformity ≥95%
Horizontal/vertical viewing angle ≥170°/≥160° ≥160°/≥140°
contrast ratio ≥5000:1

Accessories

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Receiving card
Receiving card
Video processor
Video processor
Power cable-Flat cable
Power cable-Flat cable
CAT cable 5V Power-cable
CAT cable 5V Power-cable
Wooden case packing
