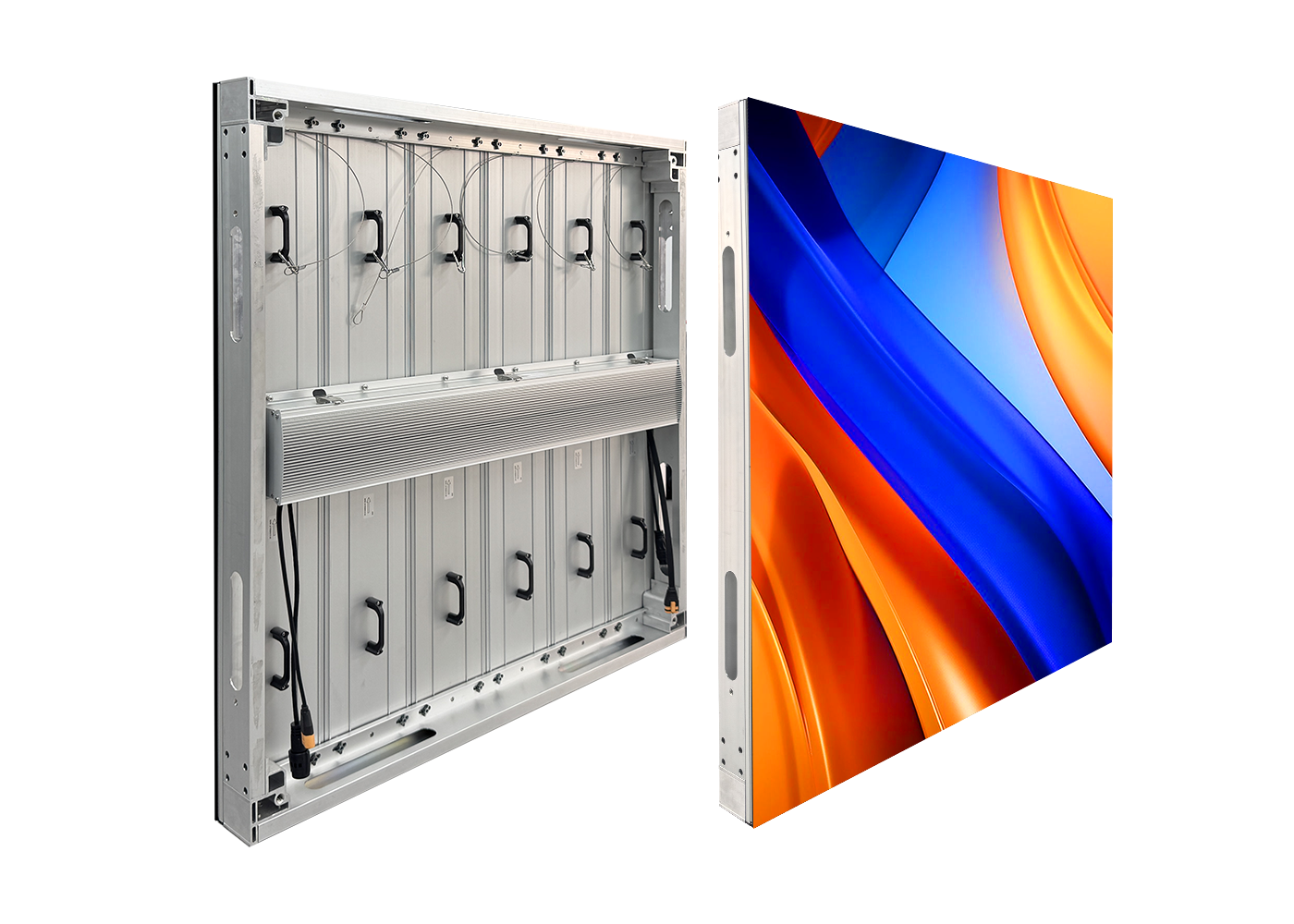

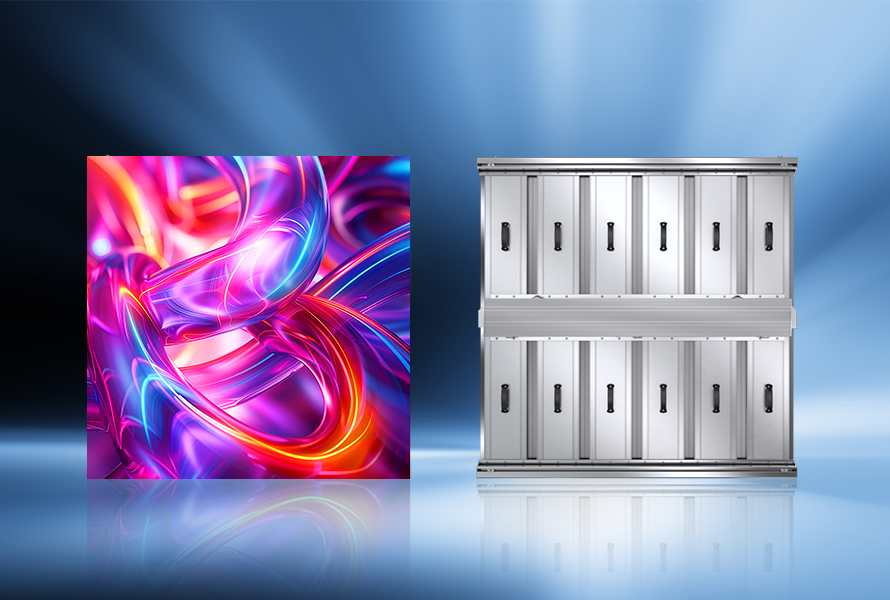

640×640/960×640/960×960 P2.5 P3.076 P4 P5 P6.67 P8 P10 aluminum IP65 Outdoor LED screen
3840 Hz
Wide Viewing Angles
IP65 Waterproof
High Flexibility
Common Cathode Design

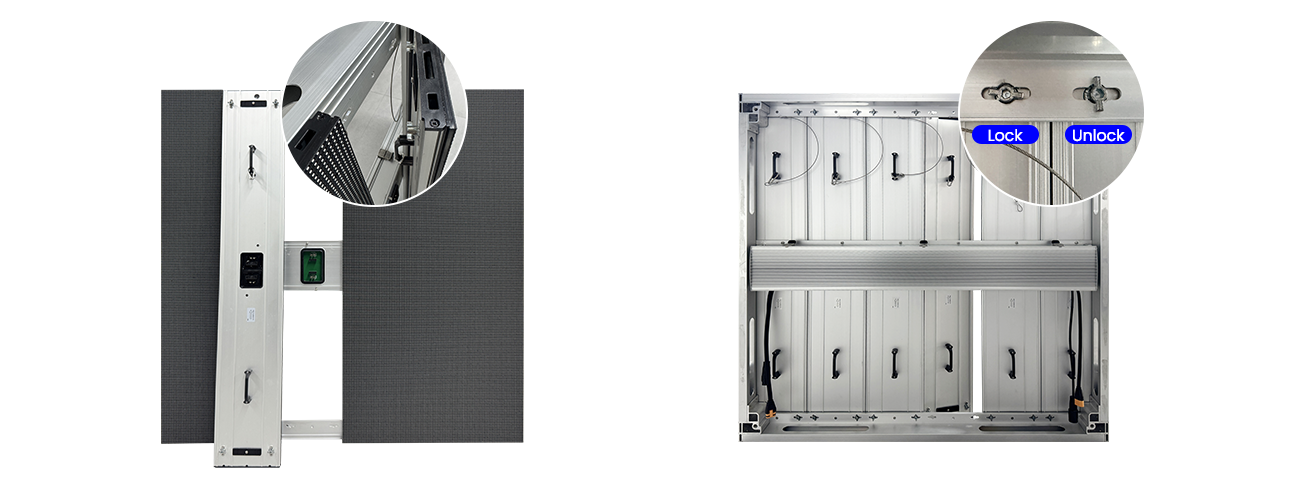

Front Rear Maintenance
Die Cast Aluminum
7000cd High brightness

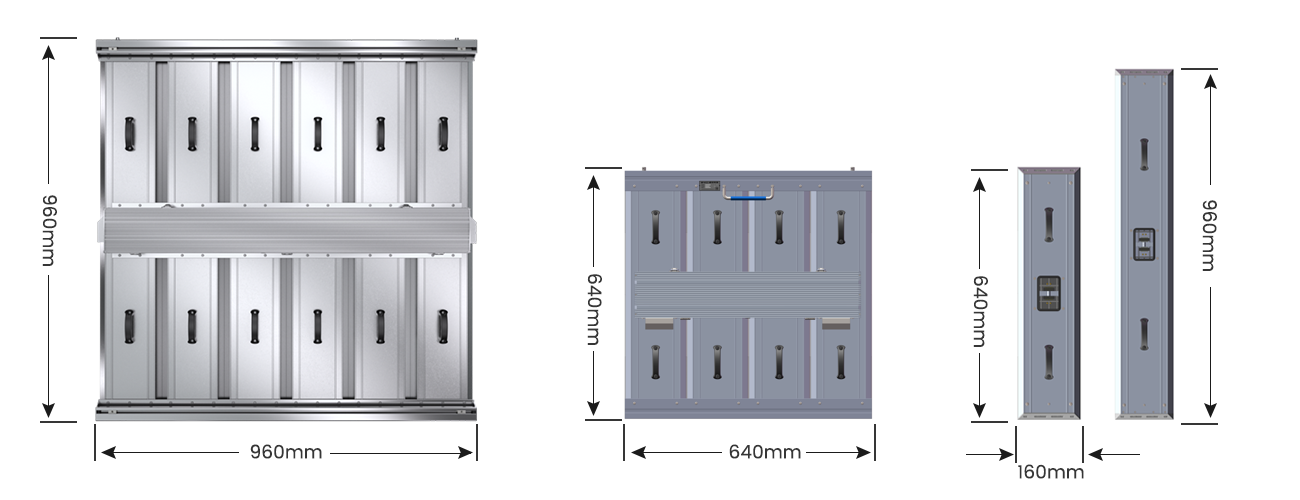

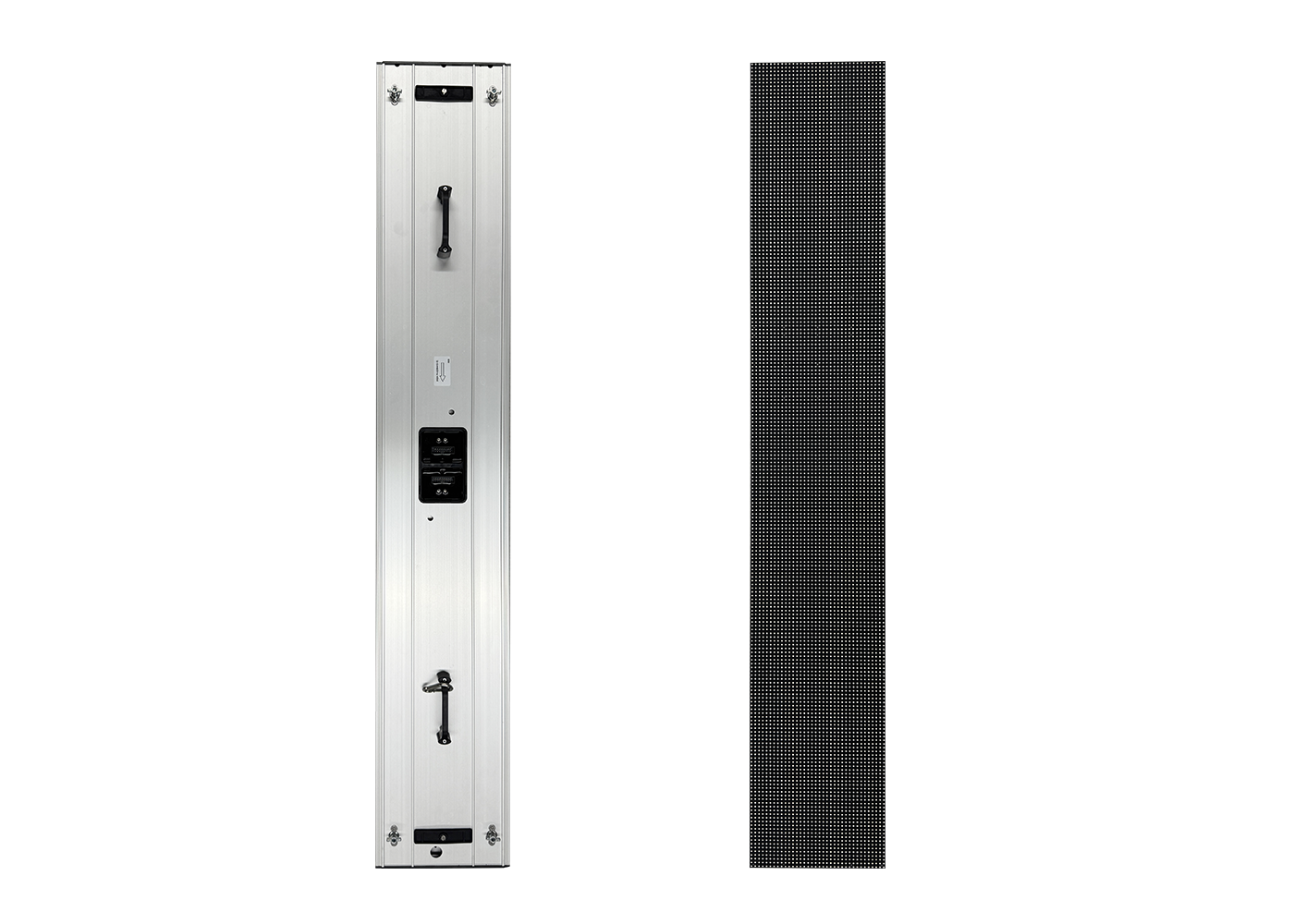

Cabinet size options: 640×640/960×640/960×960 Module Size: 160x640/160x960mm

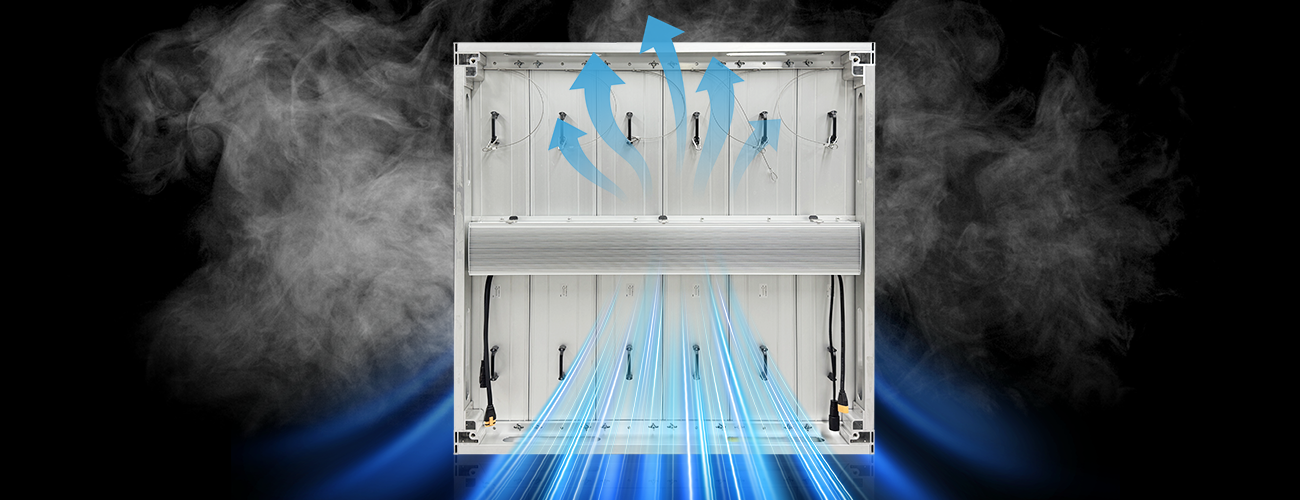

Modular design with silent operation and efficient thermal convection, no air conditioning required

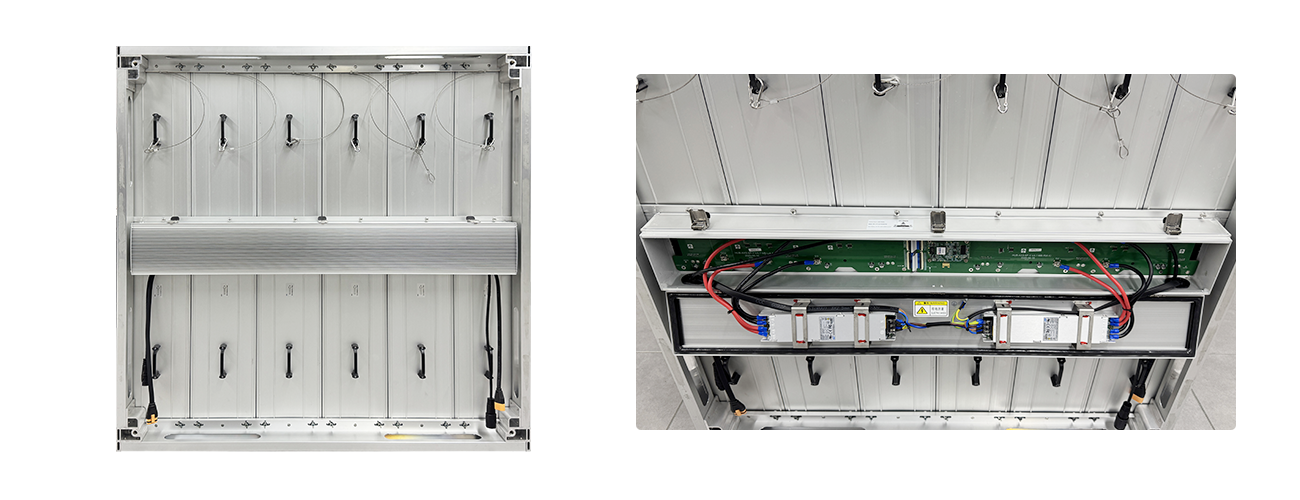

All-in-one design with hidden interfaces for clean cable management

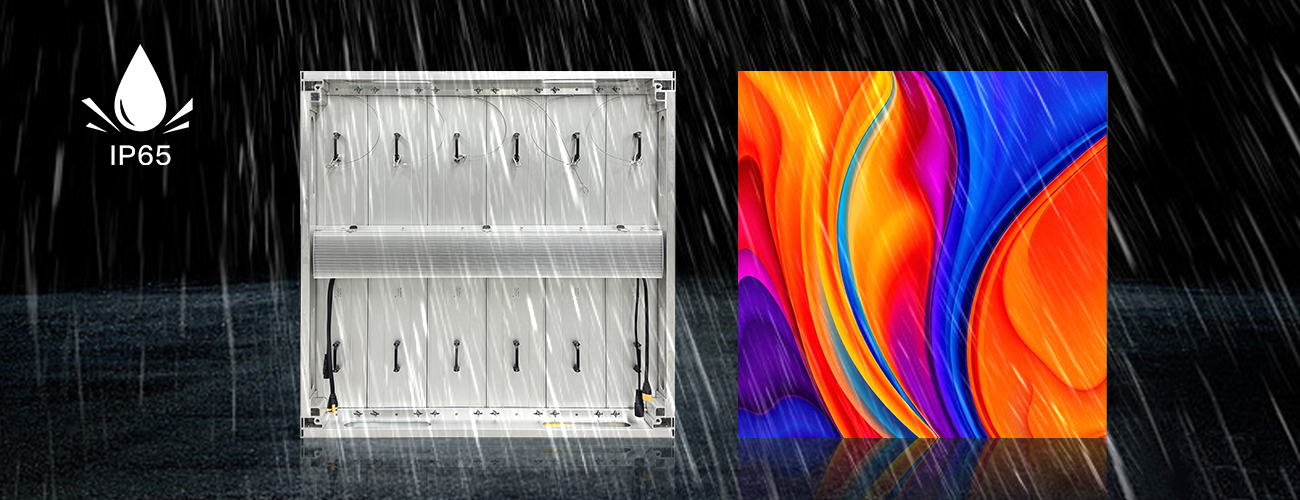

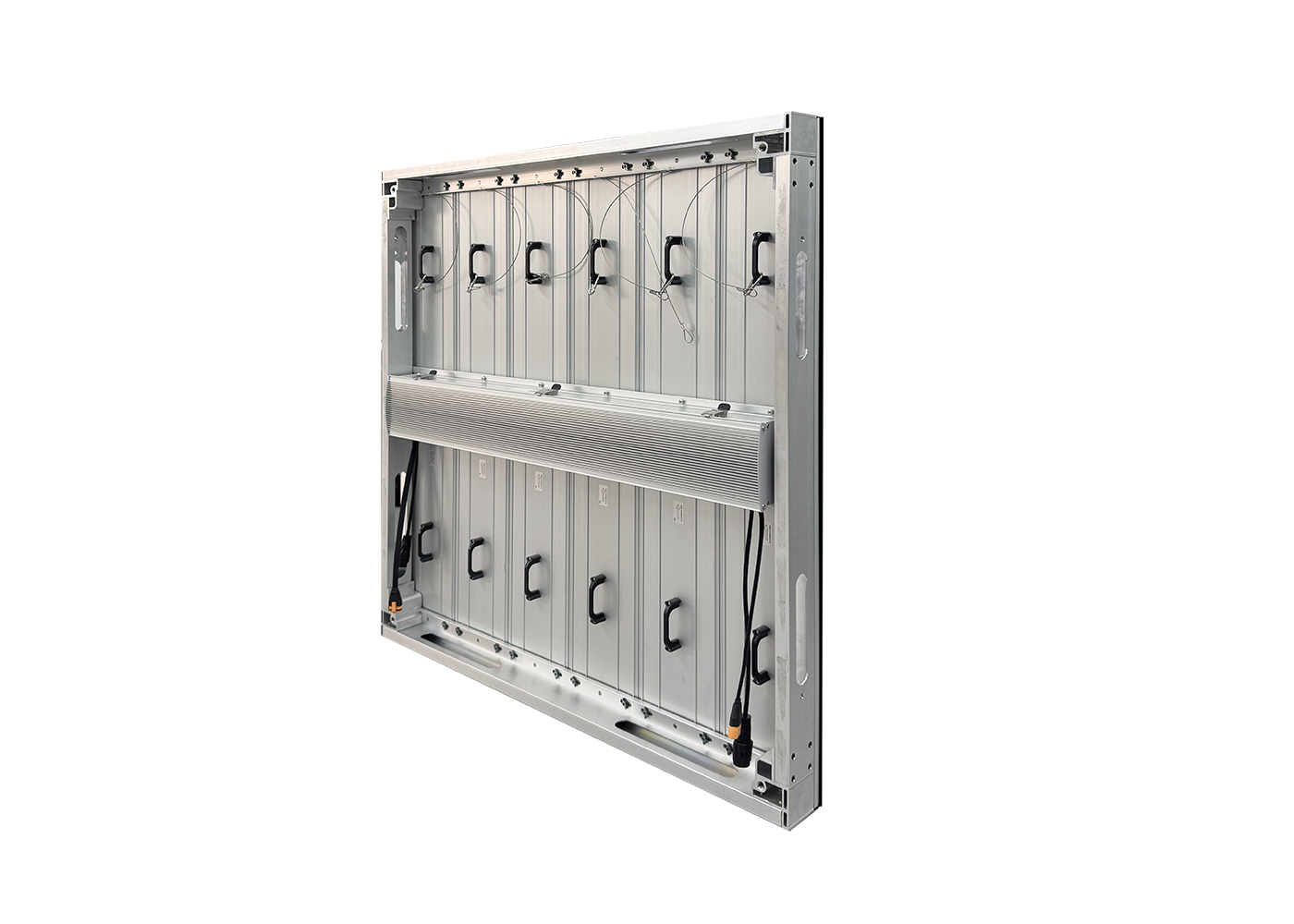

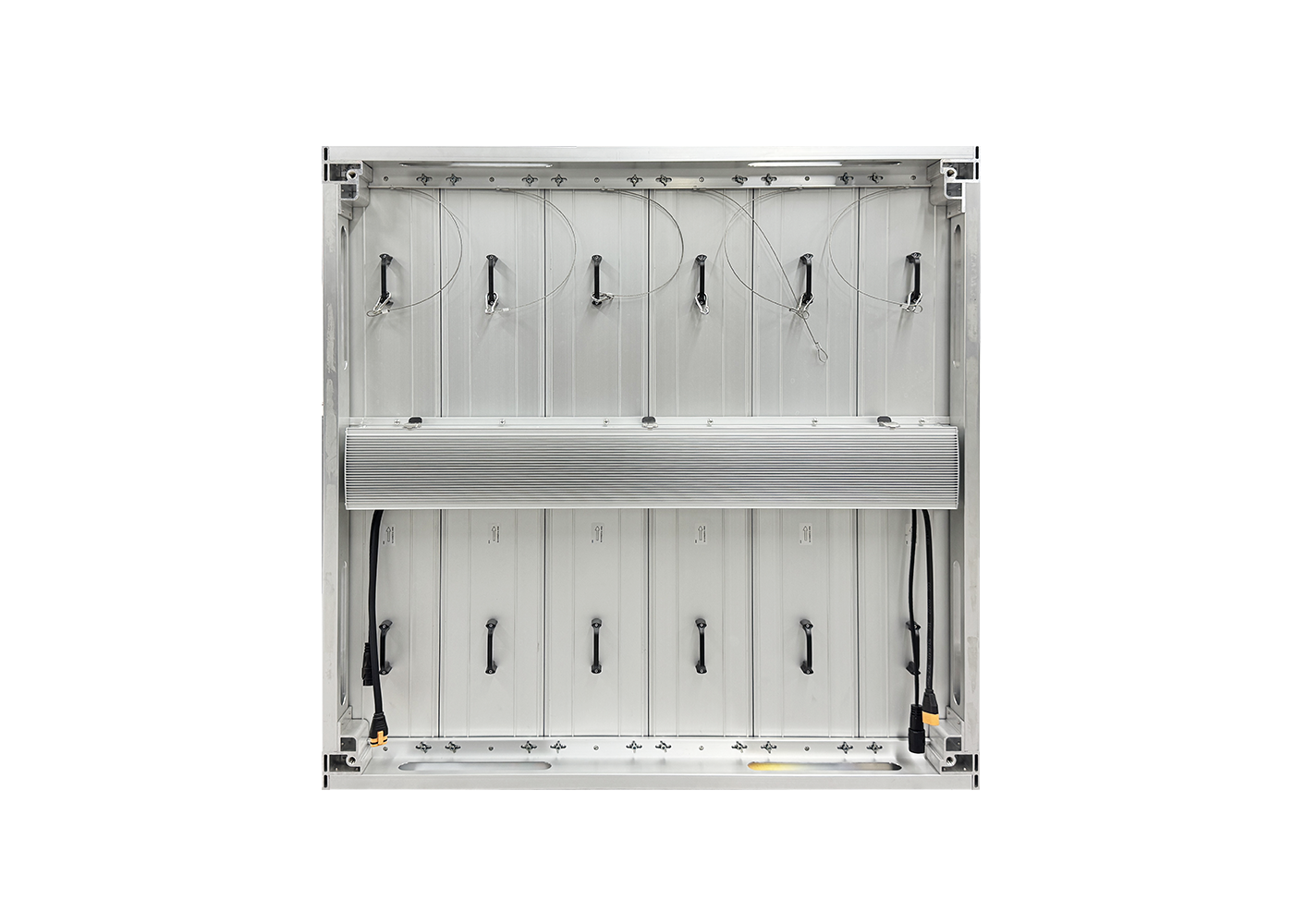

Integrated structure with lightweight alloy housing, IP65 rated front and rear

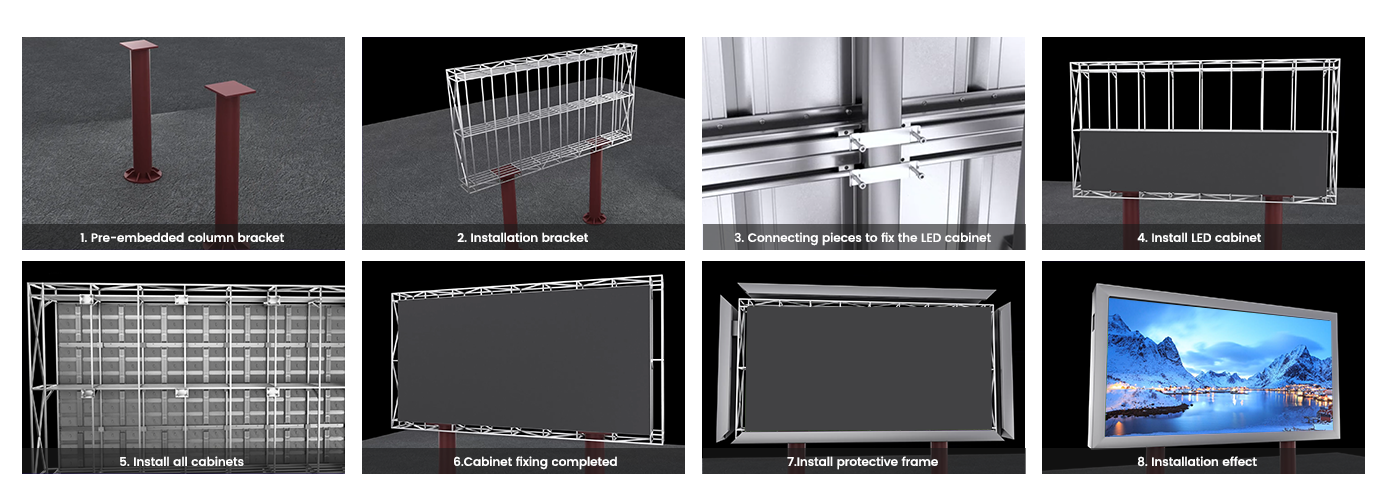

Simplify operation and reduce construction difficulty

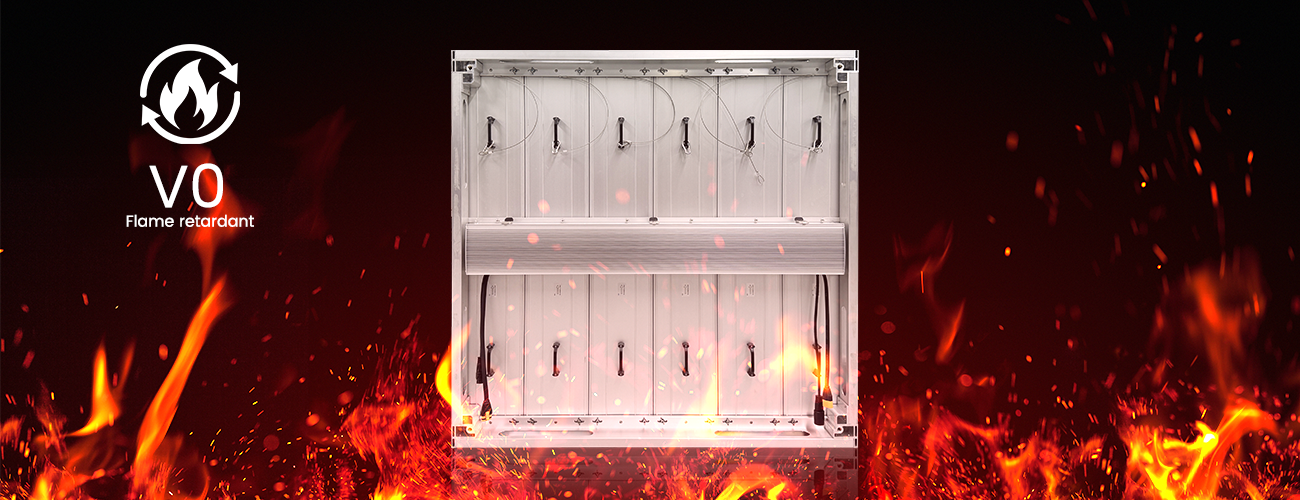

Fire-resistant materials (V0 grade) with excellent dustproof and fireproof performance

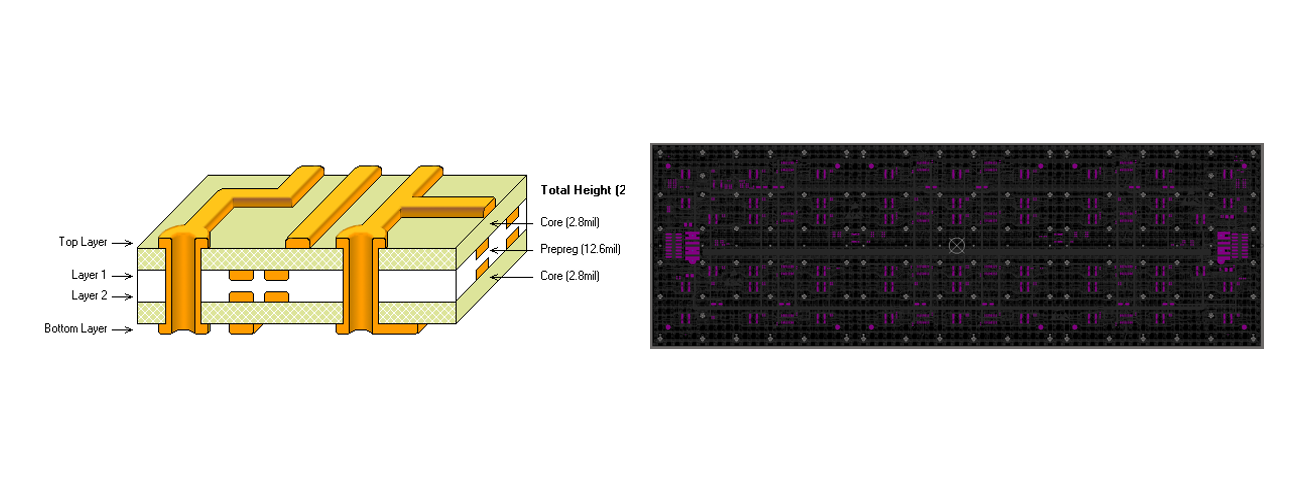

4-layer PCB with enhanced grounding and RC filtering for stable performance.

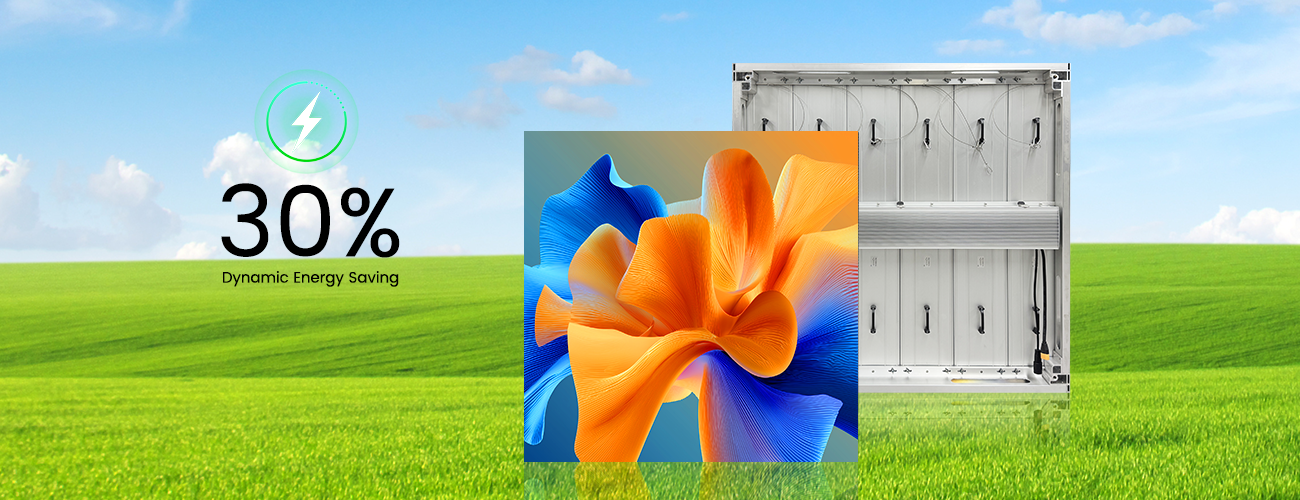

Dual power supply with optimized circuits, saving up to 30% energy.

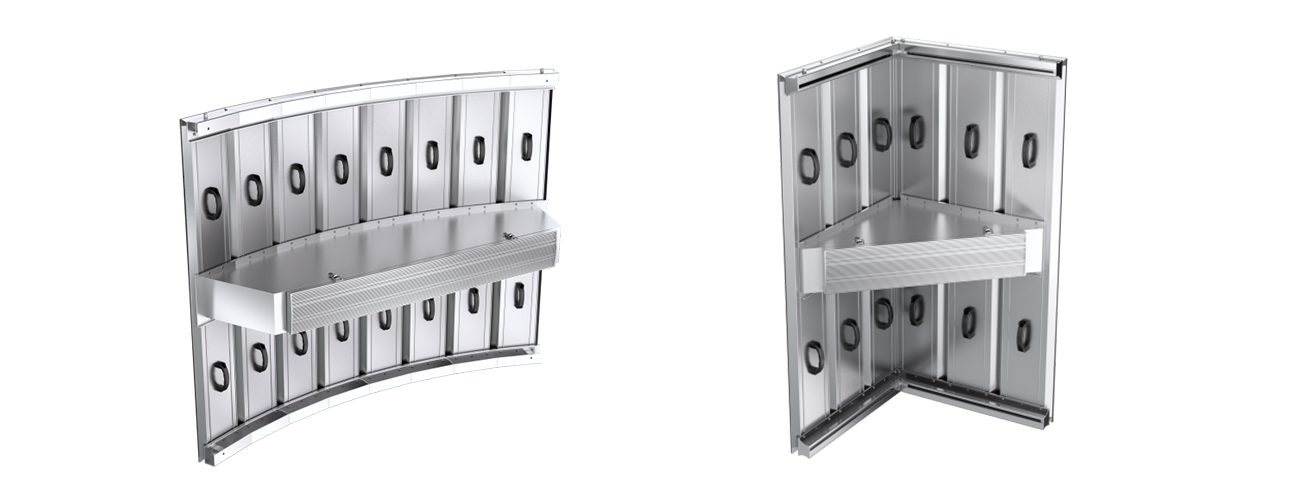

Supports curved and right-angle designs for naked-eye 3D displays
| Panel size | 640(W)*640(H)*80mm(T) | 960(W)*640(H)*80mm(T) | 960(W)*960(H)*80mm(T) | ||||||
| Panel resolution | 256*256dots | 208*208dots | 384*256dots | 312*208dots | 240*240dots | 192*192dots | 144*144dots | 120*120dots | 96*96dots |
| Pixel pitch | 2.5mm | 3.076mm | 2.5mm | 3.076mm | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| Pixel sensity | 160000dots/m² | 105625dots/m² | 160000dots/m² | 105625dots/m² | 62500dots/m² | 40000dots/m² | 22500dots/m² | 15625dots/m² | 10000dots/m² |
| LED specification | 1415 SMD | 1415 SMD | 1415 SMD | 1415 SMD | 1921 SMD | 1921 SMD | 2727 SMD | 2727 SMD | 2727 SMD |
| Unit size | 160*640mm | 160*640mm | 160*640mm | 160*640mm | 160*960mm | 160*960mm | 160*960mm | 160*960mm | 160*960mm |
| Unit resolution | 64*256dots | 52*208dots | 64*256dots | 52*208dots | 40*240dots | 32*192dots | 24*144dots | 20*120dots | 16*96dots |
| Weight | 13kg±2kg | 13kg±2kg | 19kg±2kg | 19kg±2kg | 21.5kg±2 kg | 21.5kg±2 kg | 21.5kg±2 kg | 21.5kg±2 kg | 21.5kg±2 kg |
| Material | aluminum material | ||||||||
| Maintenance mode | Front and rear maintenance | ||||||||
| Best viewing distance | ≥2.5m | ≥3.076m | ≥2.5m | ≥3.076m | ≥4m | ≥5m | ≥6.67m | ≥8m | ≥10m |
| Pixel configuration | 1R1G1B | ||||||||
| Best viewing angle | 120°(H)/120°(V) | ||||||||
| Brightness of while balance | ≥4500cd/㎡ | ≥6000cd/㎡ | |||||||
| Color temperature | 3500-9300K adjustable | ||||||||
| Correcting | Support correction | ||||||||
| Deviation | ≤3% | ||||||||
| Homogeneity | ≥97% | ||||||||
| Max Power consumption | 750W/㎡ | ||||||||
| Average power consumption | 250W/㎡ | ||||||||
| Drive type | 1/16 Scanning | 1/13 Scanning | 1/16 Scanning | 1/13 Scanning | 1/10 Scanning | 1/8 Scanning | 1/6 Scanning | 1/5 Scanning | 1/2 Scanning |
| Driving device | IC Constant Current driver | ||||||||
| Working voltage | AC200-240V | ||||||||
| operating environment | Outdoor | ||||||||
| Refresh frequency | ≥3840Hz | ||||||||
| Framing frequency | 50/60Hz | ||||||||
| IP Grade | IP65 | ||||||||
| Storage temperature | -40℃~60℃ | ||||||||
| Working temperature | -20℃~50℃ | ||||||||
| Operation humidity | 10%～90% | ||||||||
| MTBF | ≥5000 hours | ||||||||
| Life span | ≥50000 hours | ||||||||
| Blind spot rate | ≤1/10000 | ||||||||
