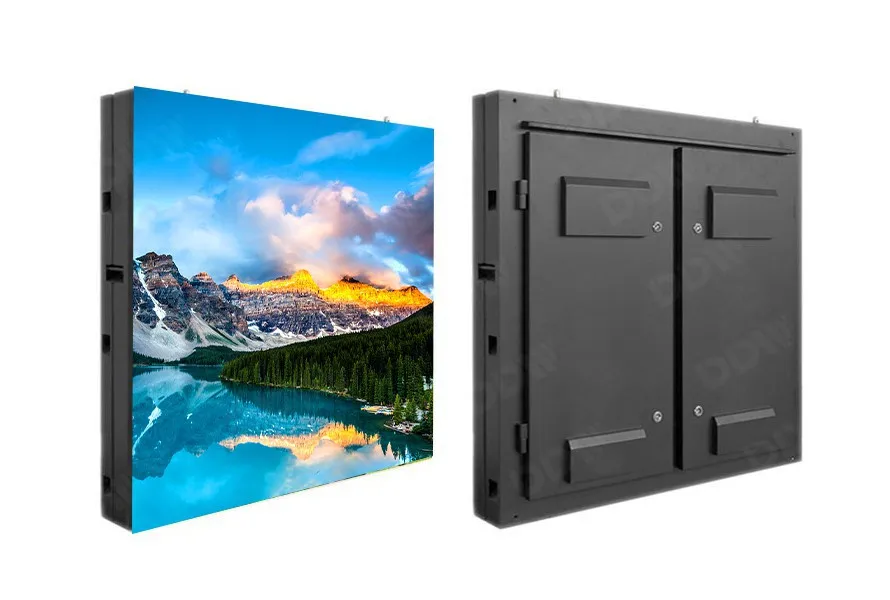

FO series Outdoor LED screen

FO series is a high-end outdoor LED display carefully designed in quality and detail, which is used for outdoor fixed installation. It is the most common and widely used outdoor display screen.

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

High Flexibility

Common Cathode Design

Rear Maintenance

Quality SPCC Cabinet

7500cd High Brightness

Advantage

FO series Outdoor LED screen
Feature Description
  • - IP65 waterproof rating, long service life
  • - 7500cd High brightness, bright colors
  • - Any size, seamless stitching
  • - Simple internal connection and easy installation
  • - There are cooling fans in the cabinet, better heat dissipation effect

Video

FO series Outdoor LED screen

Parameters

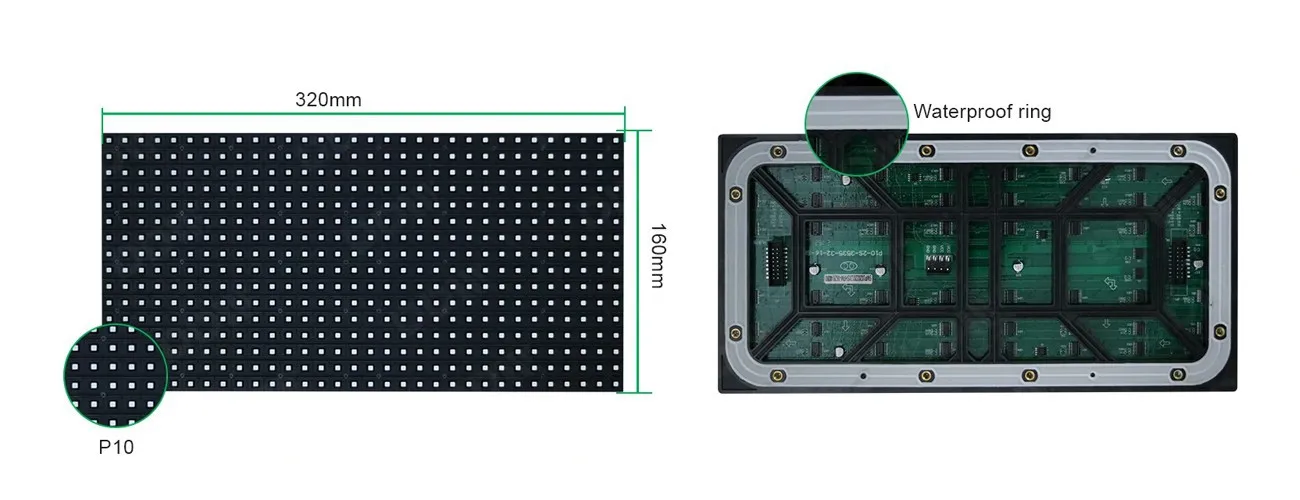

Module Specification

Suitable for all kinds modules ,Upgrade replacement is easy

FO series Outdoor LED screen

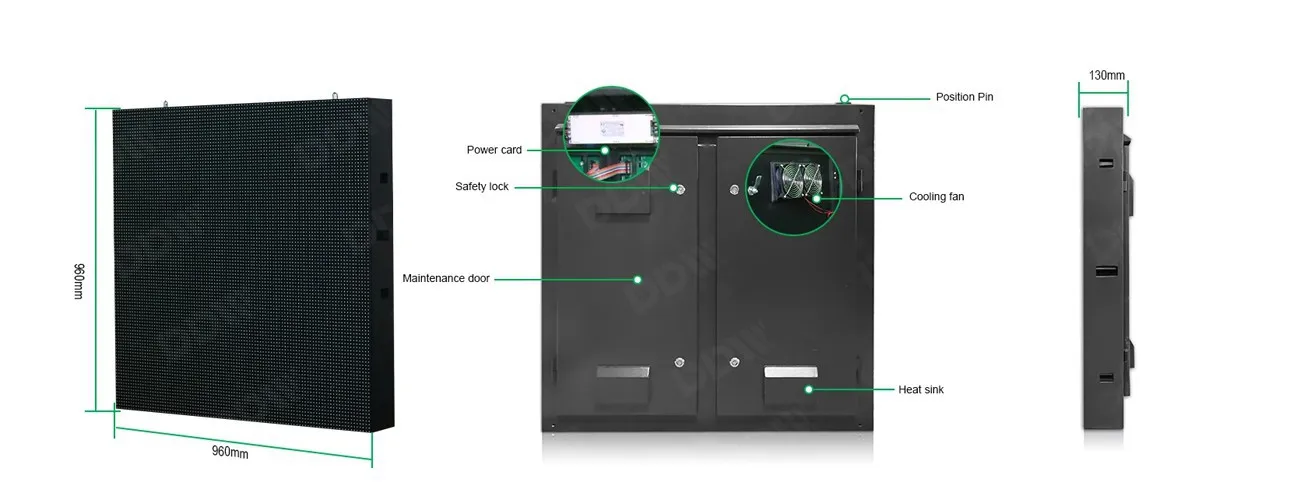

Cabinet Specs

The weight of a single iron cabinet is only 40KG, and the thickness of the cabinet is 130mm.

FO series Outdoor LED screen

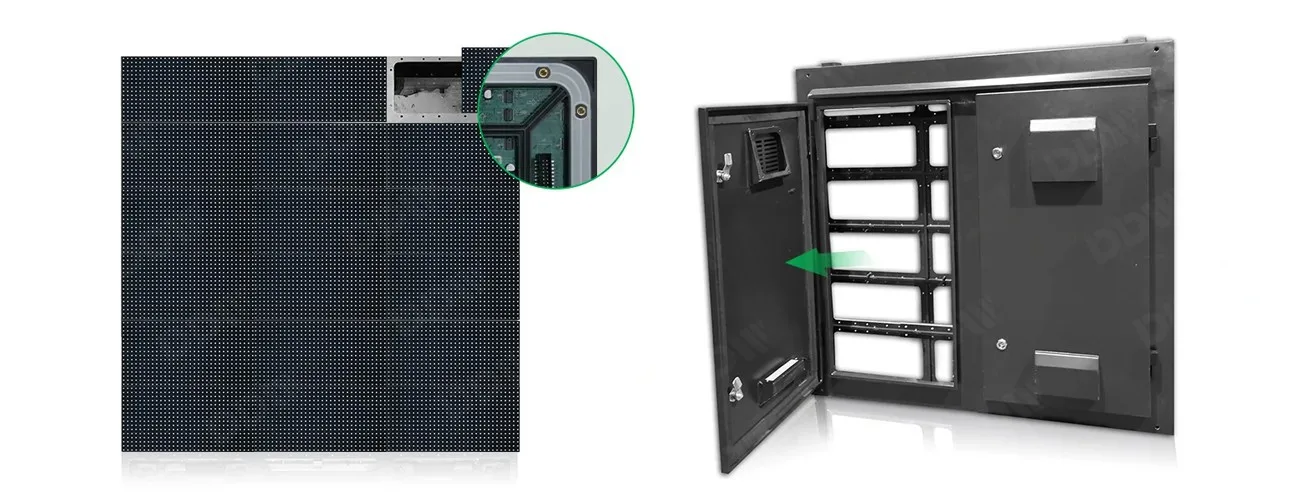

Rear Maintenance

The cabinet adopts reliable waterproof door opening type, which is convenient for maintenance and has simple internal structure

FO series Outdoor LED screen

Installation

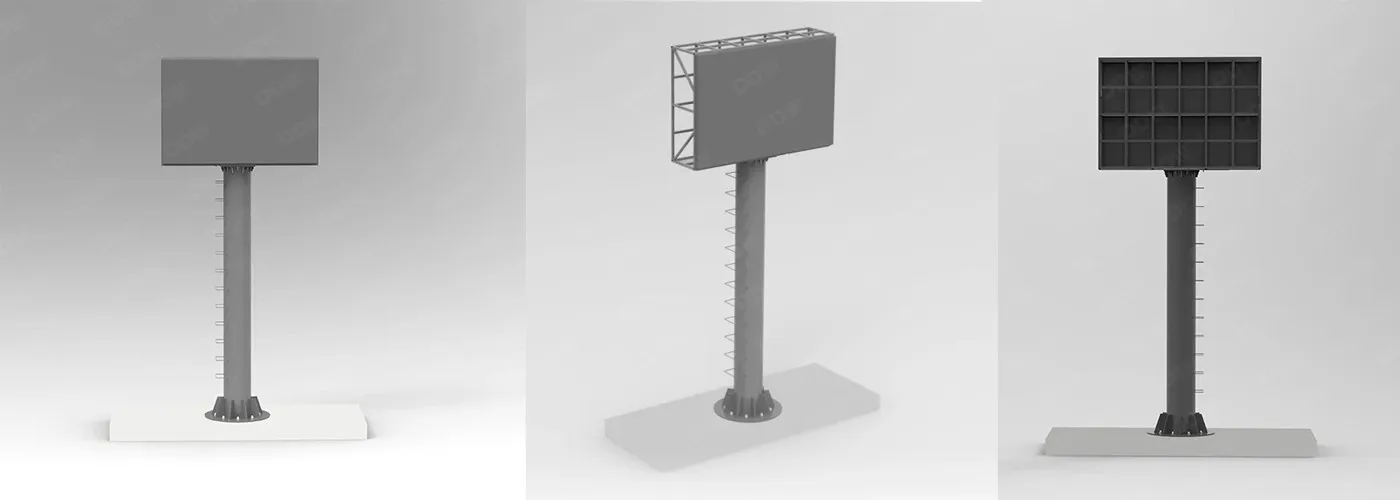

Installation Diagram
FO series Outdoor LED screen

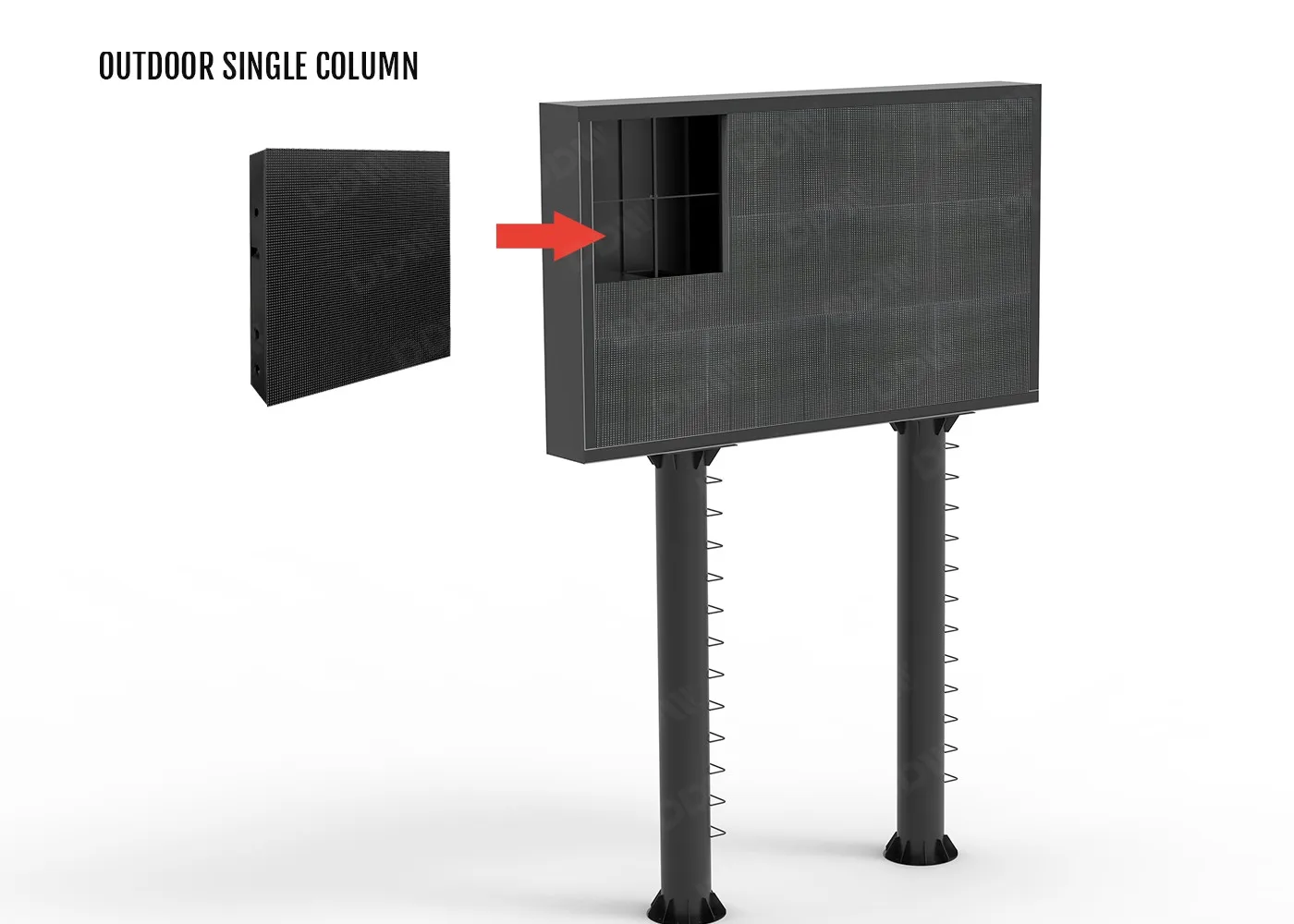

Single Column Installation
FO series Outdoor LED screen

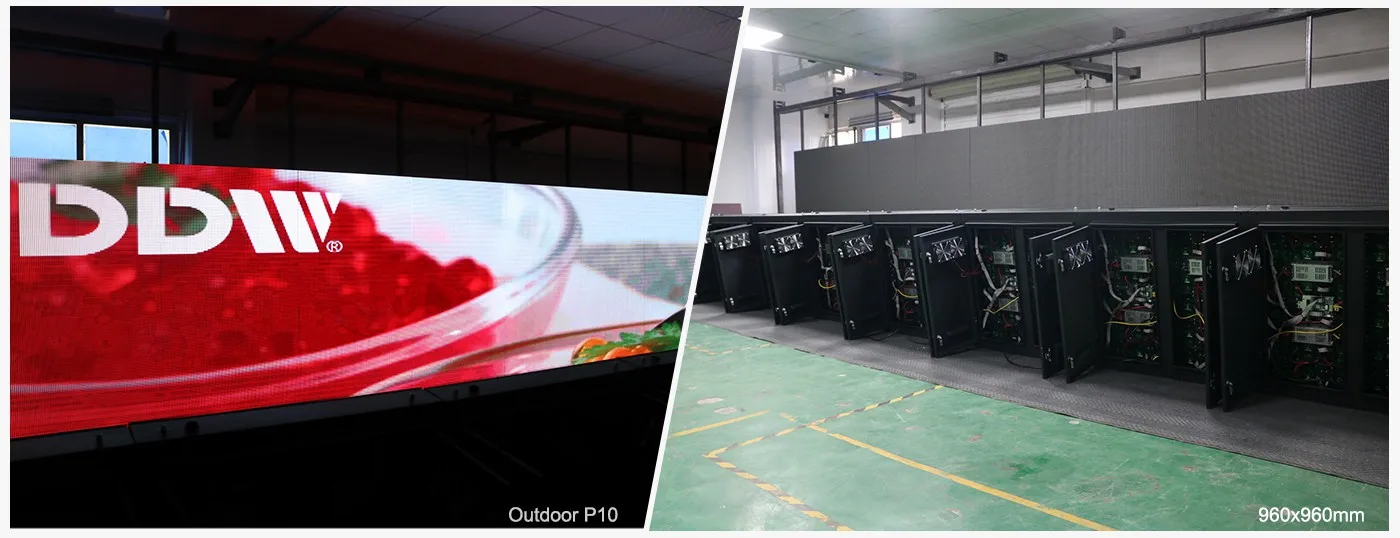

Aging test
FO series Outdoor LED screen

Specifications

Model 2.5 2.976 P3 P3.91 P4 P5 P6 P8 P10
Module size(mm) 160×160 250x250 192×192 250x250 320×160 320×160 192×192 320×160 320×160
Module resolution (dot) 64×64 84x84 64×64 64×65 80×40 64×32 32×32 40×20 32×16
Scanning 1/16S 1/21s 1/16S 1/17S 1/20S 1/8S 1/8S 1/5S 1/2S
SMD 1G1R1B 1G1R1B 1G1R1B 1G1R2B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B
Maintenance Back Back Back Back Back Back Back Back Back
Installation Back Back Back Back Back Back Back Back Back
Cabinet size(mm) 960×960 1000×1000 960×960 1000×1000 960×960 960×960 960×960 960×960 960×960
Density(dot/㎡) 160000 112896 111111 65410 62500 40000 27777 15625 10000
Brightness(cd/㎡) 4200-4500 3500 4200-4500 4200-4501 5000-6500 5000-6000 5000-6000 4000-5000 6000-7500
Max. Power Consumption 1000 1000 1000 1001 900 800 800 800 1000
Average Power Consumption 350 350 350 351 300 400 300 300 500
Cabinet weight (kg/m²) 40kg 40kg 40kg 41kg 40kg 40kg 40kg 40kg 40kg
Cabinet material Iron Iron Iron Iron Iron Iron Iron Iron Iron
IP rate IP 65 IP 65 IP 65 IP 66 IP 65 IP 65 IP 65 IP 65 IP 65
Grayscale 10000:1 10000:1 10000:1 10000:2 10000:1 10000:1 10000:1 10000:1 10000:1
Refresh rate(hz) 1920-3840 1920-3840 1920-3840 1920-3841 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Frame change frequency 50/60hz 50/60hz 50/60hz 50/61hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz
Horizontal viewing angle >140° >140° >140° >141° >140° >140° >140° >140° >140°
Vertical viewing angle >140° >140° >140° >141° >140° >140° >140° >140° >140°
Best viewing distance >2.5m >3m >3m >4m >4m >5m >6m >8m >10m
Input Voltage AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC221V AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V
Module Max. current 4.5-5.5 4.5-5.5 4.5-5.5 4.5-5.6 5.5-7.5 5.5-7.5 3.5-5.5 5.5-7.0 8.0-10
Temperature-operating ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~61℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃ ﹣10℃~60℃
Humidity-operating 10%~90% 10%~90% 10%~90% 10%~91% 10%~90% 10%~90% 10%~90% 10%~90% 10%~90%
Life span (H) ≥100,000 ≥100,000 ≥100,000 ≥100,001 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000
MTBF (H) >10,000 >10,000 >10,000 >10,001 >10,000 >10,000 >10,000 >10,000 >10,000

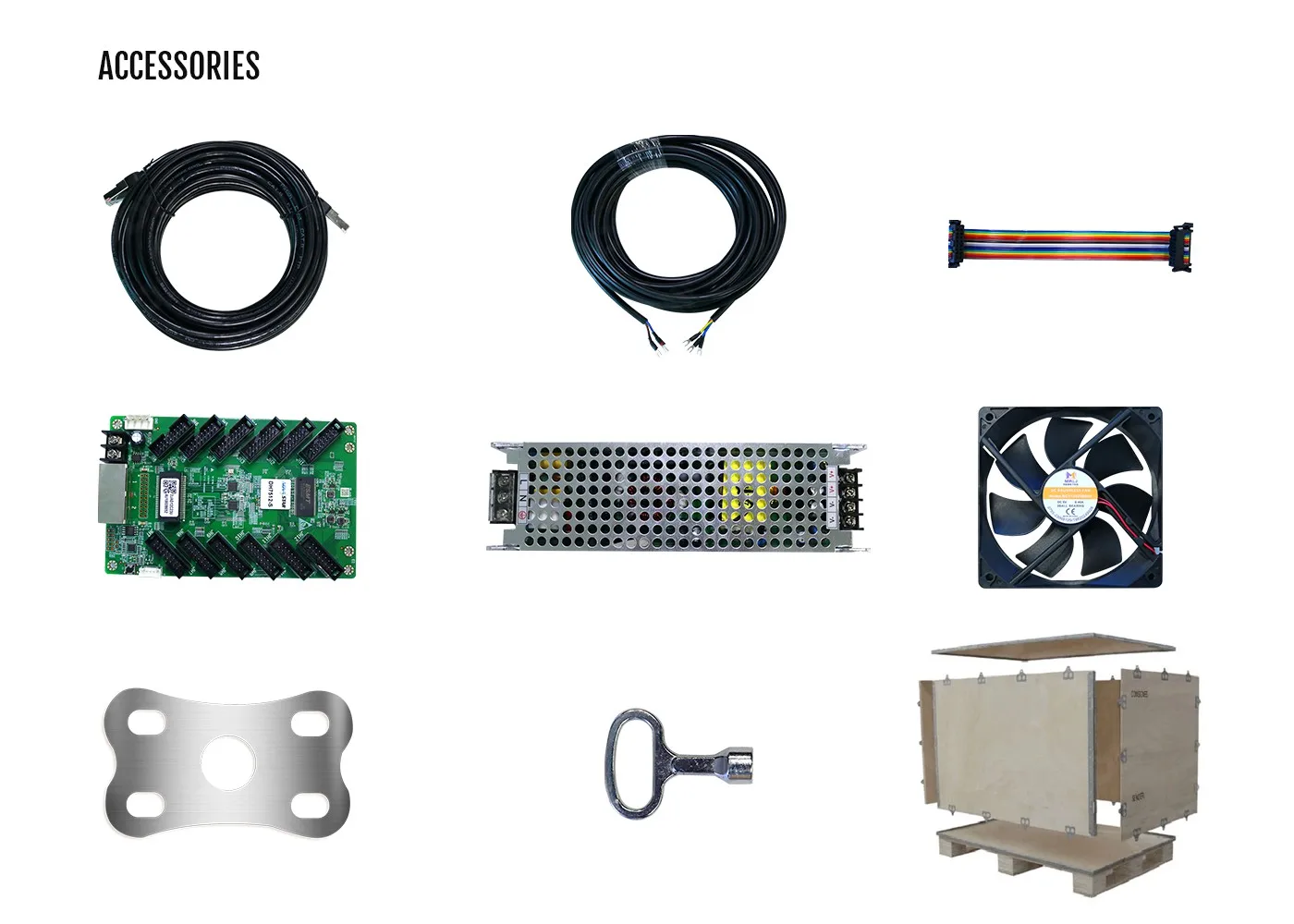

Accessories

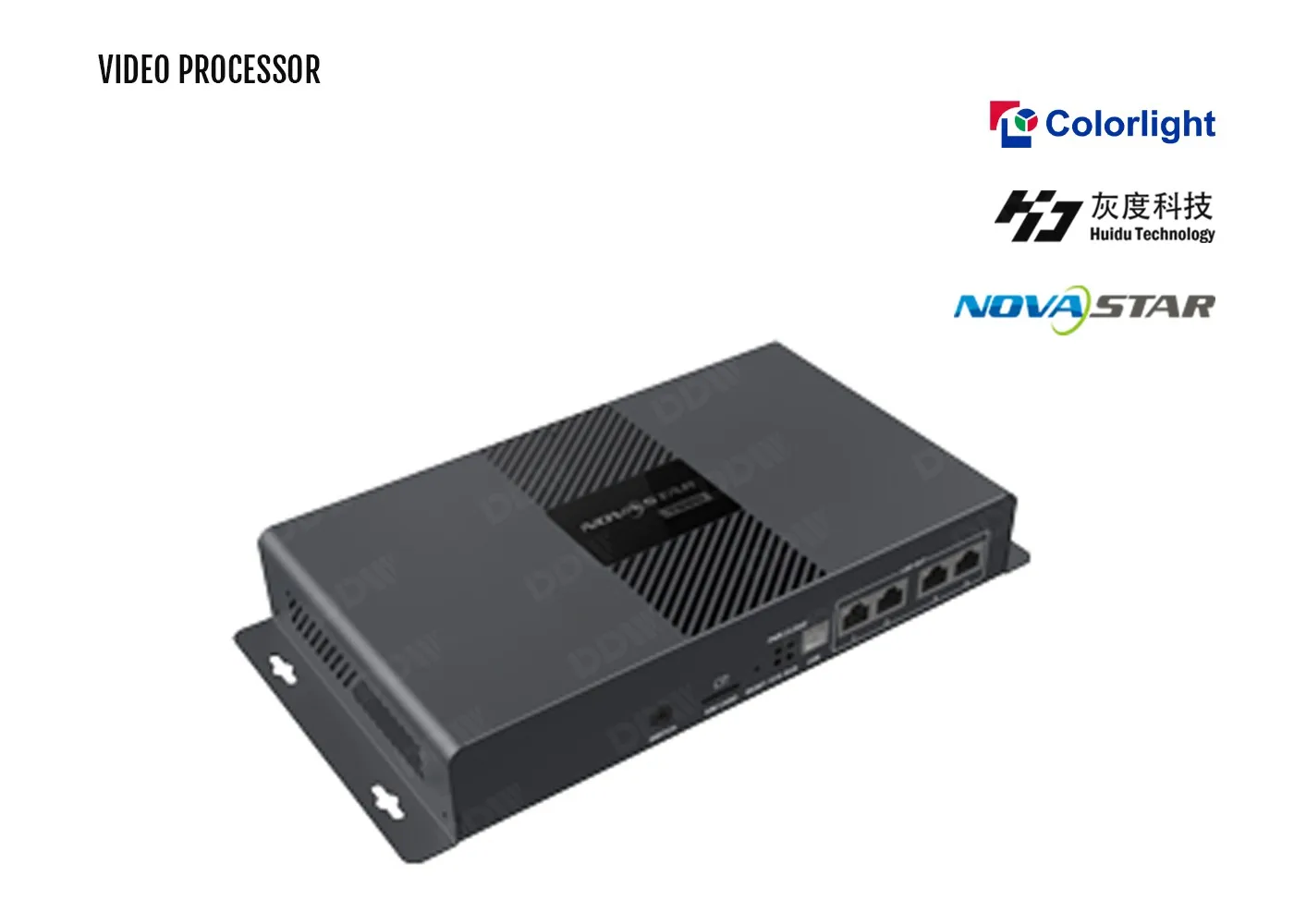

Sending box
Sending box
Power Supply
Power Supply
Pickup card
Pickup card
Outdoor Movable power cabinet
Connecting piece
Signal cable
Signal line
Power cable
Power line
Movable power cabinet
Cooling fan

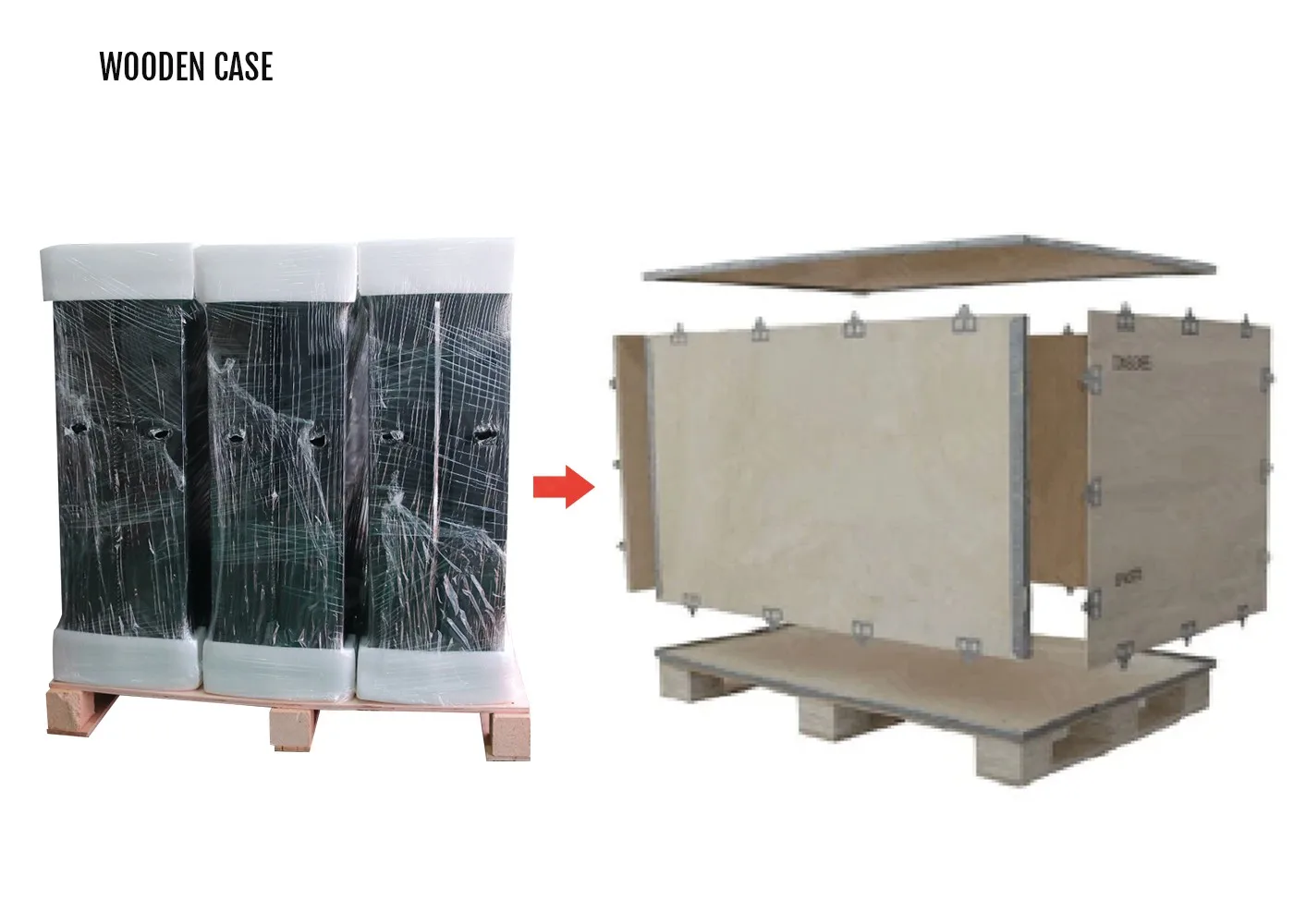

Wooden case packing
LED module
