RS Series Sport Stadium Perimeter LED screen

960*960mm P6 P8 P10 Football Soccer Sports Perimeter Outdoor Signage Banner Boards Display Screen Panel Led Advertising Stadium

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

High Scalability

Module magnetic attraction

Rear Maintenance

Die Cast Aluminum

18.5kg

Advantage

RS Series Sport Stadium Perimeter LED screen
Feature Description
  • - High quality lamp beads
  • - Rubber protective pad
  • - Adjustable angle design
  • - FHigh quality waterproof aviation plug
  • - High brightness
  • - Soft mask&90 degree stand

Video

RS Series Sport Stadium Perimeter LED screen

Parameters

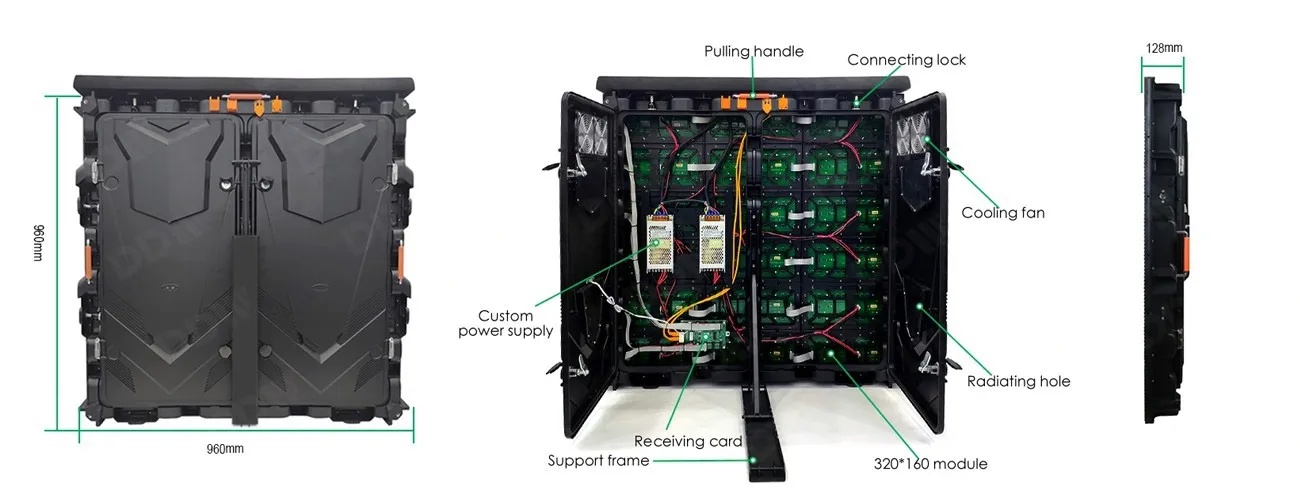

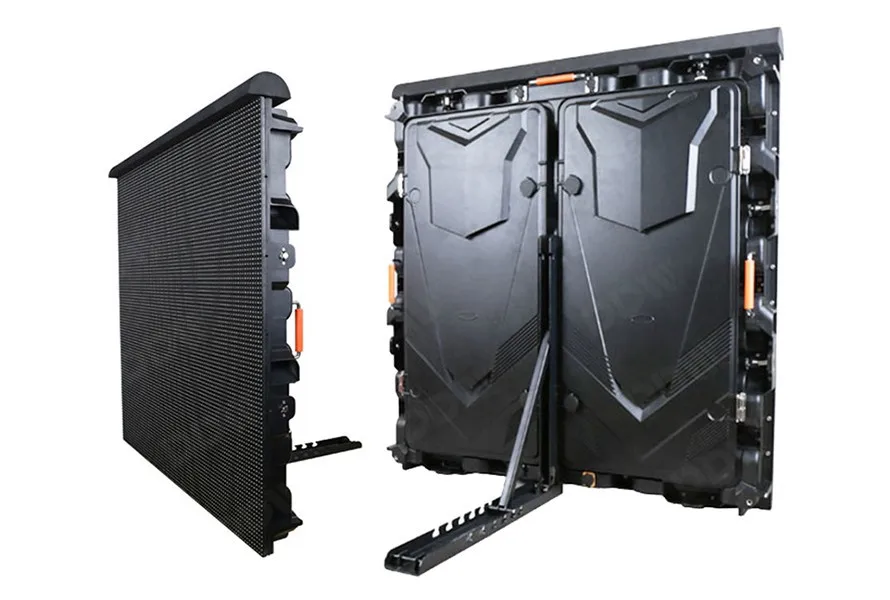

Cabinet Specs

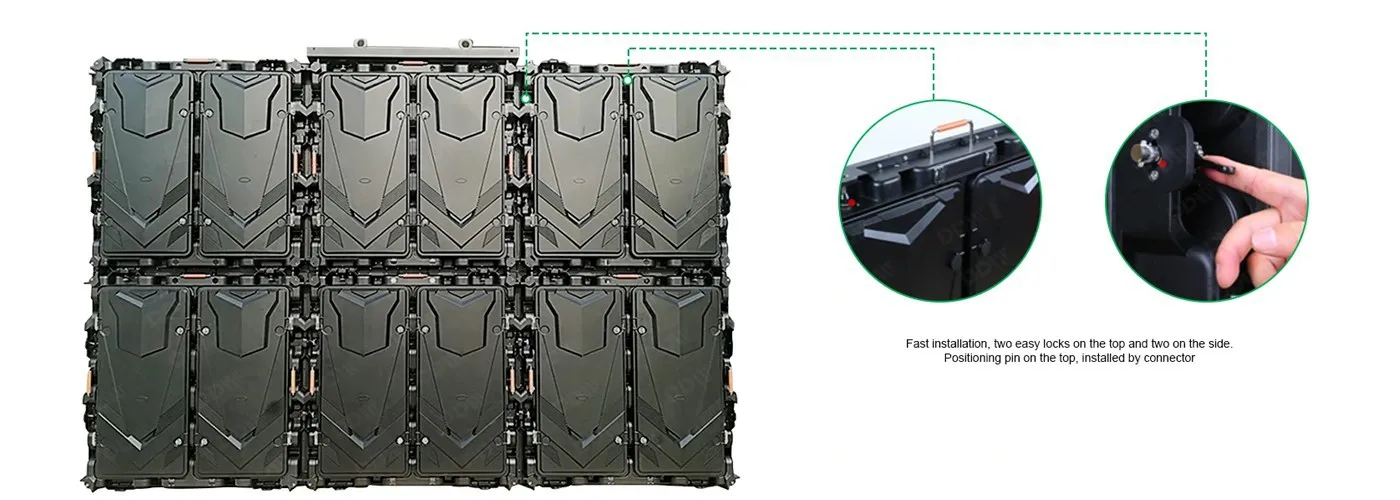

First class design for die casting cabinet frame, each cabinet (include all components) is only 18.75 kg , four sets strong fast lock to make assembling to be easier.

RS Series Sport Stadium Perimeter LED screen

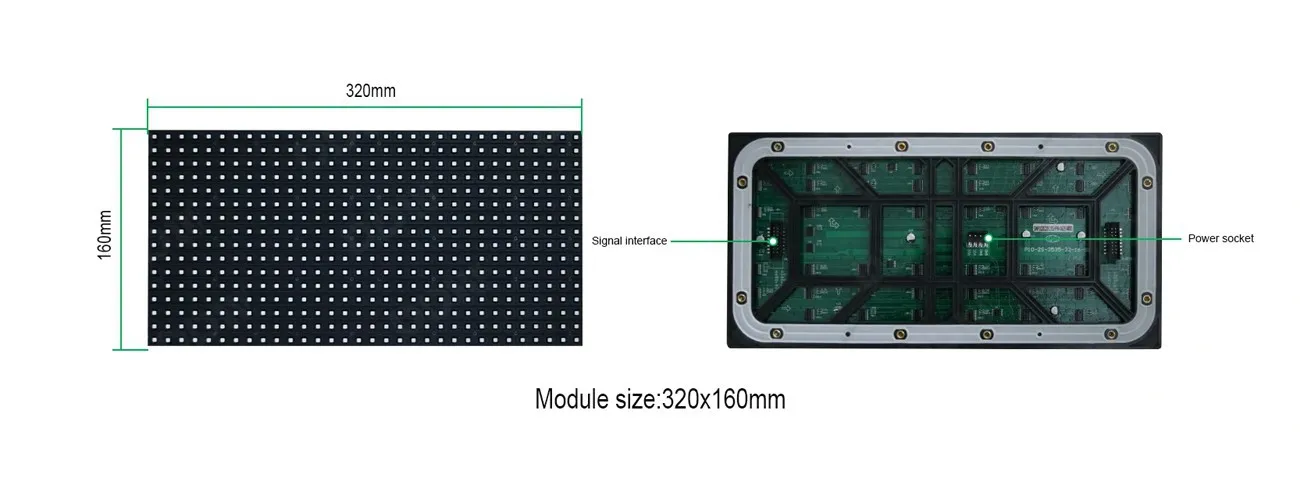

Module Specification

Suitable for all kinds modules ,Upgrade replacement is easy

RS Series Sport Stadium Perimeter LED screen

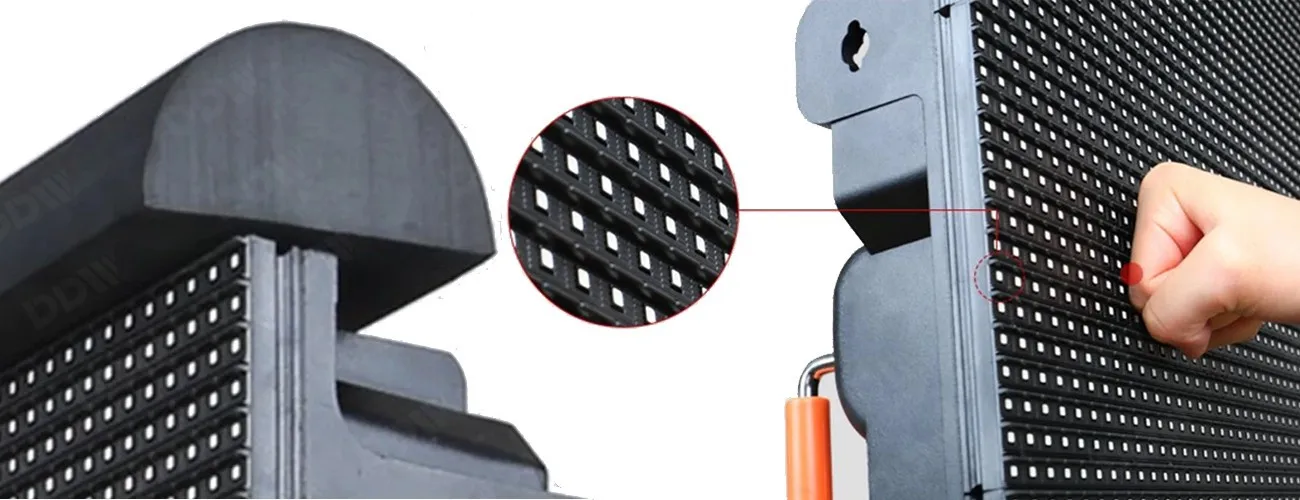

Soft Mask Protection&Rubber Protective Pad

Polymer soft cover to prevent collision injuries,High quality cotton on top to reduce impact

RS Series Sport Stadium Perimeter LED screen

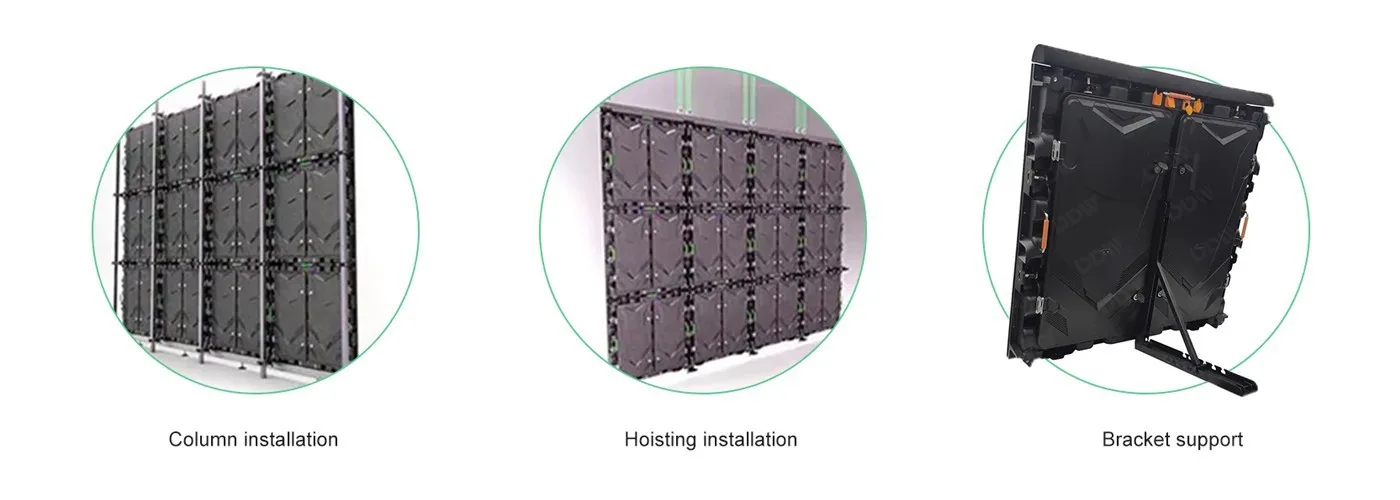

Installation

Creative combination
RS Series Sport Stadium Perimeter LED screen

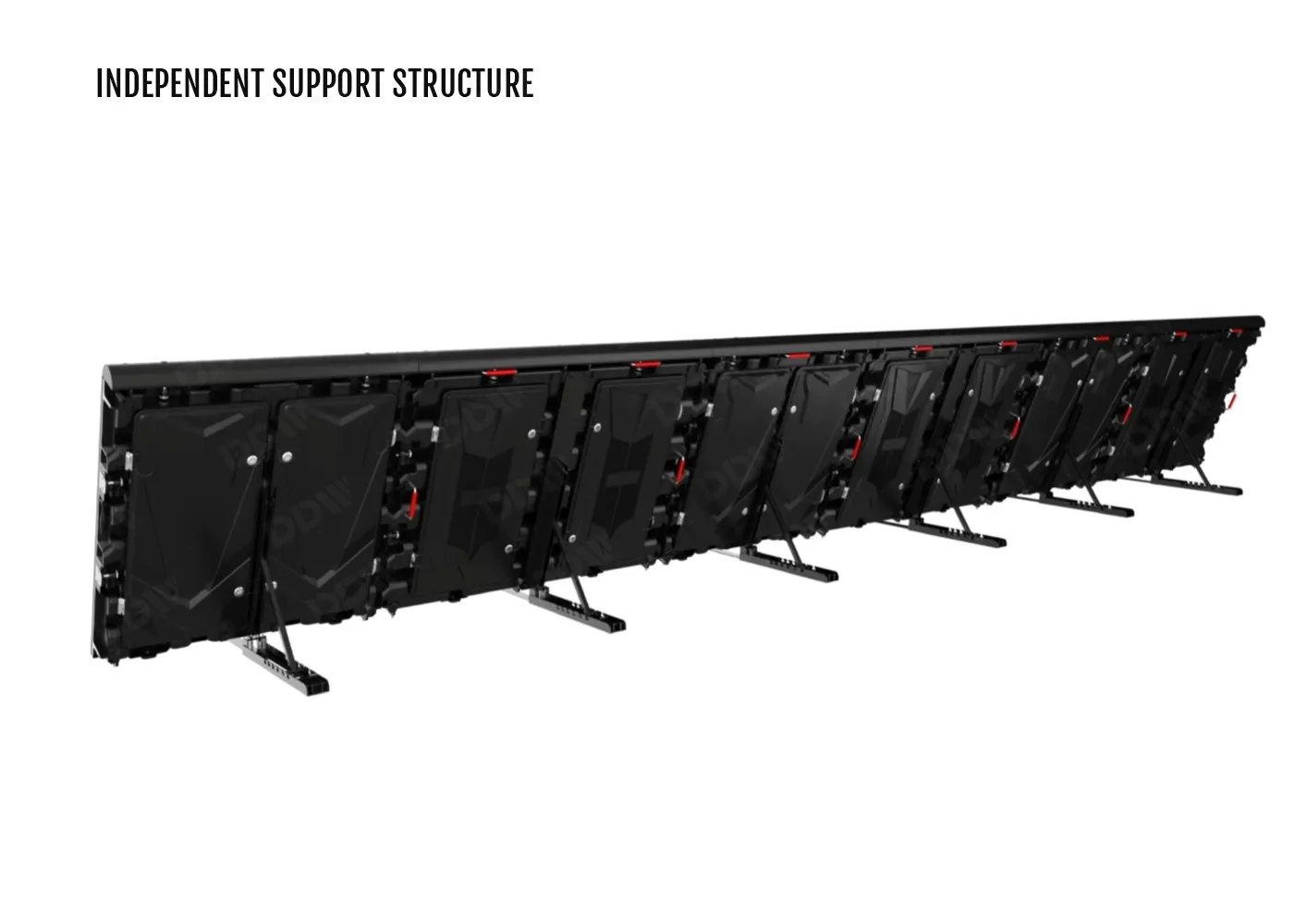

various installation choice
RS Series Sport Stadium Perimeter LED screen

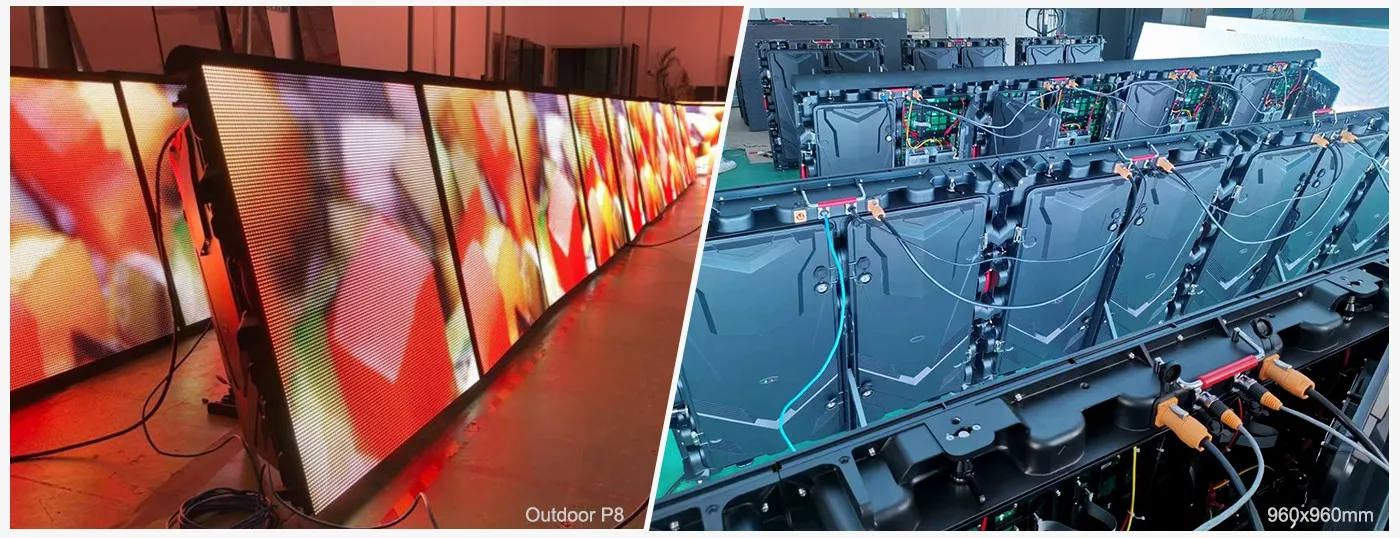

Aging test
RS Series Sport Stadium Perimeter LED screen

Specifications

Pixel Pitch P5 P6.67 P8 P10
LED Configuration SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1
Pixel Density 40000 pixel/m2 22500pixel/m2 15625pixel/m2 10000pixel/m2
Module size 320*160mm 320*160mm 320*160mm 320*160mm
Module Resolution 64*32 dots 48*24 dots 40*20 dots 32*16 dots
Screen Size Customize Customize Customize Customize
Cabinet Size 960*960 mm 960*960 mm 960*960 mm 960*960 mm
Cabinet Resolution 192*192 dots 144*144 dots 120*120 dots 96*96 dots
Cabinet Weight 18.5kg 18.5kg 18.5kg 18.5kg
IP Rating IP65 IP65 IP65 IP65
Gray Scale 16 bit 16 bit 16 bit 16 bit
Display Scale 16.7M 16.7M 16.7M 16.7M
Max.Power Consumption 700w/panel 700w/panel 700w/panel 700w/panel
Ave.Power Consumption 200w/panel 200w/panel 200w/panel 200w/panel
Refresh Frequency 1920Hz 1920Hz 1920Hz 1920Hz
Operating Power AC 96~242V AC 96~242V AC 96~242V AC 96~242V
Operating Humidity 10~90%RH 10~90%RH 10~90%RH 10~90%RH
Operating Life 100,000Hours 100,000Hours 100,000Hours 100,000Hours

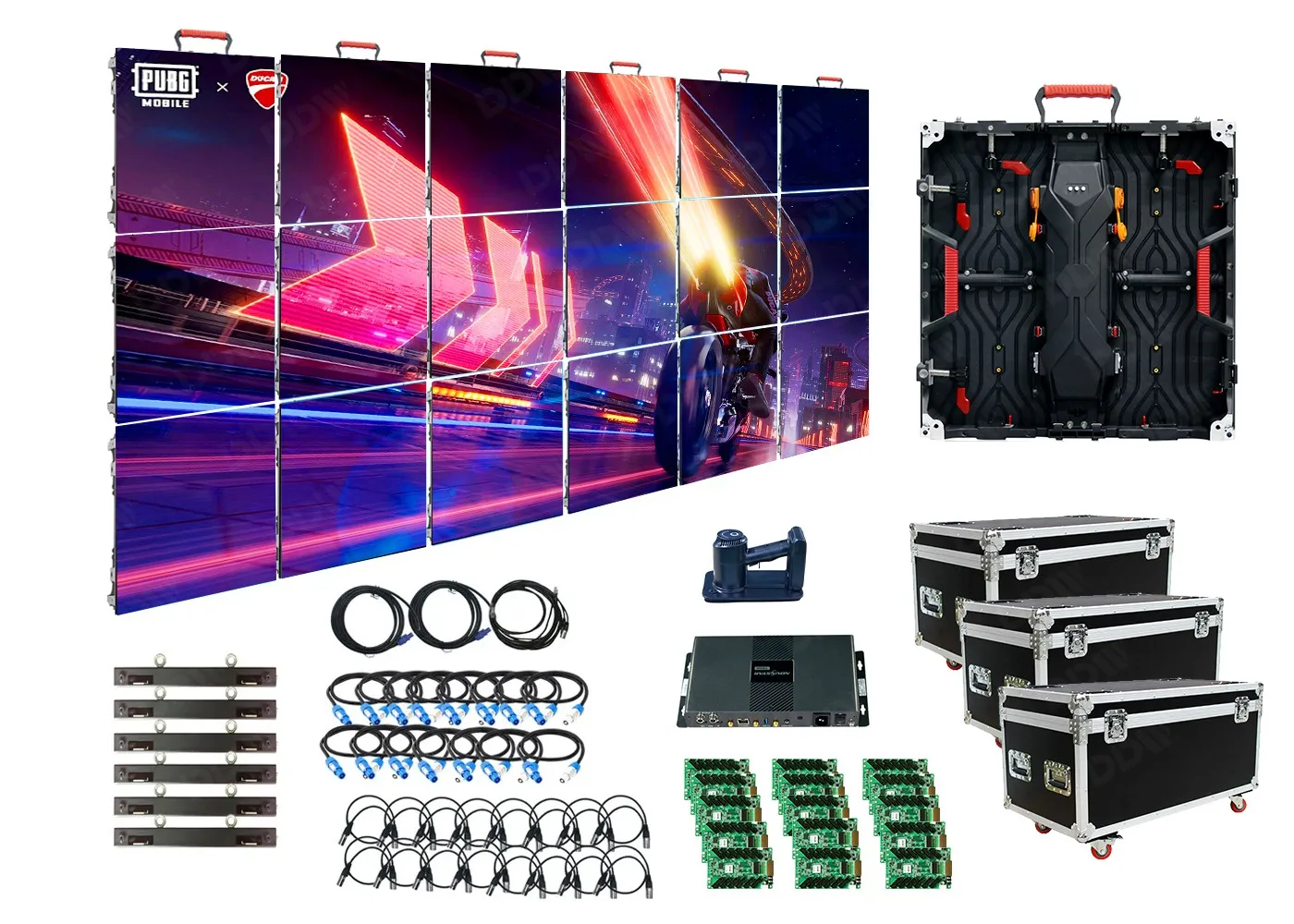

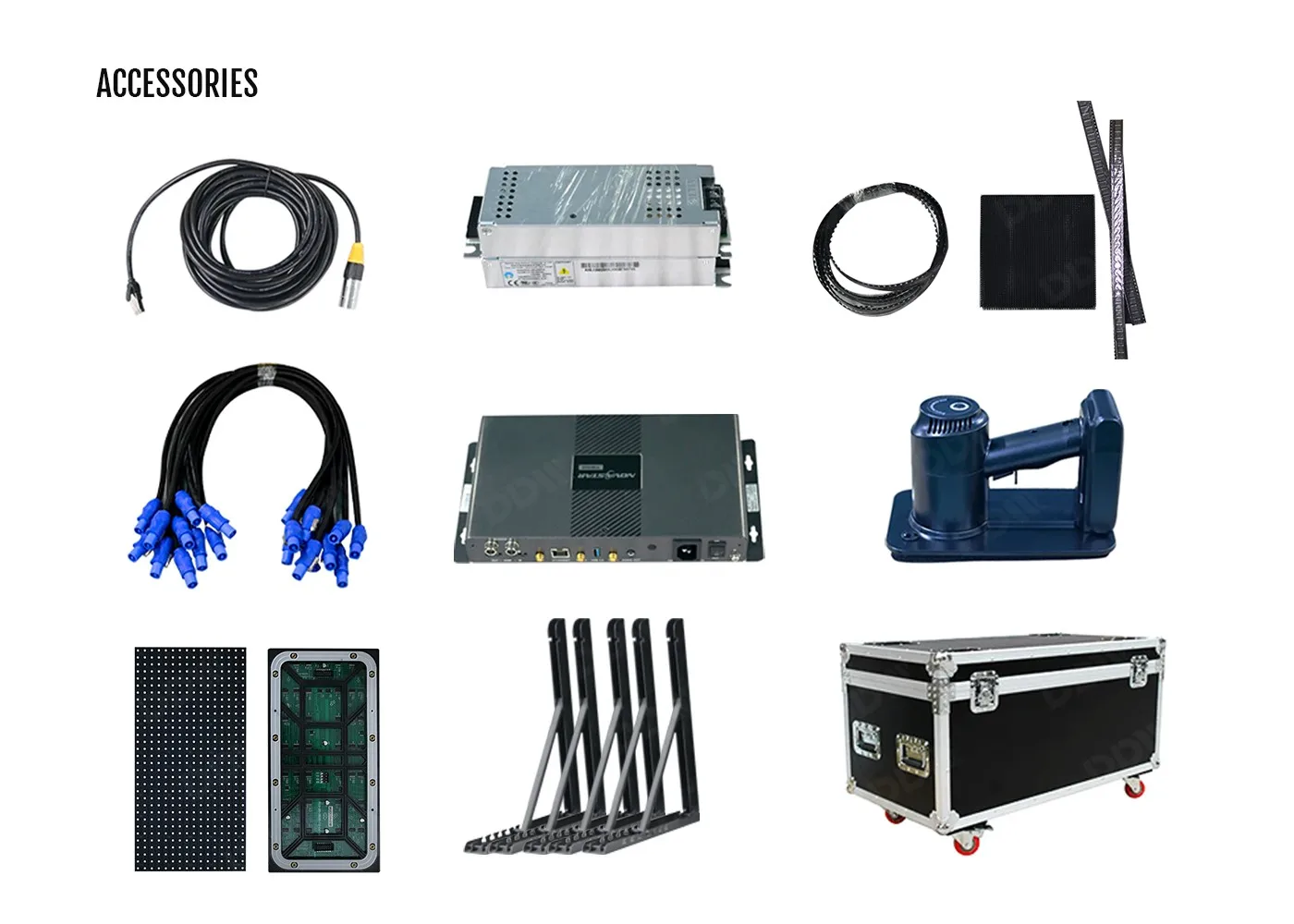

Accessories

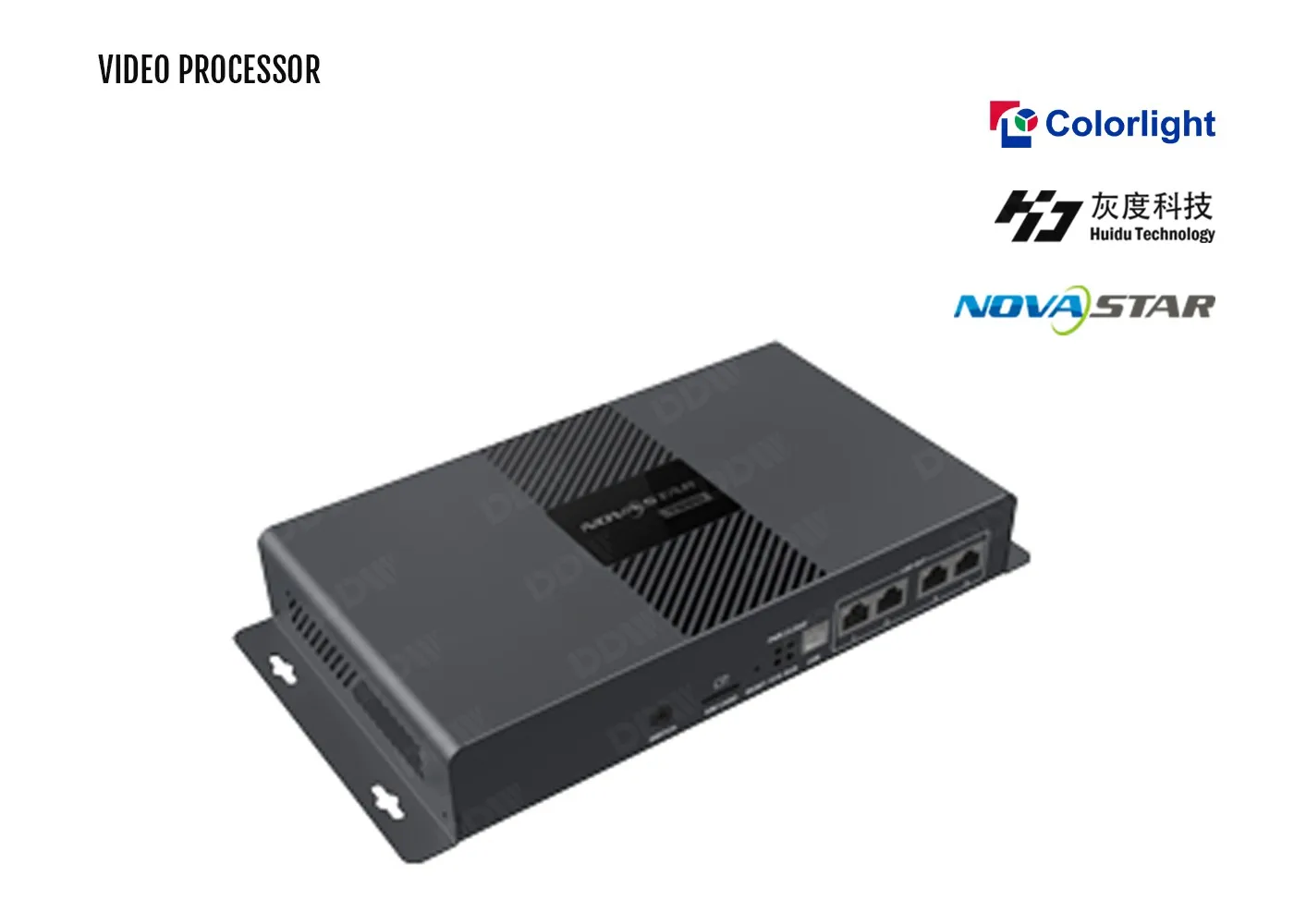

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet

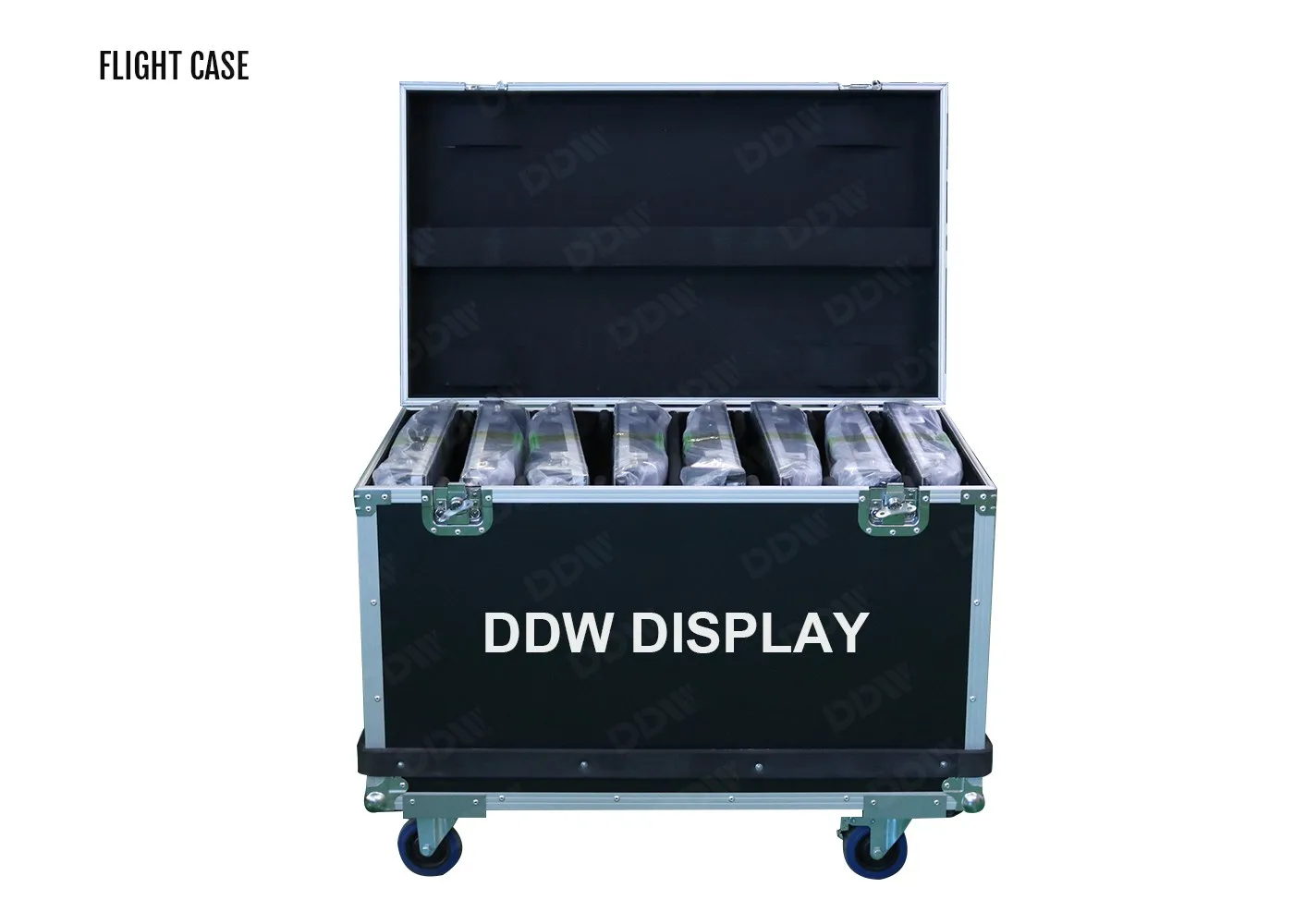

Flight case
Flight case
