TAD series Transparent Adhesive LED screen

P5x10 P6x6 P8x8 P10x10 P15x15 960x240 3mm thickness adhesive on surface

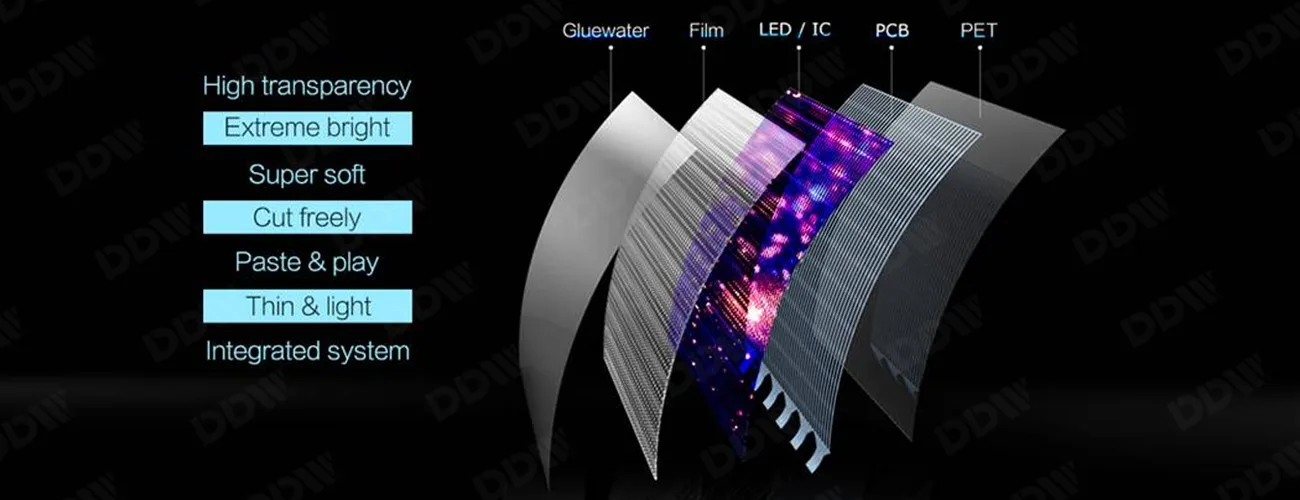

Features

3840 Hz

Wide Viewing Angles

High Transparency

500-4000cd/㎡

Magnetic Suction Installation

Flexible Frame

Easiest Installation

4kg/m²

Advantages

TI series  Indoor Transparent LED screen
Feature Description
  • - High brightness up to 4000 nits/sqm for day time use
  • - Up to 90% transparency
  • - Weighs only 4KG/㎡, thickness only 3mm
  • - High resolution up to 27778dot/m²
  • - Easy to install and maintain

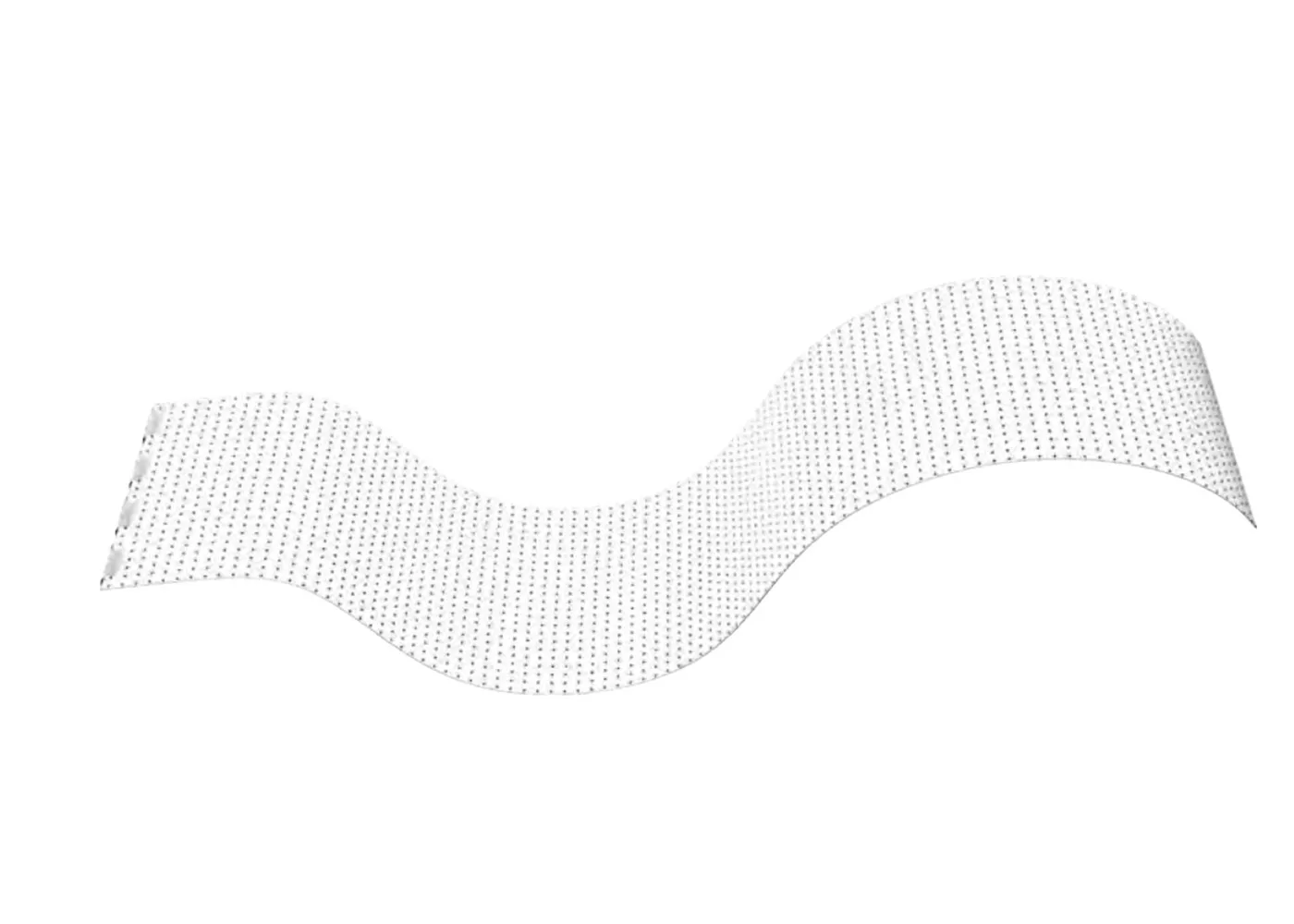

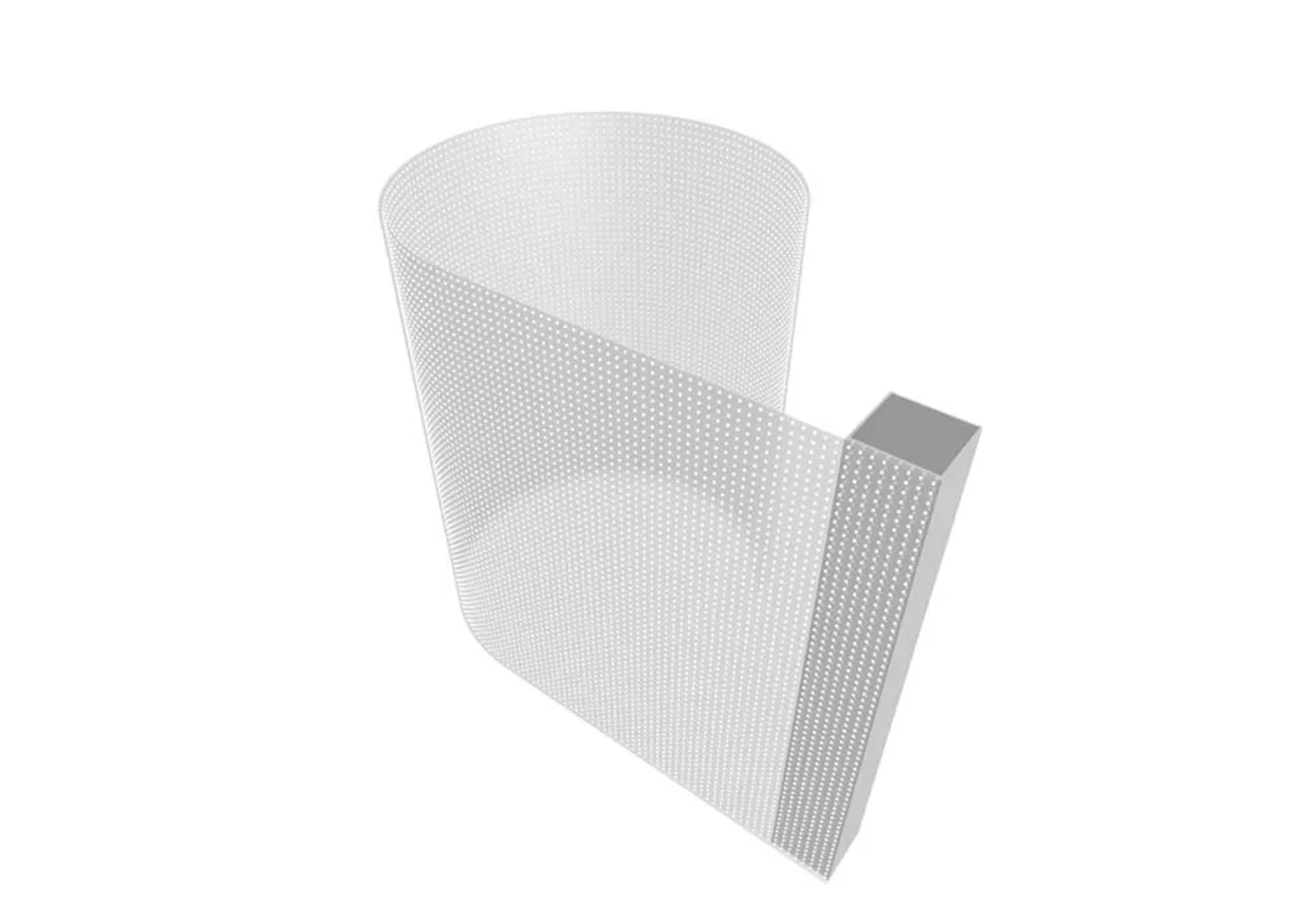

  • - Ultra-flexible and can be used to create a variety of shapes such as round, curved and wavy

Video

TAD series Transparent Adhesive LED screen

Parameters

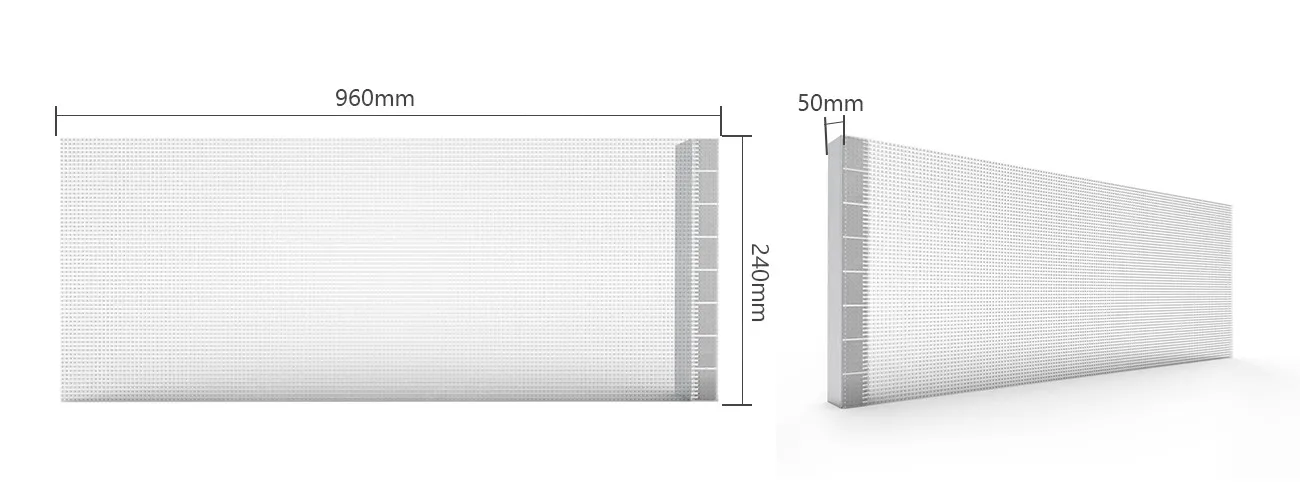

Cabinet Specs

First class design for die casting cabinet frame, each cabinet (include all components) is only 4 kg ,Size: 960x240mm

TI series  Indoor Transparent LED screen

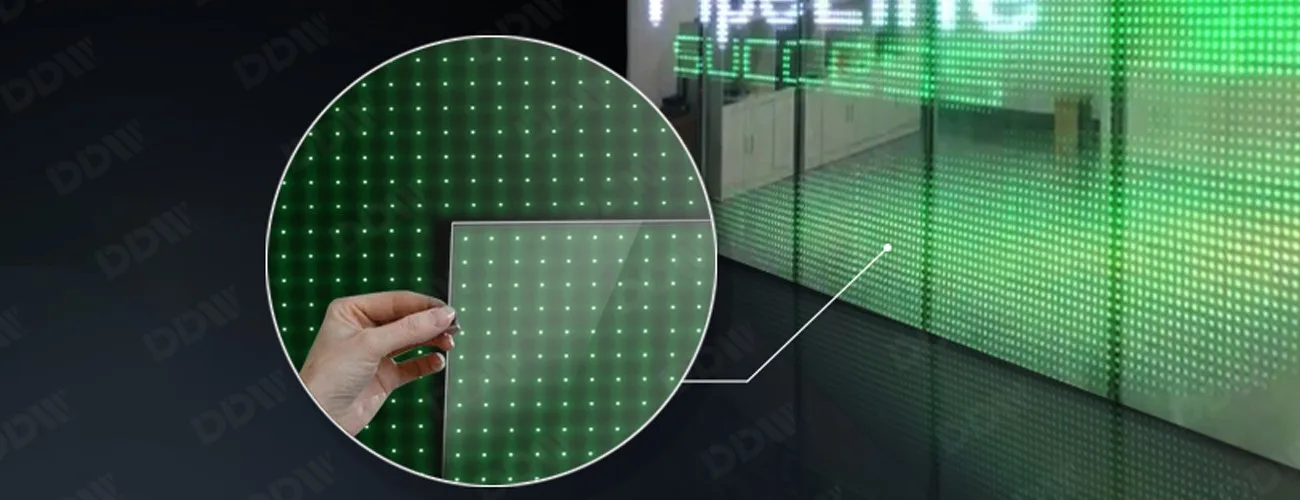

Self-adhesive Film

The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.

TAD series Transparent Adhesive LED screen

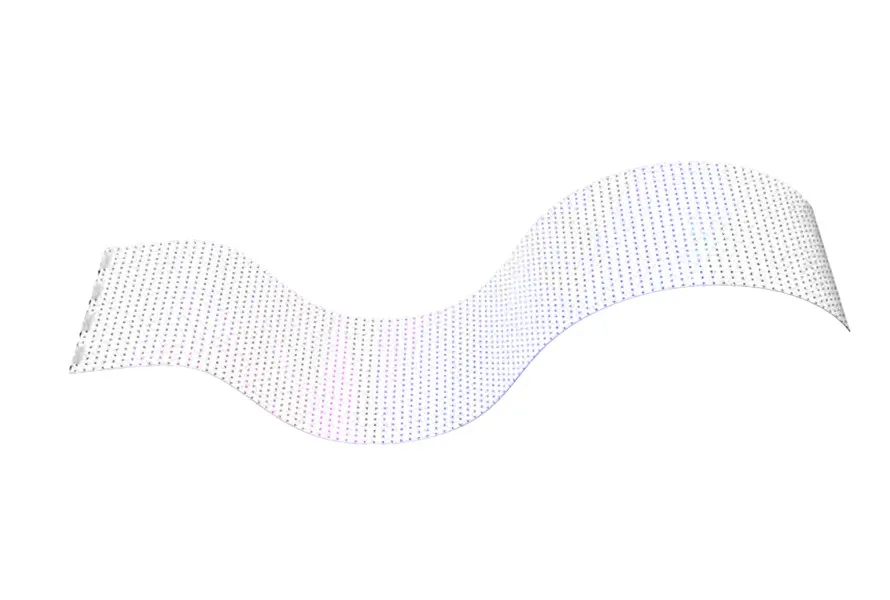

Superb Expandability and Flexibility

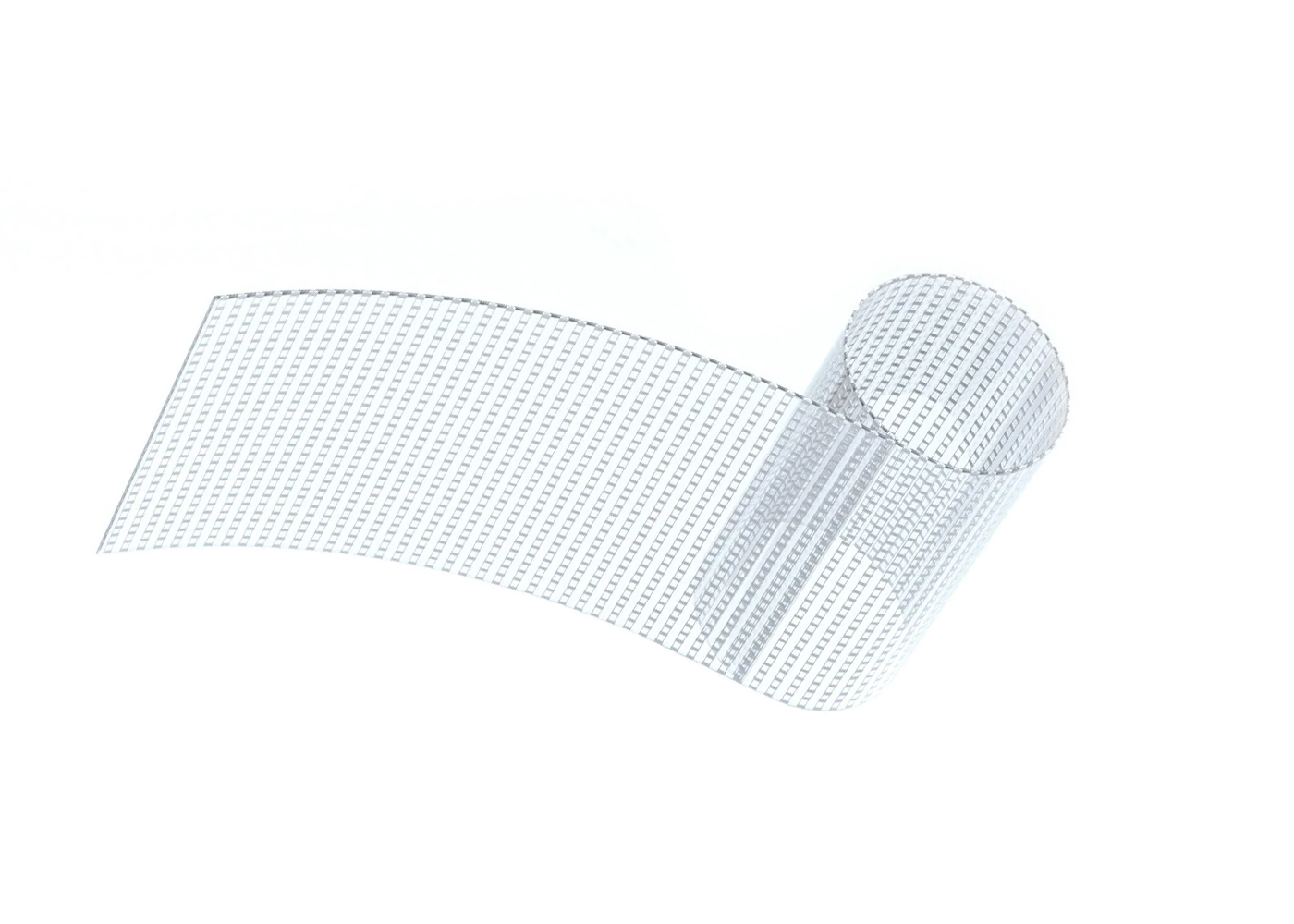

The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

TAD series Transparent Adhesive LED screen
High Transparency

High transparency*(90%) allows glass to remain visible even after attaching the film, with no adverse effects on the original design. When the LED is OFF, the film is unnoticeable, blending into the glass completely.

TAD series Transparent Adhesive LED screen

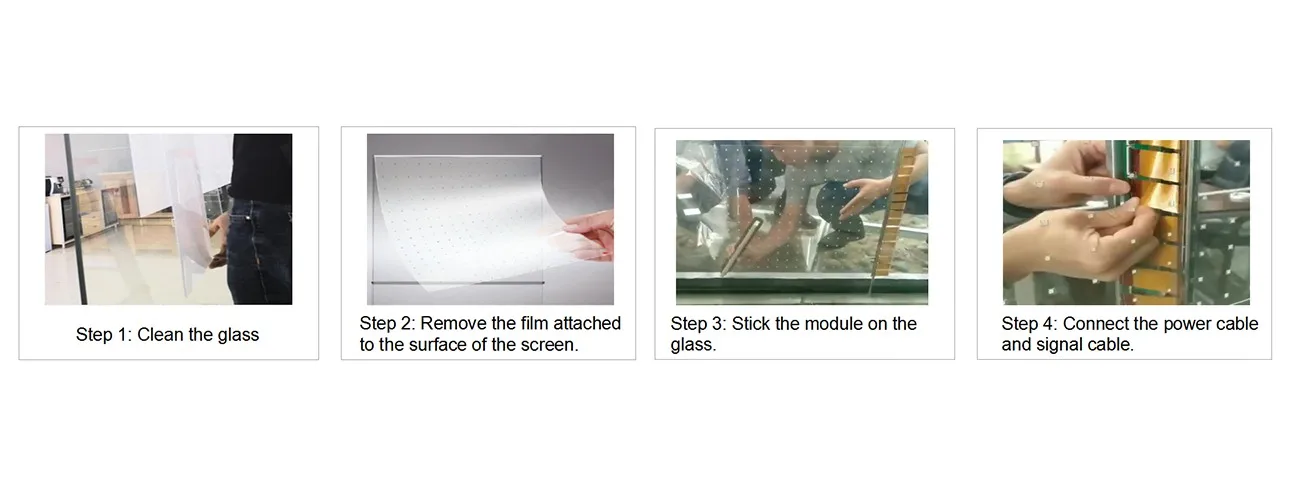

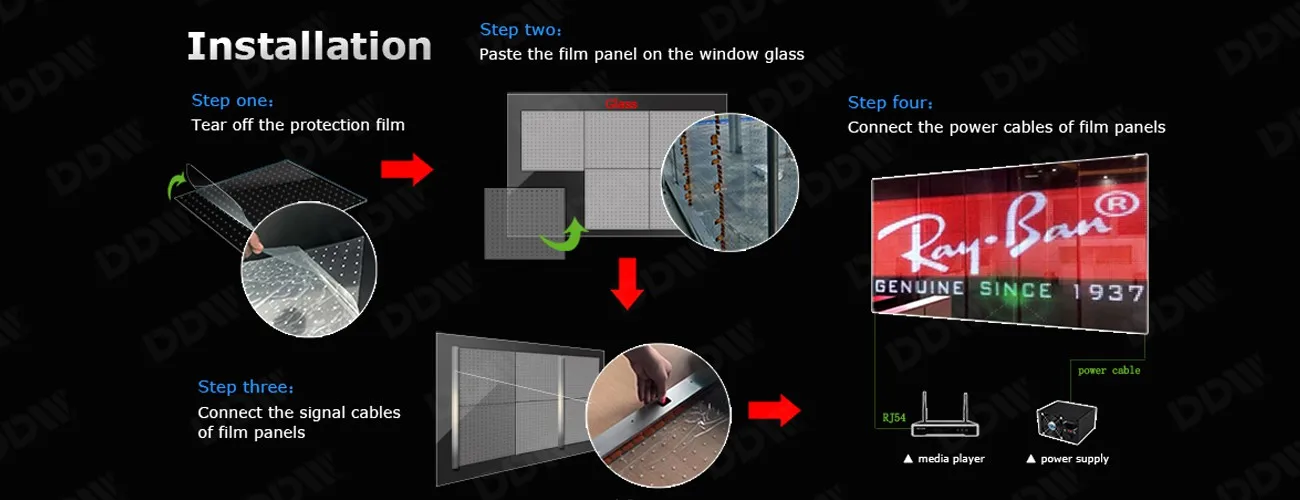

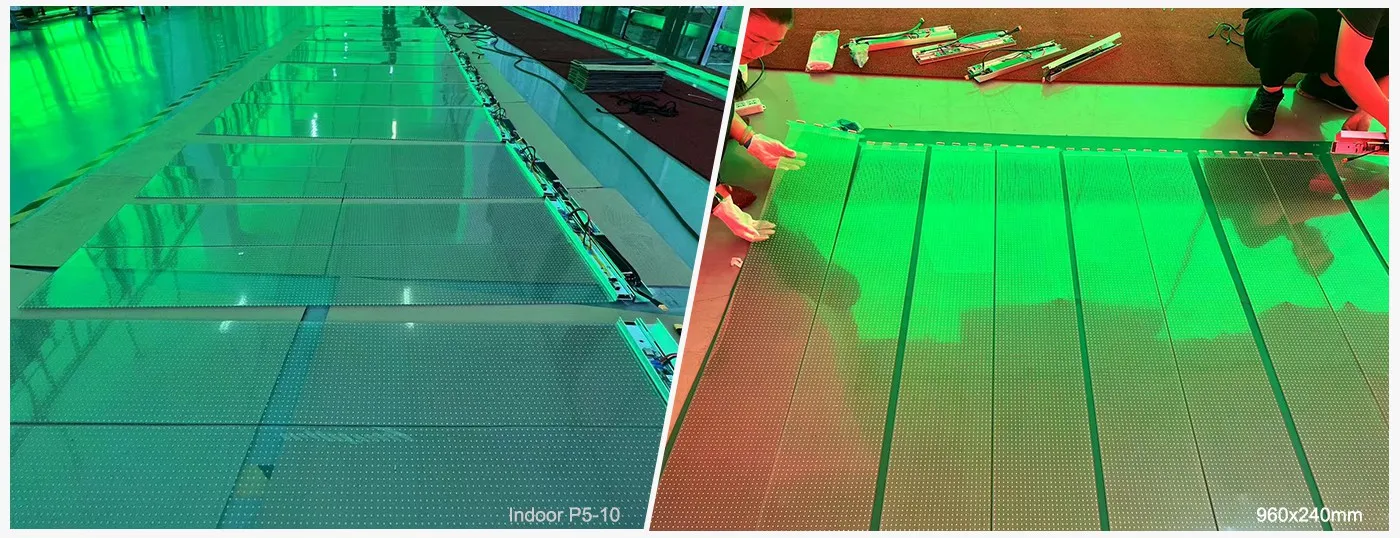

Installation


TAD series Transparent Adhesive LED screen

TAD series Transparent Adhesive LED screen

Specifications

  P4 P4-8 P5 P6 P8 P10
Pixel pitch 4mm*4mm 4mm*8mm 5mm*5mm 6mm*6mm 8mm*8mm 10mm*10mm
Pixel 62500 points/㎡ 31250points/㎡ 40000points/㎡ 27889points/㎡ 15625points/㎡ 10000points/㎡
Lamp bead specifications SMD1212 SMD1212 SMD1212 SMD2121 SMD2121 SMD2121
Pixel composition 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B

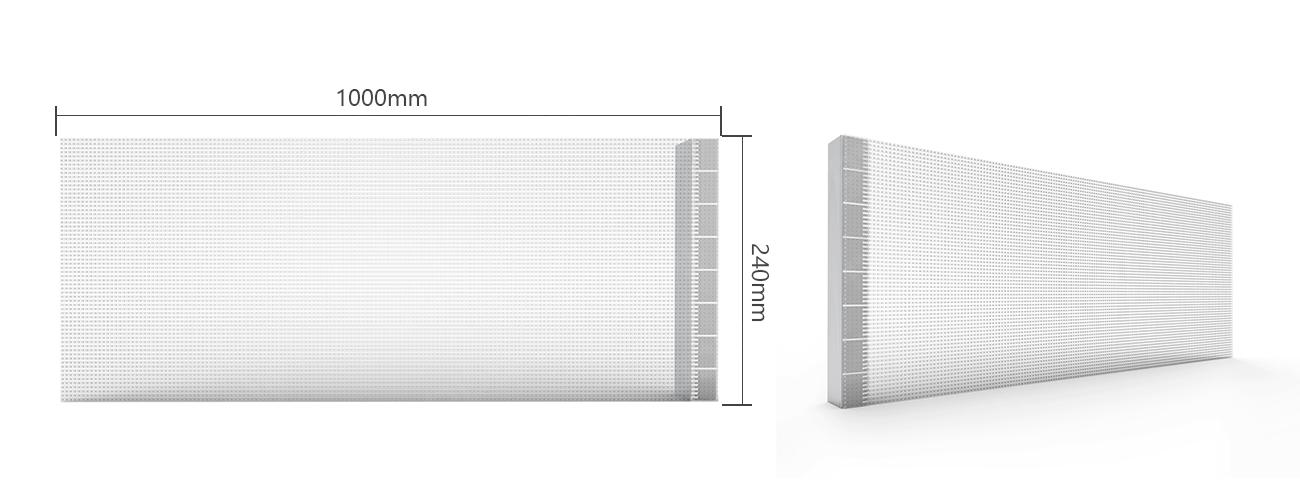

Module size 1000mm*240mm
Module resolution 250*60 250*300 200*48 167*40 125*30 100*24
Pixel resolution 250*250/㎡ 250*125/㎡ 250*200/㎡ 167*167/㎡ 125*125/㎡ 100*100/㎡
Permeability ≥85% ≥85% ≥85% ≥85% ≥85% ≥90%
Cabinet wiring method Internal cable routing
Weight ≤3.5KG/square meter
White balance brightness ≥1200cd/㎡ ≥1500cd/㎡ ≥1500cd/㎡ ≥1500cd/㎡ ≥2000cd/㎡ ≥2000cd/㎡
Peak power consumption 400W/㎡ 400W/㎡ 400W/㎡ 400W/㎡ 400W/㎡ 400W/㎡
Average power consumption 200 W/㎡  200 W/㎡  200 W/㎡  200 W/㎡  200 W/㎡  200 W/㎡
Refresh frequency ≥3840s
Gray level 16Bits
Brightness control level Level 0-255
Color temperature 3200K-8500K (adjustable)
Frame changing frequency ≥60Hz
Viewing angle H140°/V140°
Screen control method Or synchronization box (computer control ) or asynchronous box (WiFi connection mobile phone APP control screen, U disk control )
Protection level IP30
Power supply requirements  AC 220V ±10%, 50-60Hz, (optional wide voltage 110V and 9~36V)
Working temperature  -20~50 degrees Celsius

Accessories

Video Processor
Video Processor
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Receiving card
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Power cabinet
Flight case
Wooden case packing
