What is the AIOF Series foldable all-in-one LED display?

The AIOF Series is a foldable all-in-one LED display designed for conference rooms, corporate offices, training centers, showrooms, and business presentations. It combines an integrated LED display with a motorized mobile stand for easy deployment and operation.

What are the main advantages of the AIOF Series?

The AIOF Series features a foldable structure, motorized height adjustment, integrated control system, and plug-and-play operation. It offers excellent mobility, fast installation, and a clean all-in-one design.

Can the AIOF Series be moved between different rooms?

Yes. The integrated mobile stand allows the display to be easily moved between meeting rooms, conference spaces, exhibition halls, and other indoor environments.

Does the display support motorized height adjustment?

Yes. The built-in electric lifting system allows users to adjust the display height smoothly for different viewing angles and room layouts.

Is the AIOF Series easy to install?

Yes. The all-in-one design minimizes installation time. Simply position the display, connect the power, and start using it without complicated assembly.

Where is the AIOF Series commonly used?

It is widely used in conference rooms, executive boardrooms, corporate offices, education and training centers, exhibition halls, hotels, and product presentation areas.

Can the display be folded for storage and transportation?

Yes. The foldable design reduces storage space and makes transportation much easier, especially for companies that require flexible deployment.

Why choose the DDW AIOF Series?

The DDW AIOF Series combines foldable mobility, motorized height adjustment, professional image quality, and an integrated all-in-one design to provide a flexible LED display solution for modern business communication.

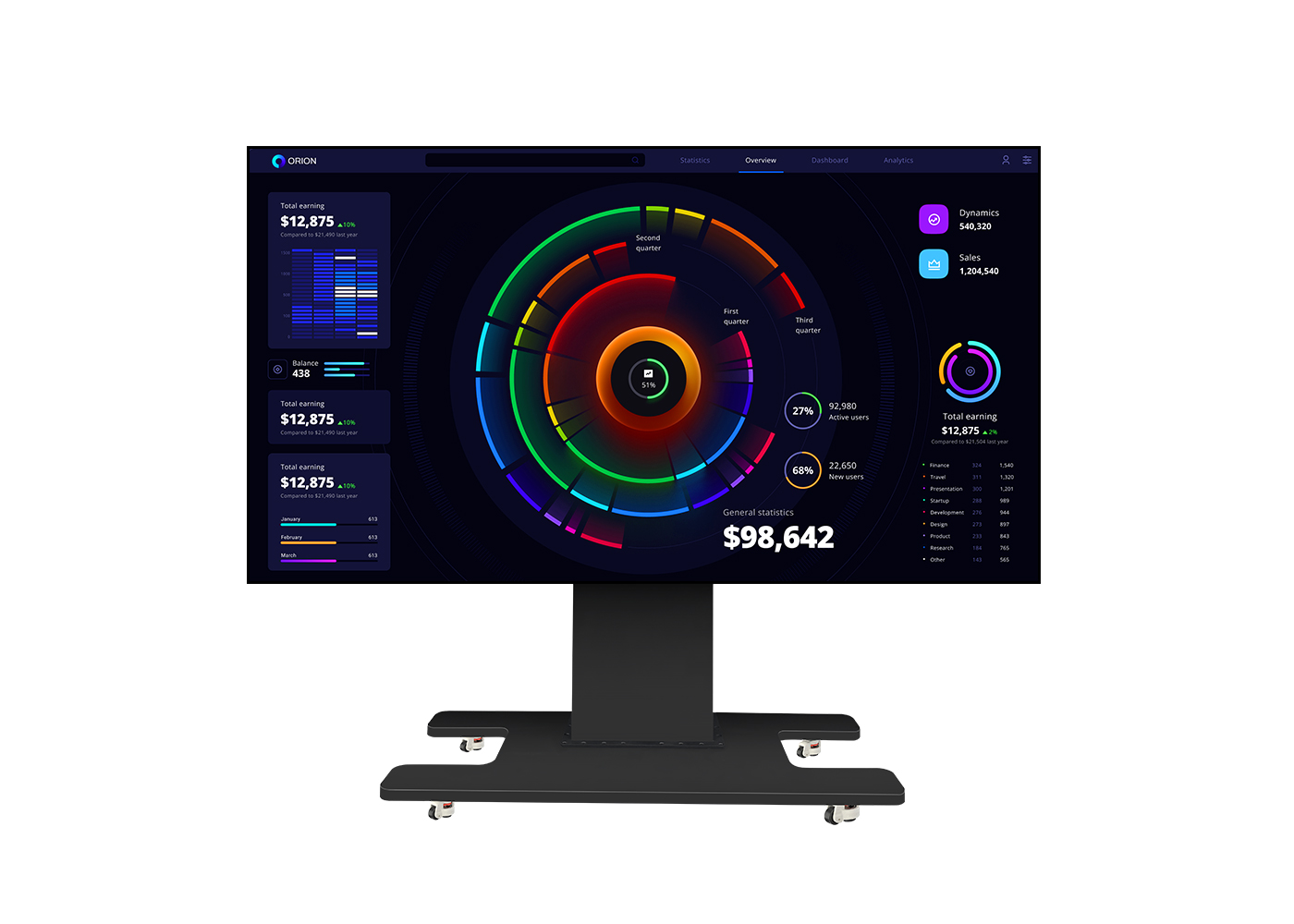

AIOF SERIES

No color difference

Tag:

Lifting & Folding Design

The mobile all-in-one LED display features a built-in lifting function for height adjustment in different usage scenarios, while its folding structure makes storage, transportation, and movement more convenient.

Quantum Dot COB Technology

Adopts Quantum Dot COB technology to deliver more stable colors, finer image quality, and a comfortable close-viewing experience.

180° Viewing Without Color Shift

Maintains consistent colors from different viewing angles, with minimal color temperature deviation, making it ideal for multi-person meetings.

High Contrast & Better Black Performance

Delivers deeper blacks, higher contrast, and clearer image layers for premium presentation and display performance.

3840Hz / 7680Hz High Refresh Rate

Provides smoother and more stable visuals, reducing flicker, scan lines, and moiré during presentations, video playback, filming, and live streaming.

Full Front Maintenance

Modules, power supplies, and receiving cards can be serviced from the front, making maintenance easier for all-in-one and space-limited installations.

IP65 Surface Protection

The COB surface offers protection against water, dust, static, and impact, improving durability and safety for daily use.

Smart Split Screen & Wireless Screen Sharing

The LED conference display supports one-click wireless screen sharing from laptops, mobile phones, and tablets, making meetings, training, collaboration, and business presentations more efficient.

Application Scenario

AIOF series

Pixel Pitch

P0.78 P0.93 P1.25 P1.56

Display size

135inch/3020*1687.5mm 162inch/3620*2025mm

Module size

150*168.75mm

Brightness

600-1000cd/m²

Refresh rate

3840-7680Hz

Blacker and Higher Contrast

High contrast, excellent black field effect, no light leakage, and no color cast problem from multiple angles

3840Hz / 7680Hz High Refresh Rate

The LED display for conference rooms provides smoother and more stable visuals, helping reduce flicker, scan lines, and moiré during filming or live broadcasting.

NEW ARSENIC-FREE ENVIRONMENTAL STANDARDS

The foldable LED display uses arsenic-free and non-toxic quantum dot COB technology, with cadmium concentration below 0.03μg/mm², complying with international safety standards while supporting environmental protection and corporate social responsibility.

Ink Color Consistency

The meeting room LED display uses a high light-transmittance coating material with consistent ink color, delivering higher brightness and better heat dissipation.

Smart Split Screen

The LED conference display supports one-click screen sharing, making it easy to display content from computers, mobile phones, and tablets on the LED screen. Users can quickly mirror their devices and enjoy flexible control through LEDConfig software.

Product Parameter

Click and long-press on the form to swipe left or right.

Display size	135inch/30201687.5mm 162inch/36202025mm
Pixel Pitch (mm)	P0.78	P0.9375	P1.25	P1.5625
Module resolution	205x230	160x180	120x135	96x108
Module size (mm)	150x168.75
Cabinet resolution	820x460	640x360	480x270	384x216
Cabinet size (mm)	600x337.5x29
Cabinet weight (kg)	3.8
Pixel density (dots/m²)	1508800	1137777	640000	409600
Cabinet flatness (mm)	≤0.15
Single-point brightness correction	yes
Single-point color correction	yes
Brightness (nits)	600-1200
Color temperature (K)	3000-10000 adjustable
Viewing angle	170°/170°
Chroma uniformity	±0.003
Frame rate (Hz)	50&60
Refresh rate (Hz)	3840/7680
Center distance deviation	＜3%
Brightness uniformity	≥97%
40 ° C/RH90% test	Through testing

Please leave your contact information so that we can communicate with you at any time.

Related Downloads

Catalog-COBAIOF series.pdf

AIOF SERIES

No color difference

Lifting & Folding Design

Quantum Dot COB Technology

180° Viewing Without Color Shift

High Contrast & Better Black Performance

3840Hz / 7680Hz High Refresh Rate

Full Front Maintenance

IP65 Surface Protection

Smart Split Screen & Wireless Screen Sharing

Application Scenario

AIOF series

Blacker and Higher Contrast

3840Hz / 7680Hz High Refresh Rate

NEW ARSENIC-FREE ENVIRONMENTAL STANDARDS

Ink Color Consistency

Smart Split Screen

Product Parameter

Please leave your contact information so that we can communicate with you at any time.

Related Downloads

Related Products

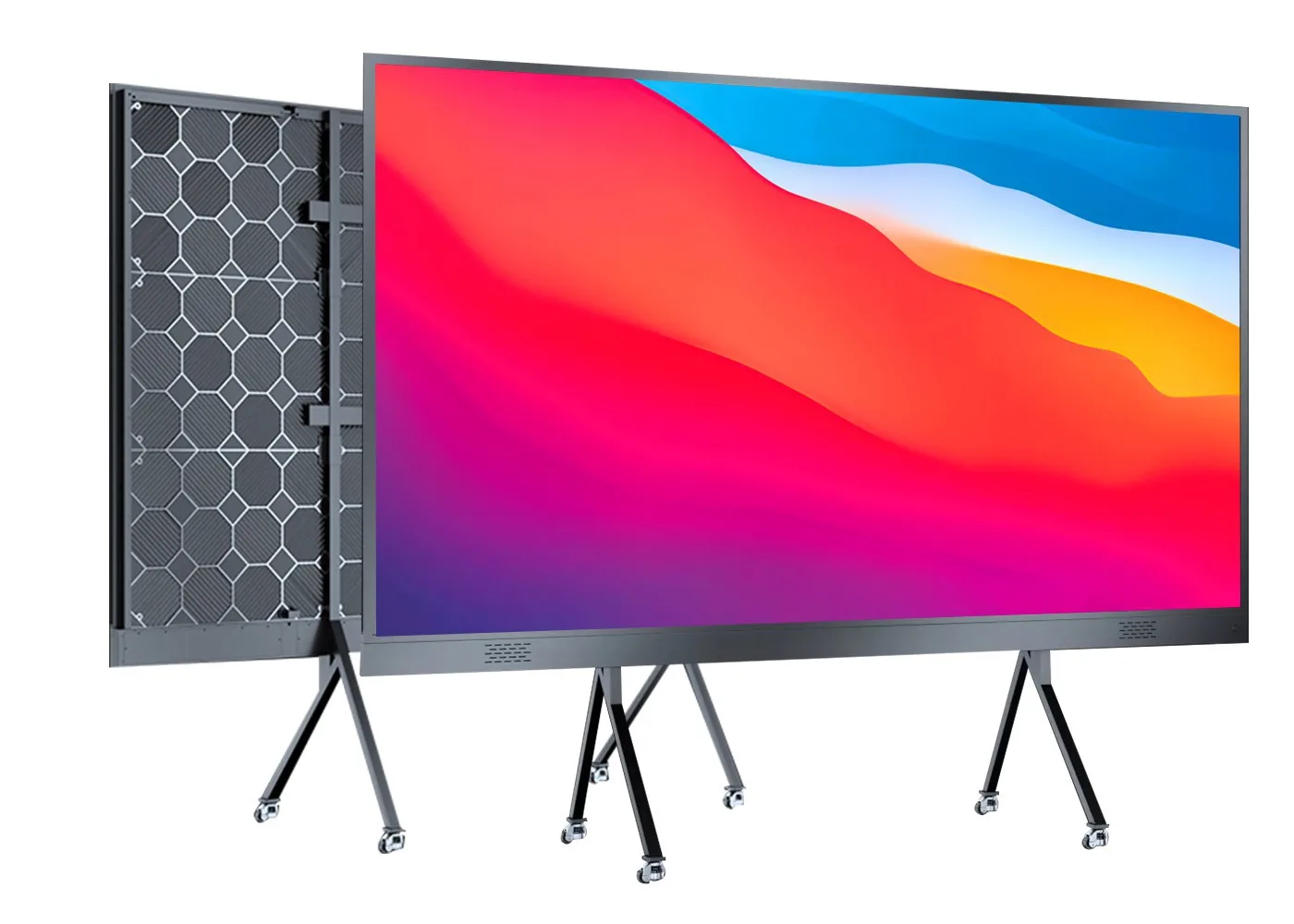

HK series
