Creative LED Screen

SP series Sphere LED screen

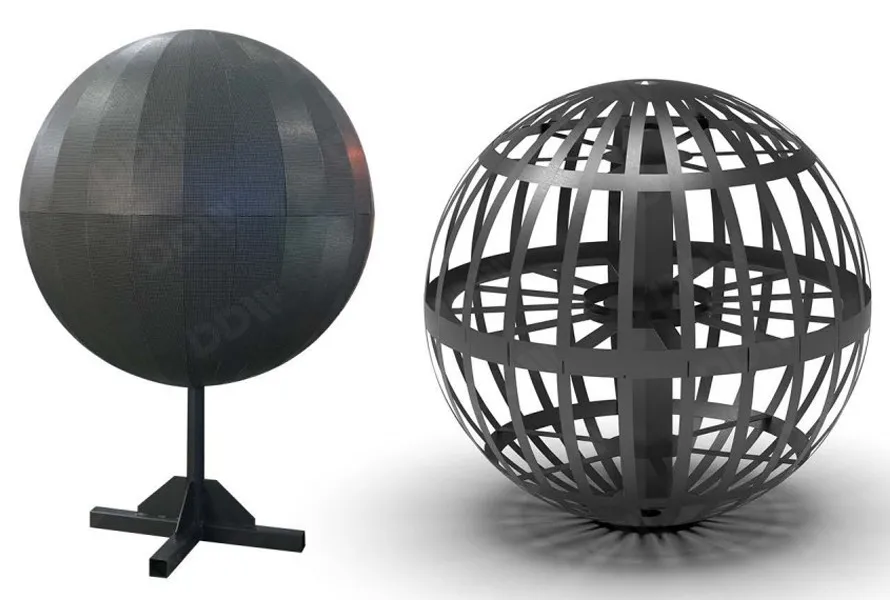

SP series Sphere LED screen

Made out of multiple specs of P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used in shopping malls, science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas.

inquiry Download Brochure

Features

Advantages

Video

Parameters

Installation

Specifications

Accessories

Features

3840 Hz

Common Cathode Design

Customization

High Flexibility

Magnetic Suction Installation

Front Maintenance

Soft Silica Gel

360° Full View

Advantages

Feature Description

- Low current, low heat, high contrast, high refresh
- 360° full view perfect visual enjoyment
- Different diameters are available
- Beautiful and eye-catching shape and creative structure
- Installation: Support hanging installation, stand on ground or mobile using.

Video

Parameters

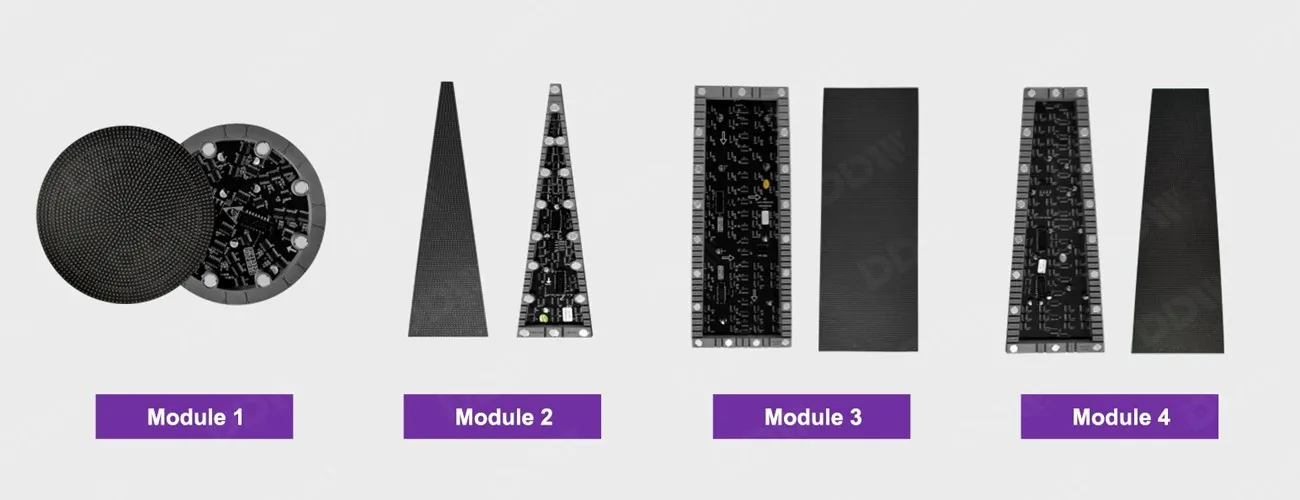

Accumulating Hundreds shapes of LED modules

We have provided hundreds of different shapes of LED modules for different customers,they were formed to different shapes of LED displays, we accumulated rich experience in customization.

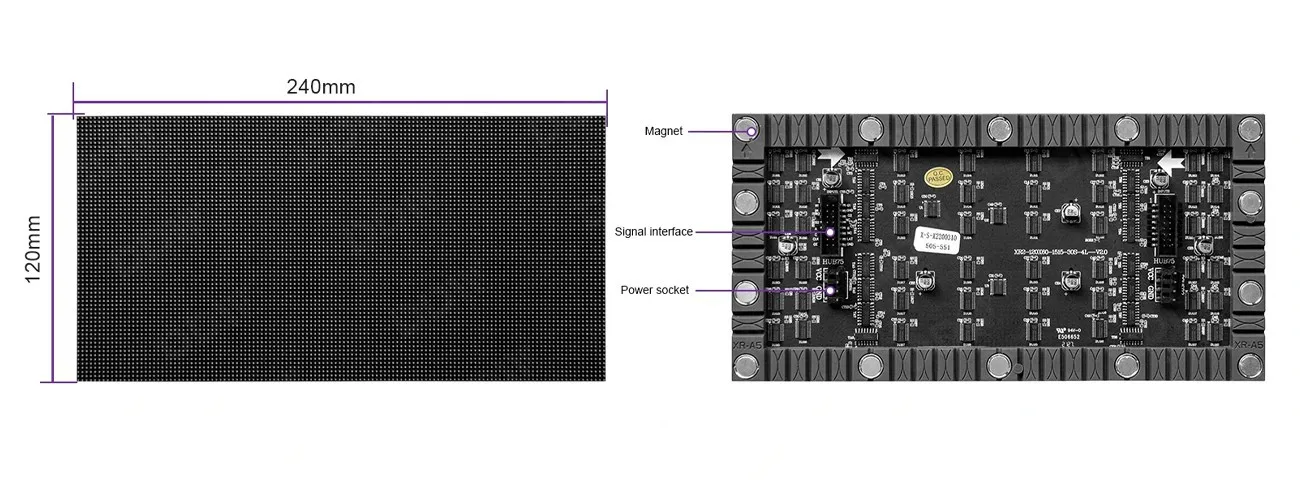

Module Specs

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These dimensions combine flexible dimensions into more displays

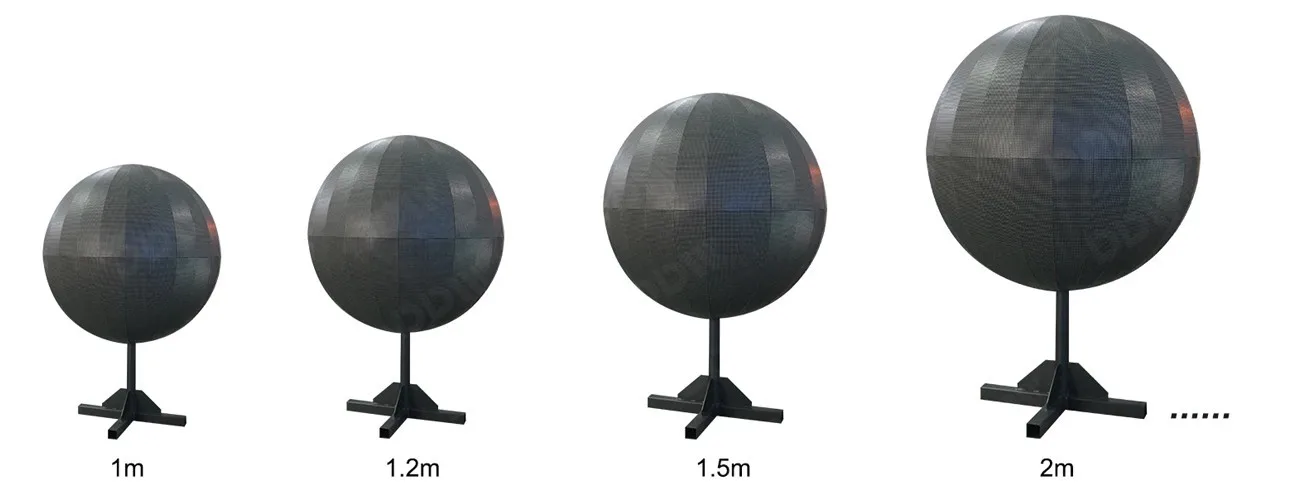

Various Diameters Choices

Whether the application scenario is from indoor P2 to outdoor P37.5, and the diameter is from 1 meter to larger, it can be customized according to the actual requirements of the market and customers.

Installation

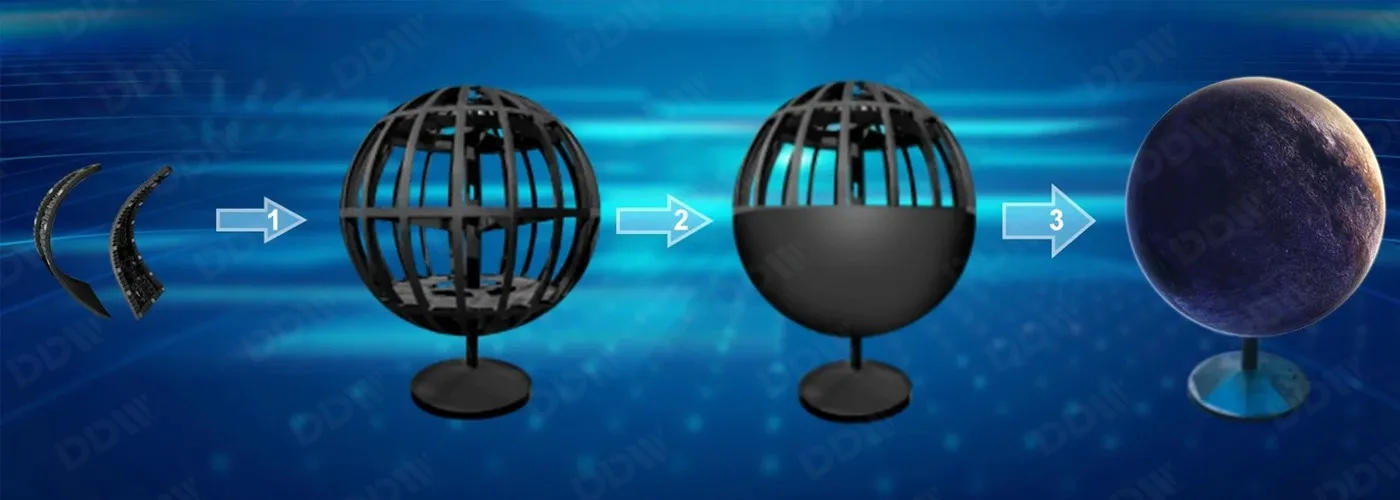

Easy install Structure

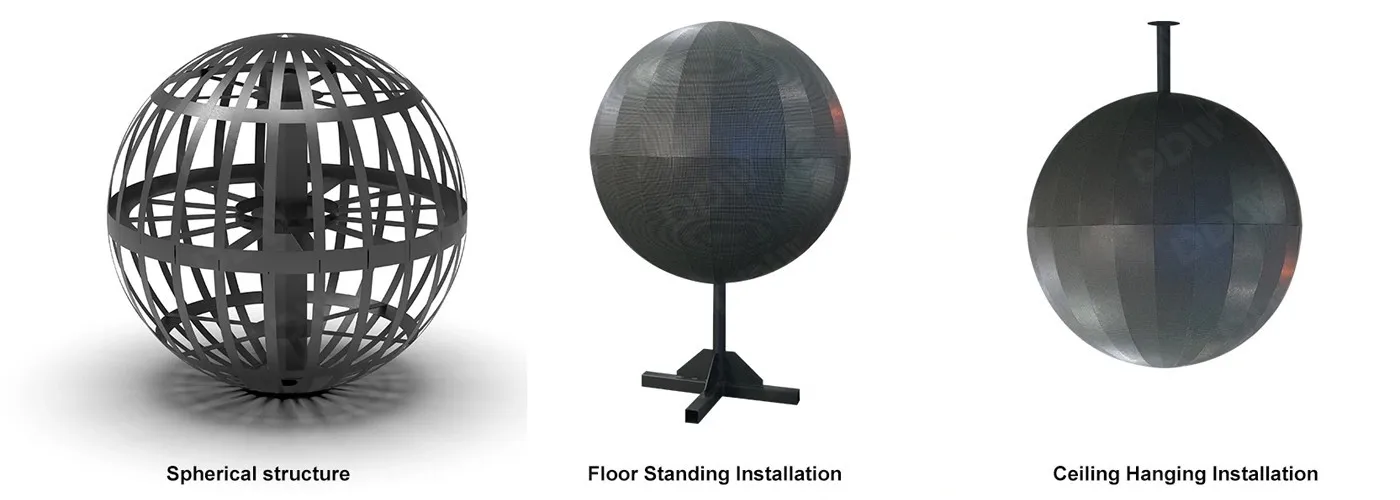

Flexible installation mode

Specifications

Diameter dimension	2.5m	2m	1.5m	1.2m	1m
Pixel Pitch	P2/P2.5
LED Type	SMD1515/SMD2121
Scanning	24s/27s
Module 1	1PCS	1PCS	1PCS	1PCS	1PCS
Module 2	25 / 25 = 50 PCS	23/23=46PCS	80PCS	25PCS	25/25=50PCS
Module 3	50 / 50 = 100PCS	46/46=92PCS	80PCS	25PCS	25/25=50PCS
Module 4	50 / 50 = 100 PCS	46/46=92PCS	80PCS	25PCS
Module 5	50 / 50 = 100PCS	46/46=92PCS	850cd	25PCS
Module 6	50 / 50 = 100PCS
Brightness	1000cd	800cd	850cd	850cd	850cd
weight	550kg	400kg	400kg	100kg	80kg
Gray scale	14bit
AC input voltage	220
Power input frequency	50/60HZ
Brightness adjustment	Manual / automatic
Refresh rate	3840	1920	1920	3000	1920
Display mode	Synchronous / asynchronous
Color temperature	300k-9500k
working temperature	-20°C~60°C
Operating humidity	10％~90％
service life	≥100000 hours
resolving power	3500*1900	2408*1204	1760*670	1400*720	1200*654

Accessories

Sending box

Power Supply

LED suction cup

Video Processor

CAT cable 5v Power Cable

Power cable-flat cable

Movable power cabinet

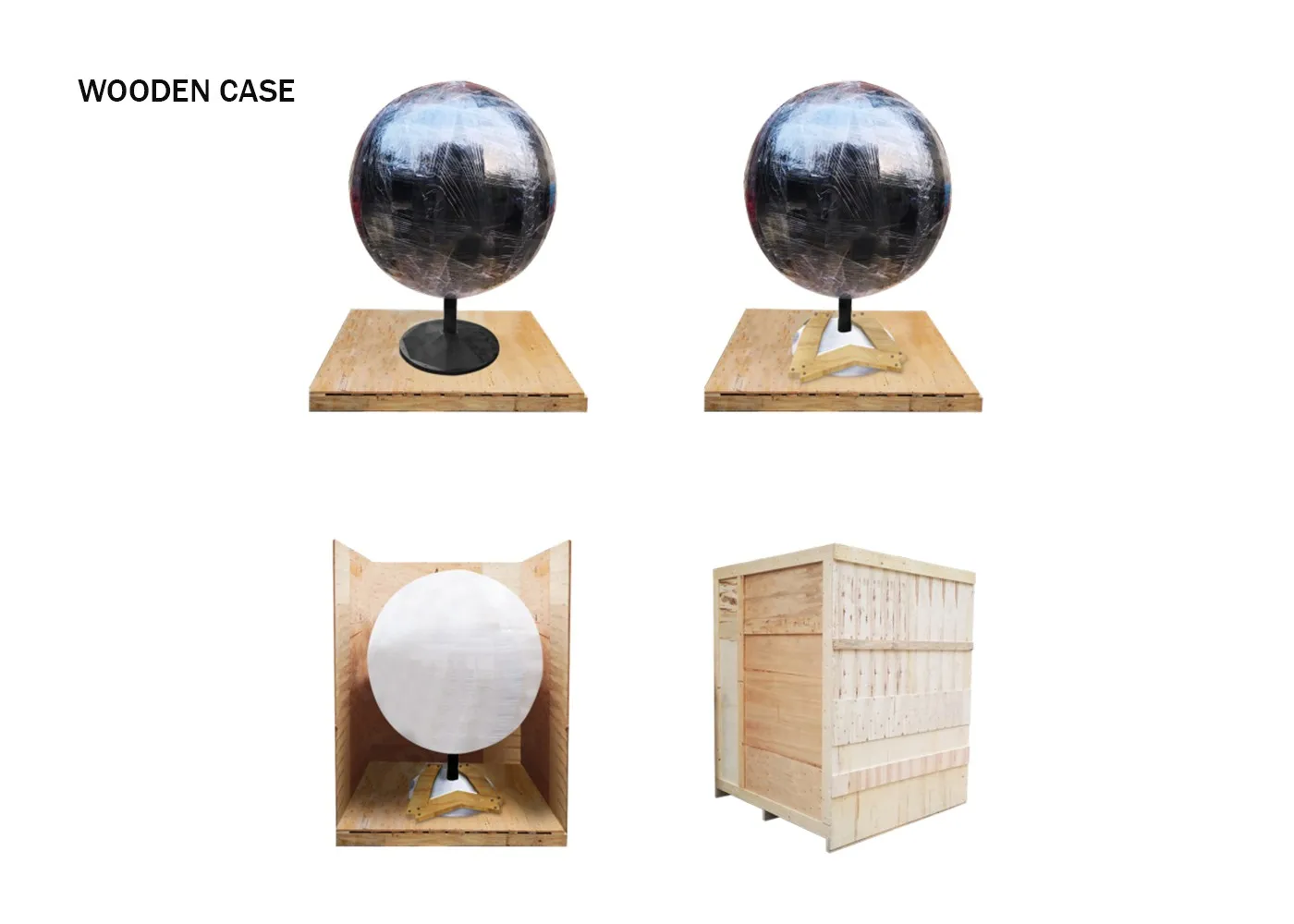

Wooden case packing
