TI series Indoor Transparent LED screen

TI series is with brilliant ultra-light designing, super high transparency and admirable performance, easily fit almost any indoor architectural structures, TI series transparent led video wall have been meticulously engineered to deliver exceptionally true colors with ultra-high contrast ratio and up to 5,500 nits of brightness, ensuring optimum image quality even in bright sunlight conditions. With up to 65% transparency almost invisible from 5 meters away, which makes it the ultimate choice for glass facade and window display applications.

Features

3840 Hz

Wide Viewing Angles

High Transparency

3500-4500cd/㎡

Magnetic Suction Installation

Front Rear Maintenance

Die Cast Aluminum

6kg

Advantages

TI series  Indoor Transparent LED screen
Feature Description
  • - With strict LED display production process
  • - Based on the Horizontal arrangement lighting technology, it is up to 65%transparency
  • - Cabinet size is customized according to application ,match with the building glass perfectly
  • - Support front and rear maintenance,easy to maintain and low cost maintenance
  • - 3840Hz High refresh

Video

TI series  Indoor Transparent LED screen

Parameters

Cabinet Specs

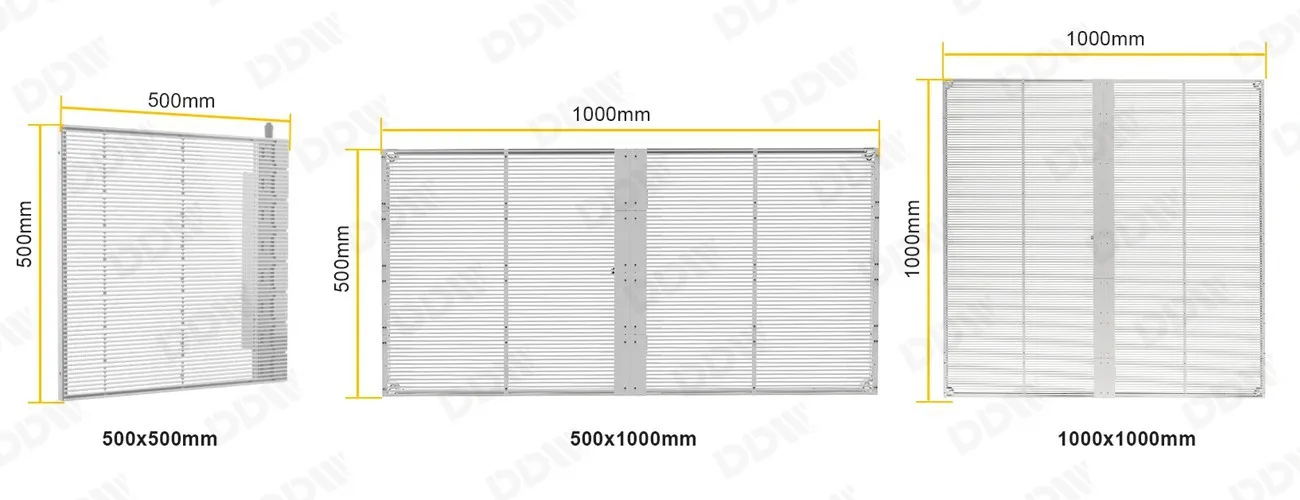

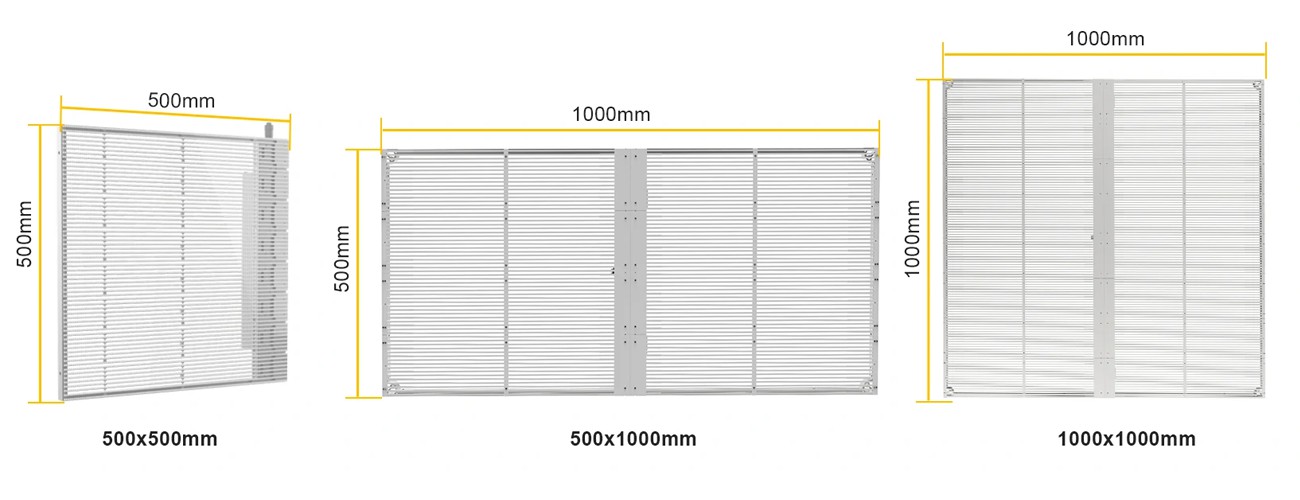

First class design for die casting cabinet frame, each cabinet (include all components) is only 6 kg ,Size: 500x500mm 500x1000mm 1000x1000mm

TI series  Indoor Transparent LED screen

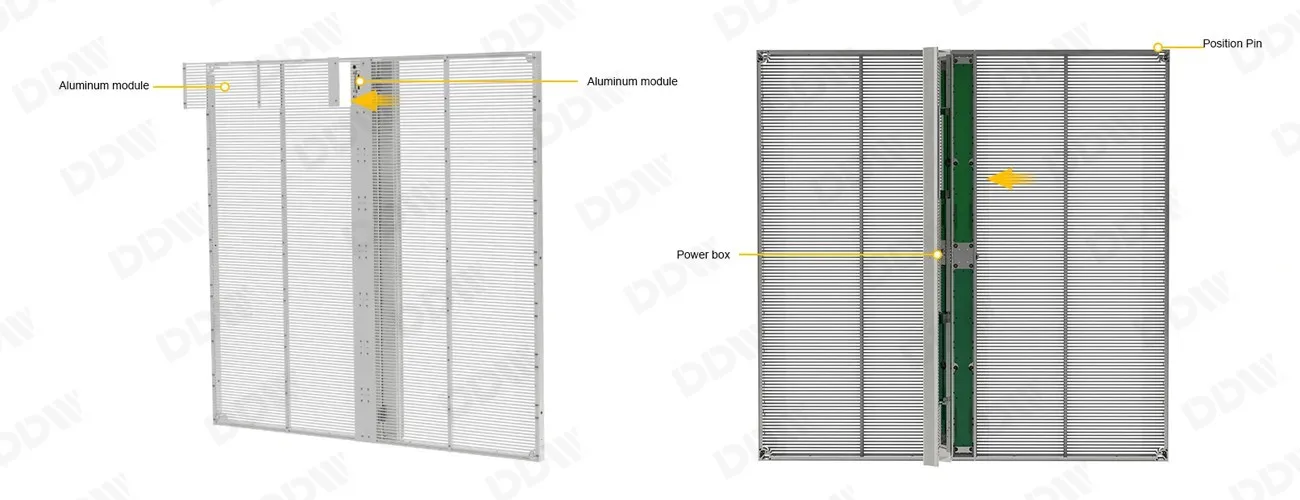

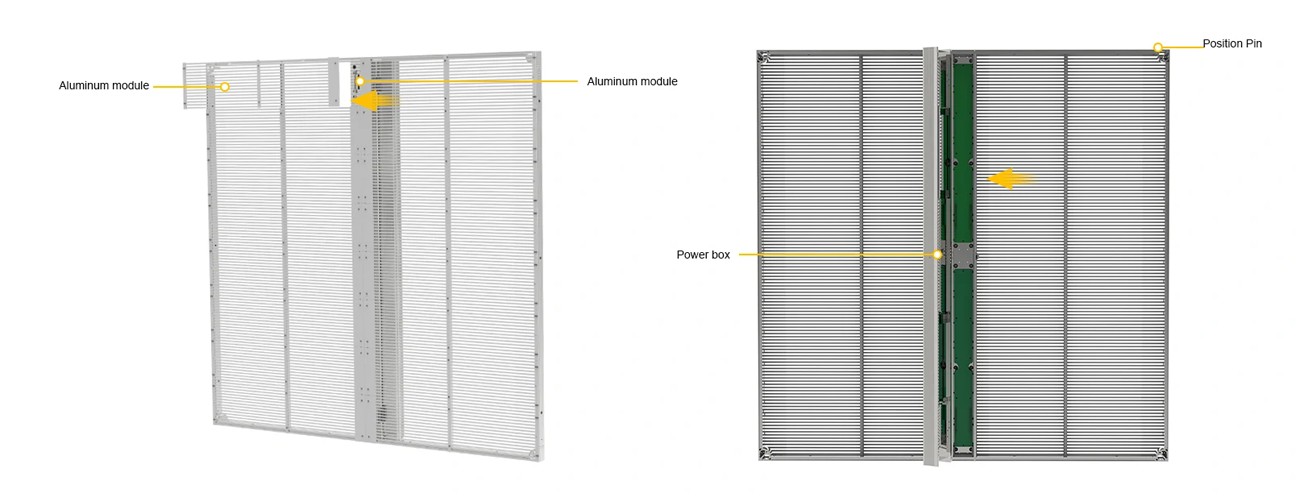

Friendly Maintenance

Front and rear maintenance design, module supports front maintenance, power supply and HUB board can be opened at the back

TI series  Indoor Transparent LED screen
Low Power Consumption

Saving energy by more than 30%, compared with the normal screen. which is energy-saving and environment-friendly

TI series  Indoor Transparent LED screen

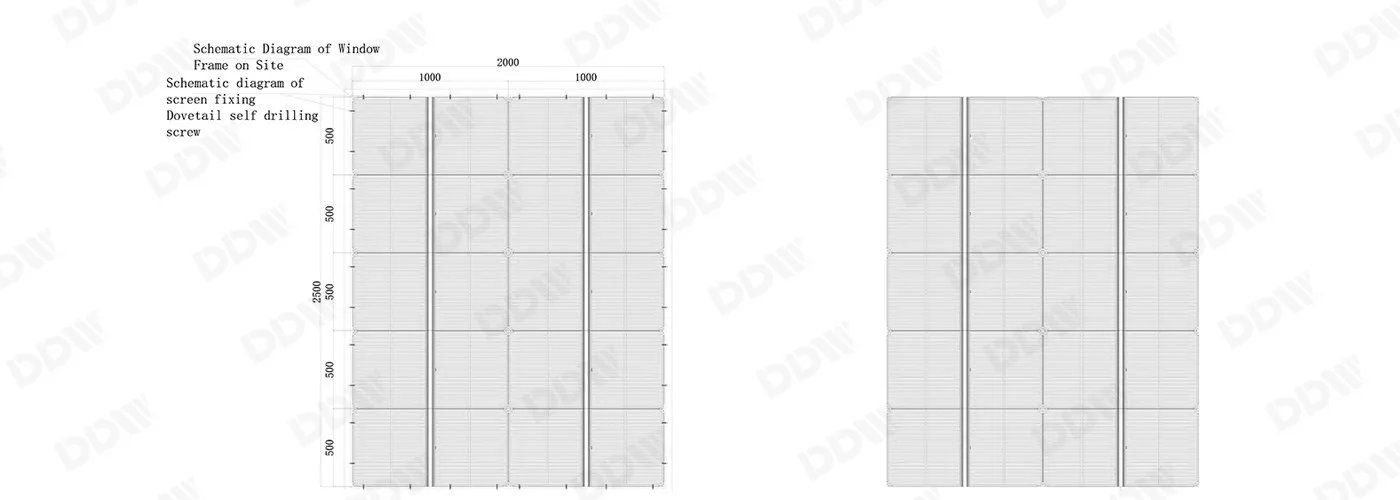

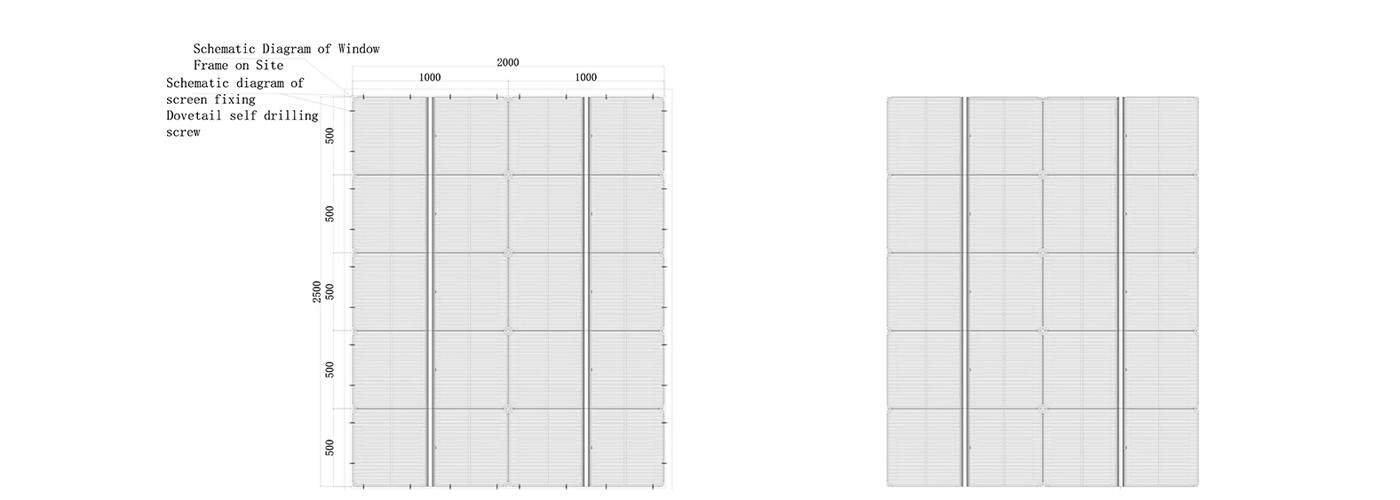

Installation

Aluminum profile support
TI series  Indoor Transparent LED screen

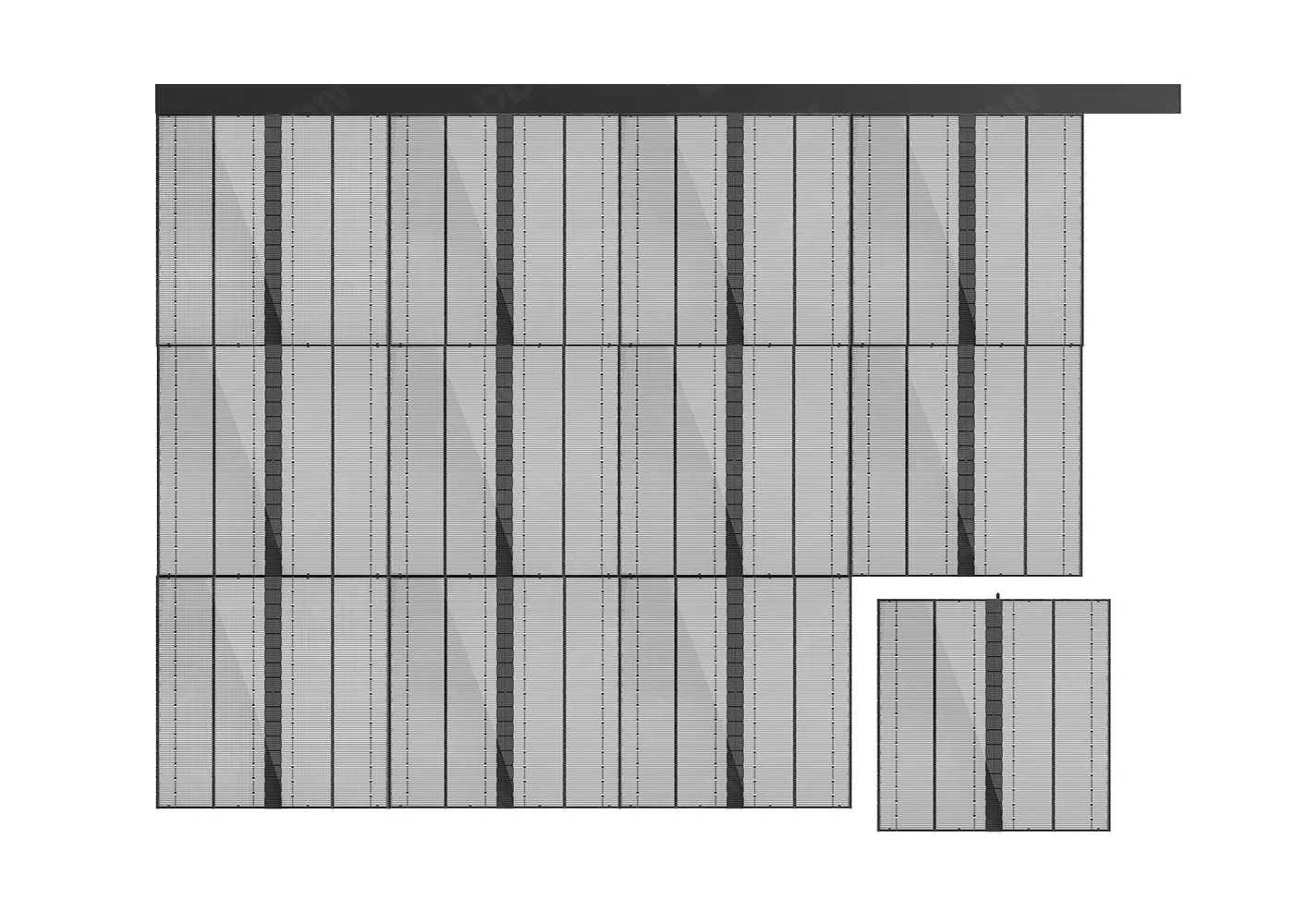

Various installation mode
TI series  Indoor Transparent LED screen

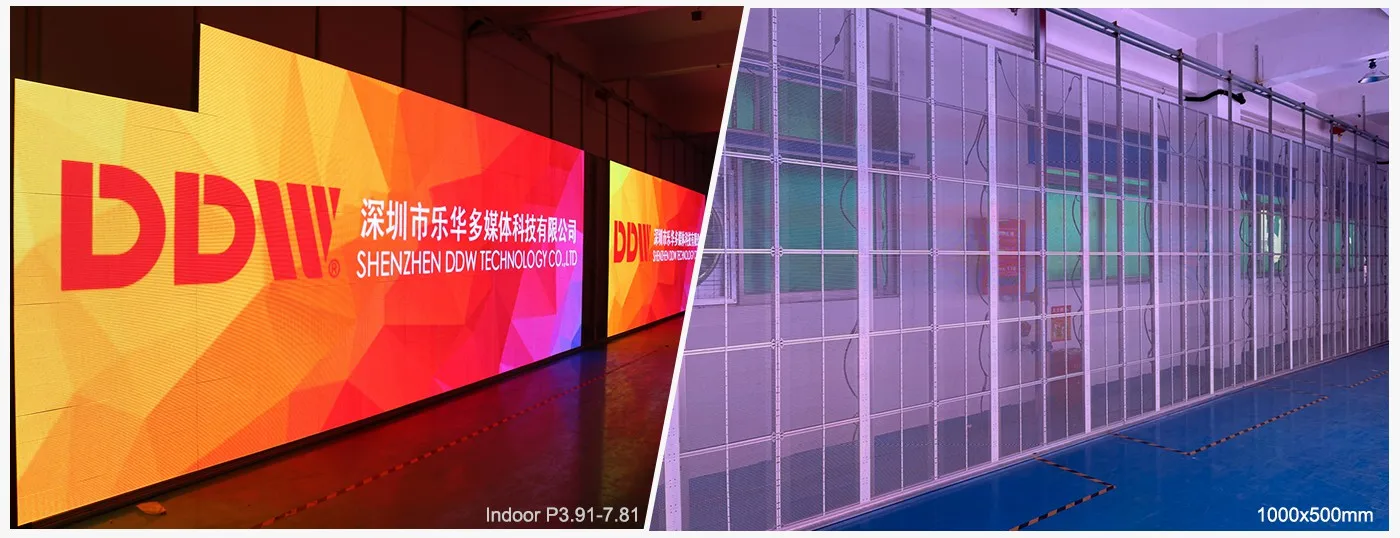

Aging test
TI series  Indoor Transparent LED screen

Specifications

Pixel Pitch P2.84 P3.91 P7.81 P10.42 P15.625 P20
Pixel Density(m²) 56320 32768 16384 9216 4096 2304
Permeability 0.56 0.7 0.56 0.65 0.75 0.85
Refresh Rate(Hz) ≥3851 ≥3840 ≥1920 ≥1920 ≥1920 ≥1920
Cabinet Size(mm) 1000*500
Cabinet Refresh Rate 352*80 256*64 128*64 96*48 64*32 48*24
LED Light 1415 RGB 1921 RGB 1921 RGB 1921 RGB 3535 RGB 3535 RGB
Brightness(nits)/㎡ ≥2700 ≥4500 ≥4000 ≥4000 ≥4000 ≥4000
Max Consumption(W/M) 800
Ave Consumption(W/M) 240 240 240 200 180 150
Grey Scale(Bit) 27 16 16 16 16 16
Degree protection IP41 IP30 IP30 IP30 IP30 IP30
Weight PC/KG 5 5 6 6 6 6
Work Environment ﹣10℃~51℃
Display Interface DIV/HDMI
Installation Mode Fixed installation
LED Life(h) 210000 100000 100000 100000 100000 100000

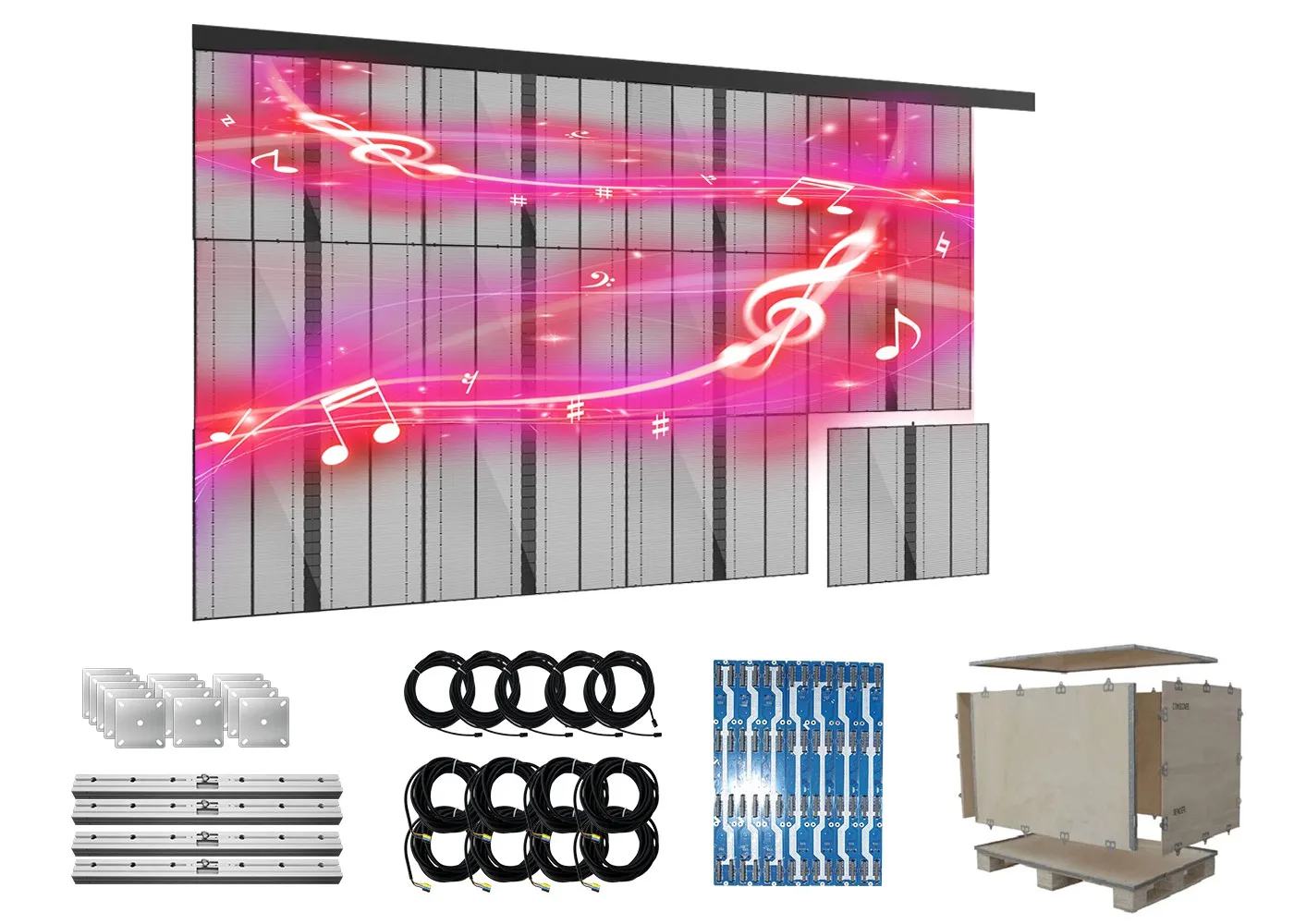

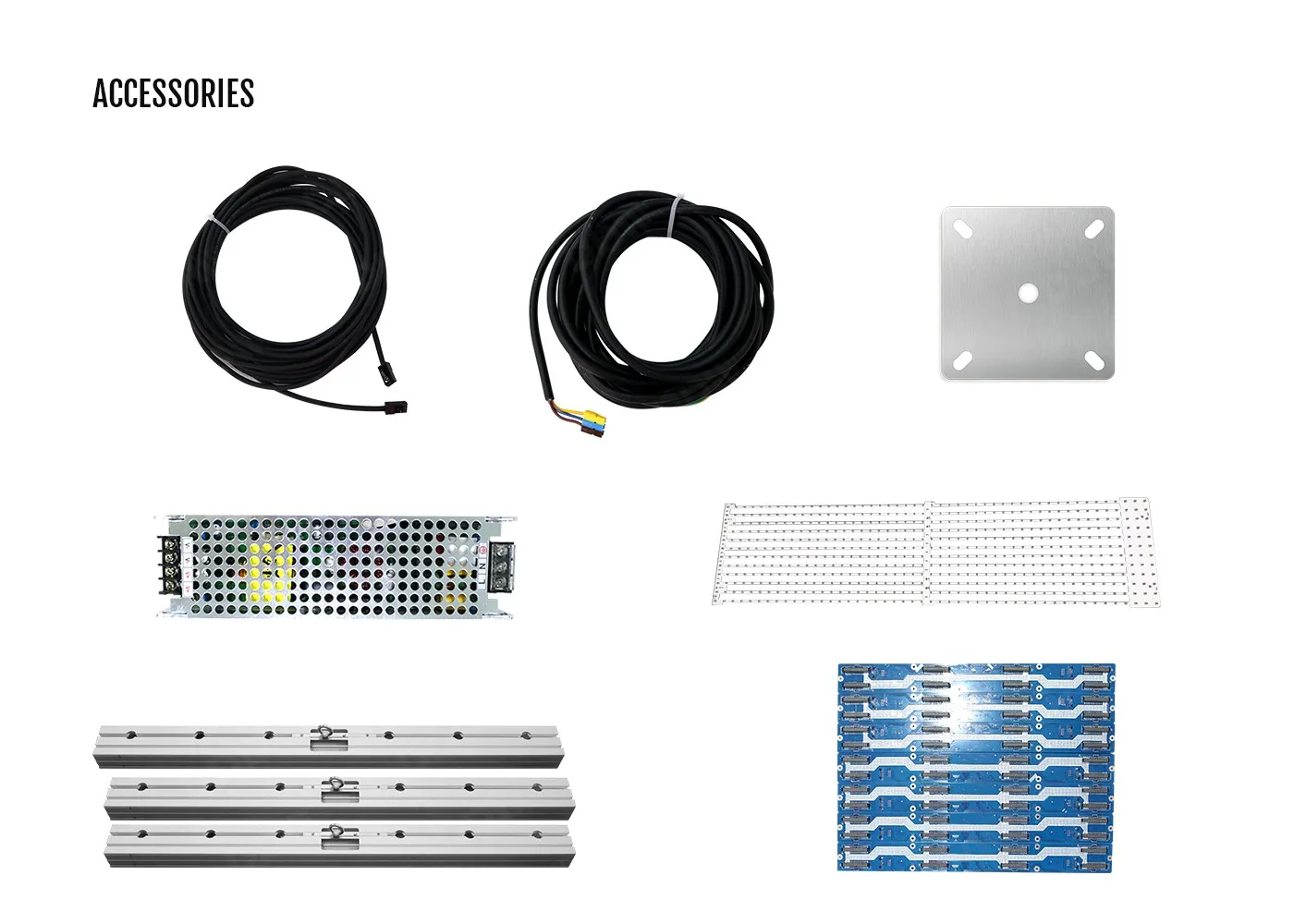

Accessories

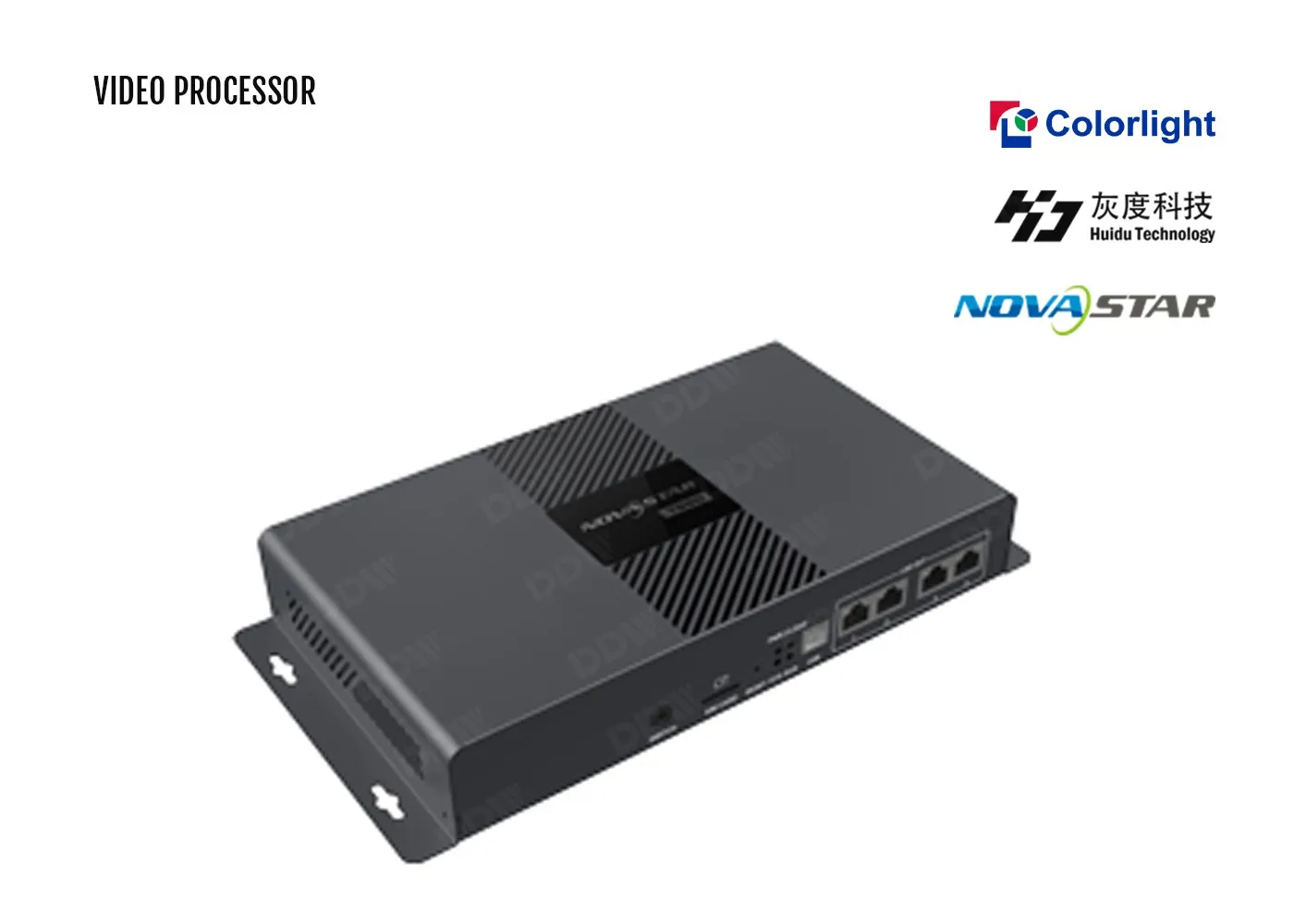

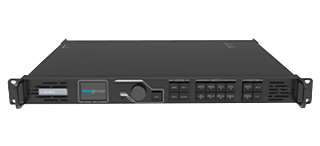

Sending box
Sending box

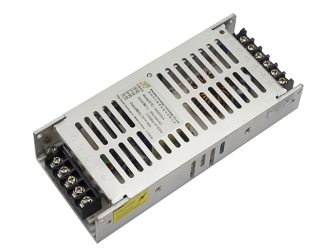

Power Supply
Power Supply
LED suction cup
LED module
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Outdoor Movable Power Cabinet
Adapter board

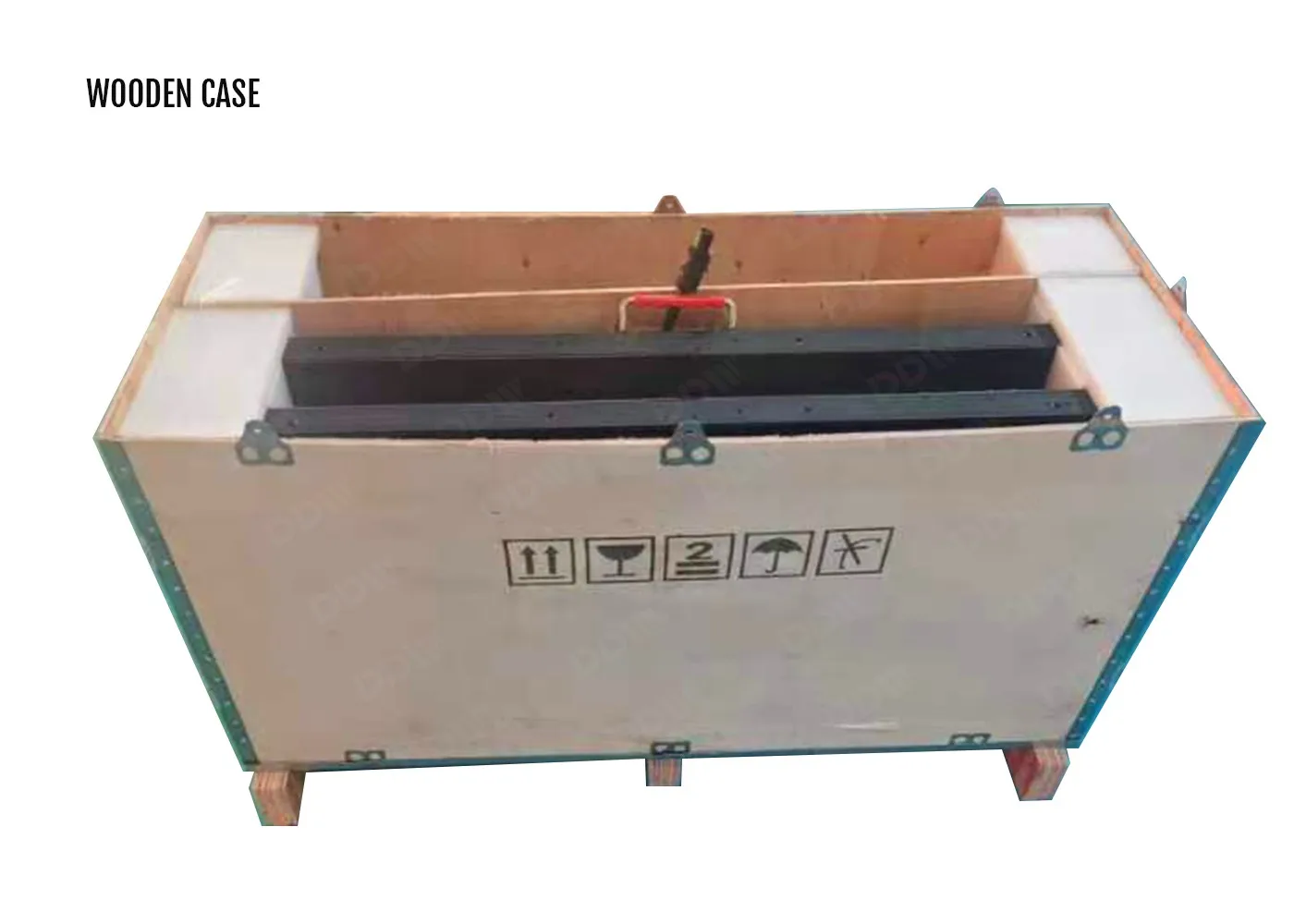

Flight case
Connecting piece
