FA series Aluminum Outdoor LED screen

FA series is a kind of high brightness outdoor LED display designed by common cathoded, which is suitable for outdoor fixed installation. Its main feature is that it can support the ultra-high brightness of up to 10000 lumens. The aluminum chassis design allows it to have no cooling system. It has excellent high temperature resistance and high flame retardant performance. In addition, it can save 50% of power and energy consumption.

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

High Flexibility

Common Cathode Design

Front Rear Maintenance

Die Cast Aluminum

12000cd High brightness

Advantage

FA series Aluminum Outdoor LED screen
Feature Description
  • - High brightness and super energy saving
  • - Ultra-light and ultra-thin
  • - Simple structure, full wireless, hard link, front and rear maintenance
  • - Good heat dissipation, no need for air conditioning
  • - Modular aluminum bottom shell, flame retardant and fireproof, waterproof grade IP68

Video

FA series Aluminum Outdoor LED screen

Parameters

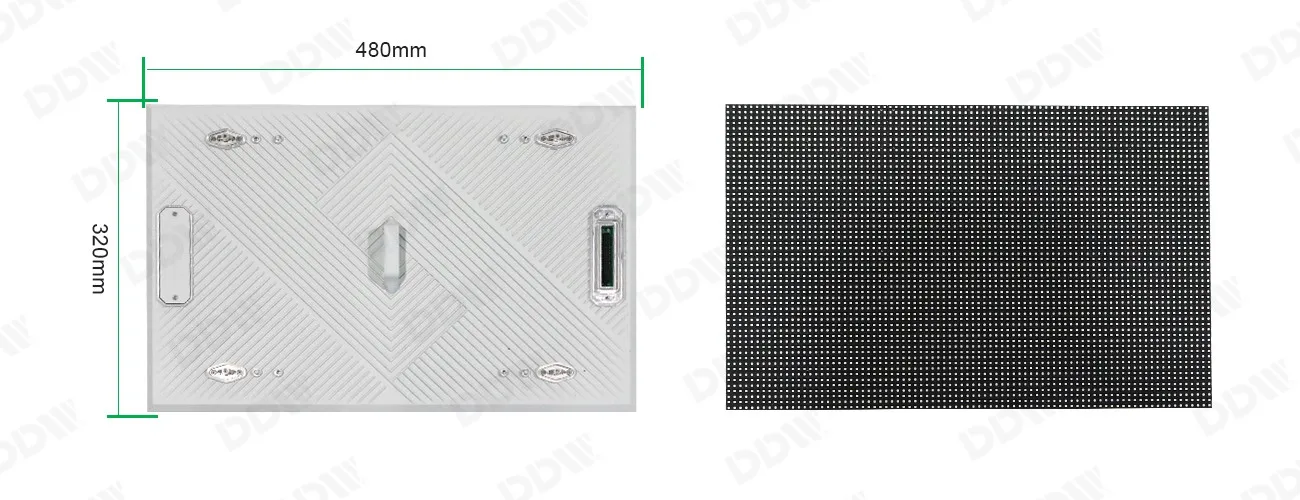

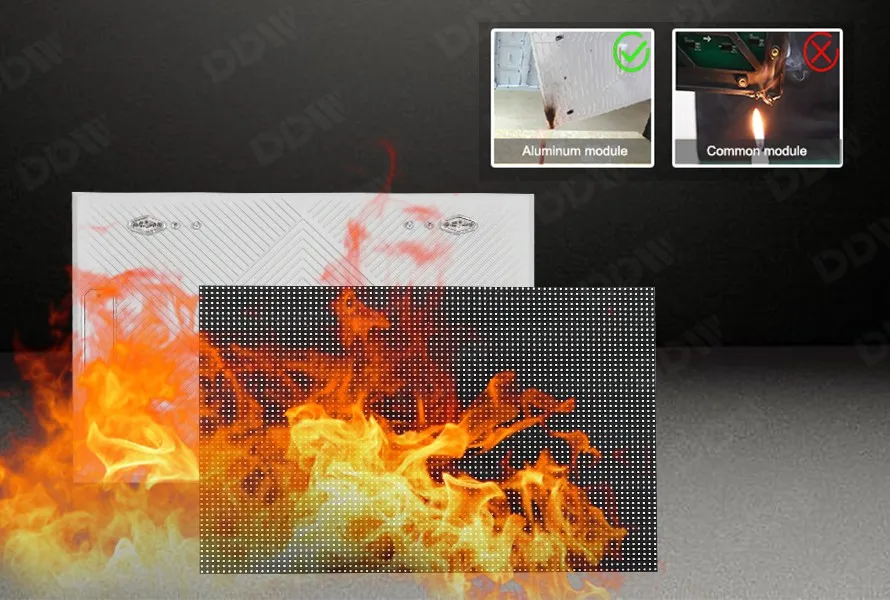

Aluminum Module

The weight of a single module is only 2KG aluminum bottom shell, and the mask is fixed with 304 stainless steel screws, which are anti-corrosion and never rust

FA series Aluminum Outdoor LED screen

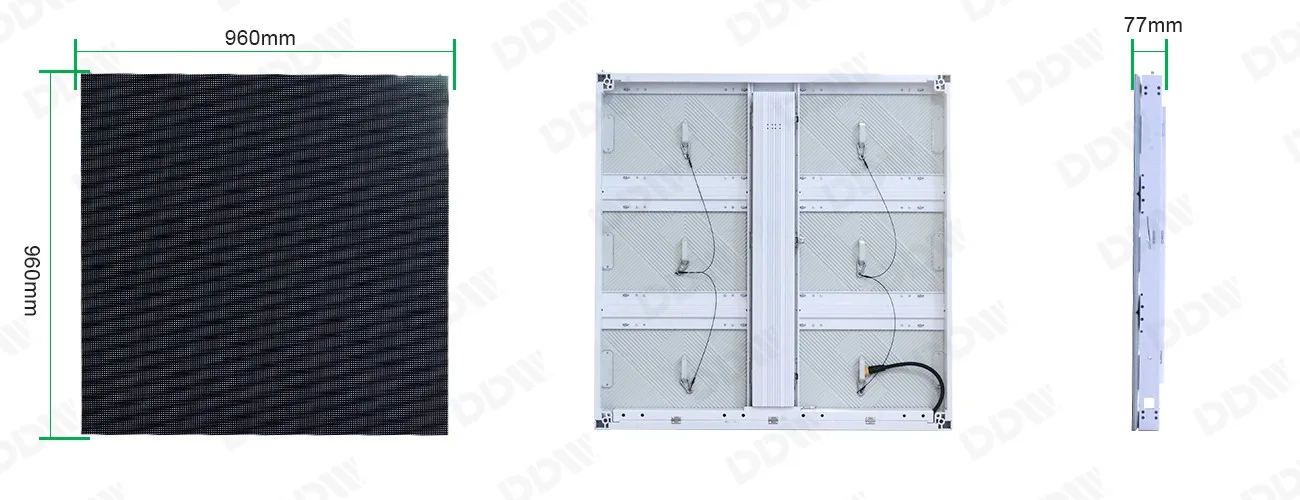

High Quality Frame

The weight of a single box is only 24.5KG, and the thickness of the box is 75MM. The box can be installed without structure. Although this display screen is also die-casting aluminum, its overall weight is lighter and thinner due to the better structural design.

FA series Aluminum Outdoor LED screen

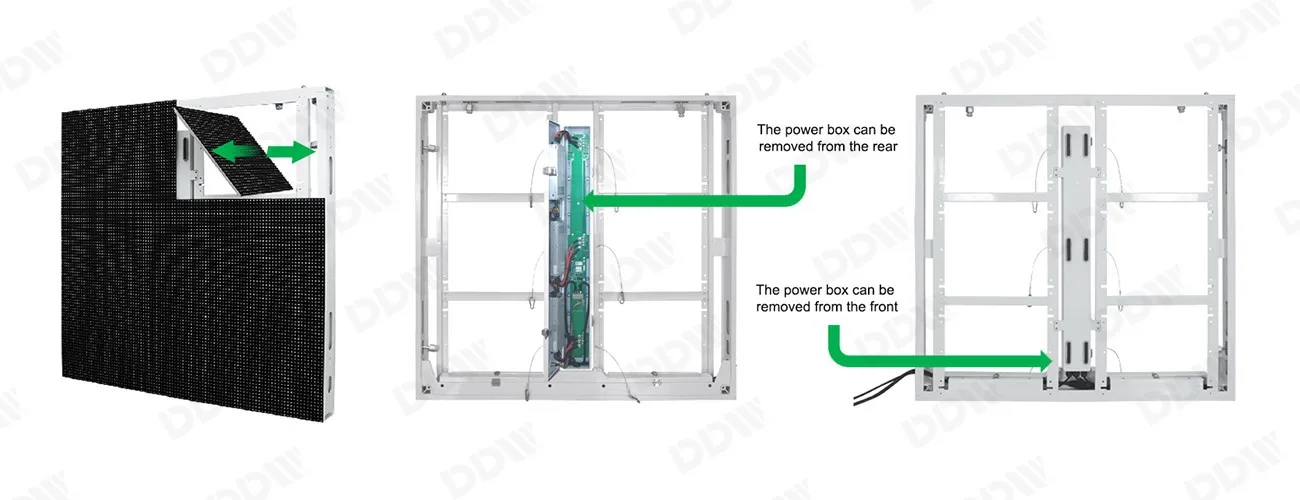

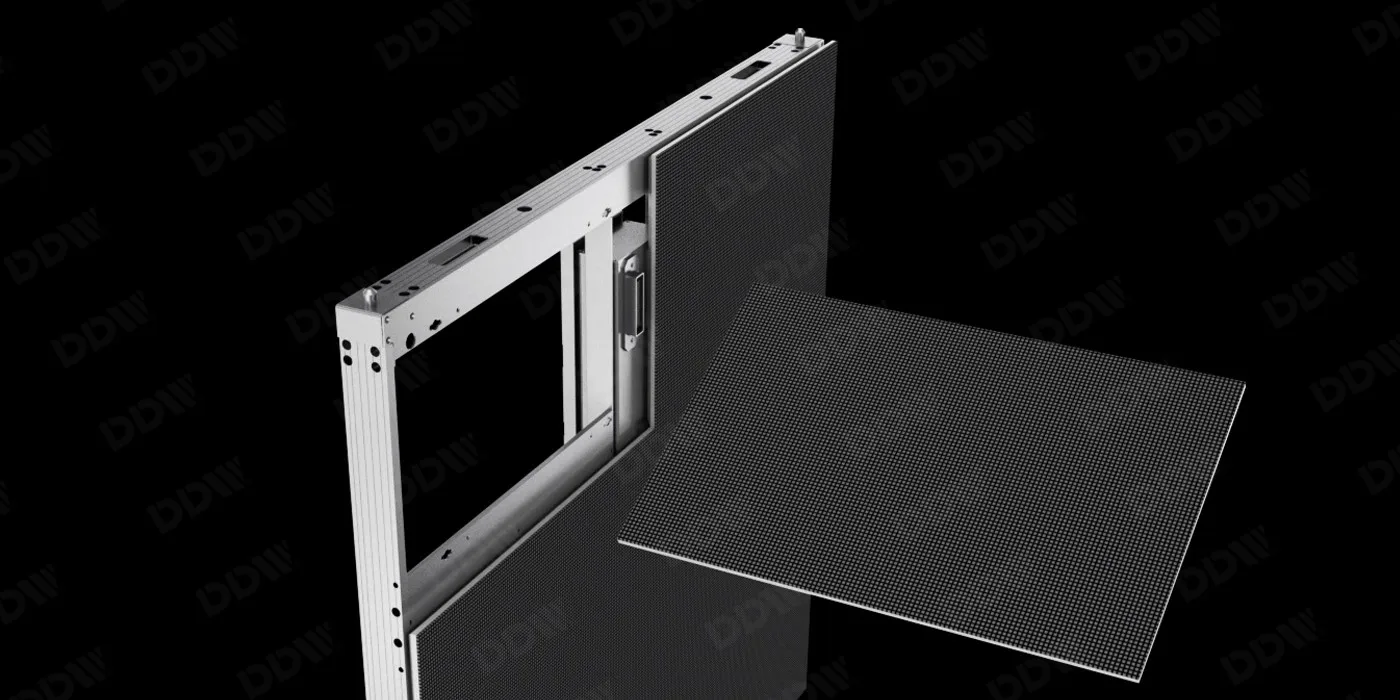

Front Rear Maintenance

Cable-less design; Integrated power& signal box can be changed in one second, front and rear maintenance by lock

FA series Aluminum Outdoor LED screen

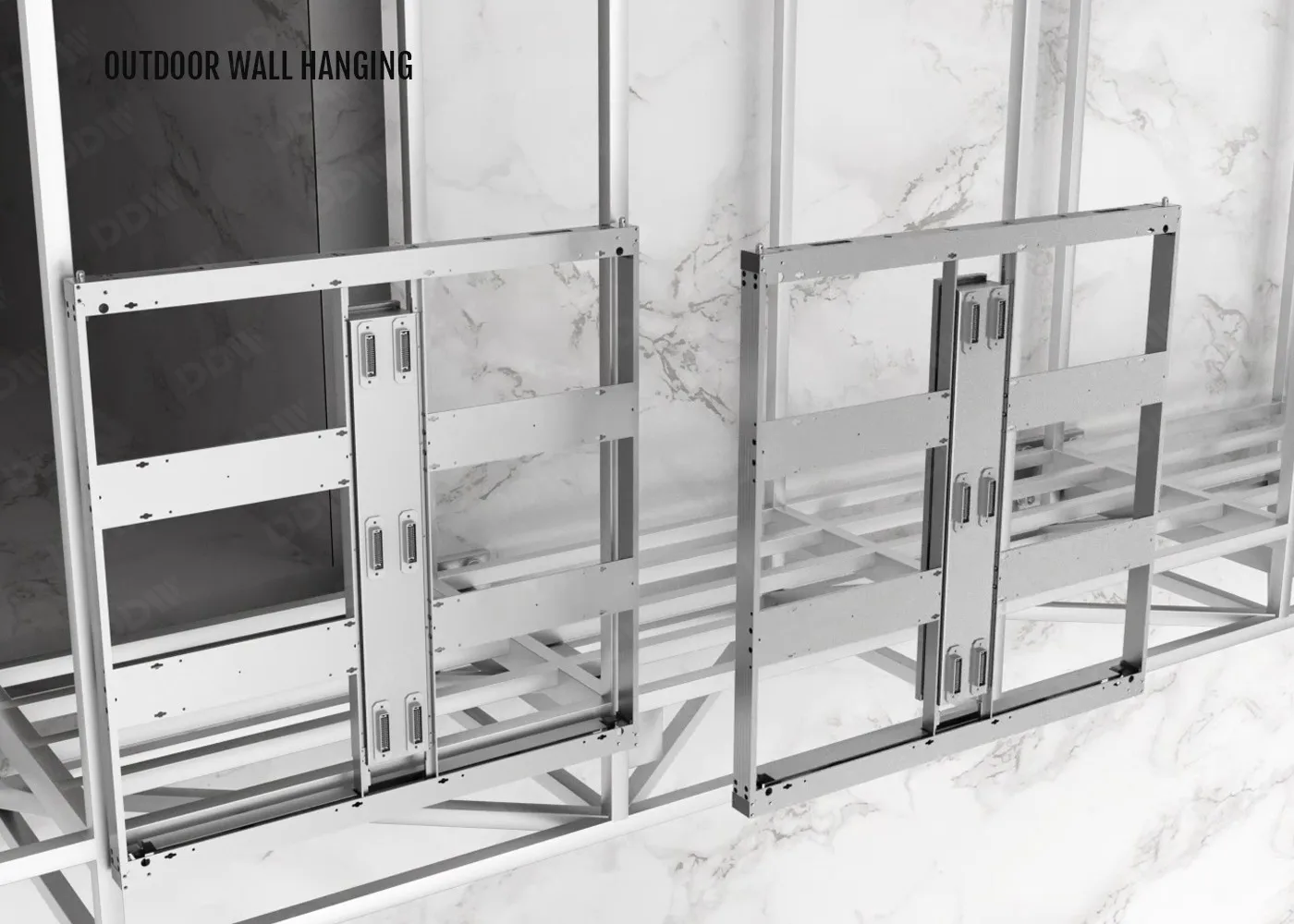

Installation

Installation Diagram
FA series Aluminum Outdoor LED screen
Single Column Installation
FA series Aluminum Outdoor LED screen

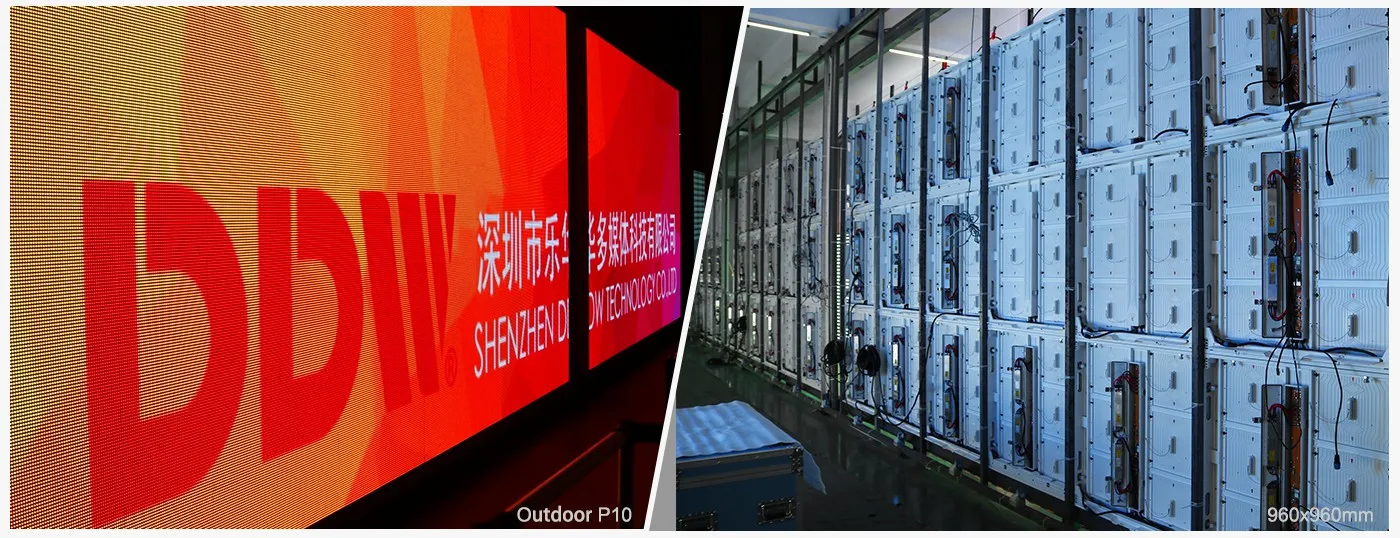

Aging test
FA series Aluminum Outdoor LED screen

Specifications

Part Number  P5.7 P6.66 P8 P10
Pixel Pitch 5.7mm 6.66mm 8mm 10mm
LED Configuration  SMD2727
Pixel Density  30625dot/m2 22500dot/m2 15625dot/m2 10000dot/m2
Module size 480*320mm
Module Resolution 84*56 dot 72*48 dot 60*40 dot 48*32dot
Cabinet Size  960*960*77mm
Cabinet Resolution 168*168dot 144*144dot 120*120dot 96*96dot
Cabinet Weight  28kg
IP Rating ( front/back) IP65
Brightness Intensity  10000≥6500 CD/m2
Viewing Angle (H/V)  140°/140°
View Distance >5m
Gray Scale 14bit
Display Scale 16.7M
Brightness Adjustment 0-100 levels adjustable
Max.Power Consumption  650W/㎡
Ave.Power Consumption 200W/㎡
 Drive Mode 1/7S 1/6S 1/4S 1/2S
Refresh Frequency ≥3840HZ
Gamma Correction  -5.0~+5.0
Environmental  OUTDOOR
Control Mode Synchronous display with control PC by DVI
Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power AC100~240 50/60HZ
Operating Temperature -20℃~+50℃
Operating Humidity 10~95% RH
Operating Life 100,000hours

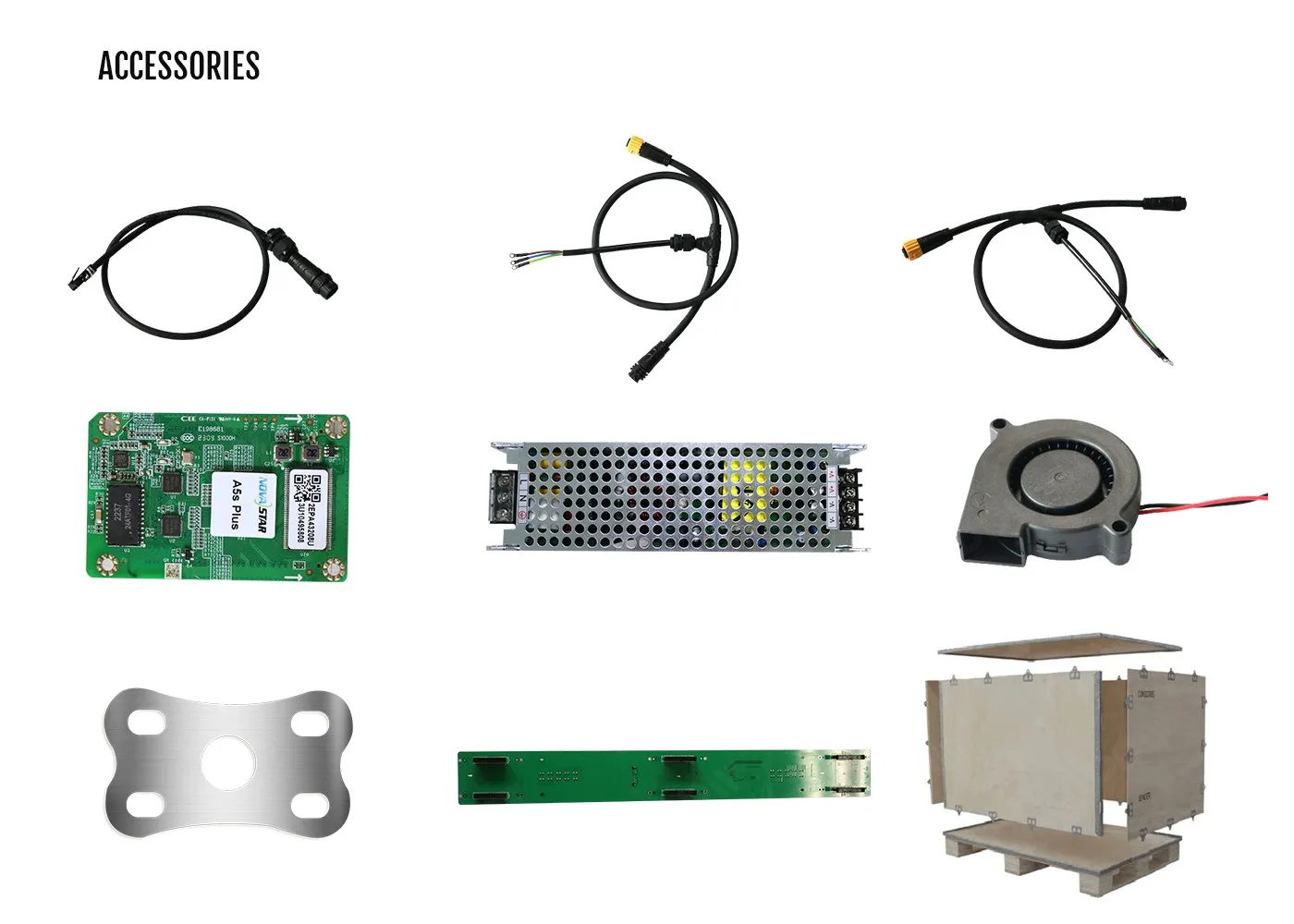

Accessories

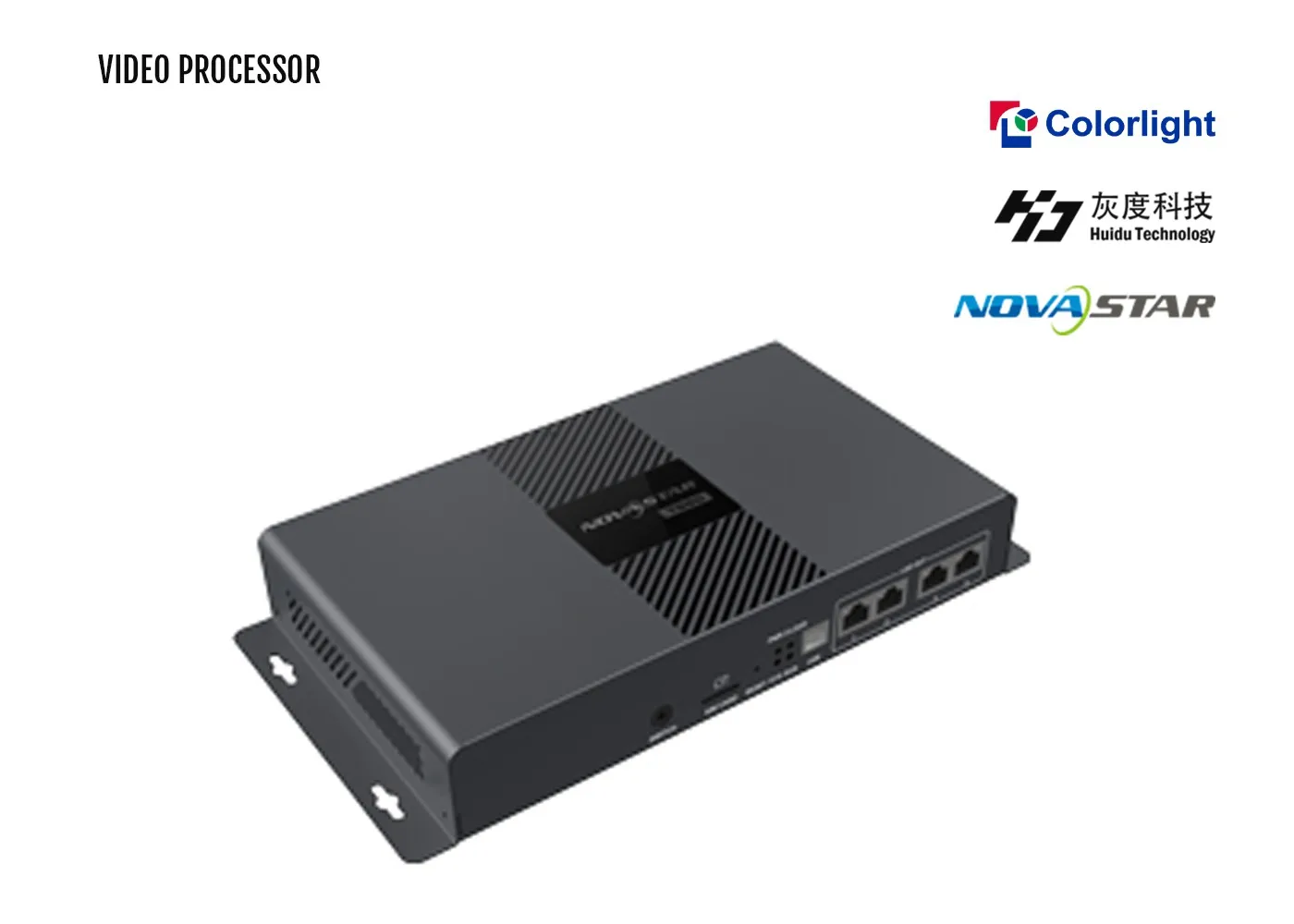

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
Receiving card
Mounting accessories
Cooling fan
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Fixings
Flight case

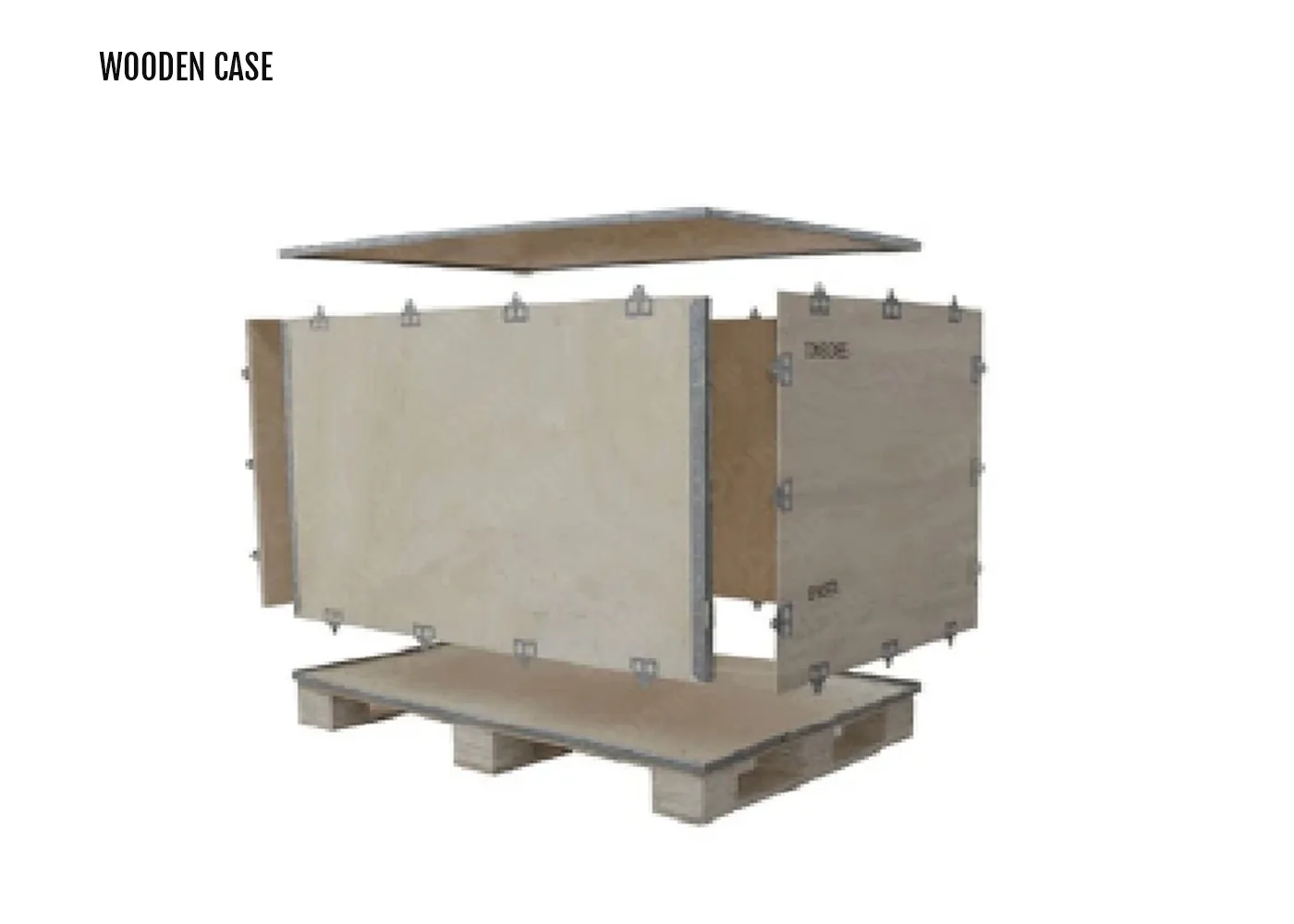

wooden case packing
