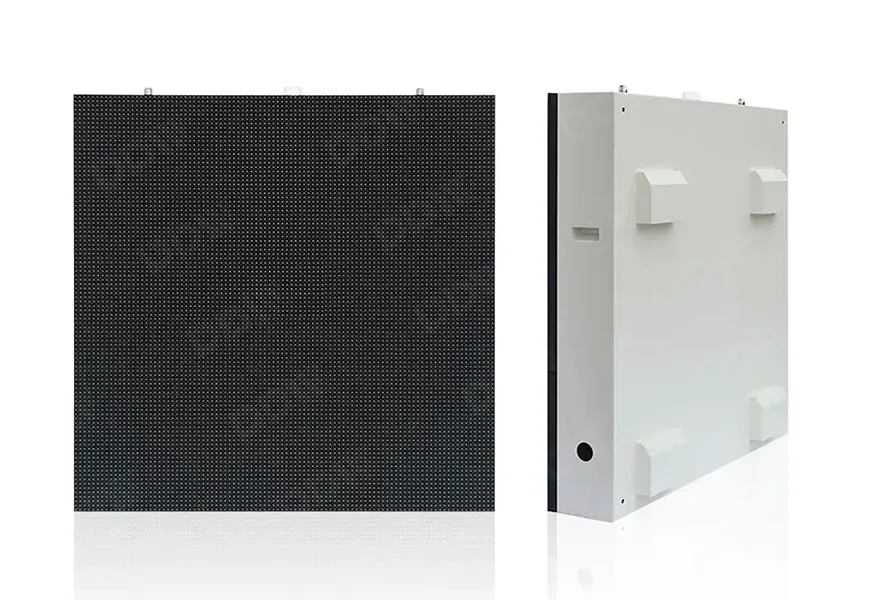

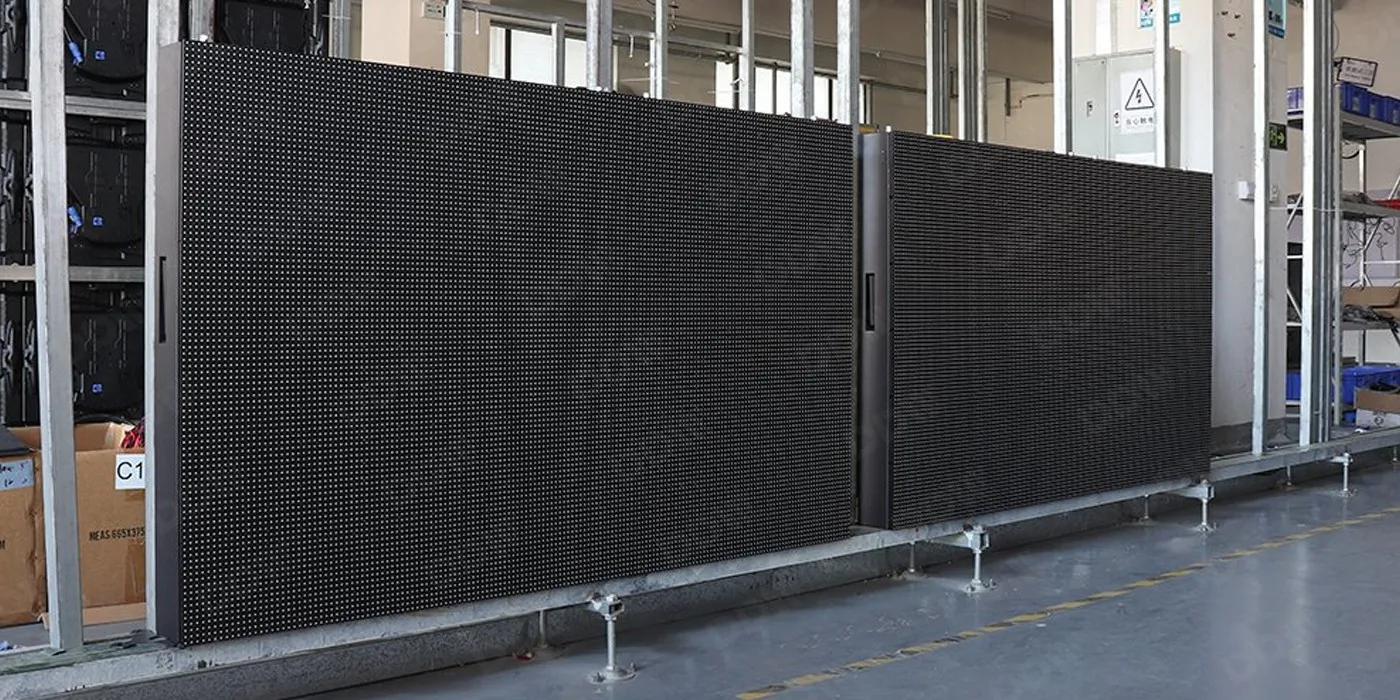

FOF series Outdoor LED screen

FOF series is a front maintenance outdoor LED display screen that can support convenient maintenance of modules and boxes through locks in all weather outdoor conditions

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

High Flexibility

Common Cathode Design

Front  Maintenance

Quality SPCC Cabinet

7500cd High Brightness

Advantages

FO series Outdoor LED screen
Feature Description
  • - IP65 waterproof rating, long service life
  • - 7500cd High brightness, bright colors
  • - Any size, seamless stitching
  • - Simple internal connection and easy installation
  • - There are cooling fans in the cabinet, better heat dissipation effect

Video

FO series Outdoor LED screen

Parameters

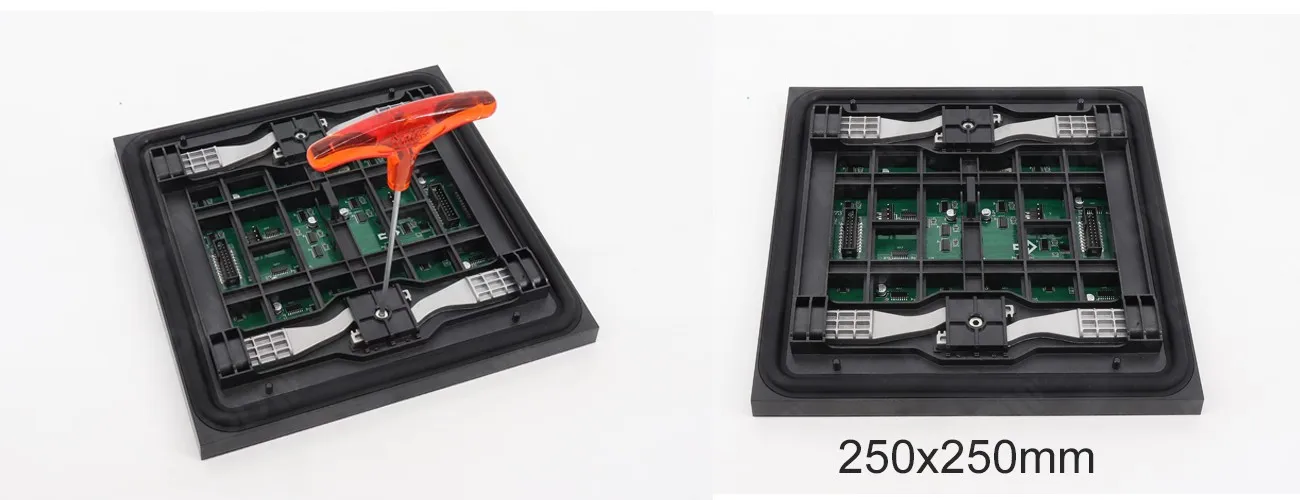

Module Specification

Suitable for all kinds modules ,Upgrade replacement is easy

FO series Outdoor LED screen
Cabinet Specs

The weight of a single iron cabinet is only 40KG, and the thickness of the cabinet is 130mm.

FO series Outdoor LED screen

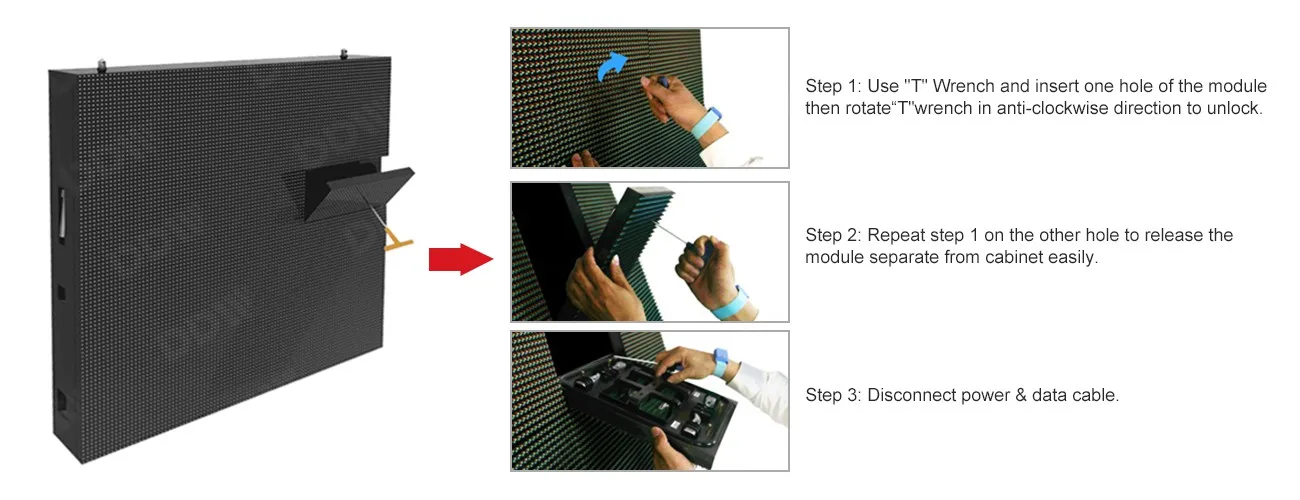

Front maintenance design

Adopting a pure front maintenance design, all cabinet components (such as power supply, receiving cards, and other accessories) can be removed from the Remove the front of the LED cabinet.

FO series Outdoor LED screen

Installation

Installation Diagram
FO series Outdoor LED screen

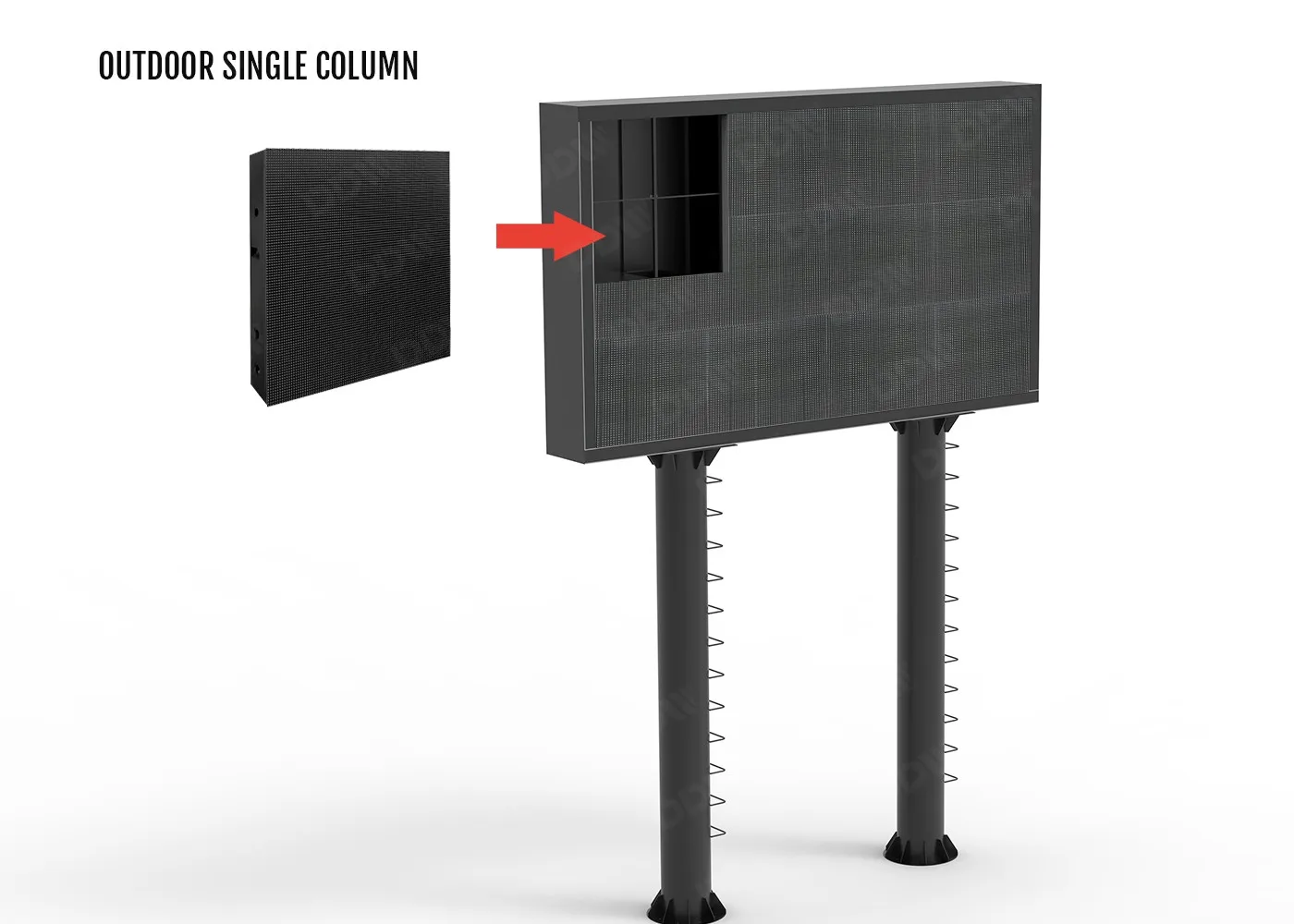

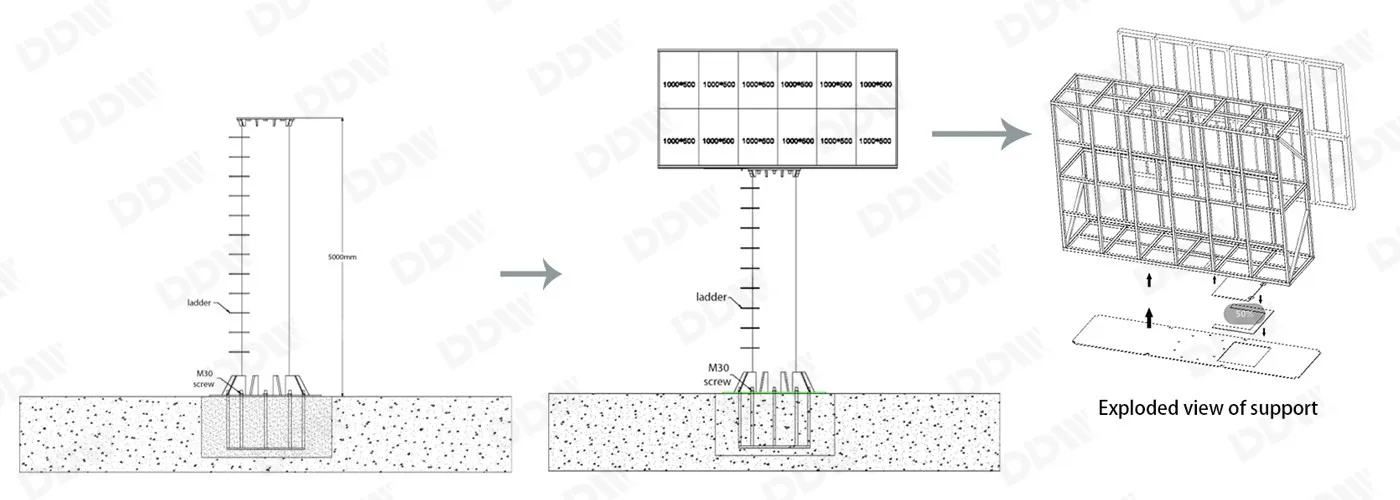

Single Column Installation
FO series Outdoor LED screen

Specifications

Pixel Pitch P2.976 P3.91 P4.81 P6.67 P8 P10
LED Type SMD1921 SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Pixel Density 112896/m² 65410/m² 42849/m² 22500/m² 15625/m² 10000/m²
Module Size  250x250mm 250x250mm 250x250mm 320x320mm 320x320mm 320x320mm
Panel Dimension 960x960mm
Panel Weight  45kg
Maintenance Mode Front maintenance
Brightness  5000-7000cd/m²
Gray Grade  14bit
Viewing Angle  Horizontal >170  Vertical>120
Display color 4096*4096*4096
Refresh Frequency 1920-3840Hz
Drive Mode 1/8s
Protection Degree IP65
Max Power Consumption  <800W/m2
Avg Power Consumption  240W/m²
Humidity 10%-95%RH
Working Temperature -20°C-+60°C
Screen power supply 220VAC/50HZ+_10%
Life span 100000Hours

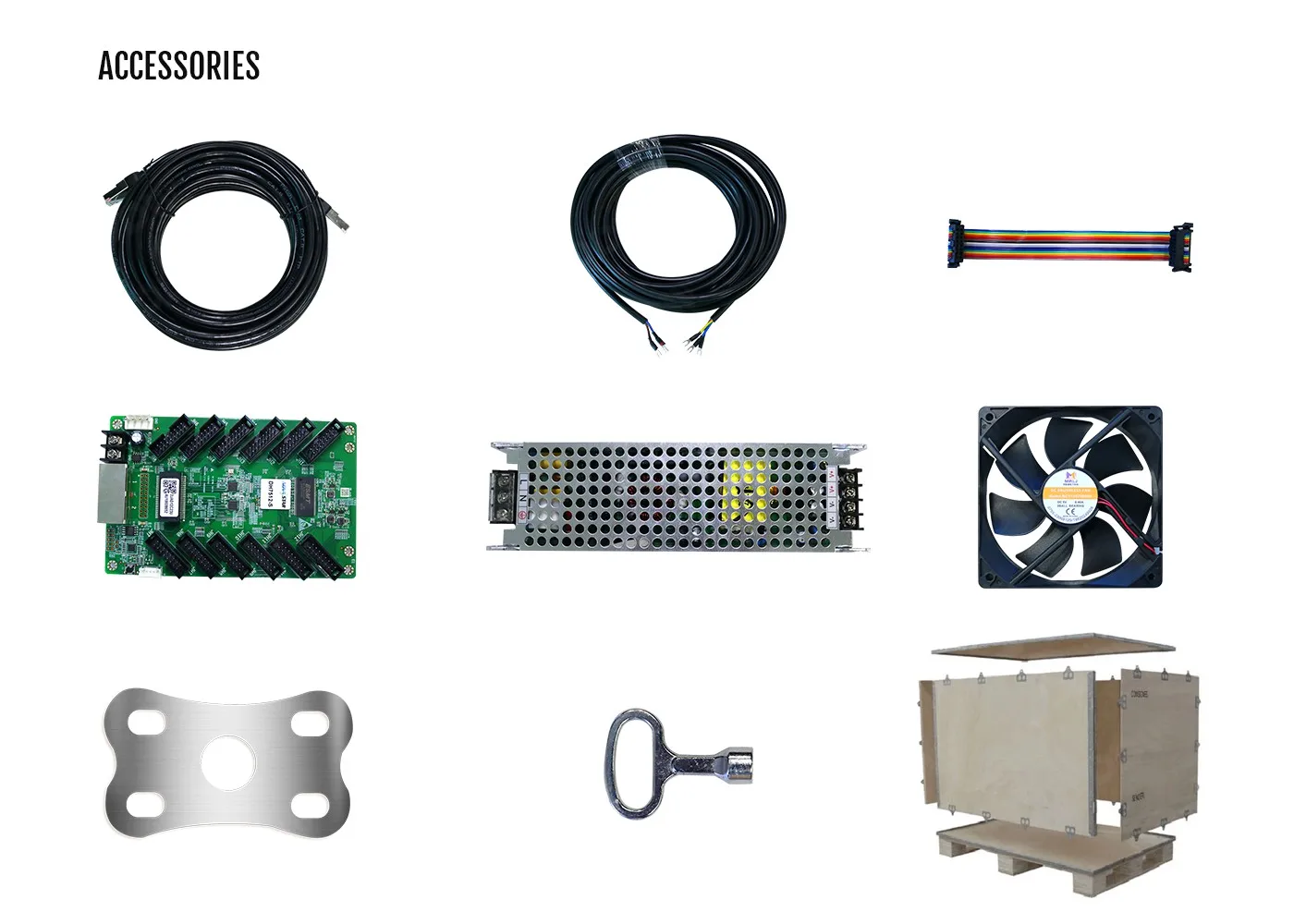

Accessories

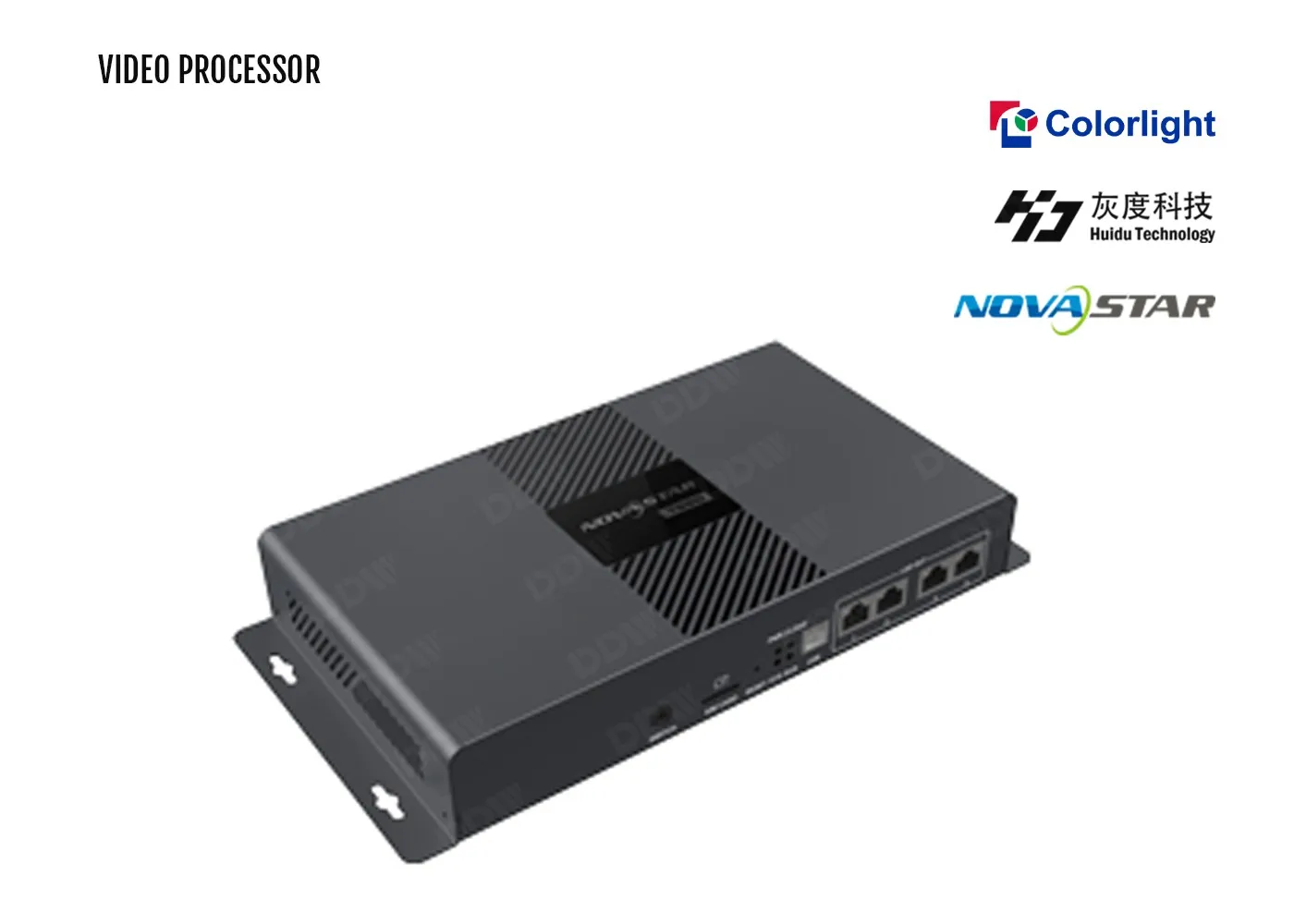

Sending box
Sending box
Power Supply
Power Supply
Pickup card
Pickup card
Outdoor Movable power cabinet
Connecting piece
Signal cable
Signal line
Power cable
Power line
Movable power cabinet
Cooling fan

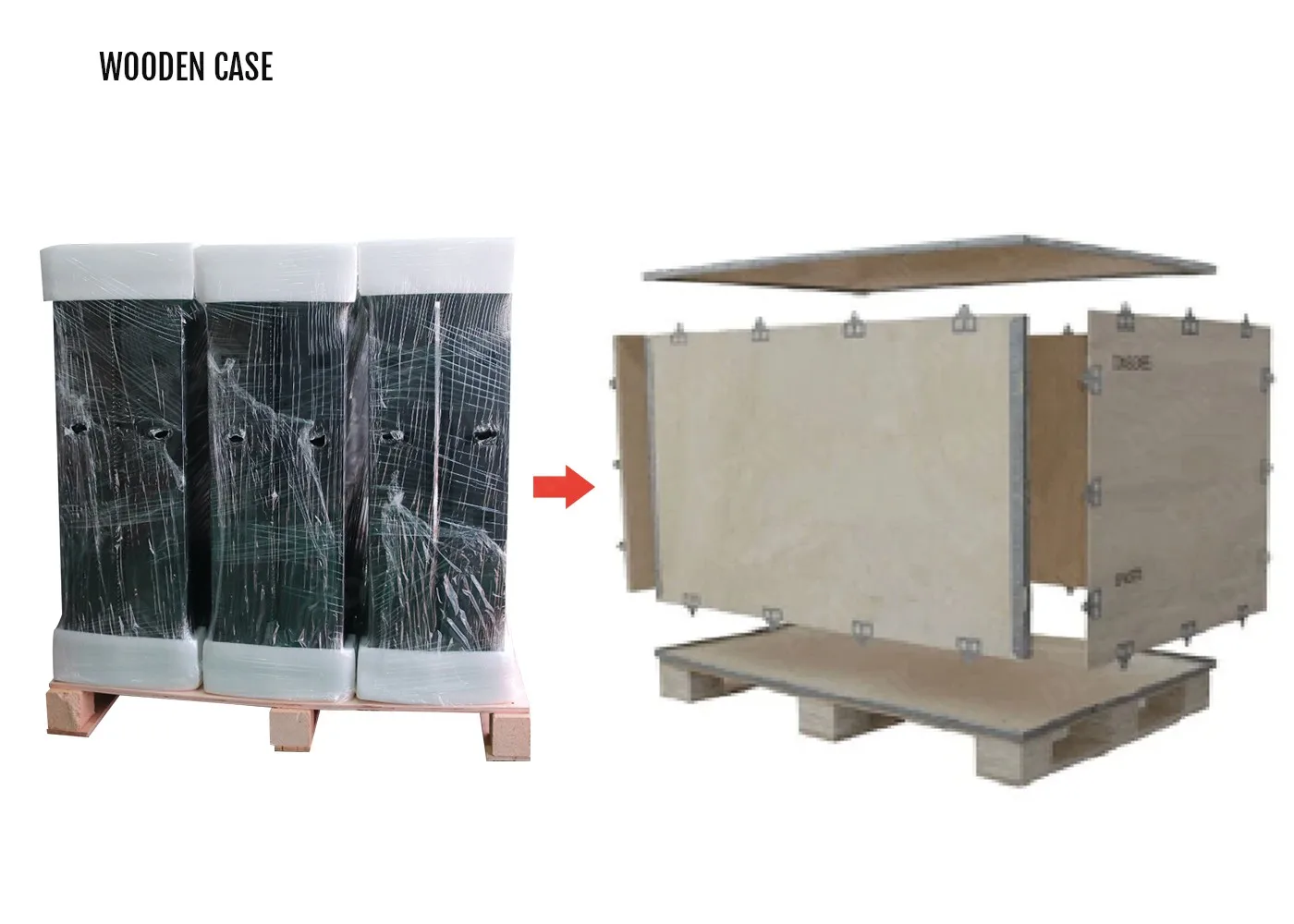

Wooden case packing
LED module
