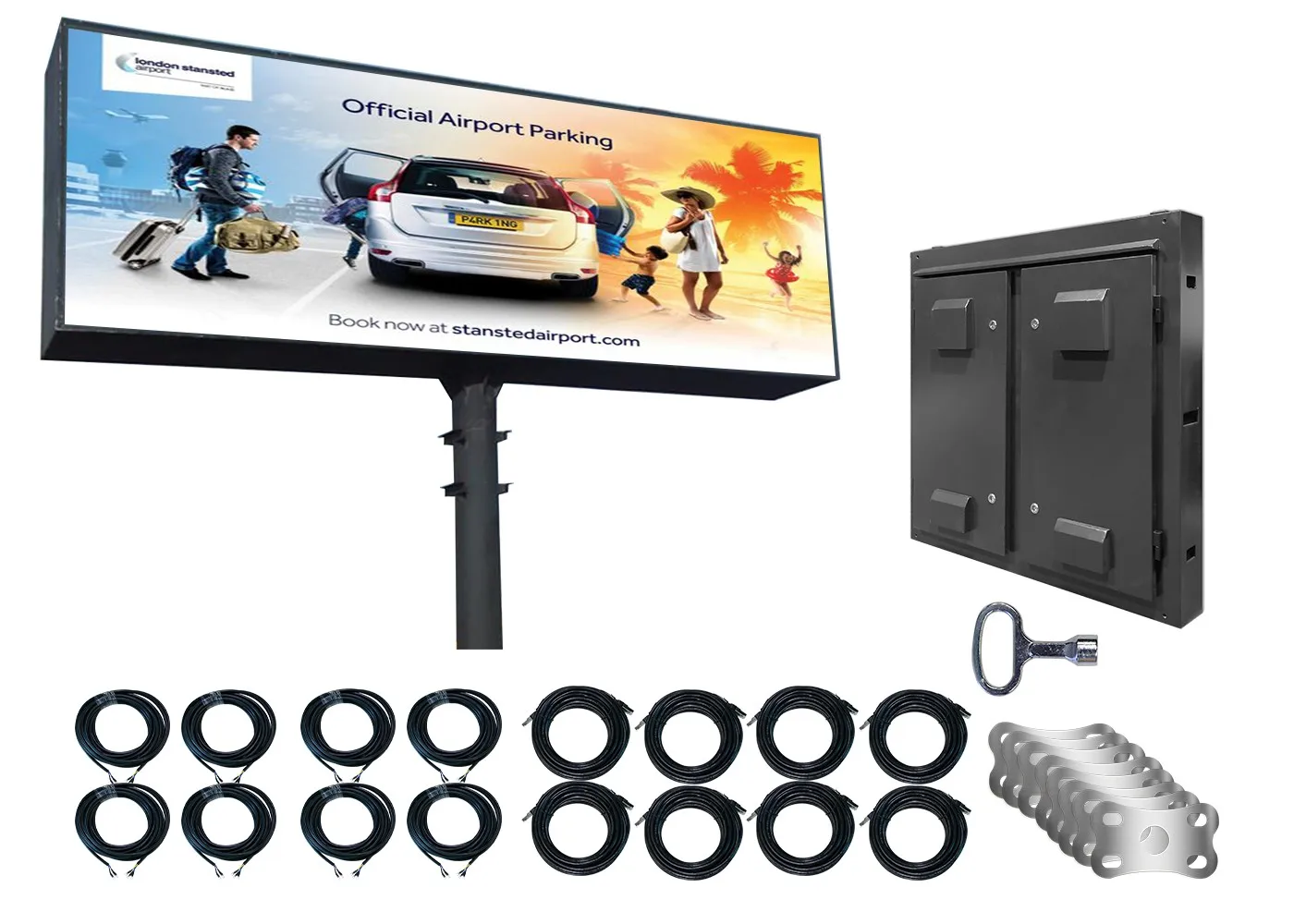

FE series Energy Saving Outdoor LED screen

FE series is a high-end outdoor LED display carefully designed in quality and detail, which is used for outdoor fixed installation. It is the most common and widely used outdoor display screen.

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

High Flexibility

Common Cathode Design

Front Rear Maintenance

Die Cast Aluminum

6500cd High brightness

Advantage

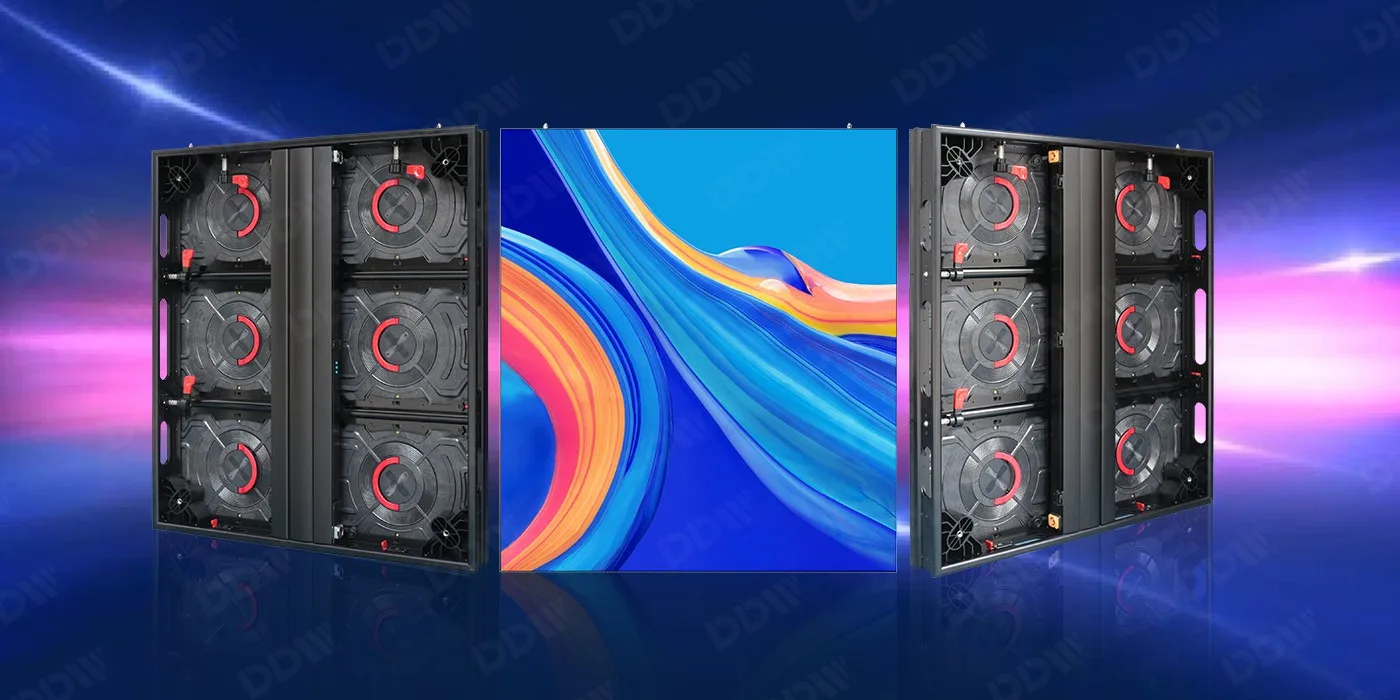

FE series High-end energy saving LED screen
Feature Description
  • - High precision Aluminum cabinet frame
  • - Electric power saving up to 30%
  • - Steel material fast lock system
  • - 5000:1 High contrast ratio
  • - Hub board front access
  • - IP65 waterproof grade

Video

FE series High-end energy saving LED screen

Parameters

IP65 waterproof grade

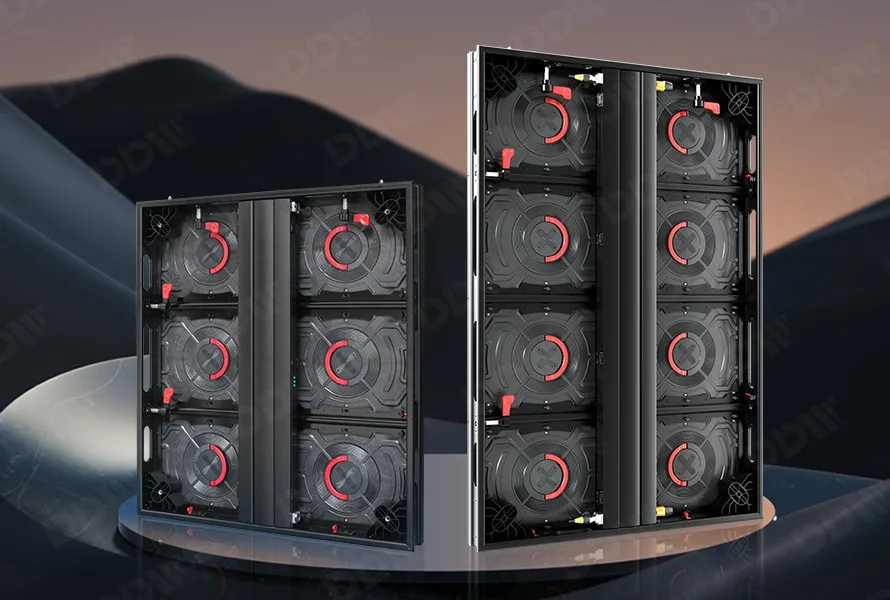

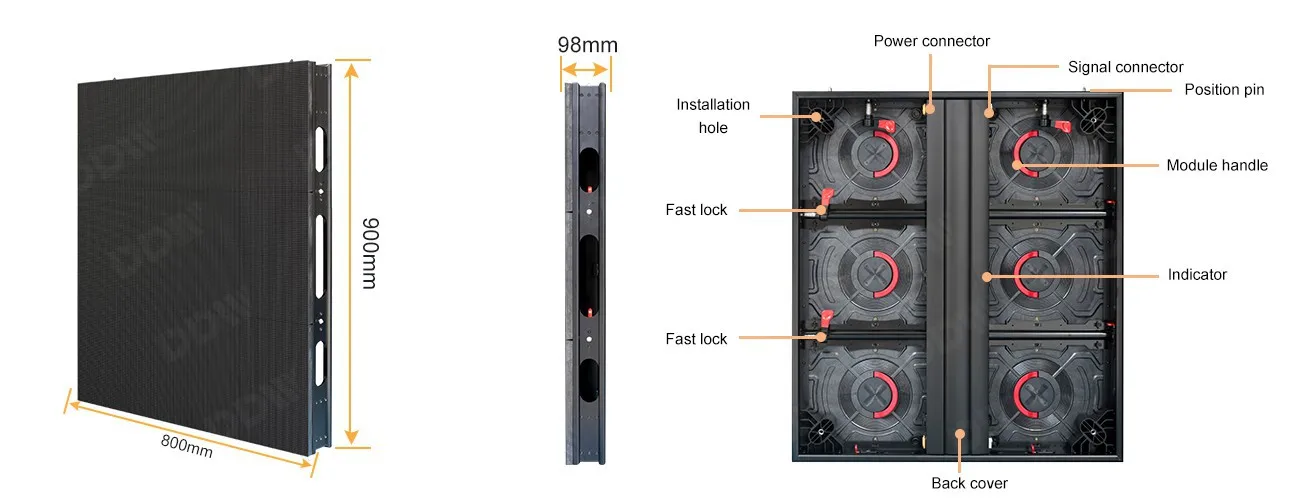

800x900x98mm/800x1200x98mm

FE series High-end energy saving LED screen

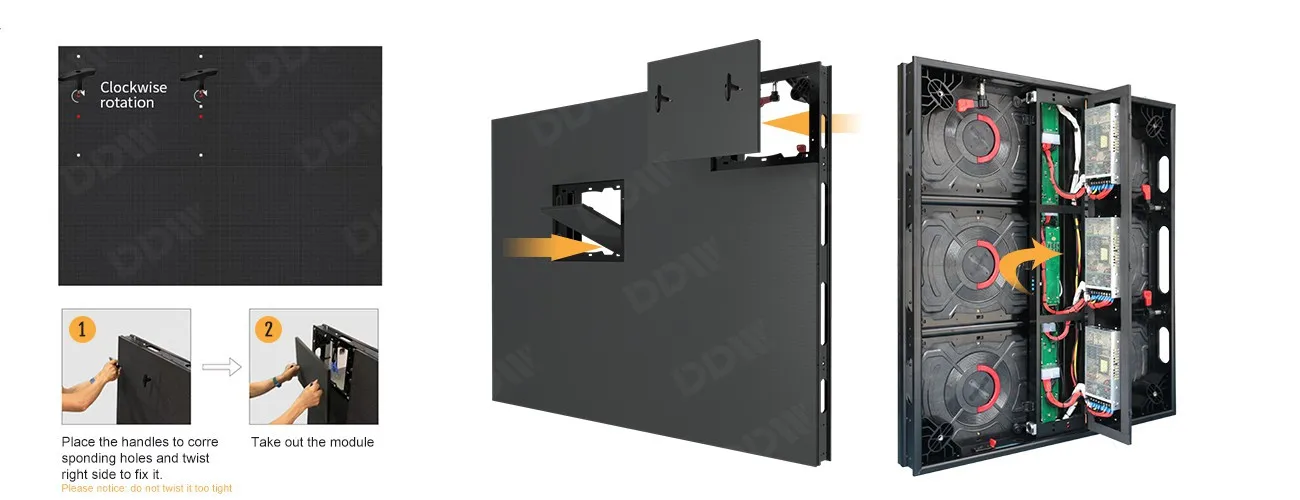

Front and rear maintenance

Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and disassemble easily and quickly.

FE series High-end energy saving LED screen

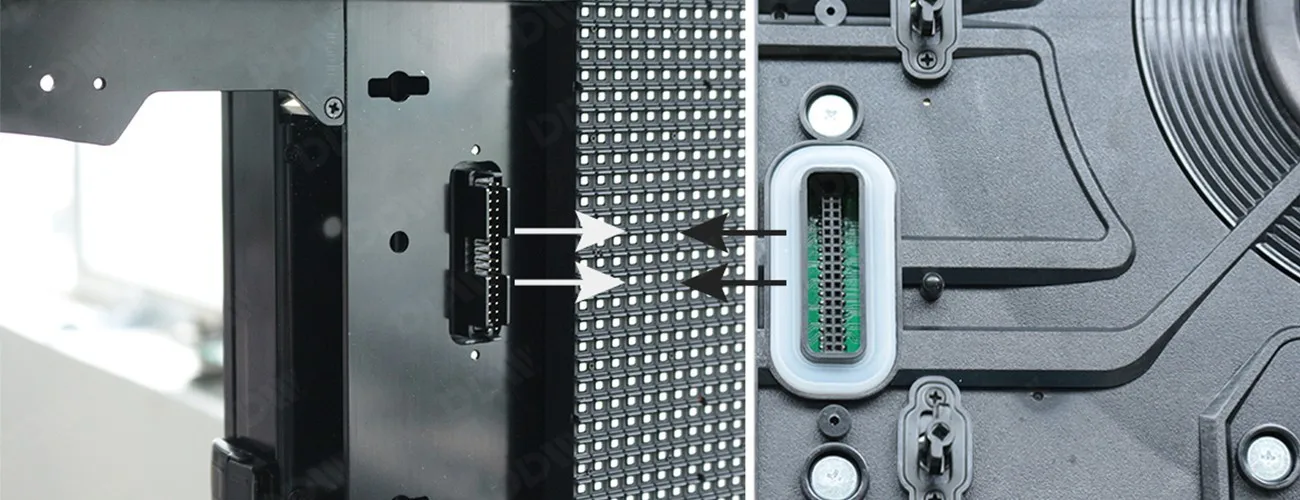

Hot-swapping technology

Hard connection supports full front access

FE series High-end energy saving LED screen

Installation

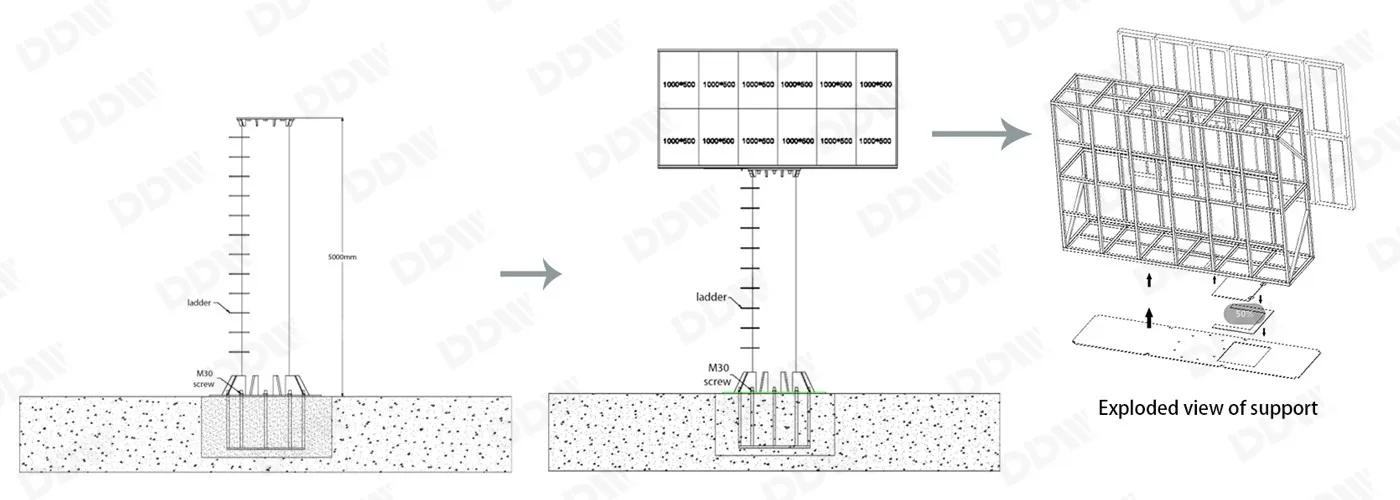

Installation Diagram
FE series High-end energy saving LED screen

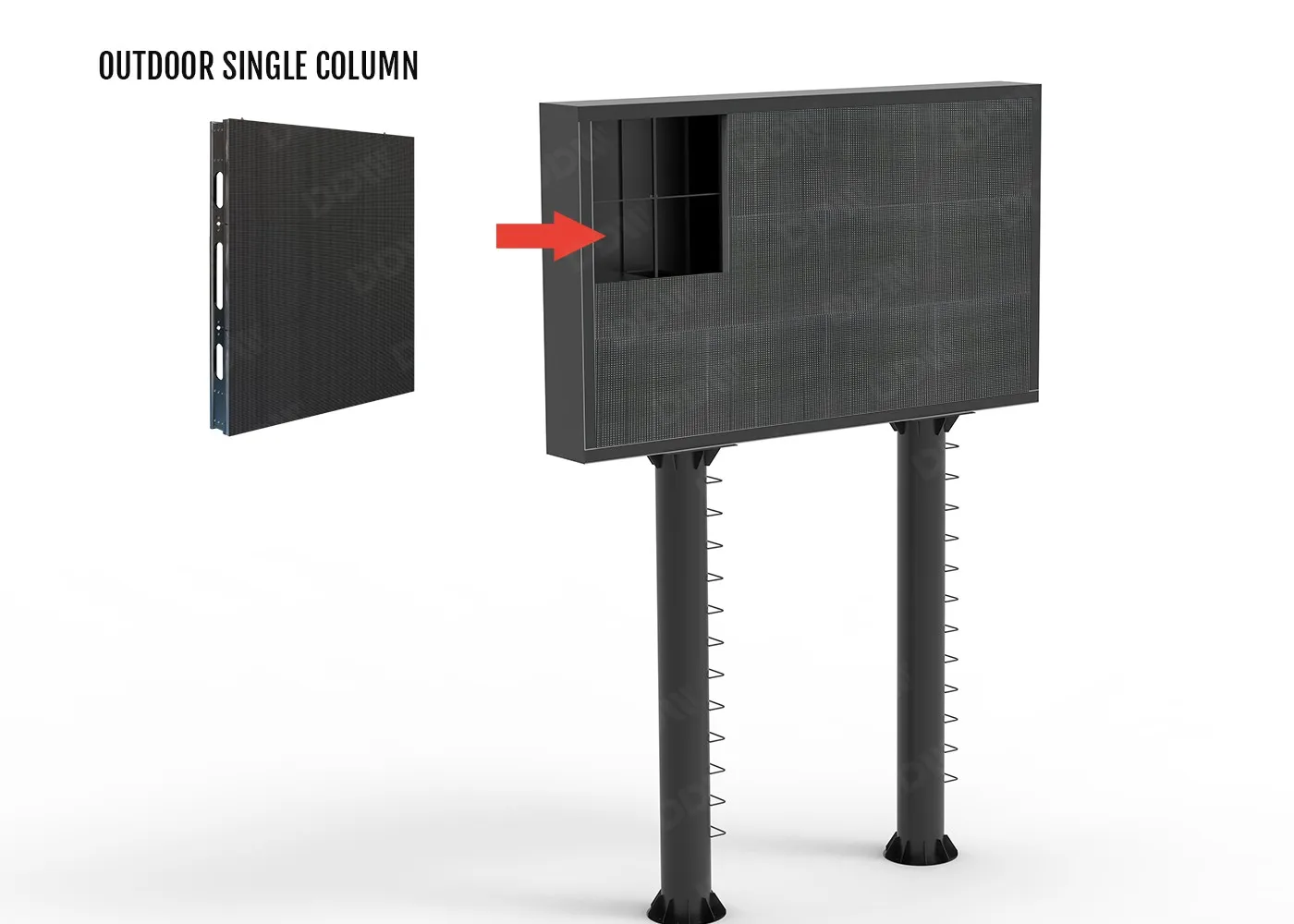

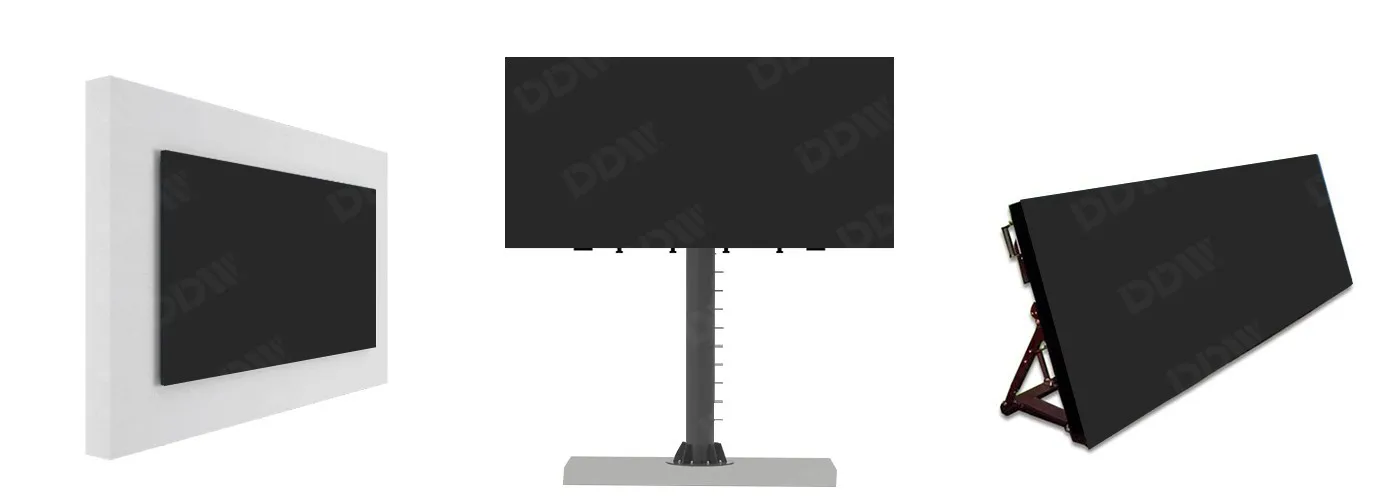

Wall hanging/single column/vertical support
FE series High-end energy saving LED screen

Specifications

  P4.16 P5 P6.25 P8.33 P10
SMD type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Physical density(dots/sqm) 57600 40000 25600 14400 10000
Module resolution 96X72 80X60 64X48 48X36 40X30
Module dimension 400X300 400X300 400X300 400X300 400X300
Module quantity(W×H) 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4
Panel resolution(W×H) 192X216 / 192X288 160X180 / 160X240 128X144 / 128X192 96X108 / 96X144 80X90 / 80X120
Panel size(mm) 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200
Flatness(mm) ≤0.015 ≤0.015 ≤0.015 ≤0.015 ≤0.015
Maintenance mode Front & Rear Front & Rear Front & Rear Front & Rear Front & Rear
Brightness(nits) 6500 6500 6500 6500 6500
Color temperature(K) 3200-9300 optional 3200-9300 optional 3200-9300 optional 3200-9300 optional 3200-9300 optional
Grey scale 65536 65536 65536 65536 65536
Viewing angle(V/H) 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160°
Contrast ratio 5000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00
Frame-changing frequently 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Drive mode Constant current Constant current Constant current Constant current Constant current

1/6 scale 1/6 scale 1/6 scale 1/3 scale 1/2 scale
Refresh rate 3840 3840 3840 3840 3840
Max power consumption(W/m2) 600-800 600-800 600-800 600-800 600-800
Avg. power consumption(W/m2) 100-200 100-200 100-200 100-200 100-200
Electric power requirements AC90-264V AC90-264V AC90-264V AC90-264V AC90-264V

47-63Hz 47-63Hz 47-63Hz 47-63Hz 47-63Hz

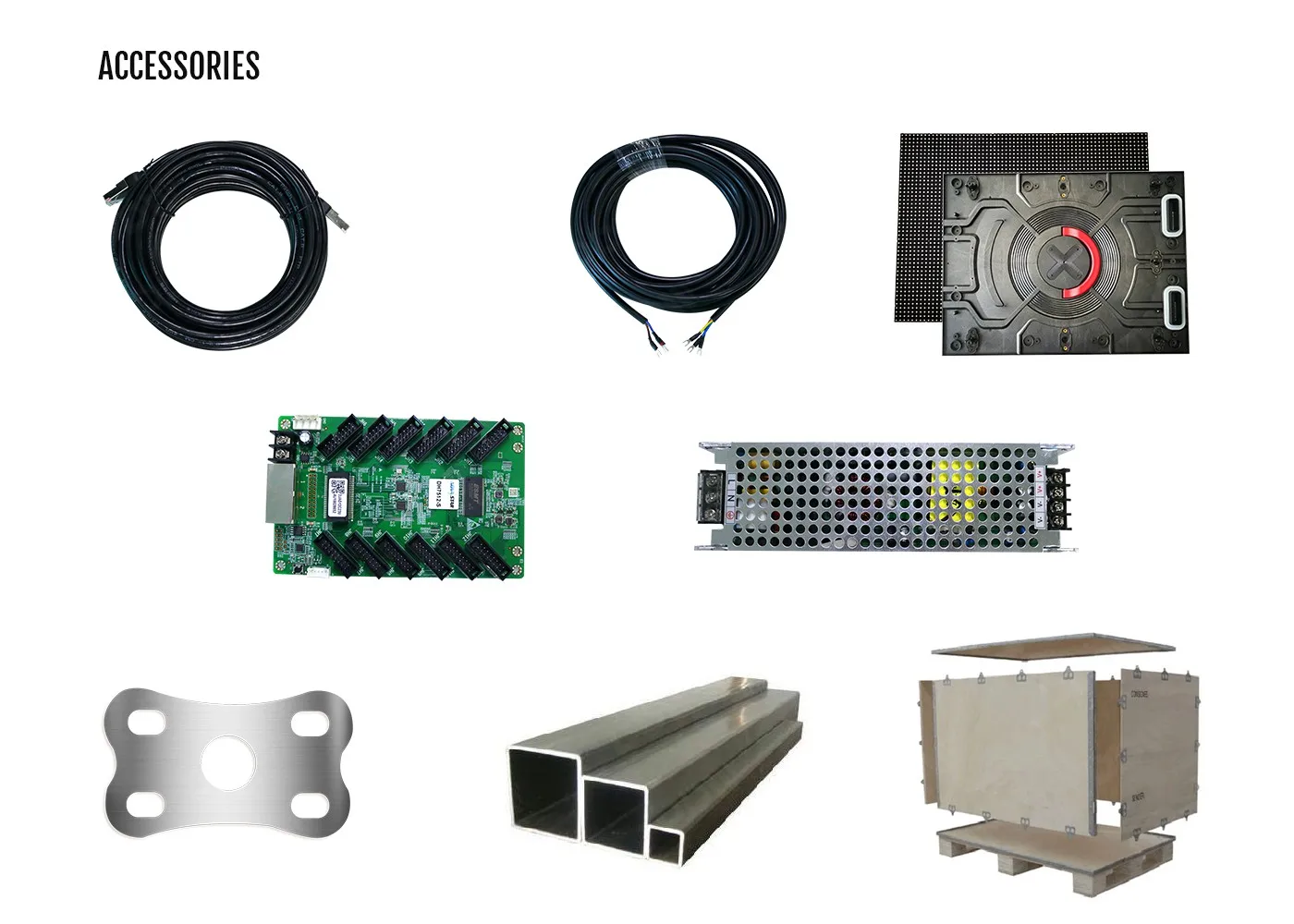

Accessories

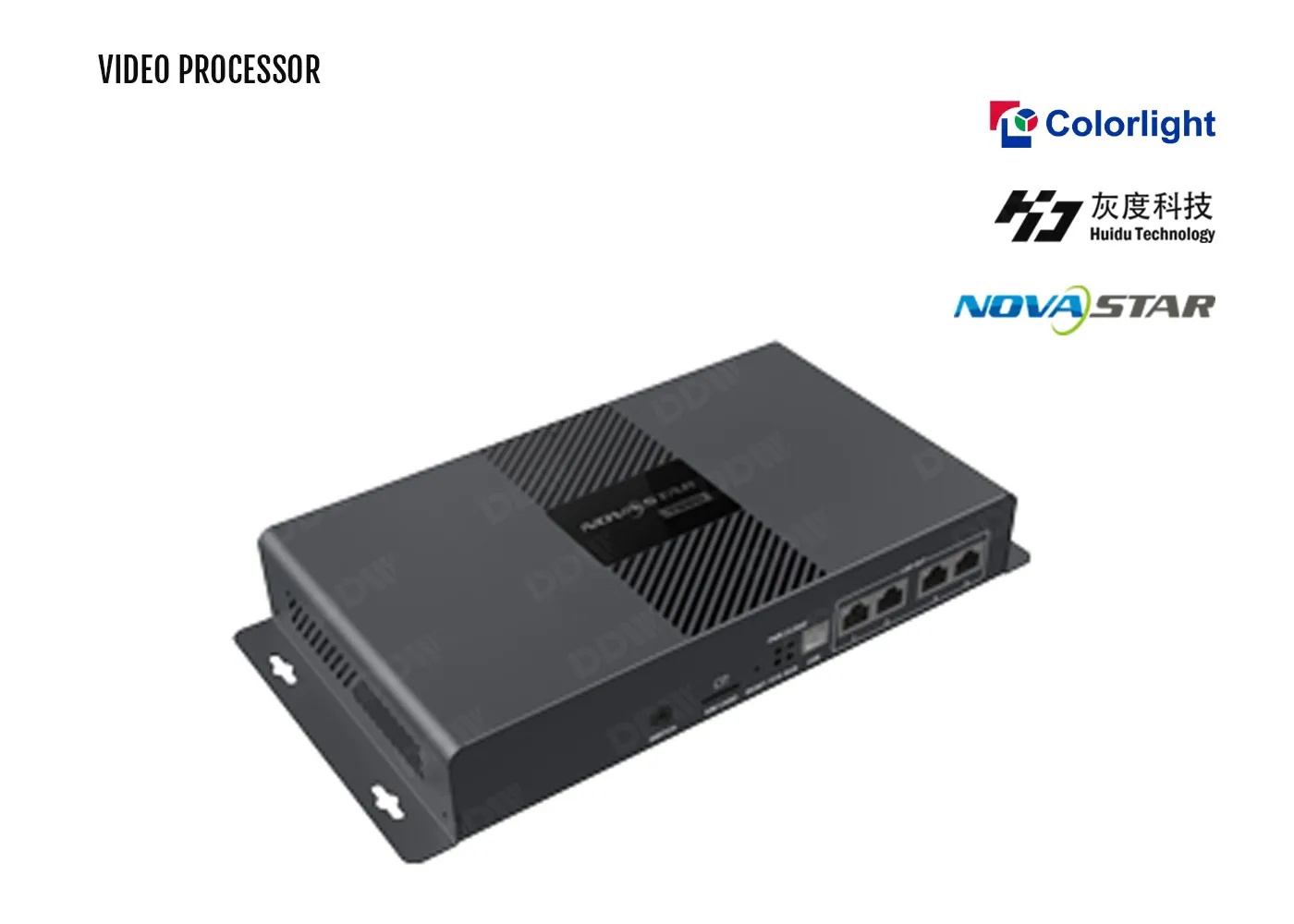

Sending box
Sending box
Power Supply
Power Supply
Pickup card
Pickup card
Outdoor Movable power cabinet
Outdoor Movable power cabinet
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Power cabinet

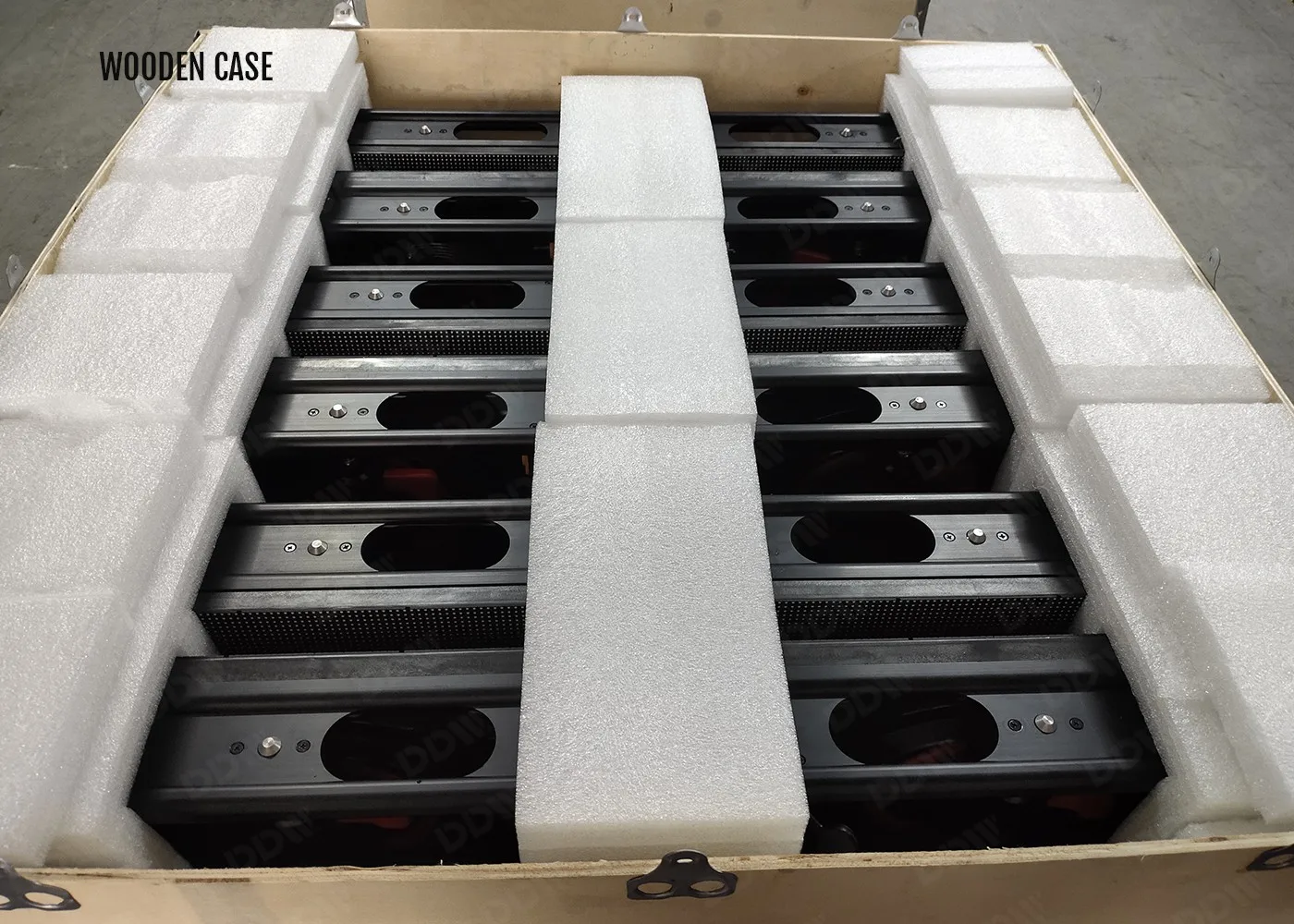

Wooden case packing
Wooden case packing

Related Products

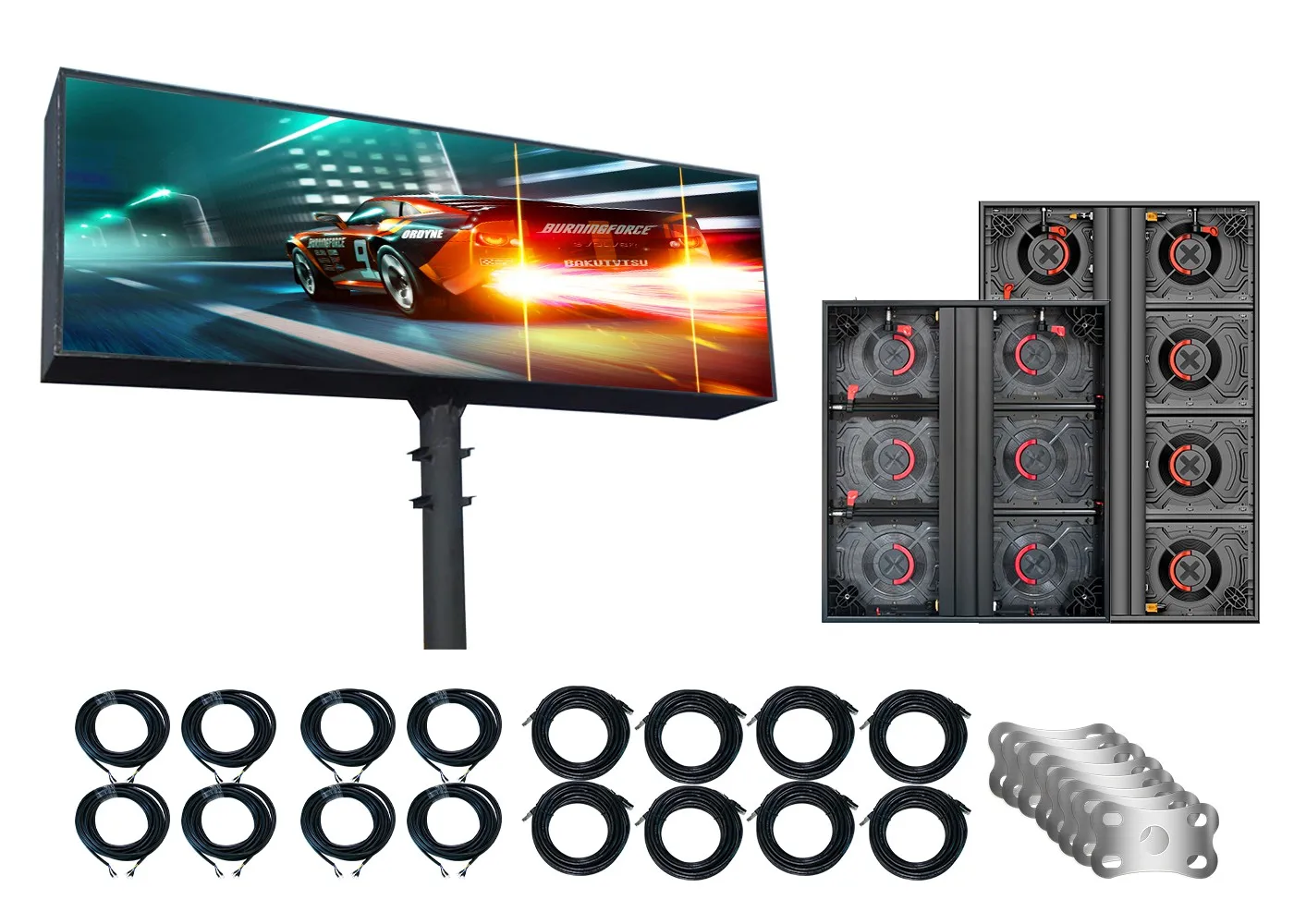

FO series Outdoor LED screen
FO series Outdoor LED screen

FO series is a high-end outdoor LED display carefully designed in quality and detail, which is used for outdoor fixed installation. It is the most common and widely used outdoor display screen.

Learn More>
FA series Aluminum Outdoor LED screen
FA series Aluminum Outdoor LED screen

P5.7 P6.67 P8 P10 960x960(mm) 10000nits brightness IP65 outdoor screen

Learn More>
FH series Outdoor LED screen
FH series Outdoor LED screen

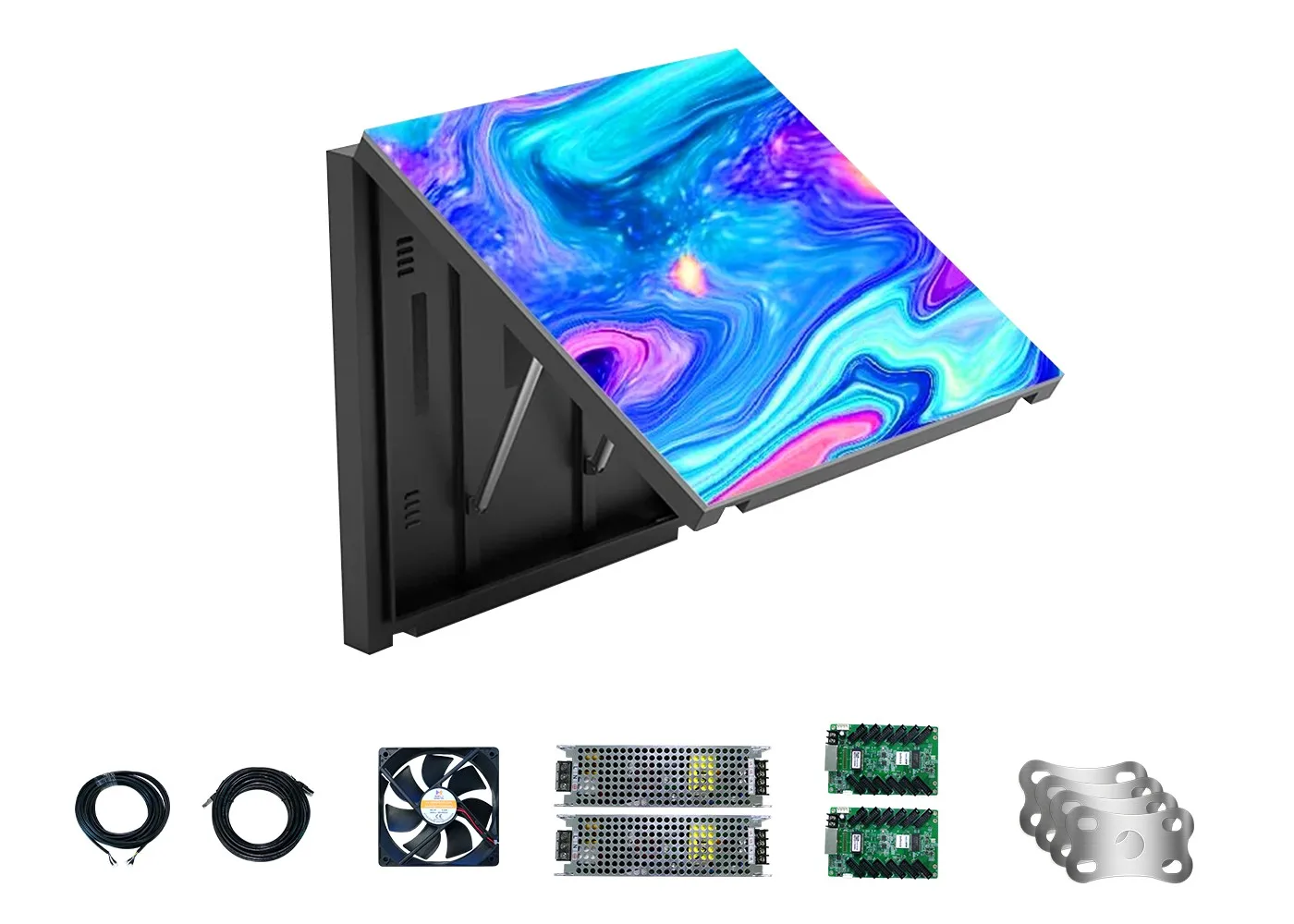

FH series is a fixed led display which support hydraulic rod openable LED display, which is suitable for outdoor fixed installation. Its main feature is that the entire led screen can be openable by just release the hydraulic bracket. We can do friendly and quick maintanence while open the front door. It’s a flexible outdoor led display.
